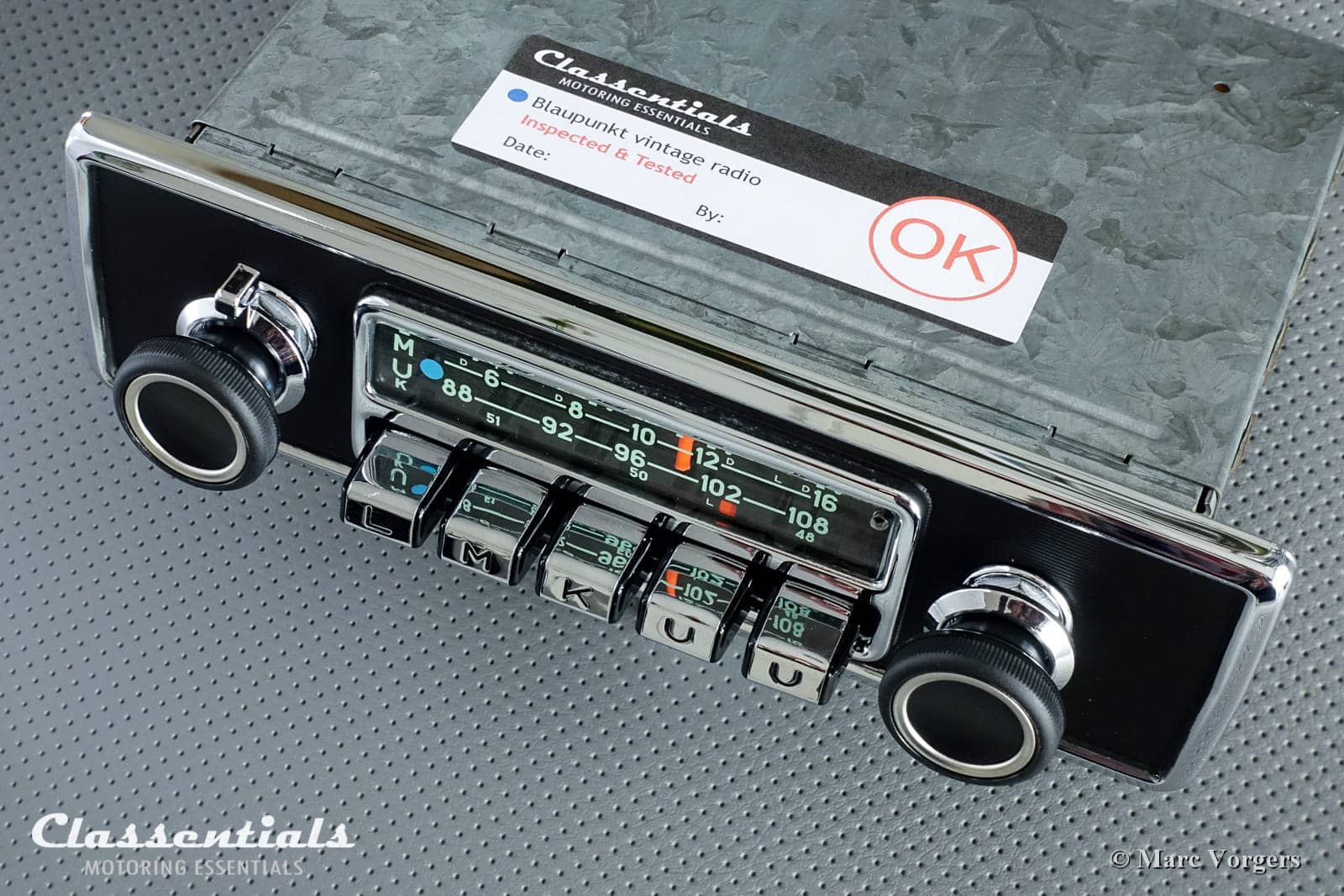

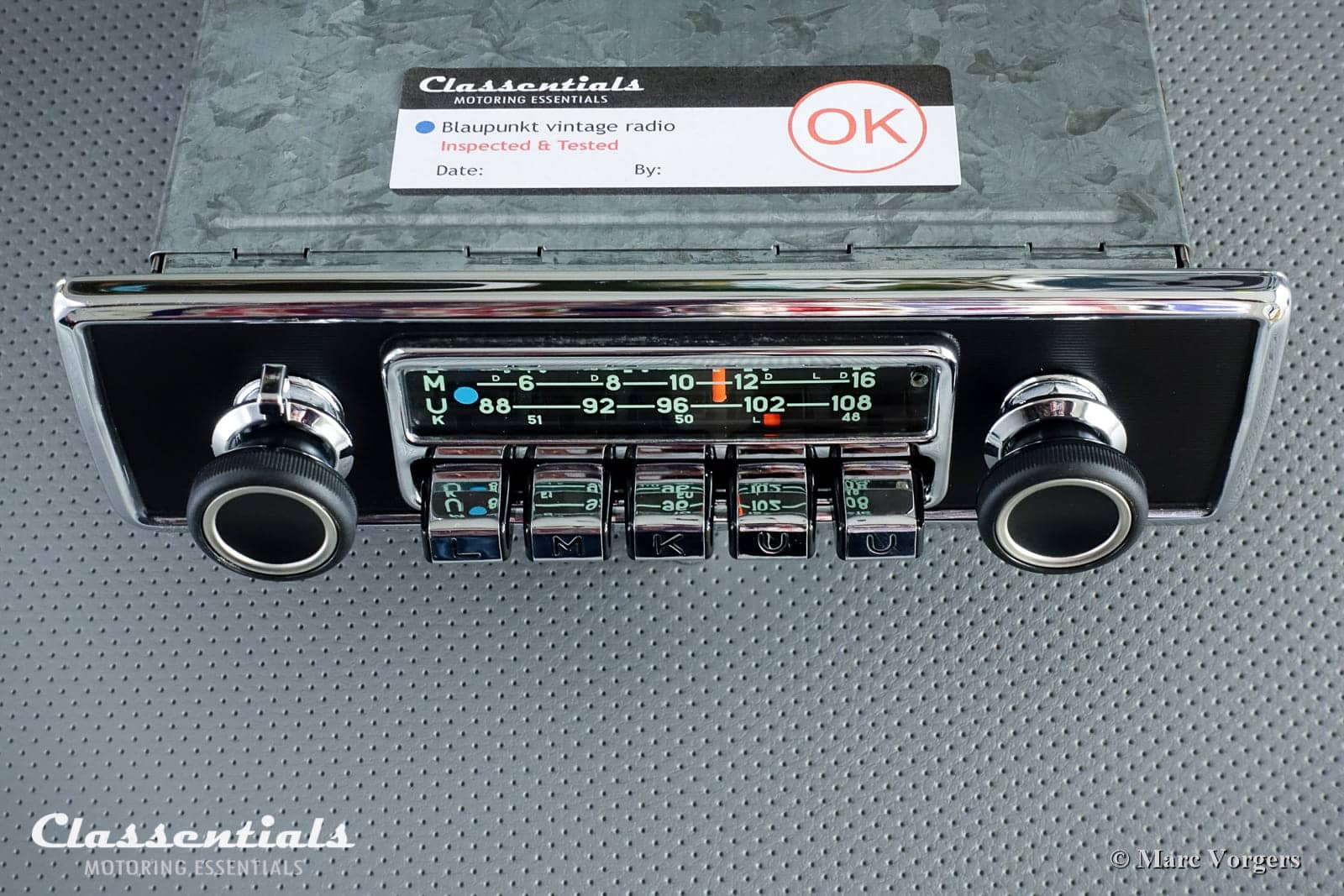

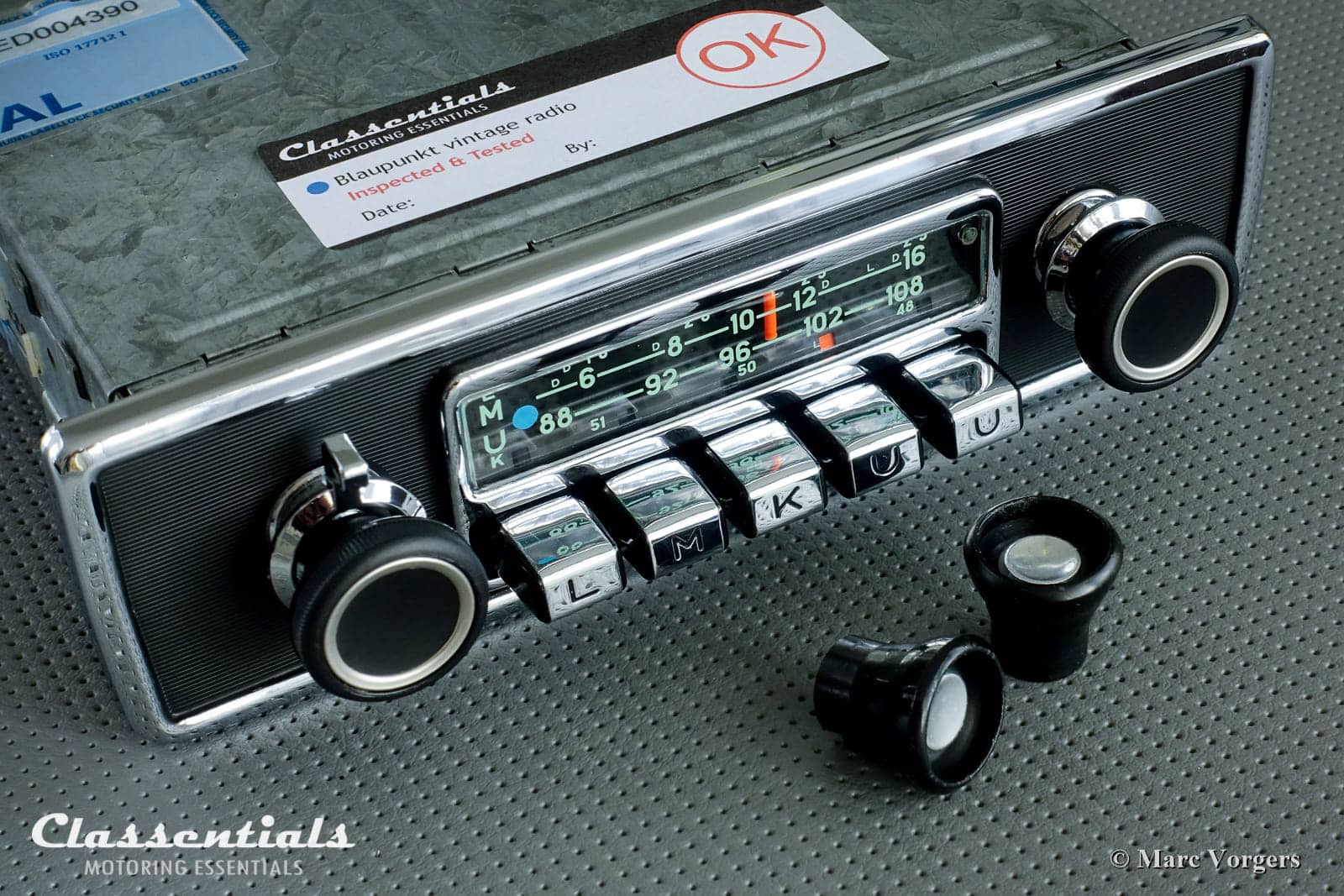

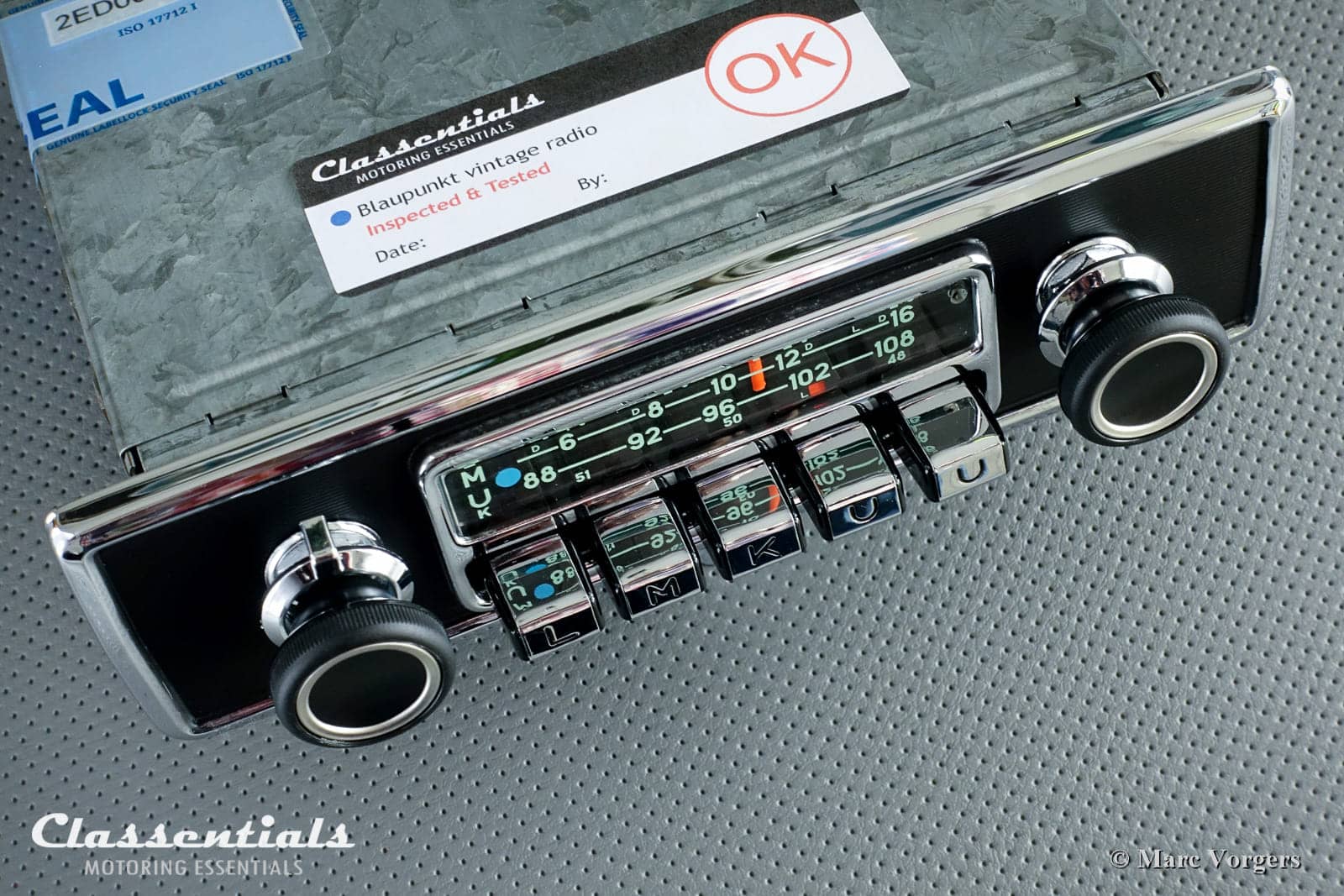

Make and Model: Blaupunkt Karlsruhe (Type 7632)
Classic Car era: 1968 – 1973

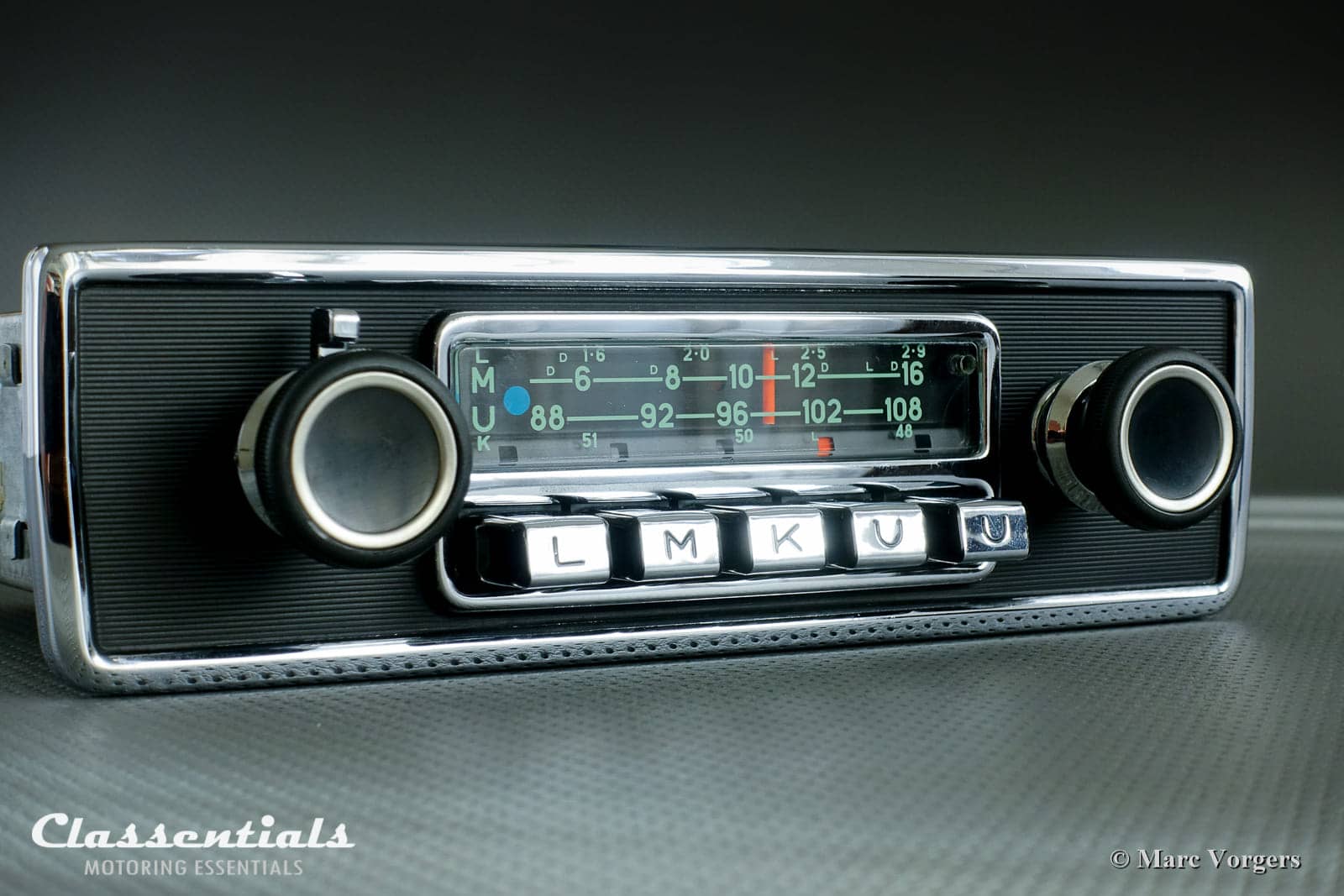

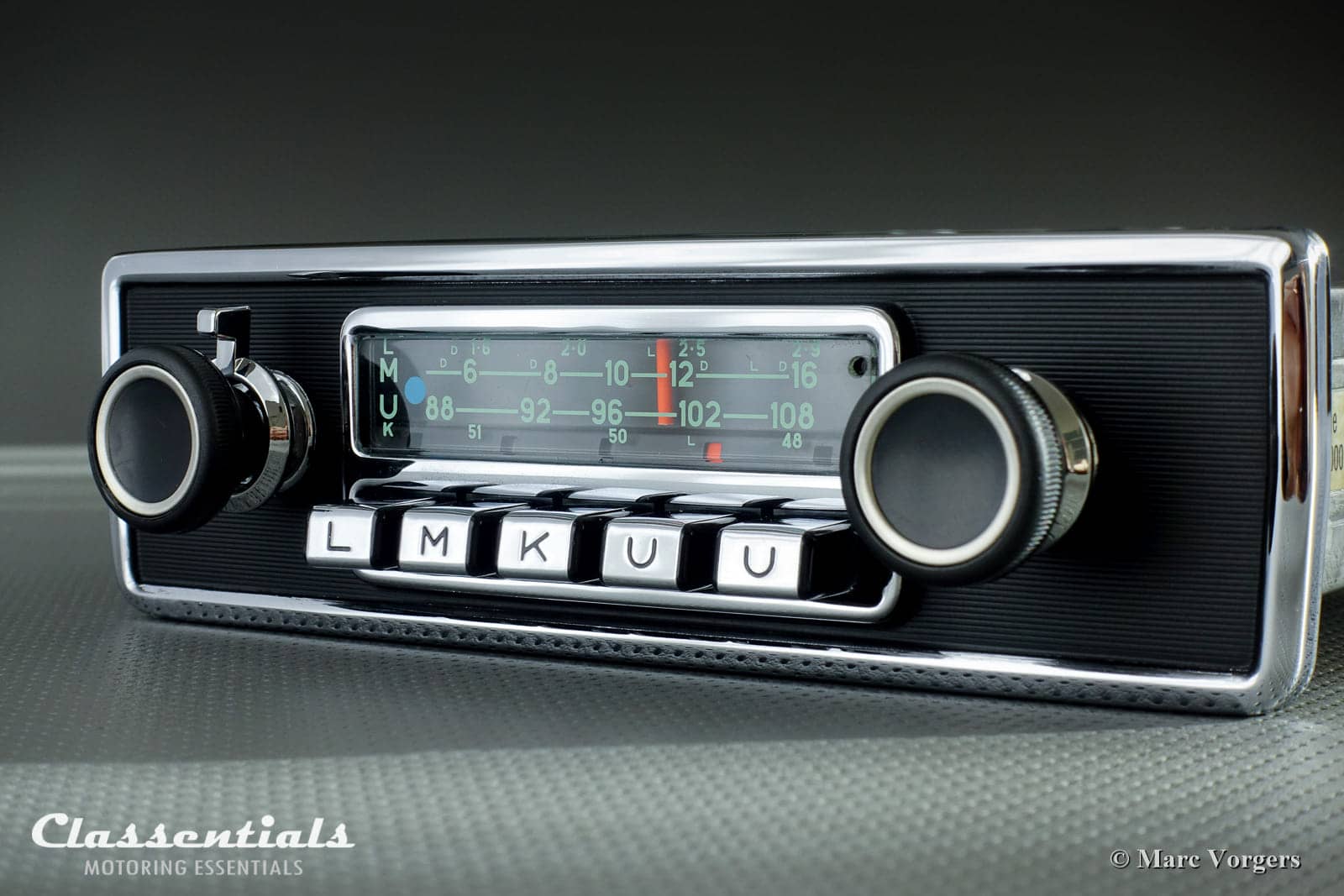

Face-plate: Luxury metal chrome with black finish for BMW CS, CSL, CSI, Jaguar E-type S2, Ferrari and other classics of the period 1968 – 1973.
On-board voltage: 12V, Negative earth / ground only
Output power: Nominal / Music – 5 / 7 Watt
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: long wave, medium wave, short wave, UKW (FM)
Frequency range UKW (FM): 88MHz-108MHz
Equipment: Tone control, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio
Year of build: 1972
Dimensions unit (width x height x depth in mm): 177 x 42 x 150 (back to front of face-plate)
Dimensions face-plate (width x height in mm): 205 x 59
Weight (kg): 1.3

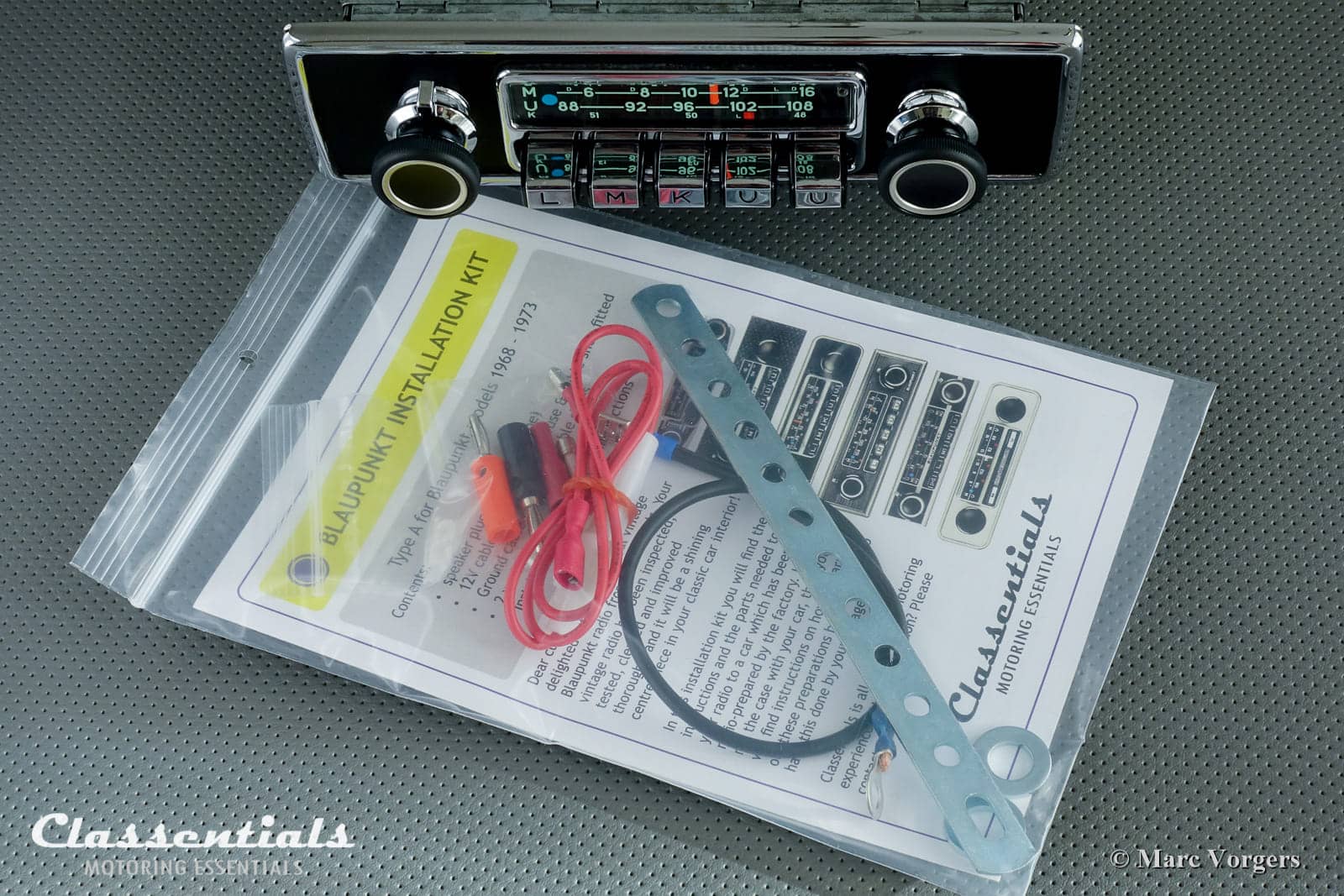

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, 12V wire with fuse, spare fuse, earth / ground cable, extra M10 mounting rings and a rear mounting bracket (see pictures).
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

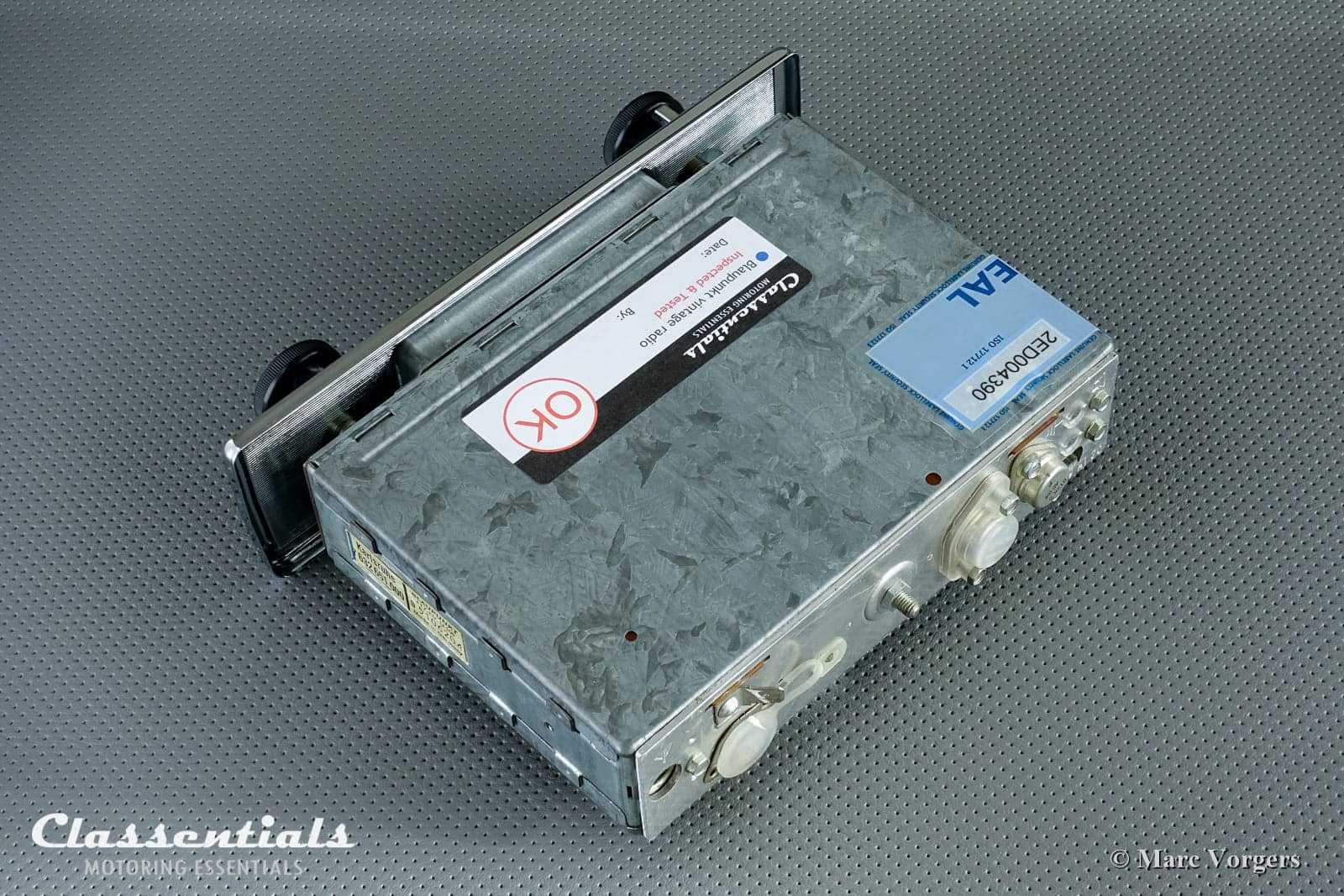

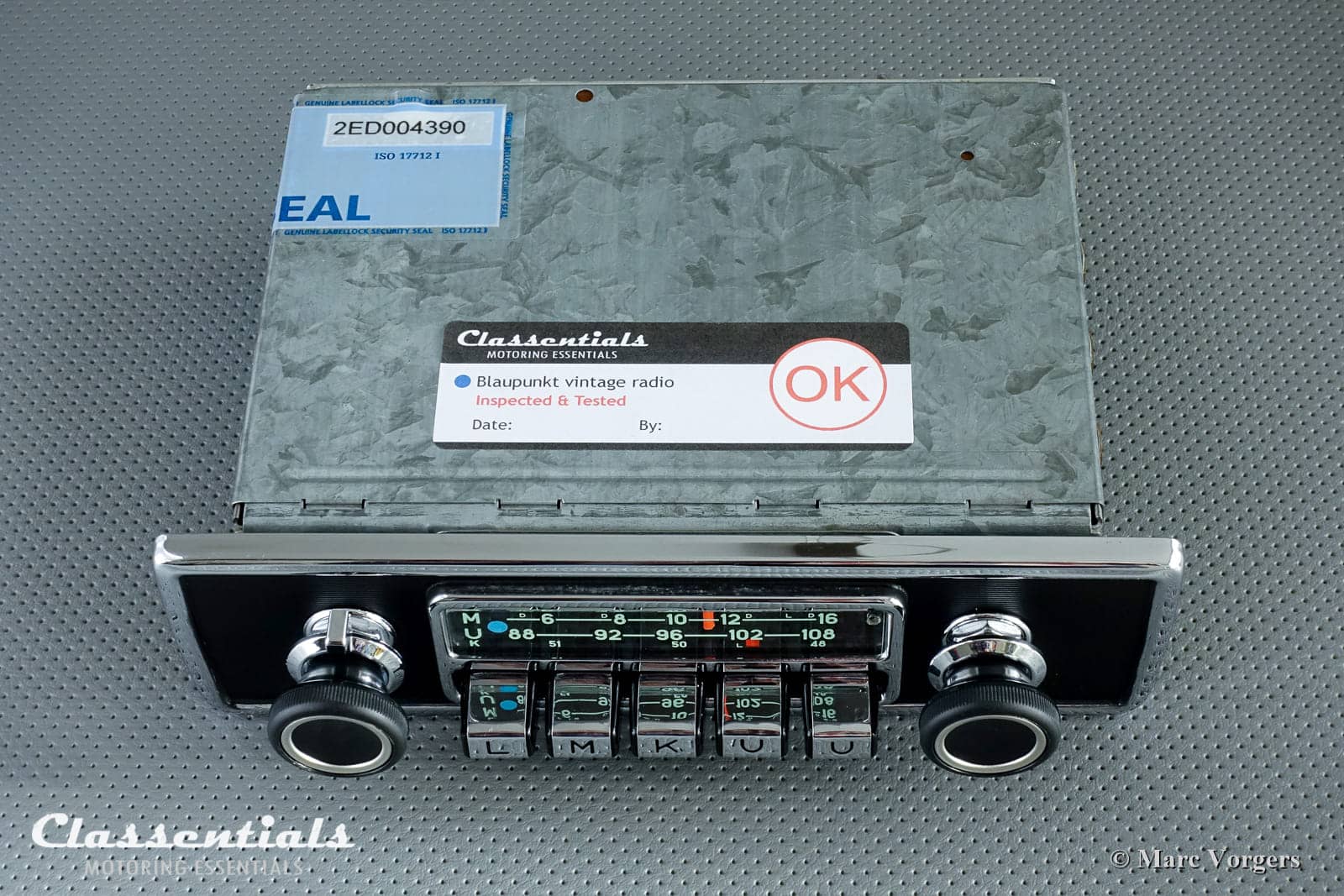

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
