Make and Model: Blaupunkt Frankfurt V (1964), W (1965) or X (late 1965/ early 1966)
Classic Car era: 1960 – 1970

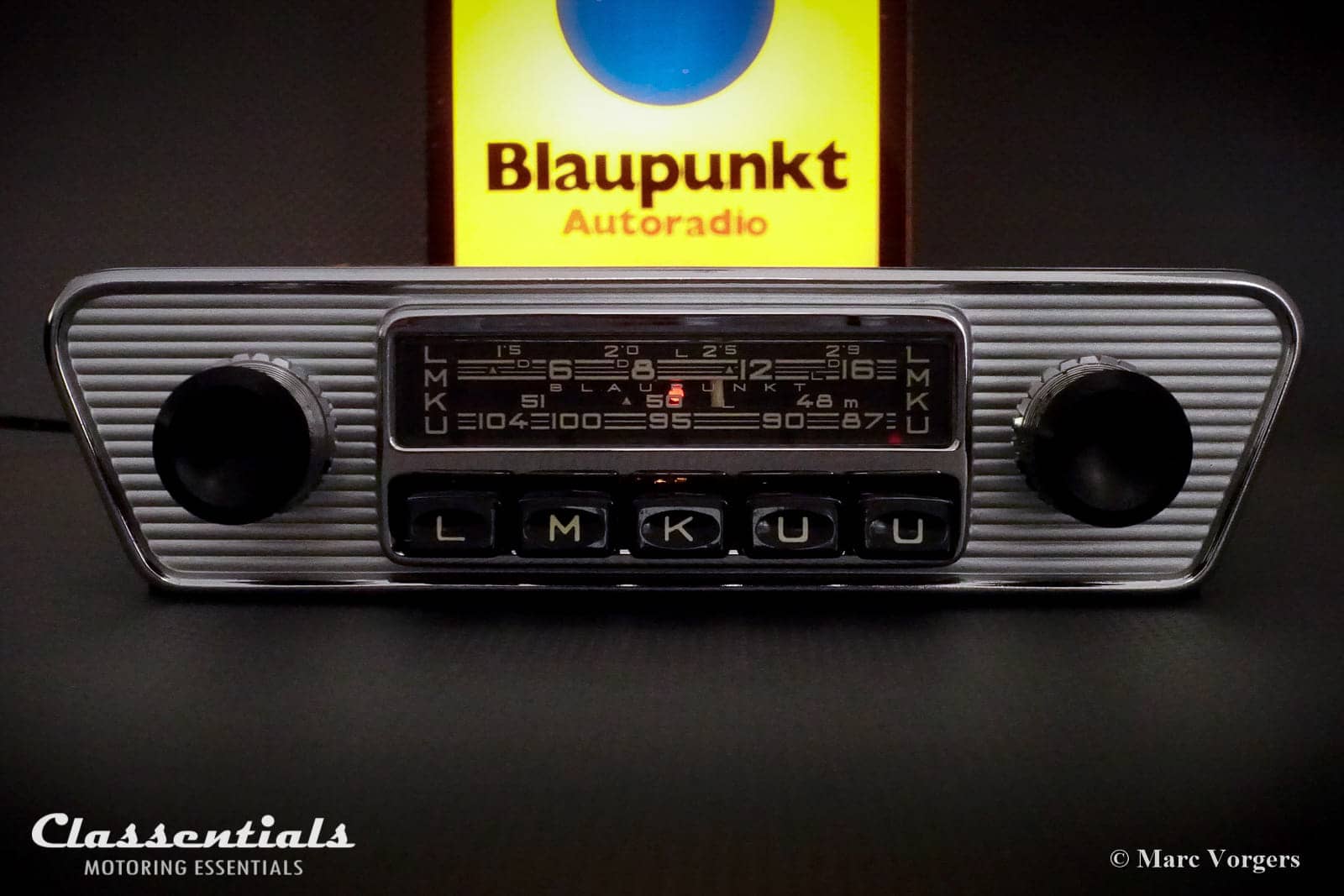

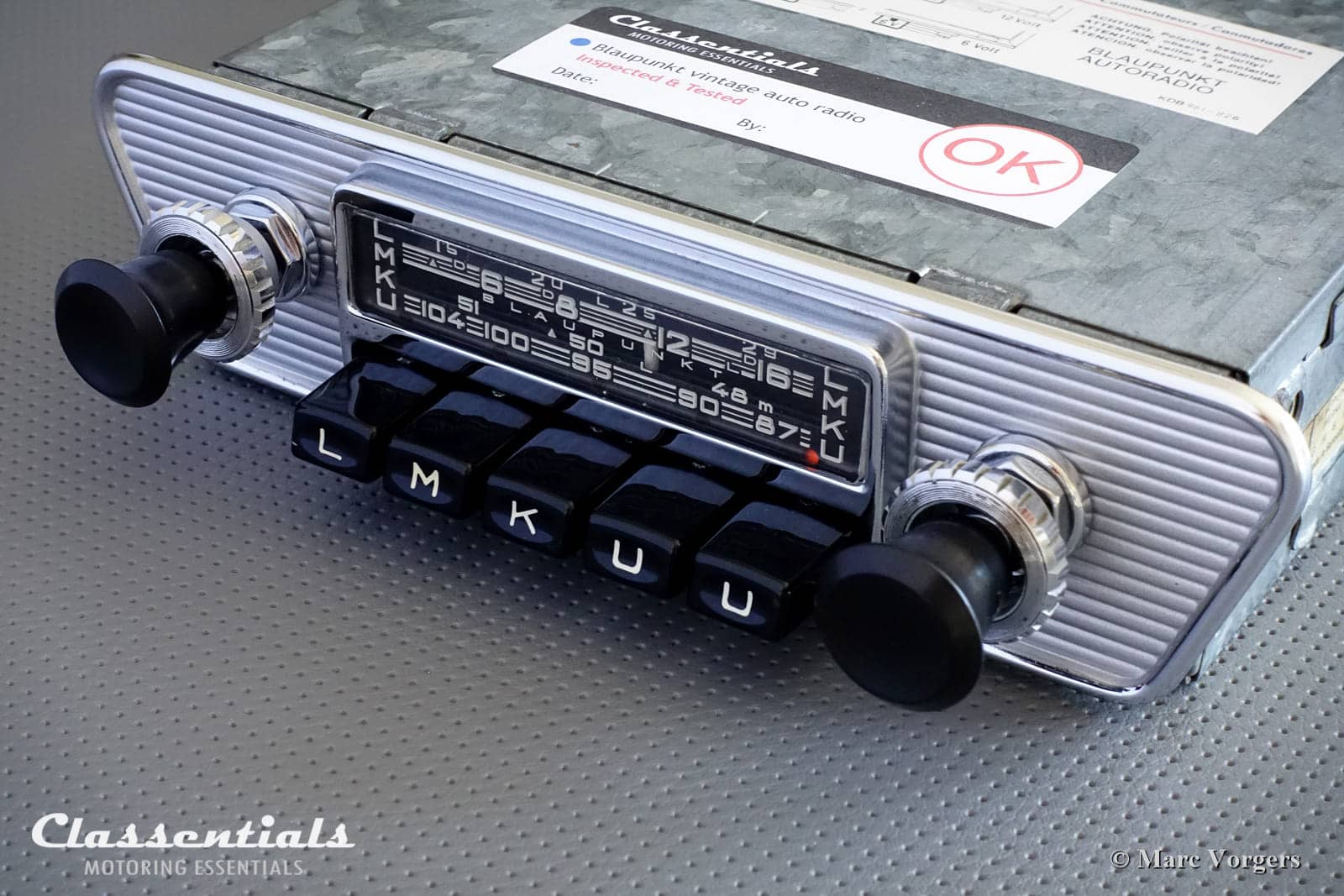

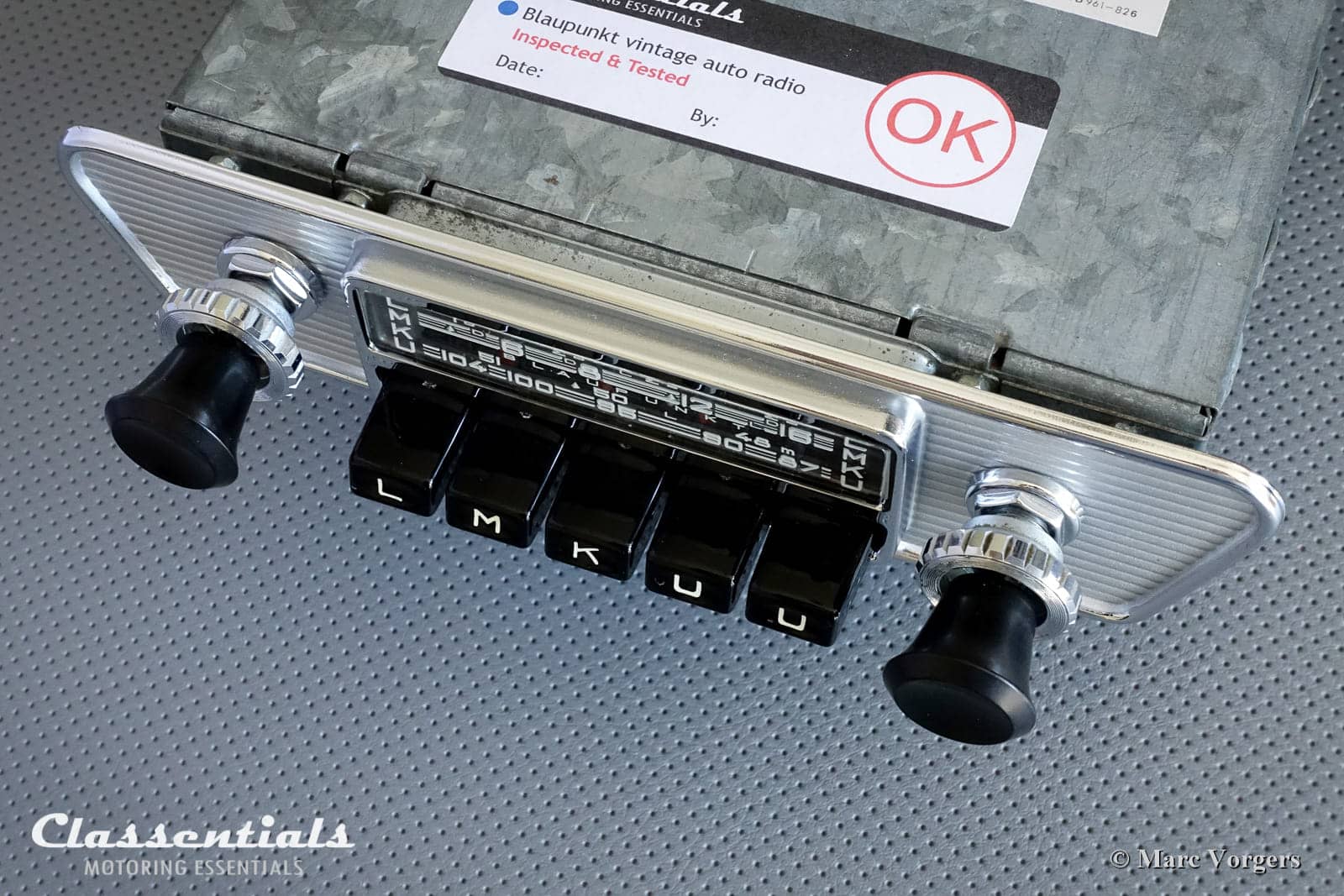

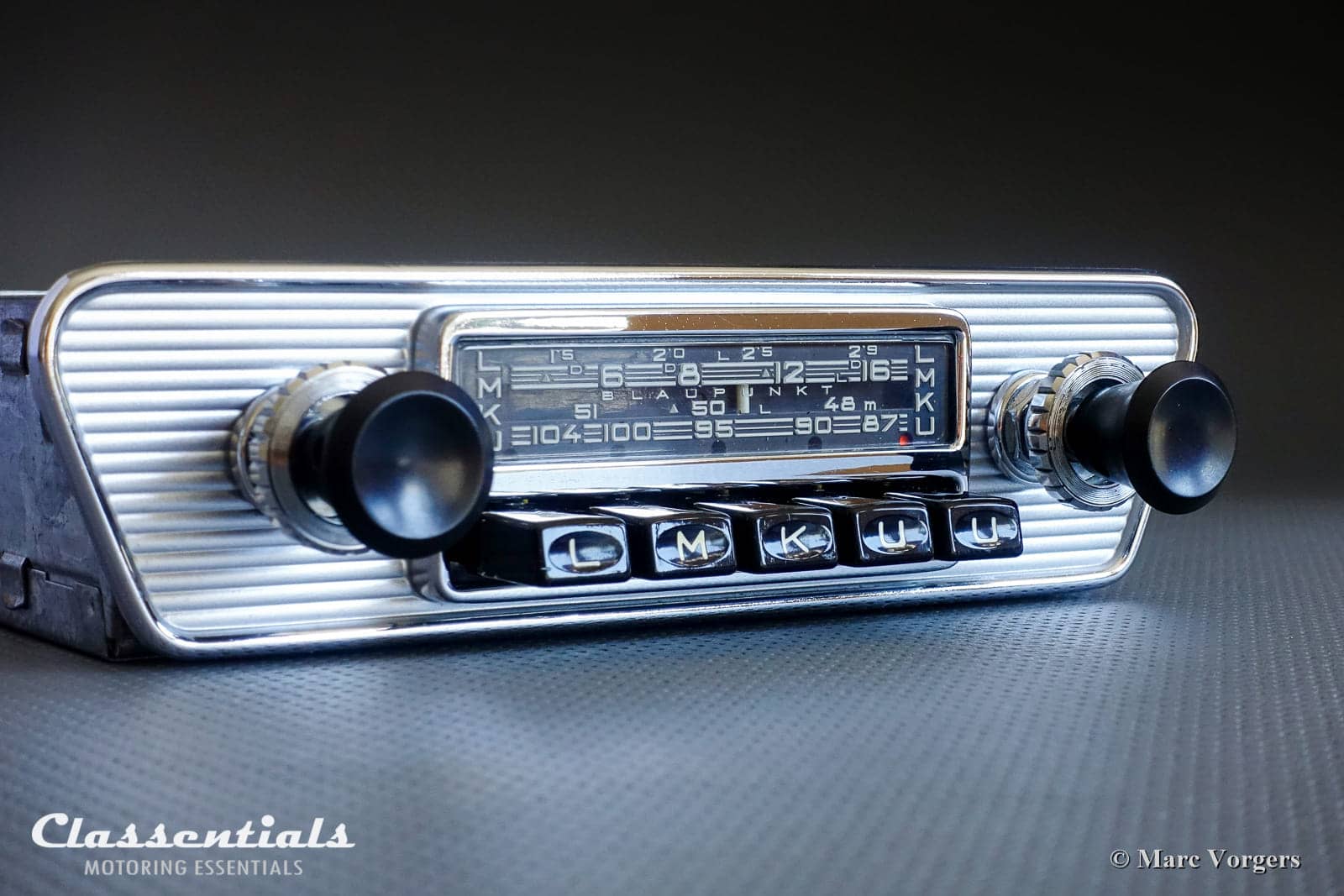

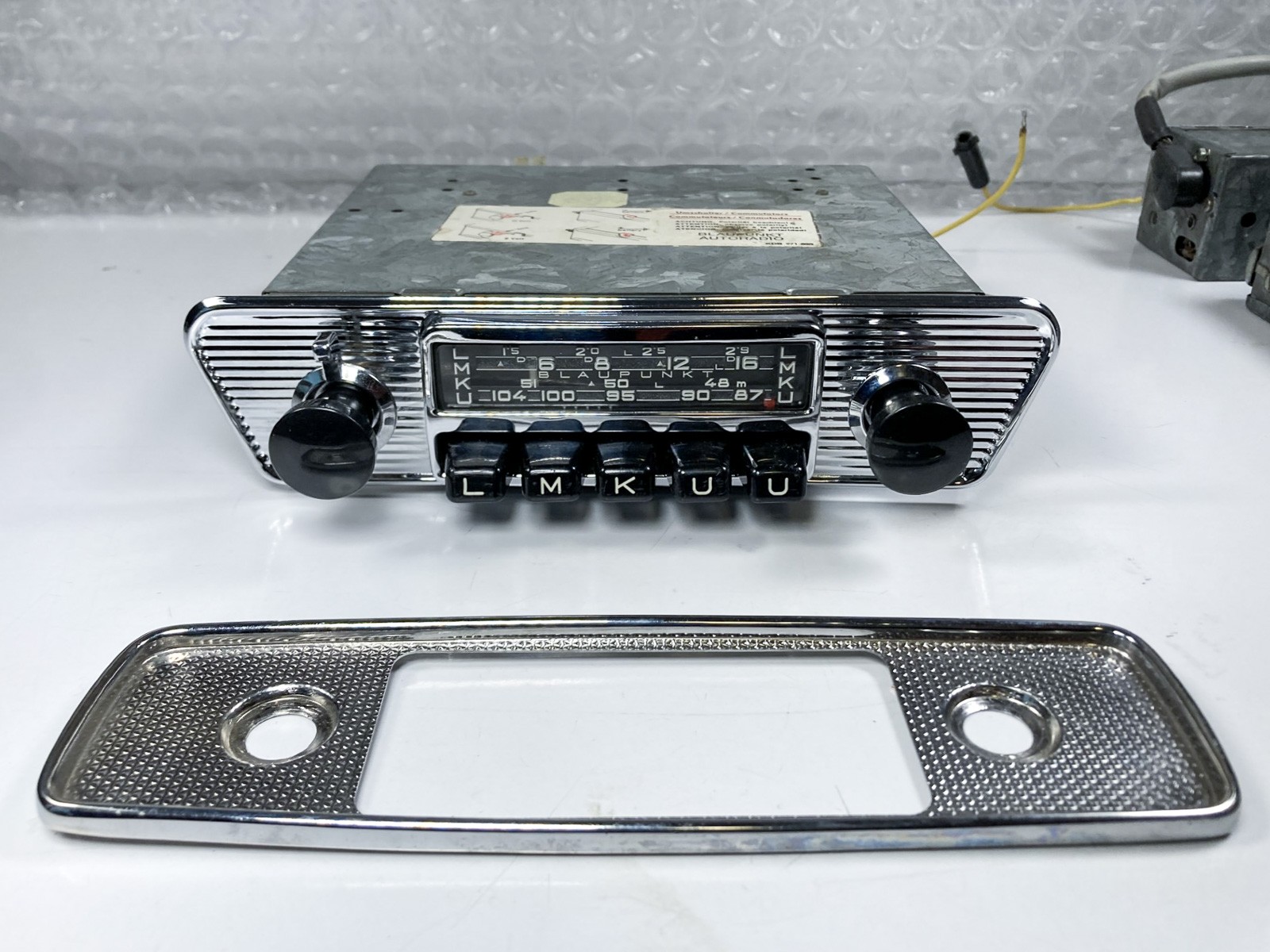

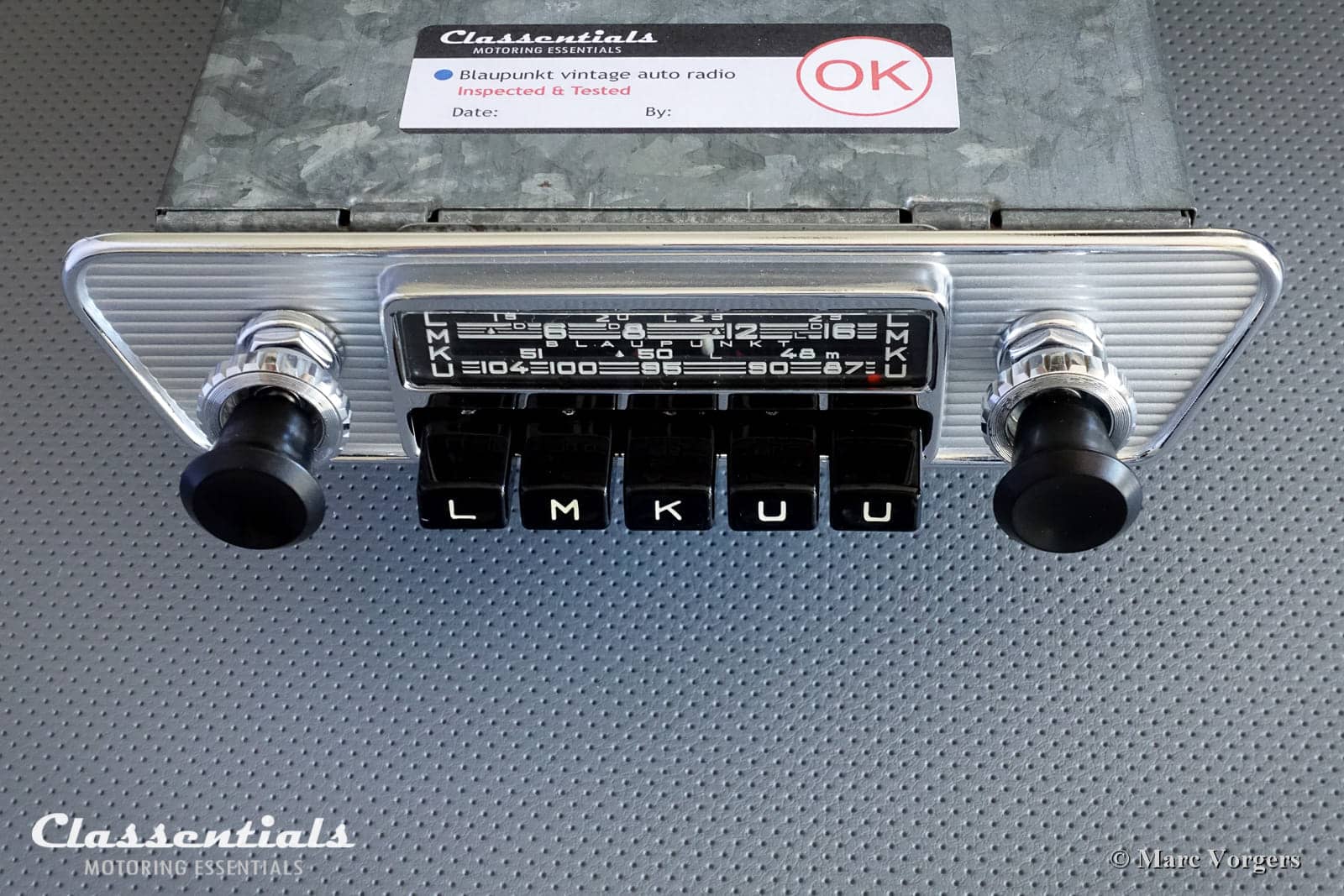

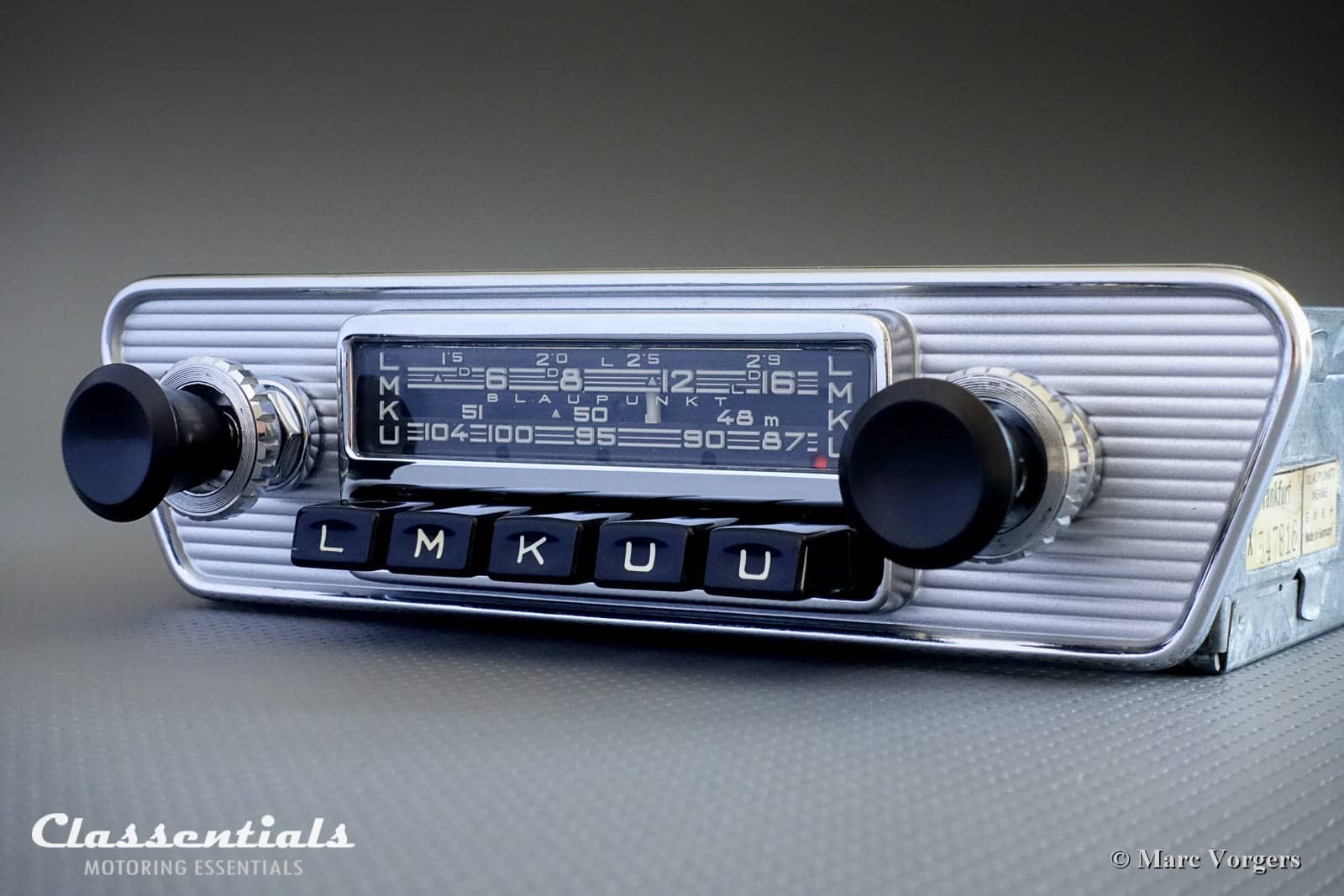

Face-plate: Jaguar E-type (XK-E) Series 1 and series 1.5 chrome / silver painted face-plate (full chrome on application) with black fluted bakelite knobs. In period this face-plate was also used on certain Fiat, Lancia and Volkswagen models.
On-board voltage: 6V and 12V (switch), Negative OR positive earth / ground (switch)
Output power: 5 Watt nominal / 7 Watt music
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker via speaker socket “I”. Two 4 Ohm speakers connected parallel + to + and – to -, to make 2 Ohm for the speaker socket marked with “II”.
Wave Range: Long wave (L), Medium wave (M), Short Wave (K) and FM / UKW (U)
Frequency range UKW (FM): 88MHz – 104MHz.
Equipment: LMKUU station pre-set buttons (2 x U / FM), tone control, external amplifier.
Design type: Transistor radio
Year of build: 1964 (V-model), 1965/66 (W/X-models)

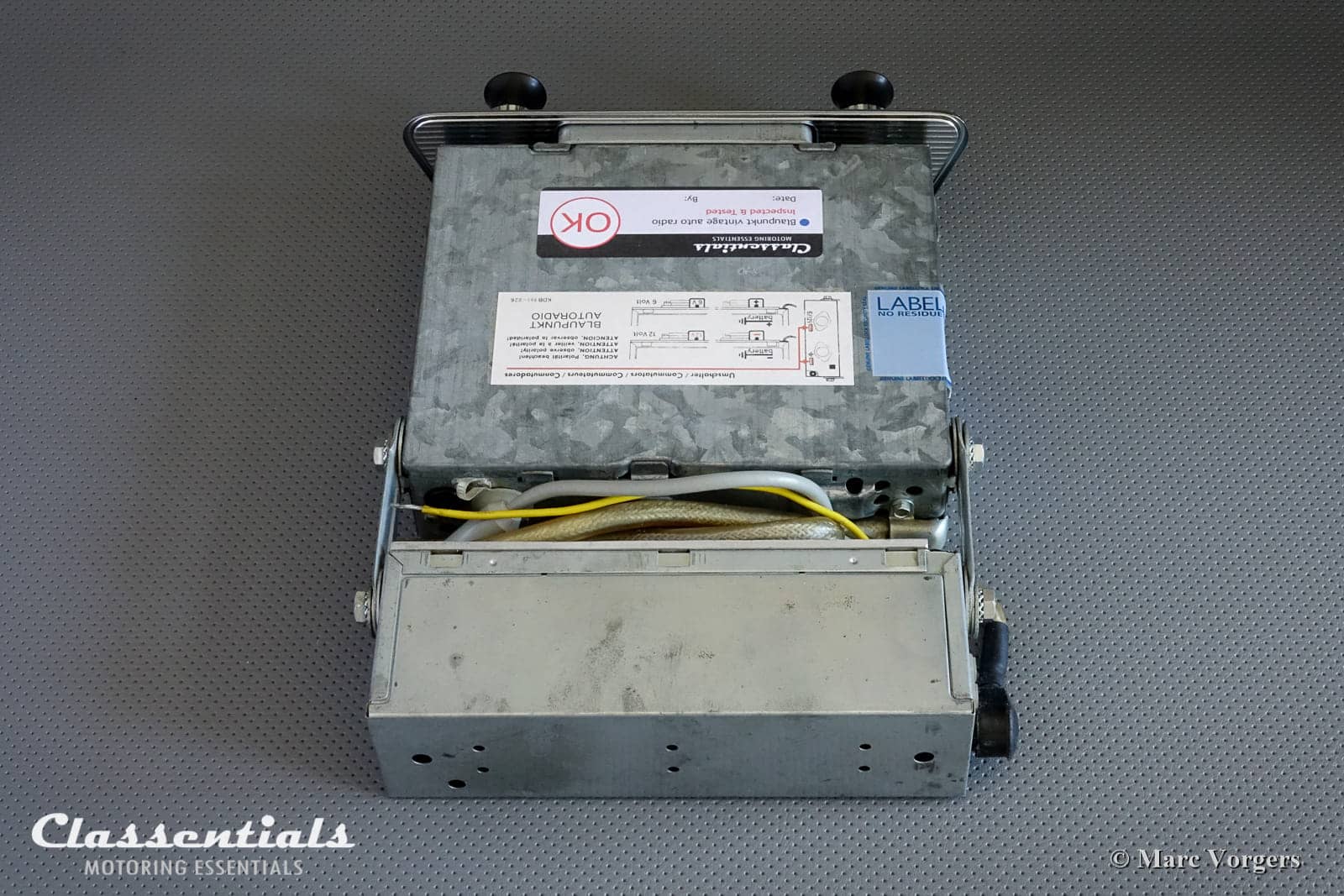

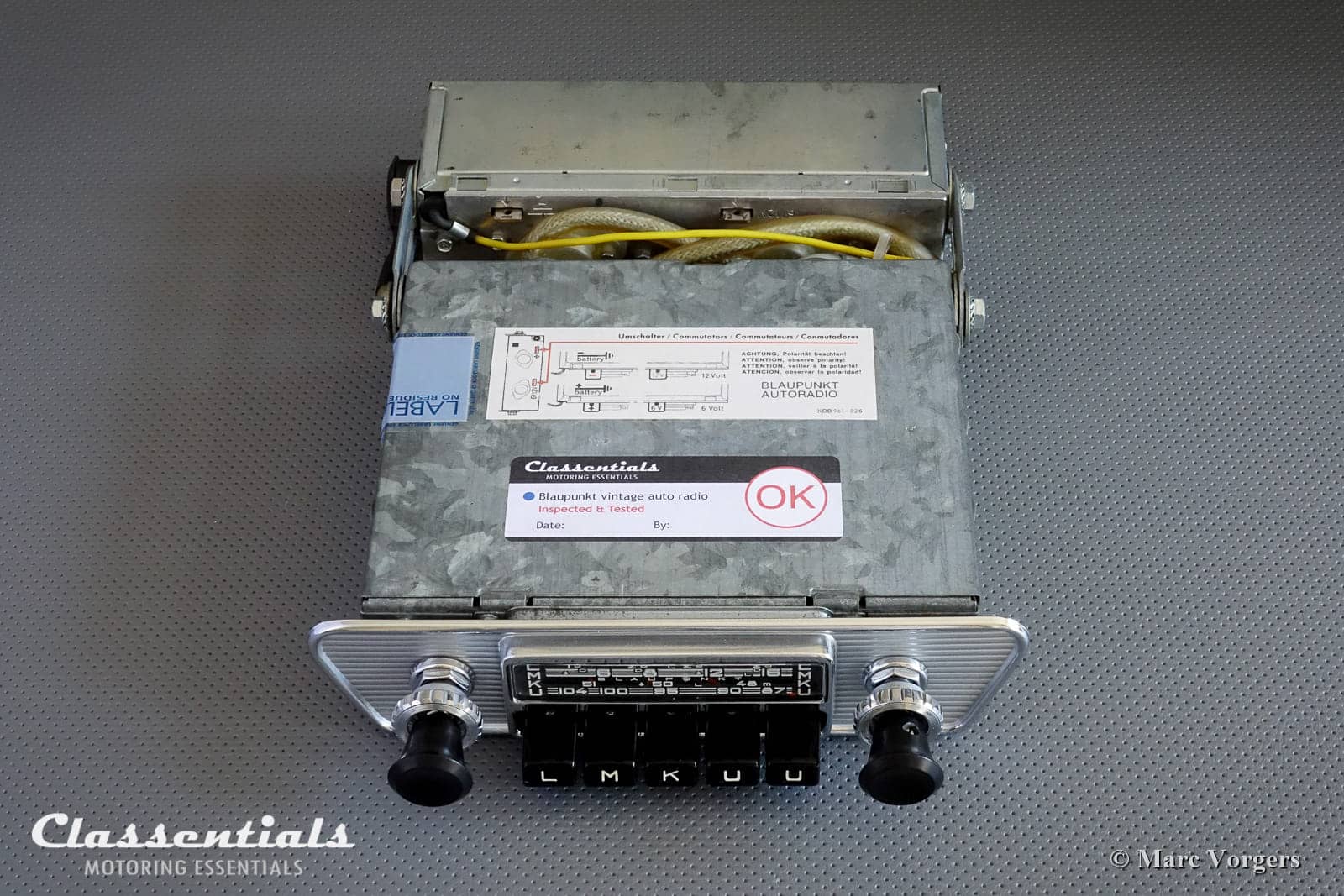

Dimensions unit (width x height x depth) Radio: 176 x 50 x 158 mm / 7,1 x 1,9 x 6,25 inch, Amplifier: 183 x 60 x 52 mm / 7,25 x 2,4 x 2,0 inch
Dimensions face-plate (width x height): 205 mm / 8,1 inch top, 170 mm / 6,7 inch bottom, height x 53 mm / 2,1 inch
Weight (kg): 2.8

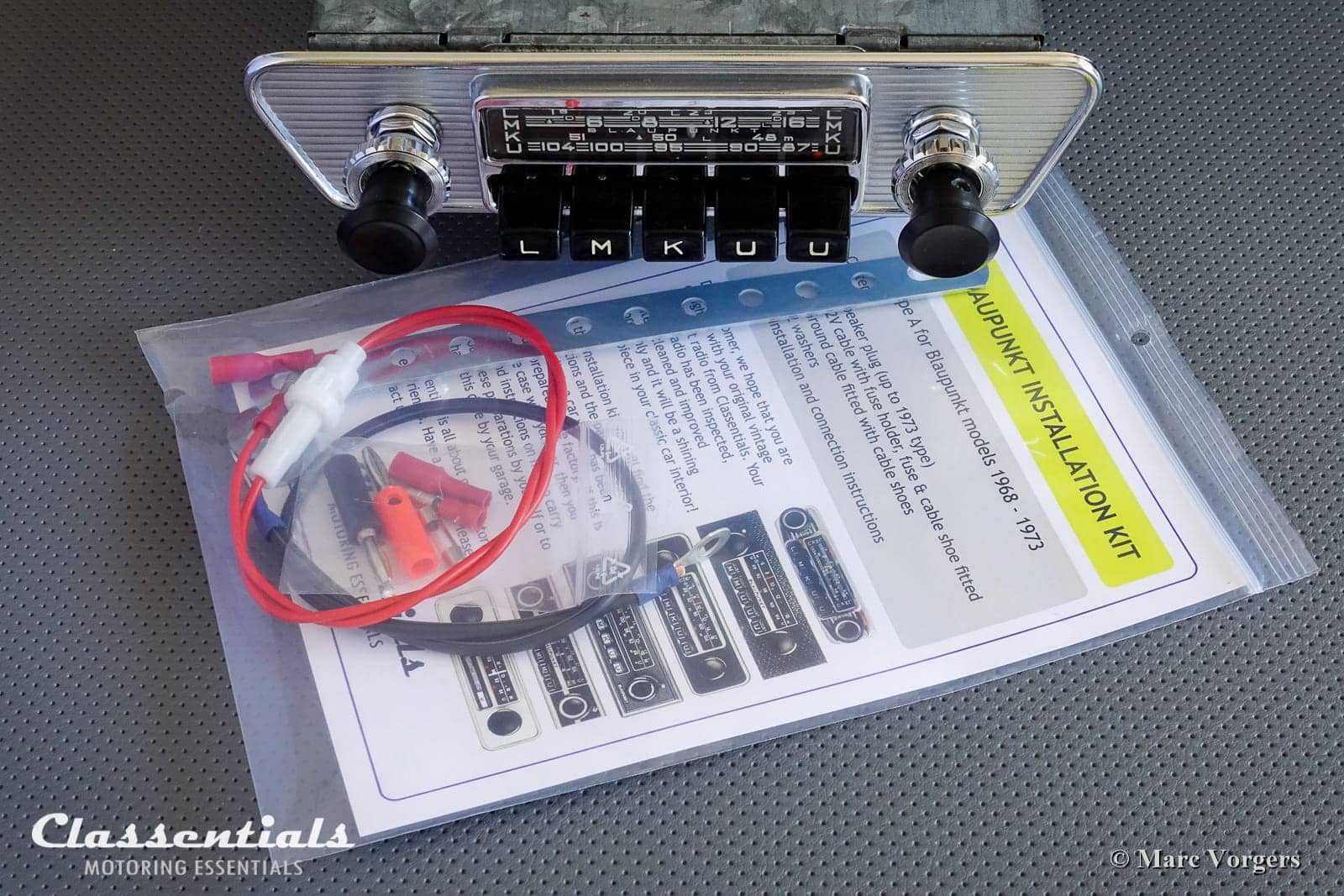

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, earth cable, extra M10 mounting rings, rear mounting bracket (holed metal strip) and amplifier mounting brackets.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Tools needed: wrench number 14 and 10, cable shoe pliers. Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 – 50 years you might need, or have to make, different parts to make the radio fit properly.

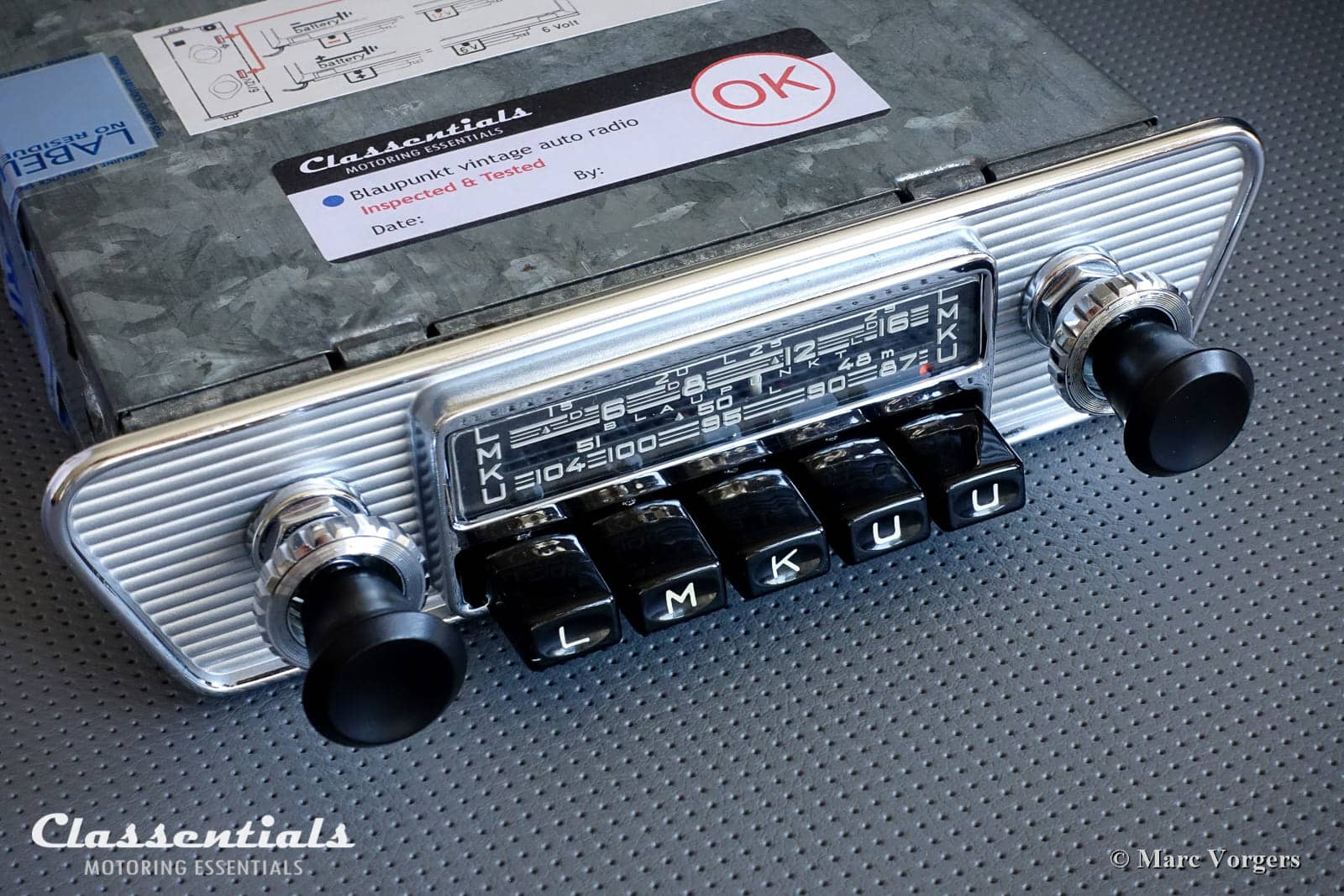

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
