Description

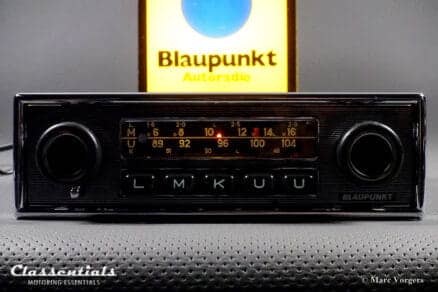

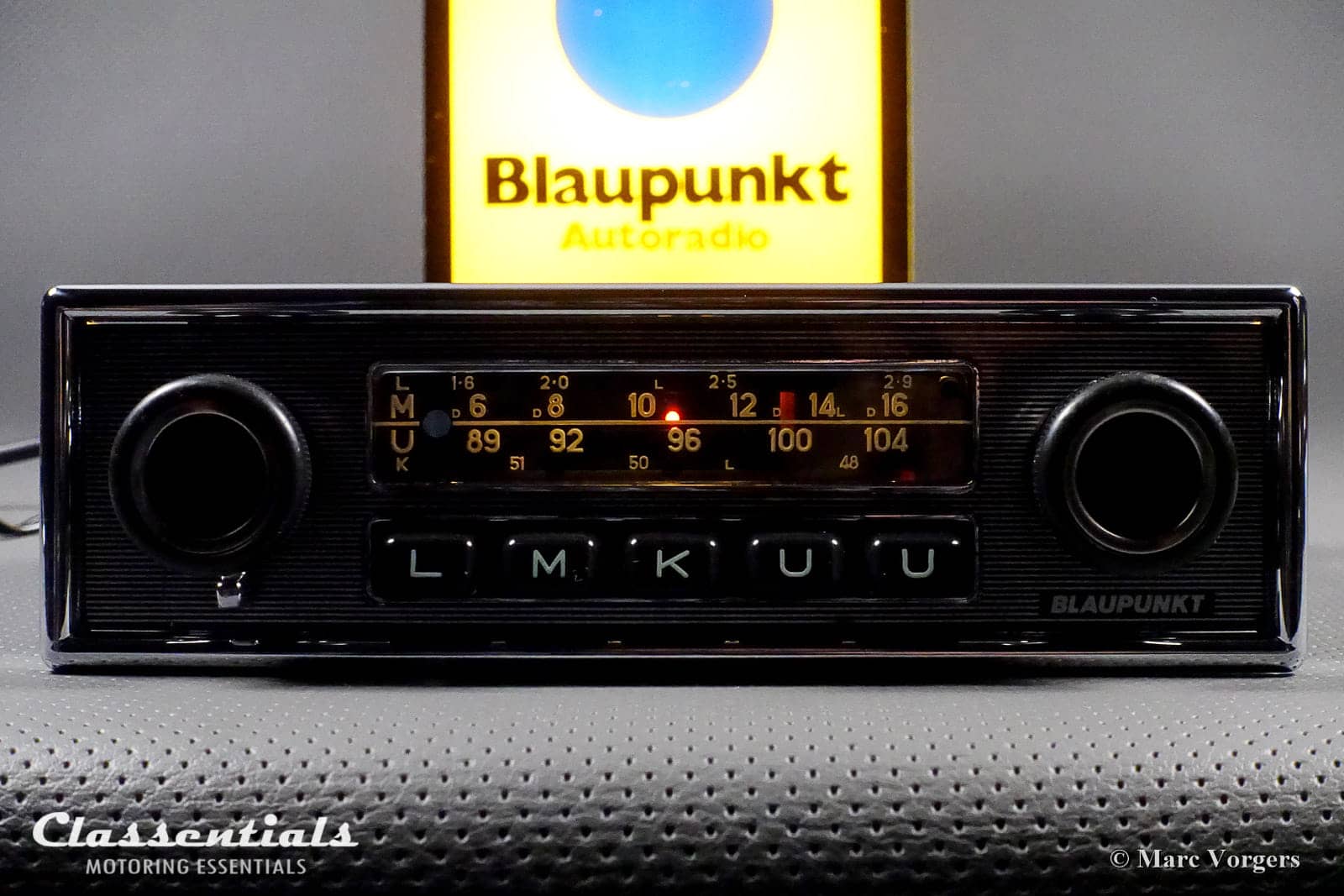

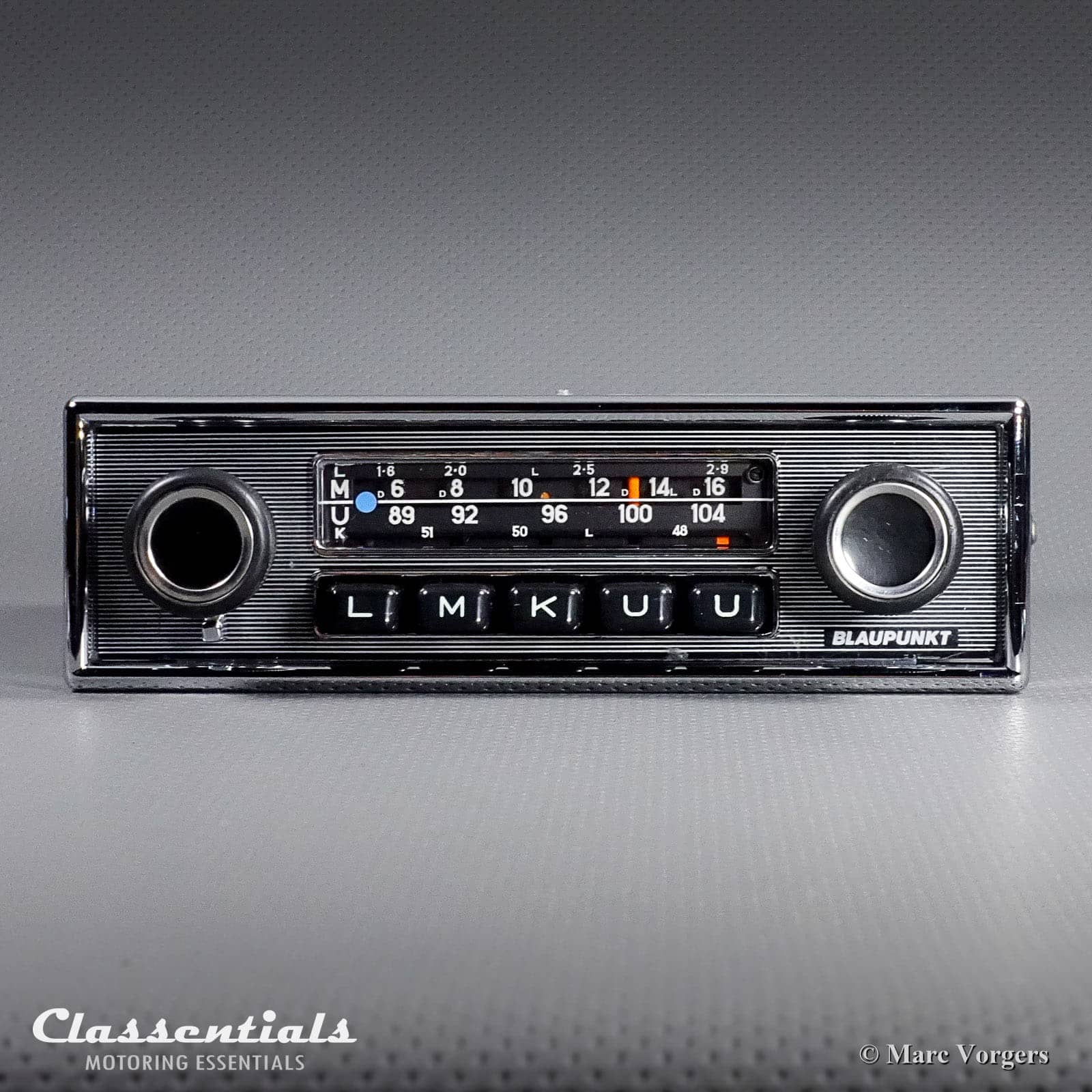

Model: Blaupunkt Frankfurt (type 7632)
Classic Car era: 1968 – 1975

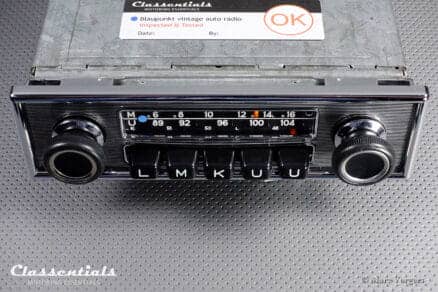

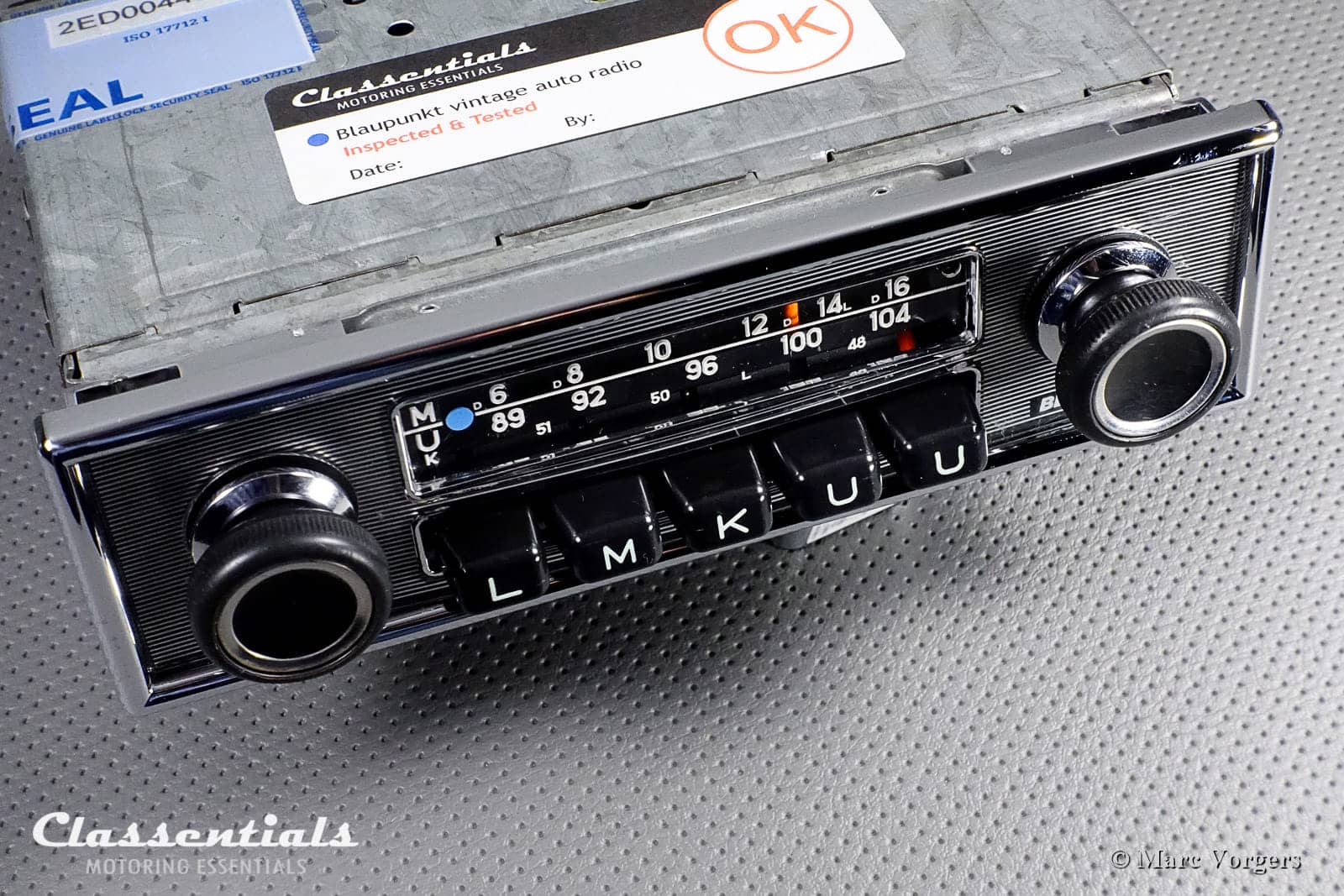

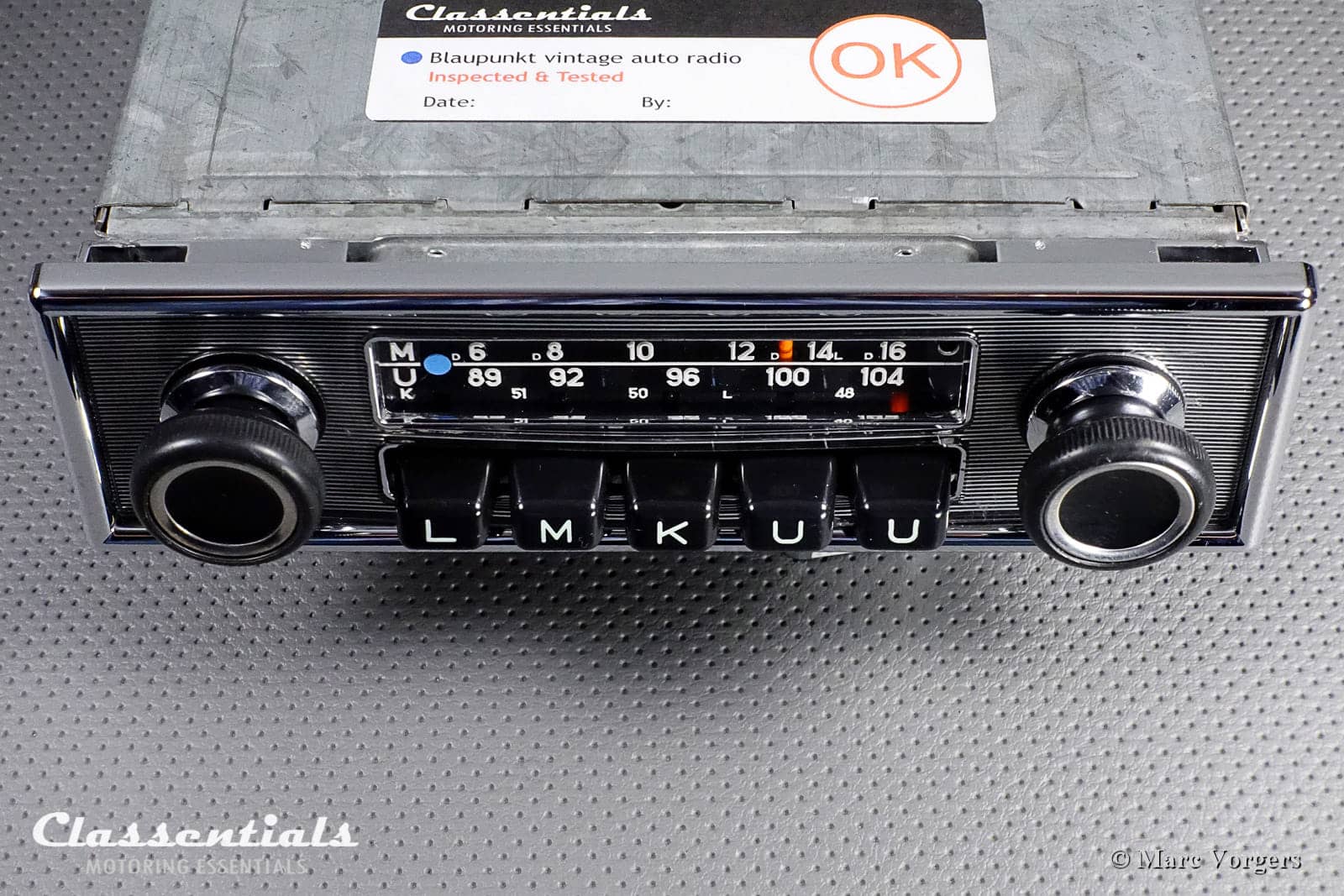

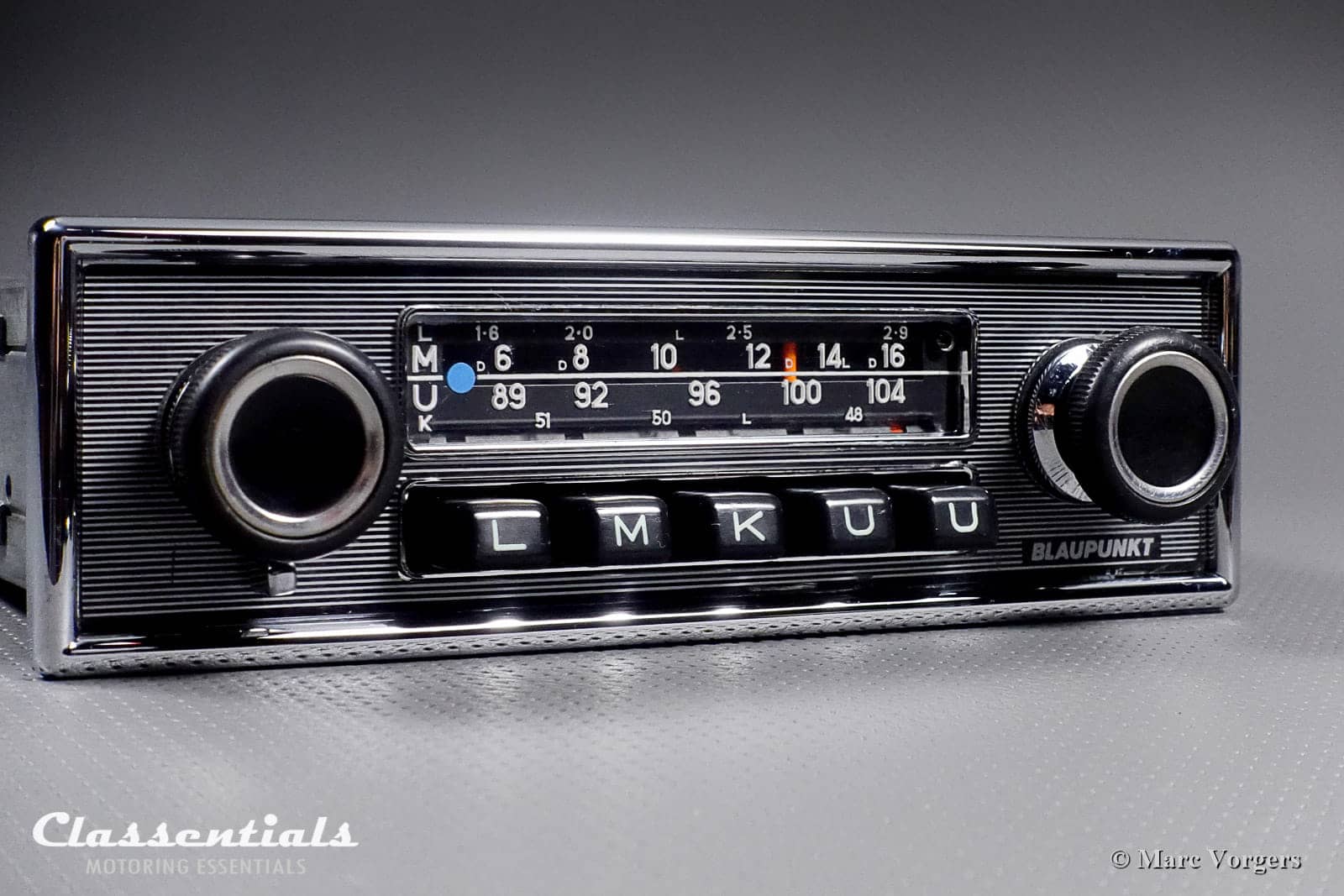

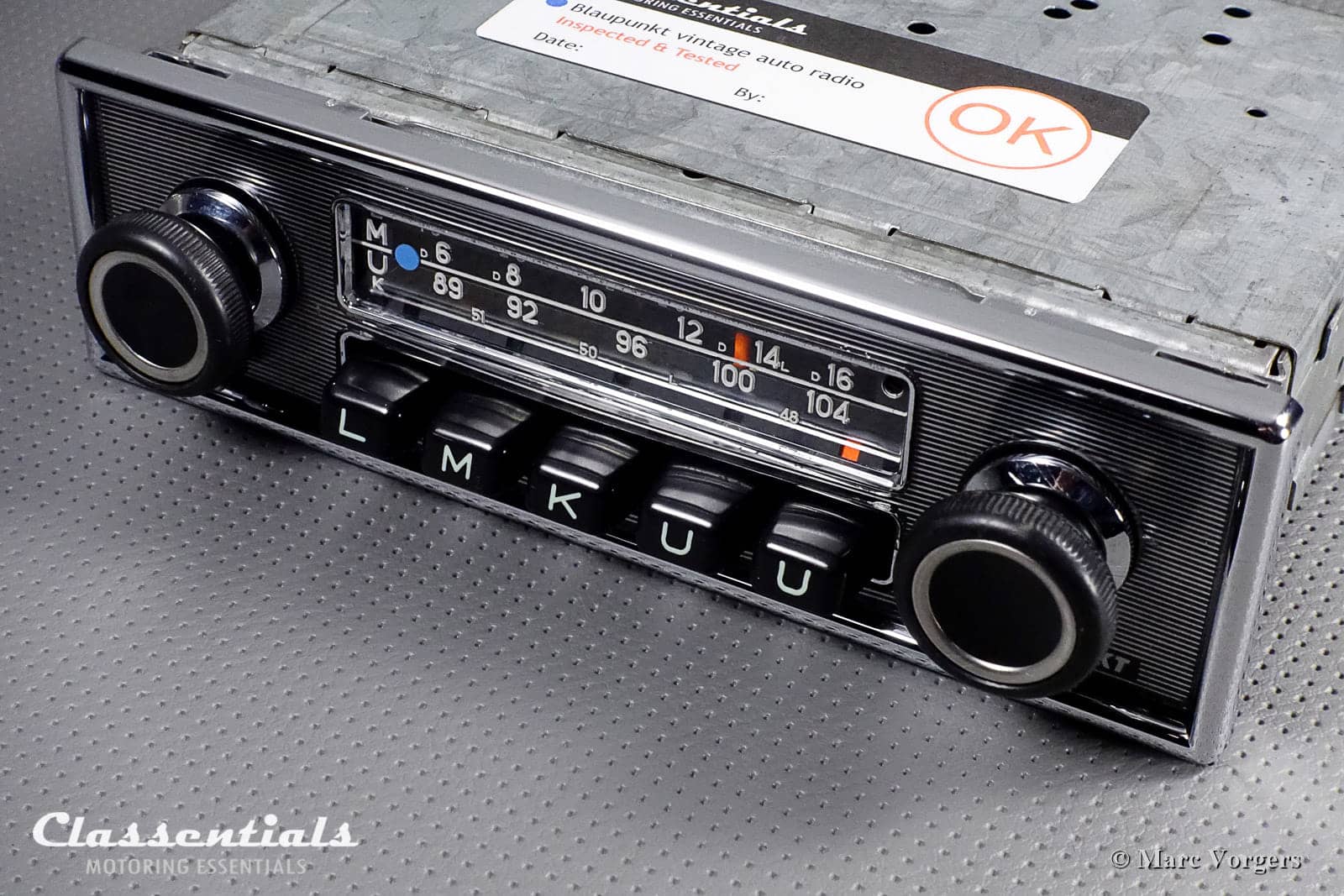

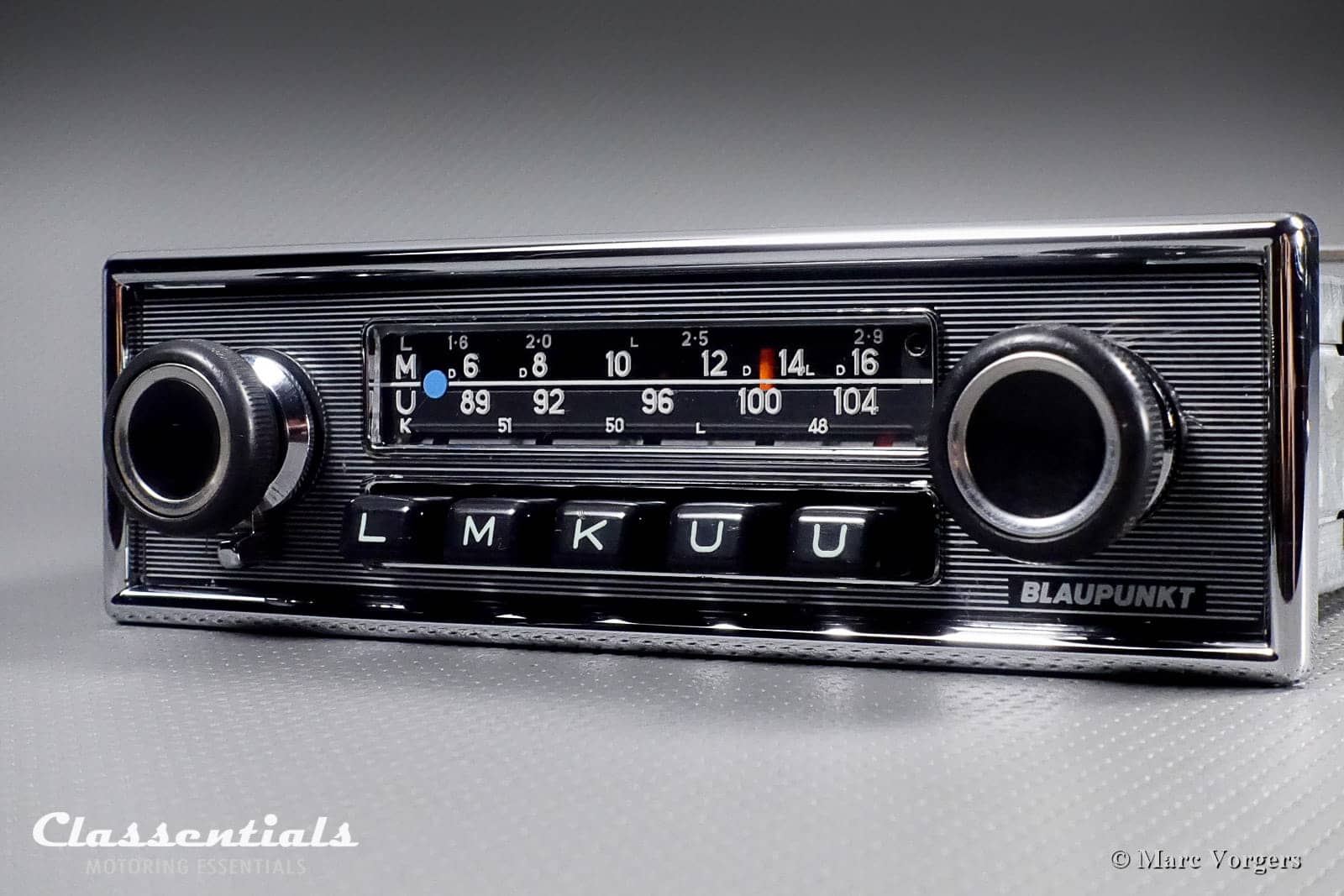

Face-plate: Chromed plastic faceplate with plastic ‘pin-stripe’ insert and the correct luxury knobs for 1968 – 1975 Mercedes-Benz models; SL Pagode W113, W114, W115, W123, SL R107, C107.
On-board voltage: 12V, negative ground only.
Output power: 5 Watt nominal, 7 Watt music.
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.

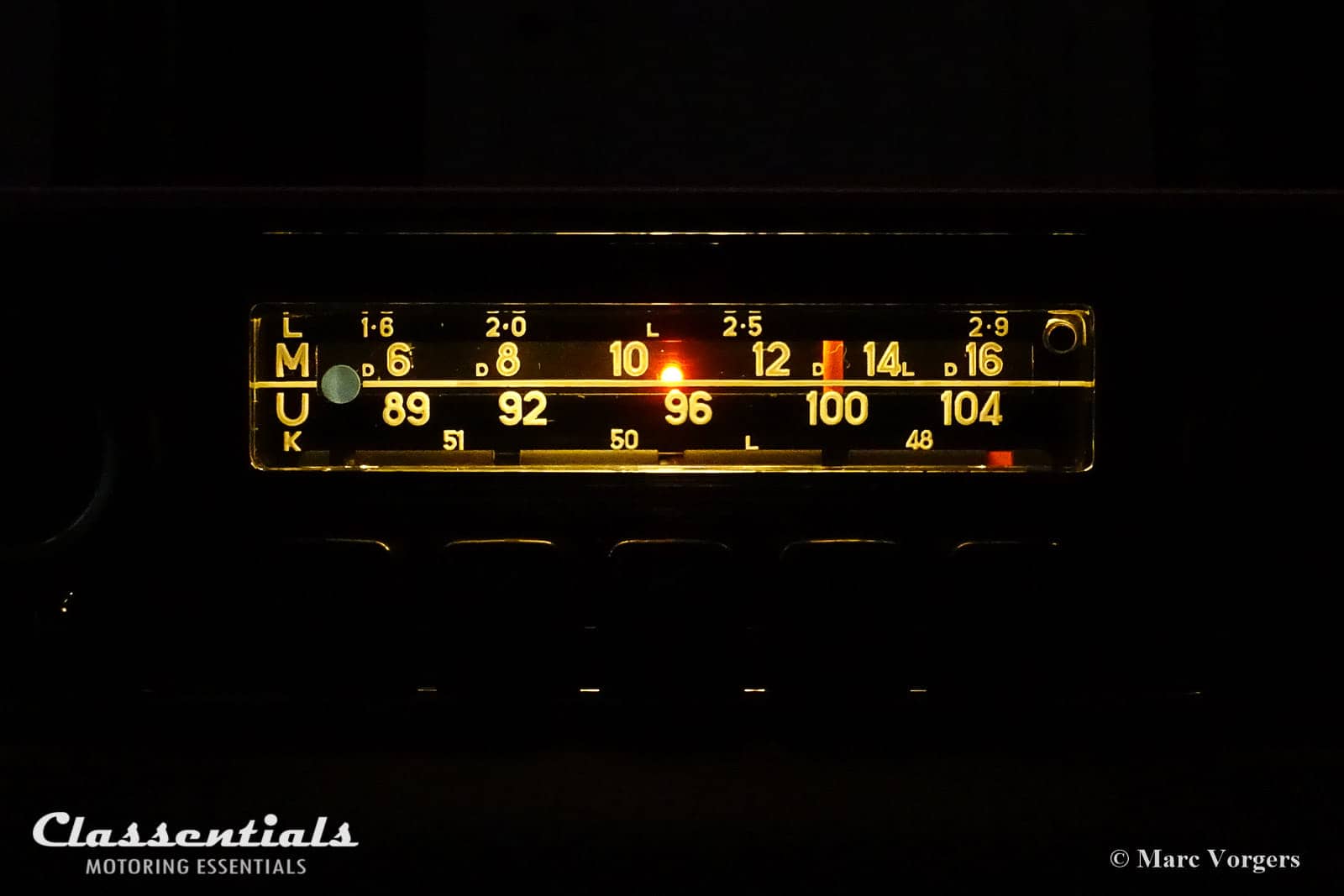

Wave Range: Long wave (L), Medium wave (M), Short wave (L) and FM / UKW (U)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: Tone control, station pre-set buttons, automatic aerial (antenna) connection, 6-pin DIN connection for optional external devices (in period cassette players) like the Classentials Deluxe Bluetooth module.
Design type: Transistor radio.
Year of build: 1972
Dimensions unit (width x height x depth): 177 x 44 x 152 mm / 7,0 x 1,75 x 6,0 inch
Dashbaord aperture (1-DIN): 183 x 53 mm / 7,2 x 2,1 inch
Dimensions face-plate (width x height): 188 x 58 mm / 7,4 x 2,25 inch
Weight (kg): 1.25

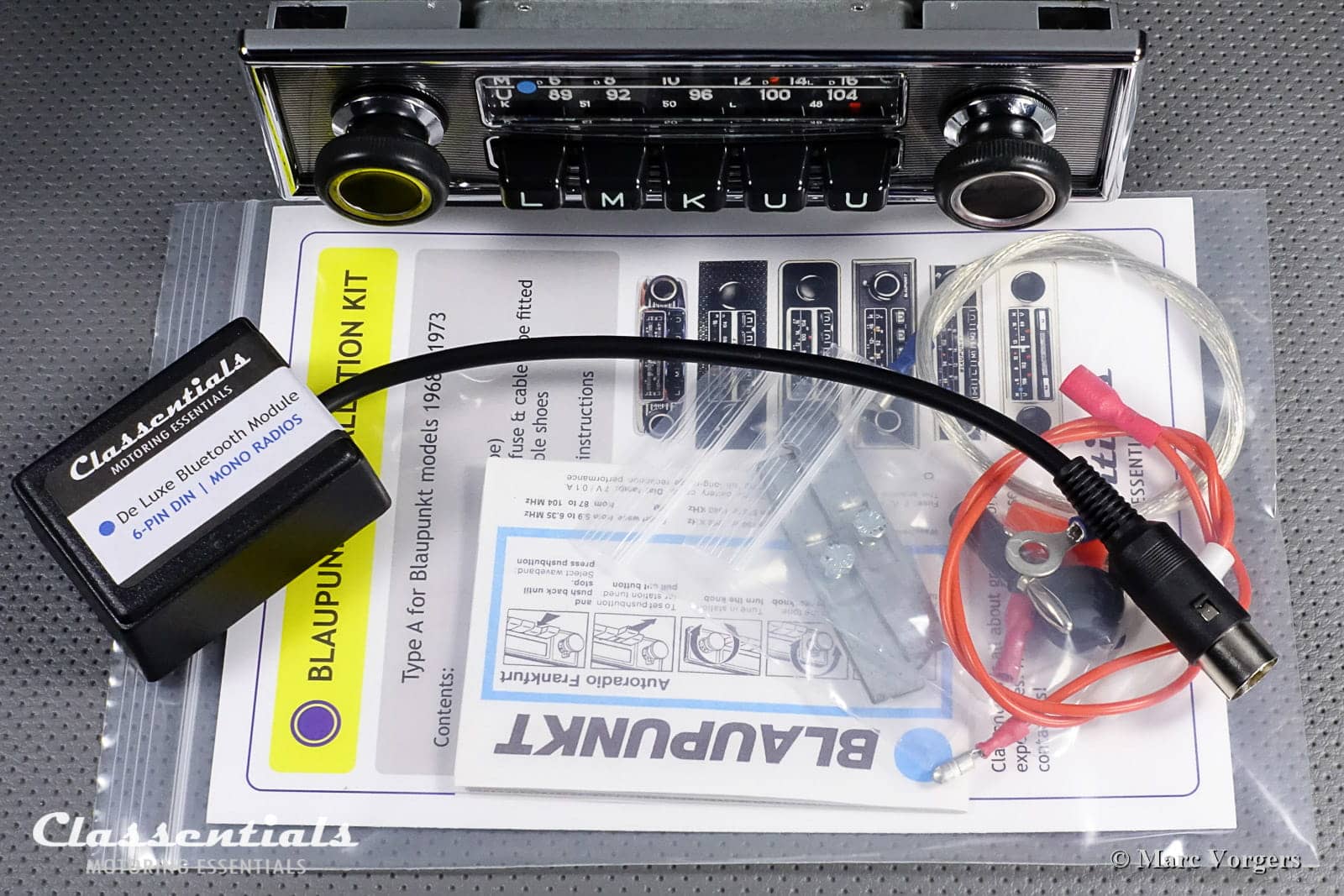

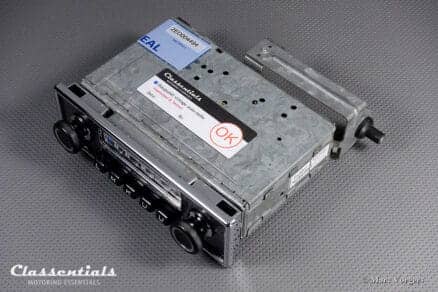

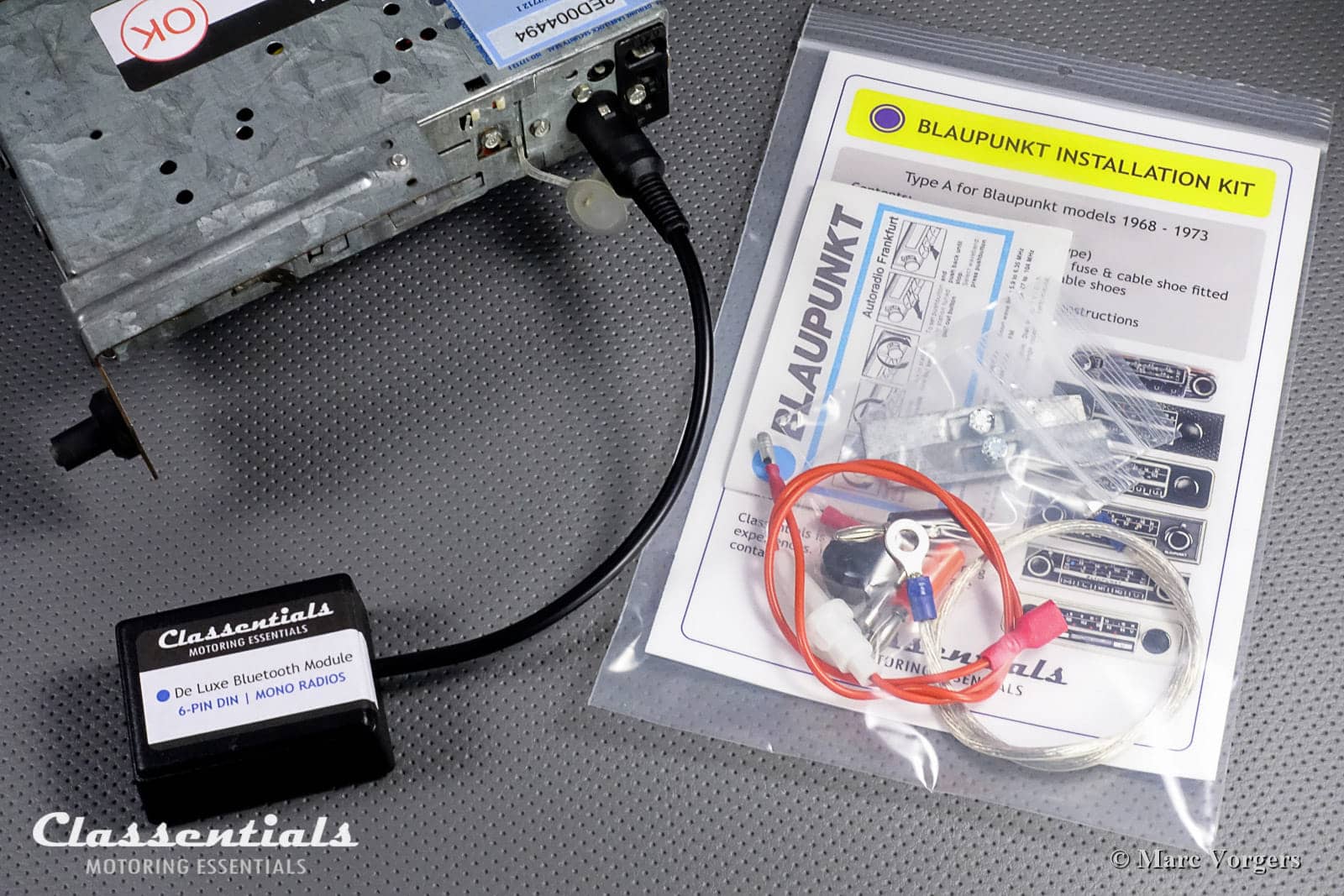

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plugs, earth / ground cable, 12V wire with fuse, cable shoe, Mercedes-Benz back support with rubber stub.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Tools needed: wrench number 14 and 8, cable shoe pliers. Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

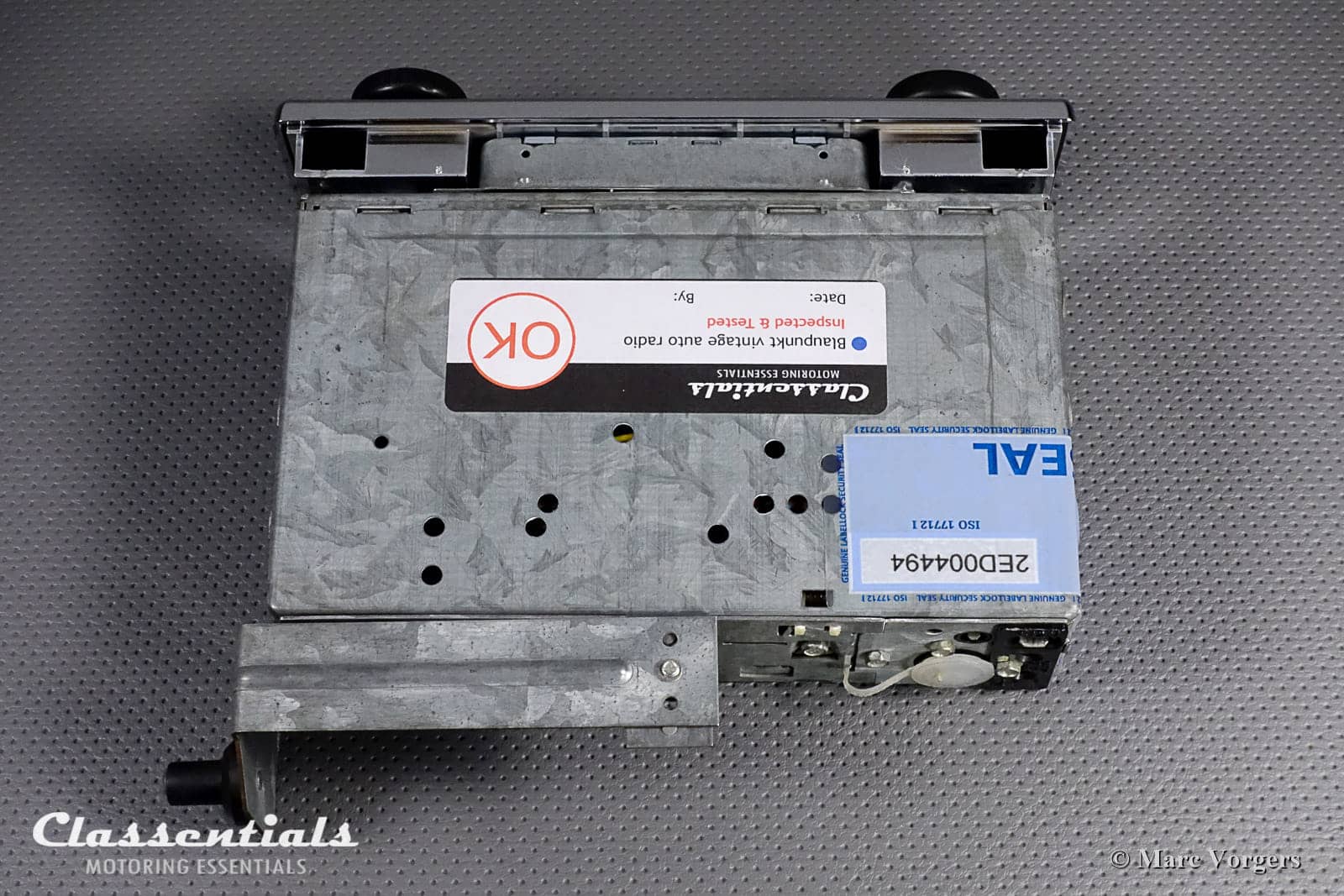

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
