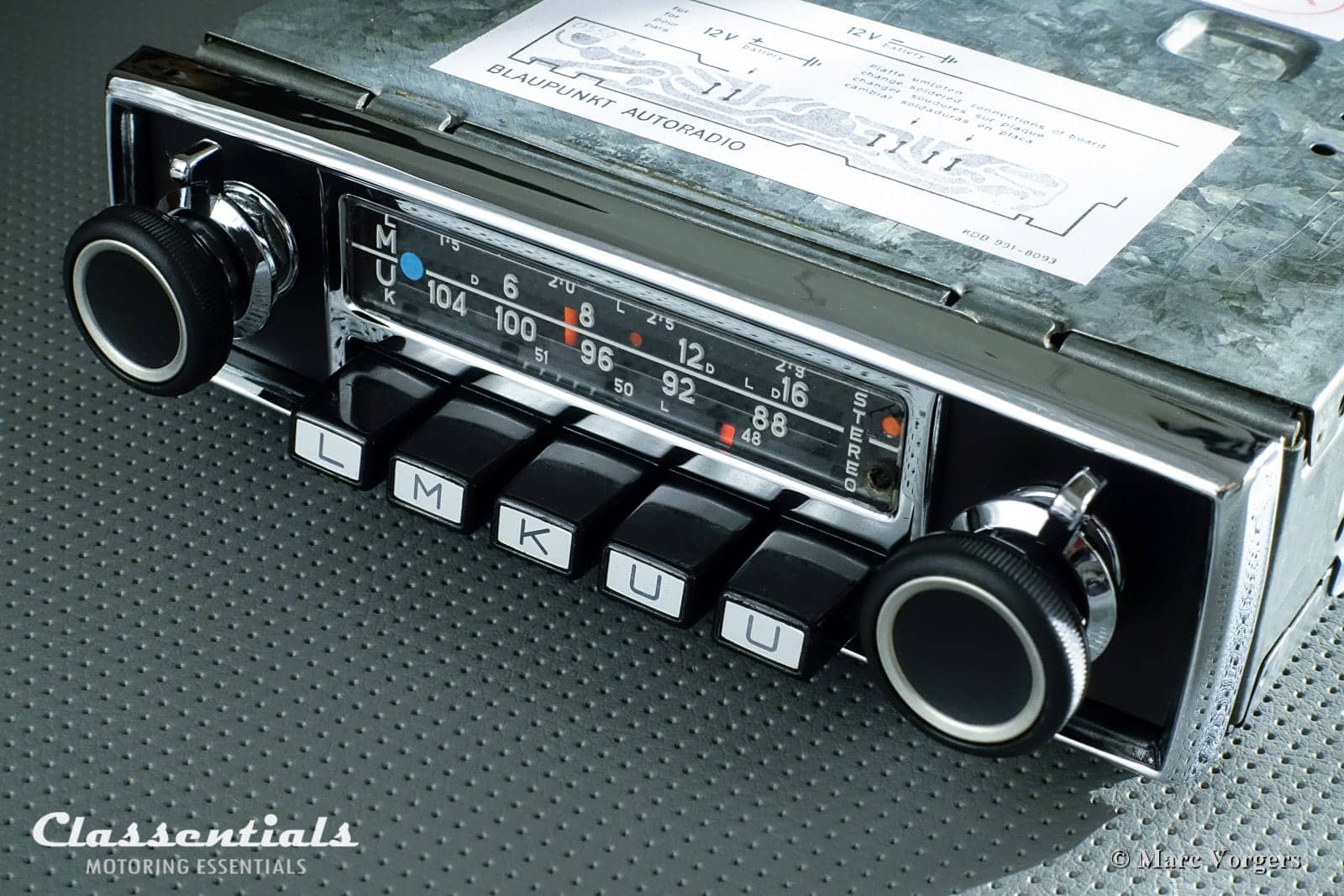

Make and Model: Blaupunkt Frankfurt STEREO (Type 7631).
Classic Car era: 1965 – 1973

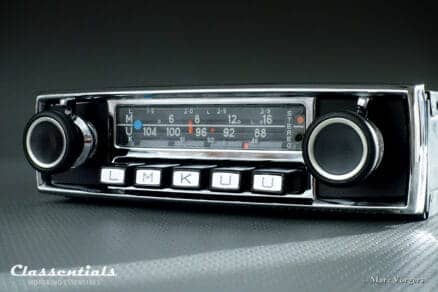

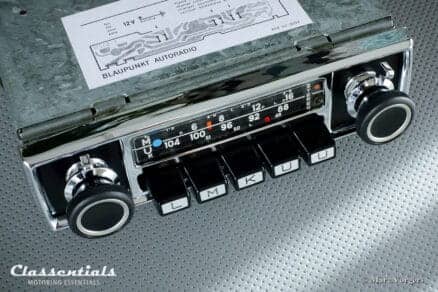

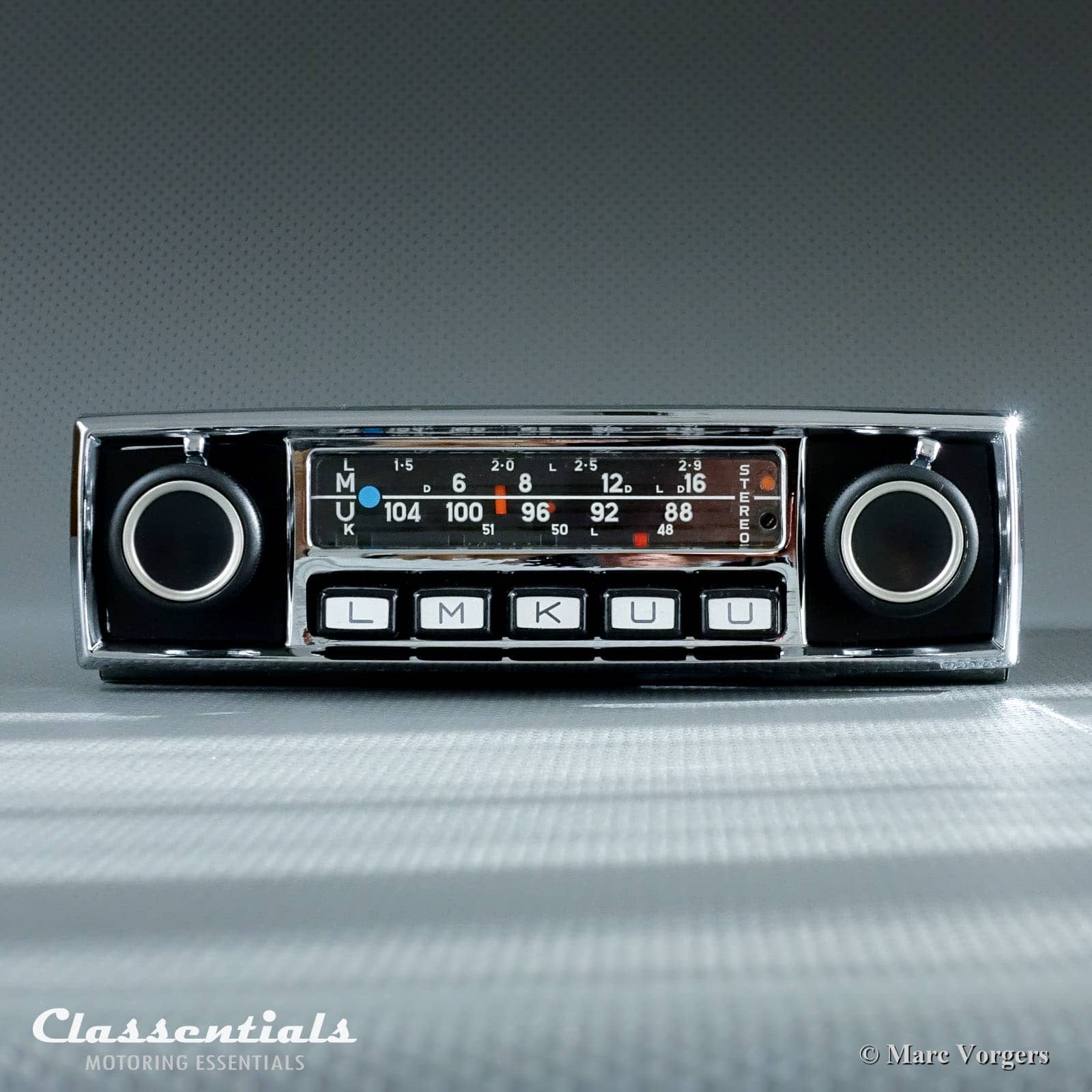

Face-plate: Universal full metal chrome for Alfa romeo, Aston Martin and other exclusive cars of the period 1965 – 1973. Completed with black inserts below the knobs and luxury knobs with chrome rings.
On-board voltage: 12V, negative ground.
Output power: 2 x 5 Watt nominal, 2 x 7 Watt music.
Impedance: 4 Ohm
Rendition: STEREO, 2 (4 Ohm) speakers. NOTE: If you want to connect four speakers then you must use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: long wave, medium wave, short wave, UKW (FM)
Frequency range UKW (FM): 88MHz-104MHz

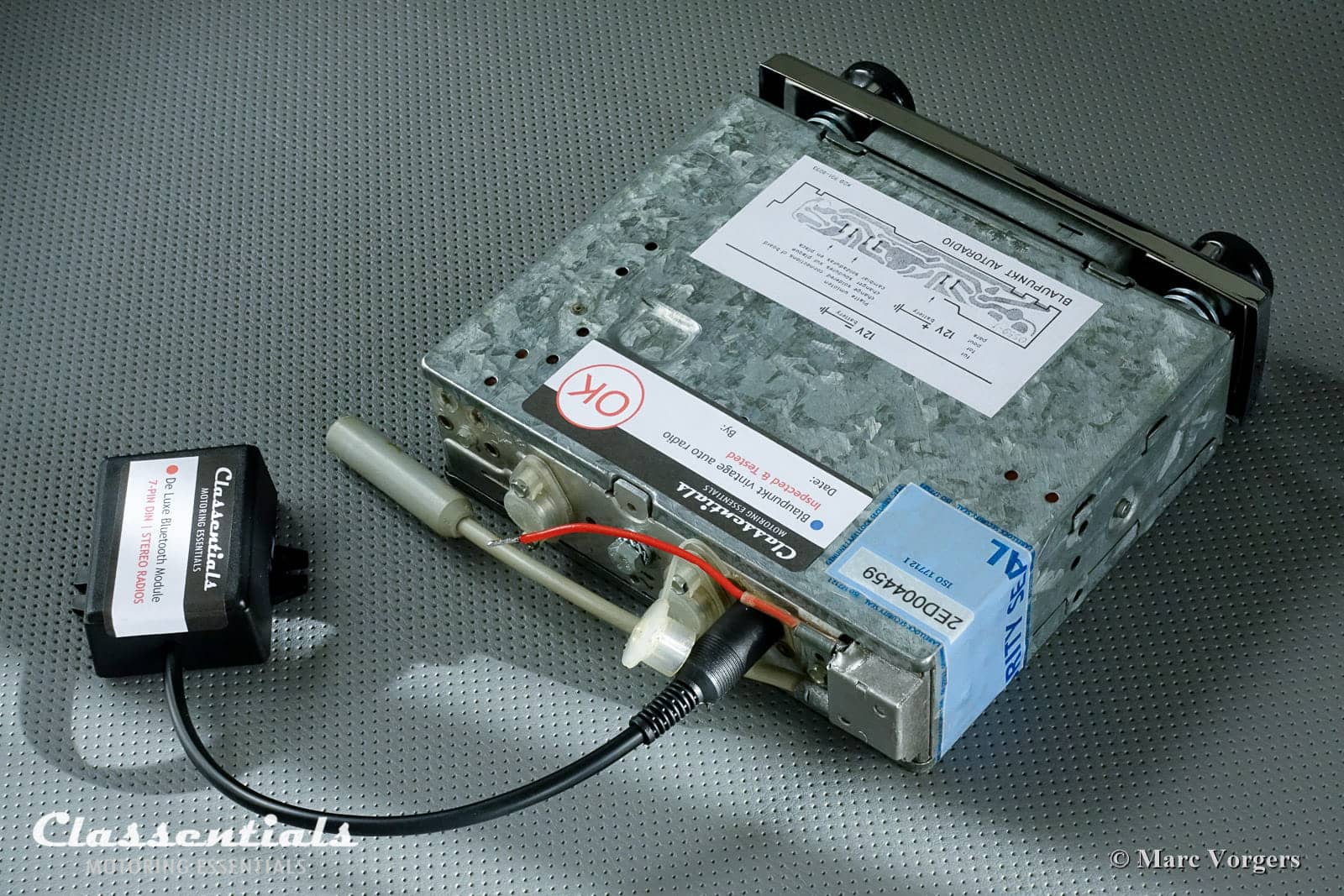

Equipment: Tone control, automatic antenna connection, 7-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio
Year of build: 1971
Dimensions unit (width x height x depth in mm): 177 x 50 x 178 (back to front of face-plate)
Dimensions face-plate (width x height in mm): 178 x 50
Weight (kg): 1.85

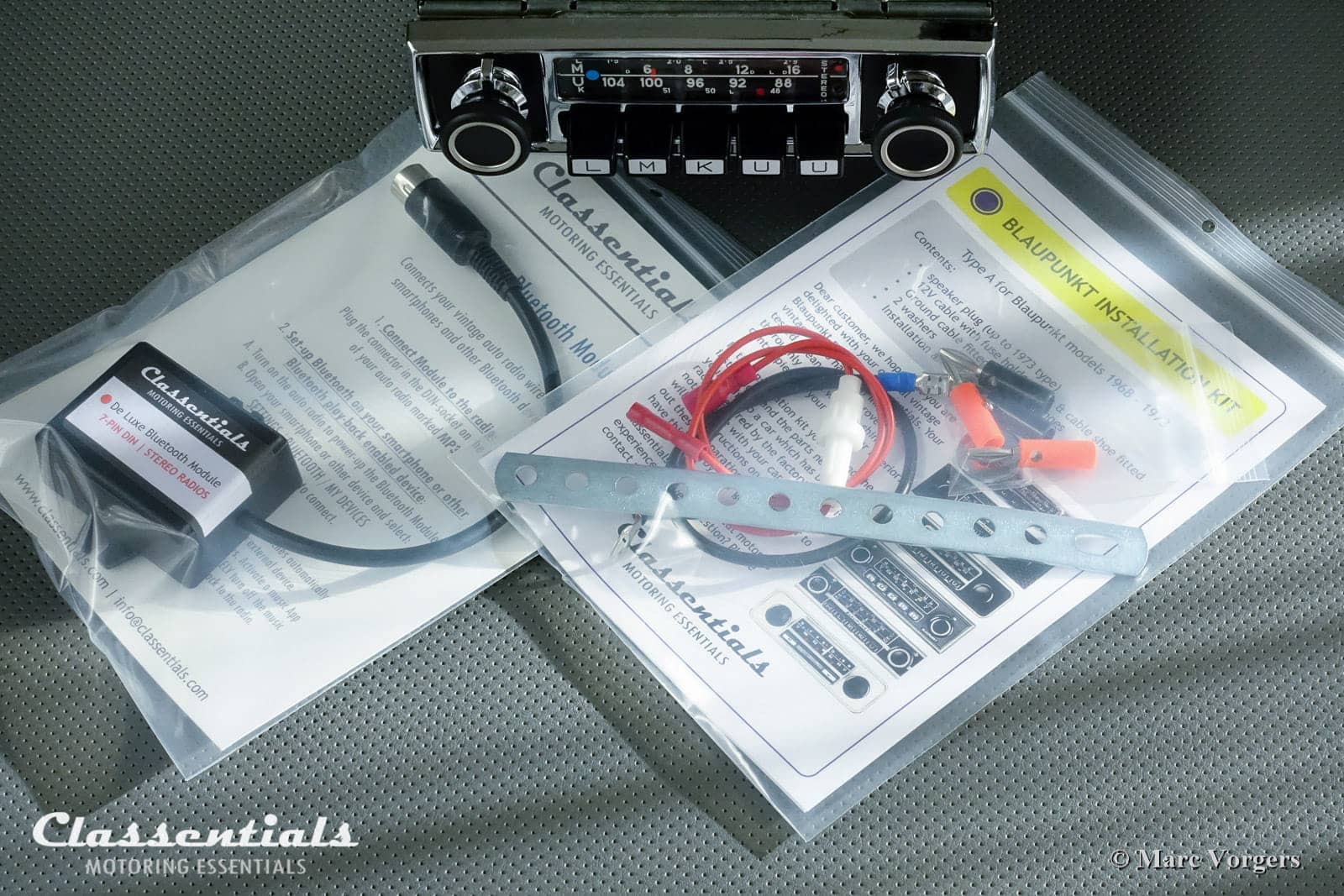

Extra in packaging: Classentials Installation Kit 1 with installation instructions, 4 speaker plugs, earth / ground cable, rear mounting support clip and bracket (holed metal strip).
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, two speakers (doors, parce shelf) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.
*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
Attention: Blaupunkt Frankfurt stereo radios built between 1969 and 1974 feature an additional ‘stereo’ lamp behind the scale-dial. The lamp is supposed to light up when a stereo broadcast is detected. For this the radio needs a perfect antenna and a perfect earth / ground contact of the radio AND the antenna. The ‘decoder’ which operates this tiny lamp has in many cases lost its function over the last 40 – 50 years. This can not be repaired because the part is not available. A defective decoder does not affect the functionality of the radio. Functionality of the decoder and the lamp is excluded from warranty. In this radio the decoder works perfectly!
