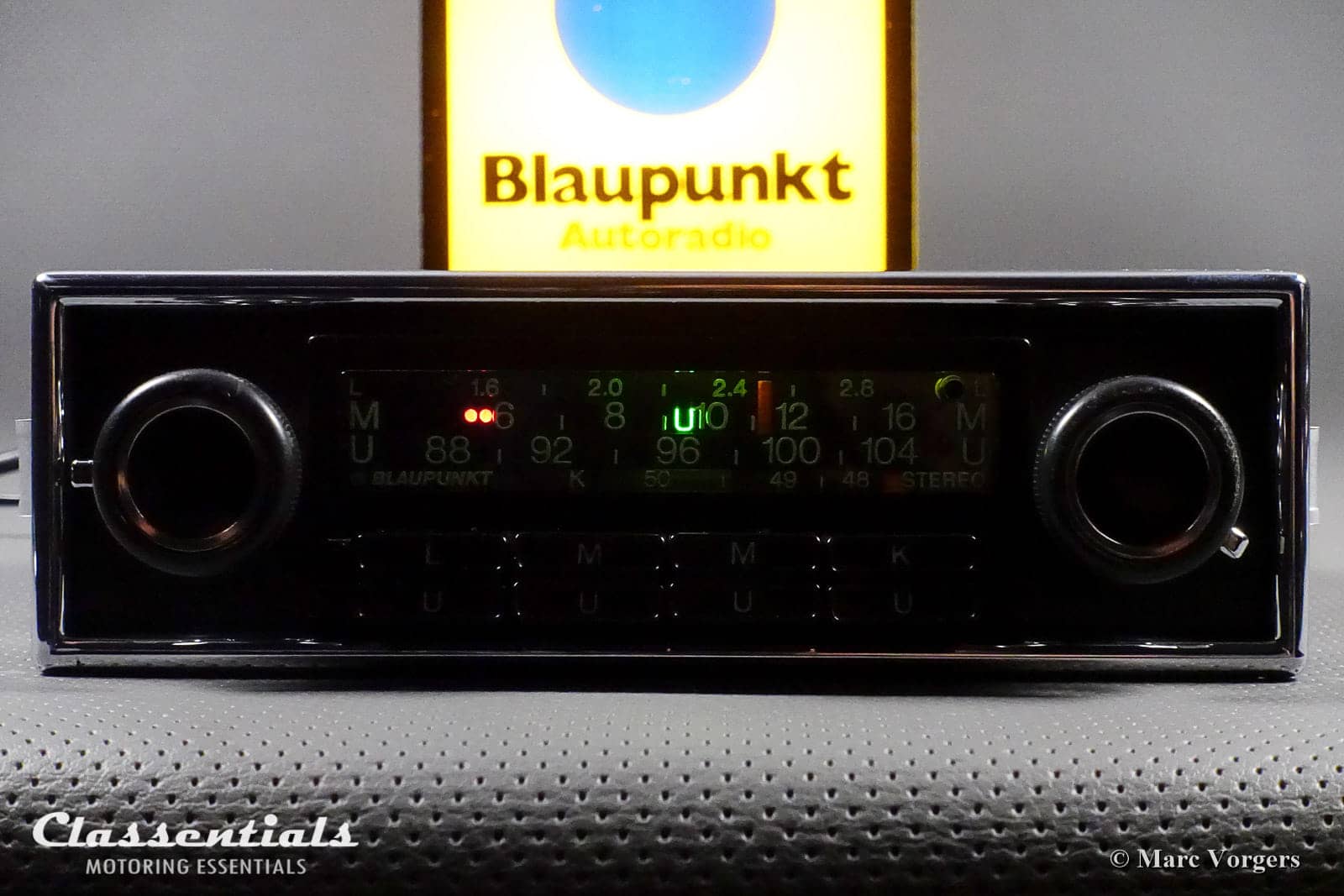

Make and Model: Blaupunkt Frankfurt STEREO (Type 7635) ‘Double-Decker’
Classic Car era: 1972 – 1982

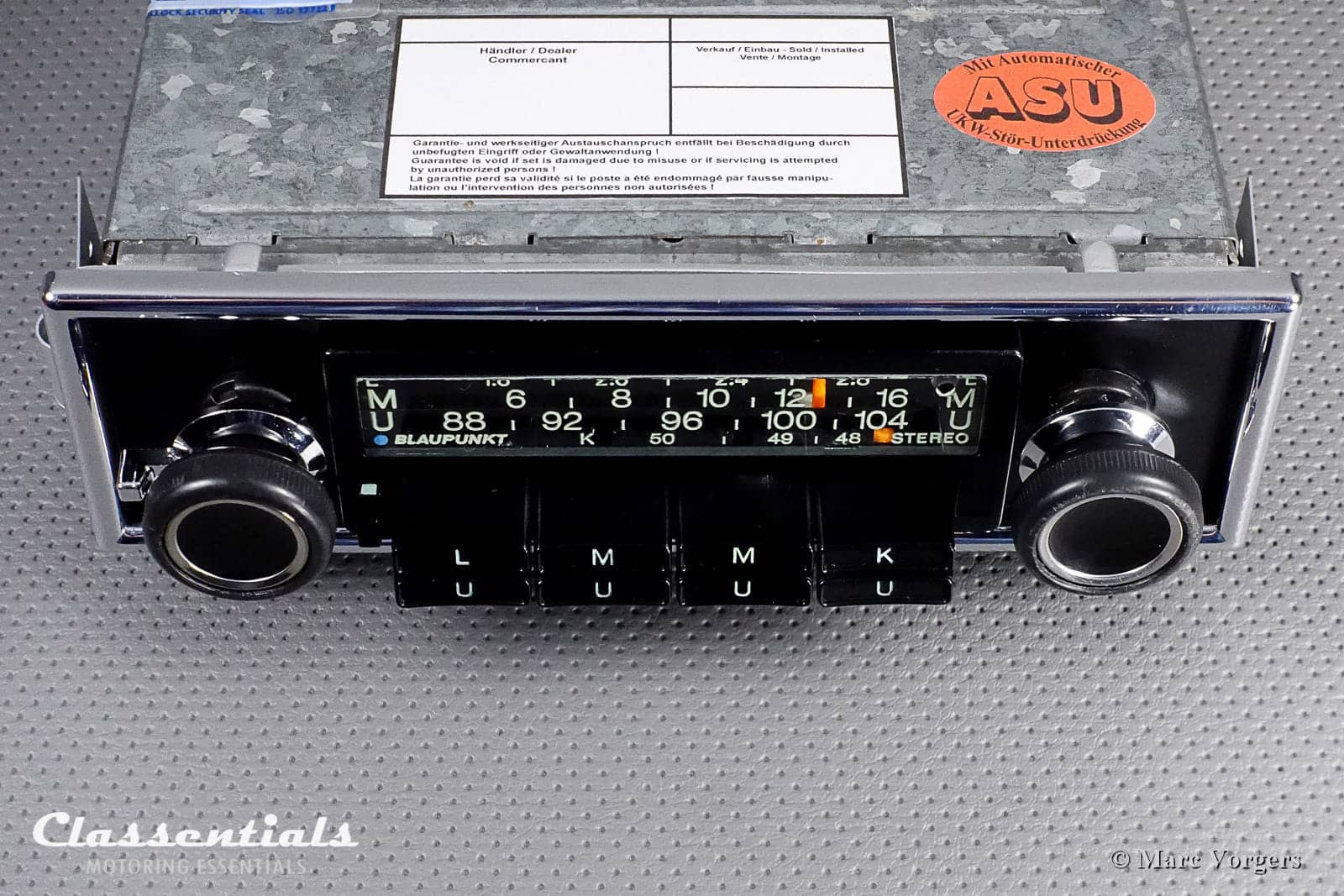

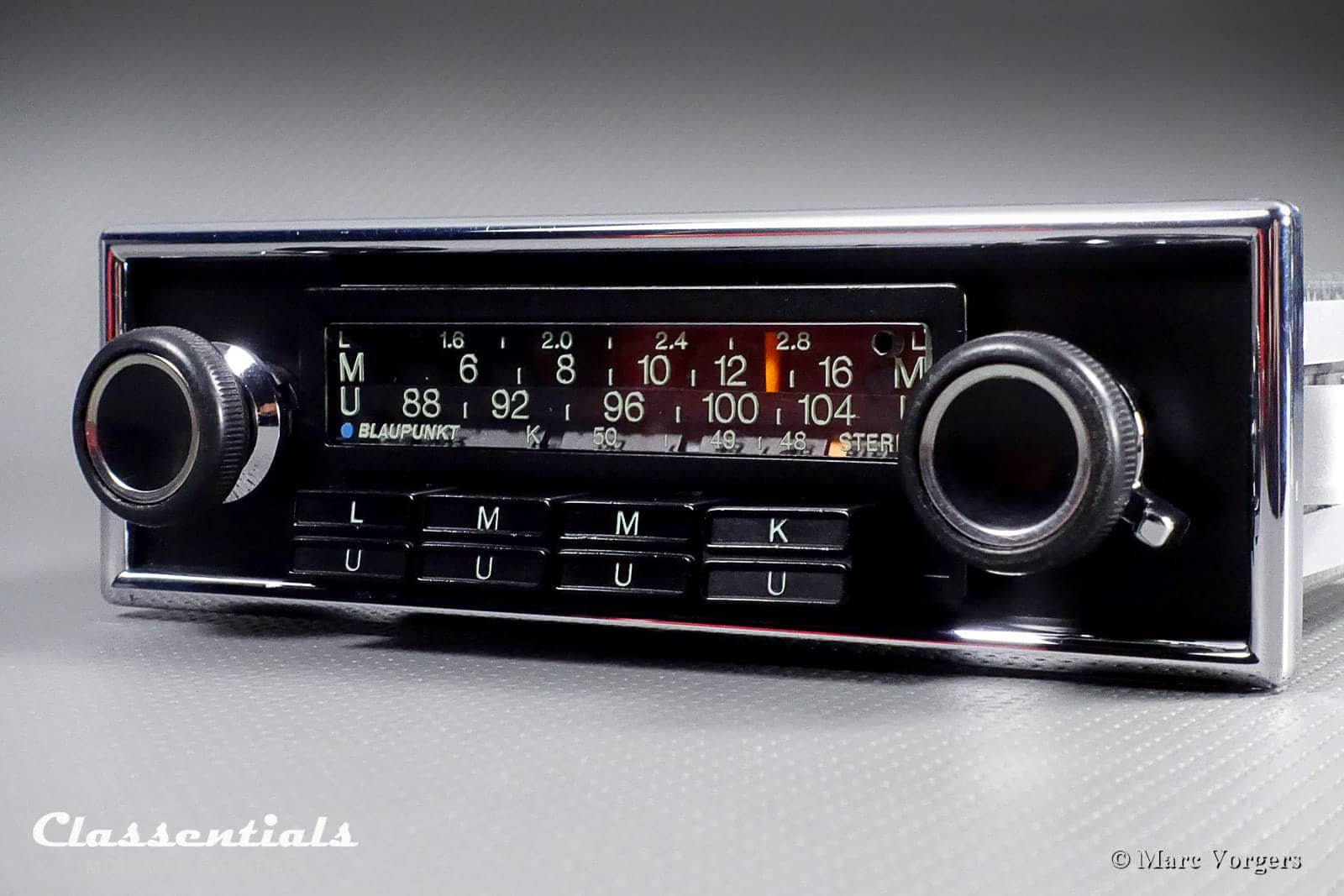

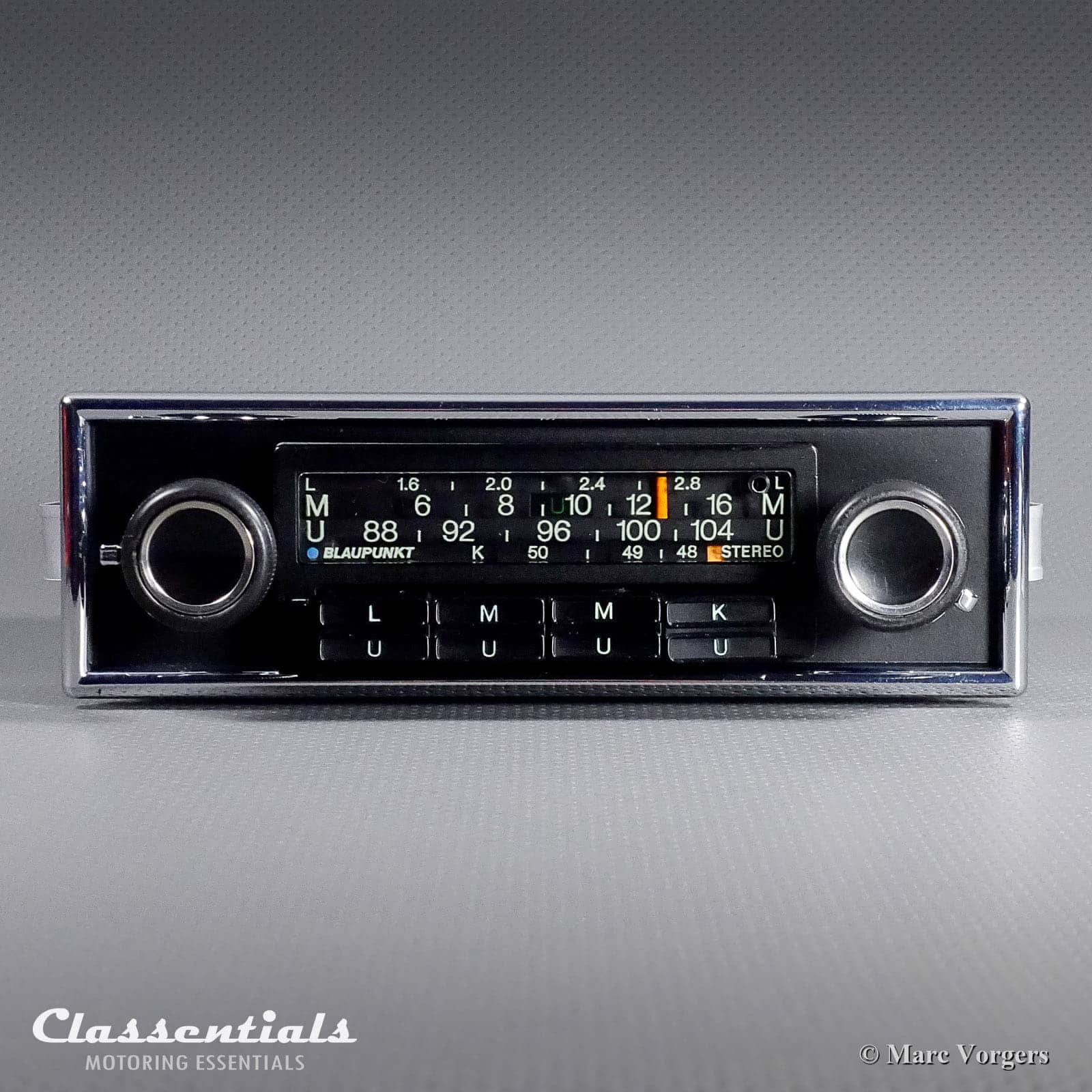

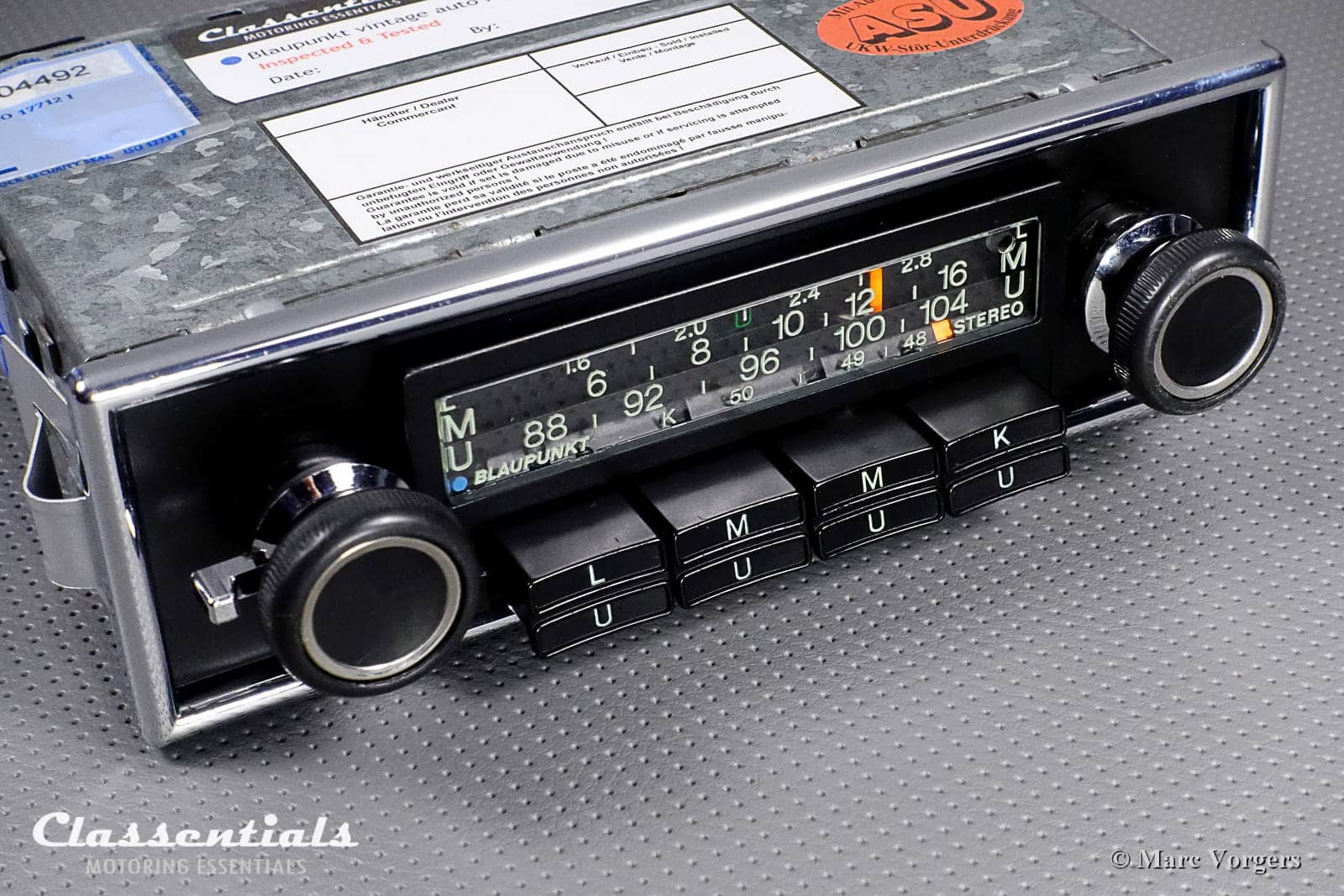

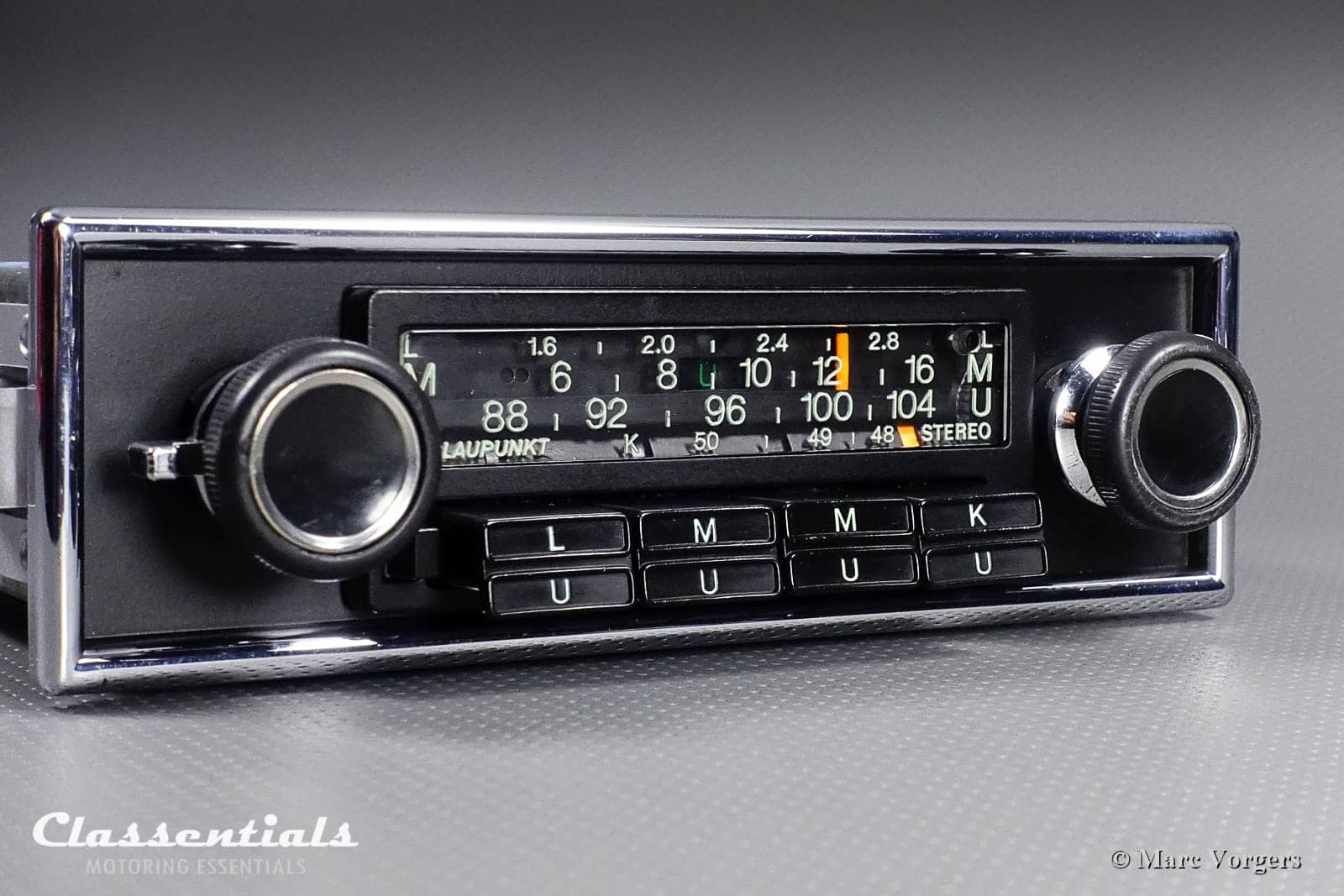

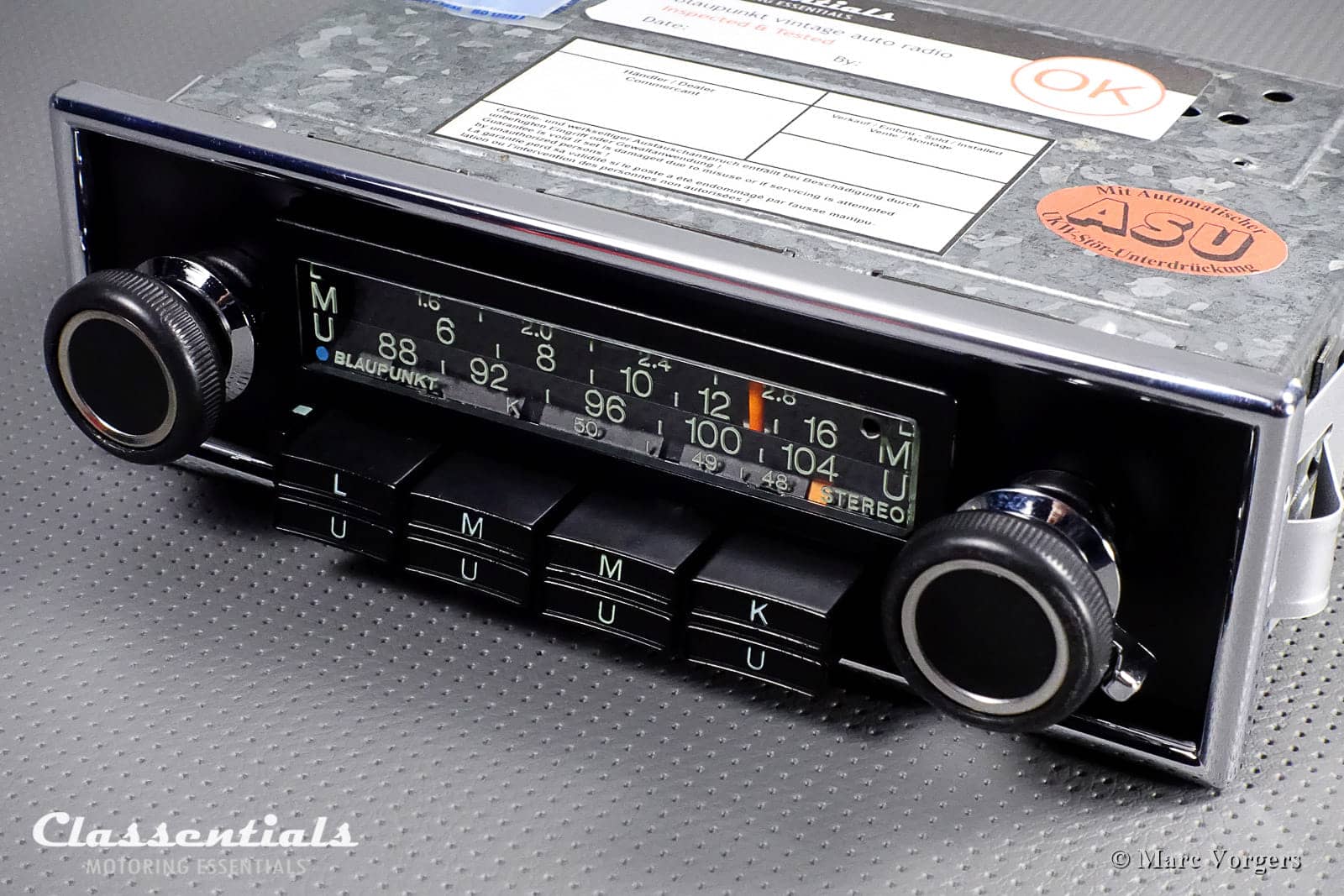

Face-plate: Universal luxury 1-DIN black plastic face-plate with chrome bezel with 1-DIN metal dashboard mount. This HIGH-END stereo radio is suitable for all exclusive luxury cars of the period 1972 – 1982. Alfa Romeo, Audi, BMW, Ferrari, Jaguar, Mercedes-Benz, Lamborghini, Maserati and many others with the standard 1-DIN dashboard radio aperture of approximately 184 x 54 mm / 7,25 x 2,15 inch.
On-board voltage: 12V, negative earth / ground only
Output power: 2 x 7 Watt
Impedance: 4 Ohm
Rendition: STEREO, 2 (4 Ohm) speakers. NOTE: If you want to connect four speakers then you have to use two 8 Ohm speakers per channel. Connected parallel + to + and – to -, this makes 4 Ohm per channel. This is important otherwise you will damage the internal amplifier.
Wave Range: long wave, medium wave, short wave, UKW (FM)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: Dual-function station pre-set buttons (4 memory presets for U / FM and 2 for M / AM), mono-stereo selection, 2 x DIN connection. 6-pin DIN connection for optional external devices (in period cassette players) like the 6-pin DIN Classentials Deluxe Bluetooth Module.
Design type: Transistor radio
Year of build: 1975
Dimensions unit (width x height x depth): 177 x 43 x 130 mm / 7,0 x 1,65 x 5,15 inch (back to back of face-plate)
Dashboard aperture (1-DIN): 184 x 54 mm / 7,2 x 2,1 inch
Dimensions face-plate (width x height): 190 x 59 mm / 7.48 x 2.32 inch
Weight (kg): 1.3

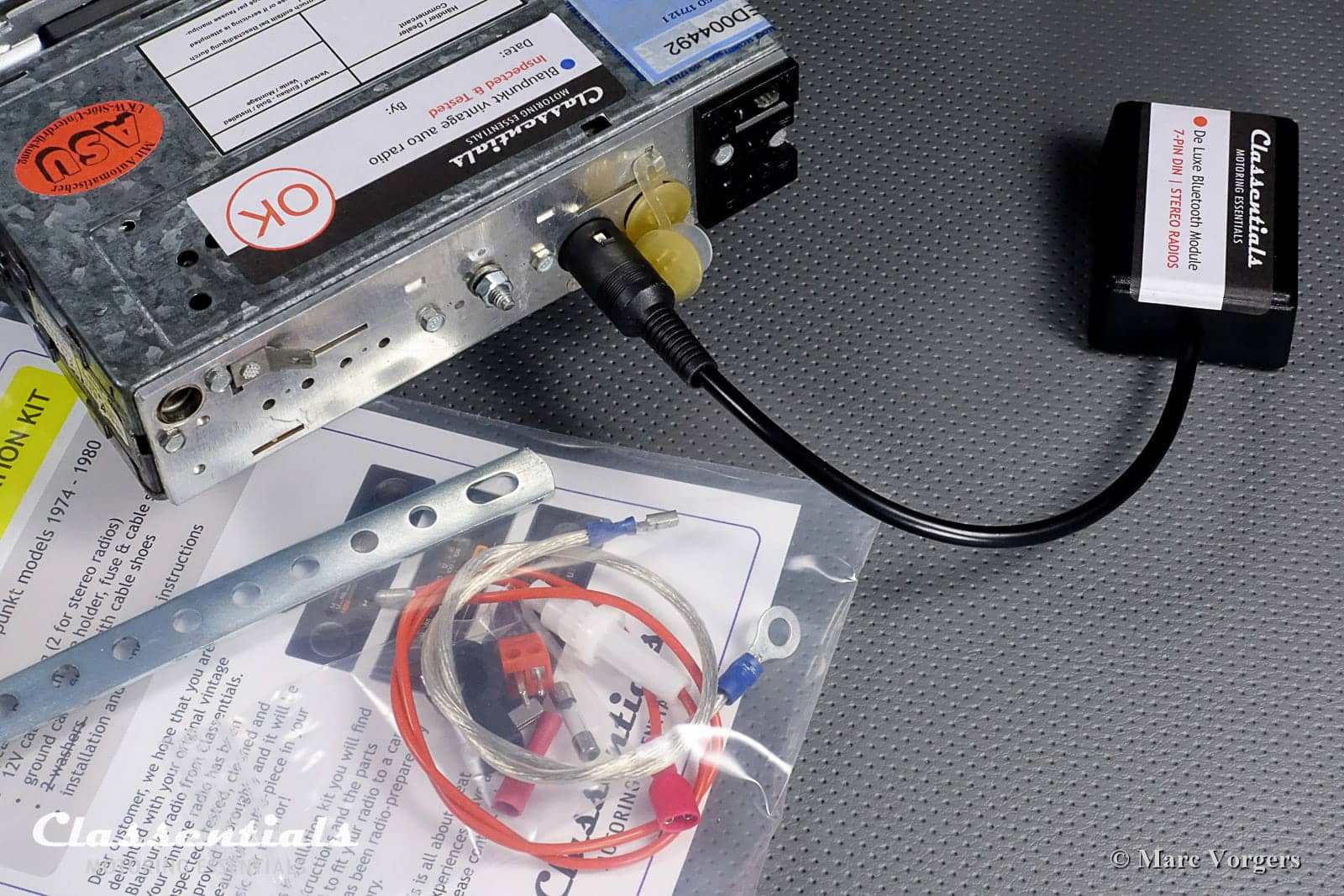

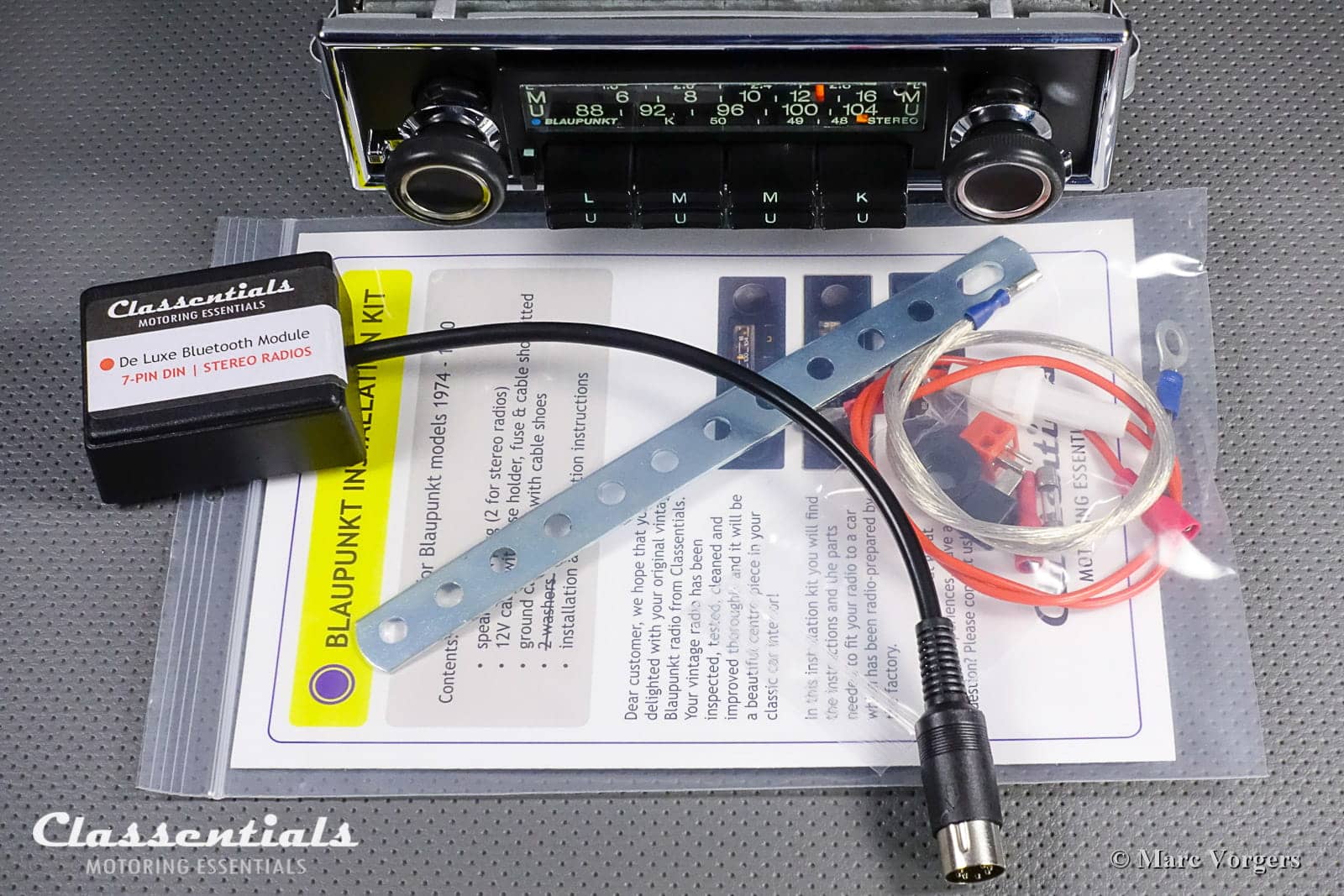

Extra in packaging: Classentials Installation Kit 2 with installation instructions, two 1970s style DIN speaker plugs, fuse, earth / ground cable, cable shoes, and a rear mounting strip.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

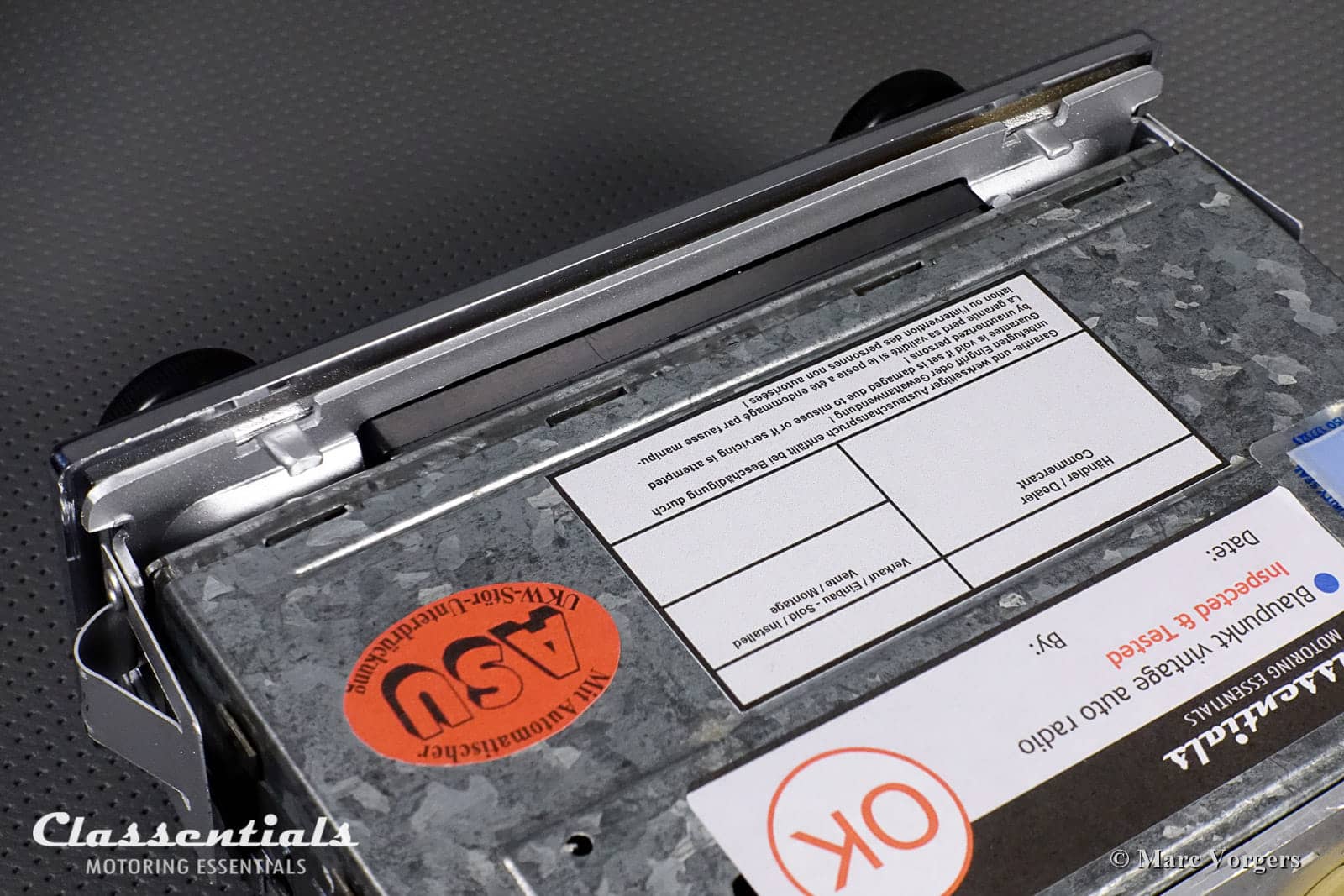

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
