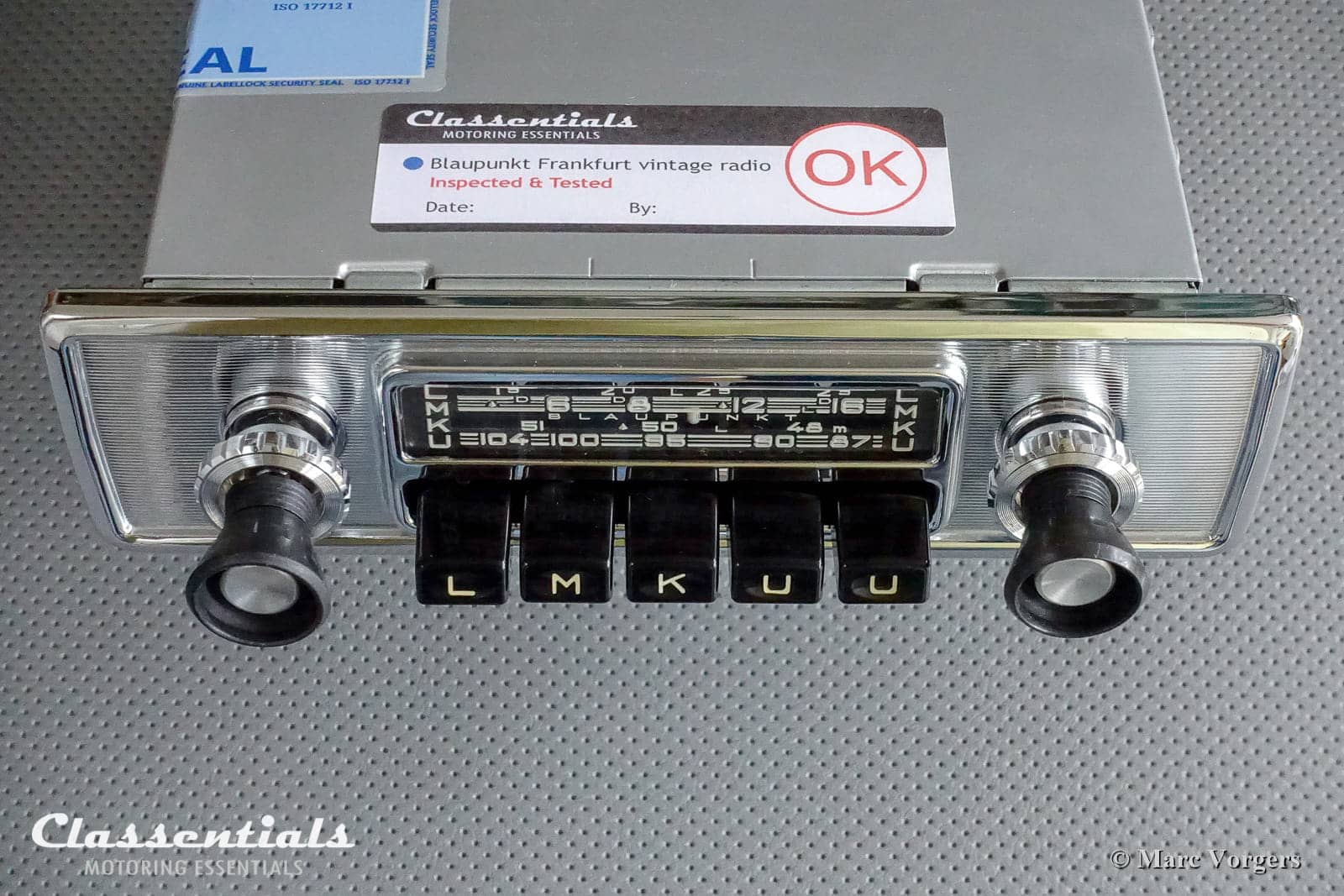

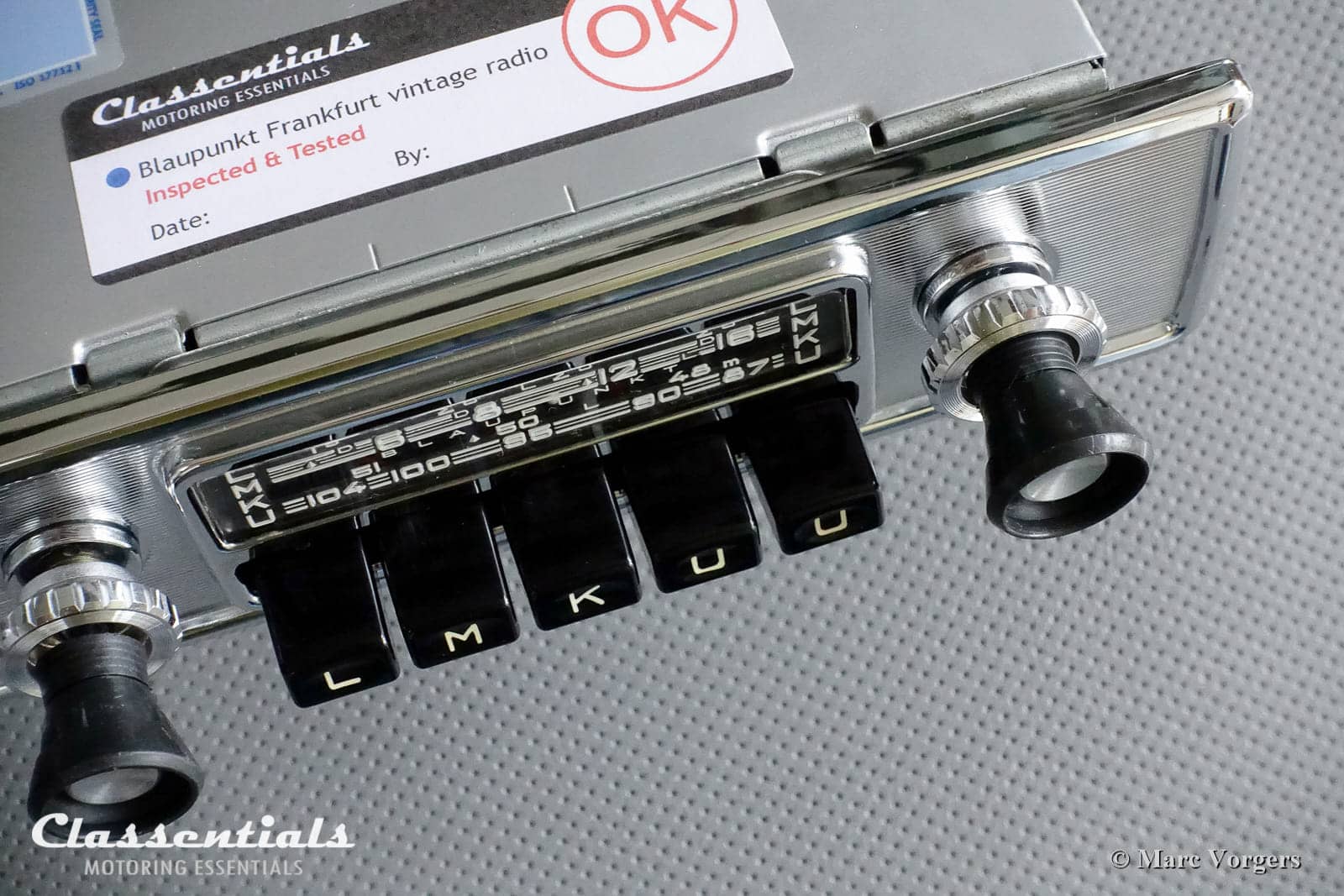

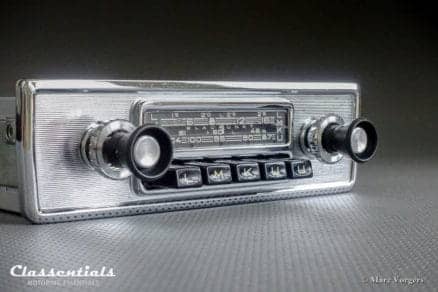

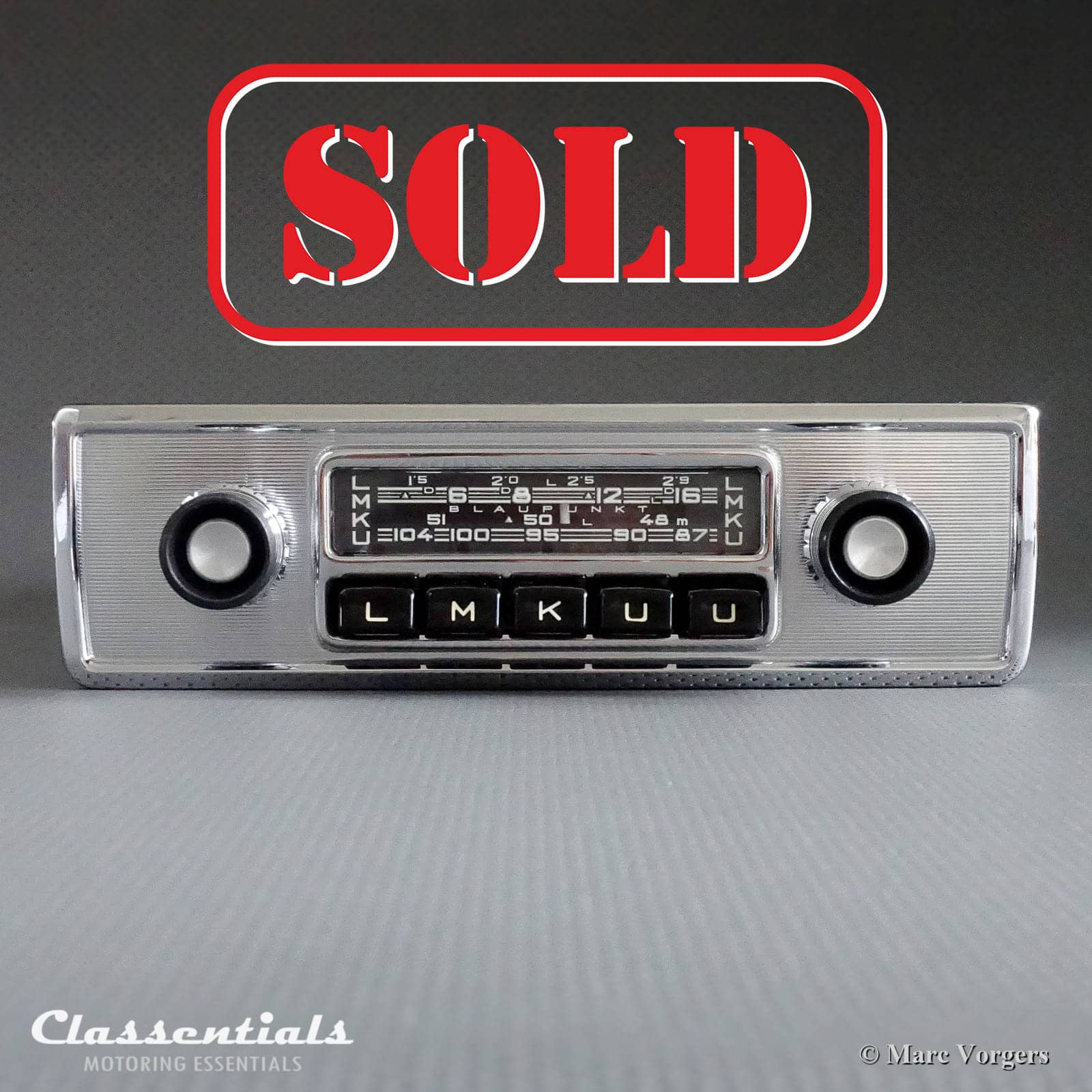

Make and Model: Blaupunkt Frankfurt X
Classic Car era: 1960 – 1970

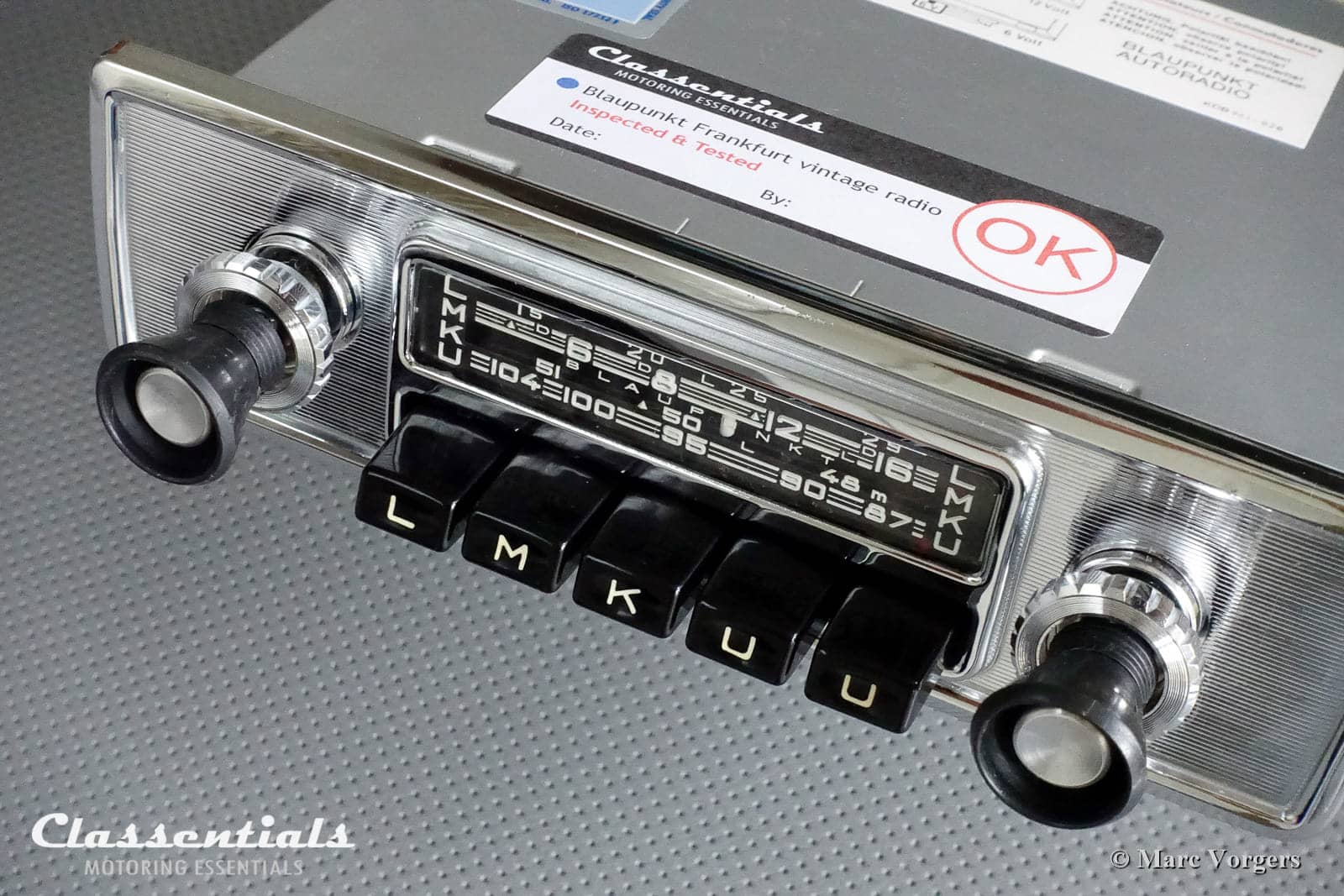

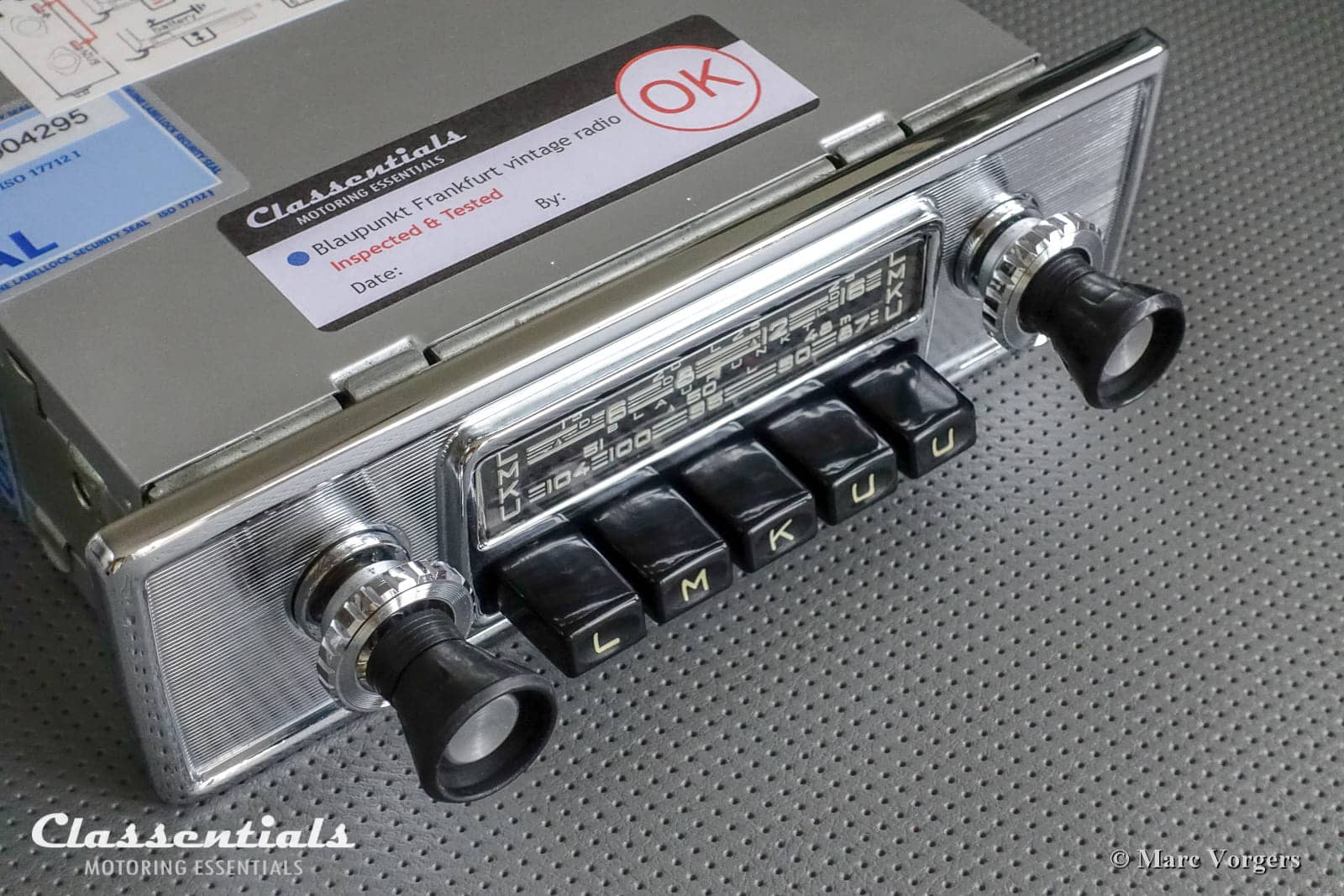

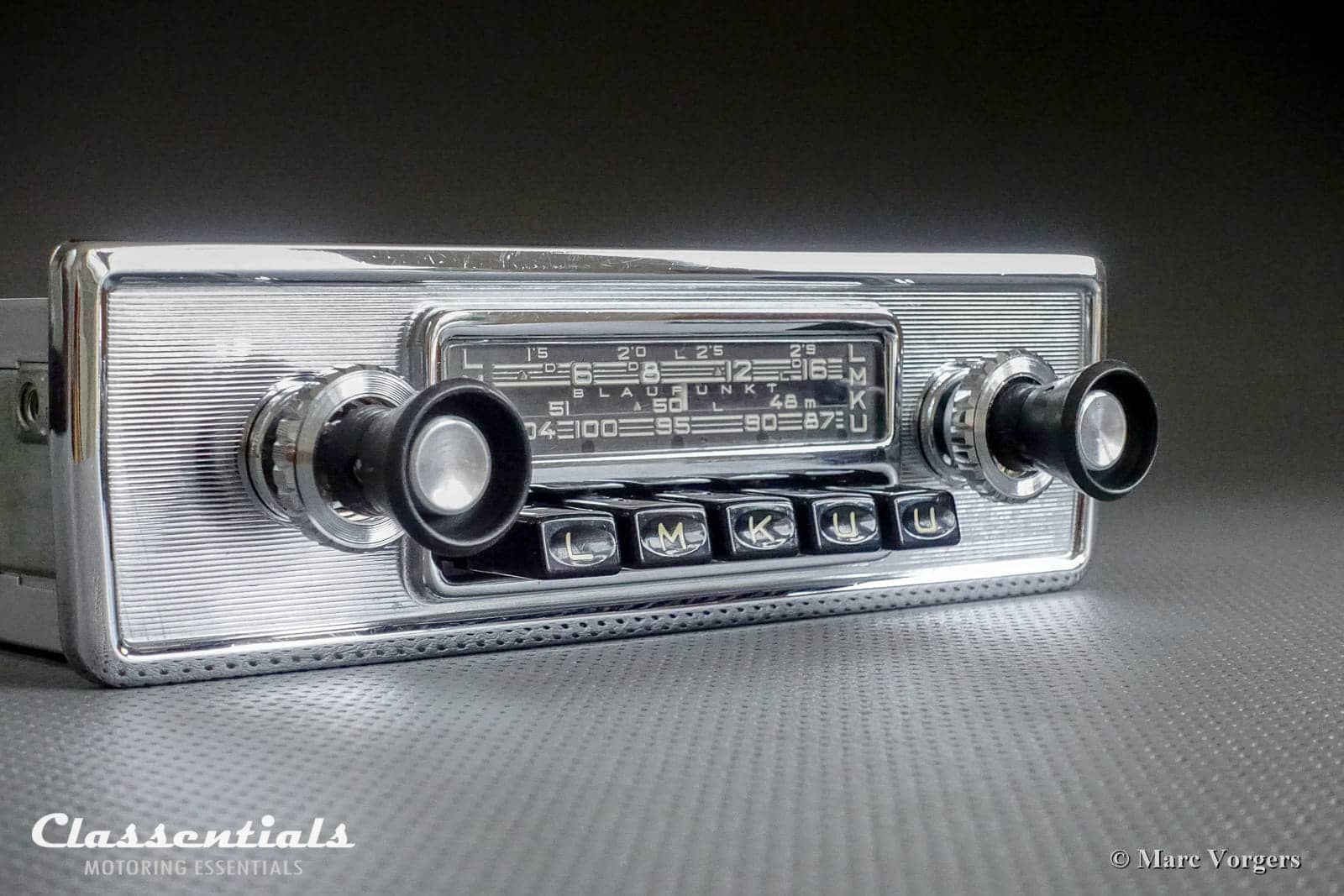

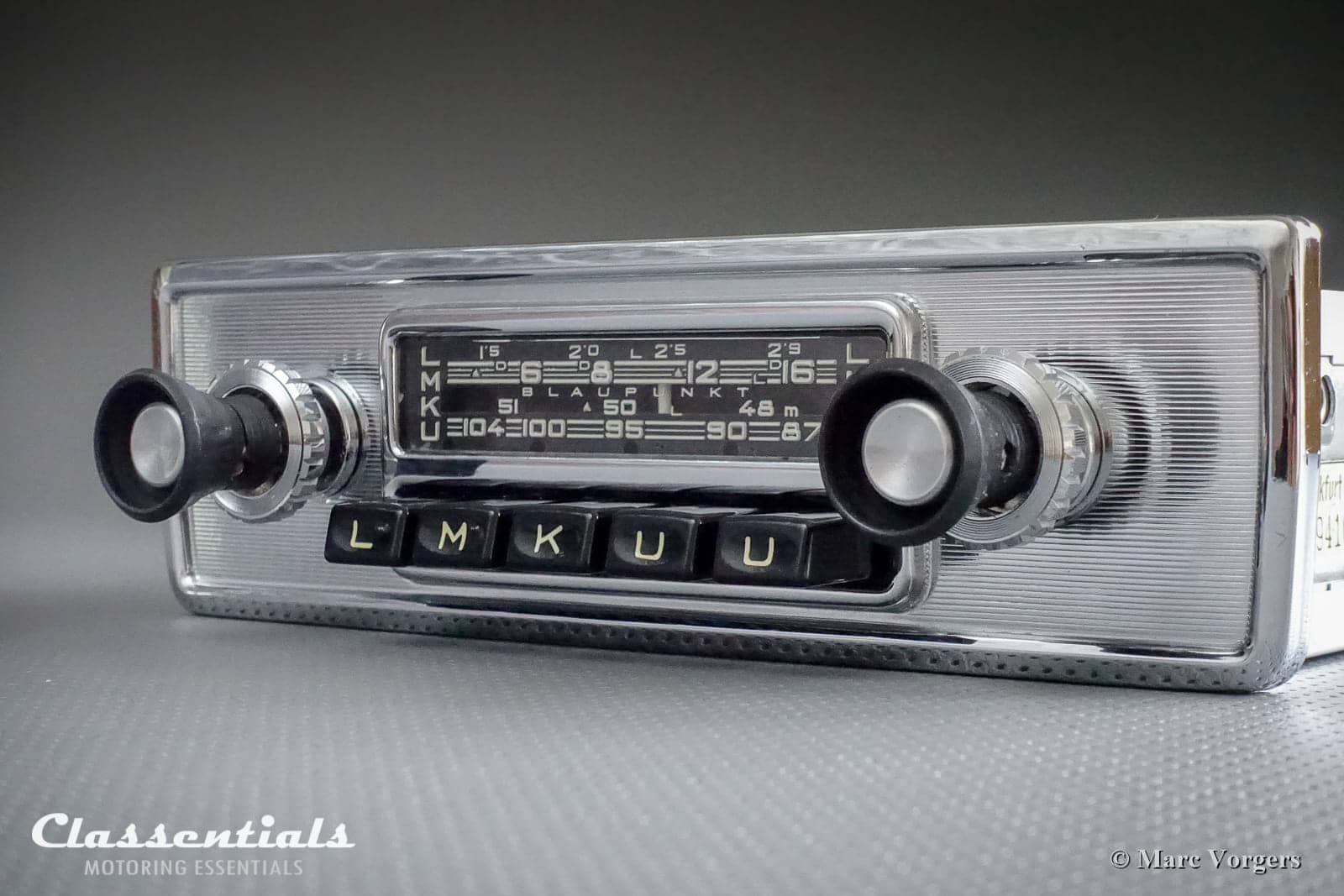

Face-plate: BMW ‘Neue Klasse’ (C, CS, Coupe 1965 – 1969 / 115, 116, 118, 120, 121 1962 – 1970). The face plate can be universally used in other cars of the period, flush / flat dashboard fit. Different face-plate and / or knobs on exchange basis at no additional costs, see photos
On-board voltage: 6V and 12V (switch), Negative OR positive earth / ground (switch)
Output power: 5 / 7 Watt
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.

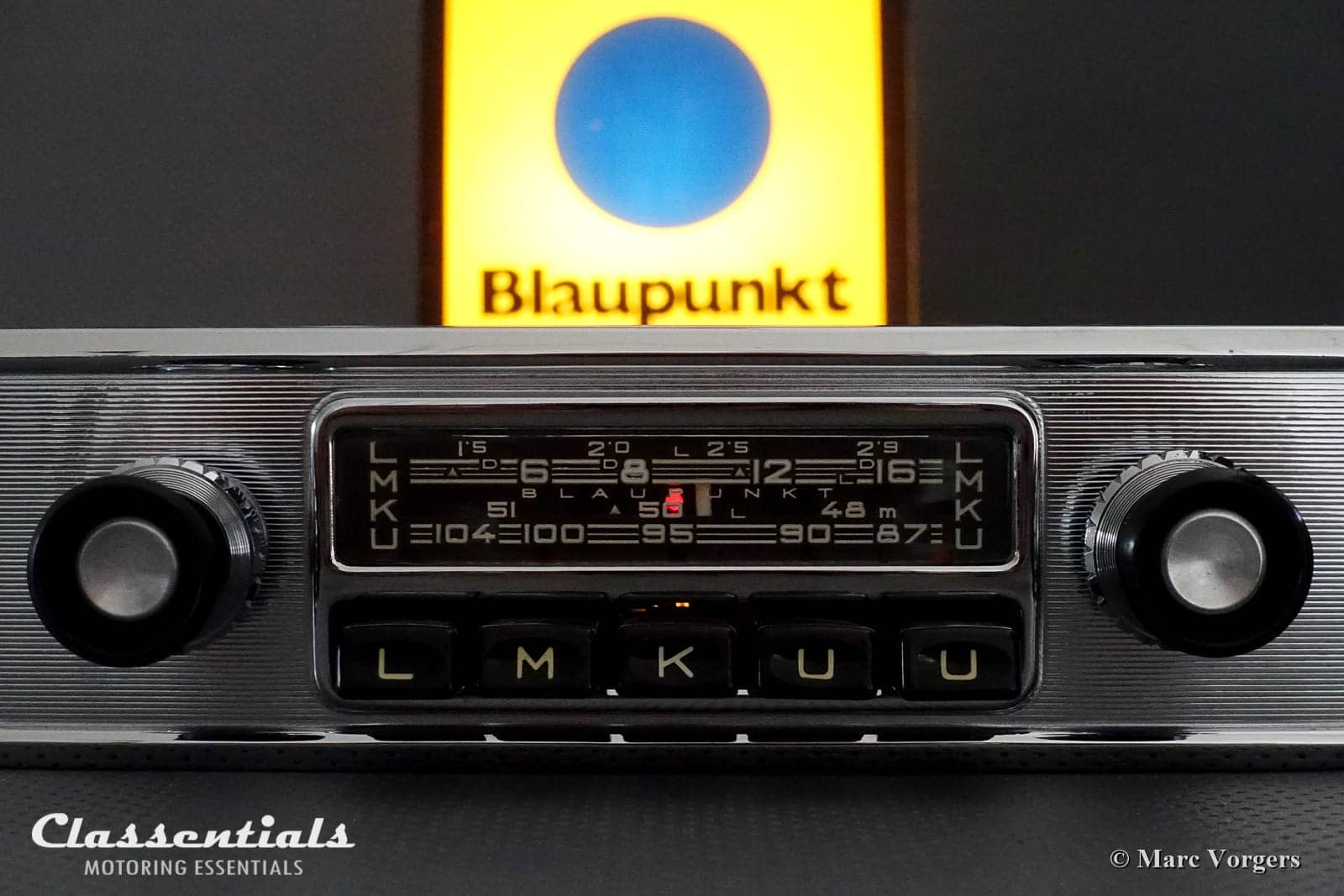

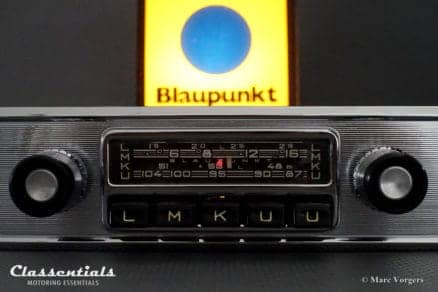

Wave Range: long wave (L), medium wave (M), short wave (K), UKW (FM)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: station pre-set buttons, external amplifier, DIN connection for optional external devices (in period cassette players) like MP3/mobile phone and DAB+ digital radio/handsfree phone sets.
Design type: Transistor radio
Year of build: 1966

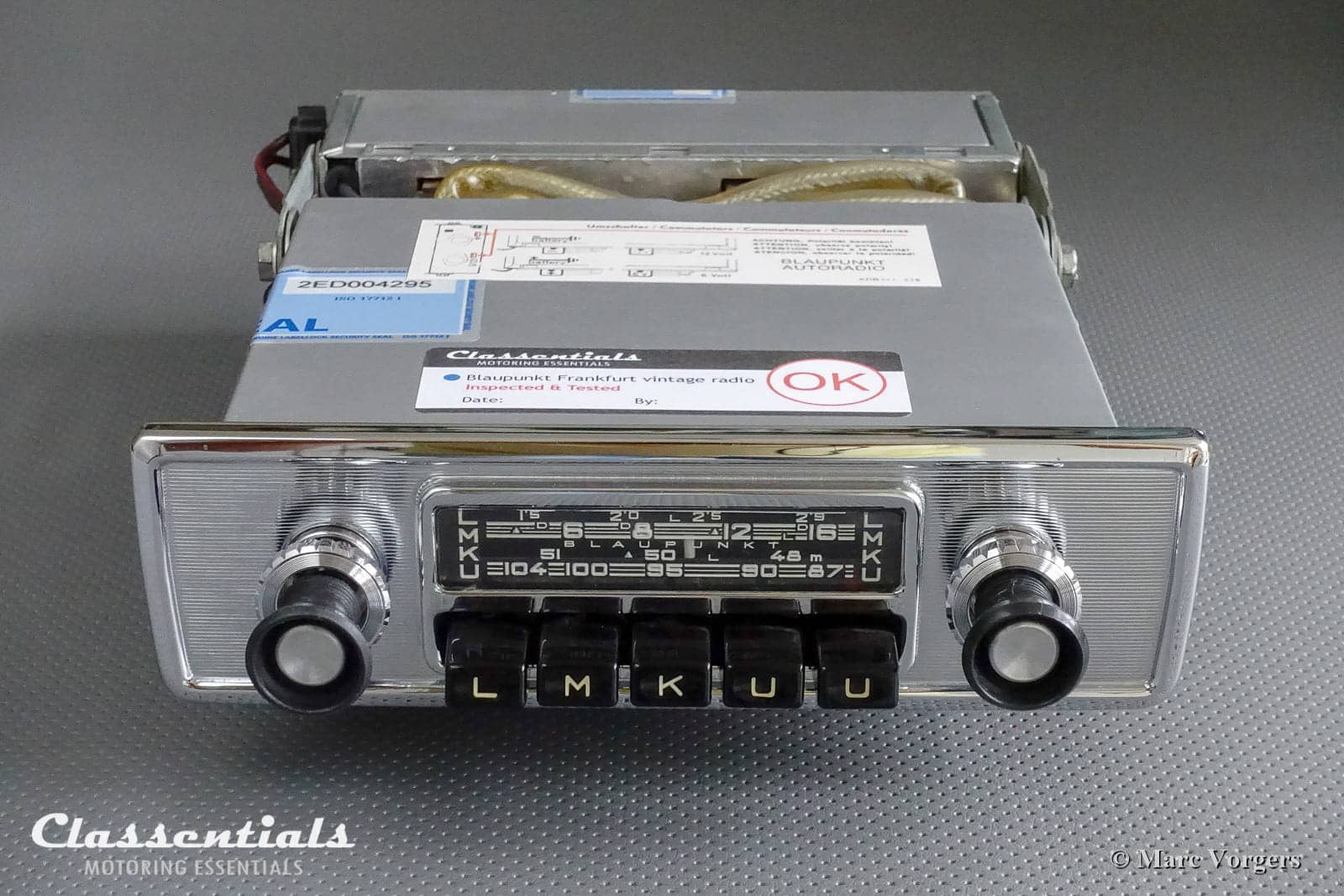

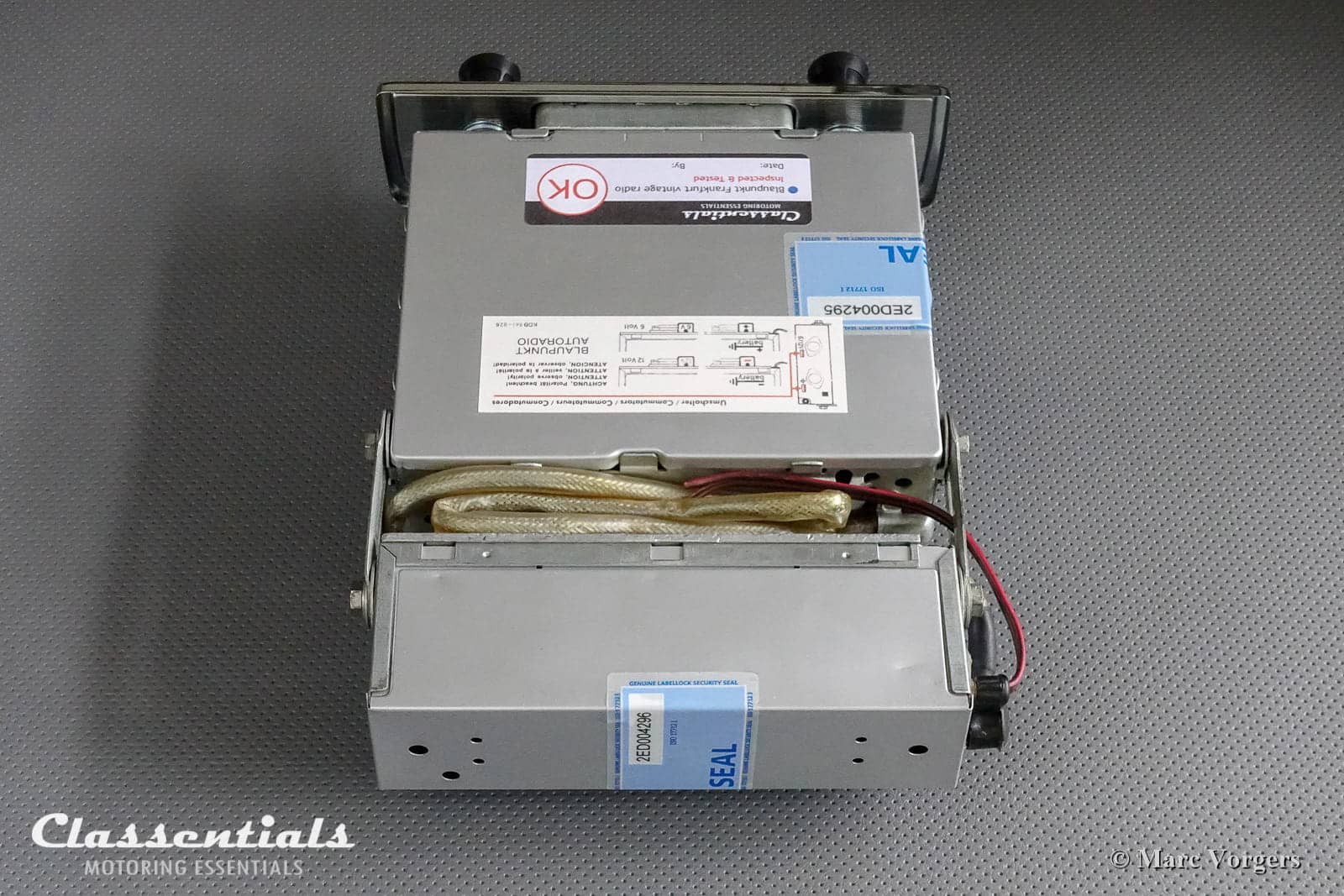

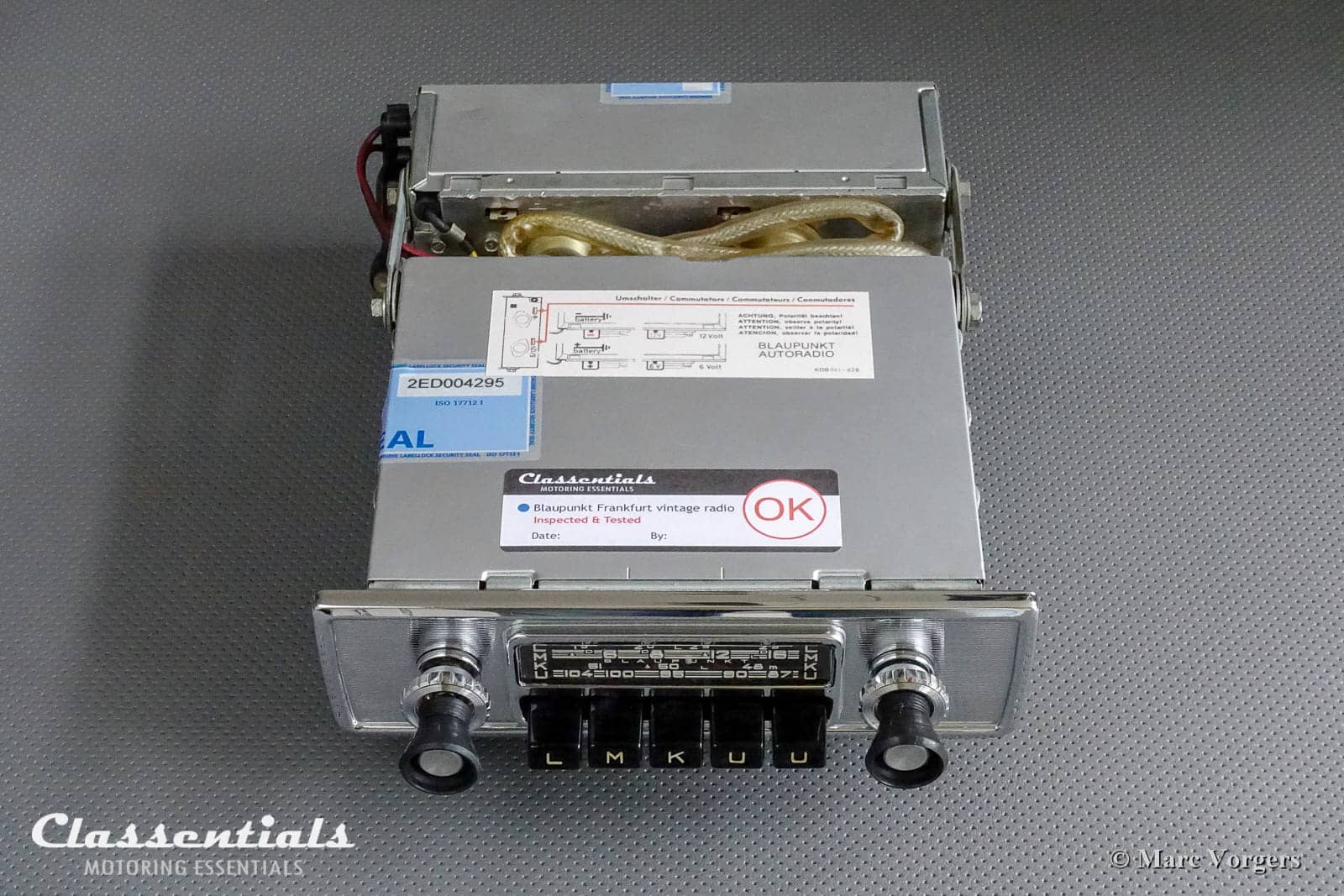

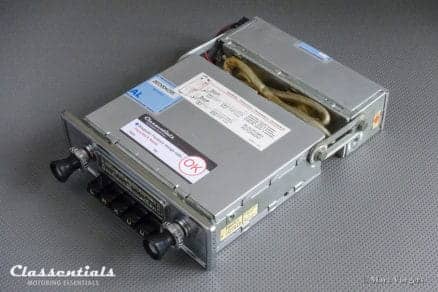

Dimensions unit (width x height x depth in mm) Radio: 176 x 50 x 158, Amplifier: 183 x 60 x 52
Dimensions face-plate (mm): Width top: 204, bottom: 198, heigth: 60
Weight (kg): 2.8

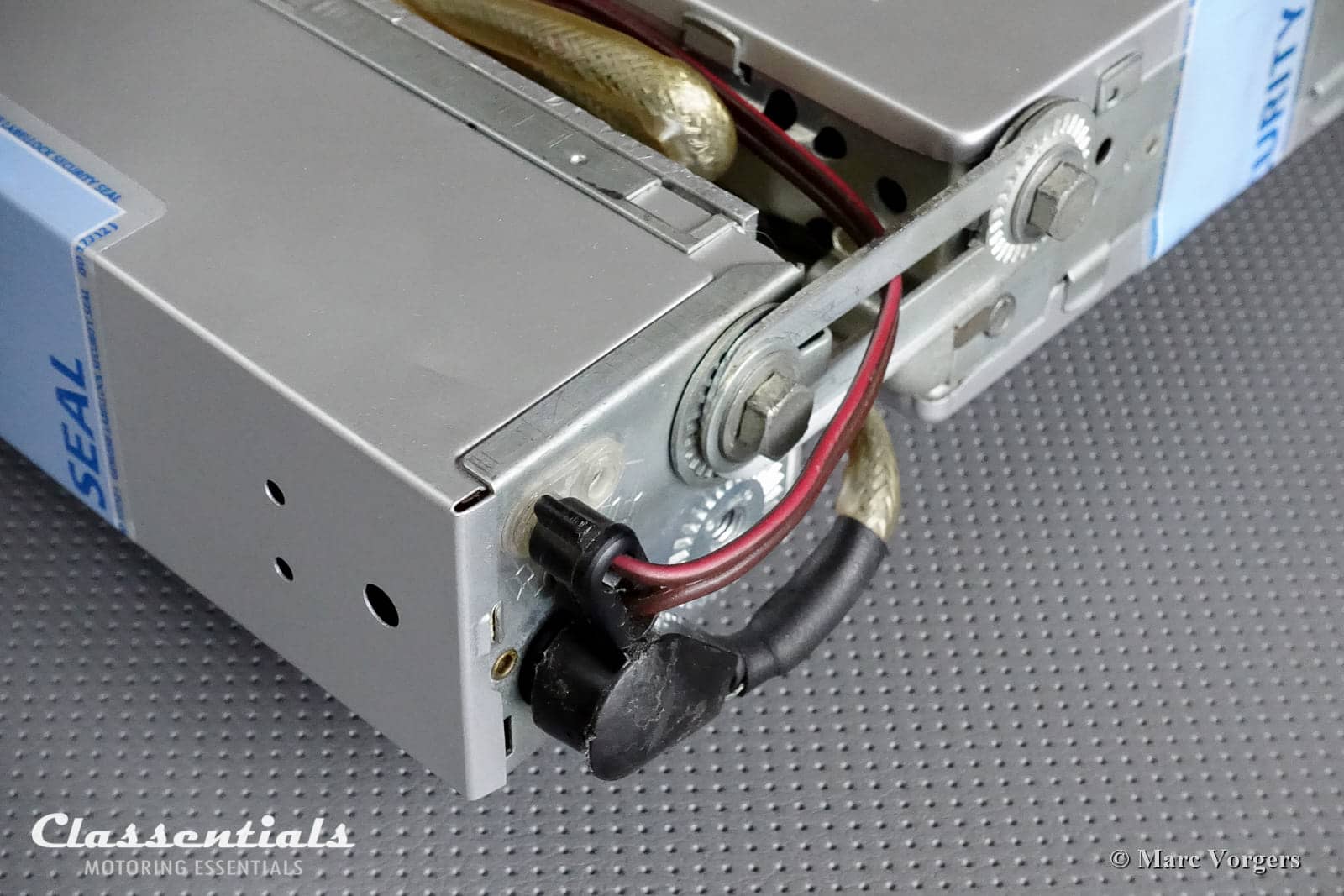

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, earth cable, extra M10 mounting rings and a rear mounting bracket (holed metal strip).
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Tools needed: wrench number 14 and 10, cable shoe pliers. Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

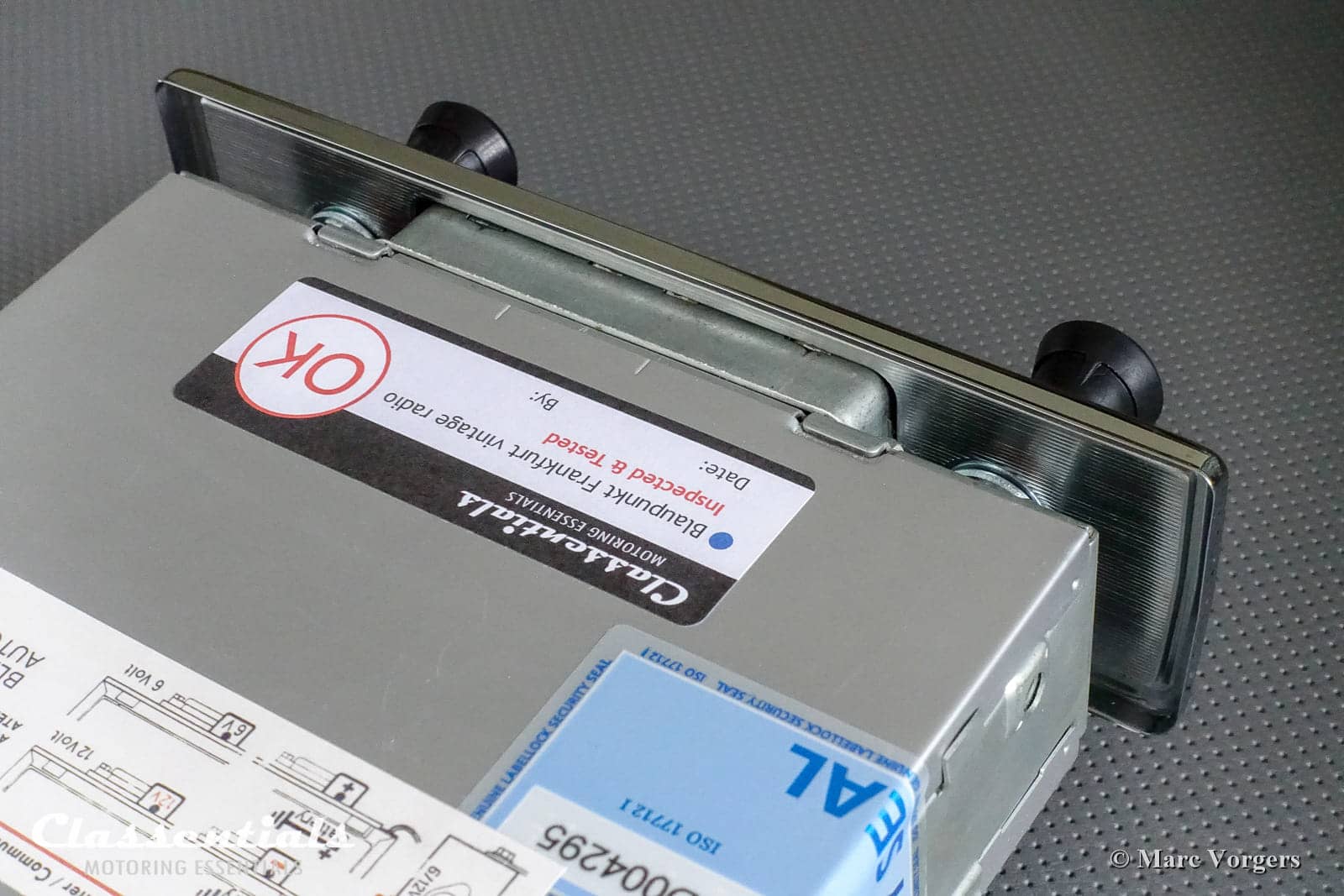

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
