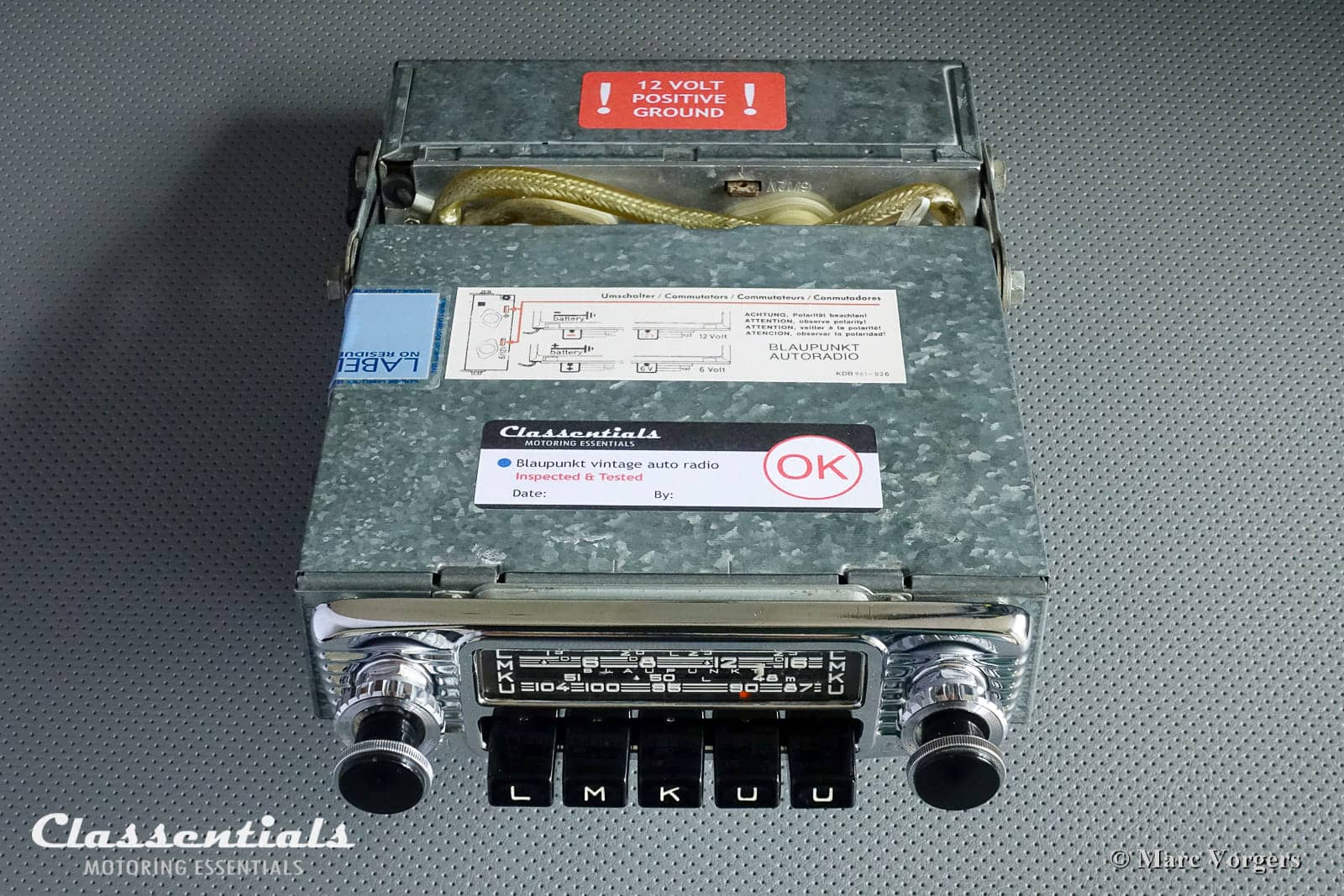

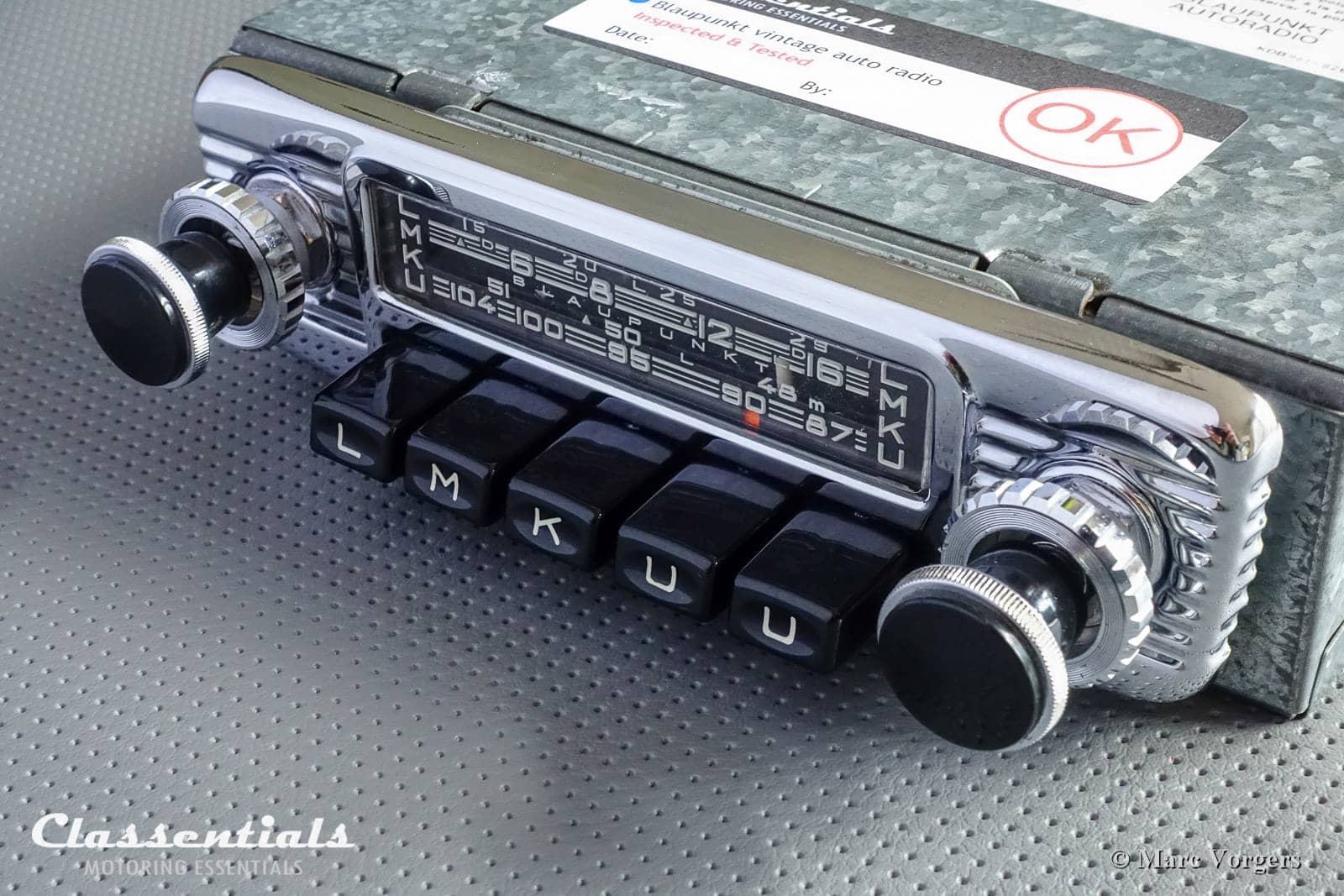

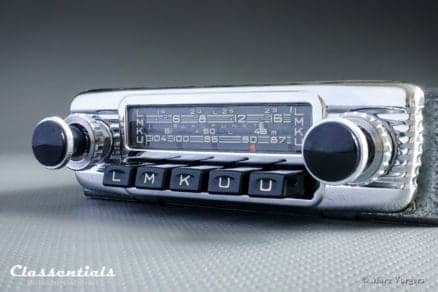

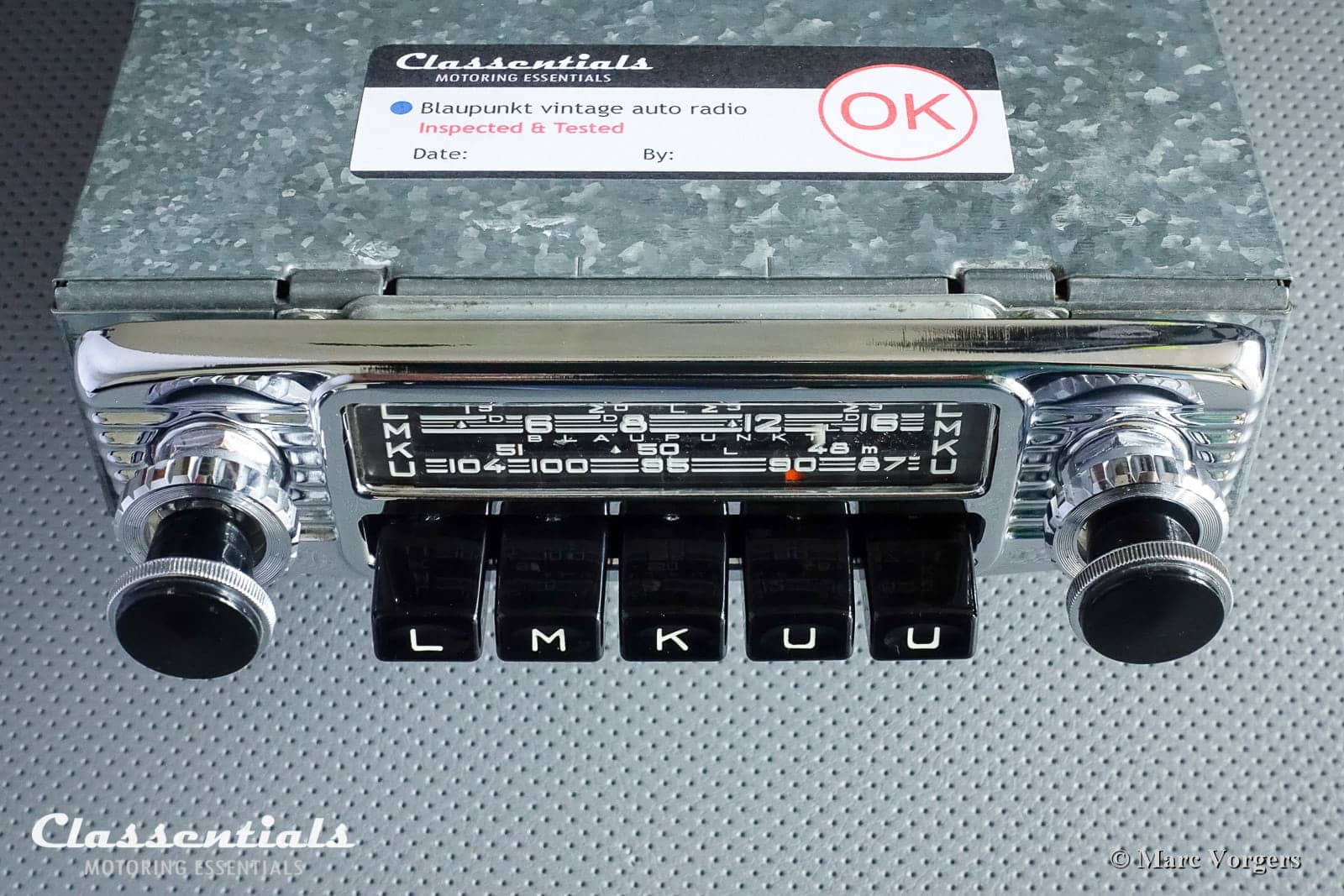

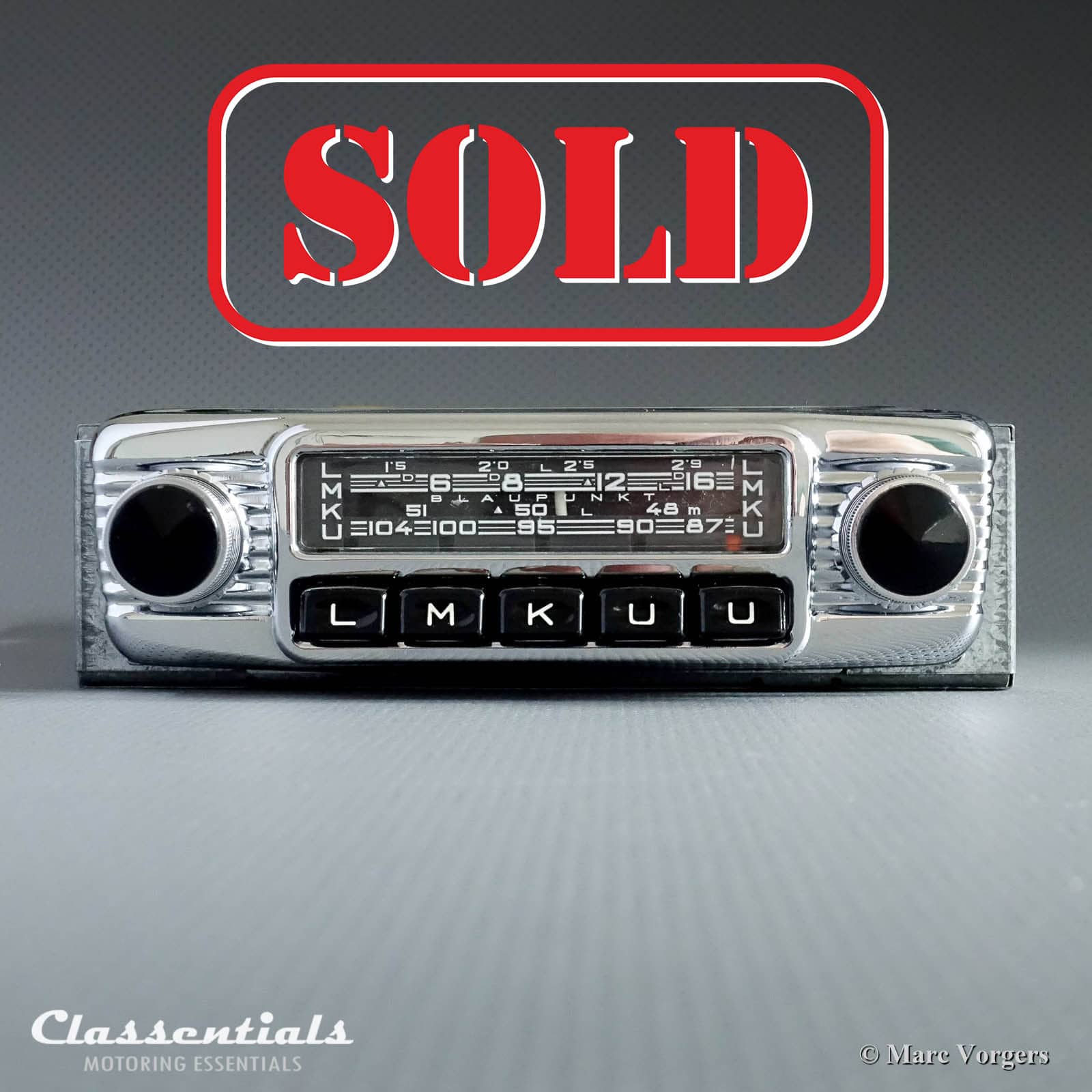

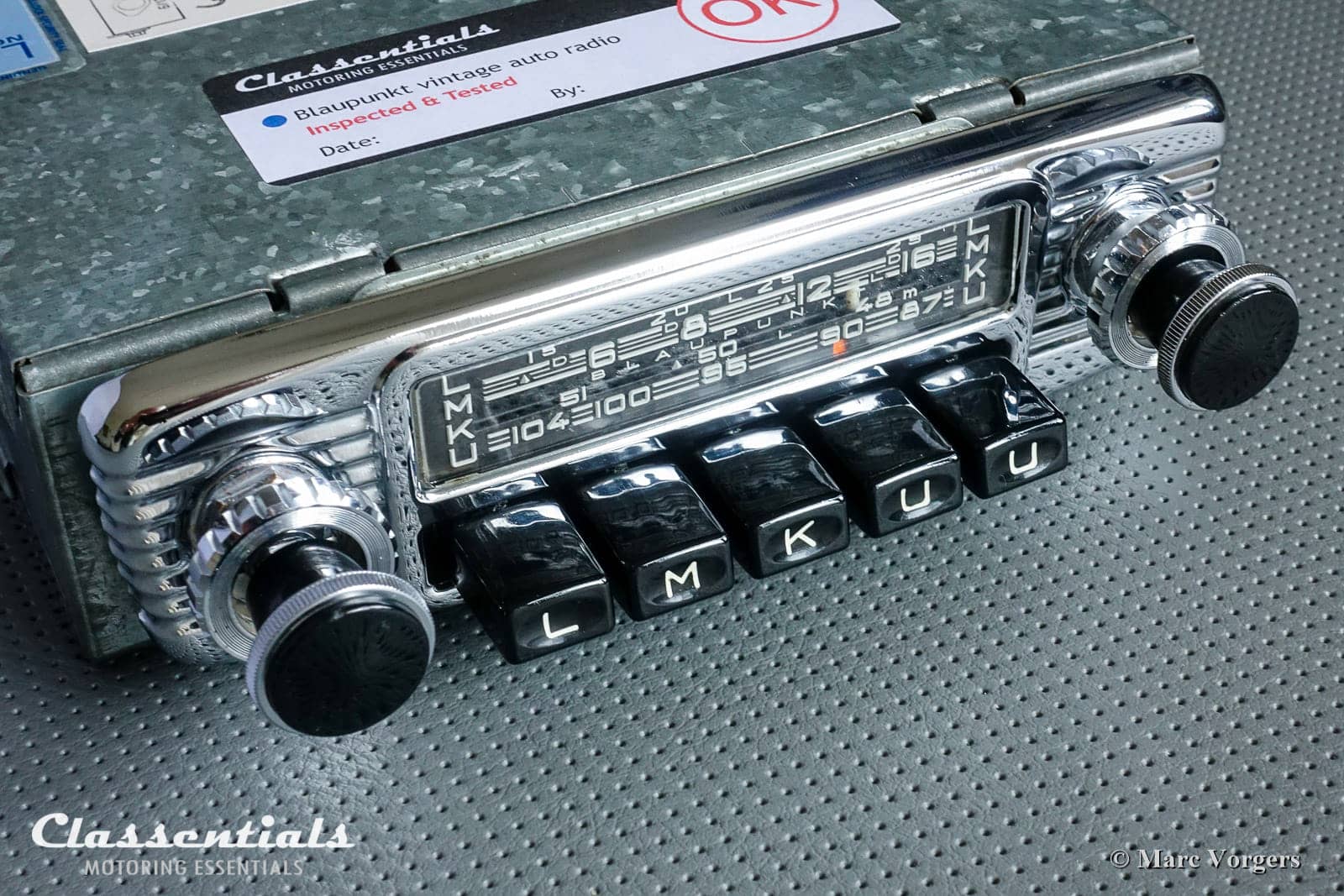

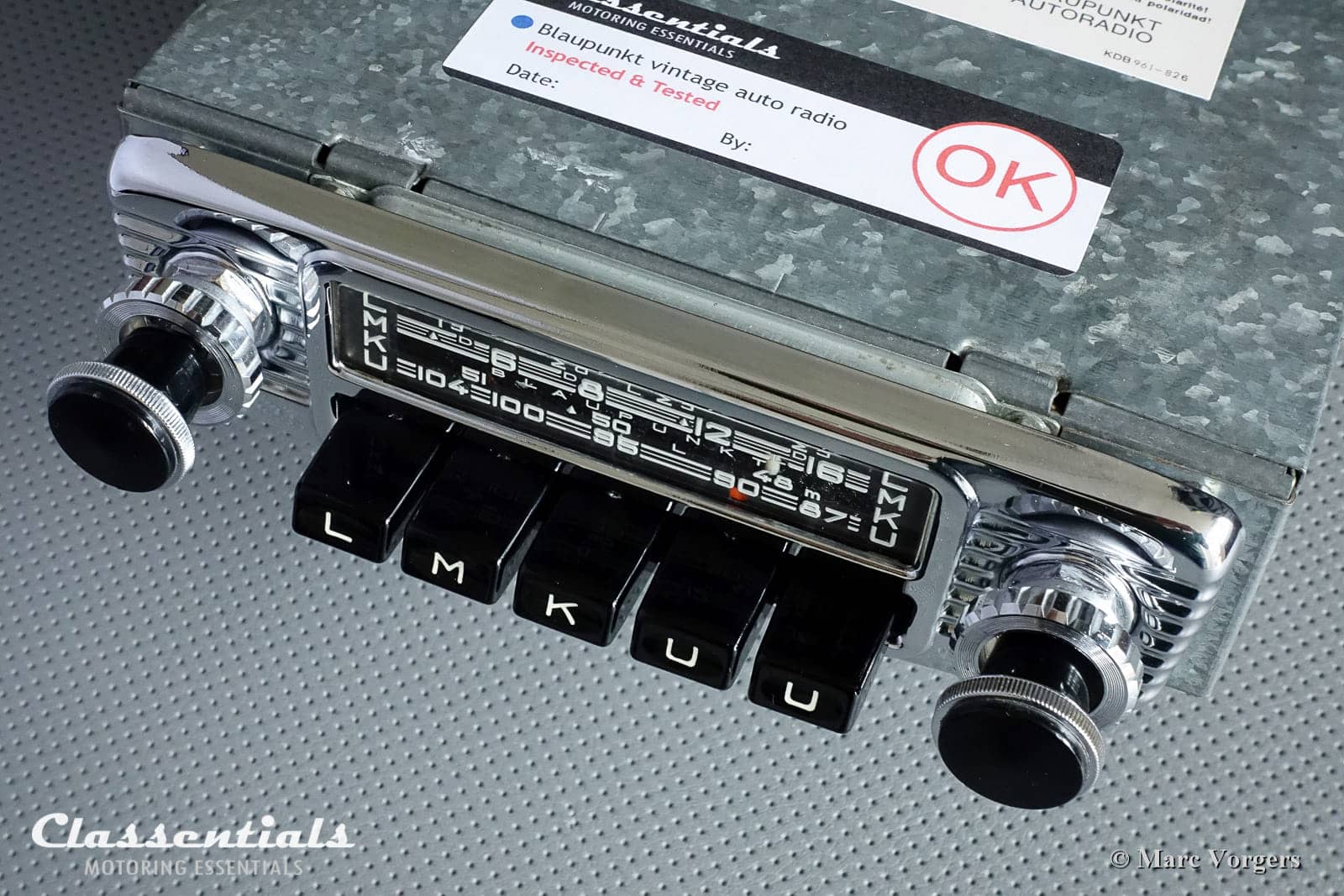

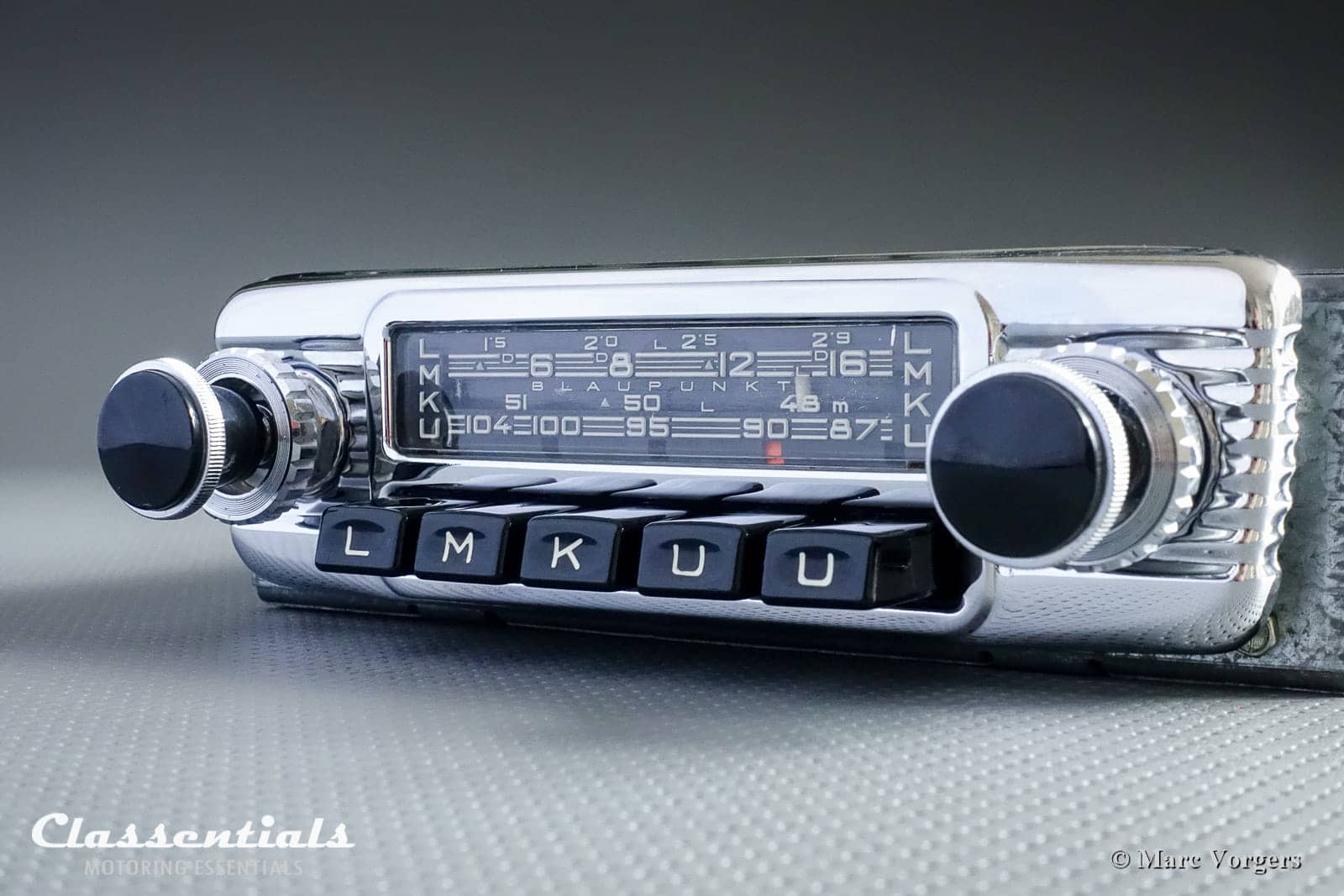

Make and Model: Blaupunkt Frankfurt X
Classic Car era: 1960 – 1970
Face-plate: 168 x 49 mm sculpted metal chrome for Austin Healey 3000, Volvo PV544 and other cars of the 1960s.
On-board voltage: 6V and 12V (switch), Negative OR positive earth / ground (switch)
Output power: 5 / 7 Watt
Impedance: 4 Ohm
Rendition: This radio has two speaker connection possibilities. A connection marked ‘I’ to which you can connect one 4 Ohm speaker, and a connection, marked ‘II’ for two speakers. Two speakers 4 Ohm have to connected parallel + to + and – to -, this make 2 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: Long wave, Medium wave, Short Wave and Ultra short wave (FM)
Frequency range UKW (FM): 88MHz – 104MHz.

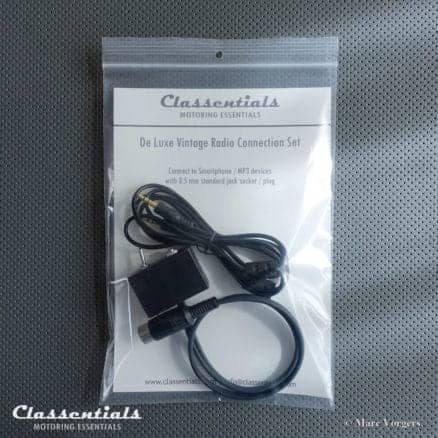

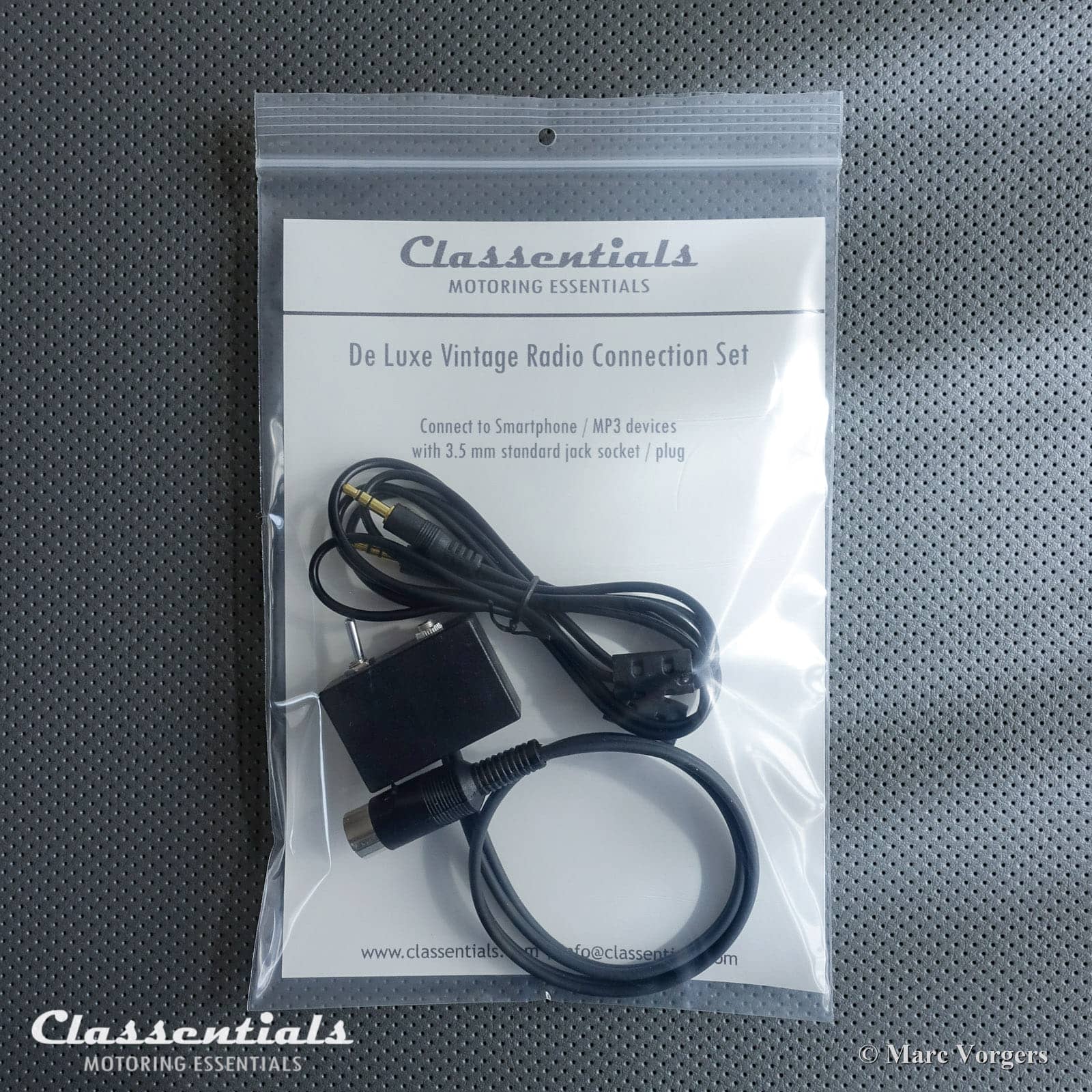

Equipment: LMKUU station pre-set buttons, tone control, external amplifier, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio
Year of build: 1966

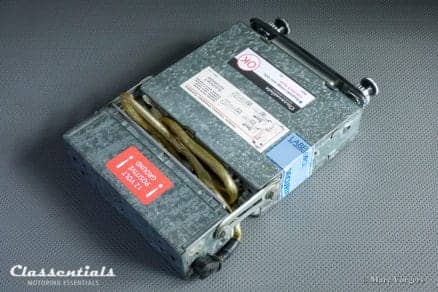

Dimensions unit (width x height x depth in mm) Radio: 176 x 50 x 158, Amplifier: 183 x 60 x 52
Dimensions face-plate (width x height in mm): 168 x 49
Weight (kg): 2.8

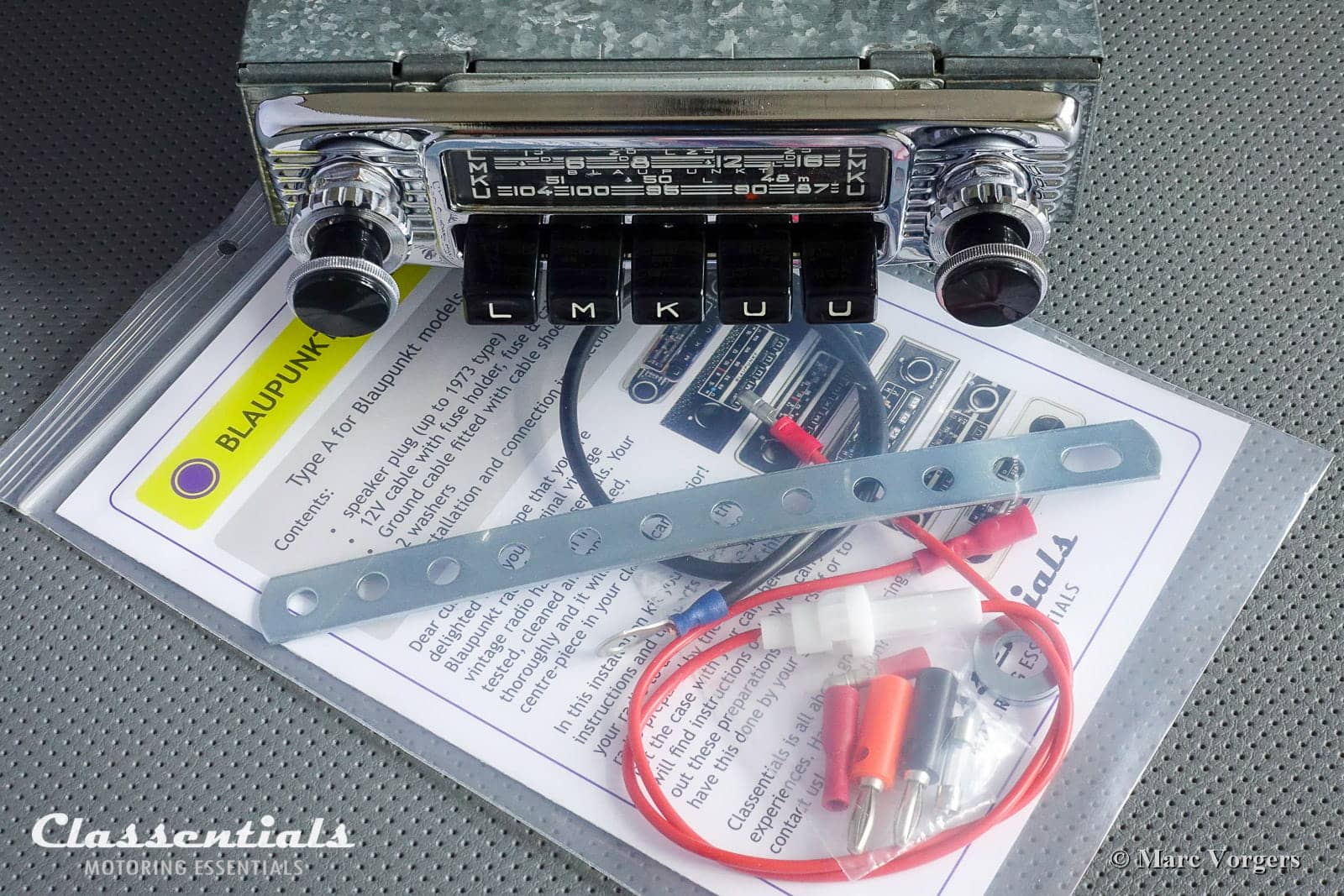

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, earth cable, extra M10 mounting rings, rear mounting bracket (holed metal strip) and amplifier mounting brackets.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Tools needed: wrench number 14 and 10, cable shoe pliers. Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.
*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
