Description

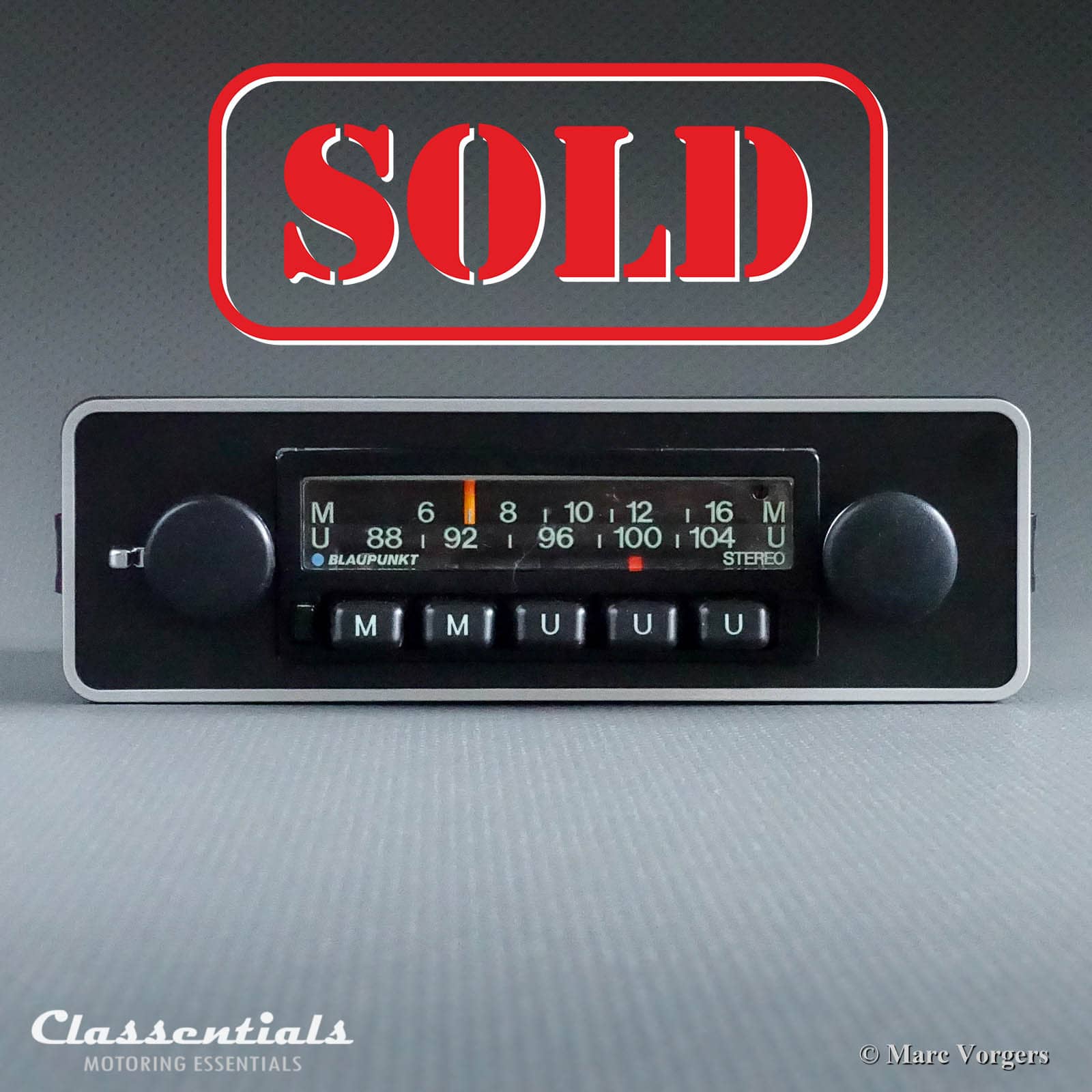

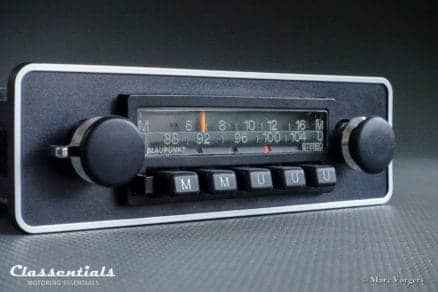

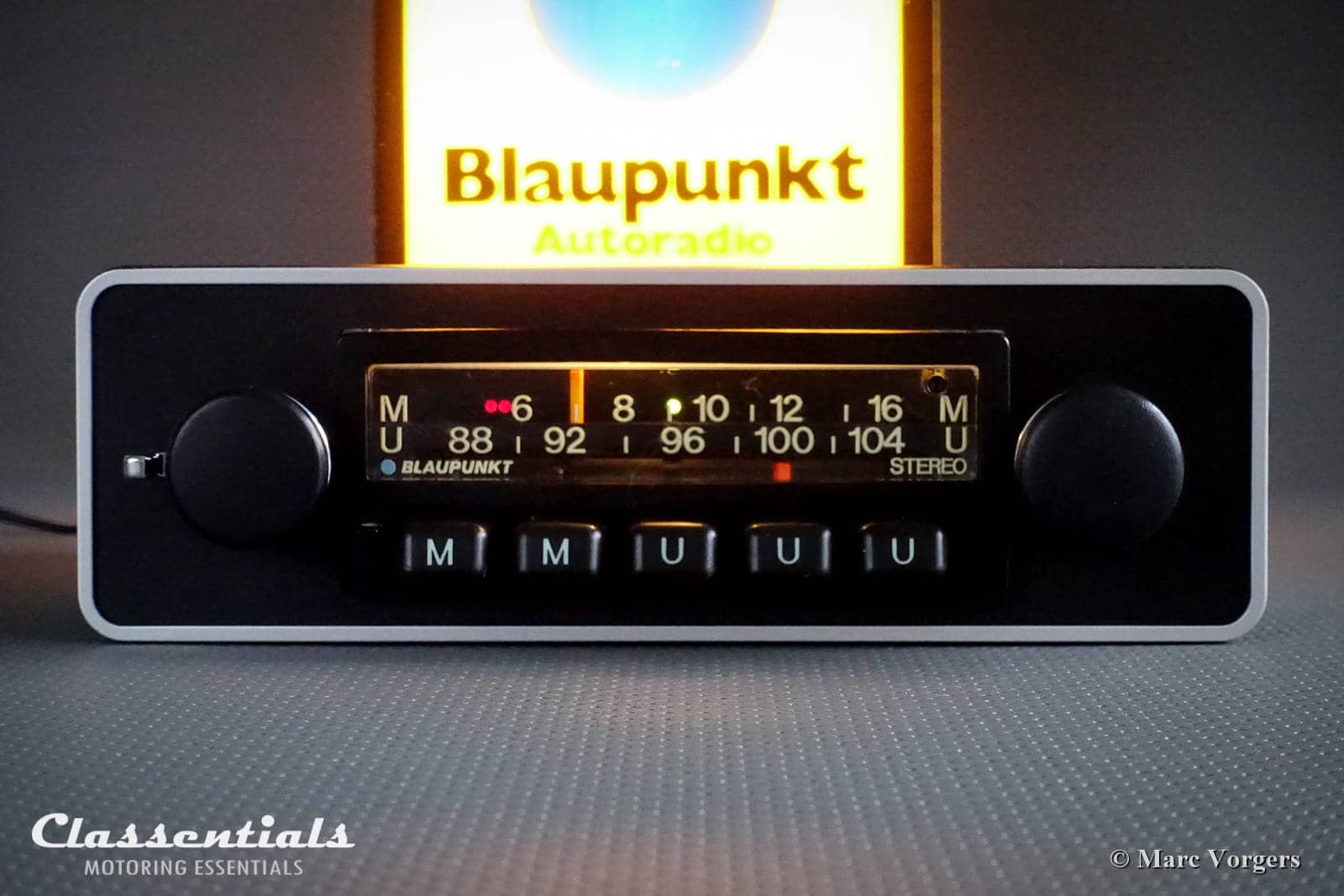

Model: Blaupunkt Münster STEREO (Type 7635)
Classic Car era: 1970 – 1980

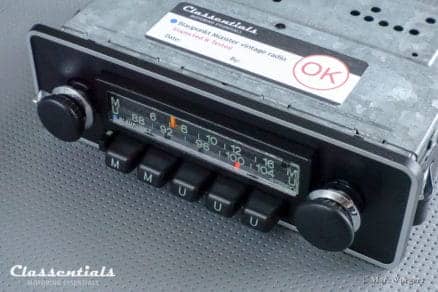

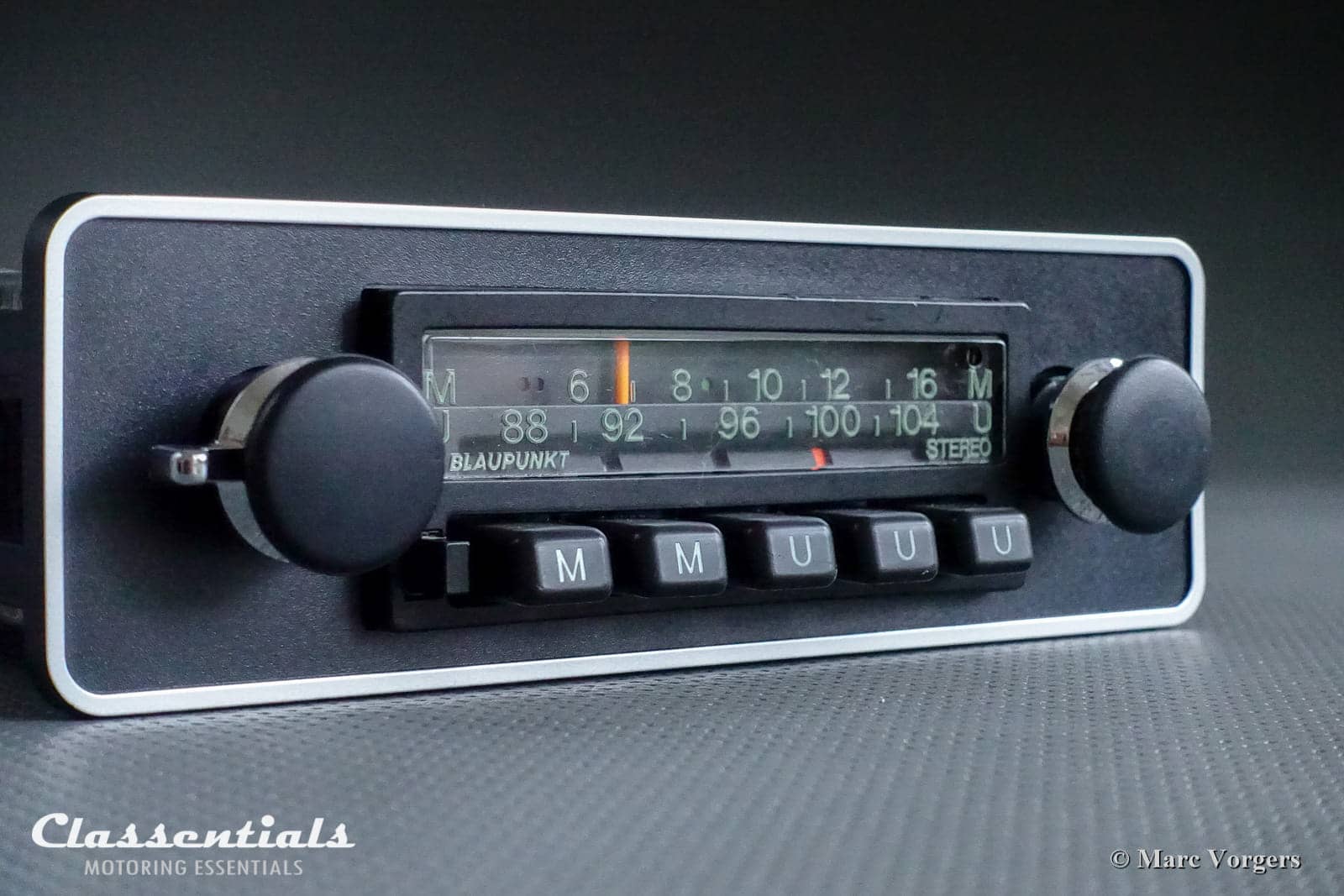

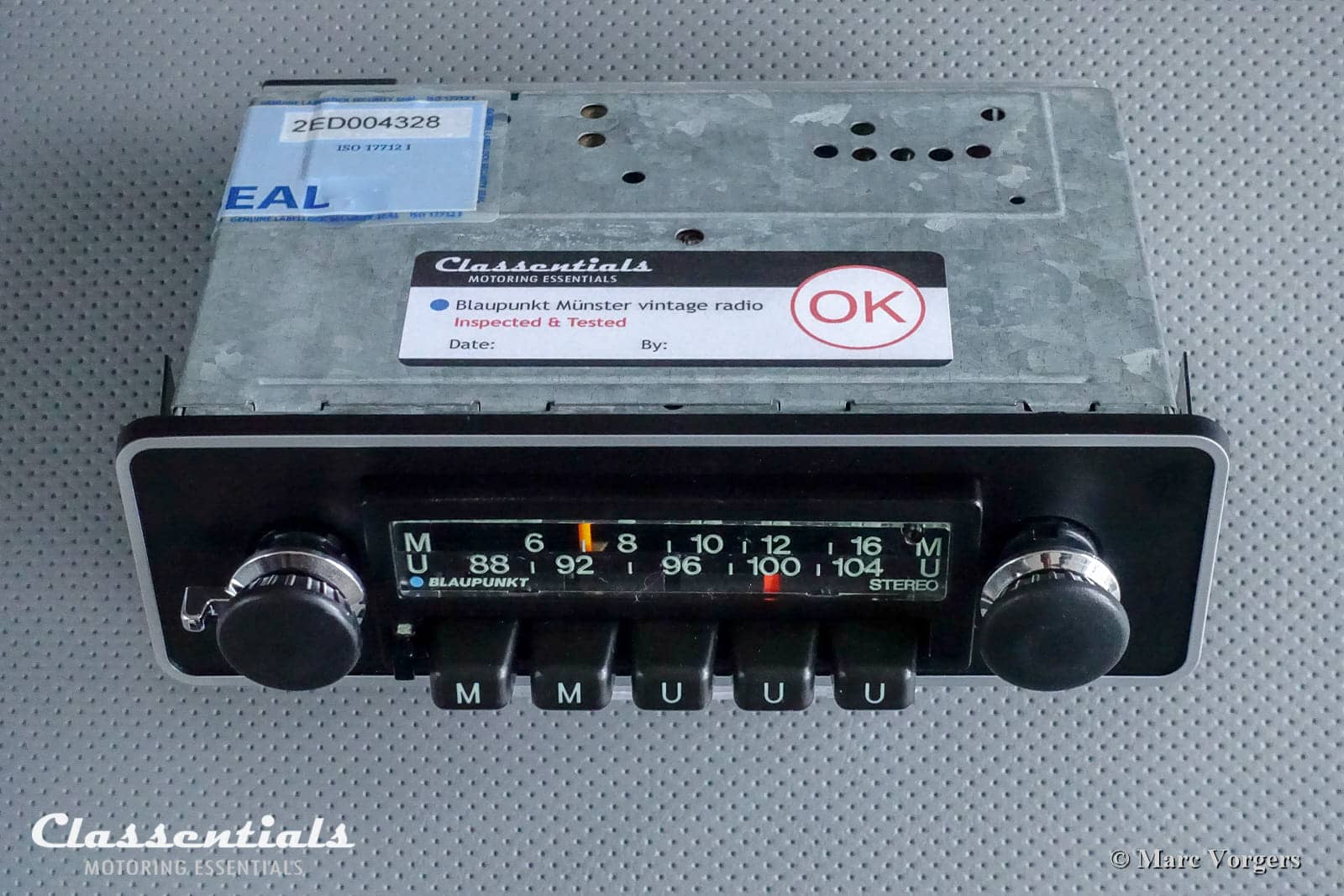

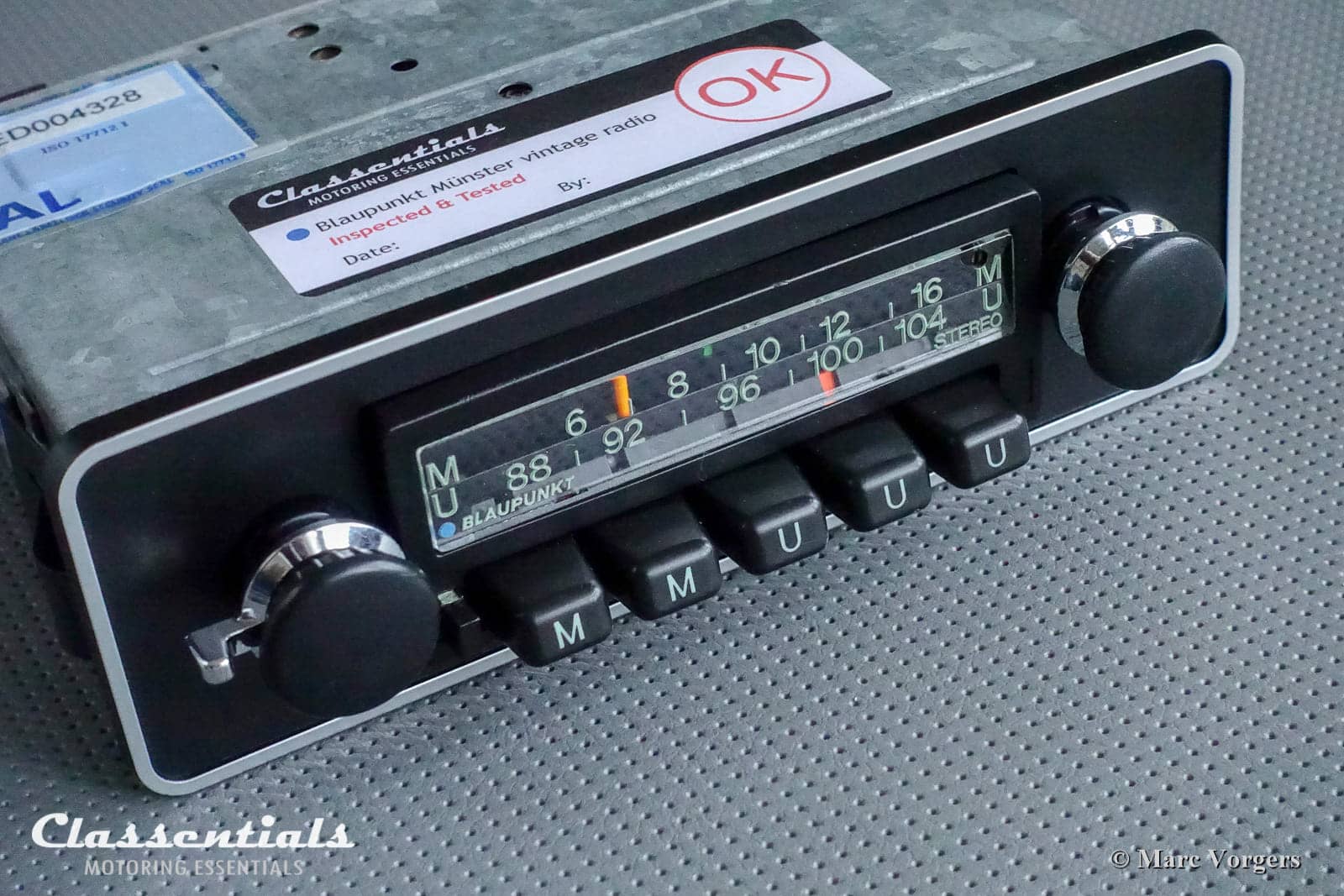

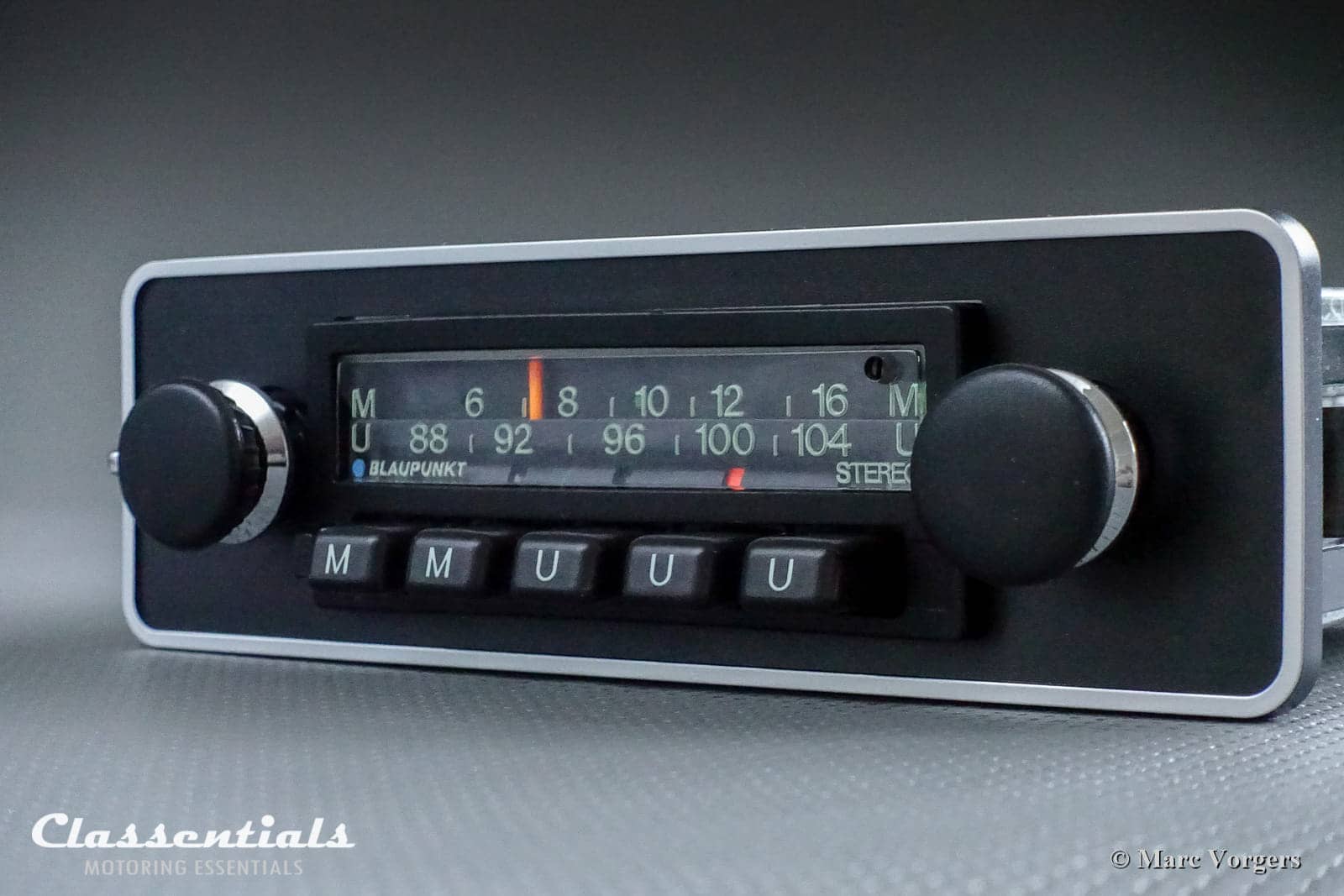

Face-plate: Universal face-plate with silver outline and rubber knobs to match. Other dedicated face-plates: 1970s BMW 5 / 7 series, Citroën GS, Opel. See photos. (On exchange basis no additional costs).
On-board voltage: 12V, Negative earth / ground
Output power: 2 x 7 Watt
Impedance: 4 Ohm
Rendition: Stereo, 2 (4 Ohm) speakers. NOTE: If you want to connect four speakers then you have to use FOUR 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm per channel. This is important otherwise you will damage the internal amplifier.
Wave Range: medium wave, UKW (FM)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: station pre-set buttons, automatic antenna connection, 7-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Stereo Transistor radio
Year of build: 1975
Dimensions unit (width x height x depth in mm): 177 x 42 x 115
Dimensions face-plate (width x height in mm): 190 x 58
Weight (kg): 1.3

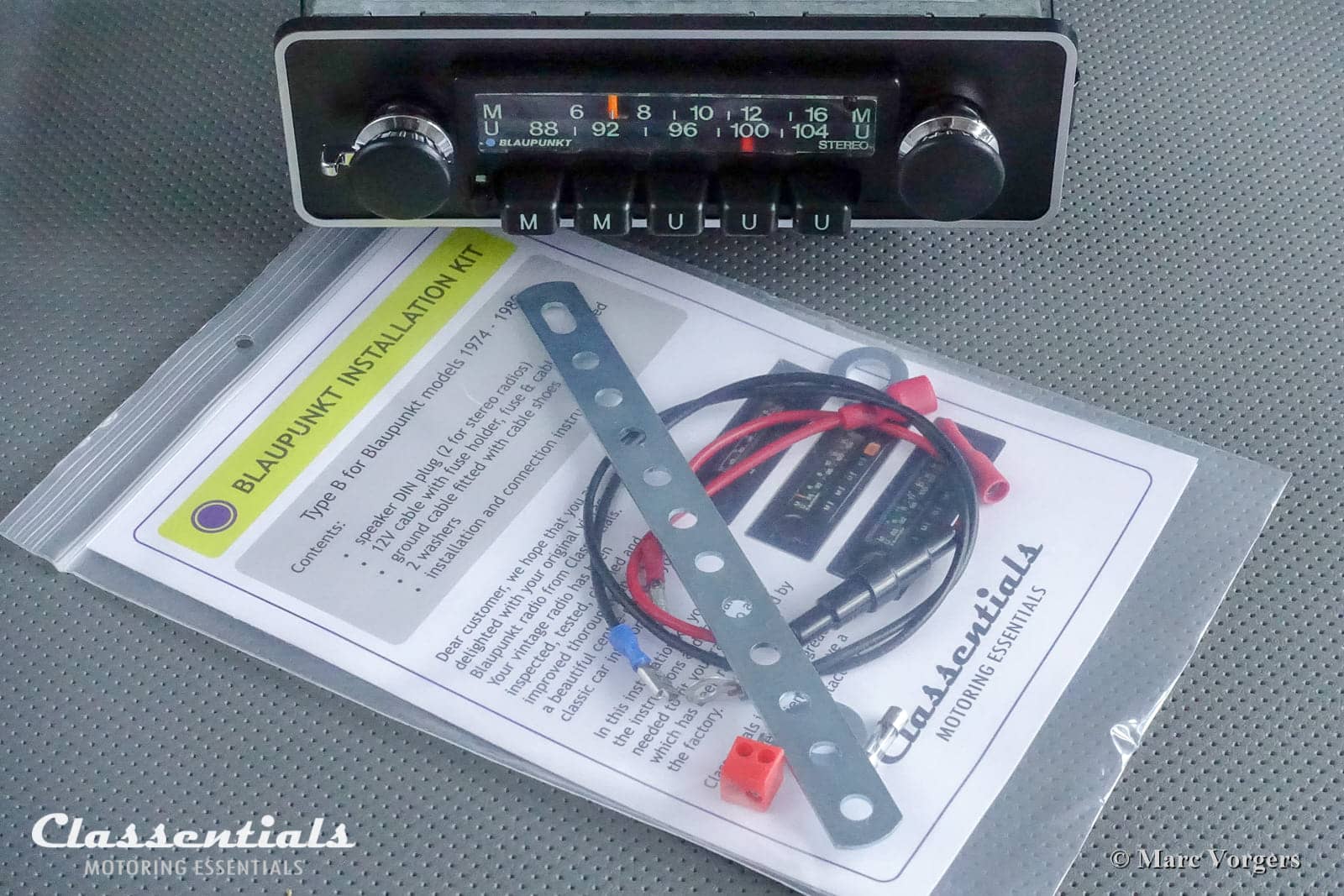

Extra in packaging: Classentials Installation Kit 2 with installation instructions, new style speaker plugs (2), ground cable, 12V wire with fuse, cable shoes, a holed metal back side mounting strip.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Tools needed: wrench number 14 and 8, cable shoe pliers. Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

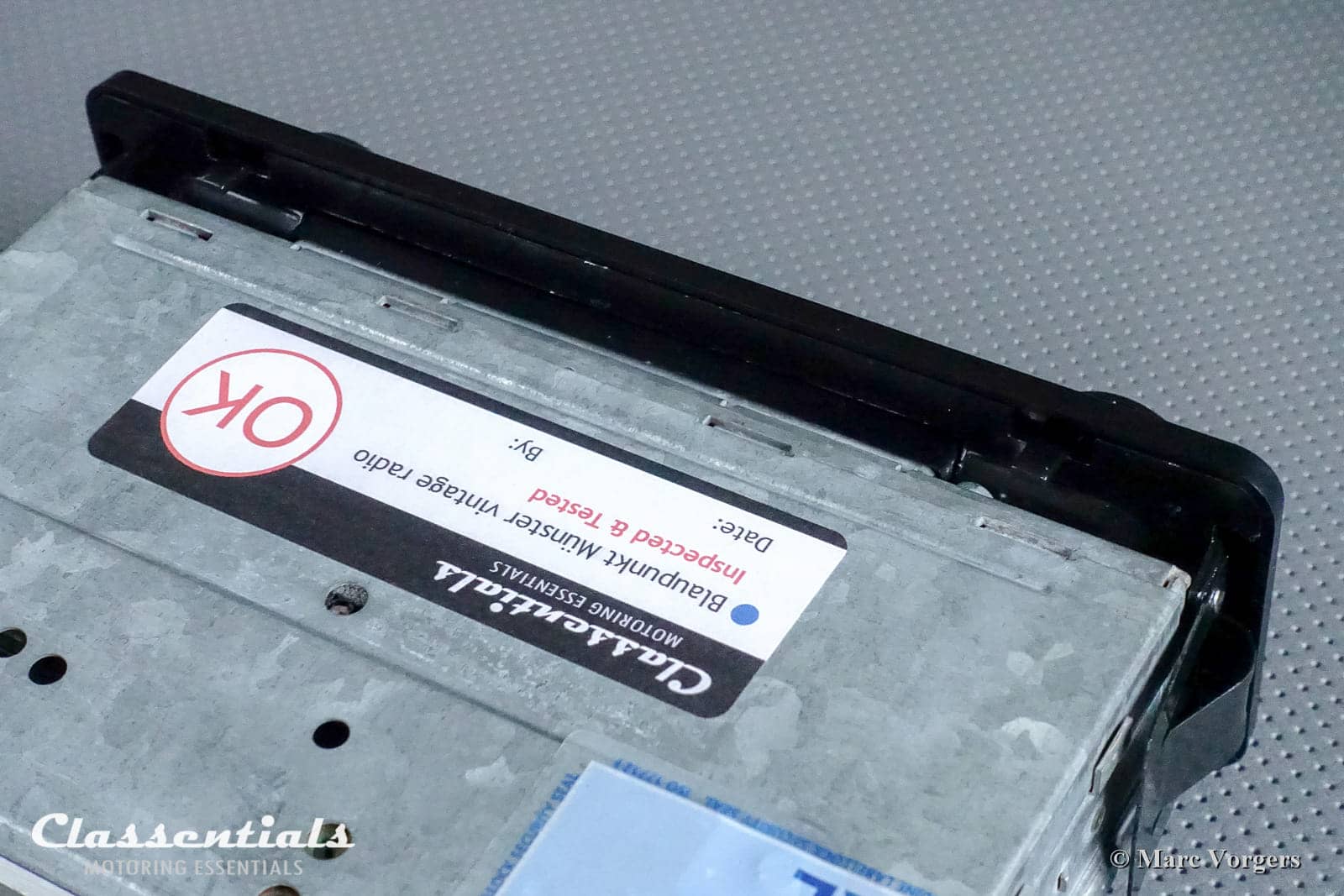

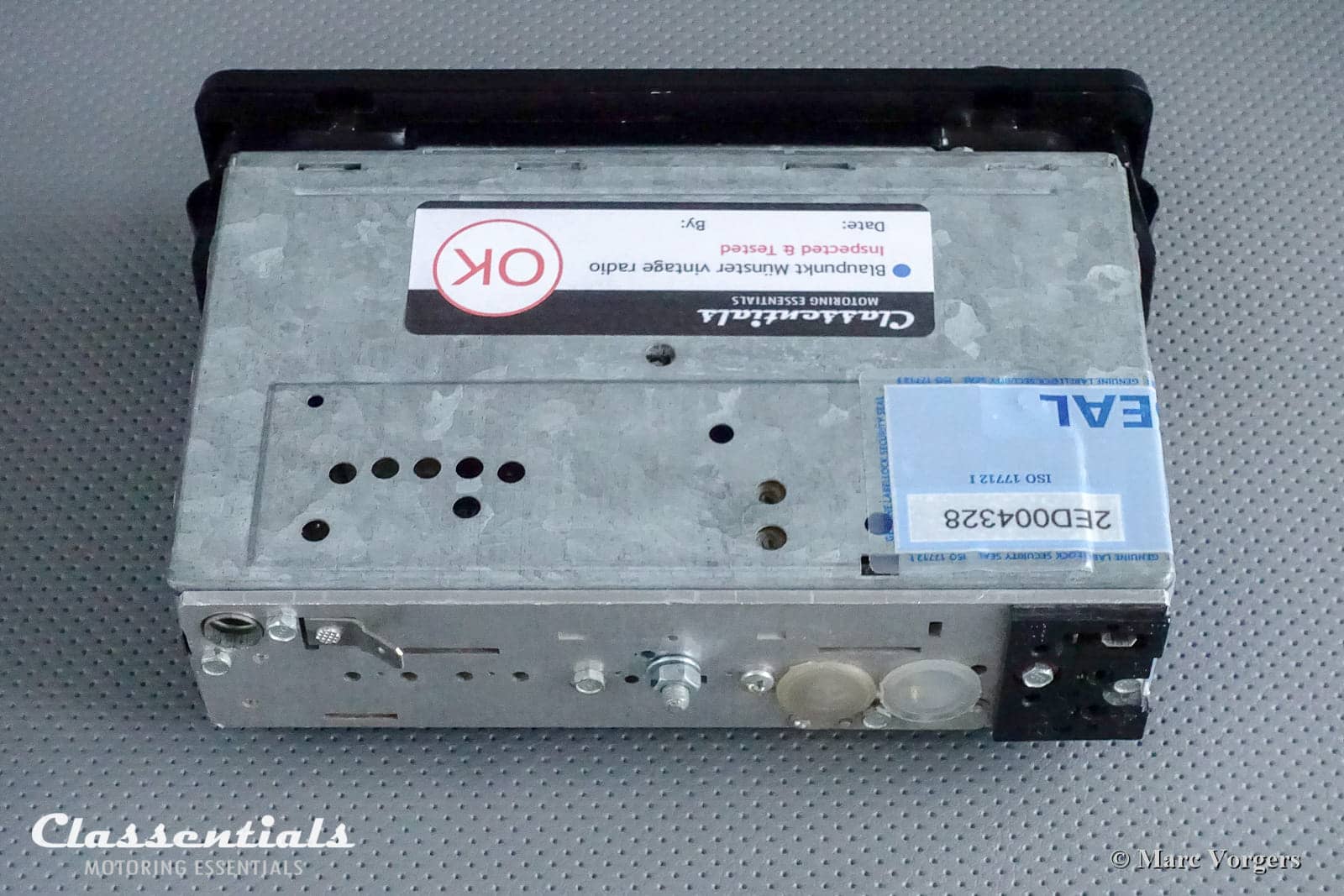

*Warranty: This refurbished 40 – 50 years old radio comes with 18 months (1.5 years) year global warranty. In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
