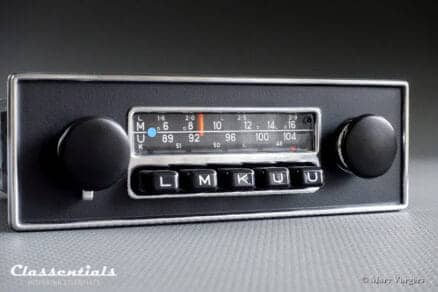

Make and Model: Blaupunkt Frankfurt (Type 7631 and 7632)
Classic Car era: 1965 – 1974

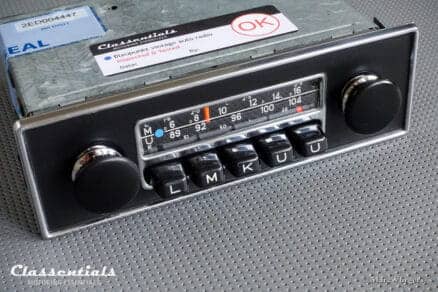

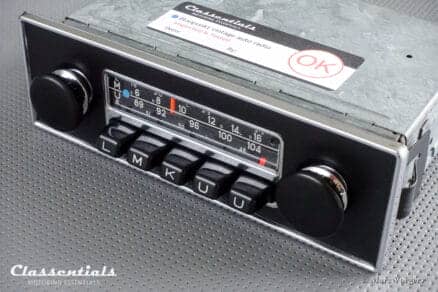

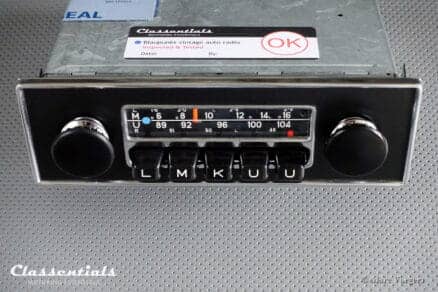

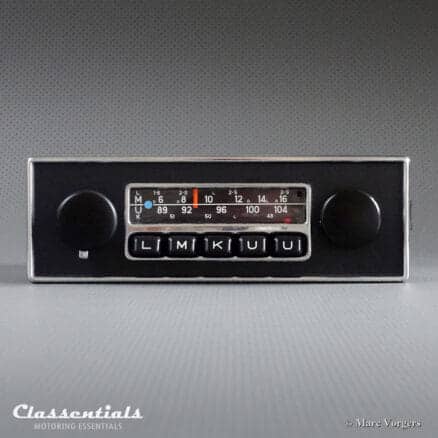

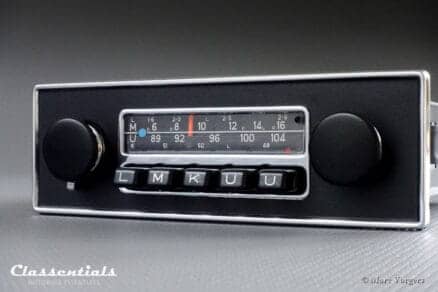

Face-plate: Universal Blaupunkt metal chrome 192 x 63 mm / 7,55 x 2,5 inch with matte black finish. Original rubber knobs matching the knob of the original Jaguar E-type series 3 cigarette lighter. This radio is suitable for Jaguar E-type series 2, series 3, and other cars of the period 1970 – 1975 featuring the 183 x 53 mm / 7,2 x 2,1 inch universal radio aperture in the dashboard.
On-board voltage: 12V, Negative earth / ground only
Output power: 5 Watt nominal / 7 Watt music
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: long wave, medium wave, short wave, UKW (FM)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: station pre-set buttons (2 x FM), automatic aerial (antenna) connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials Deluxe Bluetooth module.
Design type: Transistor radio
Year of build: 1971 and 1972
Dimensions unit (width x height x depth: 177 x 43 x 125 mm / 7,0 x 1,7 x 5,0 inch (back to back of face-plate)
Dimensions face-plate (width x height): 192 x 63 mm / 7,55 x 2,5 inch
Weight (kg): 1.4

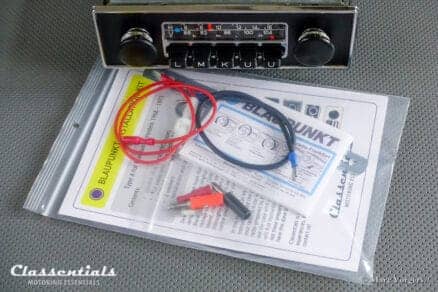

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, earth / ground cable and a rear mounting support (holed metal strip), see pictures.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

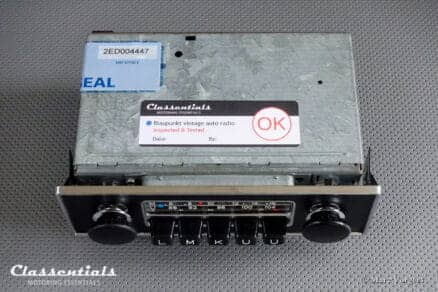

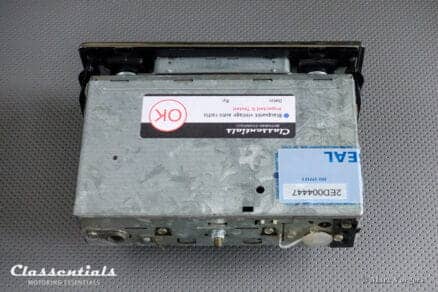

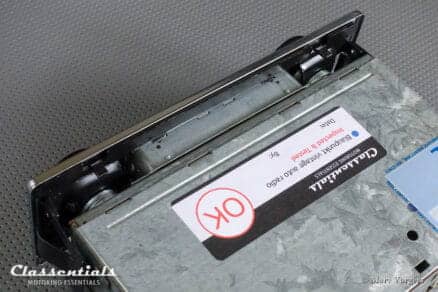

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
