Description

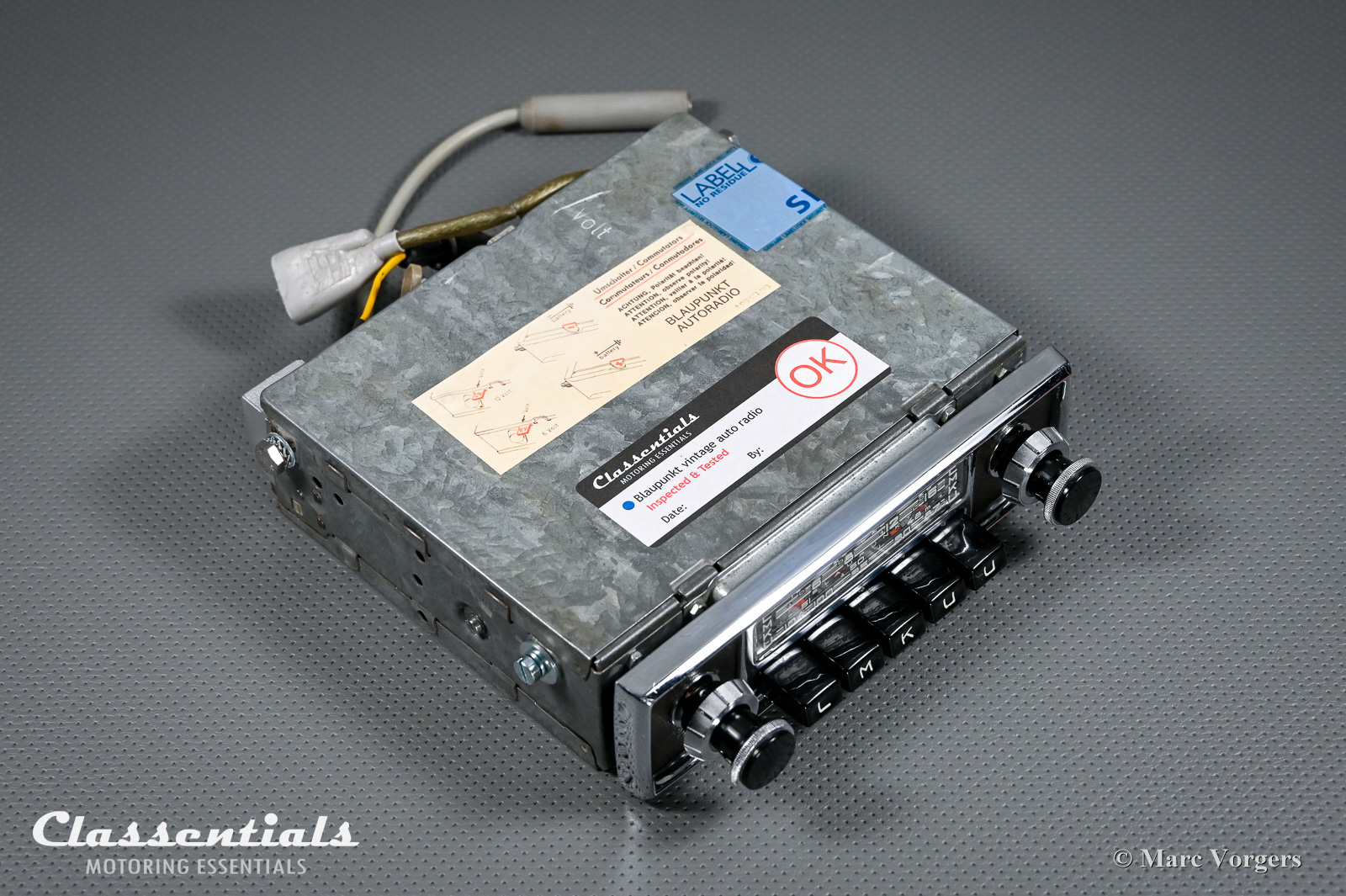

Make and Model: Blaupunkt Frankfurt Y
Classic Car era: 1960 – 1969

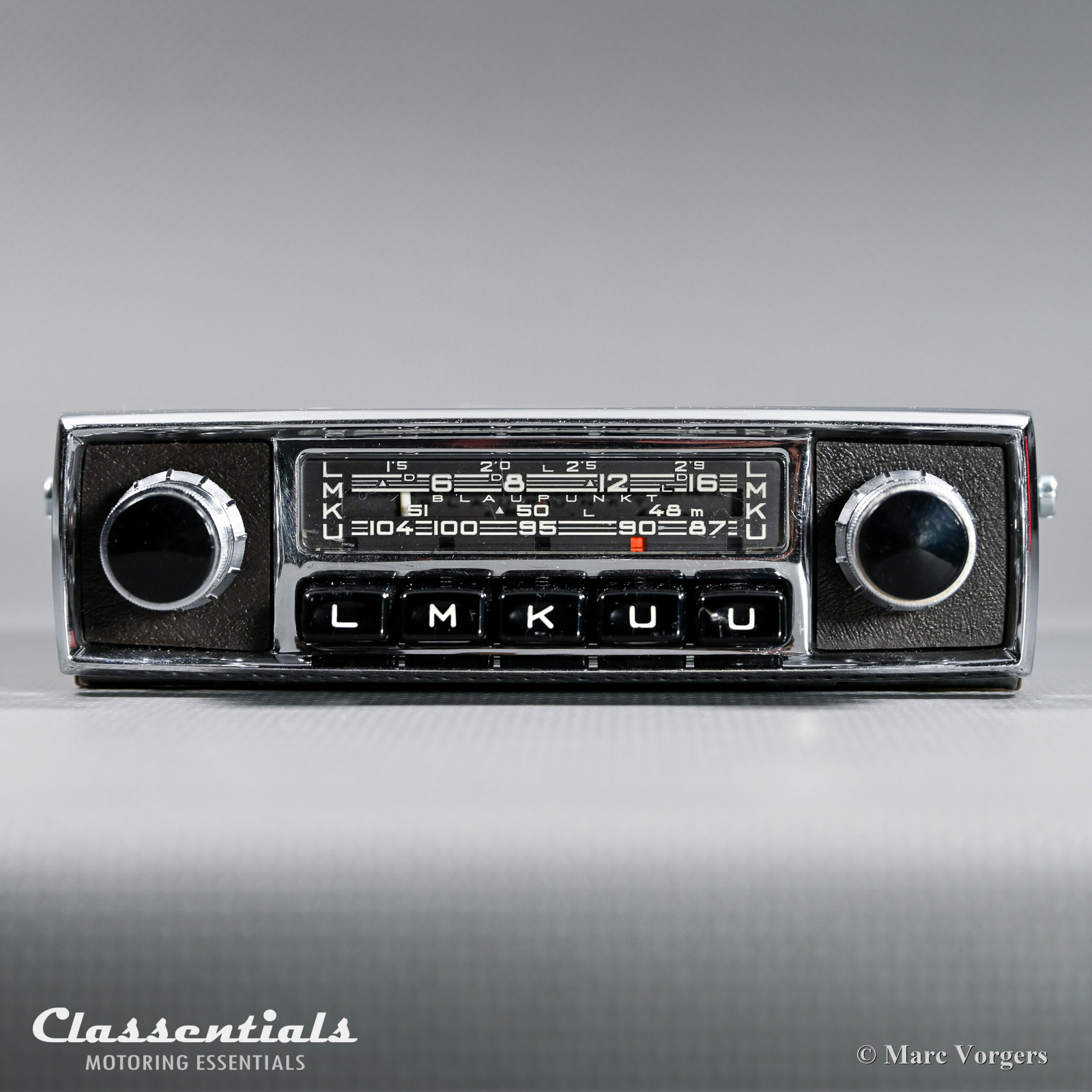

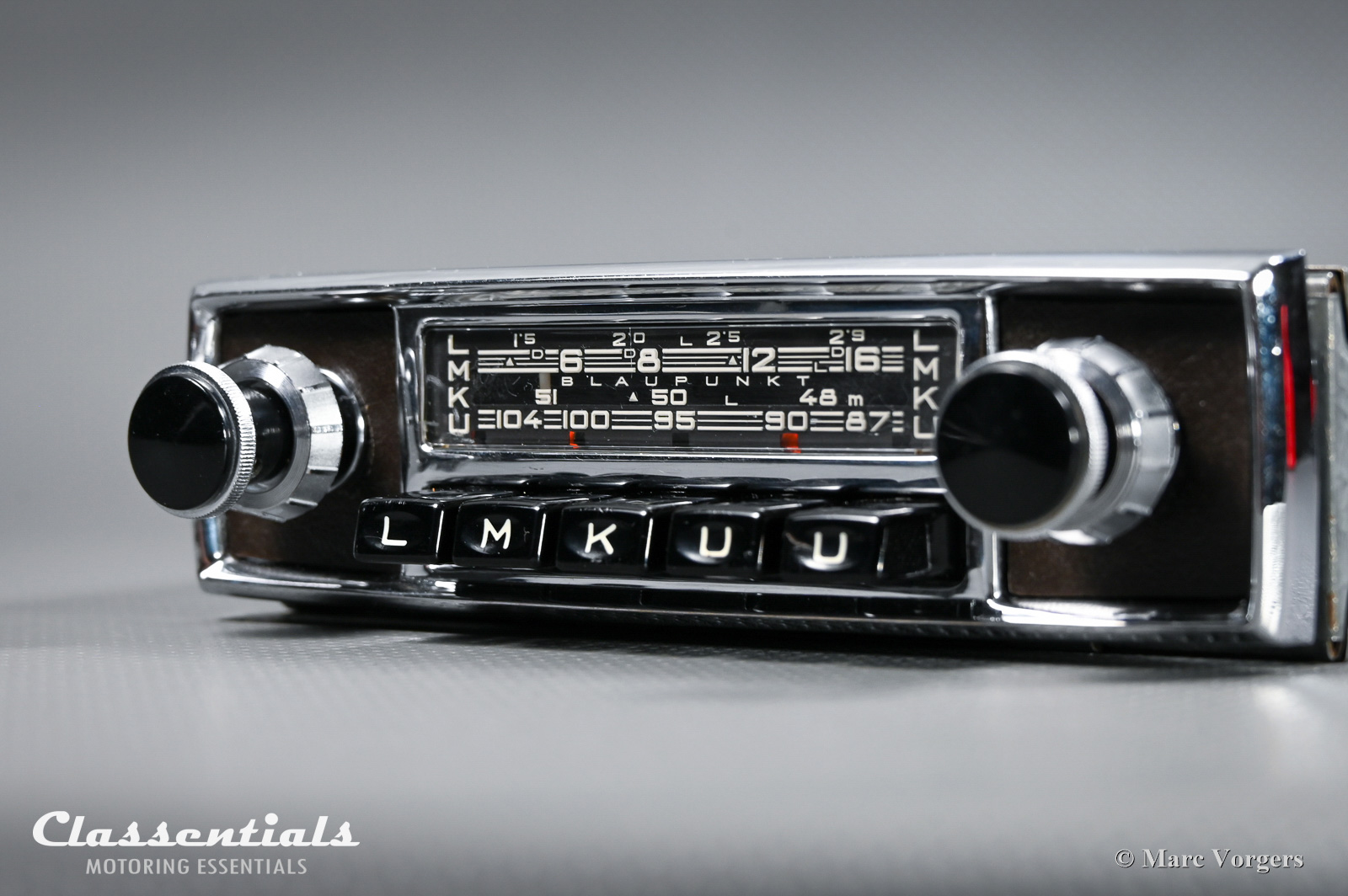

Face-plate: Blaupunkt metal chrome face-plate with black inserts behind the knobs. Black original Blaupunkt knobs with chrome knurled rings for exclusive cars, Aston Martin DB4, DB5, DB6, Jaguar, Ferrari, Maserati and other exclyusive cars of the period. Other style black knobs can be fitted on request.
On-board voltage: 6V and 12V (switch), Negative OR positive earth / ground (switch)
Output power: 5 Watt nominal / 7 Watt music
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker via speaker socket “I”. Two 4 Ohm speakers connected parallel + to + and – to -, to make 2 Ohm for the speaker socket marked with “II”.
Wave Range: Long wave (L), Medium wave (M), Short Wave (K) and FM / UKW (U)
Frequency range UKW (FM): 88MHz – 104MHz.
Equipment: LMKUU station pre-set buttons (2 x FM), tone control, external amplifier, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials Deluxe Classentials Bluetooth module (NEGATIVE GROUND CARS ONLY).
Design type: Transistor radio
Year of build: 1967
Dimensions unit (width x height x depth): 176 x 50 x 158 mm / 7,1 x 1,9 x 6,25 inch.
Dimensions face-plate (width x height): 178 x 50 mm / 7,0 x 1,95 inch
Weight (kg): 2

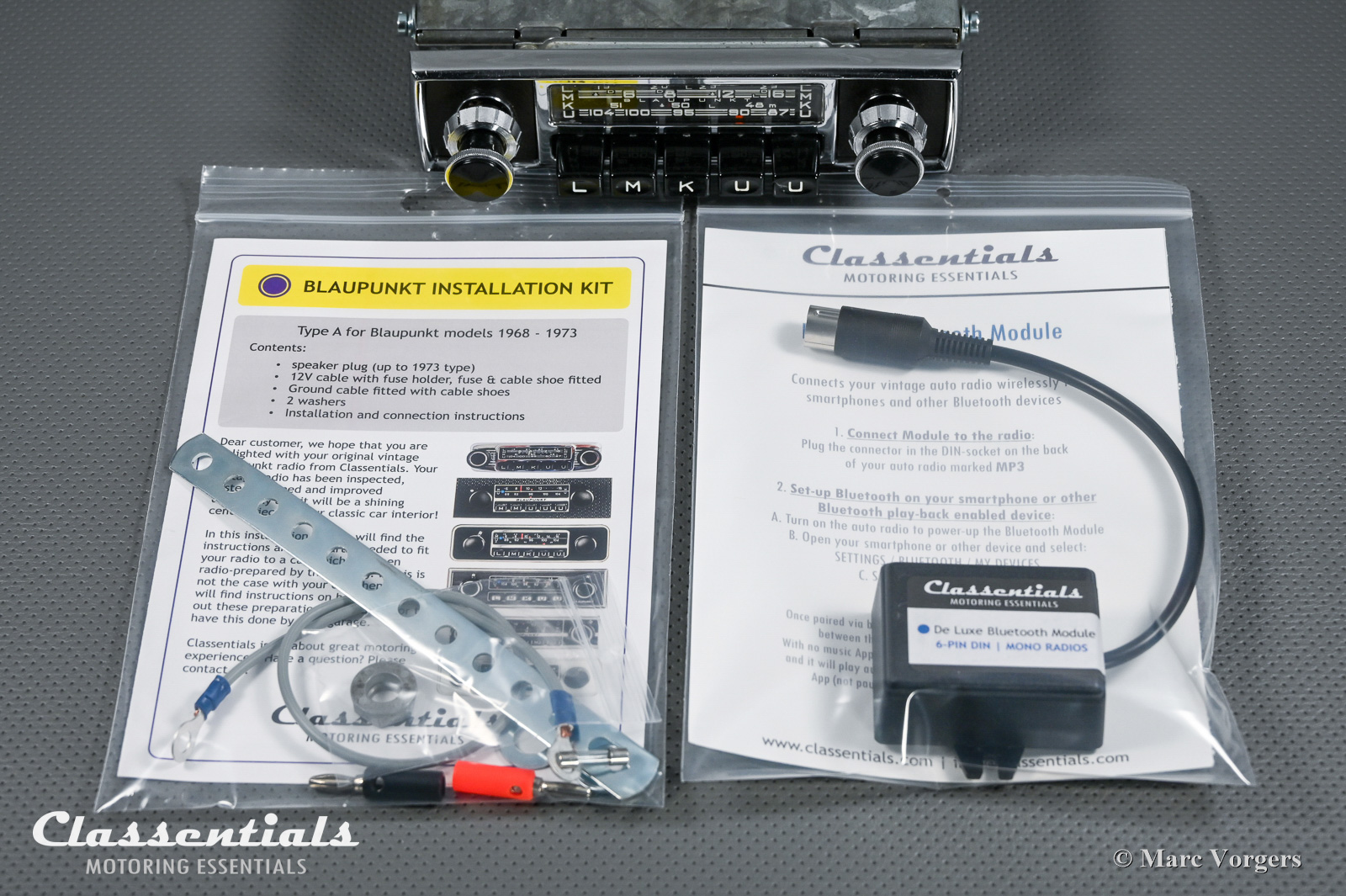

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plugs, earth cable, extra M10 mounting rings, spare fuse and a rear mounting bracket.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Tools needed: wrench number 14 and 10, cable shoe pliers. Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 – 50 years you might need, or have to make, different parts to make the radio fit properly.

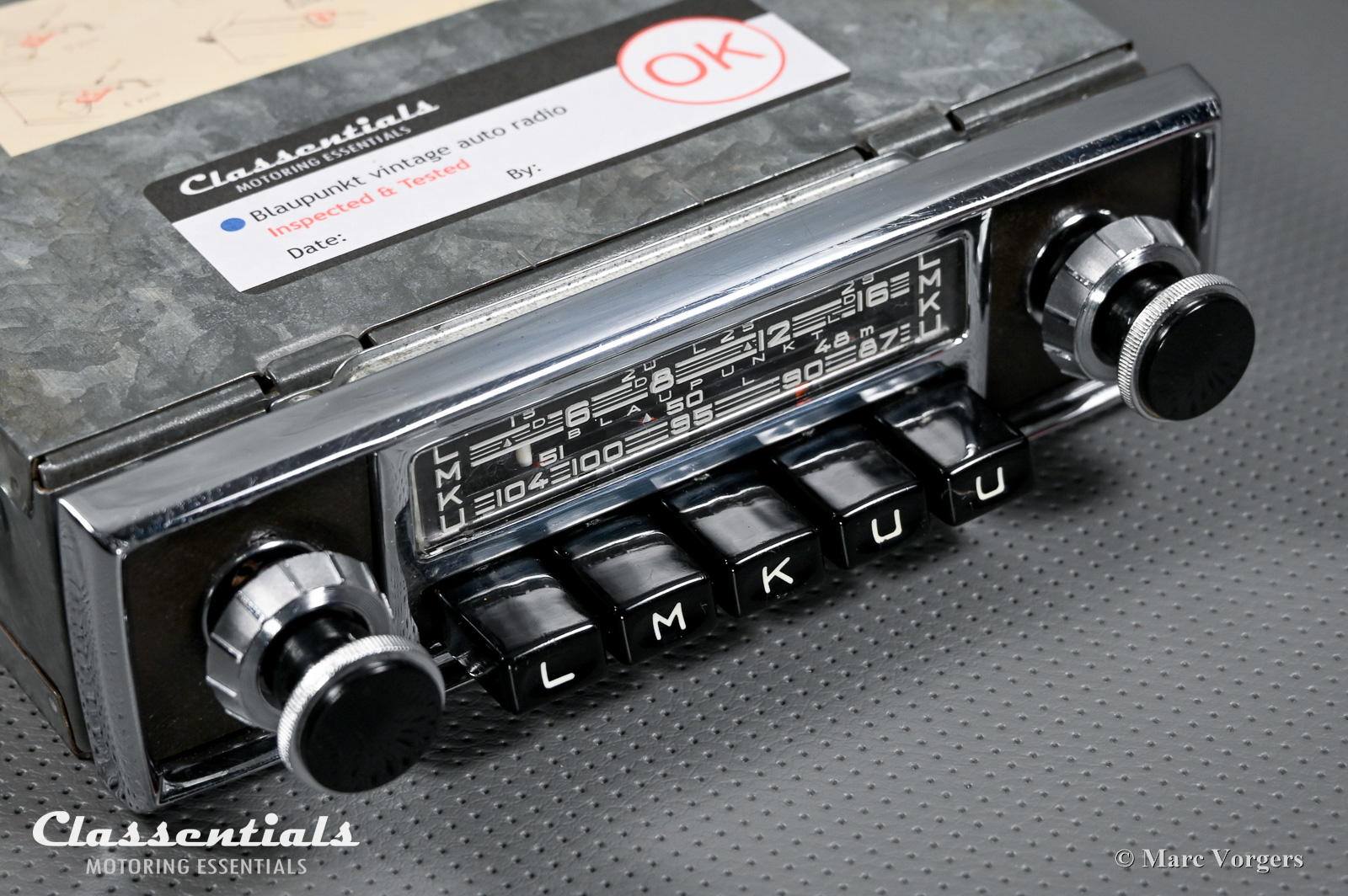

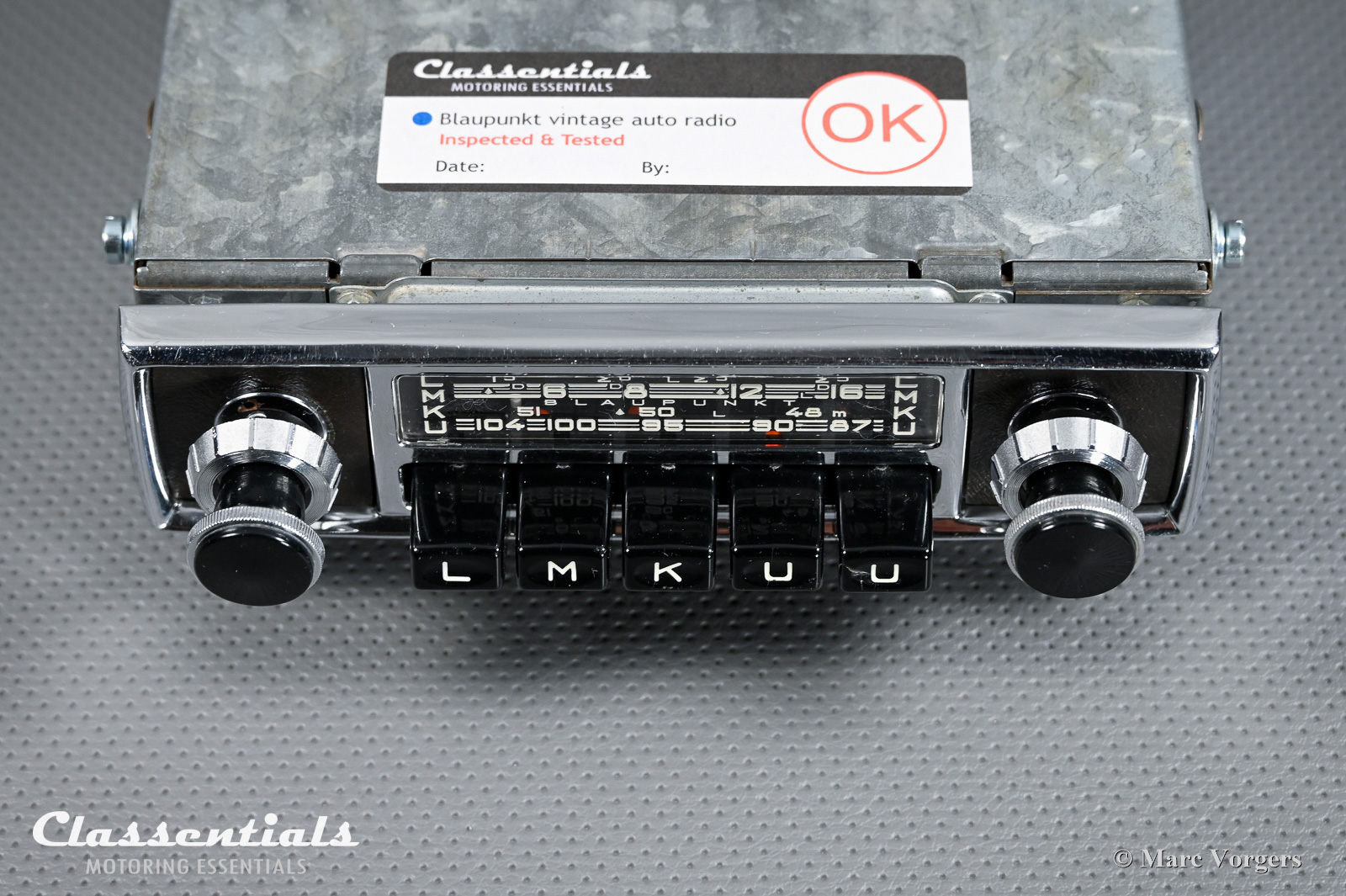

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
