Description
Make and Model: Blaupunkt Frankfurt Stereo Rallye 20W (Type 7632)
Classic Car era: 1970 – 1978

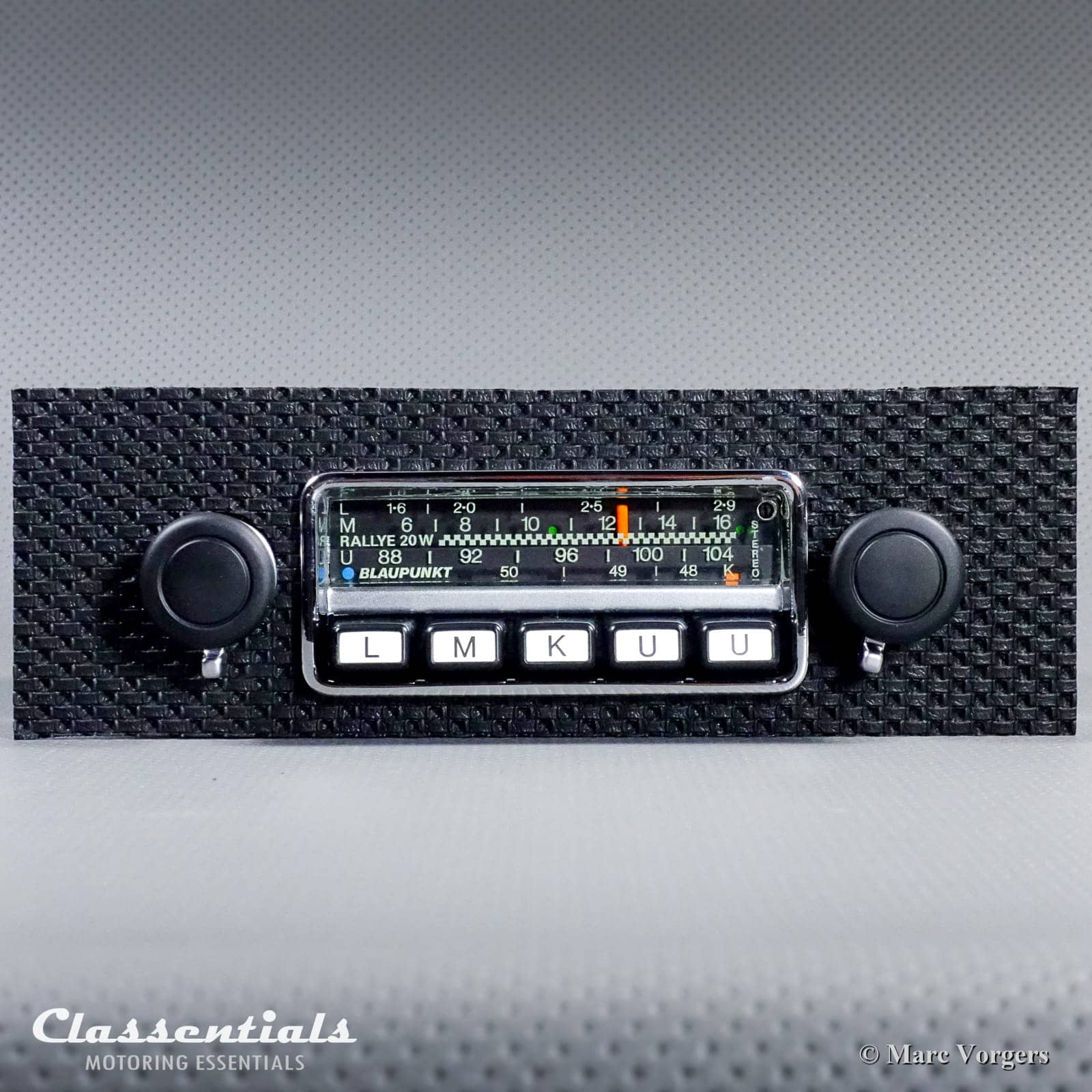

Face-plate: Porsche 911 / 912 F-series models 1968 -1974 basket-weave ‘flechtnarbe’ face-plate with ORIGINAL Porsche F-Series black rubber knobs. Faceplate size 206 x 68 millimetres (8,1 x 2,7 inch). ATTENTION: This very rare radio can also be fitted with the correct faceplate and knobs for Mercedes-Benz W113 / R107 SL models and BMW E9 CS/CSI models. See last photo.
On-board voltage: 12V, Negative earth / ground only
Output power with additional Blaupunkt BSB 40-2 Booster: 2 x 20 Watt
Impedance: 4 Ohm
Rendition: STEREO, 2 (4 Ohm) speakers. NOTE: If you want to connect four speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the amplifier.
Wave Range: long wave (L), medium wave (M), short wave (K), UKW (FM)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: station pre-set buttons, tone lever, mono / stereo switch, connection for automatic aerial / antenna, 2 x DIN connection (1 x stereo and 1 x mono) for optional external devices (in period cassette players) like the Classentials Deluxe 7-pin DIN Stereo Bluetooth Module.
Design type: Transistor radio
Year of build: 1972/73
Dimensions radio : 177 x 44 x 130 (back to front of face-plate) (7 x 1,7 x 5,1 inch)
Dimensions amplifier: 176 x 43 x 105 mm (6.9 x 1.7 x 4.1 inch)
Dimensions face-plate (width x height in mm): 206 x 68 (8,1 x 2,7 inch)
Weight combined (kg): 2,6
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna. Two speakers (doors, parce shelf) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.
*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
