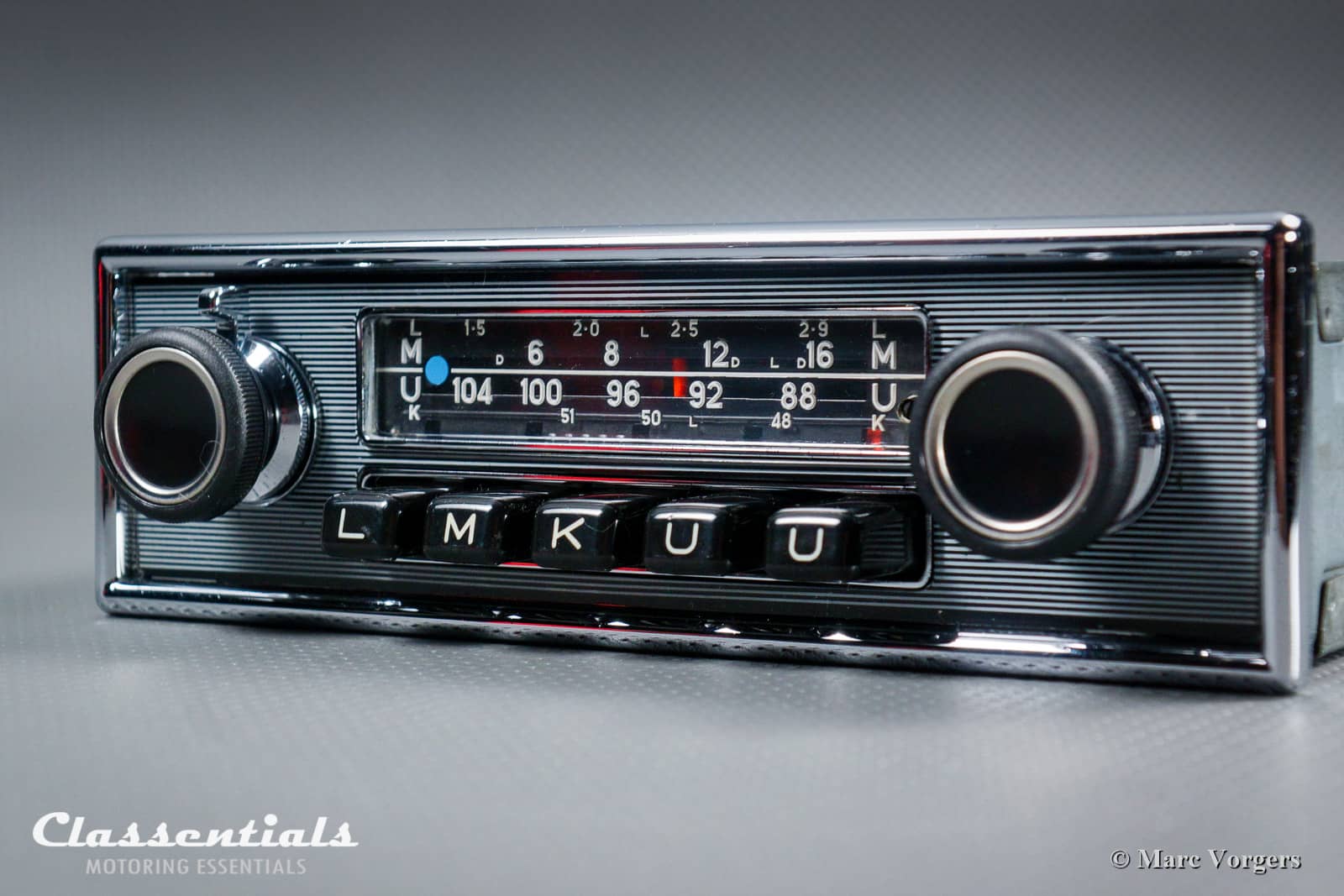

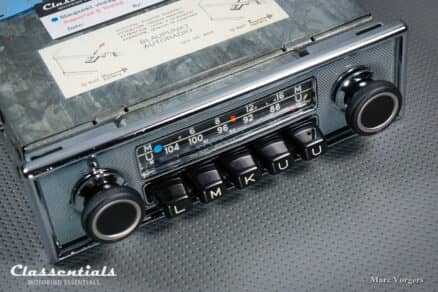

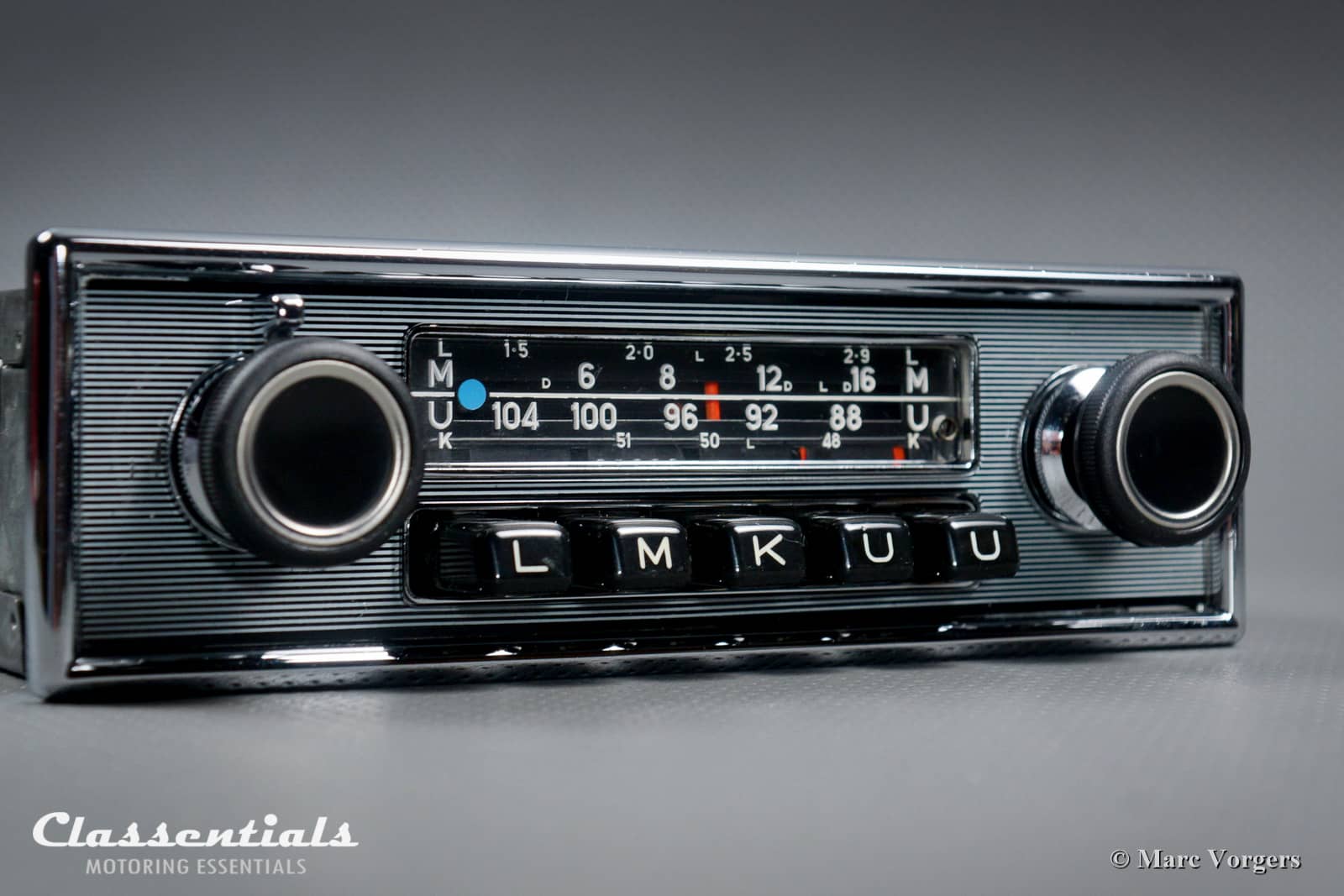

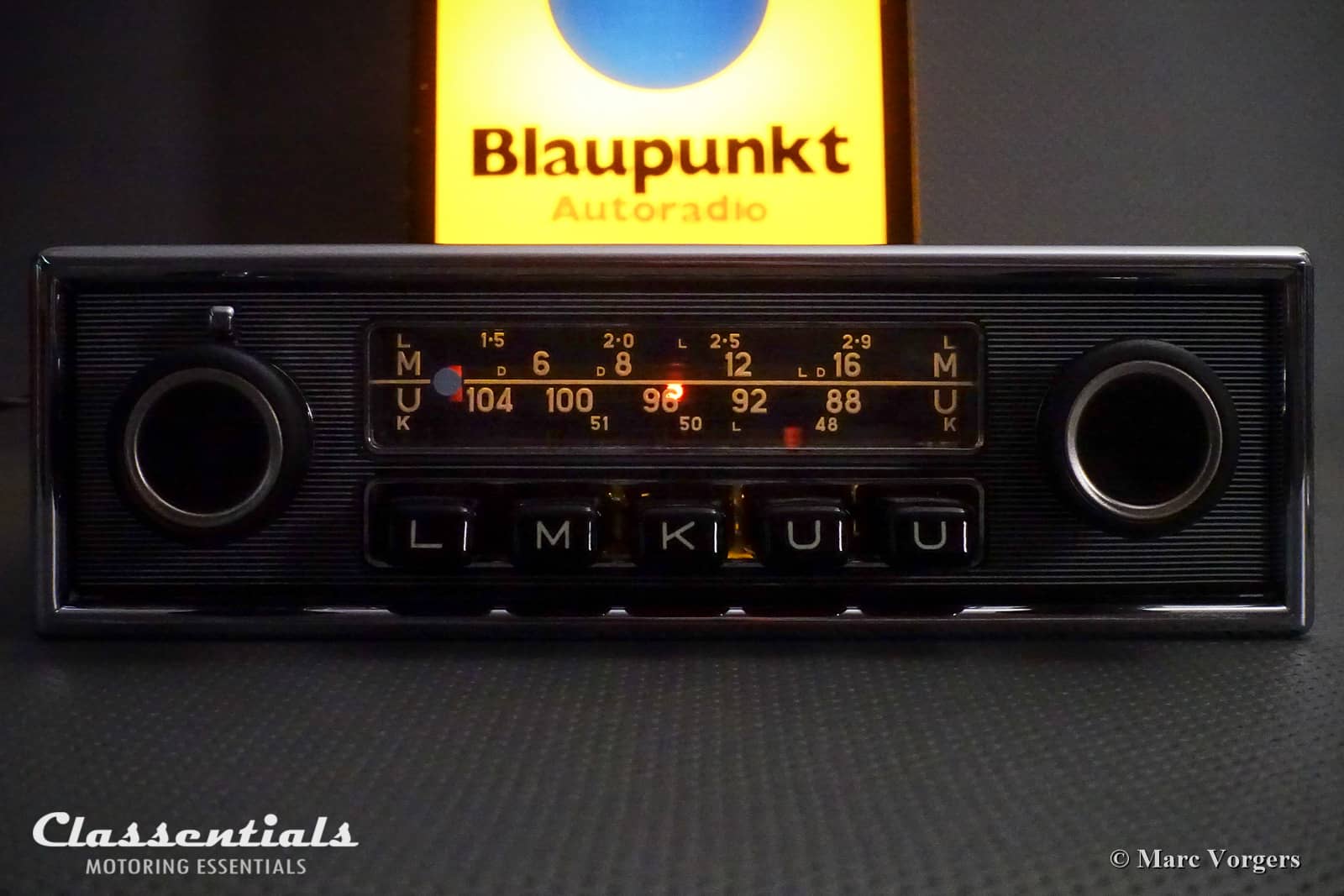

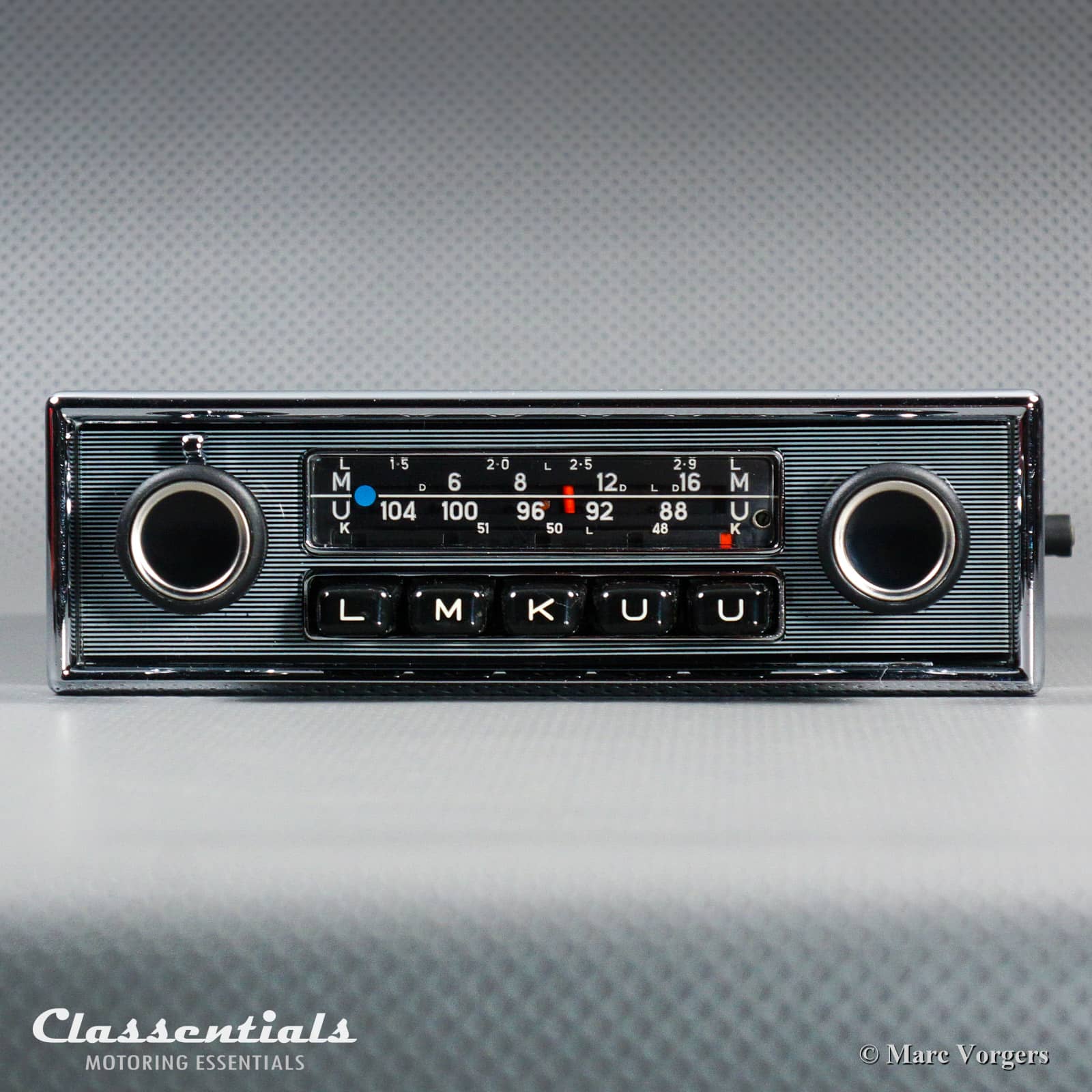

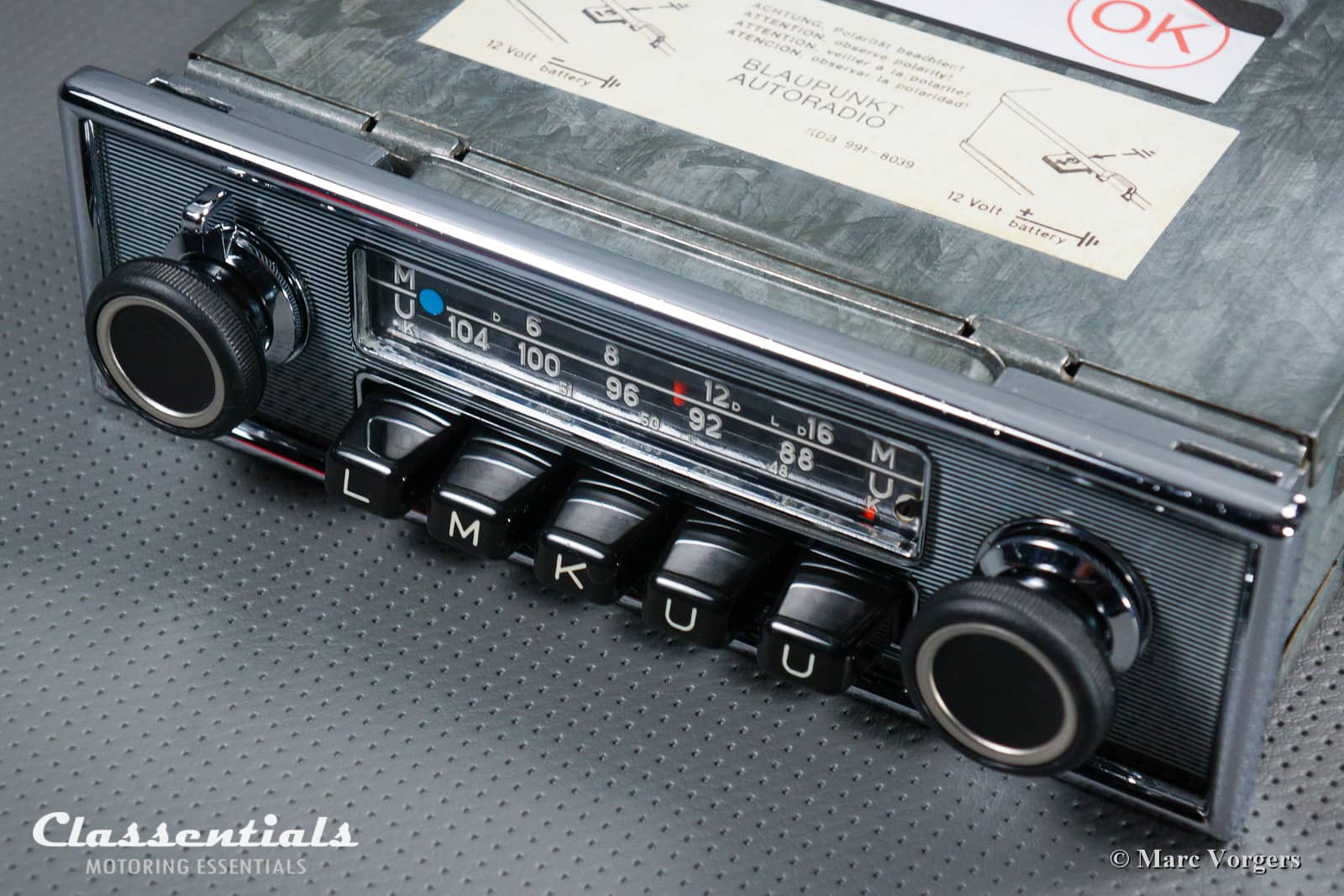

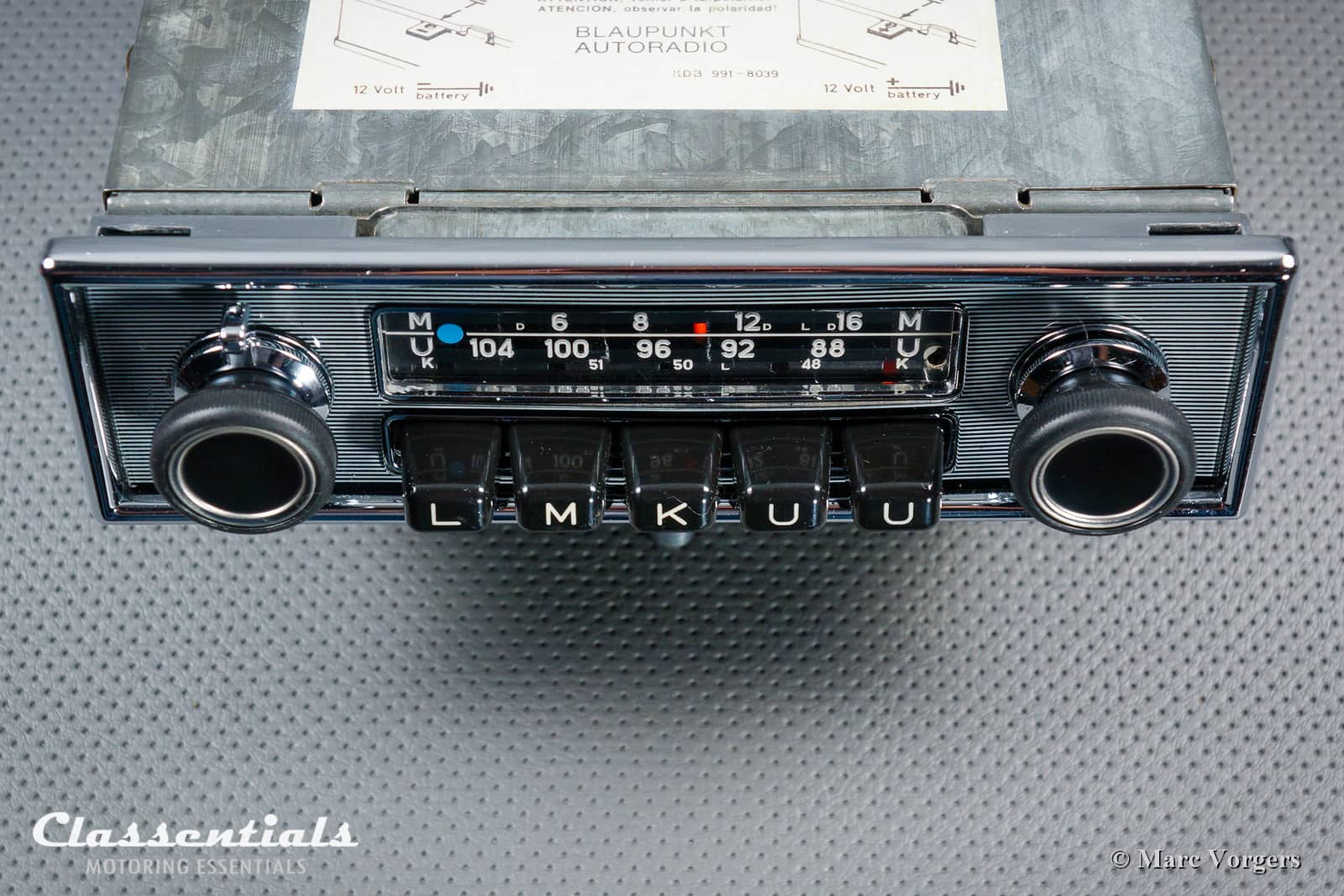

Model: Blaupunkt Frankfurt (type 7630)
Classic Car era: 1968 – 1975
Face-plate: Cast metal chrome with plastic ‘pin-stripe’ insert and the correct knobs for 1968 – 1974 Mercedes-Benz models; SL Pagode W113, W114, W115, W123, SL R107, C107. Also suitable for other period luxury cars with a 1-DIN dashboard aperture of 180 x 50 mm (7,1 x 2 inch).
On-board voltage: 12V, negative ground and positive ground.
Output power: 5 Watt nominal, 7 Watt music.
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: Long wave (L), Medium wave (M), Short wave (L) and FM / UKW (U)
Frequency range UKW (FM): 88MHz-104MHz

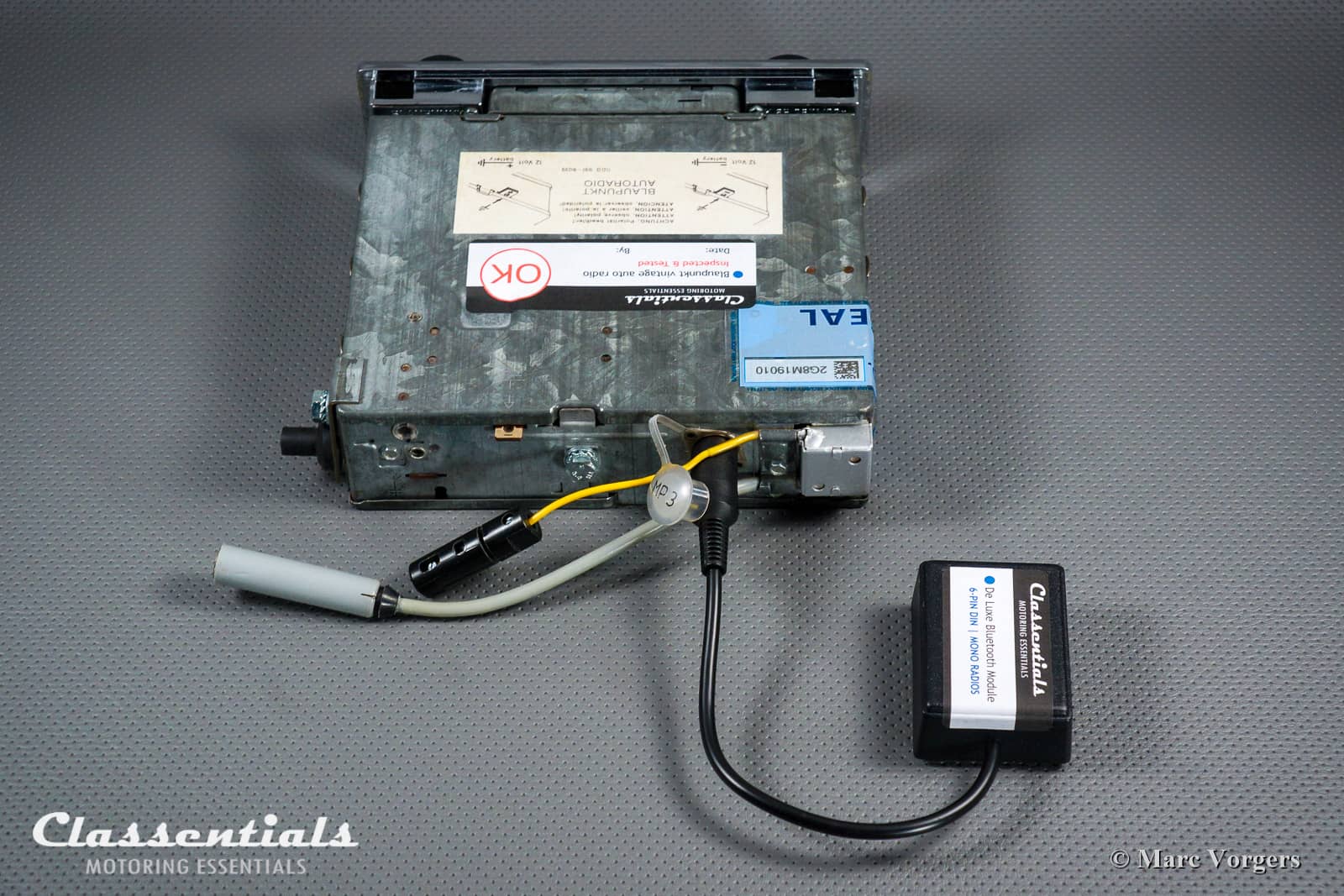

Equipment: Tone control, station pre-set buttons, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio.
Year of build: 1970
Dimensions unit (width x height x depth in mm): 177 x 50 x 170 (7 x 2 x 6,5 inch)
Dimensions face-plate (width x height in mm): 189 x 58 (7,4 x 2,3 inch)
Weight (kg): 1.85

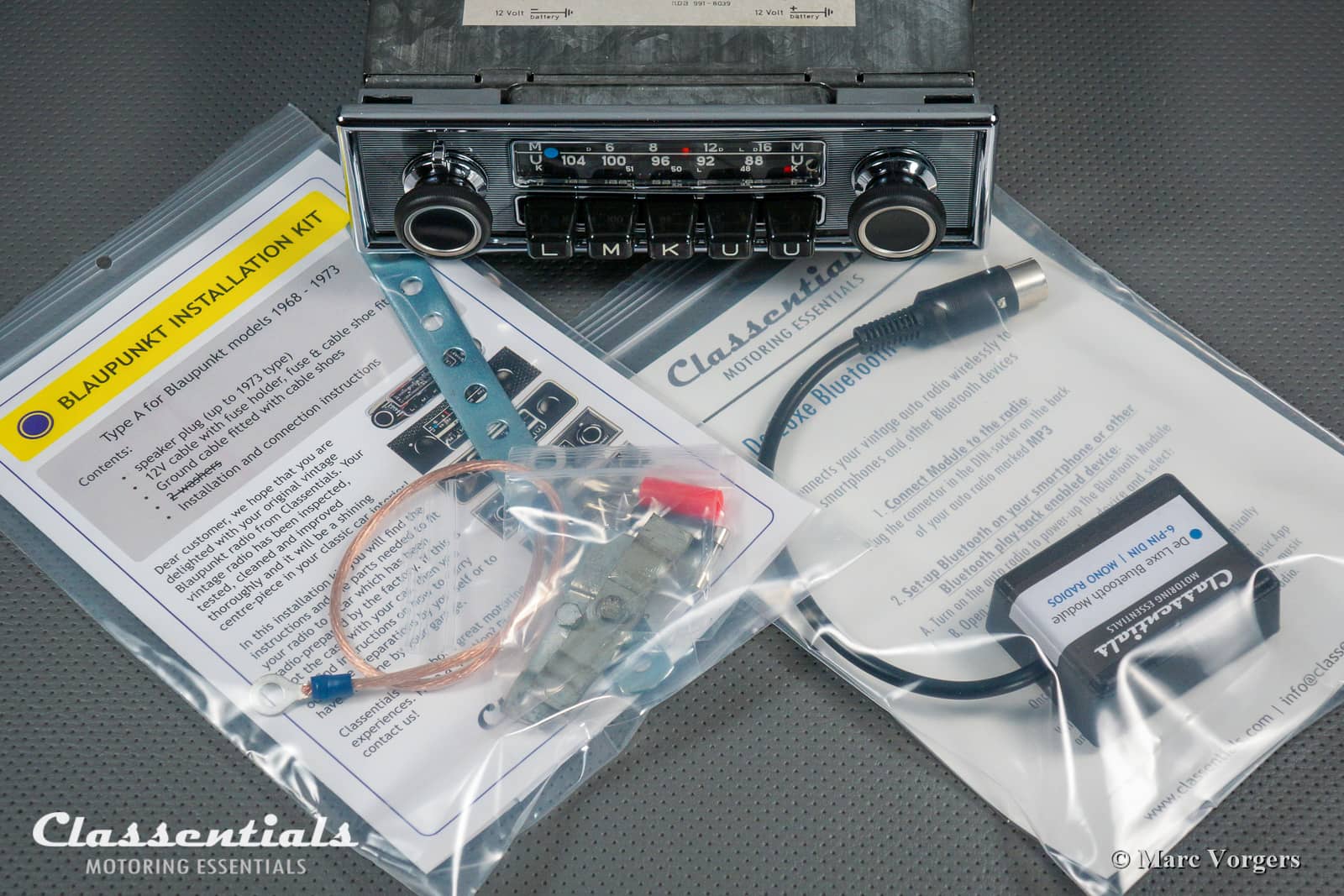

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plugs, earth / ground cable, 12V wire with fuse, cable shoes, Mercedes-Benz back (side) support, original faceplate / dashboard brackets, and a universal radio back support bracket (holed metal strip).
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Tools needed: wrench number 14 and 8, cable shoe pliers. Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.
*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
