Description

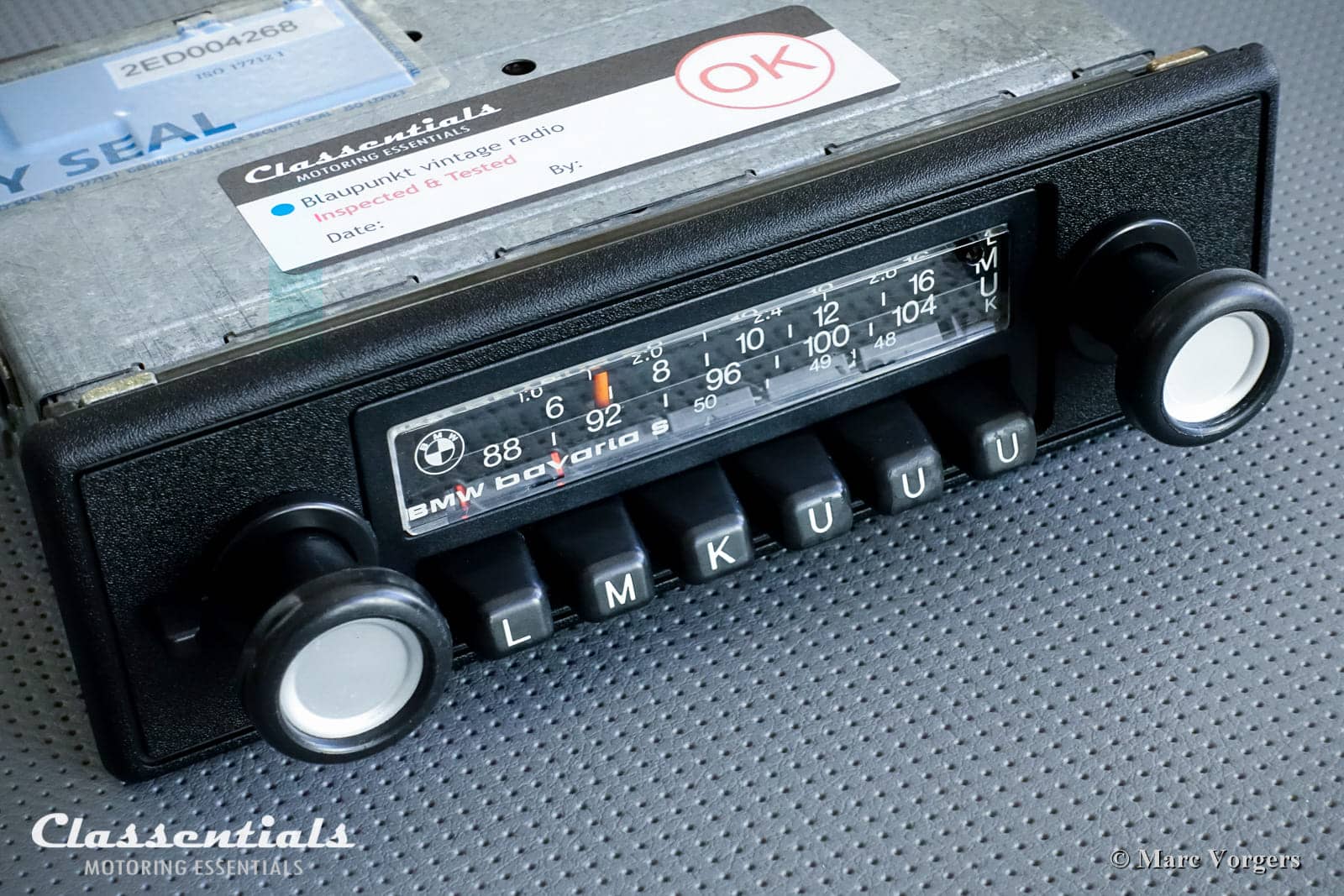

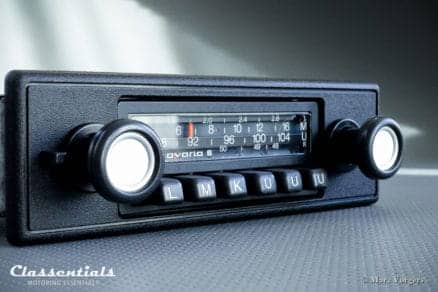

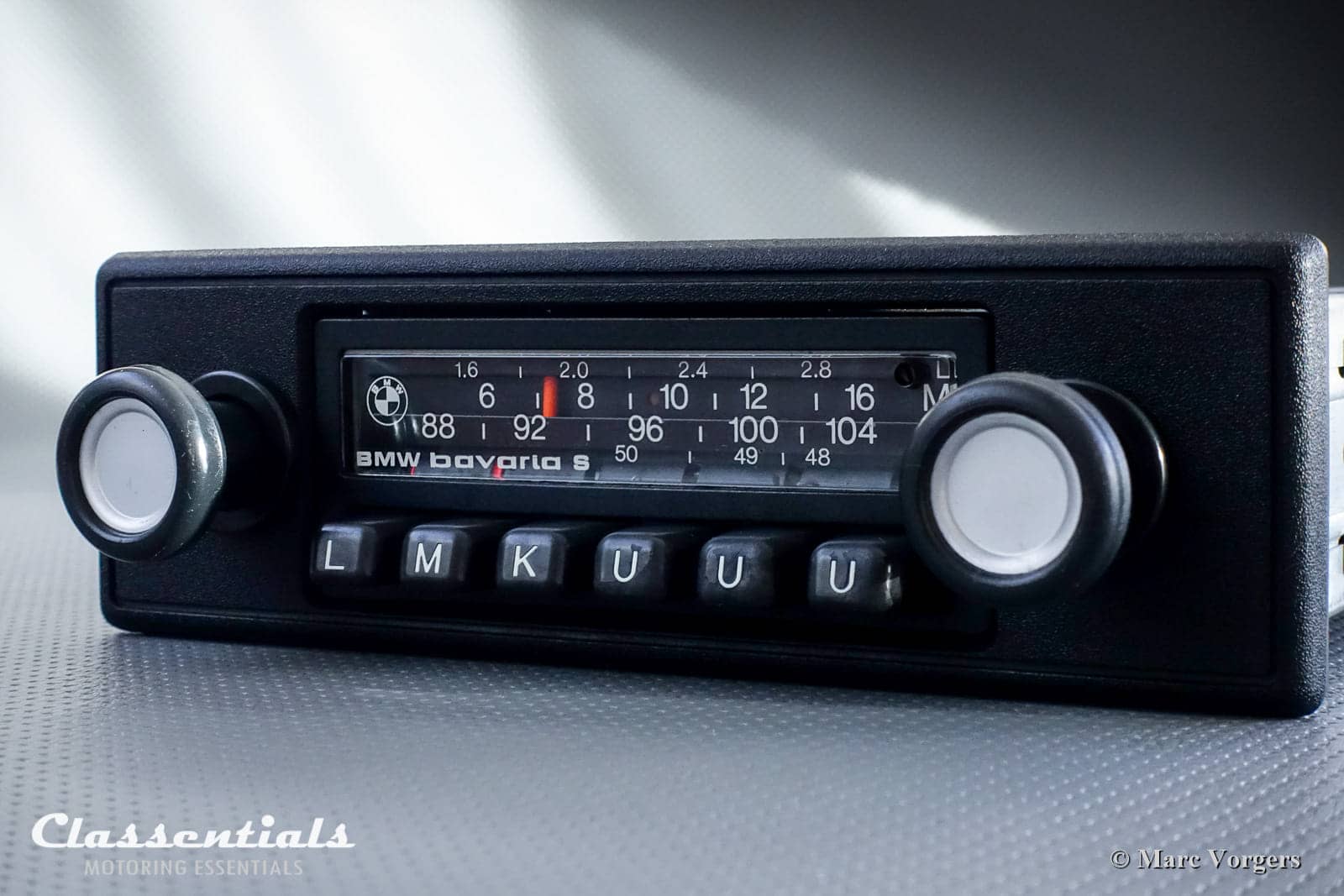

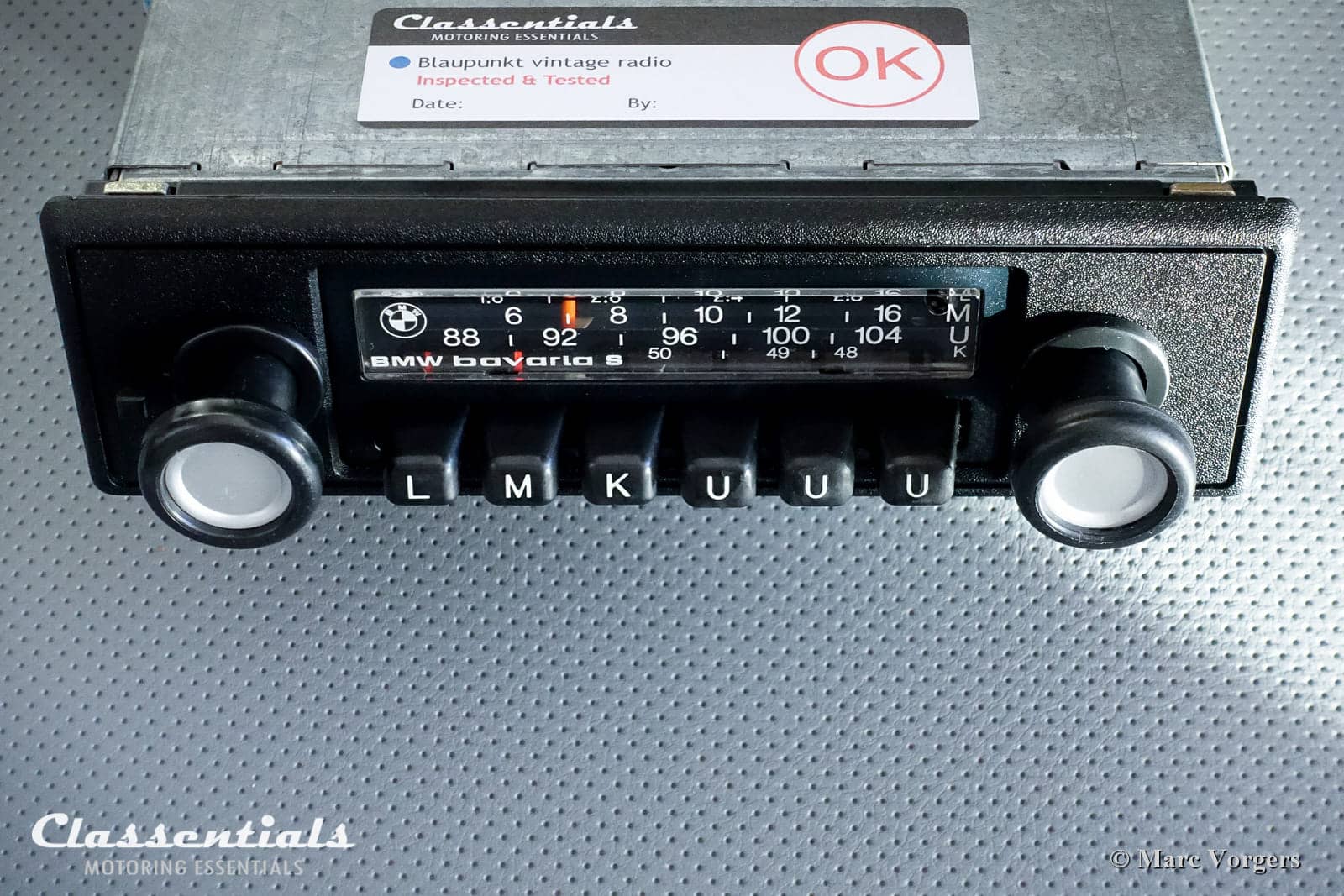

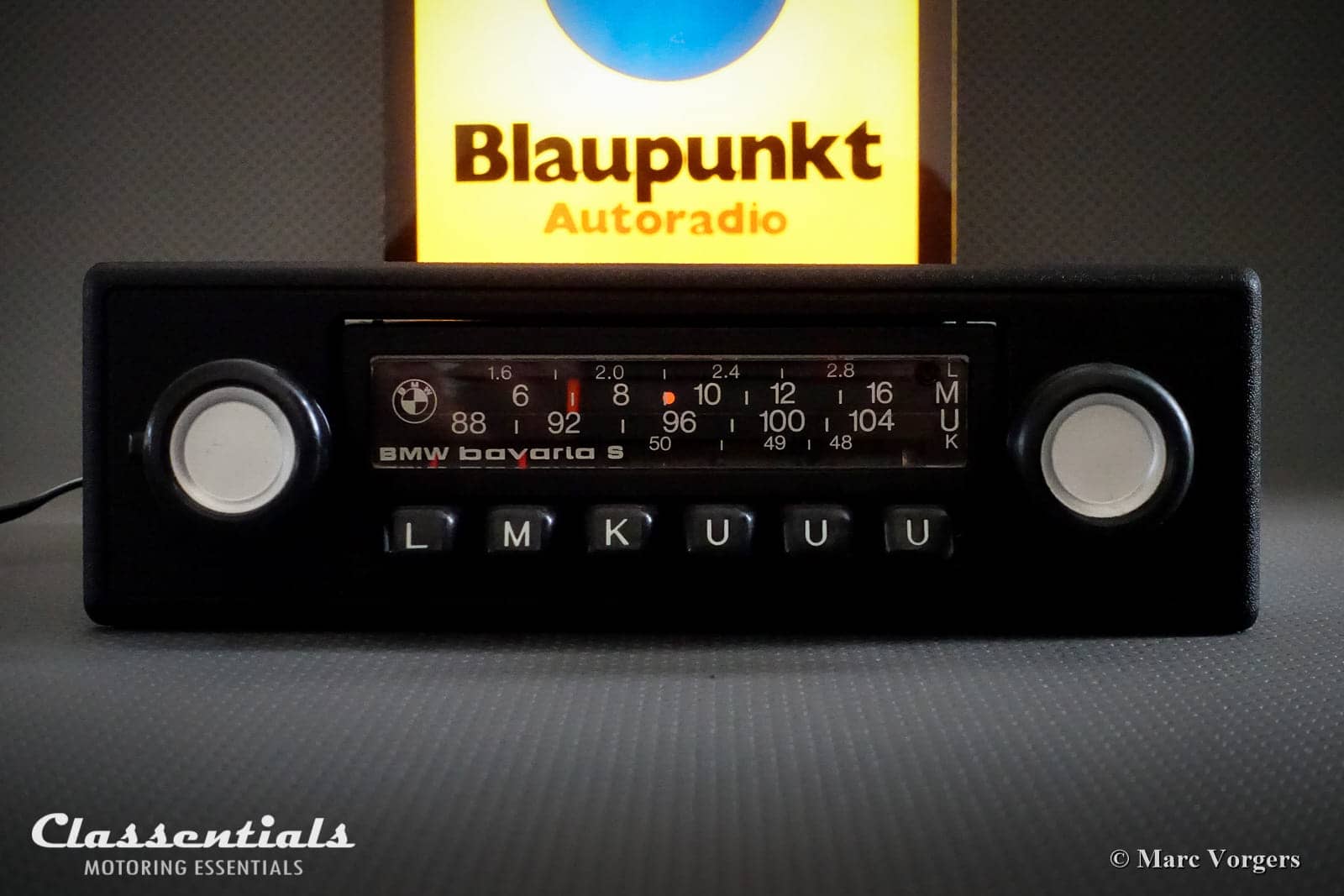

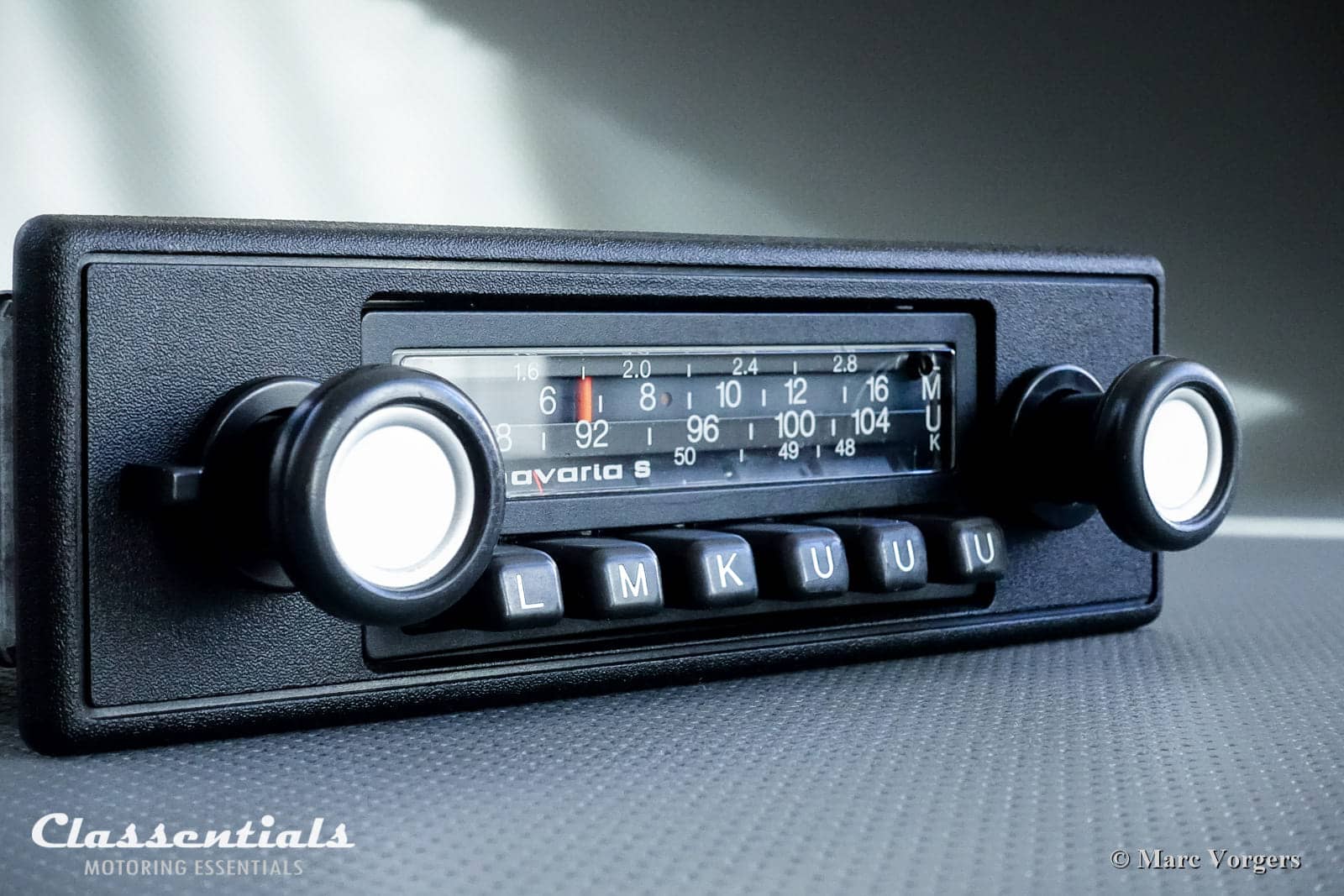

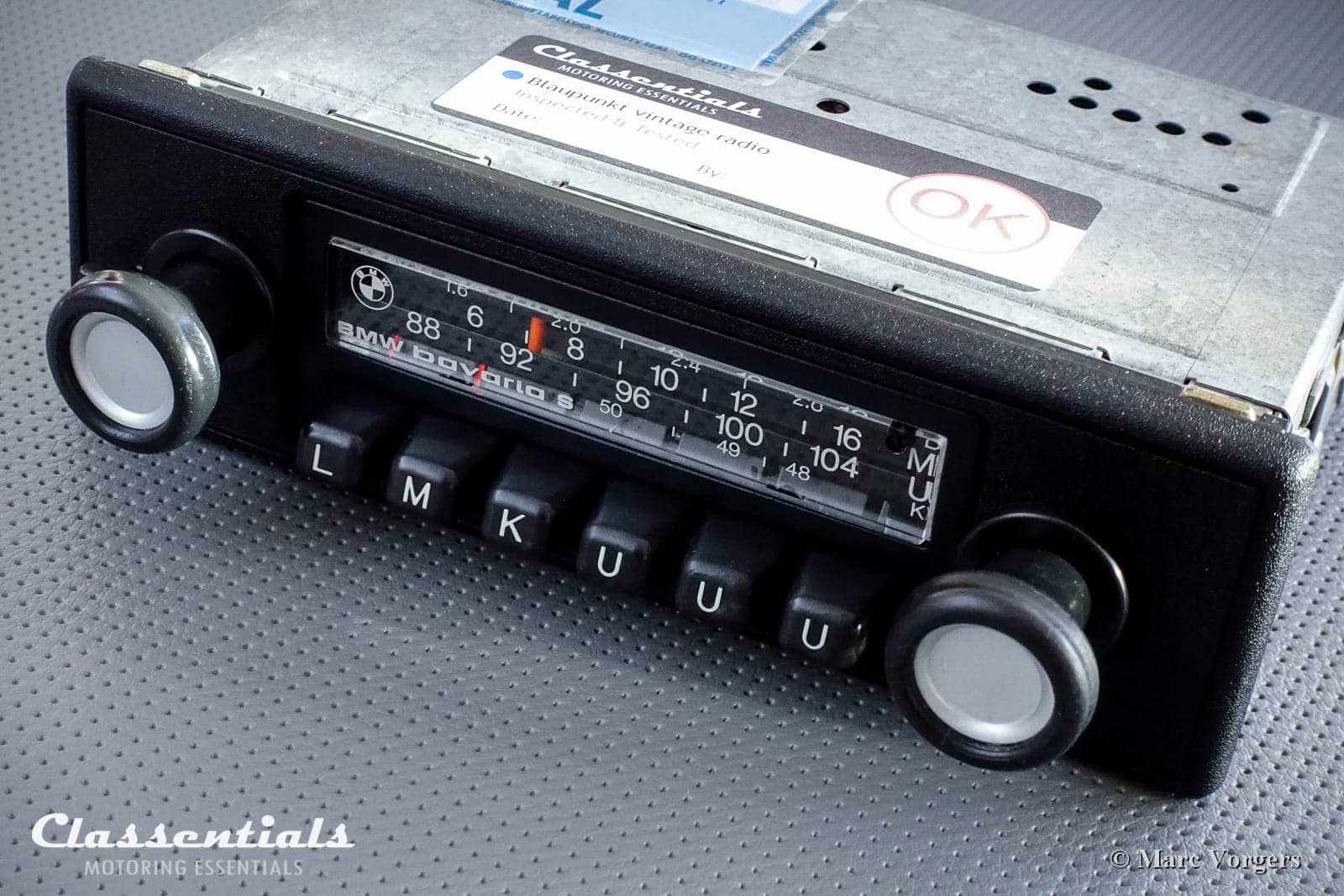

Model: Blaupunkt BMW Bavaria S (type 7636)
Classic Car era: 1974 – 1980
Face-plate: 1970s and 1980s BMW E21 3-series, E12 5-series E24 6-series. Early 1970s BMW knobs. You can have this radio with the later style BMW knobs on exchange basis (bigger 1975 – 1978 model with silver front).
On-board voltage: 12V, Negative earth / ground only
Output power: 5 Watt
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: long wave, medium wave, short wave, UKW (FM).
Frequency range UKW (FM): 88MHz-104MHz
Equipment: station pre-set buttons, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio
Year of build: 1976
Dimensions unit (width x height x depth in mm): 177 x 42 x 107
Dimensions face-plate (width x height in mm): 188 x 58
Weight (kg): 1.2

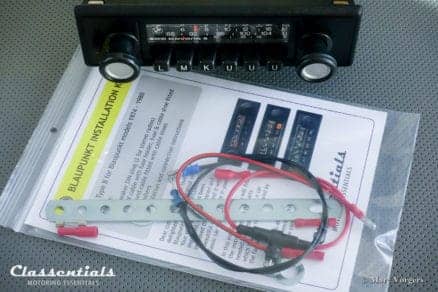

Extra in packaging: Classentials Installation Kit 2 with installation instructions, new style speaker plug, earth cable, 12V wire with fuse, cable shoes, extra M10 mounting rings and a metal strip with 6 mm holes to form a rear radio support bracket if not present in your car.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Tools needed: wrench number 14 and 8, cable shoe pliers. Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

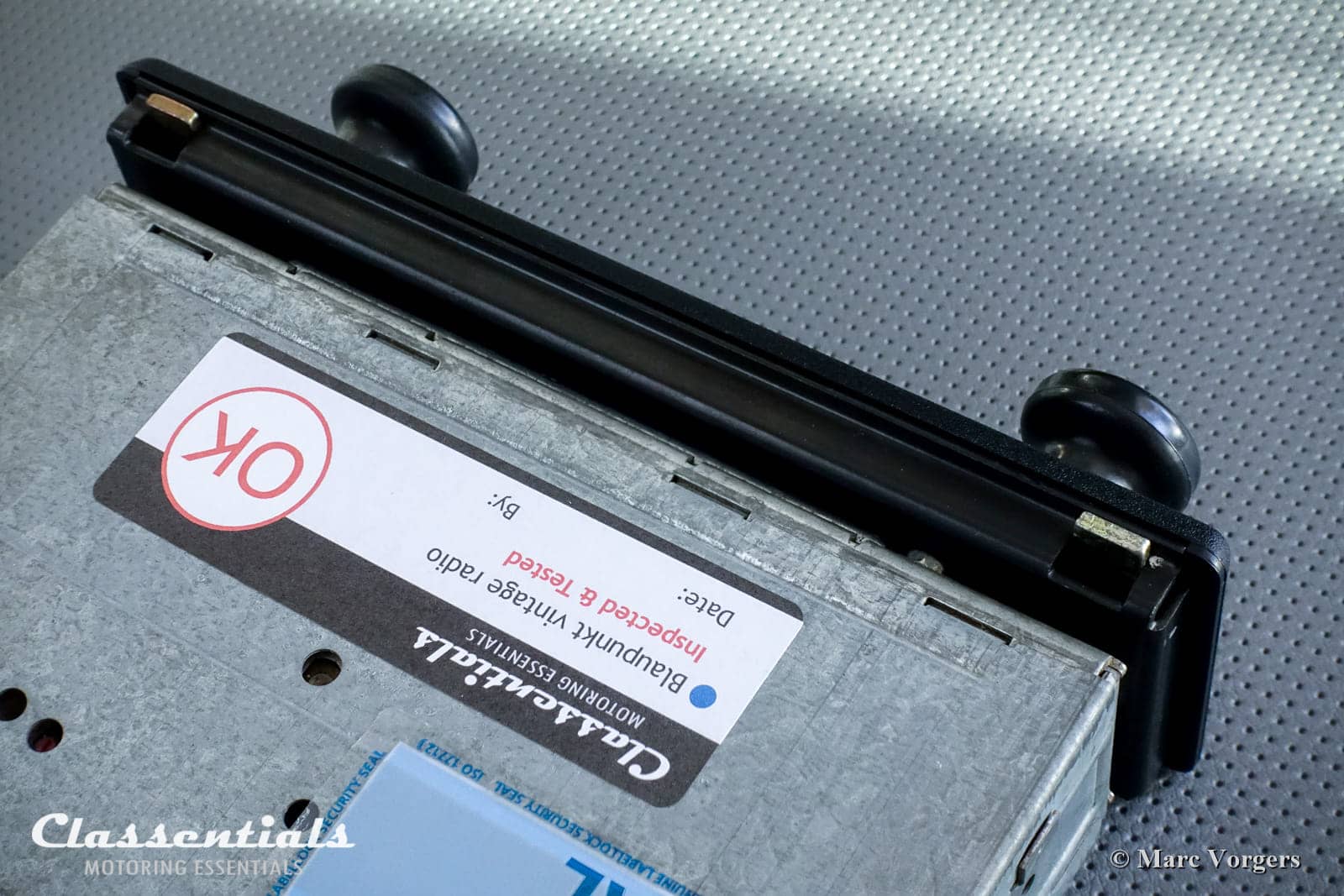

NOTE: This radio comes with the 1-DIN BMW dashboard mount integrated in the face-plate.

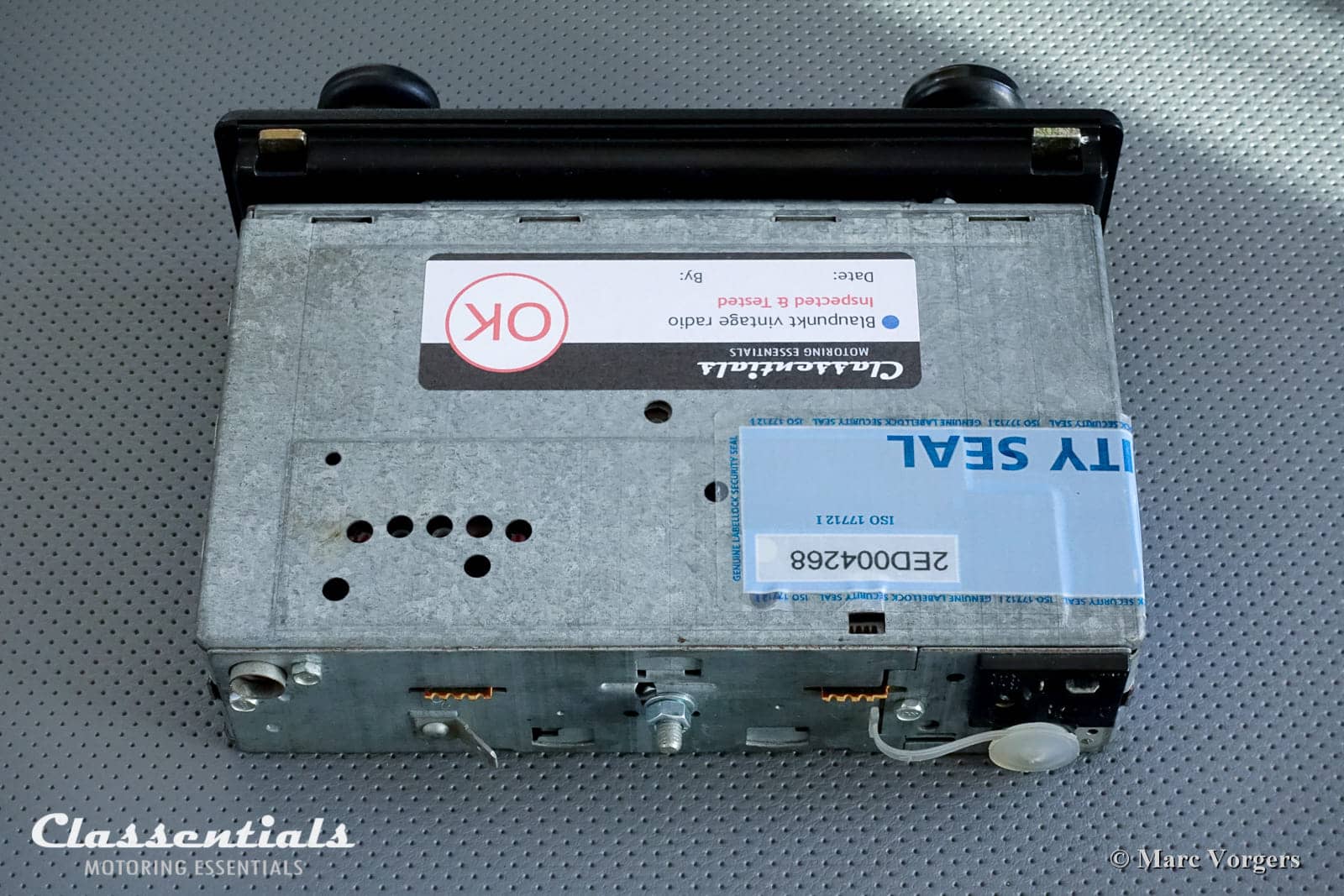

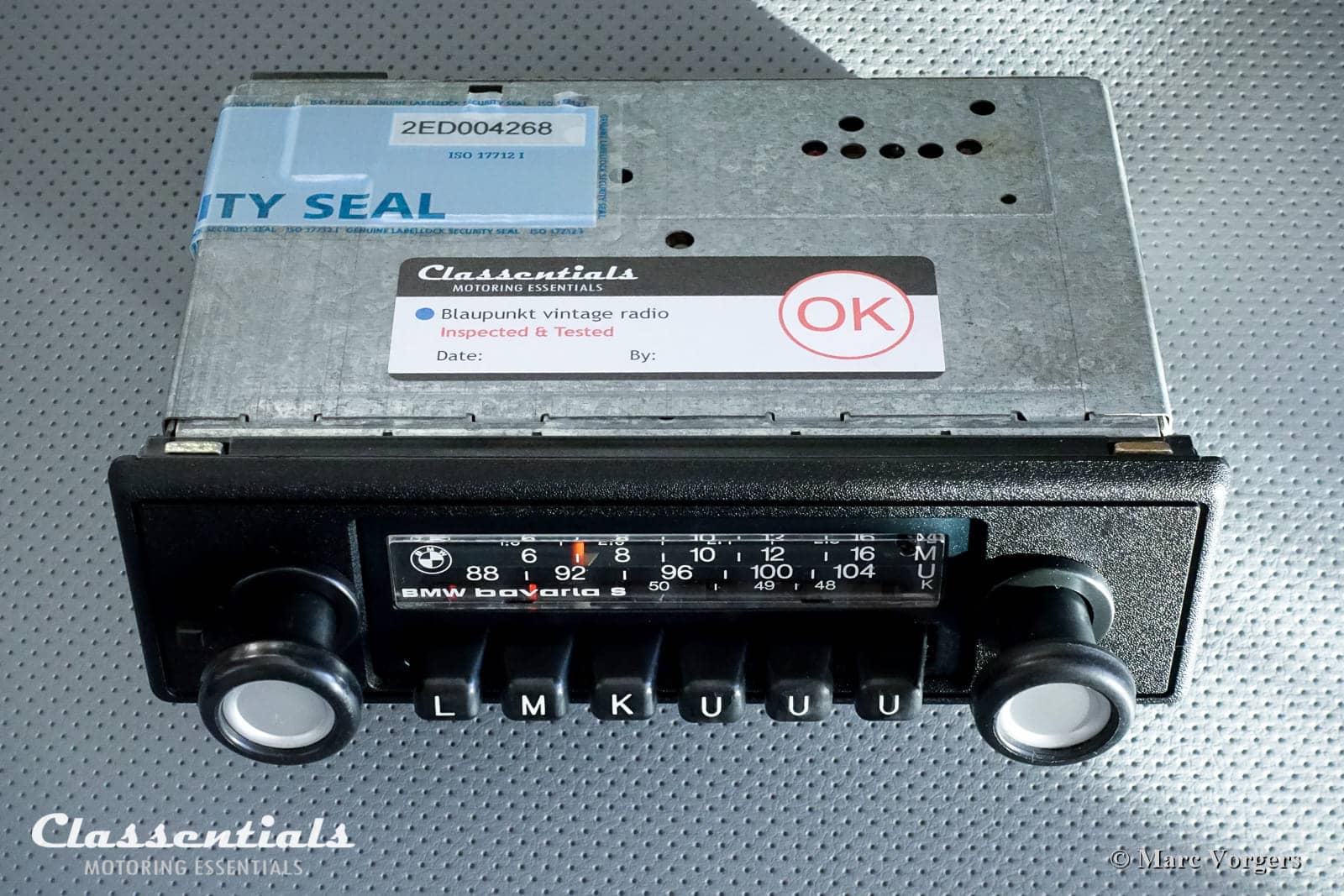

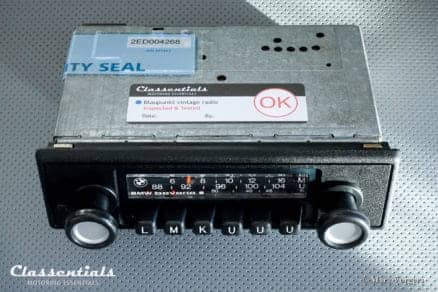

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
