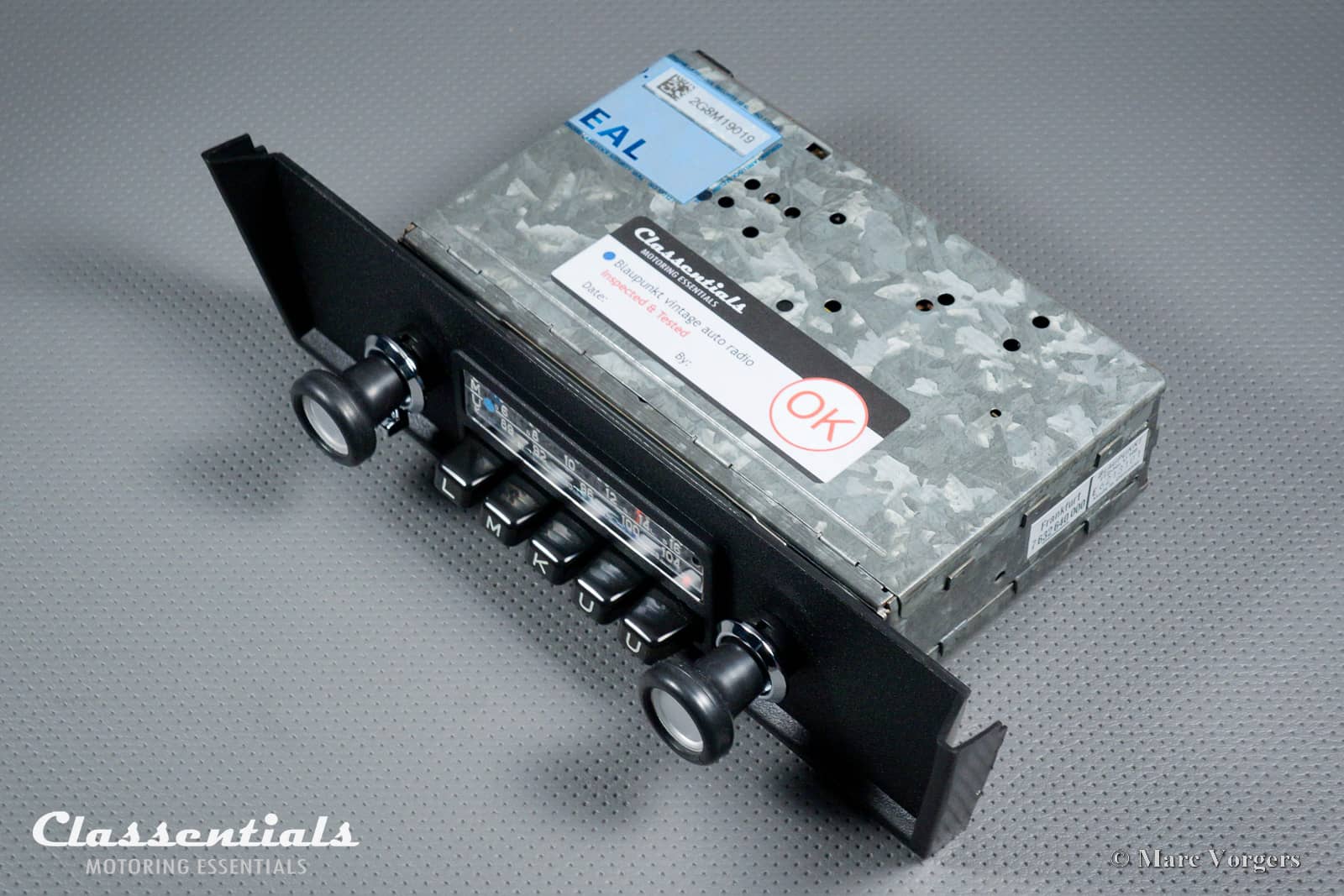

SOLD to Denmark: BLAUPUNKT FRANKFURT 1972 Vintage Original High-End Auto Radio for BMW E9 CS / CSI Models and E3 2500 / 2800 Models 1972 – 1977, Including Classentials Deluxe Bluetooth Module!

Description

Make and Model: Blaupunkt Frankfurt (Type 7632)
Classic Car era: 1972 – 1977

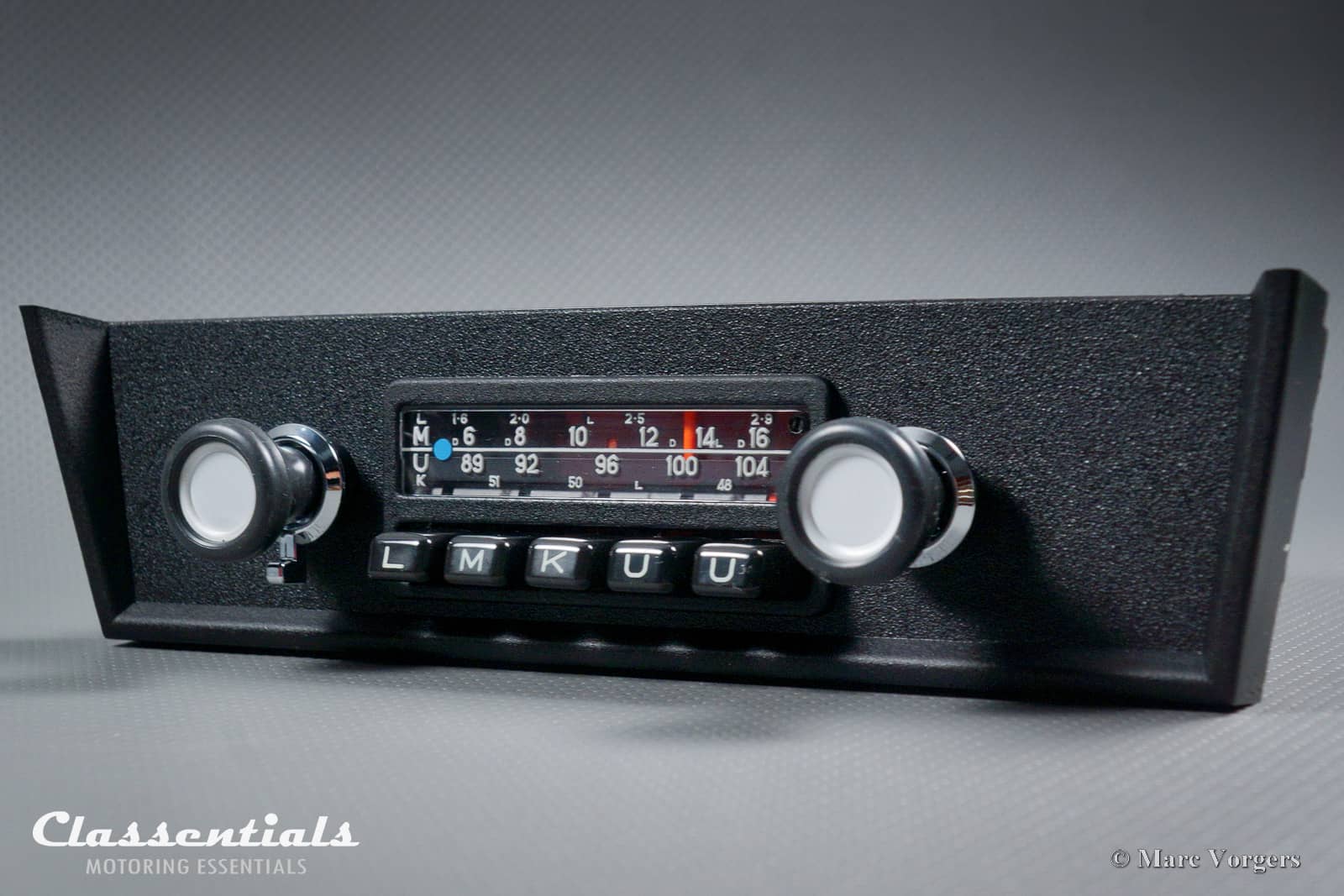

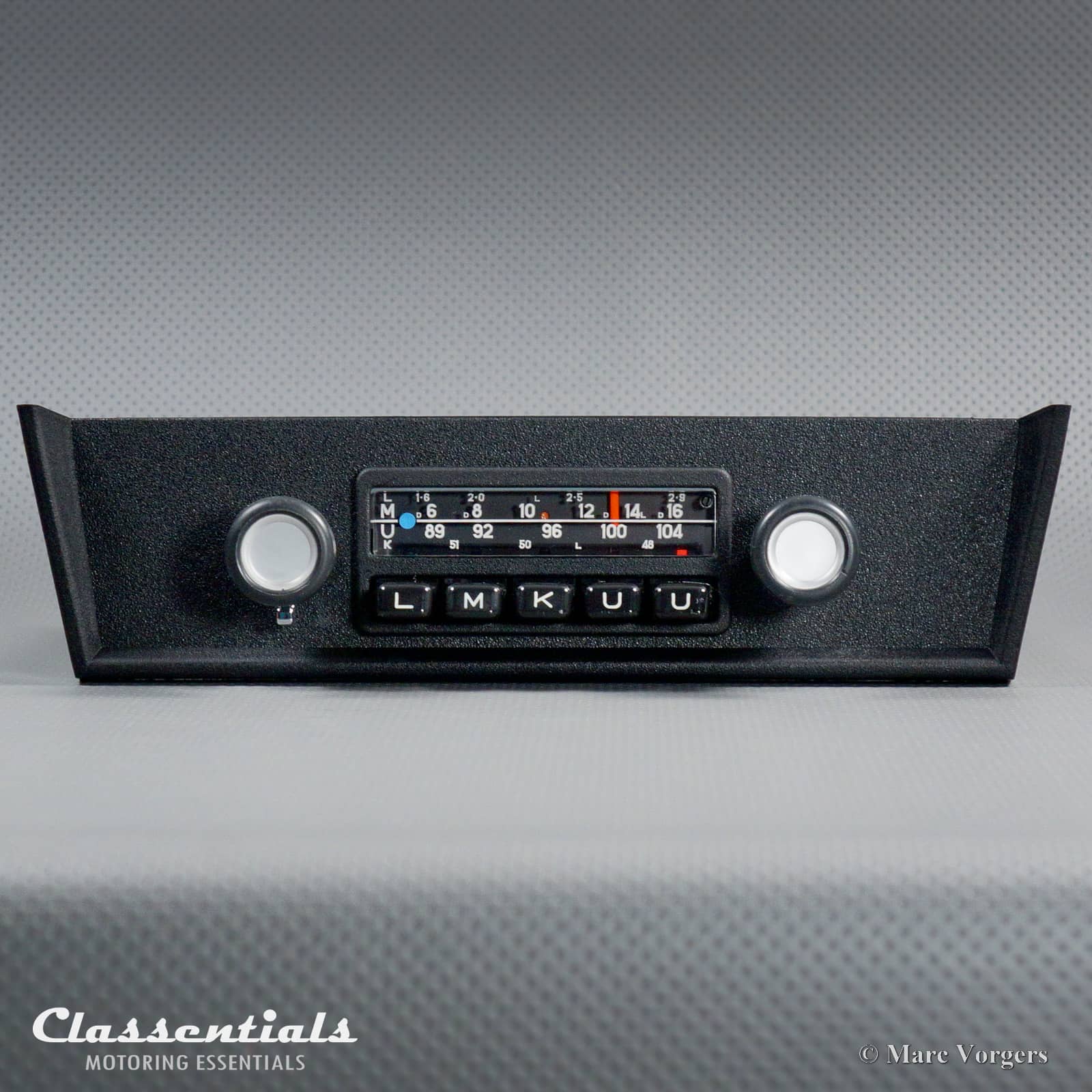

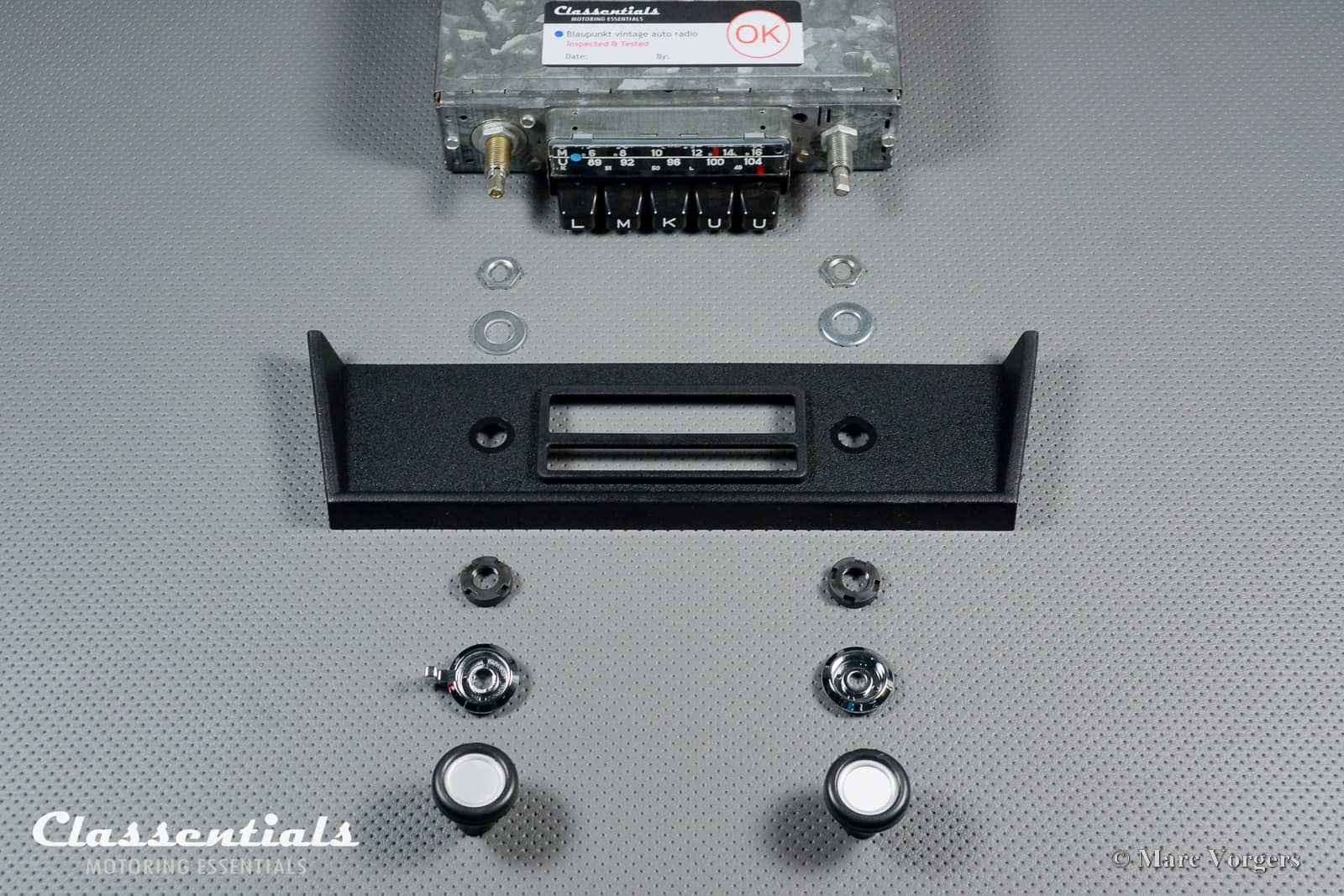

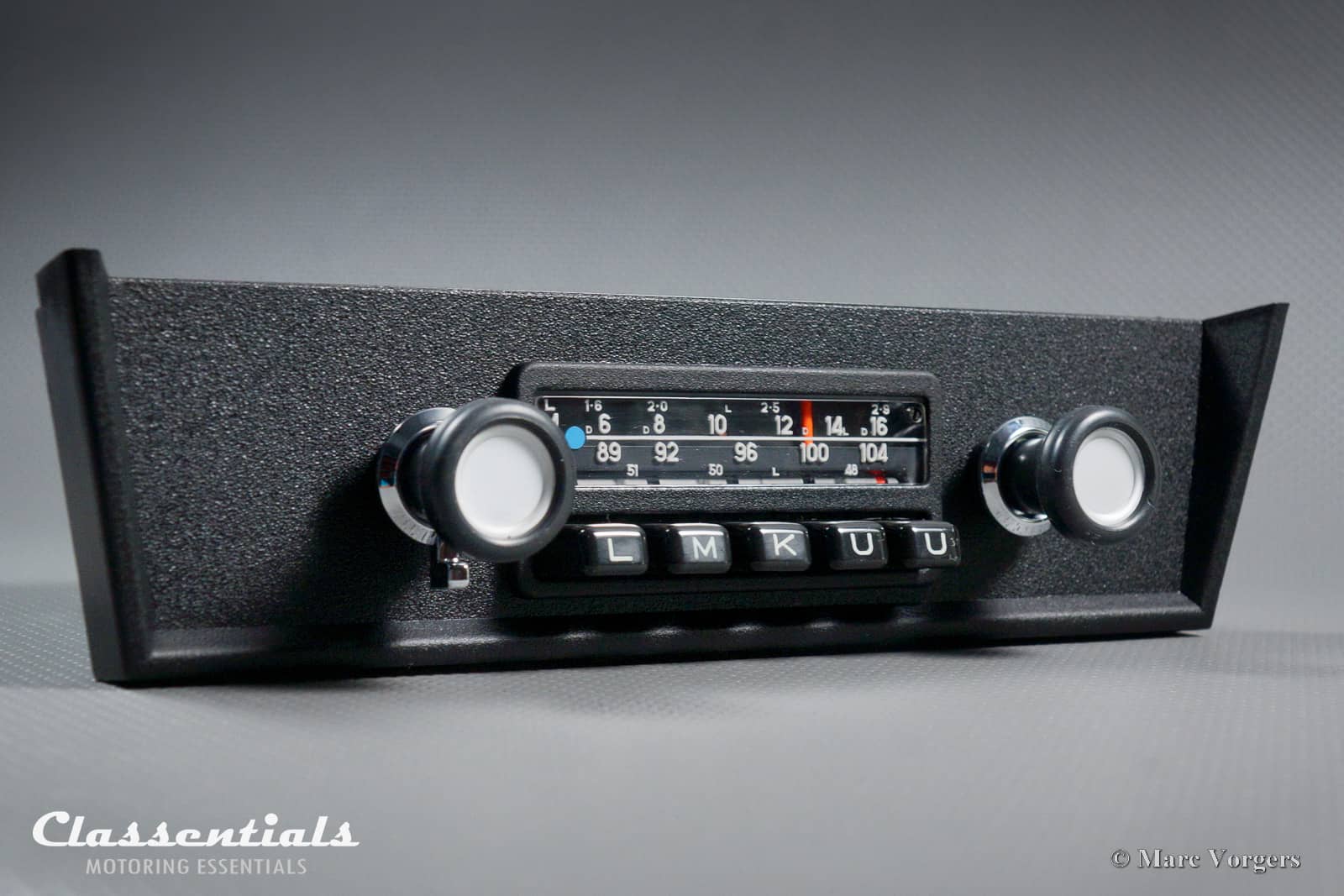

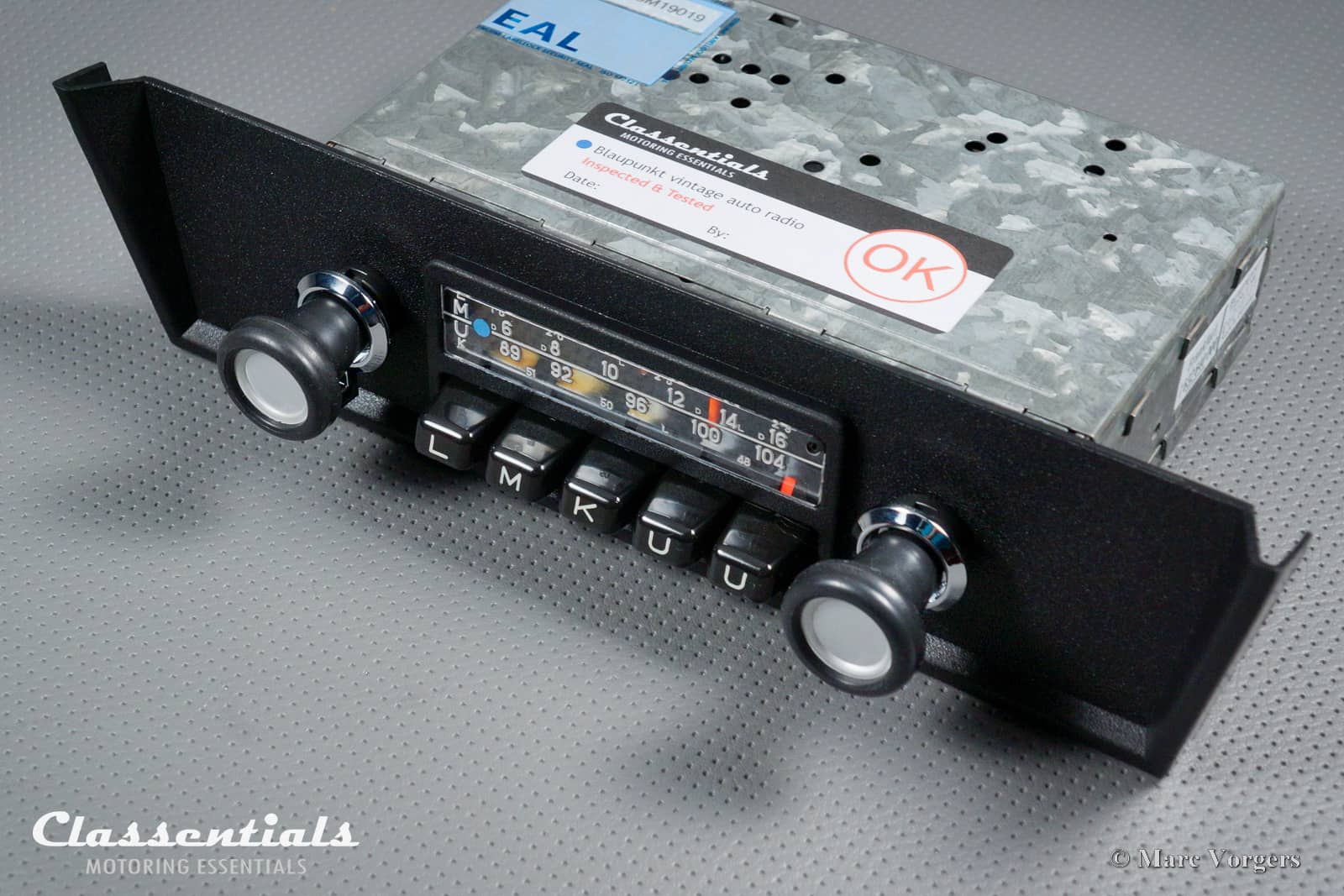

Face-plate: Dedicated for BMW E9 CS / CSI models and E3 2500 / 2800 models. Console fitting kit NOT included. The radio is fitted with the correct Blaupunkt BMW-type knobs.
On-board voltage: 12V, Negative earth / ground only
Output power radio: 5 / 7 Watt
Speaker: 15 Watt (Music)
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: Long wave (L), Medium wave (M), Short wave (K) and FM / UKW (U)
Frequency range UKW (FM): 88MHz-104MHz

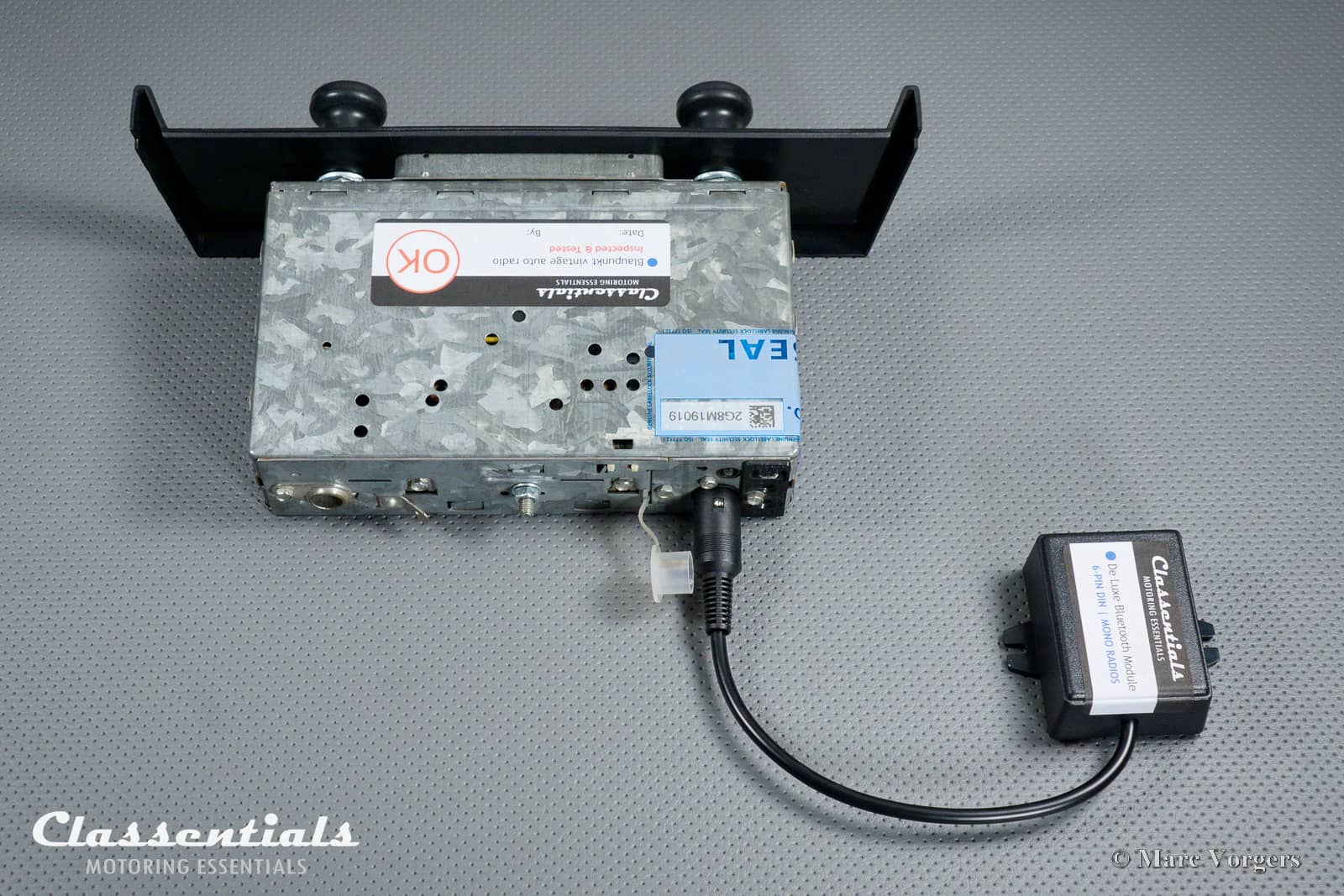

Equipment: Tone control, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio
Year of build: 1972
Dimensions radio unit (width x height x depth in mm): 177 x 44 x 127 / 7,1 x 1,65 x 5 inch (back to front of face-plate). Total depth with Bluetooth Module plug and cable is 180 mm (7 inch).
Dimensions mounting-plate with speaker (width x height in mm): Width top: 266, width bottom: 240, height: 68 (10,4 – 9,45 – 2,7 inch)
Weight (kg): 1.4

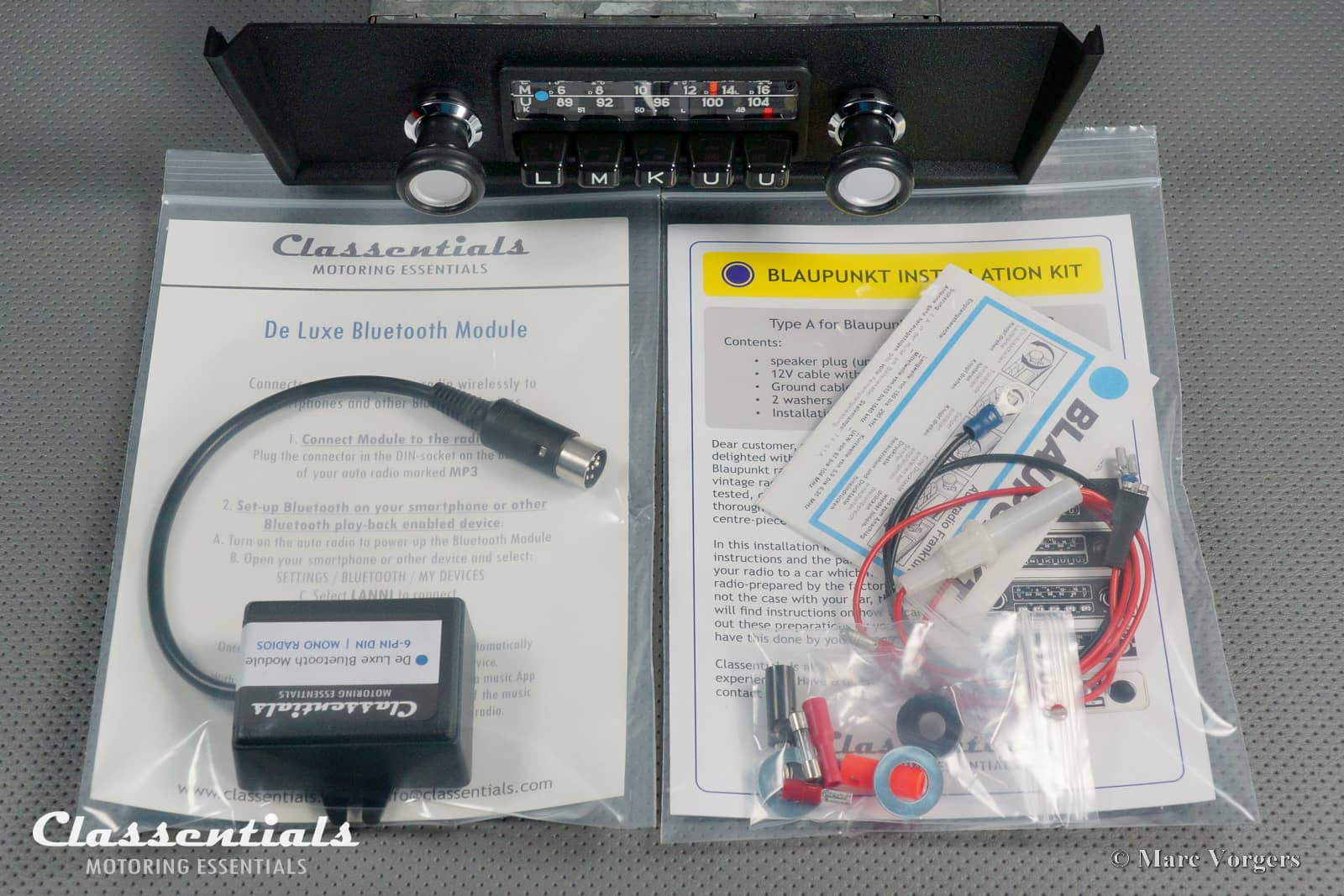

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, earth cable, 12V wire with fuse, and cable shoes.

Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

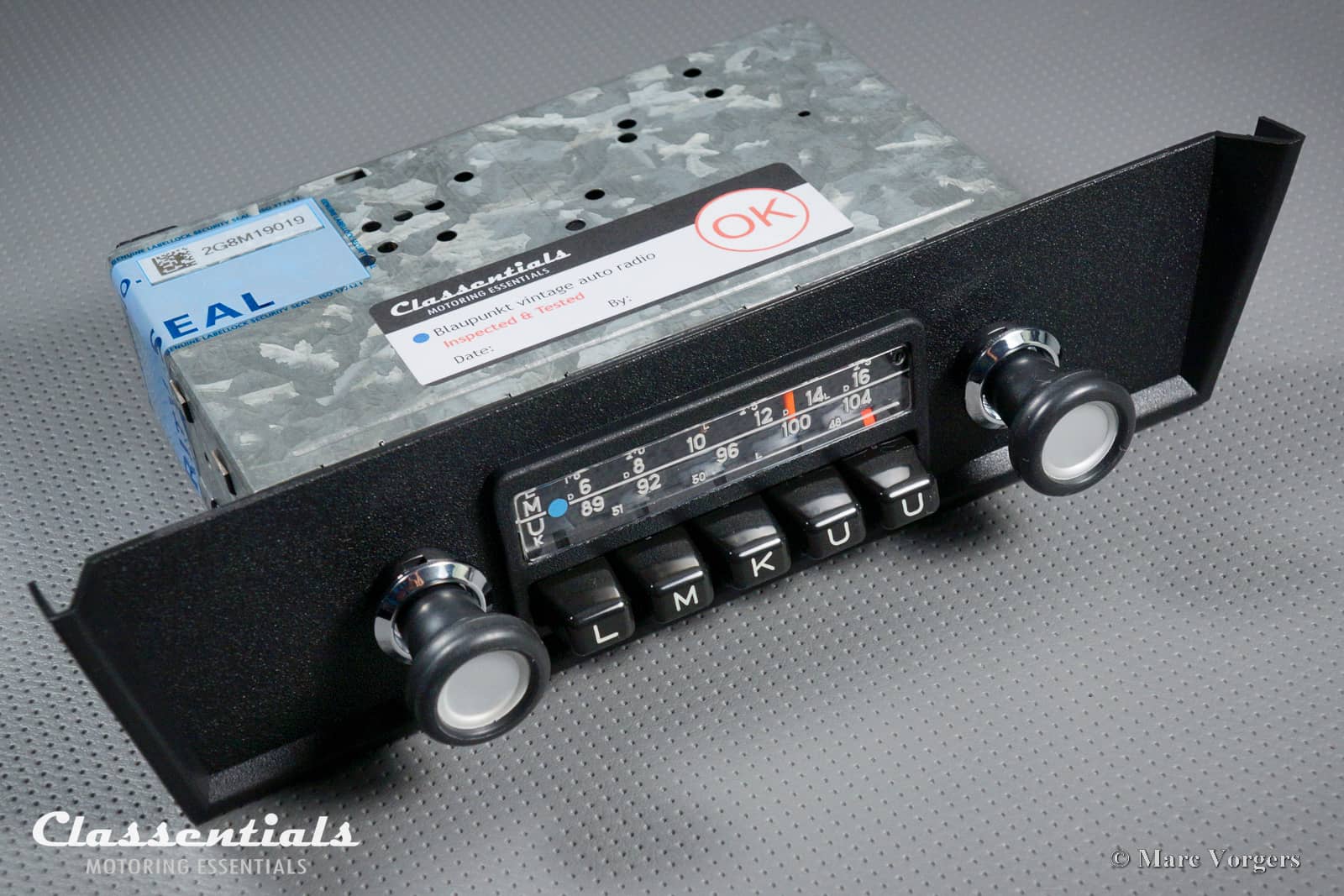

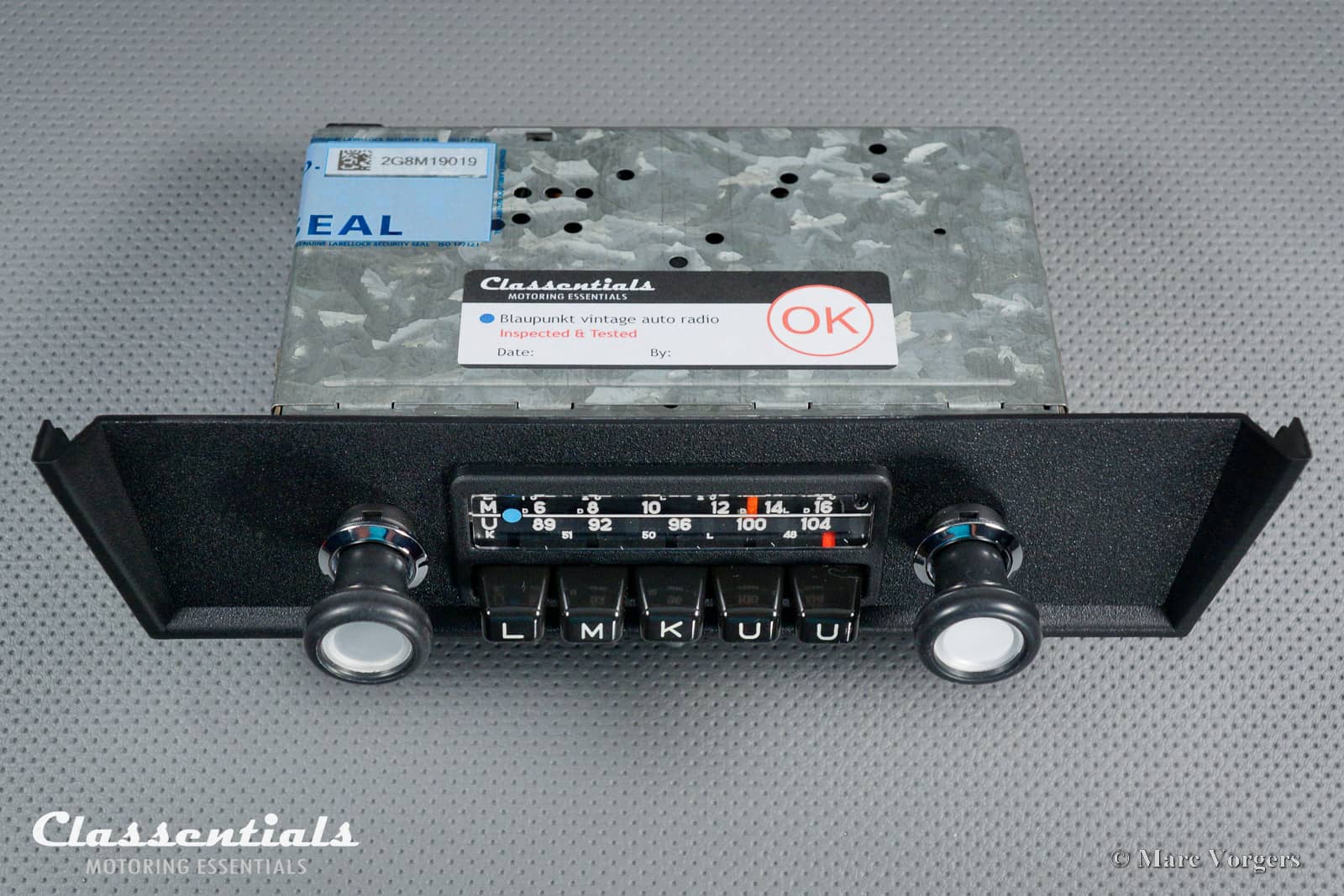

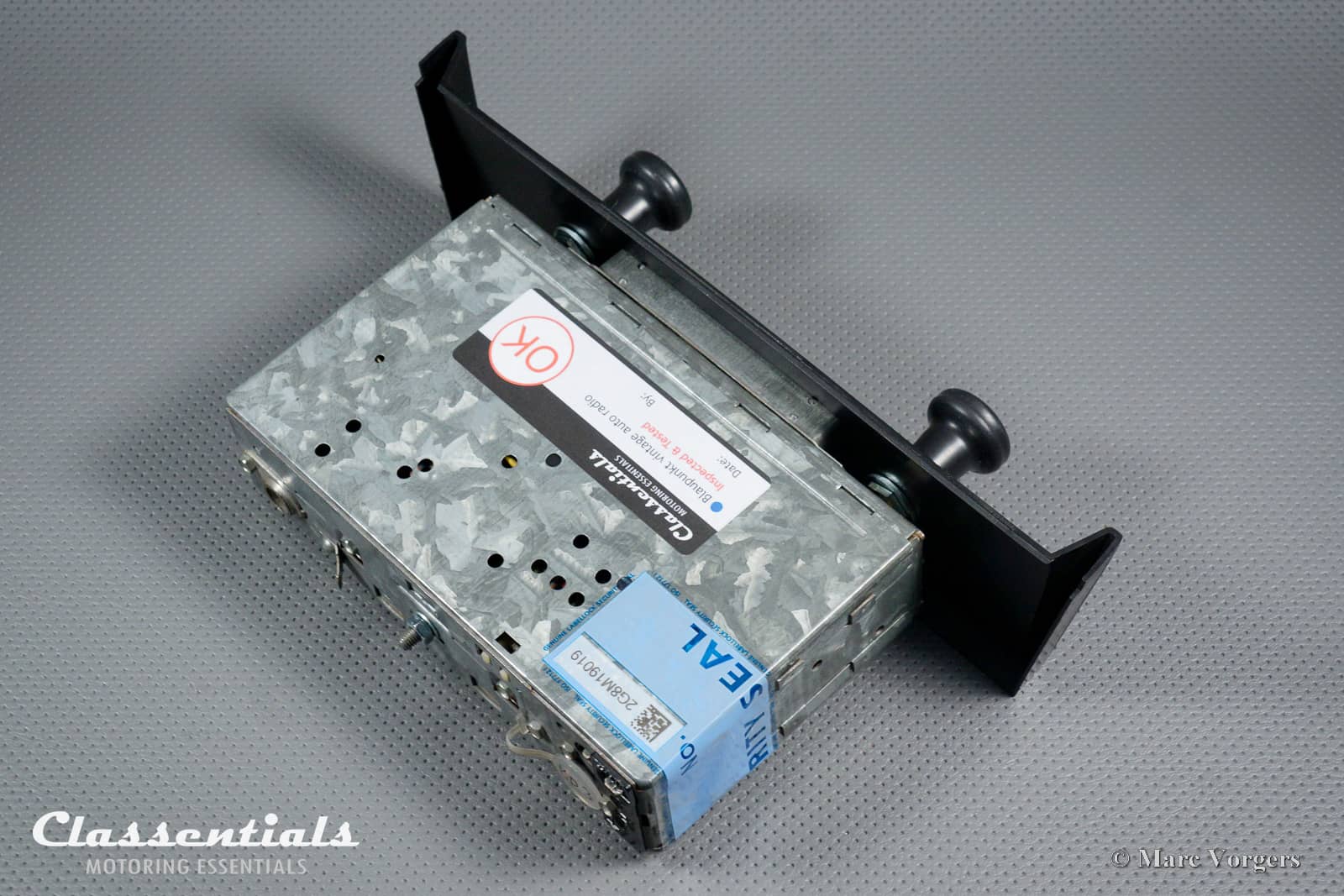

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.

“Enjoy the Ride!”
