Make and Model: Blaupunkt Köln (Type 7630)
Classic Car era: 1968 – 1975

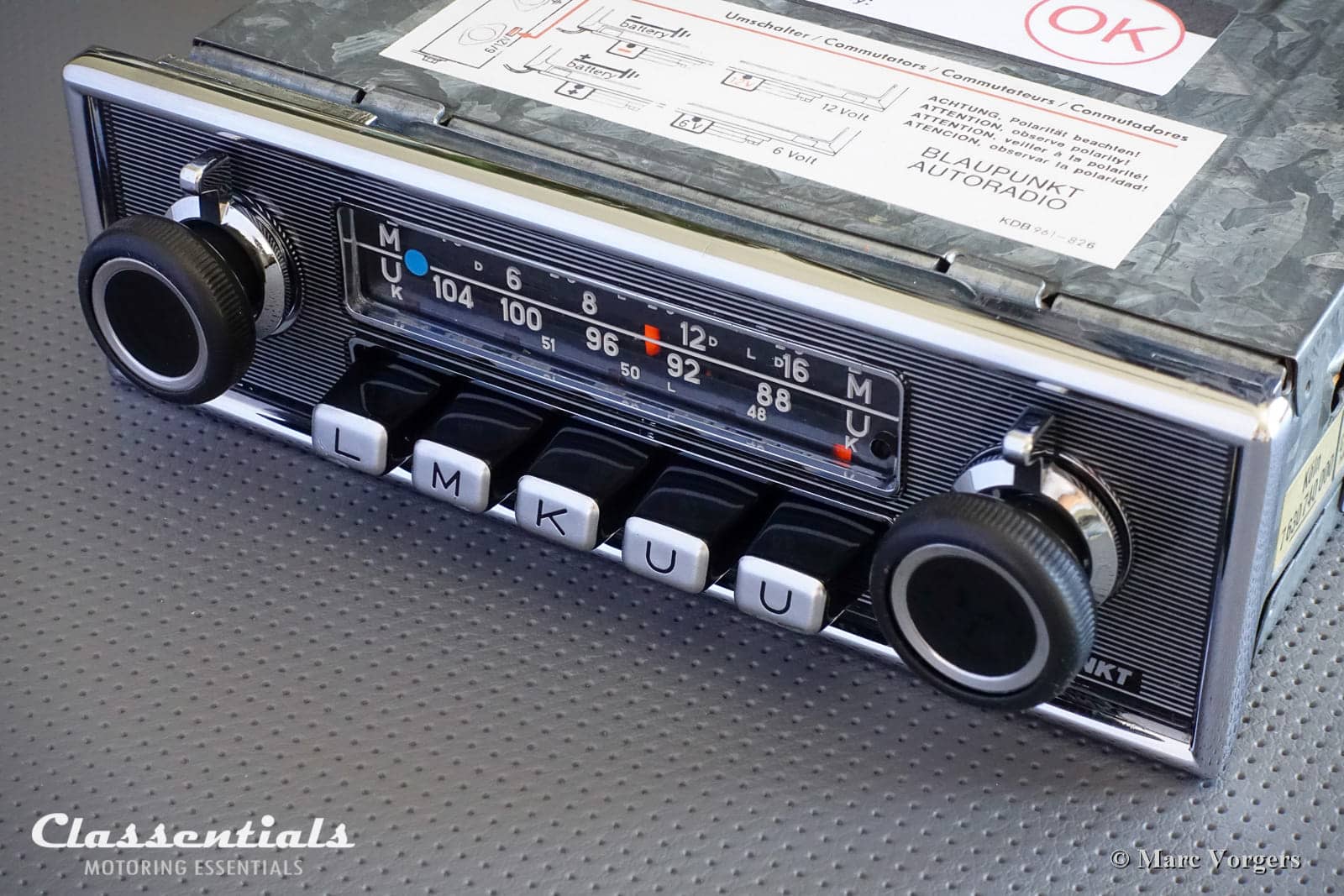

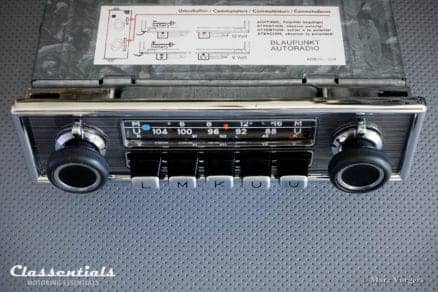

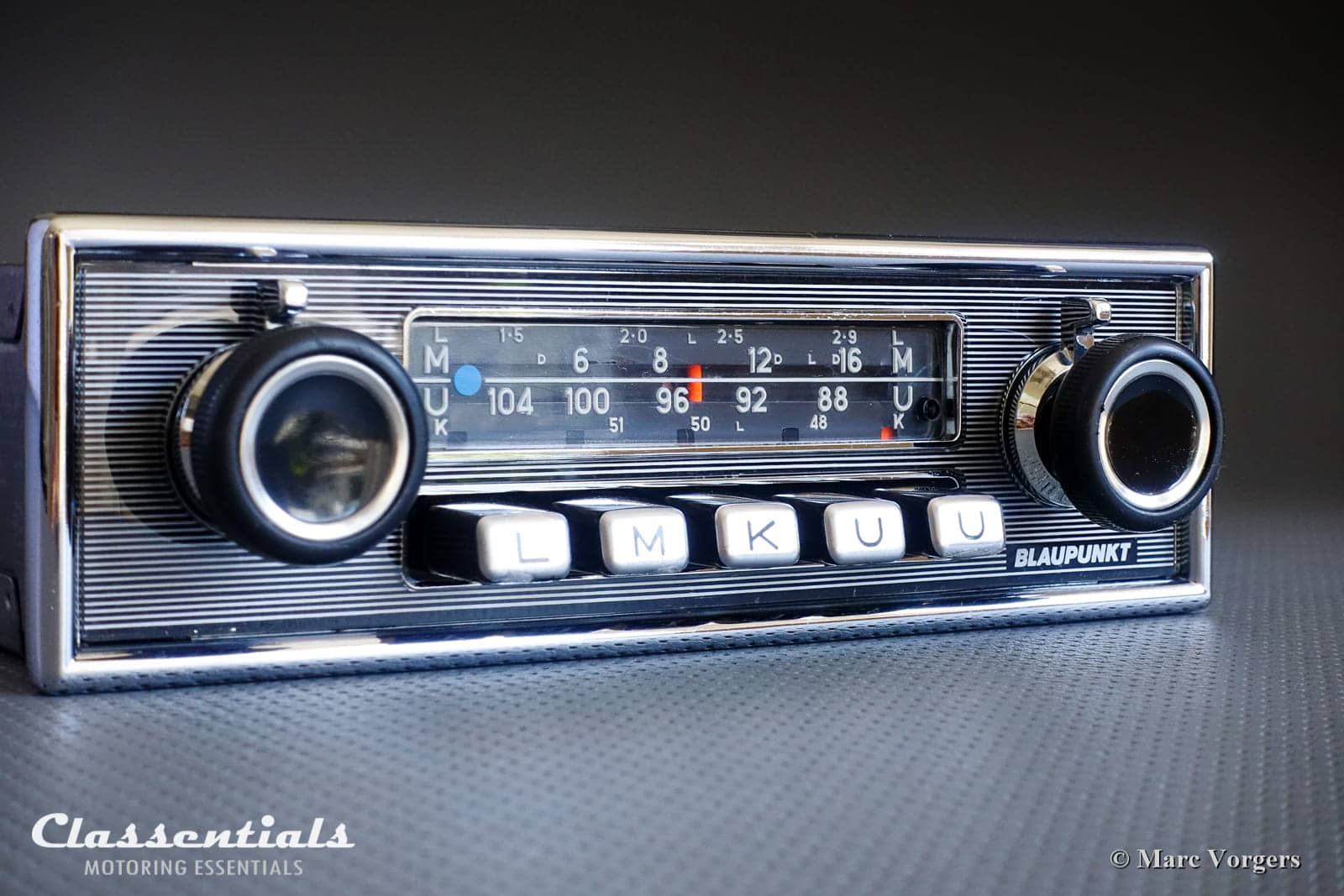

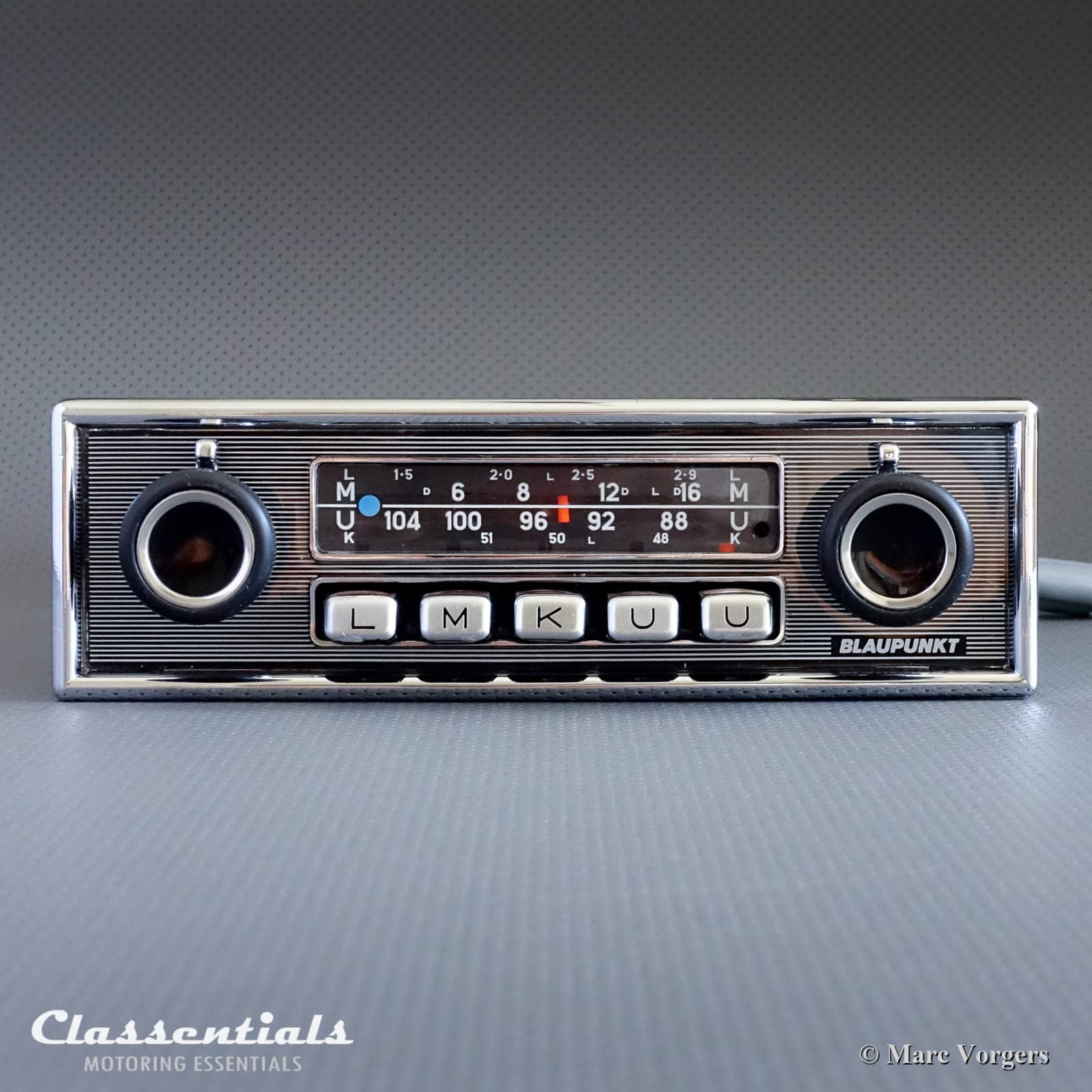

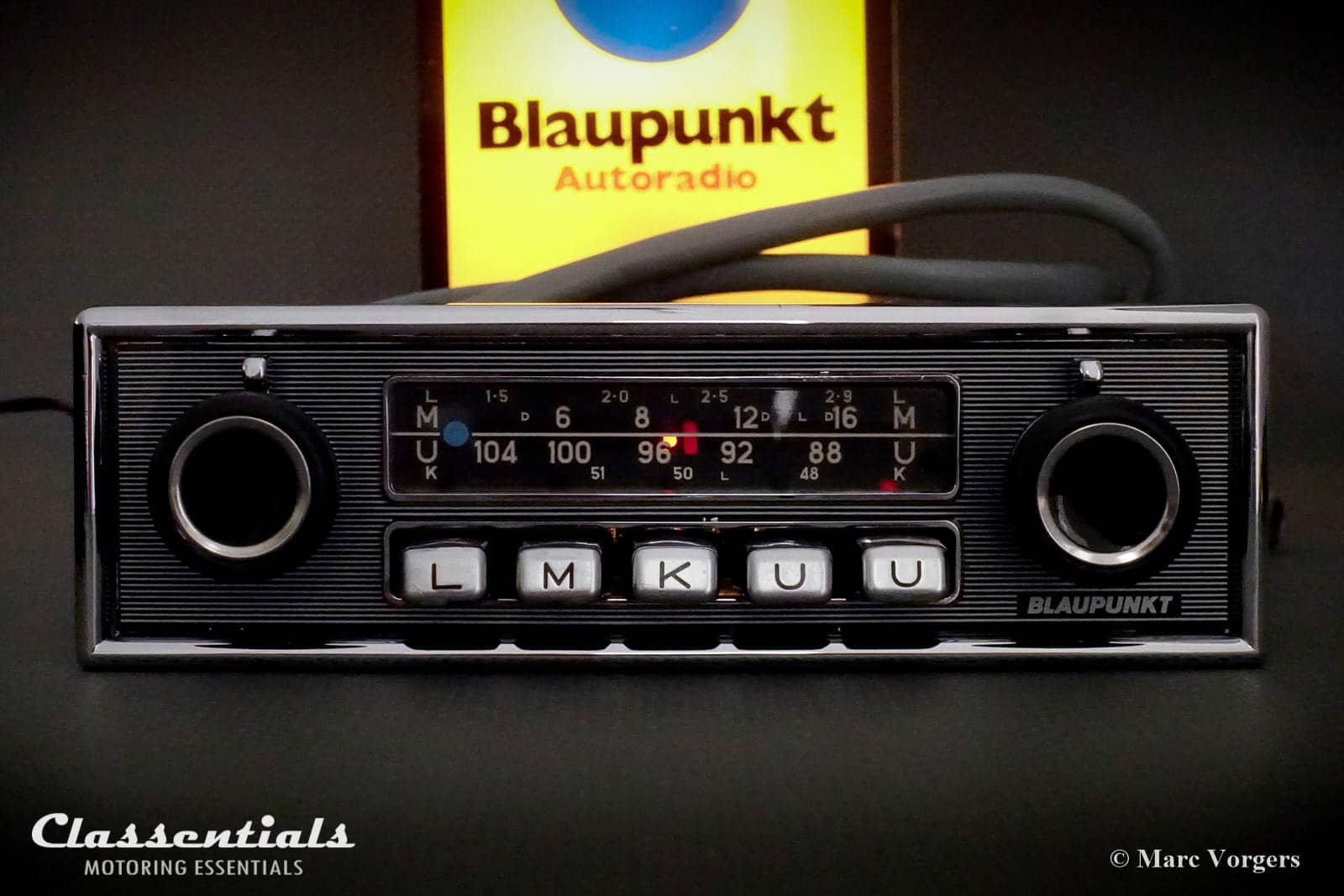

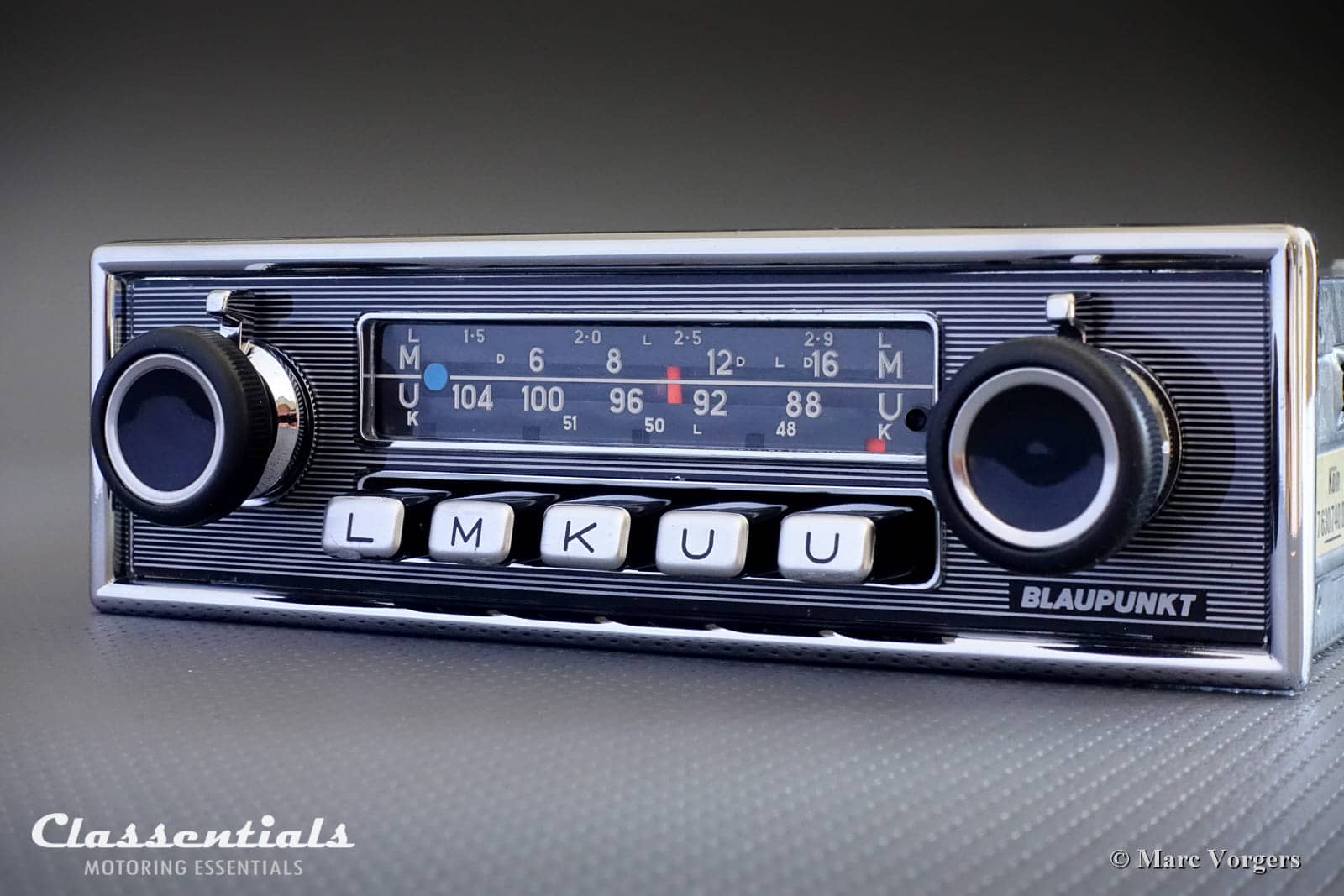

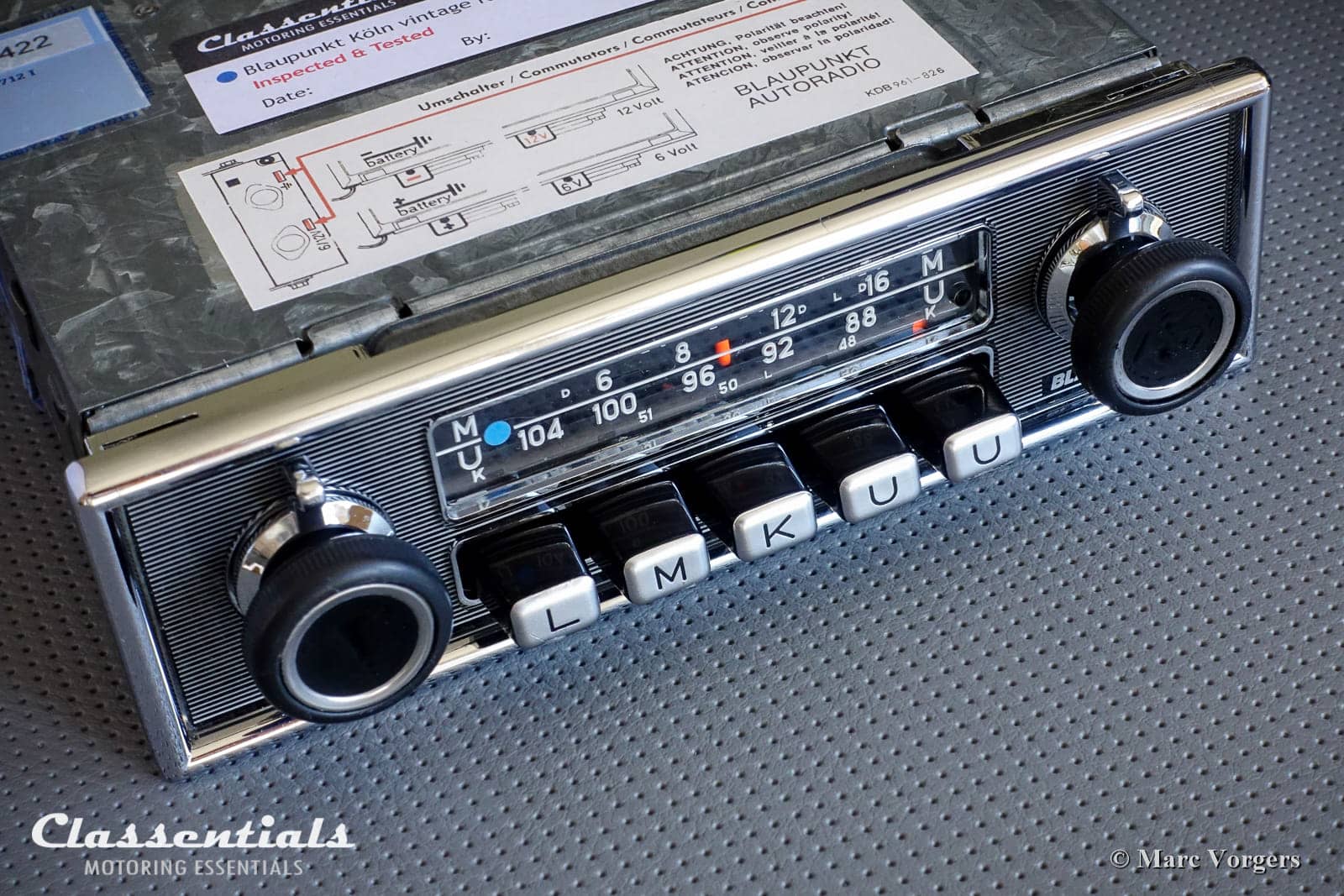

Face-plate: Cast metal chrome with plastic ‘pin-stripe’ insert and the correct knobs for 1968 – 1974 Mercedes-Benz models; SL Pagode W113, W114, W115, W123, SL R107, C107. The radio can also be delivered with different face-plates for other makes and models of the period (BMW, Porsche, VW, Alfa Romeo, Ferrari, Fiat, Lancia, Maserati, Peugeot, Jaguar, Aston Martin and others). Face-plate exchange at no additional costs (except 1968 – 1973 Porsche F-Series).

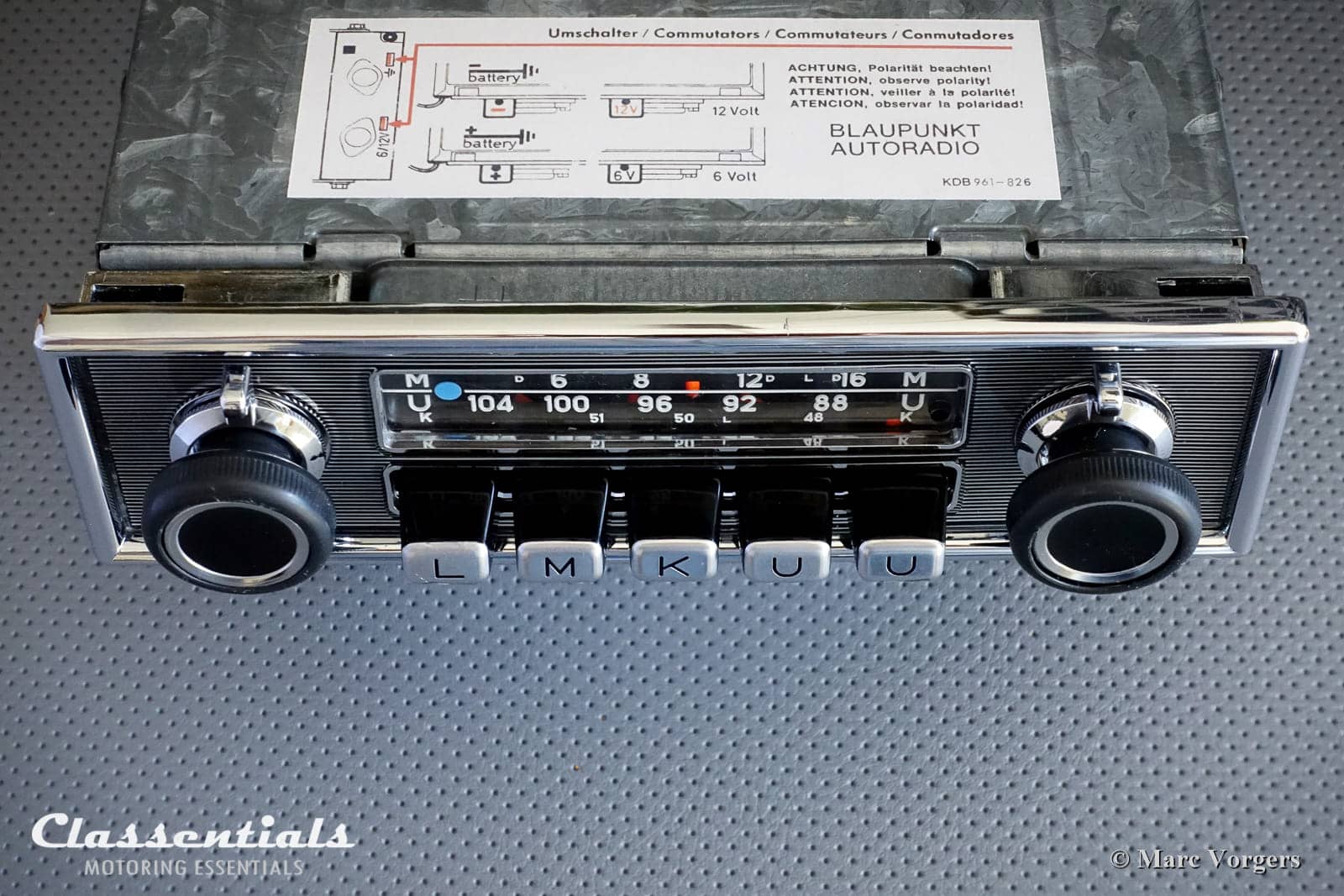

On-board voltage: 6V AND 12V, negative AND positive earth / ground
Output power: 5 Watt nominal, 7 Watt music
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker, or 2 (8 Ohm) speakers connected parallel + to + and – to -, this makes 4 Ohm per channel. This is important otherwise you will damage the internal amplifier.
Wave Range: Long wave (L), Medium wave (M), Short wave (K) and FM / UKW (U)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: Motorized channel search function, station pre-set buttons, tone control, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio
Year of build: 1970

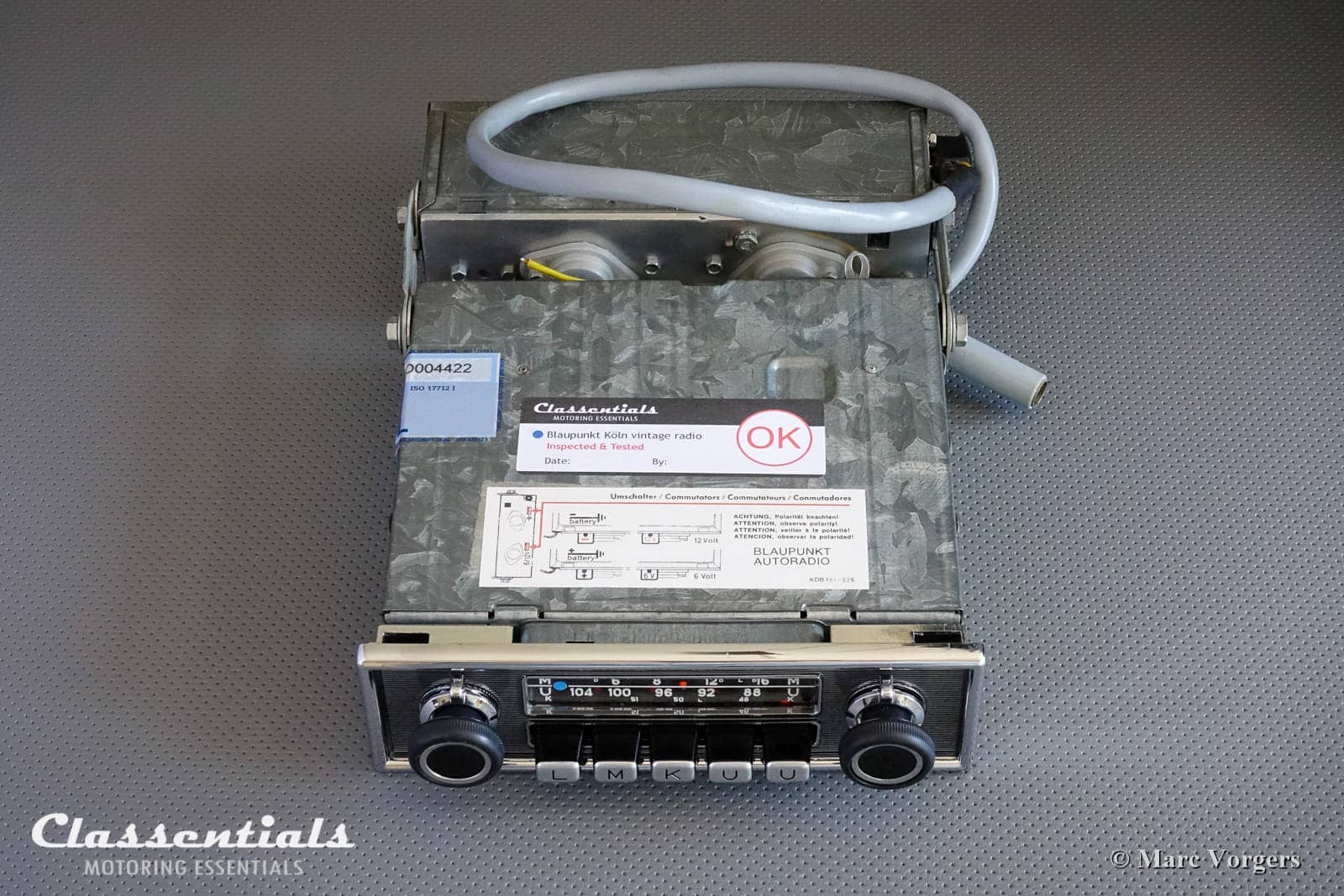

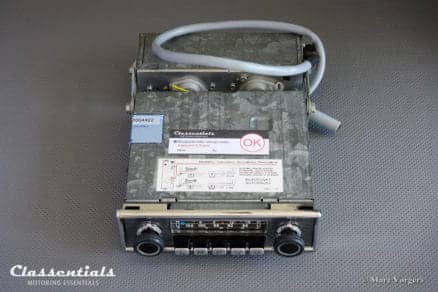

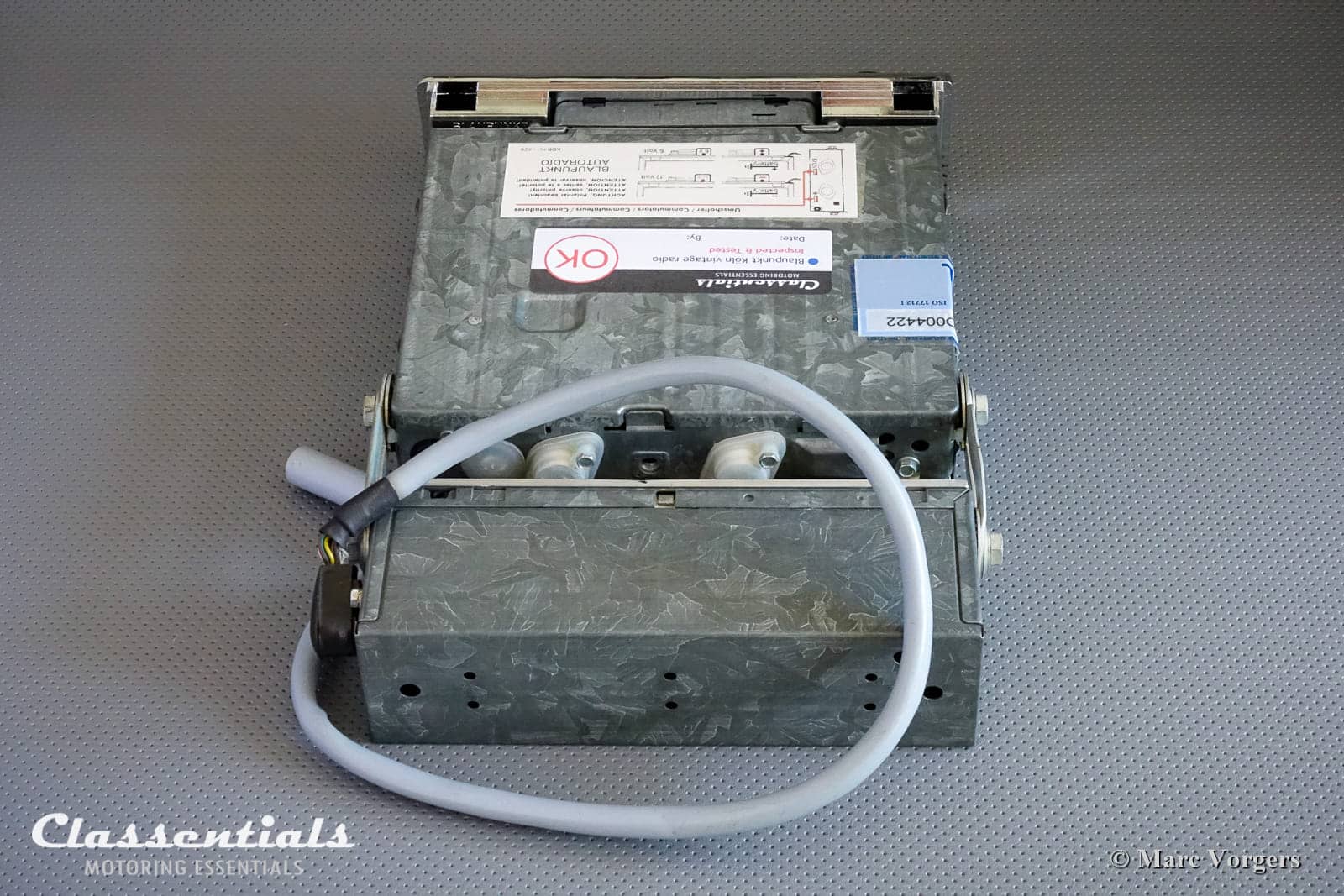

Dimensions radio unit (width x height x depth in mm): 178 x 50 x 160 (back to back of face-plate), amplifier: 178 x 64 x 50
Dimensions face-plate (width x height in mm): 187 x 55
Weight (kg): 3.1

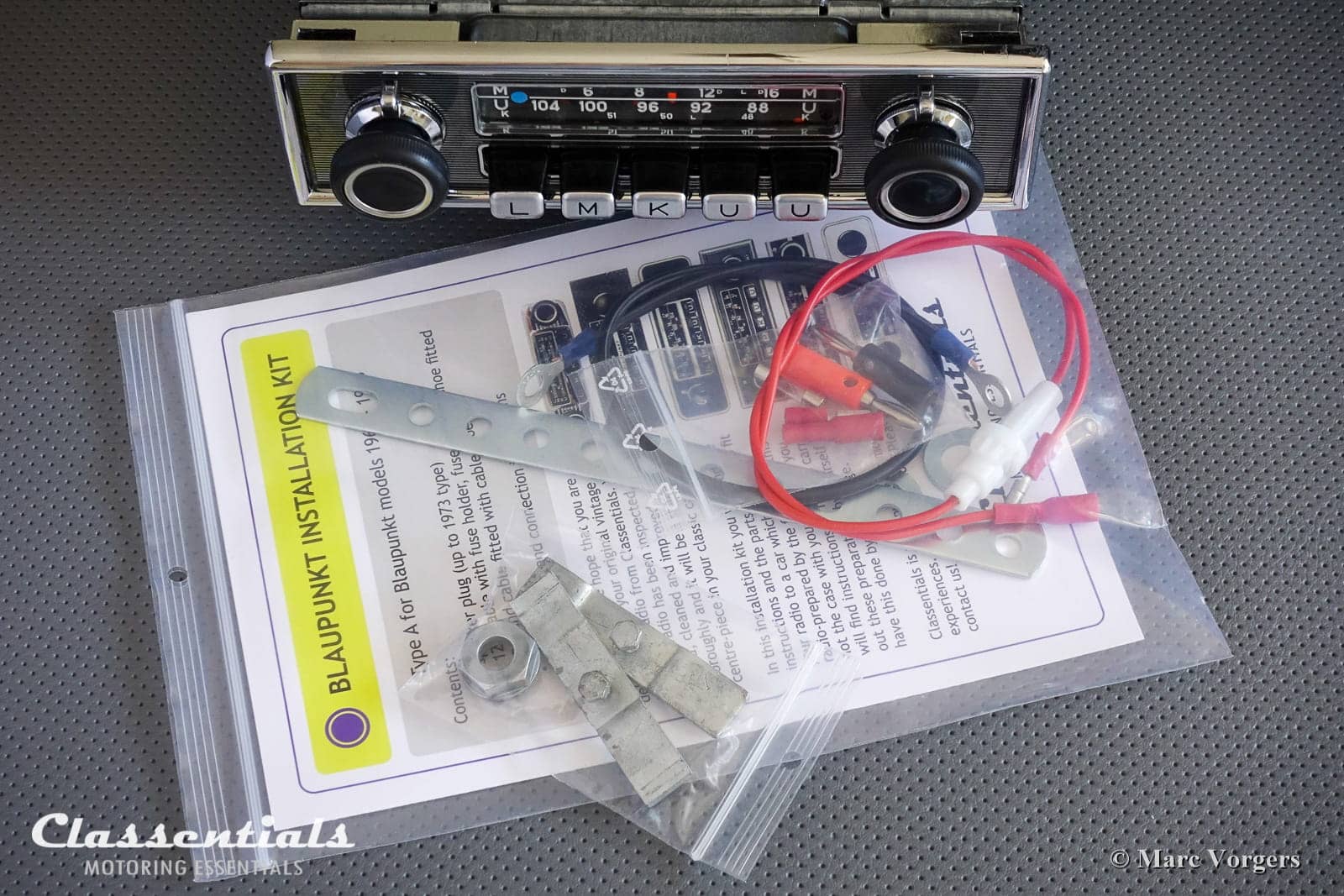

Extra in packaging: Classentials Installation Kit 1 with installation instructions, speaker plugs, 12V cable with fuse, earth / ground cable, cable shoes, and a rear mounting strip.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.
*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
