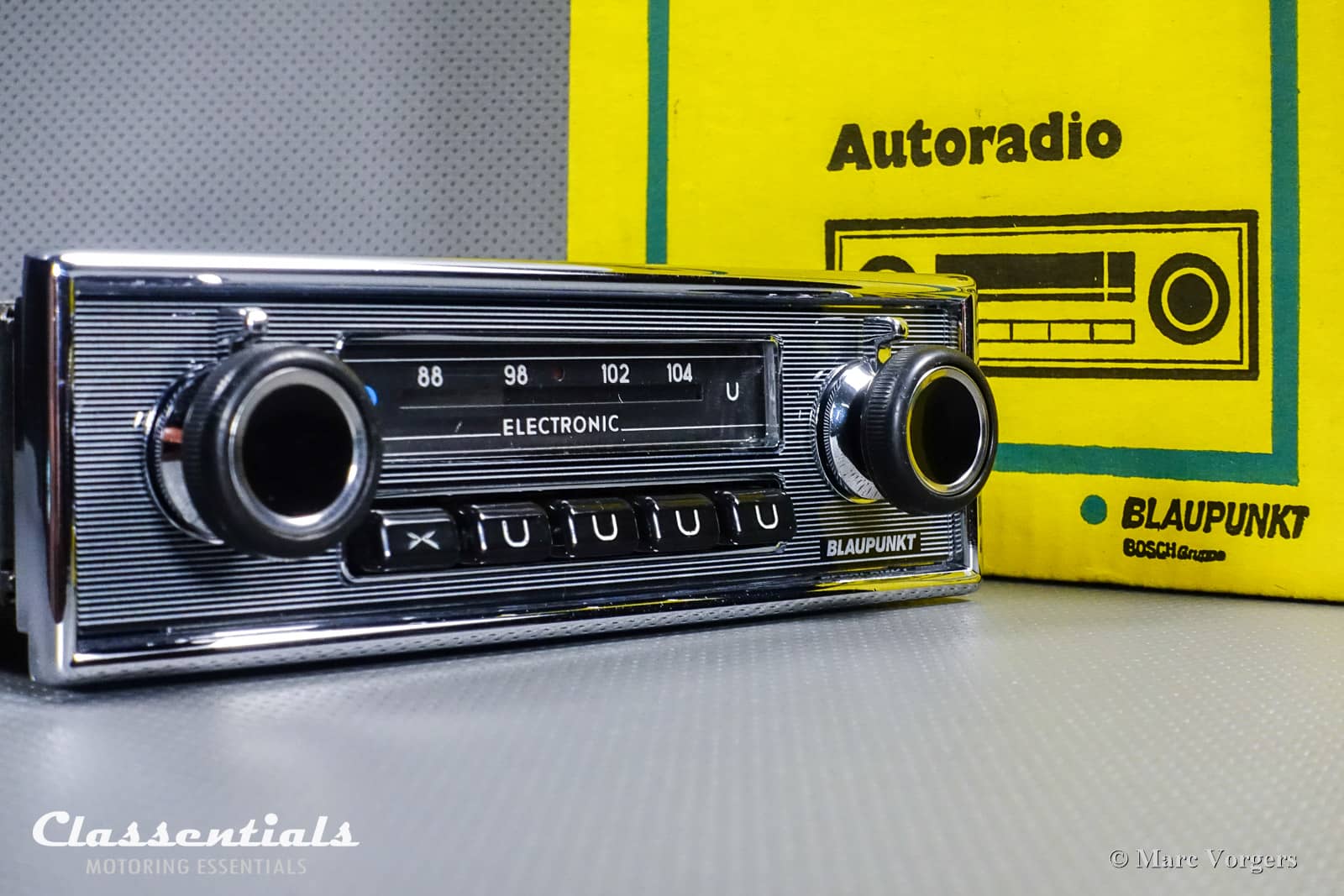

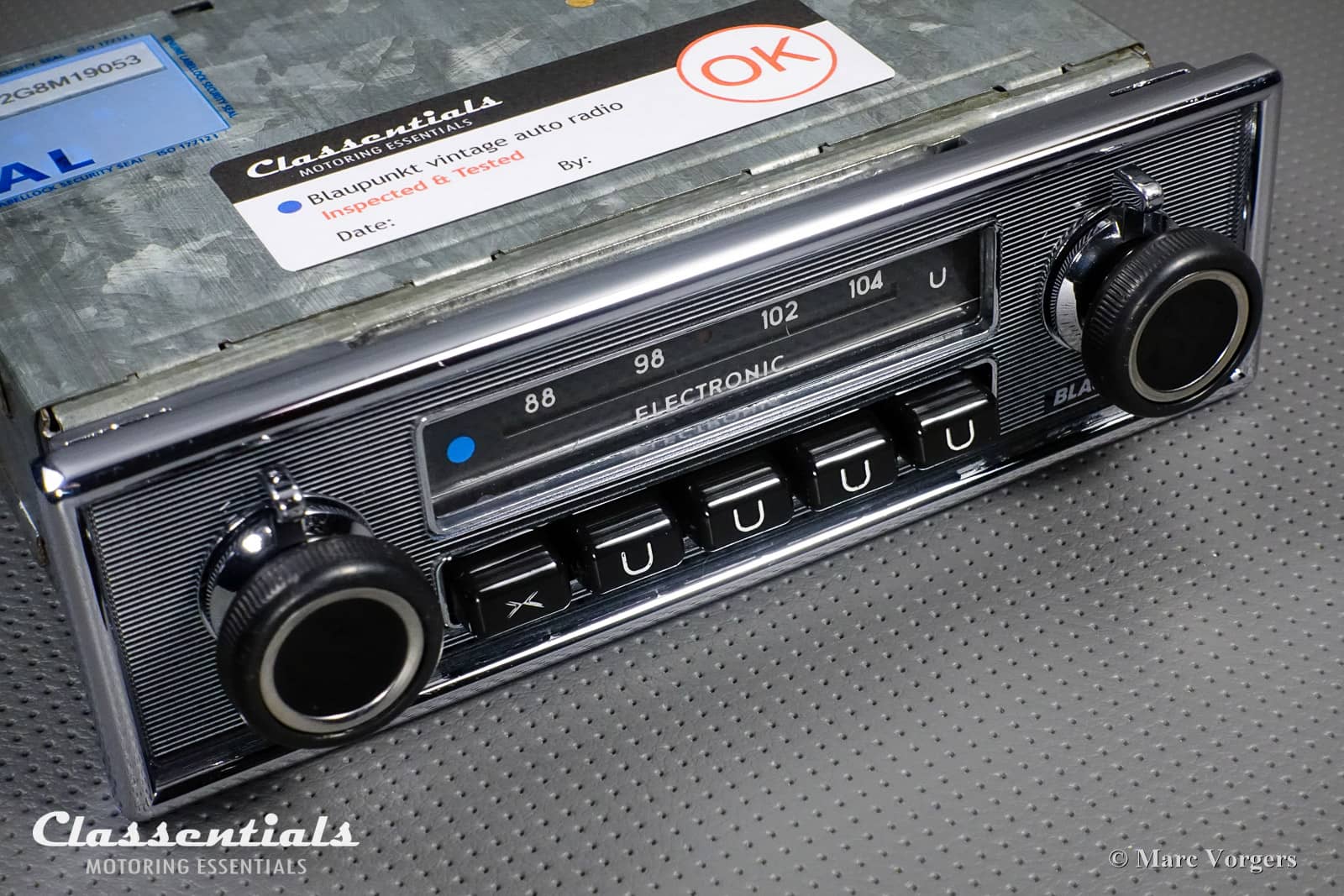

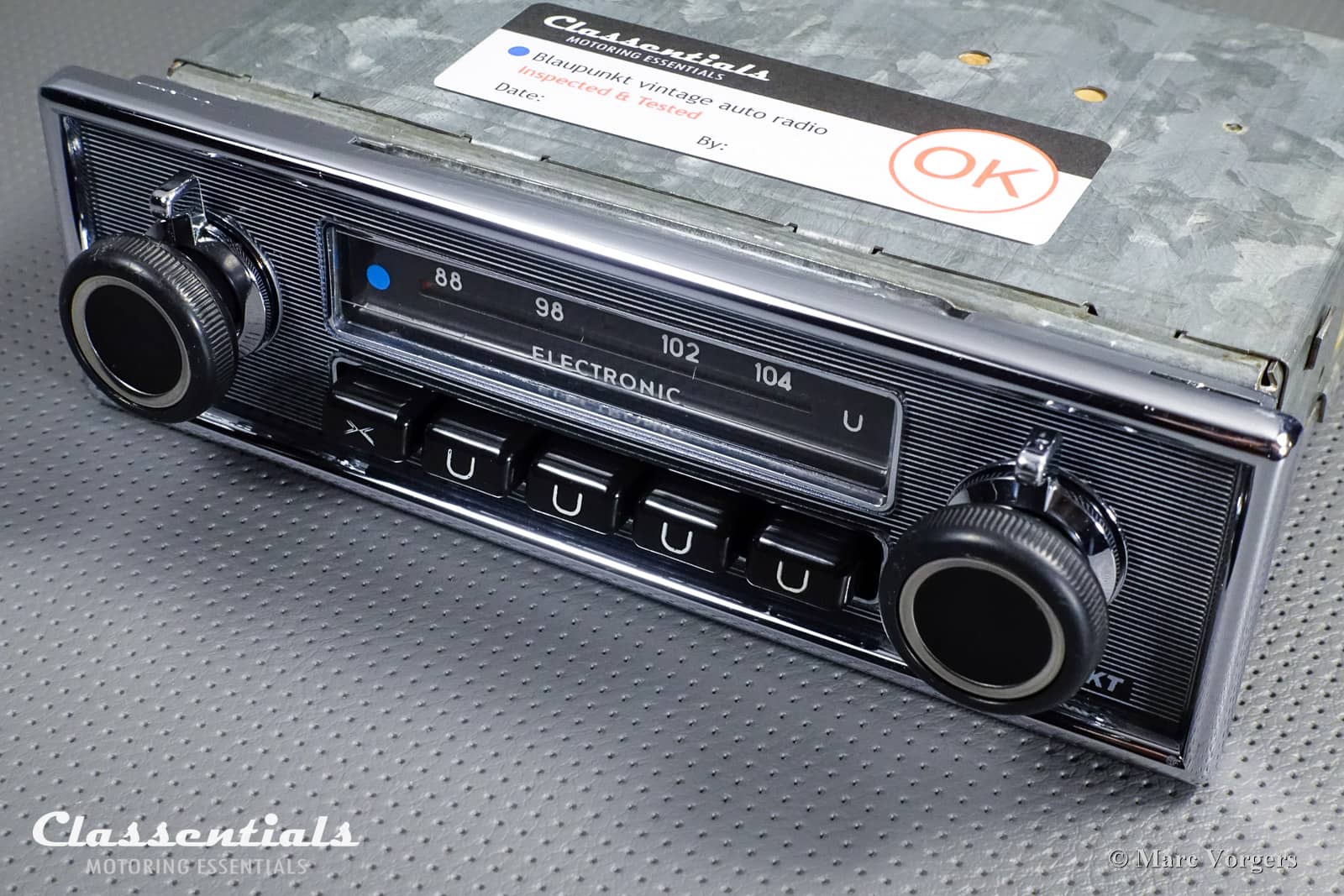

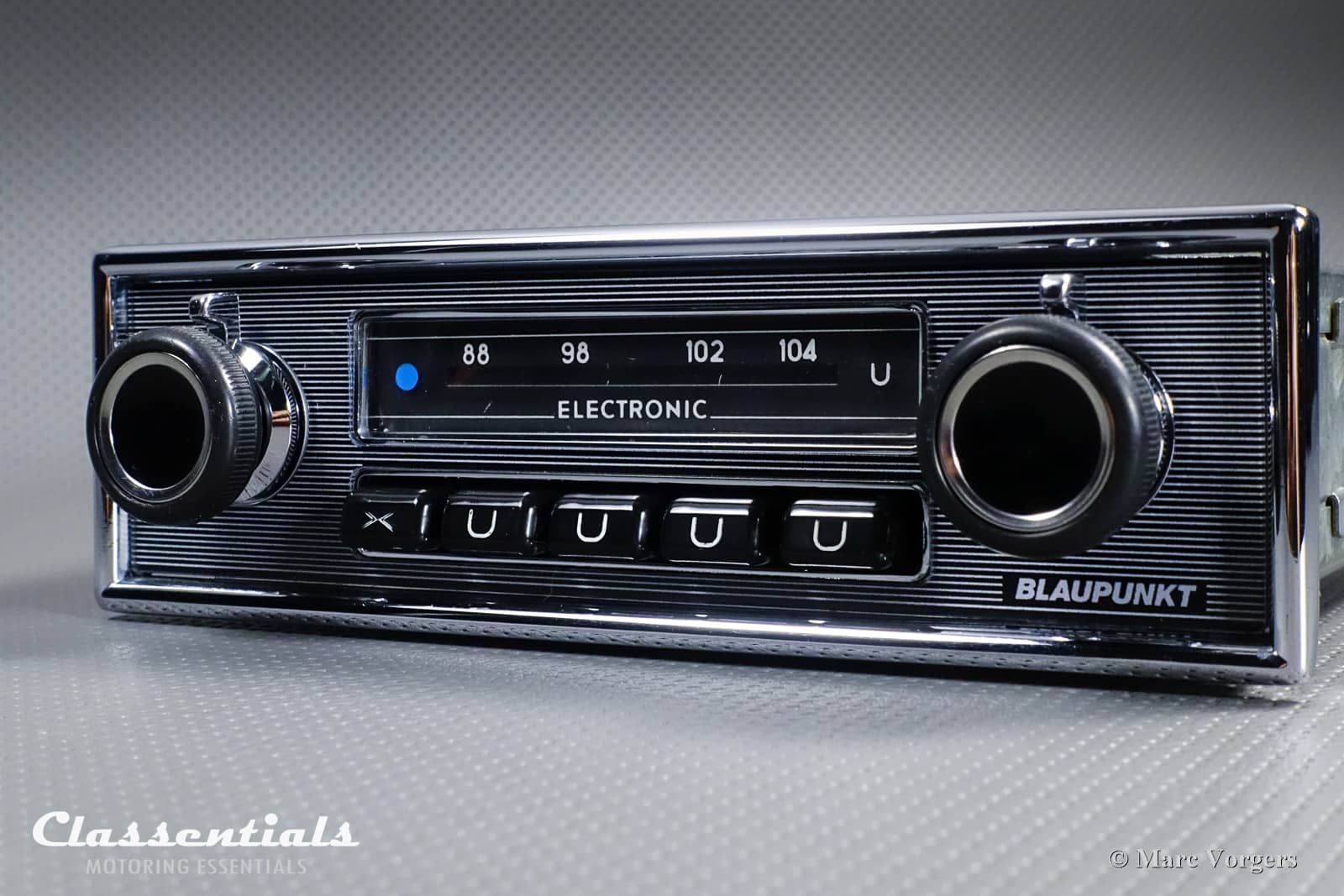

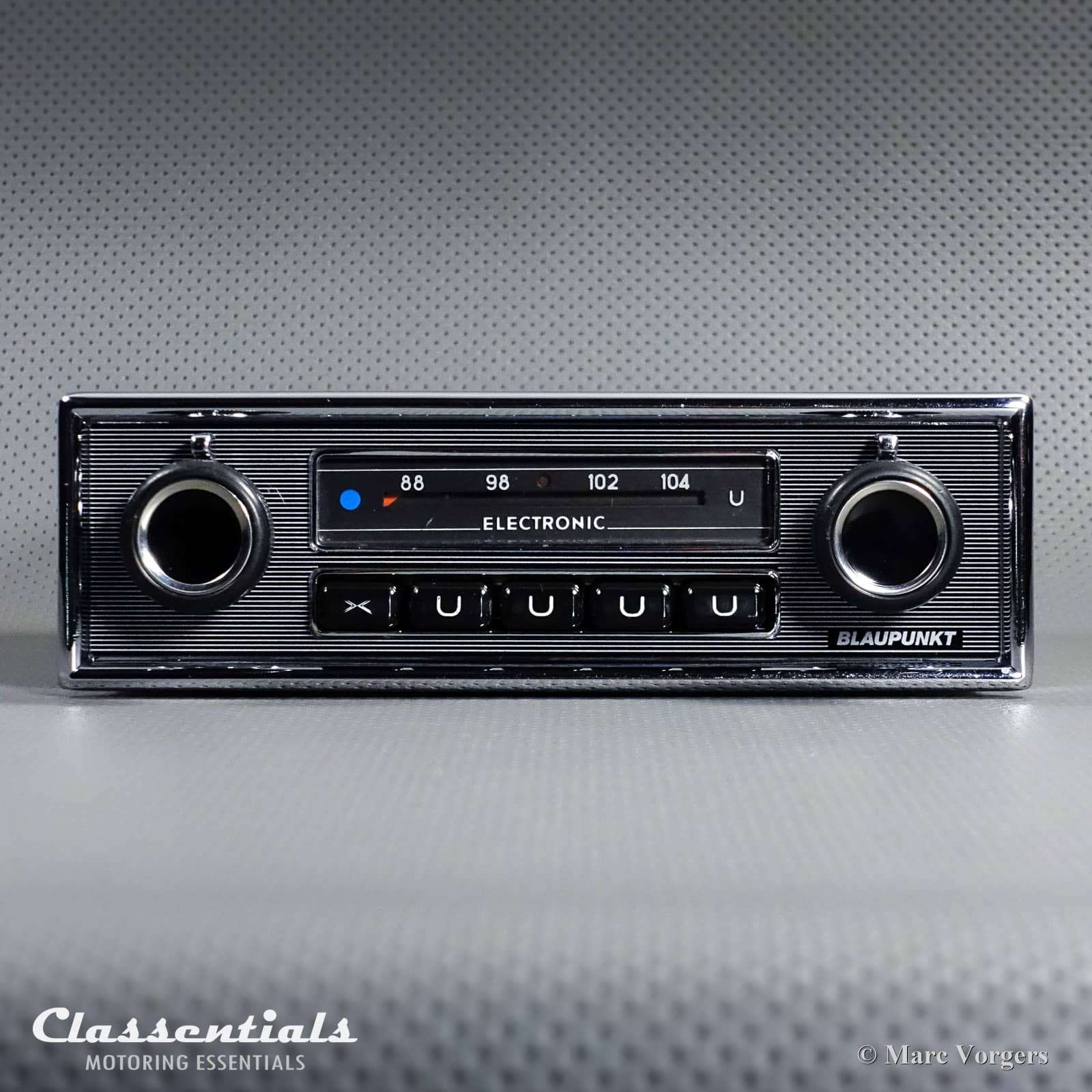

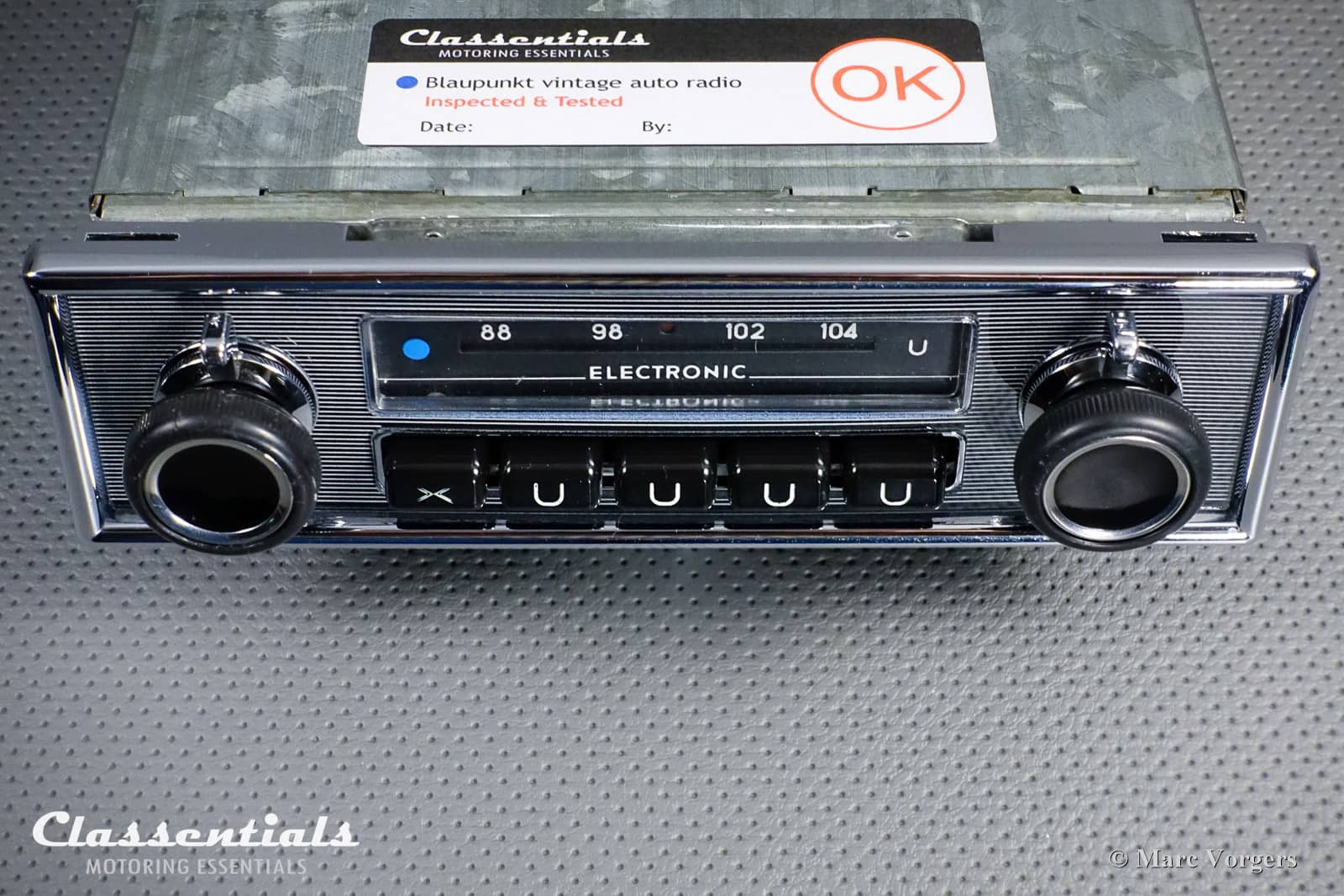

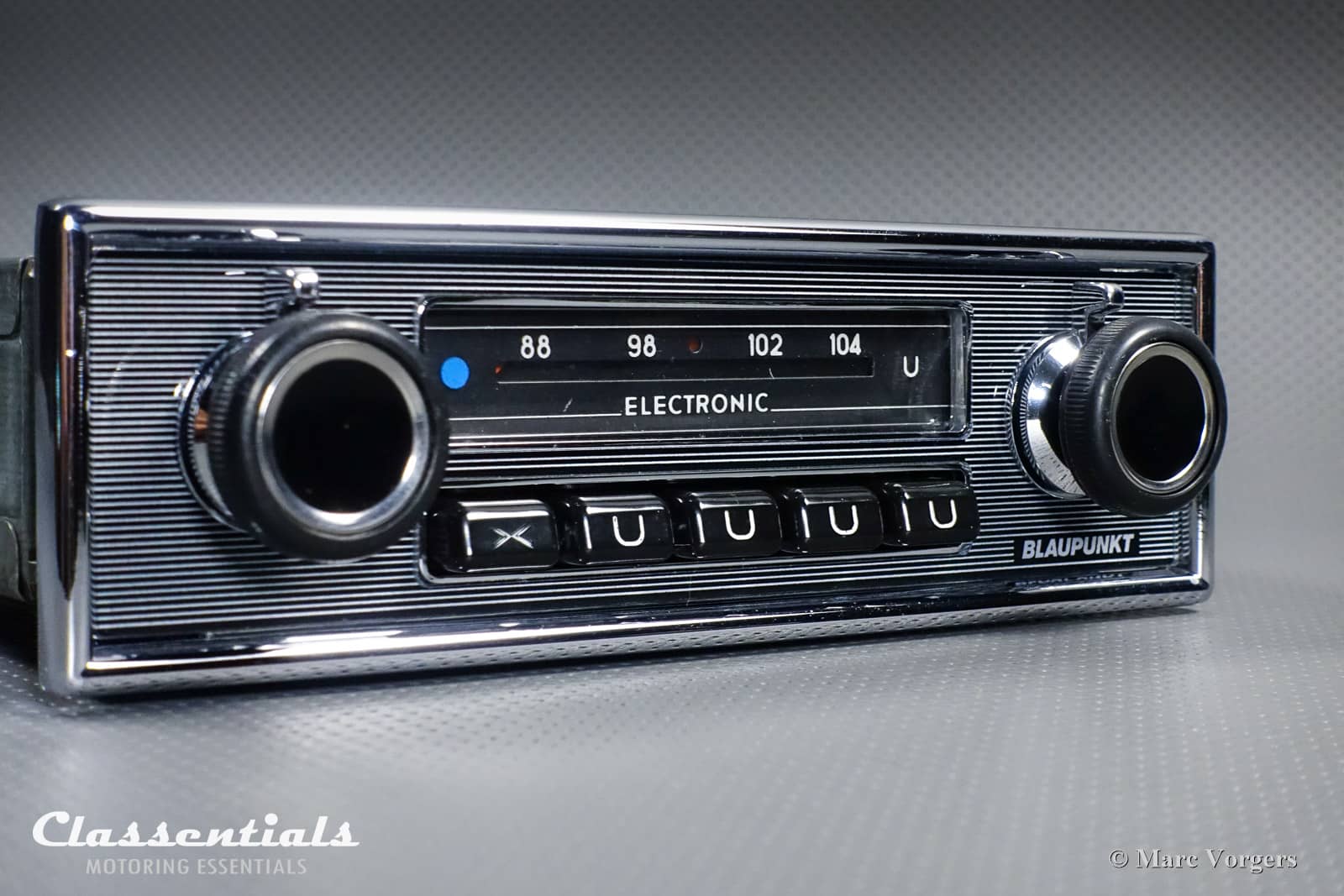

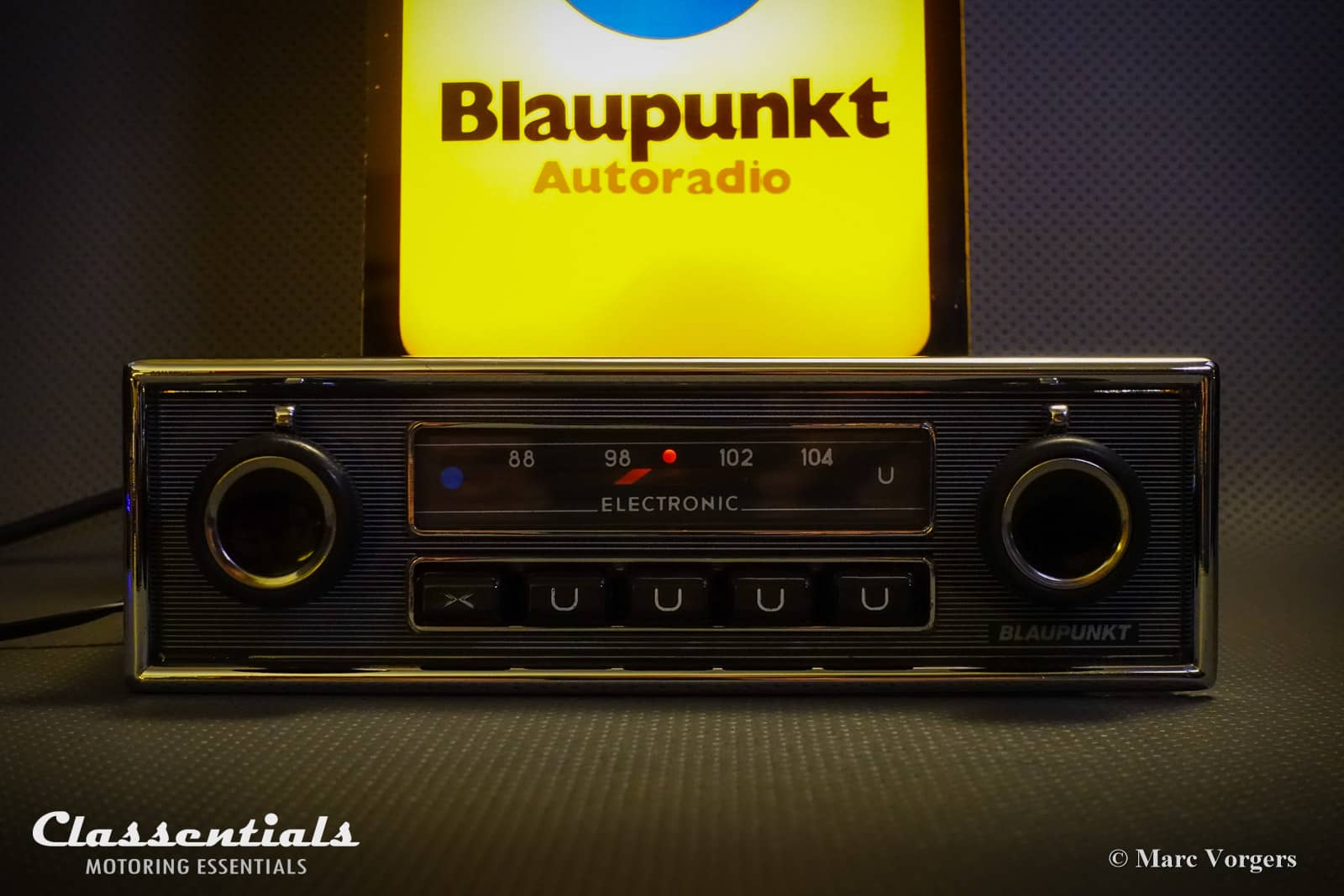

Make and Model: Blaupunkt Wiesbaden Electronic (Type 7633)
Classic Car era: 1968 – 1975
Face-plate: 1-DIN Blaupunkt metal chrome with palstic pin stripe insert for Mercedes-Benz and other luxury cars of the period with Blaupunkt luxury knobs. Suitable for all cars with a 1-DIN dashboard aperture of 182 x 52 mm (7,2 x 2 Inch)
On-board voltage: 12V, Negative earth / ground only
Output power: 5 Watt nominal / 7 Watt music
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: UKW (FM) only
Frequency range UKW (FM): 88MHz-104MHz

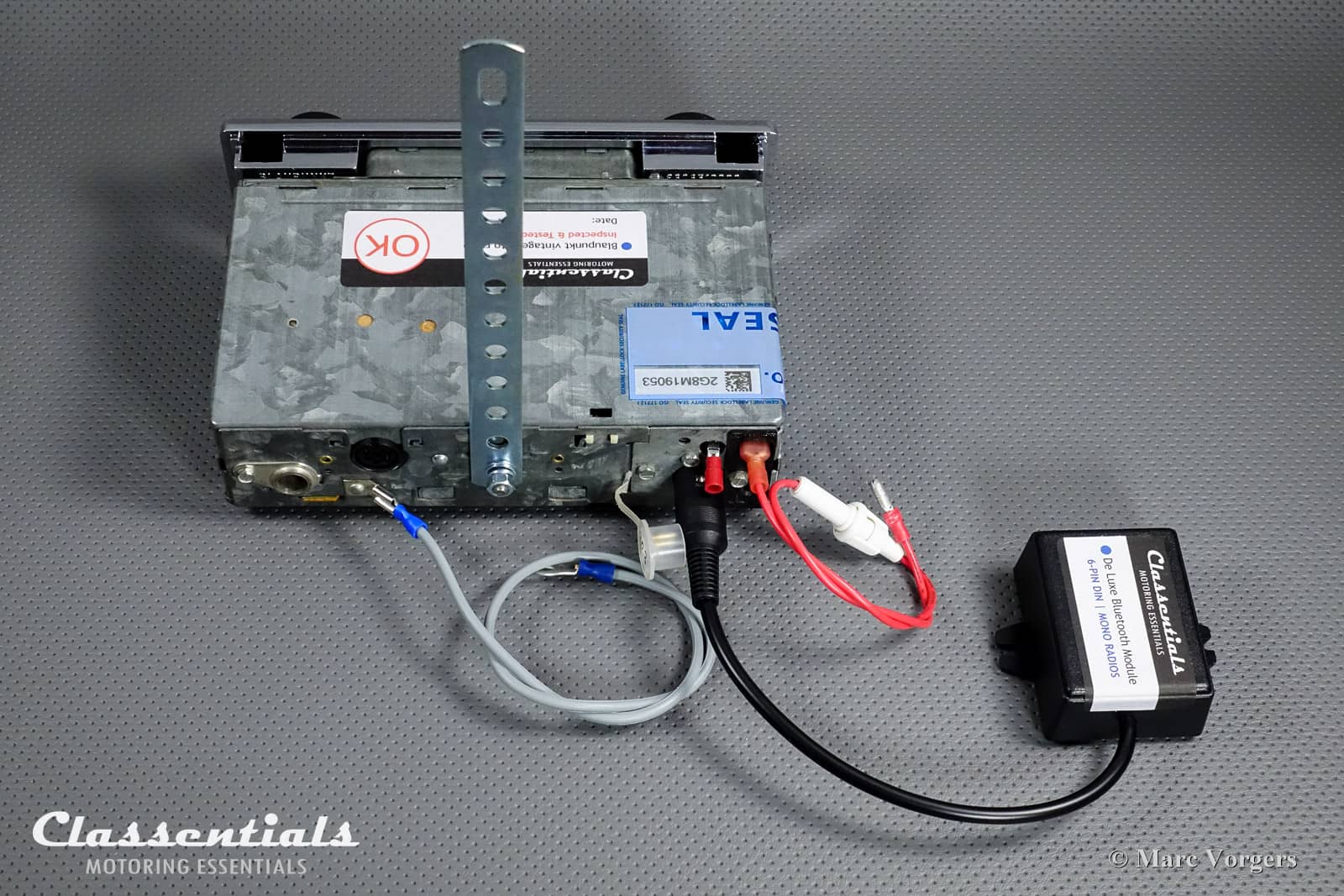

Equipment: Automatic channel search, 4 FM (U) station pre-set buttons, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) AND the Classentials the Classentials Deluxe Bluetooth module.
Design type: Electronic transistor radio with automatic channel search
Year of build: 1973
Dimensions unit (width x height x depth): 177 x 130 x 42 mm / 7 x 5,2 x 1,6 Inch ( depth is backside radio to back of face-plate)
Dimensions face-plate (width x height in mm): 188 x 57 mm / 7,4 x 2,25 Inch. Suitable for 1-DIN size dashboard aperture.
Weight (kg): 1.3

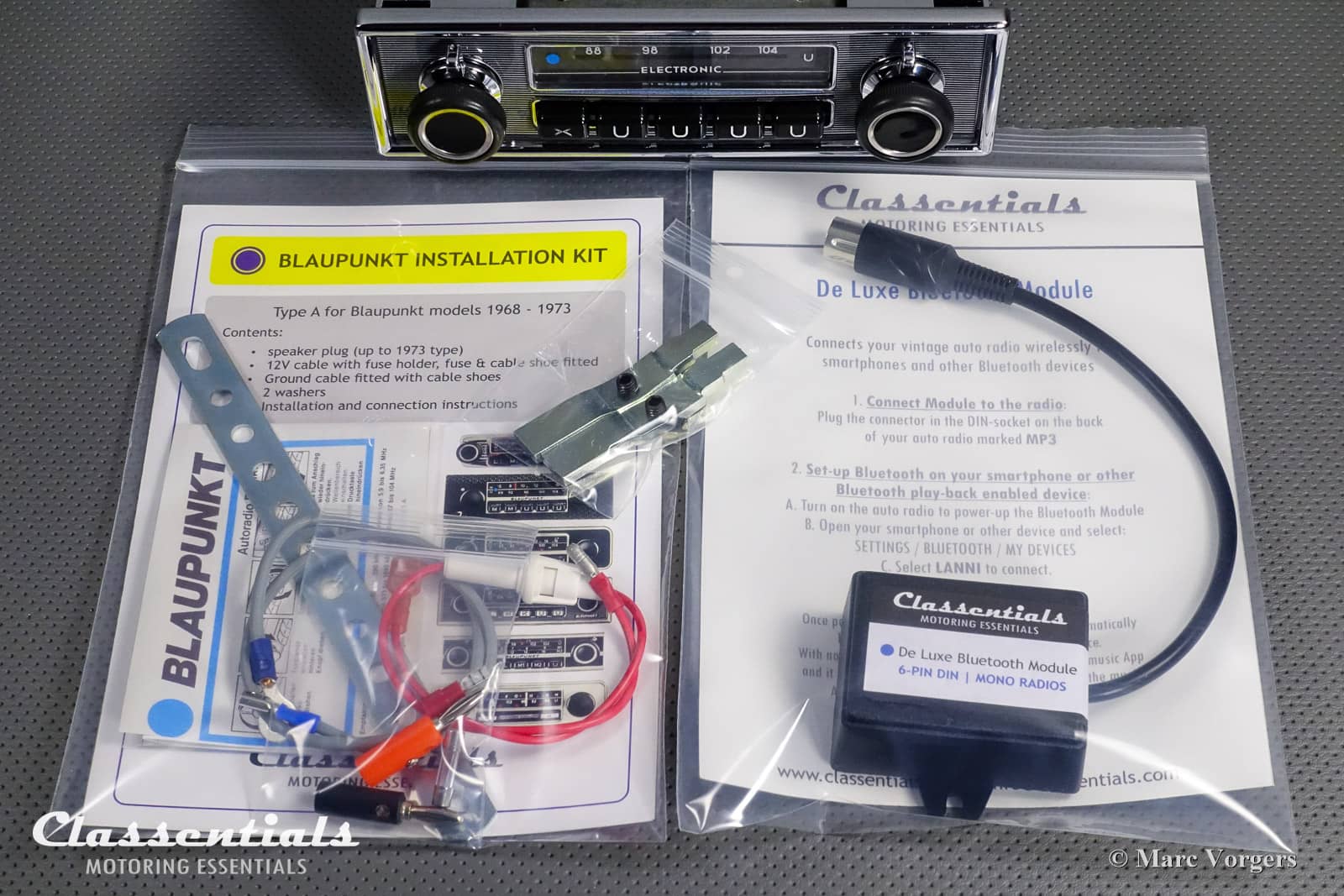

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, earth / ground cable, radio to dashboard mounting brackets, and a rear mounting support (holed metal strip), see pictures.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

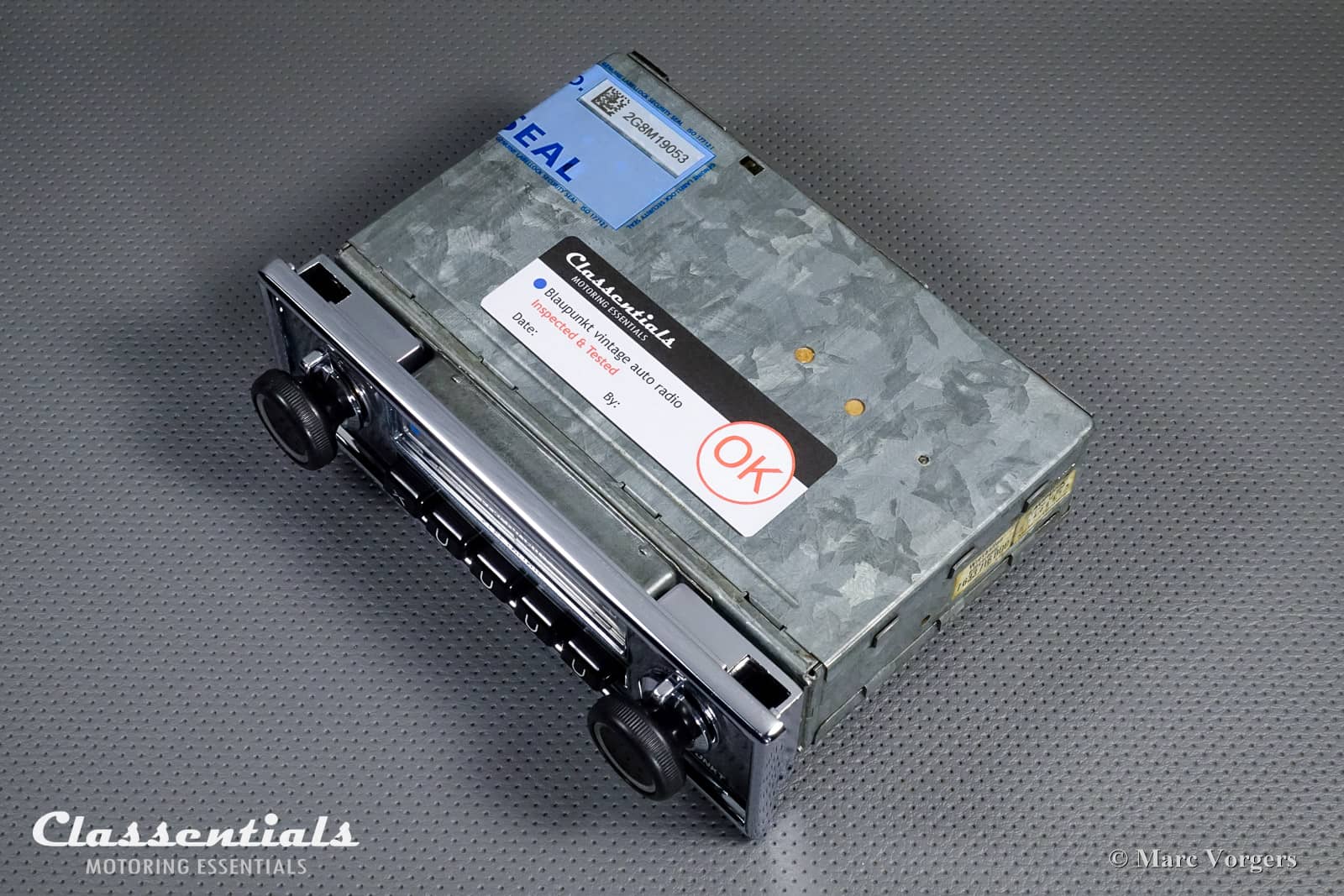

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
