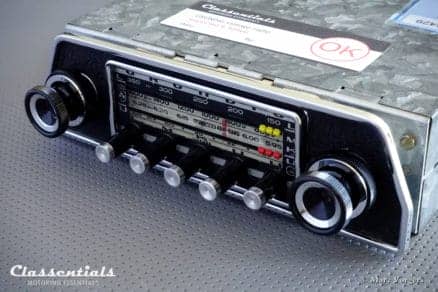

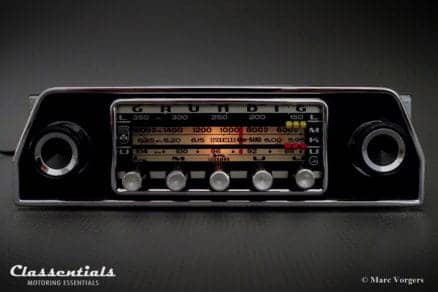

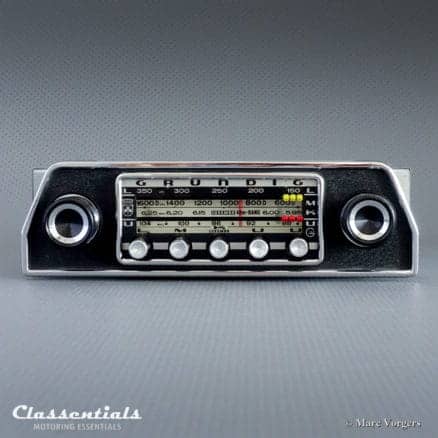

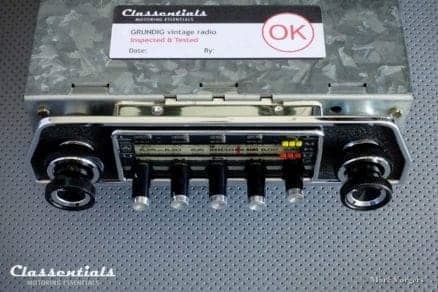

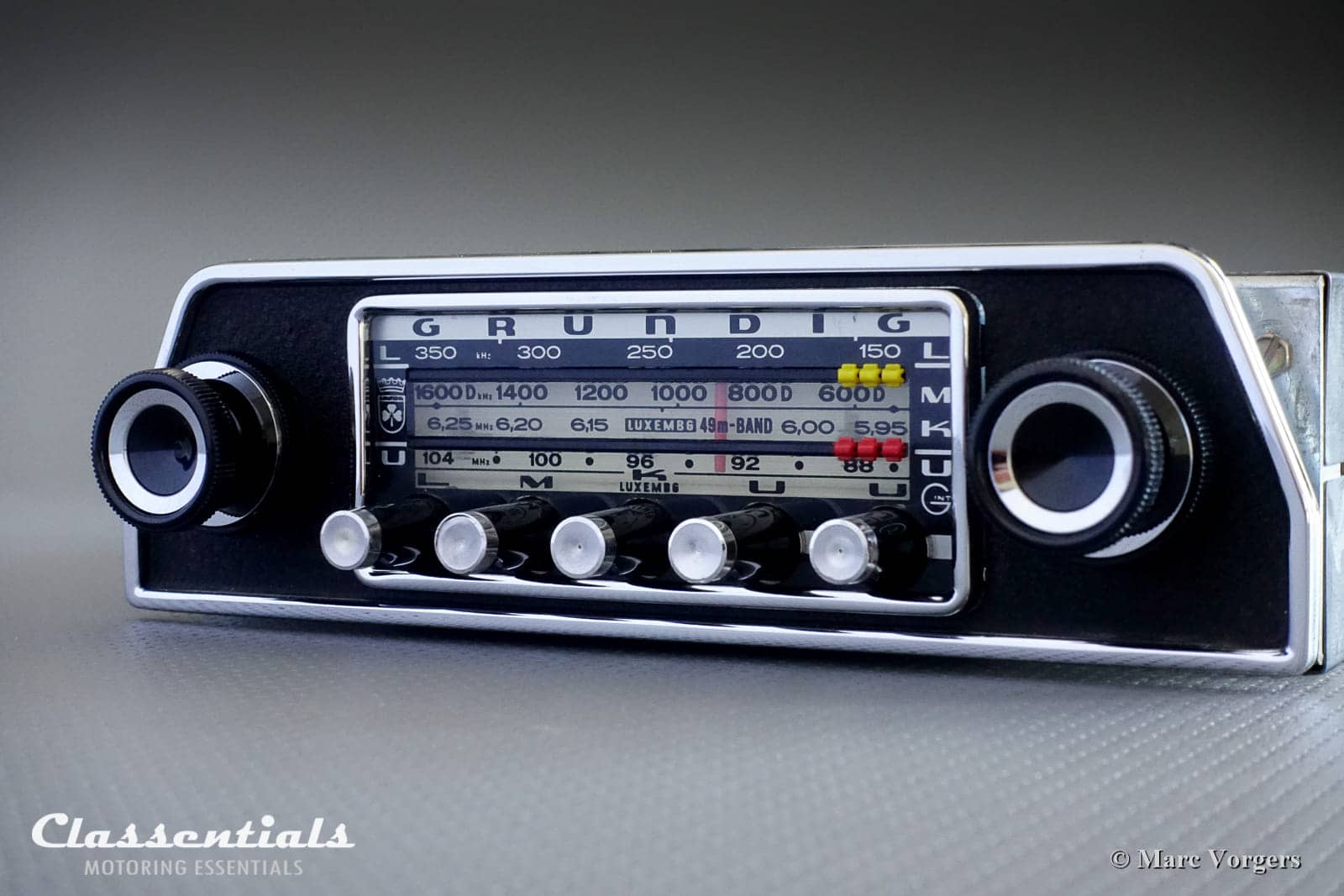

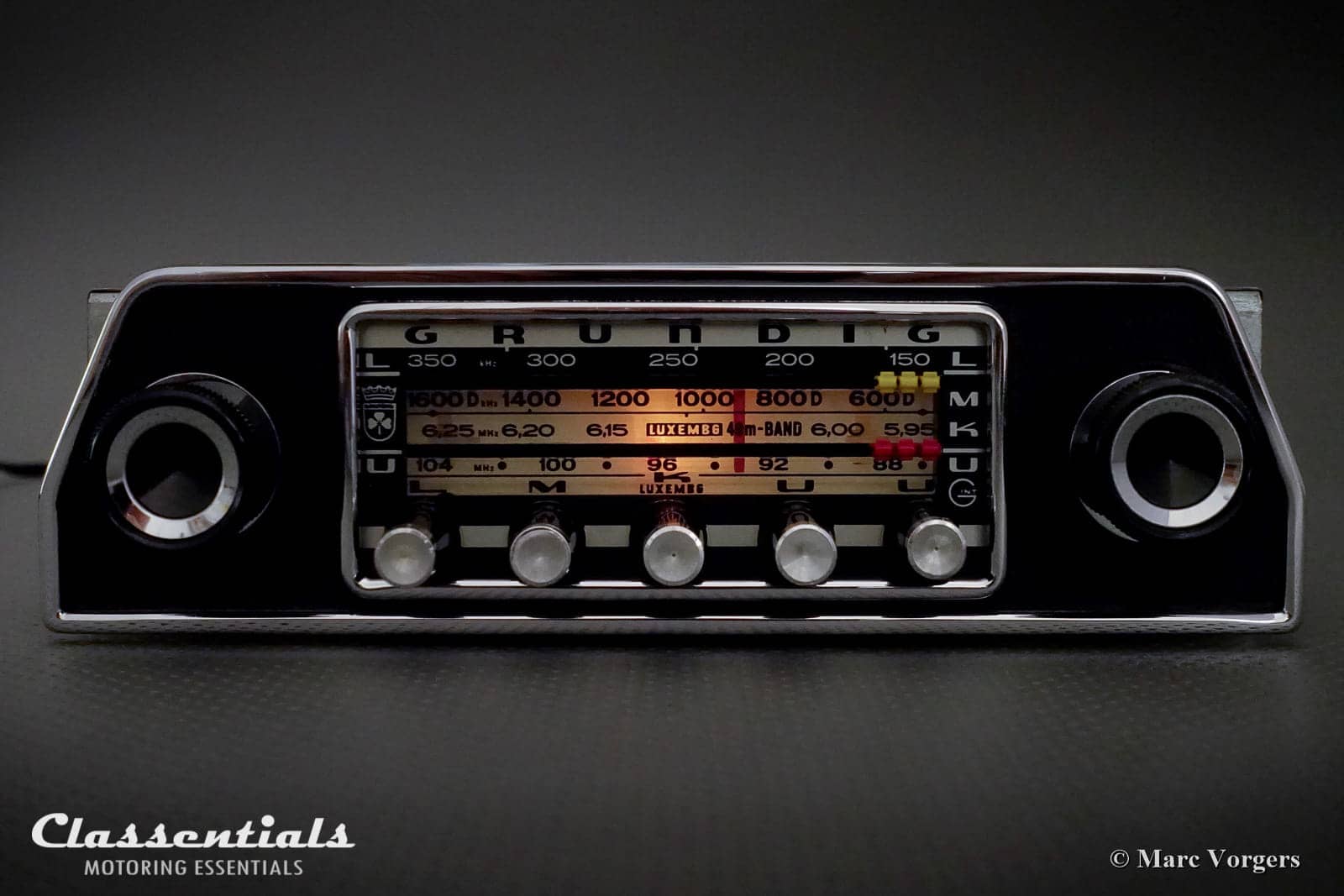

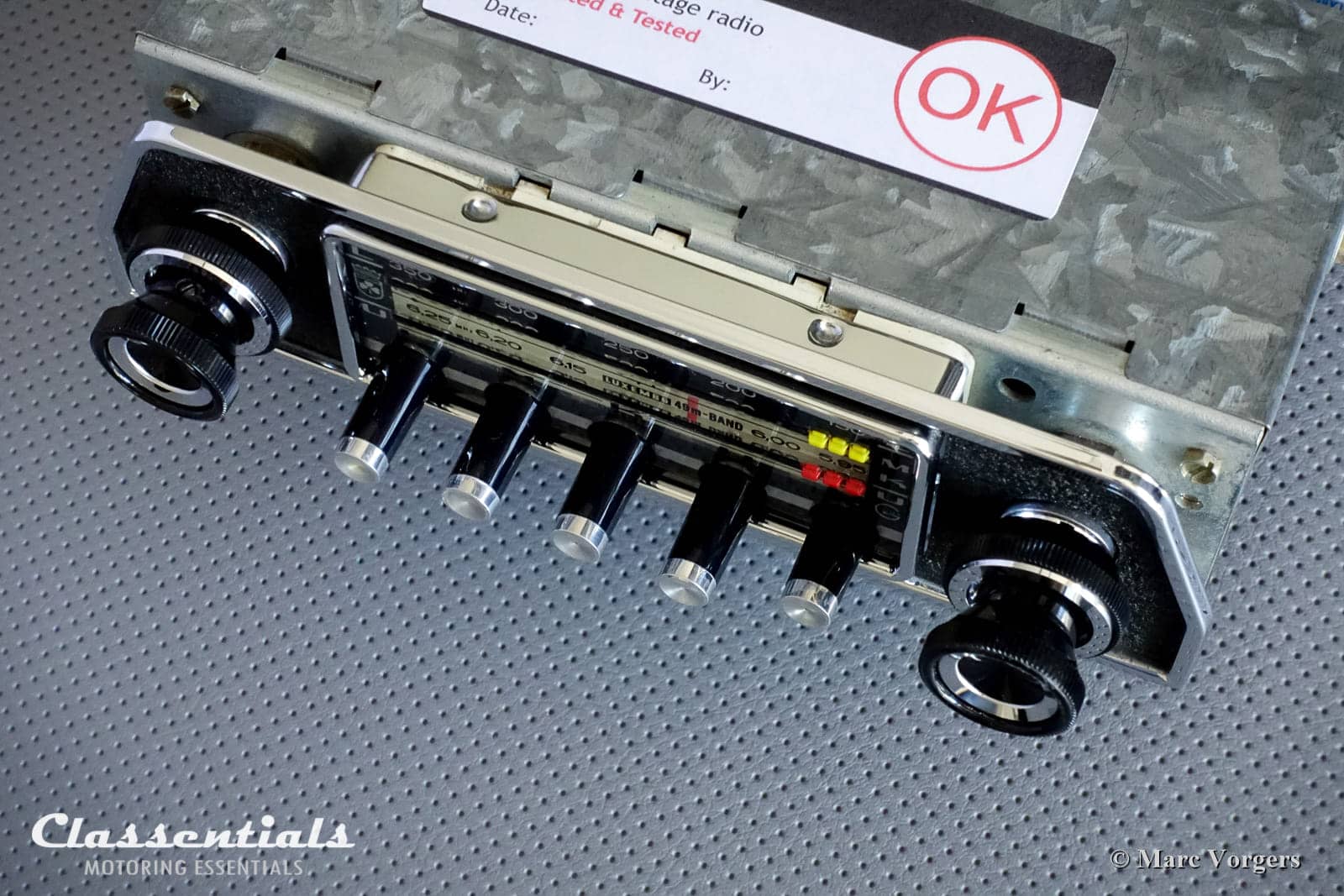

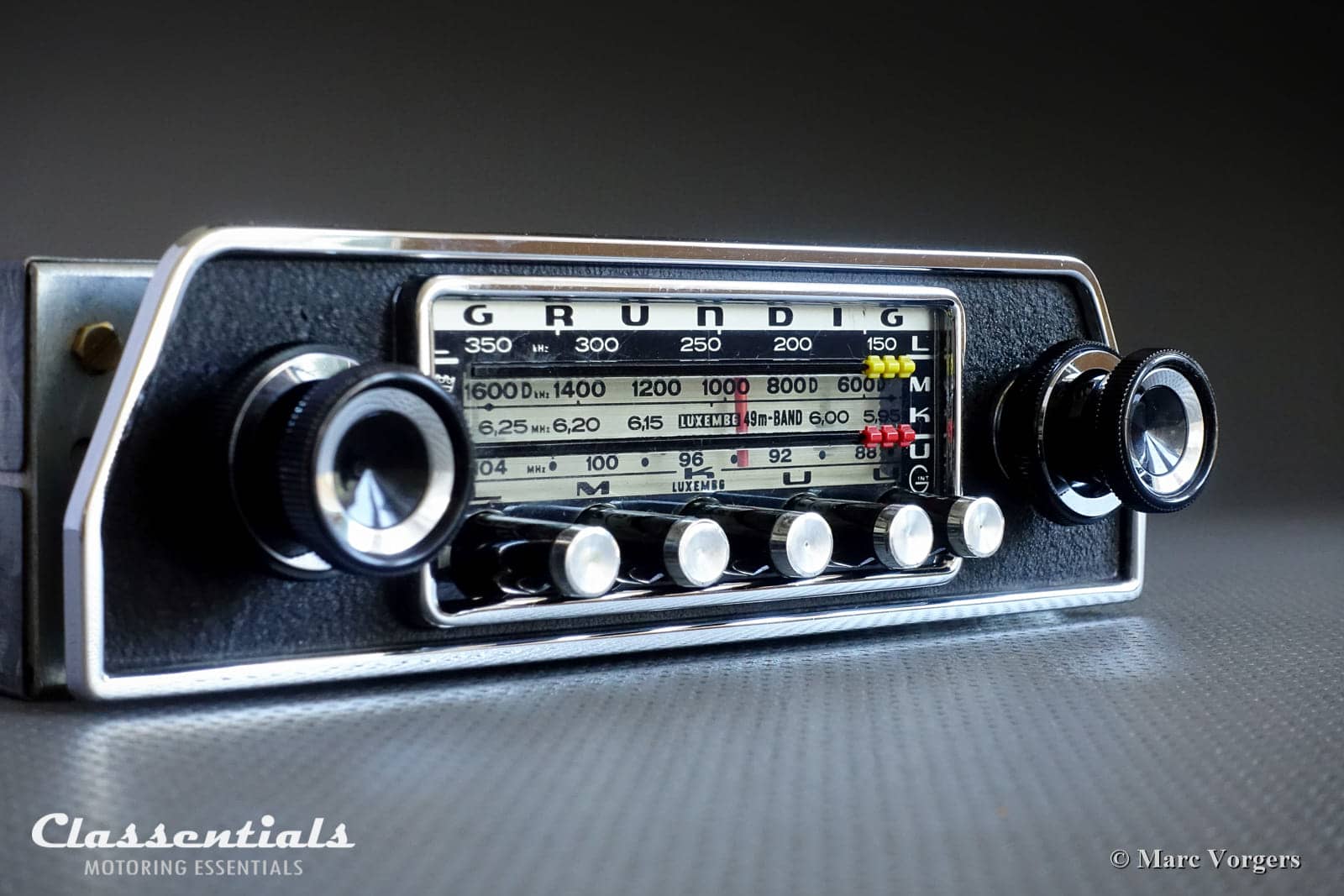

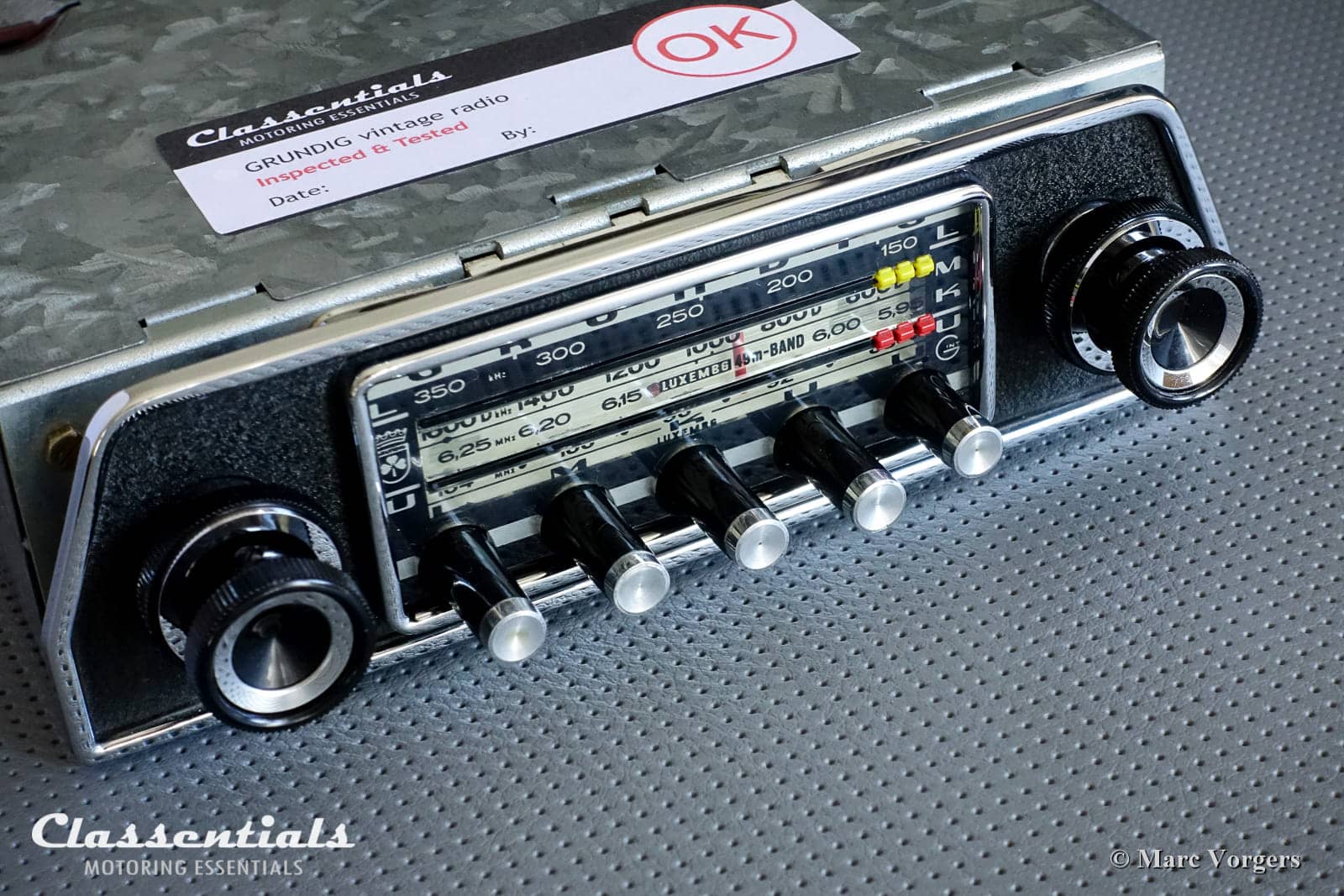

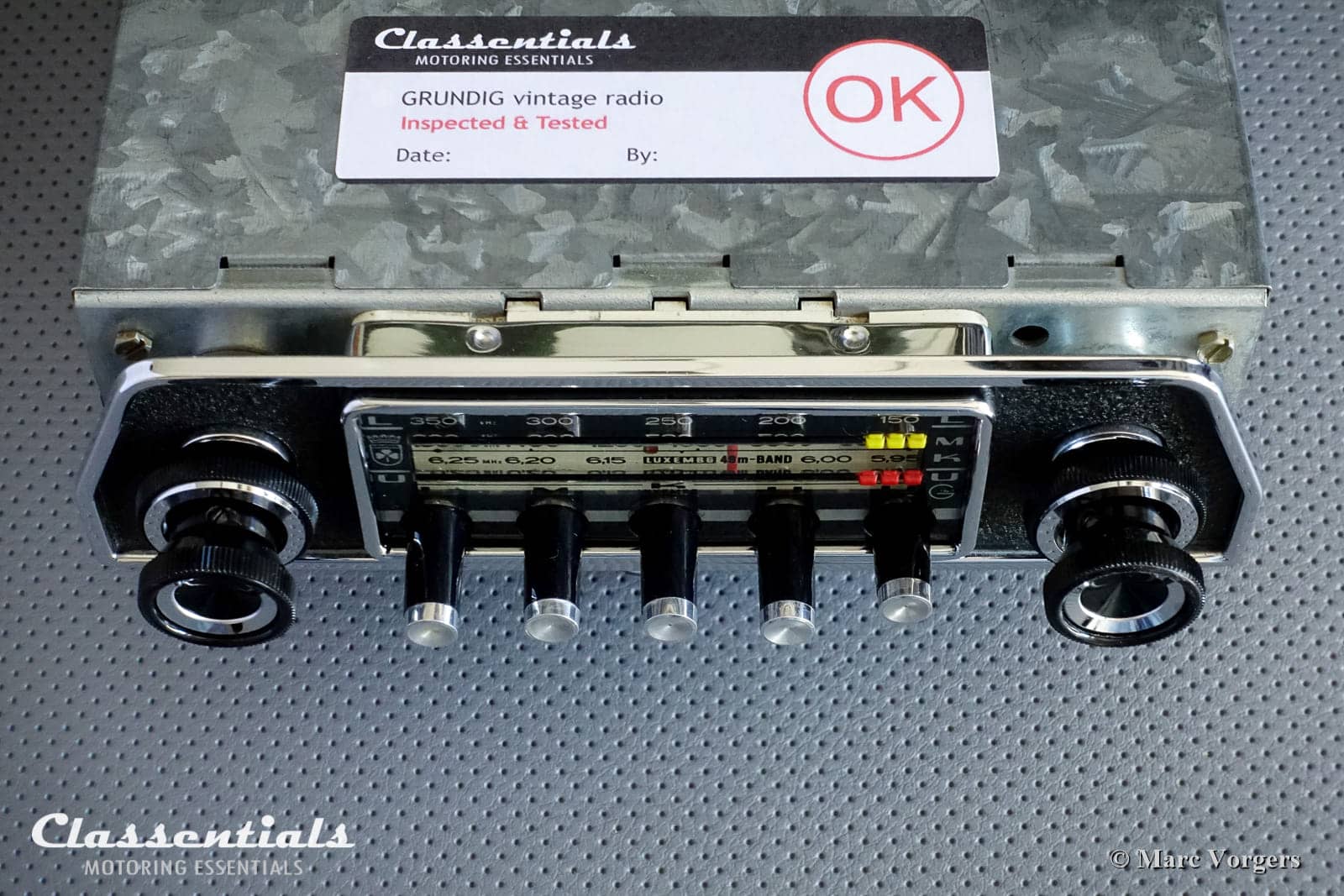

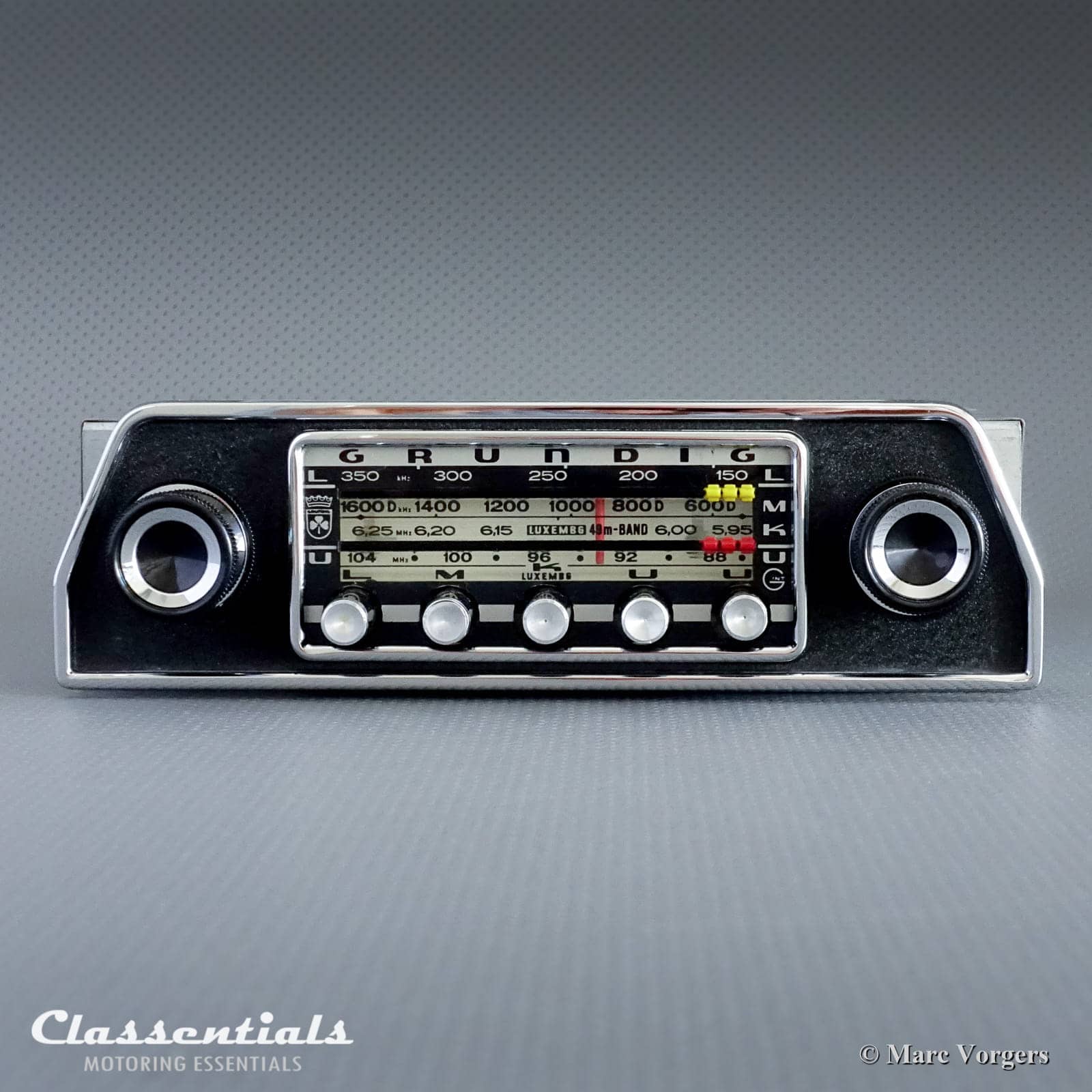

Model: Grundig WK (Weltklang) 4500
Classic Car era: 1965 – 1975
Face-plate: Ford P7 and Universal, will fit and look great in a variety of classic cars of the late 1960s and early 1970s. The radio will fit the classic 1960s dashboard aperture (95 x 42 mm with two 11 mm holes for the knob shafts at 130 mm horizontal distance).
On-board voltage: 6V and 12V, NEGATIVE earth / ground
Output power: 5 watt nominal, 7 Watt (Music)
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: Long Wave (L), Medium wave (M), Short wave (K) and FM / UKW (U)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: Tone control, channel preset buttons, 1 speaker connection, automatic antenna connection, 6-PIN DIN connection to connect external play-back devices like a Classentials de luxe MP3 connection kit OR a Classentials De Luxe Bluetooth Module.
Design type: Transistor radio
Year of build: 1968.
Dimensions unit (width x height x depth in mm): 175 x 50 x 175 (behind face-plate to back)
Dimensions face-plate (width x height in mm): 179 x 52
Weight (kg): 2
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

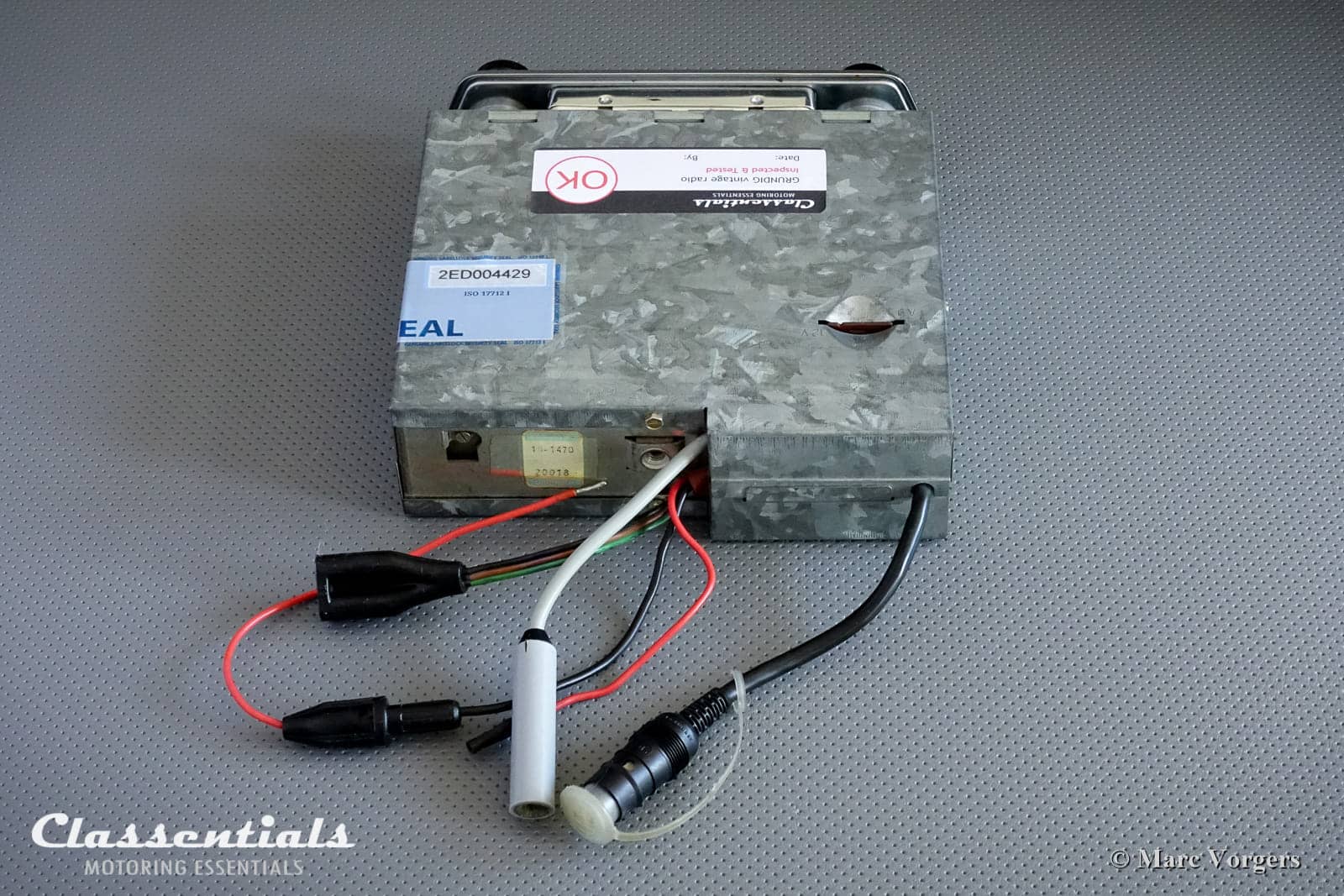

NOTE: The radio will fit the classic 1960s dashboard aperture (95 x 42 mm with two 11 mm holes for the knob shafts at 130 mm horizontal distance). The radio comes with a back support bracket, wiring, fuse and ground cable ready to install.

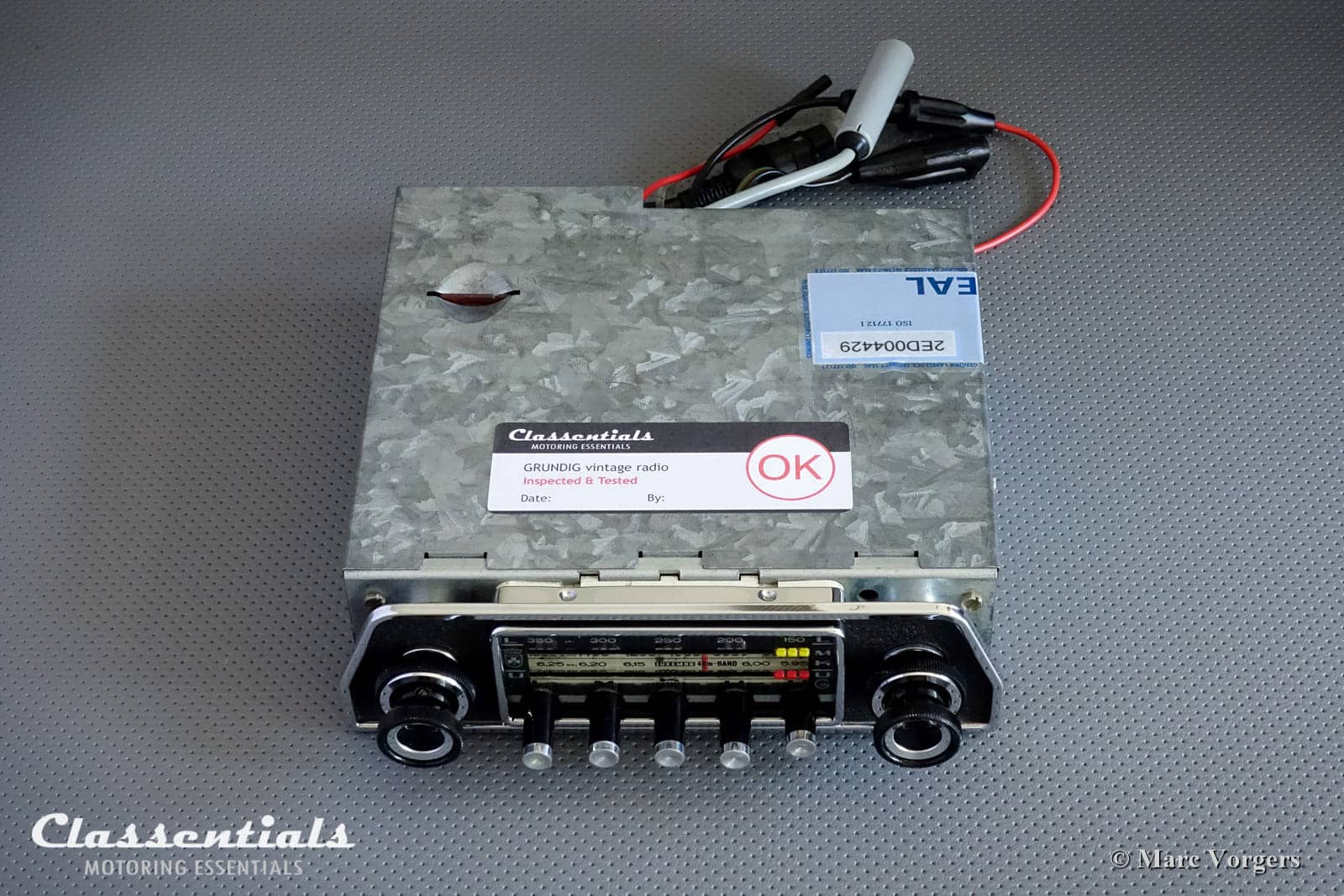

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a Grundig transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
