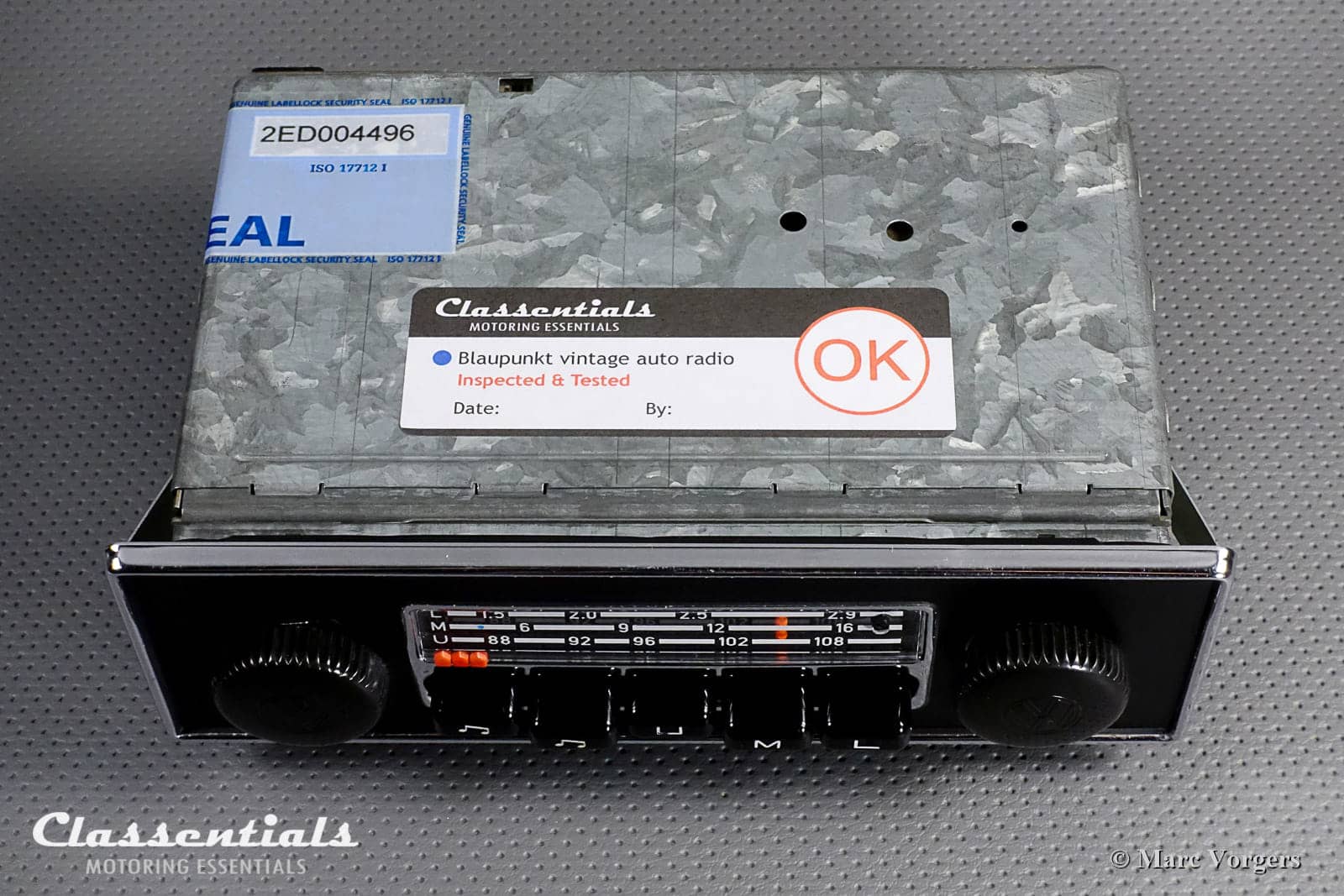

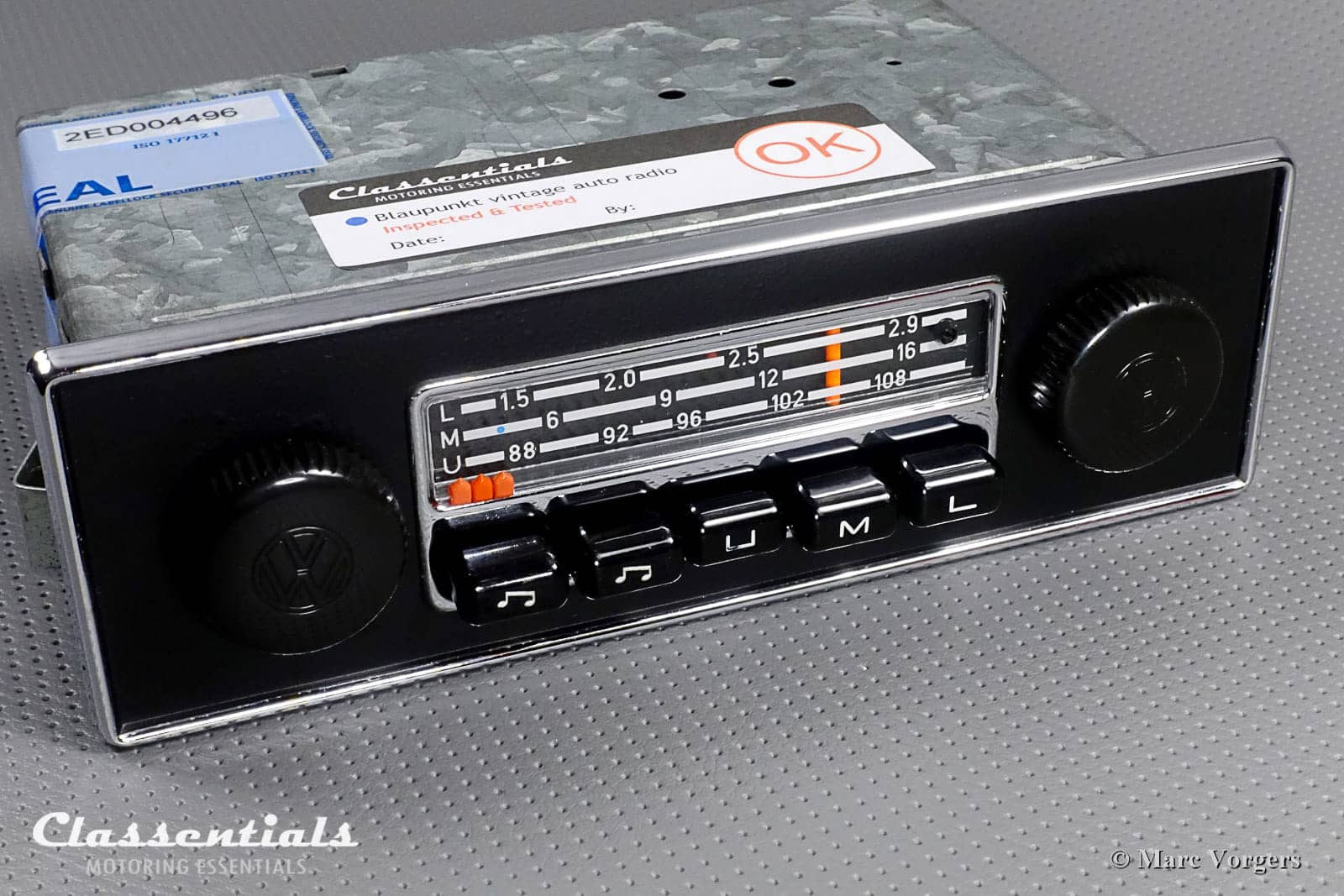

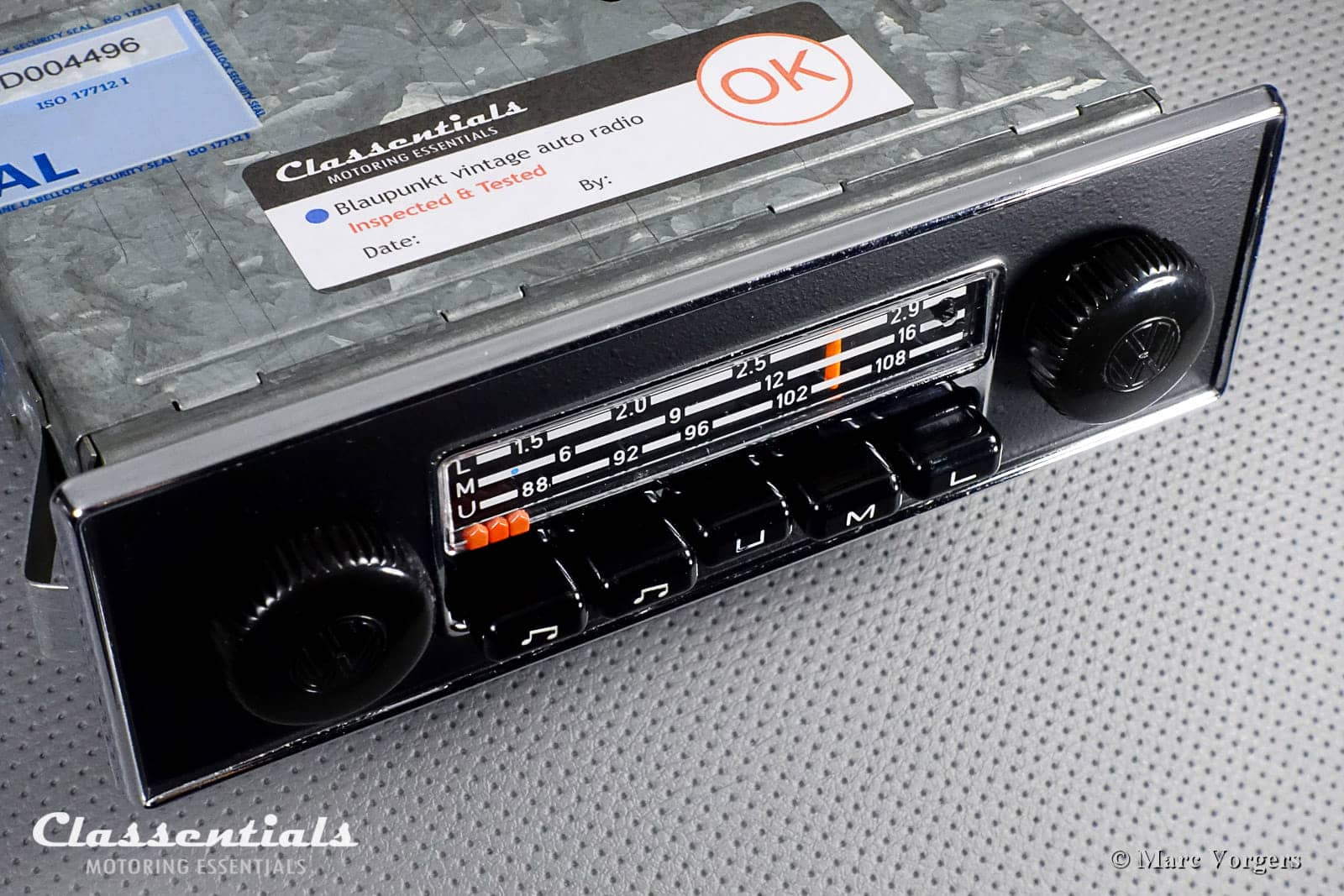

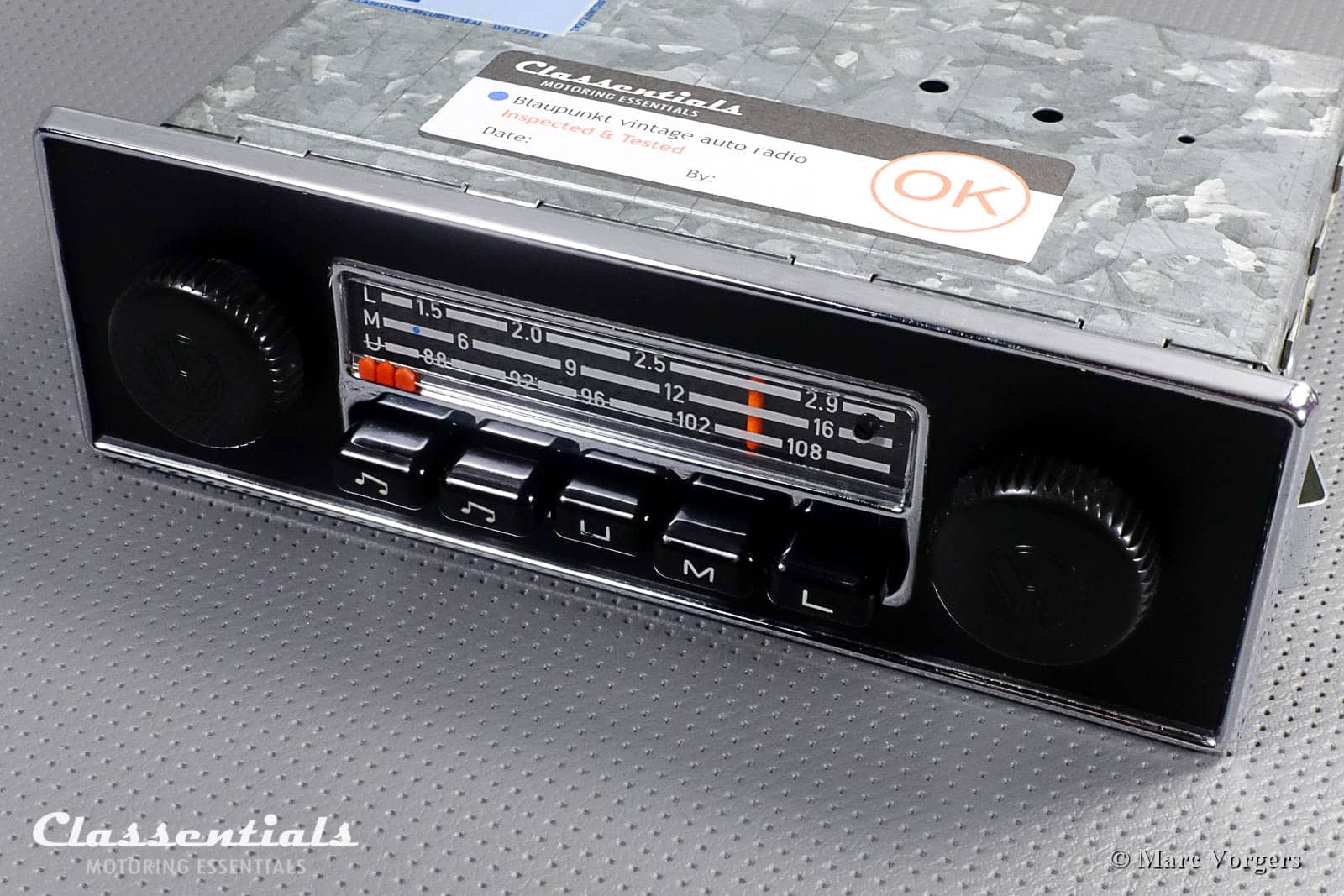

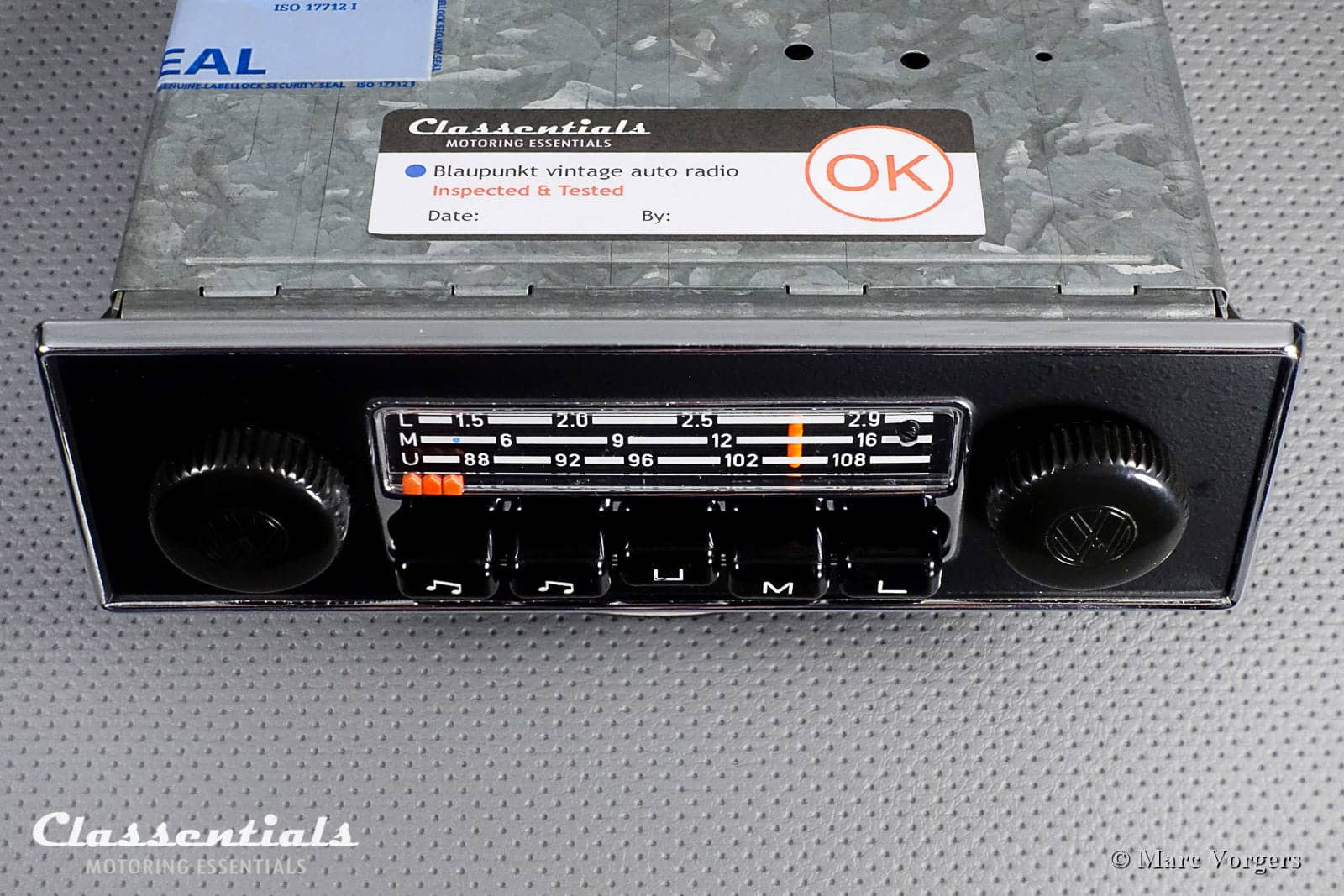

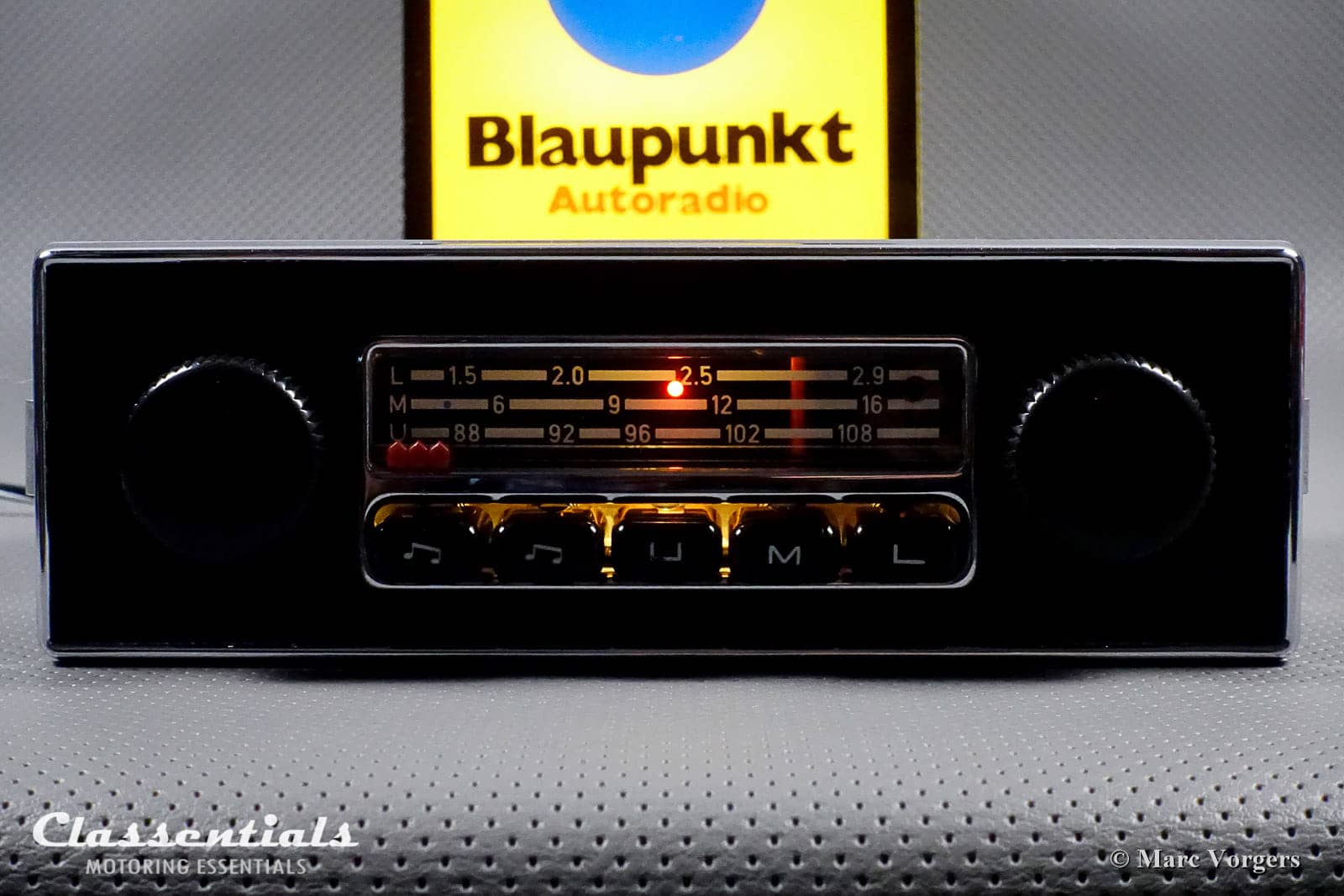

Model: Blaupunkt Emden “E” 455 khz, Type 7632
Classic Car era: 1969 – 1973

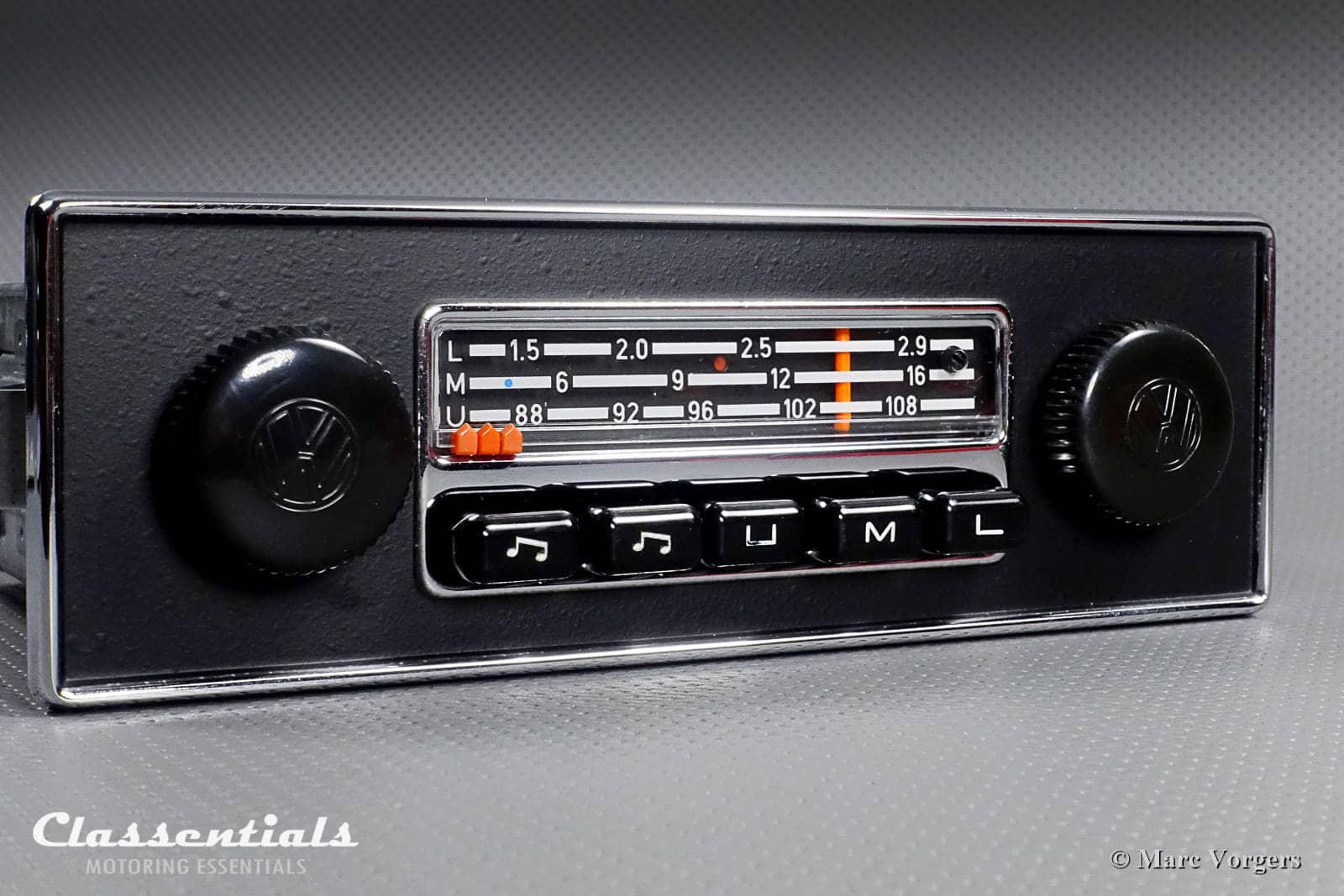

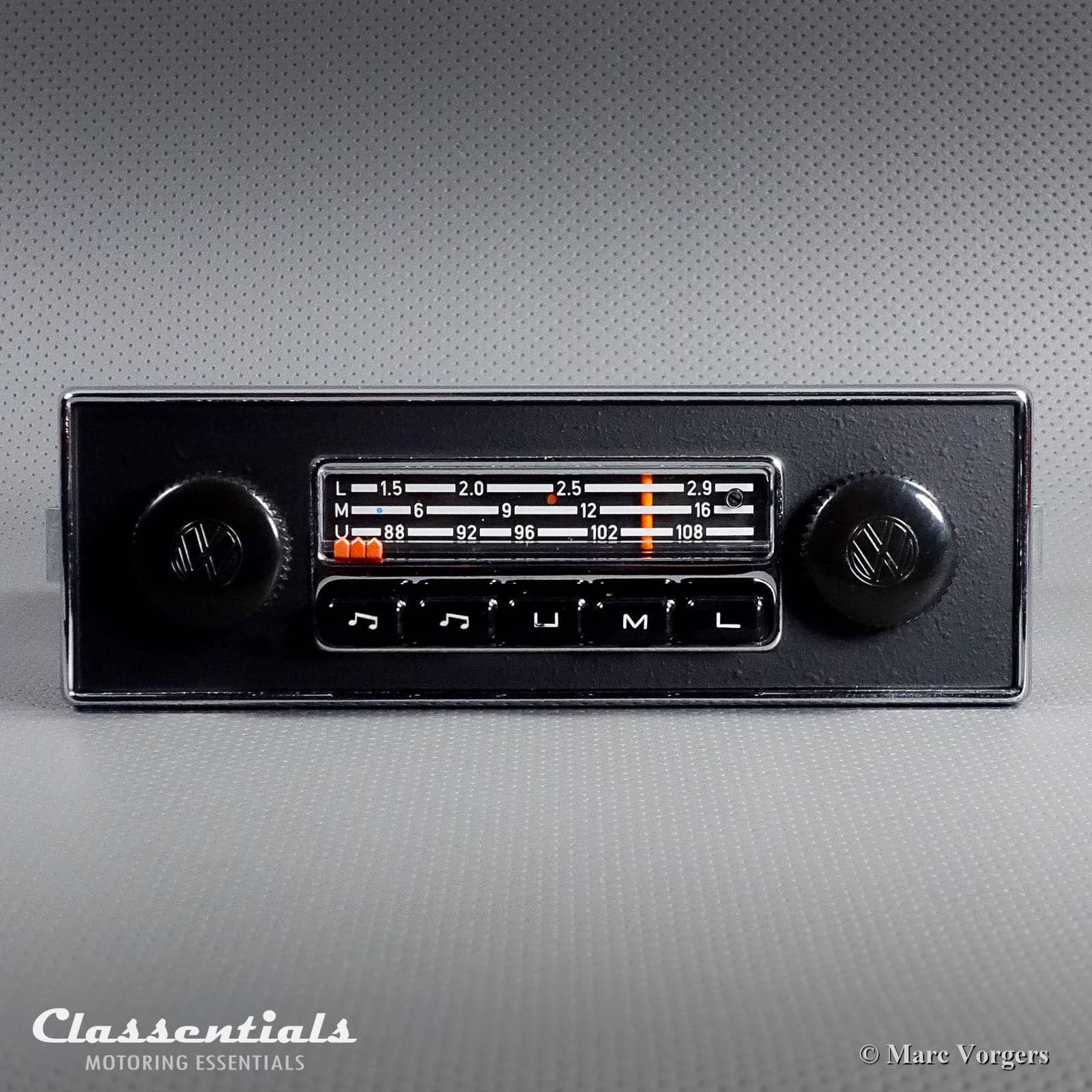

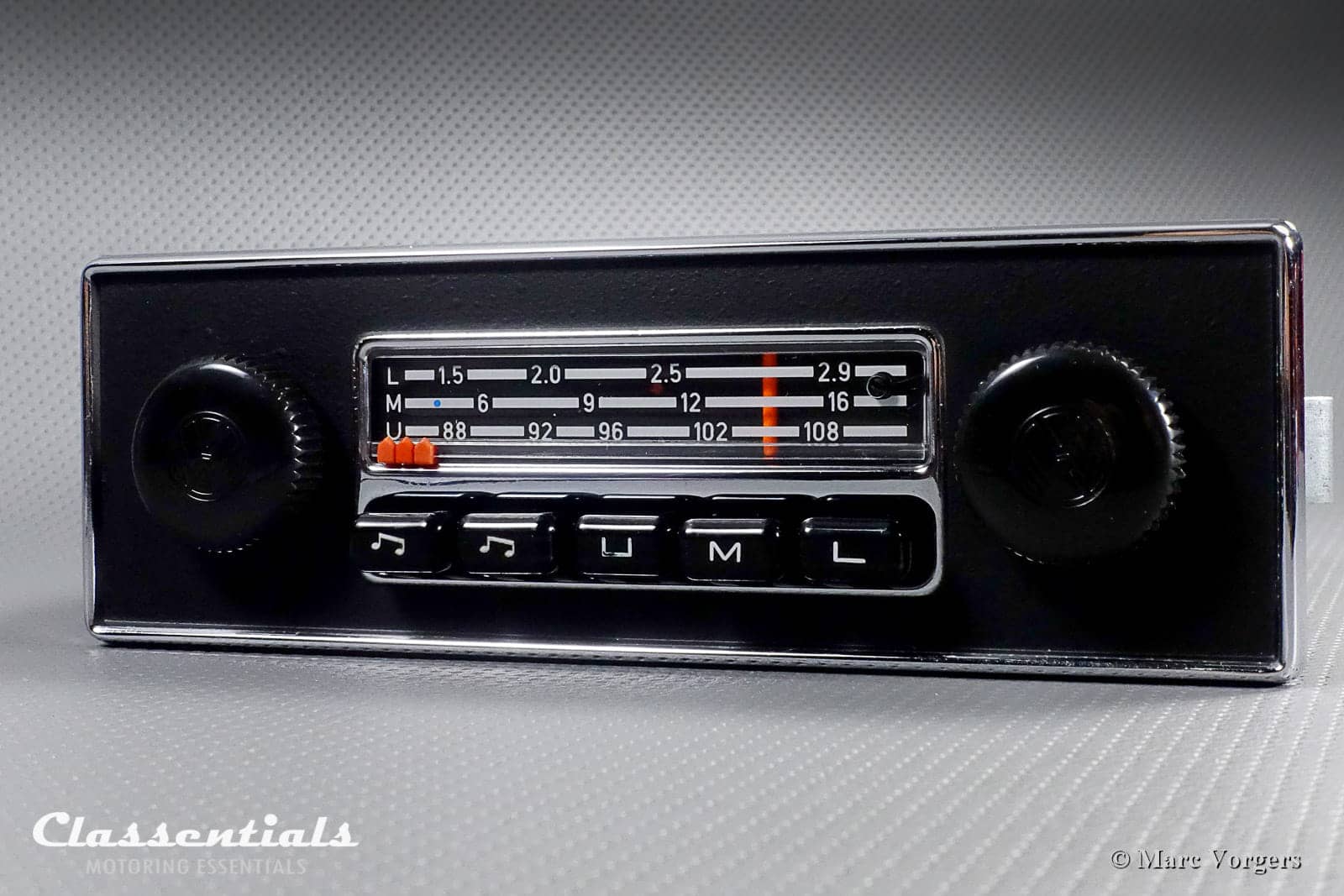

Face-plate: Volkswagen Beetle and Karmann Ghia 1968-1973 with the correct VW rubber knobs.
On-board voltage: 12V, Negative earth / ground
Output power: 5 Watt (Music)
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.

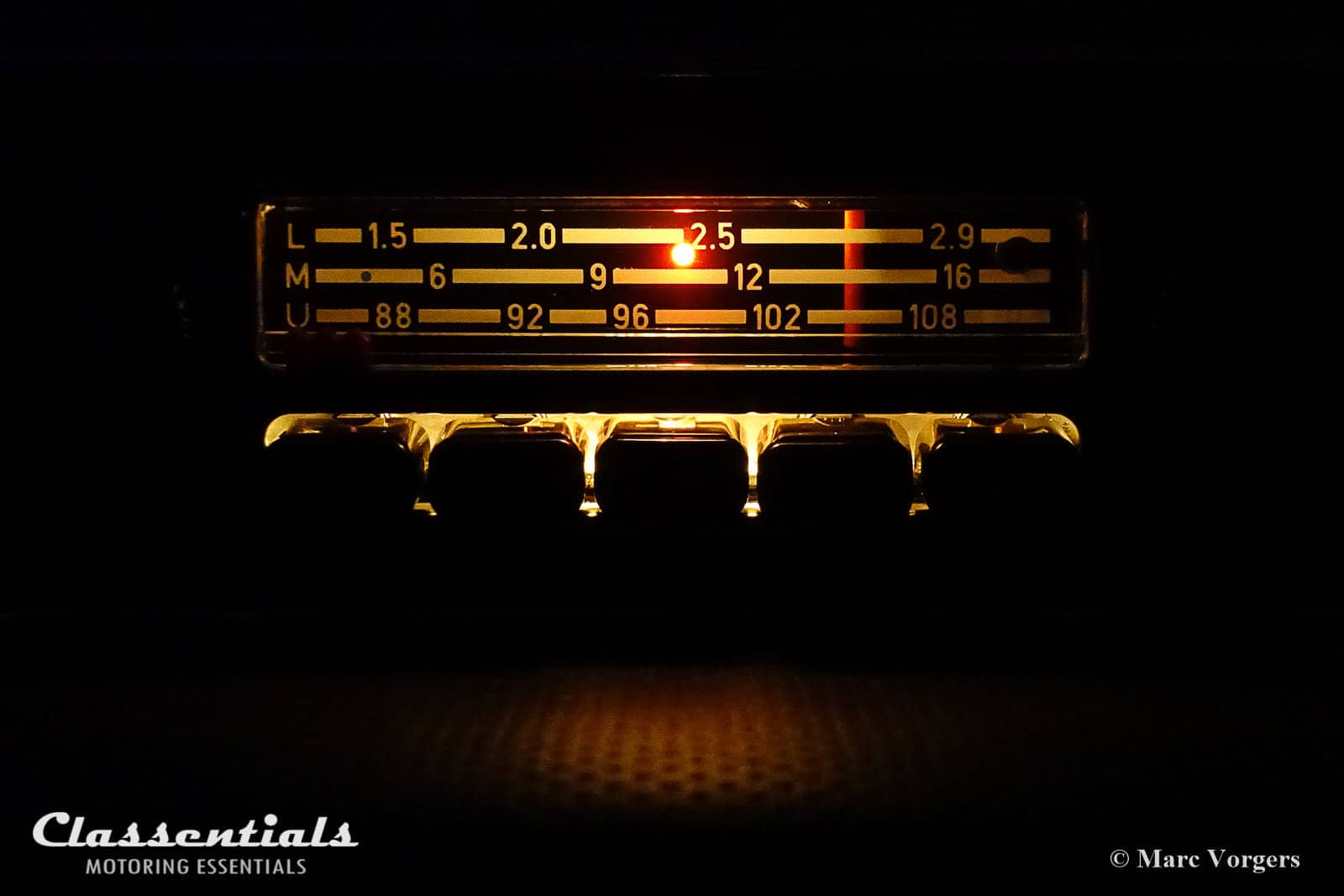

Wave Range: Long wave, medium wave, UKW (FM)
Frequency range UKW (FM): 88MHz-108MHz

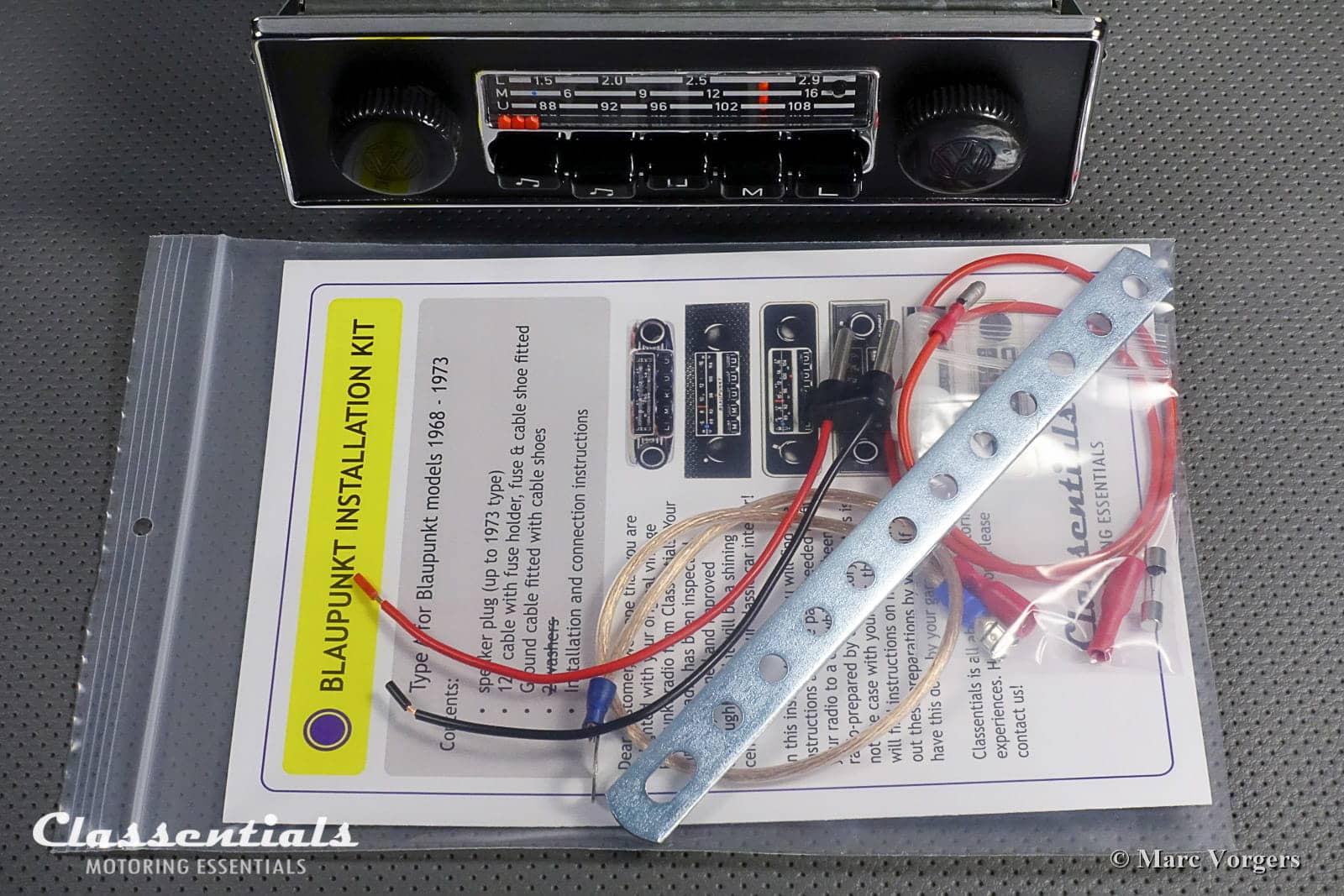

Equipment: Bass / treble push buttons, 1 speaker connection, 6-PIN DIN connection to connect external play-back devices like a Classentials de luxe MP3 connection kit OR a Classentials De Luxe Bluetooth Module.
Design type: Transistor radio
Year of build: 1972
Dimensions unit (width x height x depth: 177 x 44 x 130 mm / 6,9 x 1,75 x 5,1 inch (from back to back of of faceplate)
Dashboard aperture: 183 x 47 mm / 7,25 x 1,8 inch
Dimensions face-plate (width x height in mm): 192 x 63 mm / 7,55 x 2,5 inch
Weight (kg): 1.04
Installing: Basic car conditions before installation: Radio prepared car with ORIGINAL VW Beetle dashboard radio opening, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring. Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. This radio is ready to fit to any 1968-1973 VW Beetle.

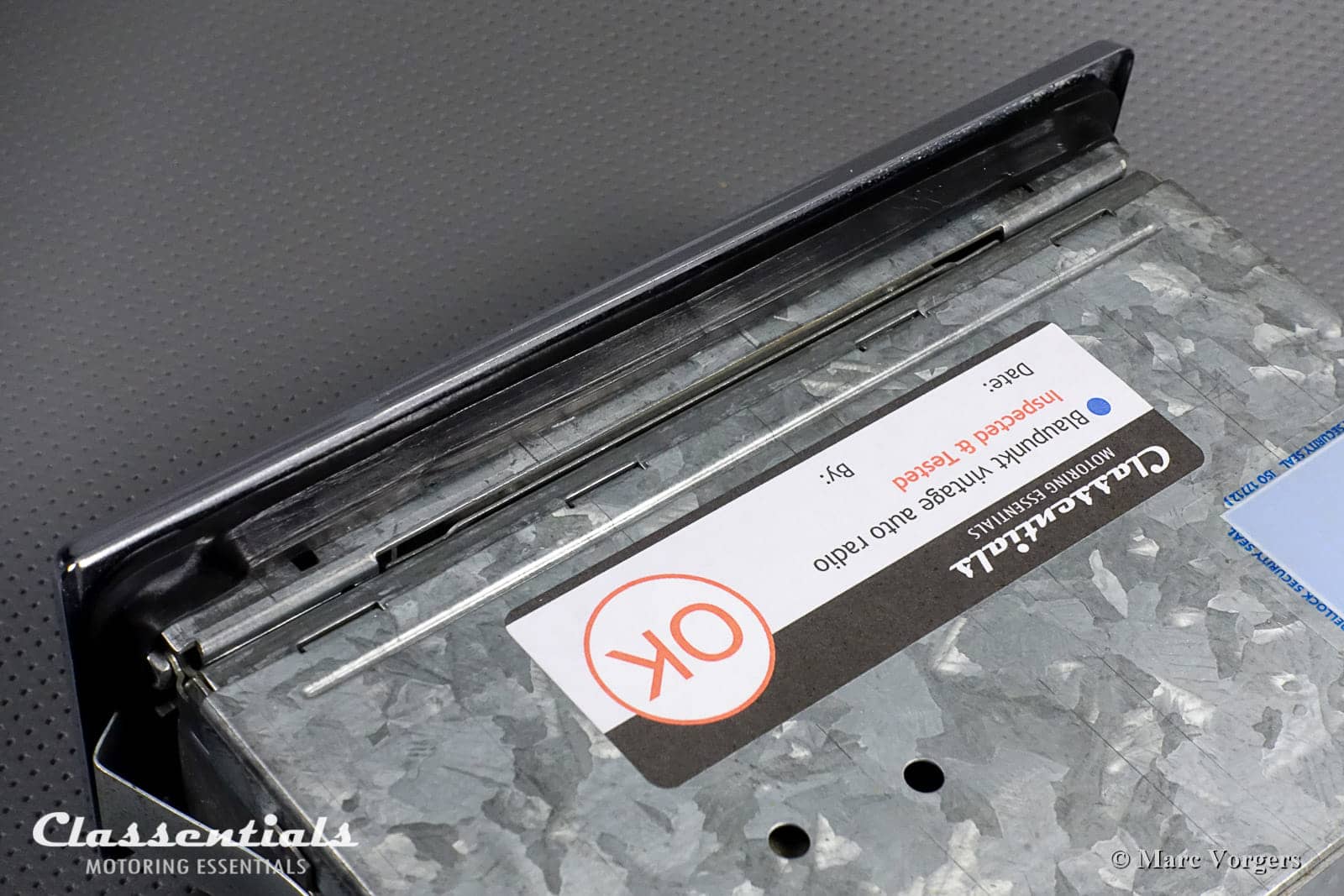

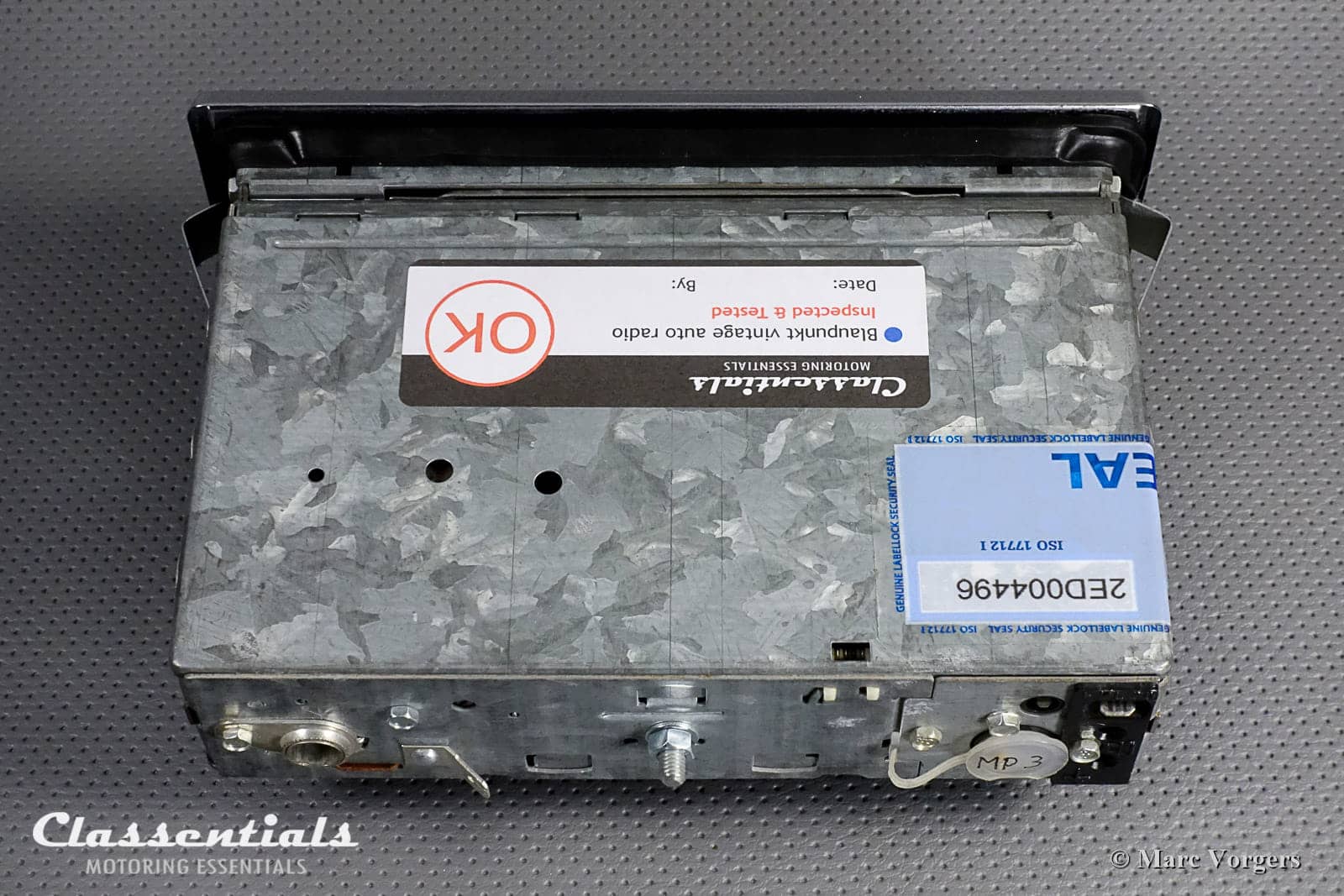

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a Grundig transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
