Description
Make and Model: Blaupunkt Frankfurt (Type 7632)
Classic Car era: 1968 – 1973

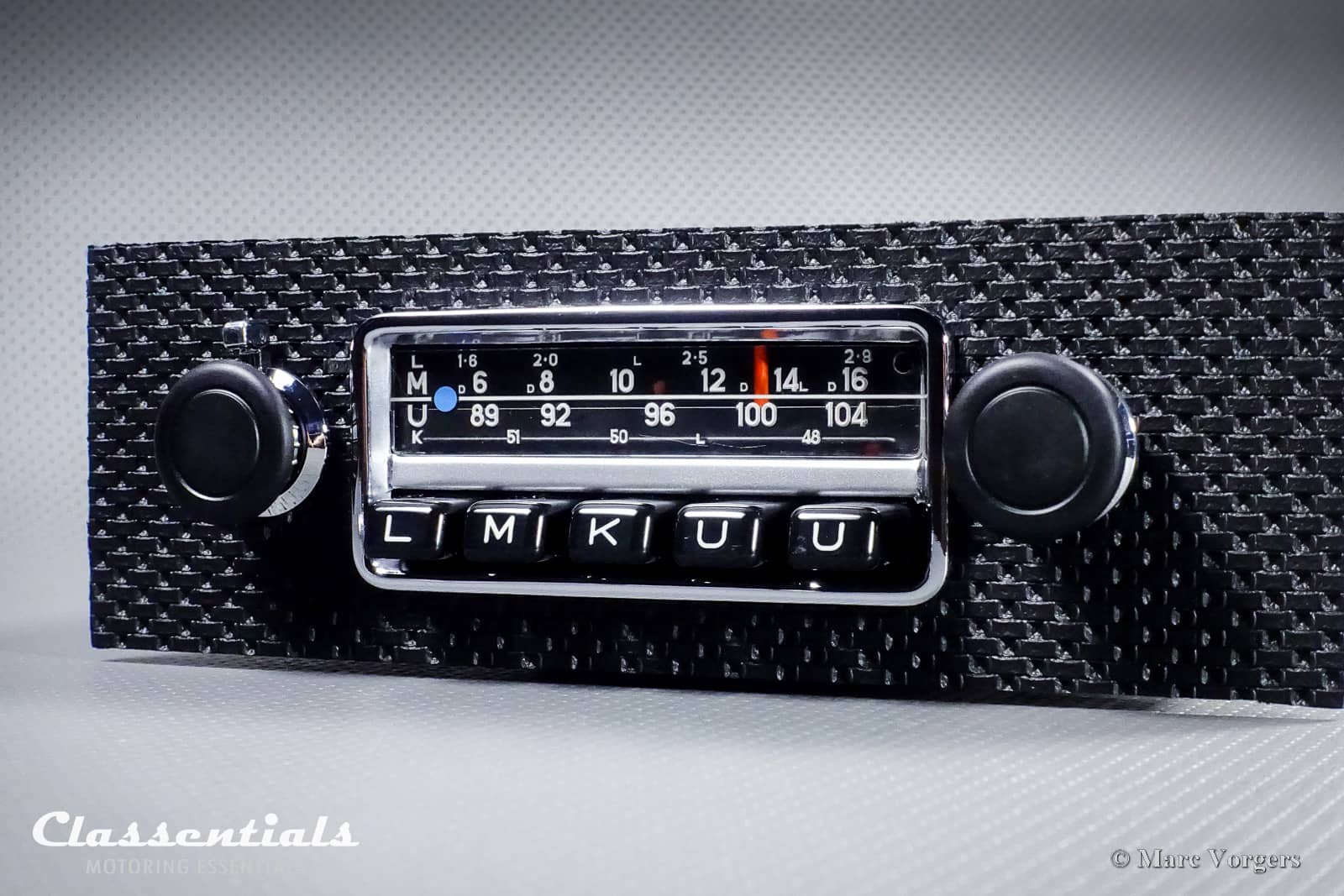

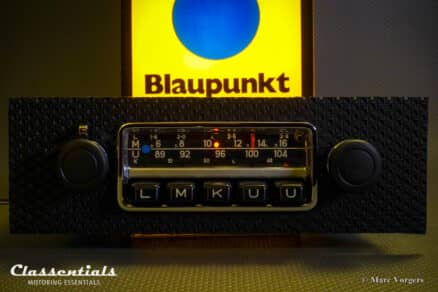

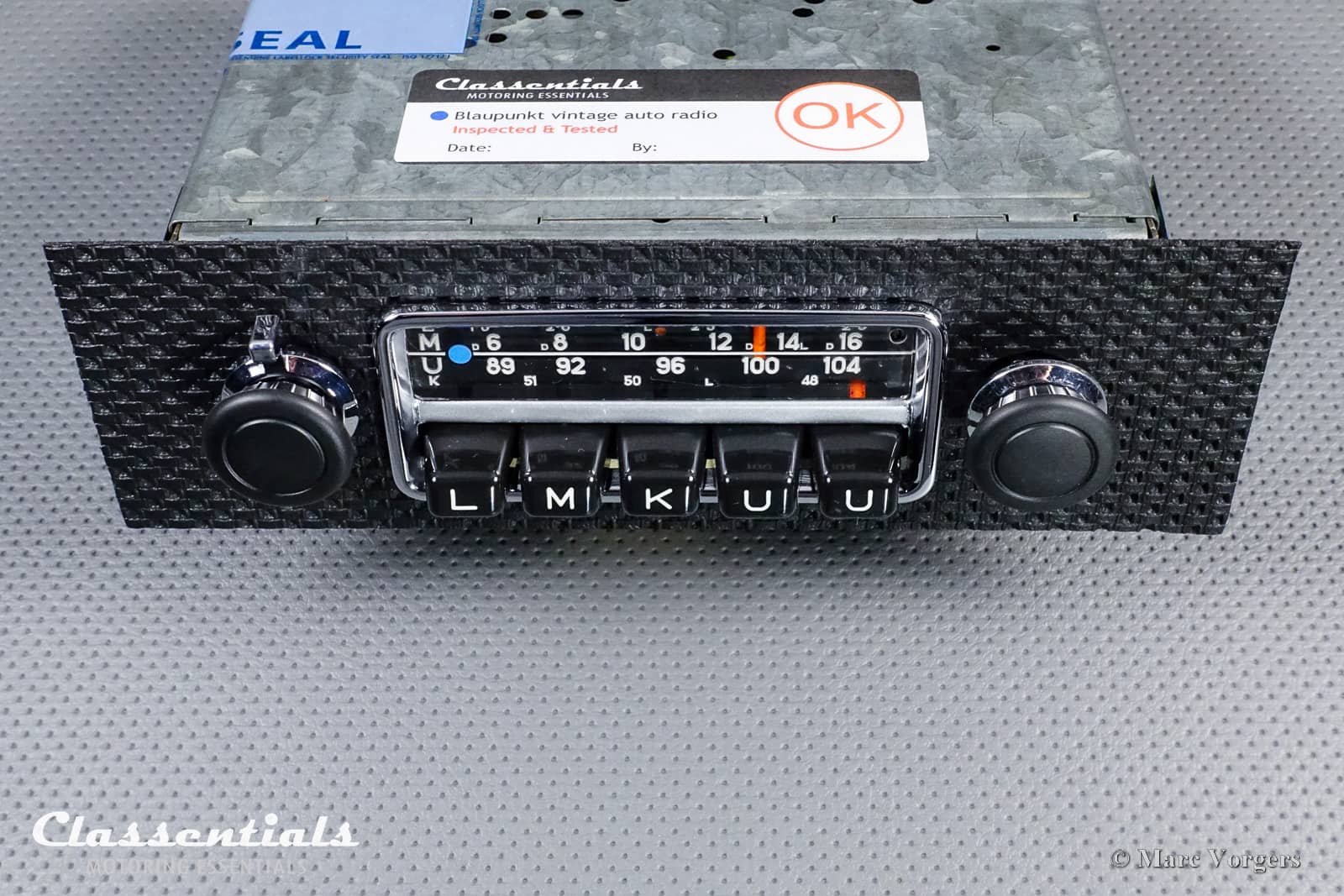

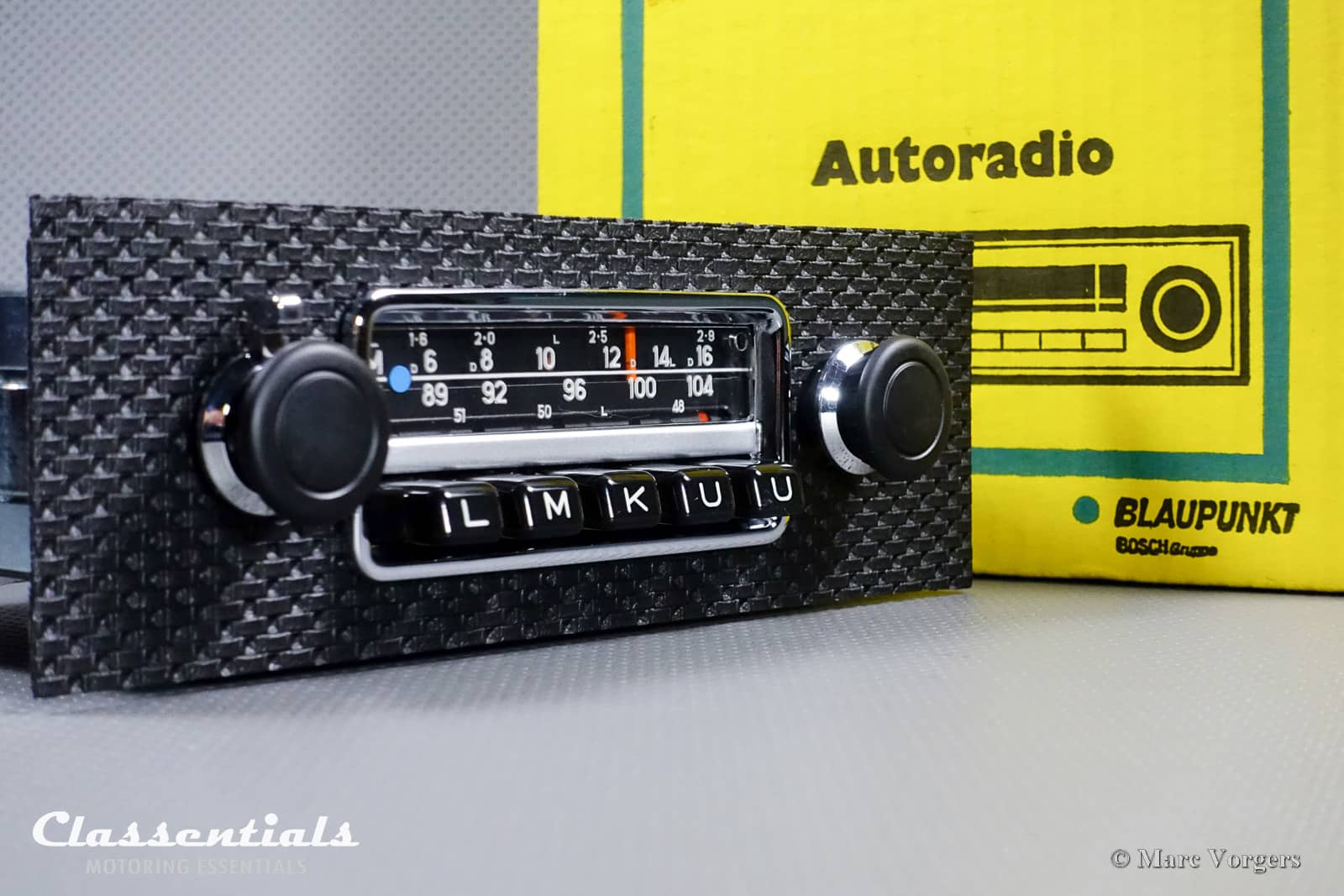

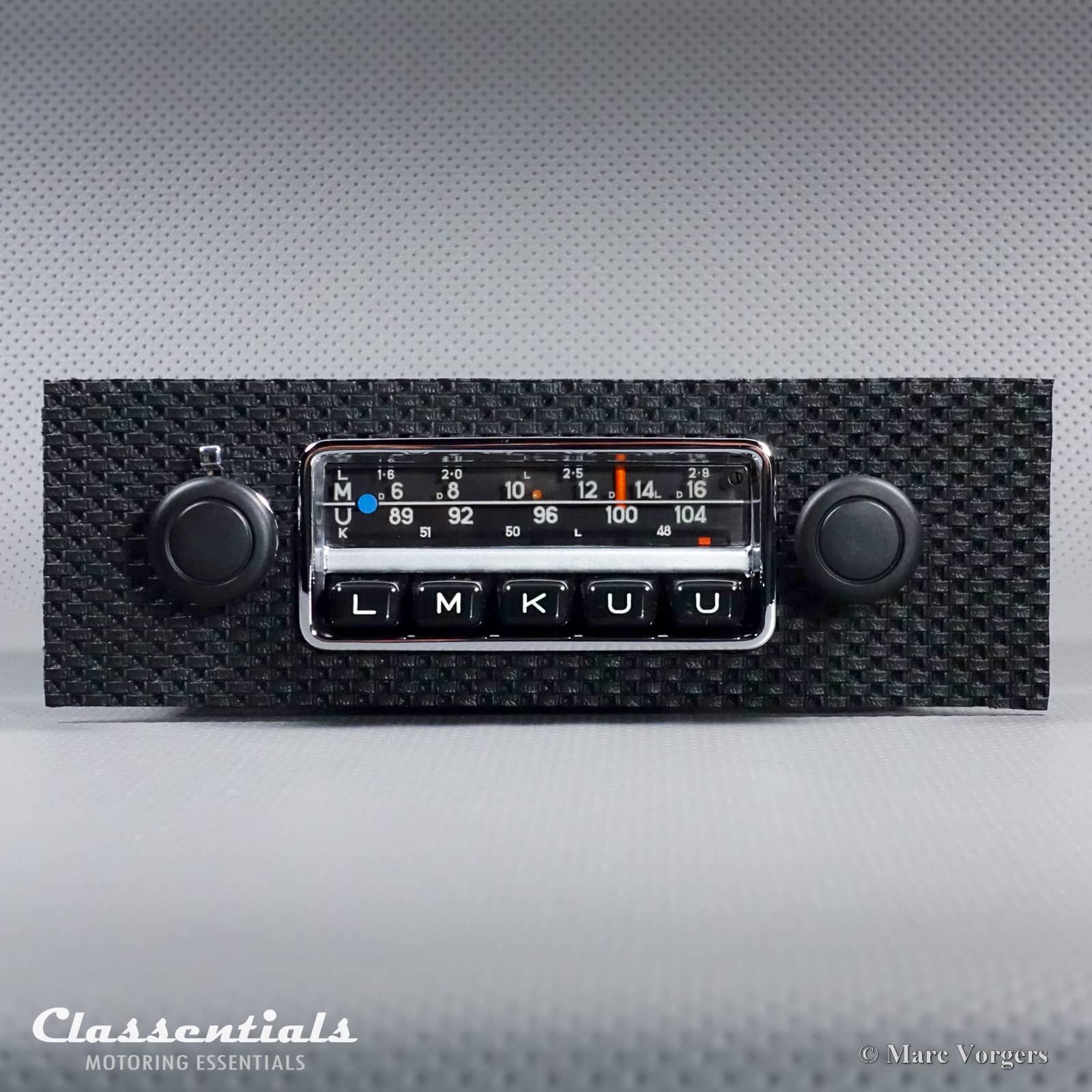

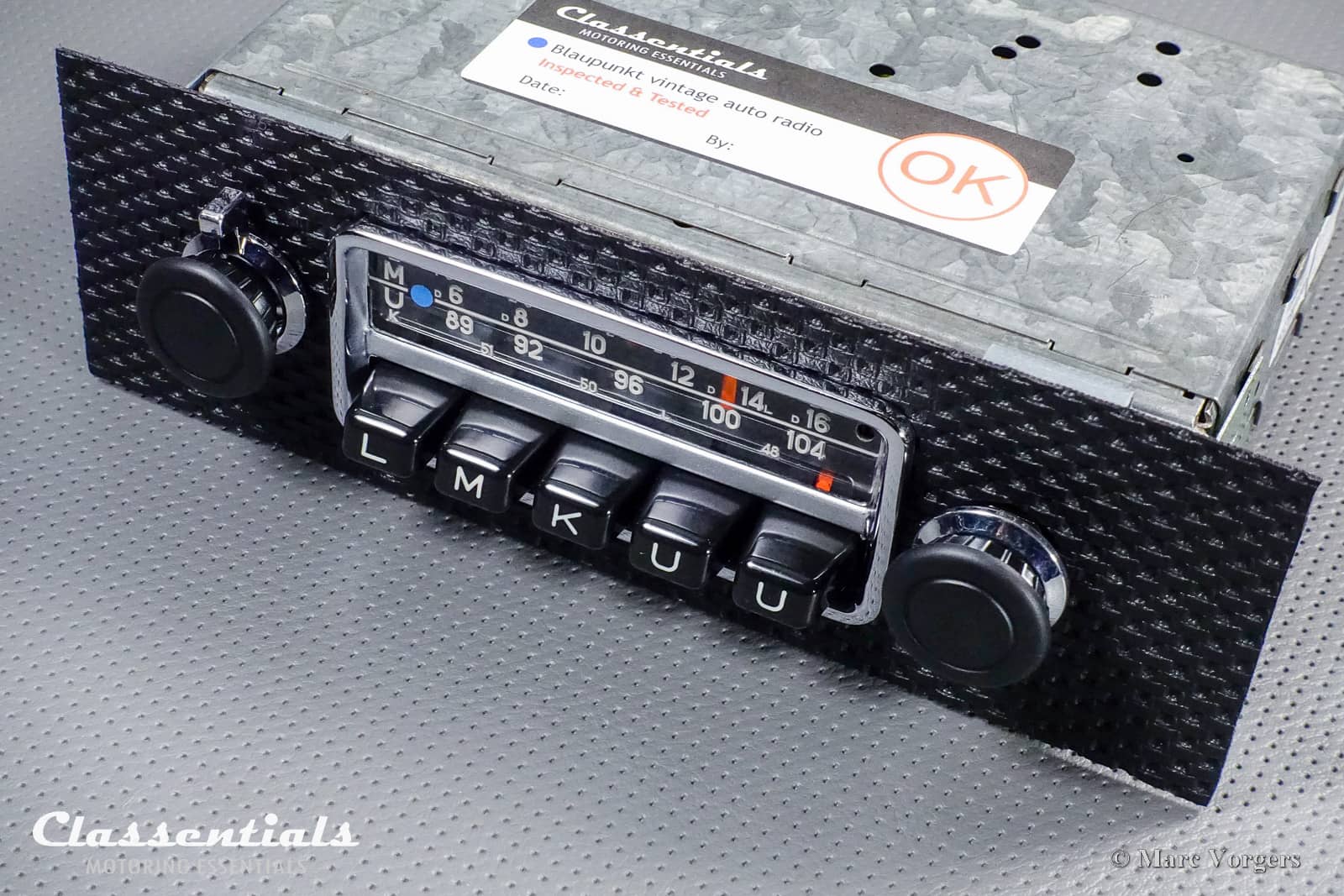

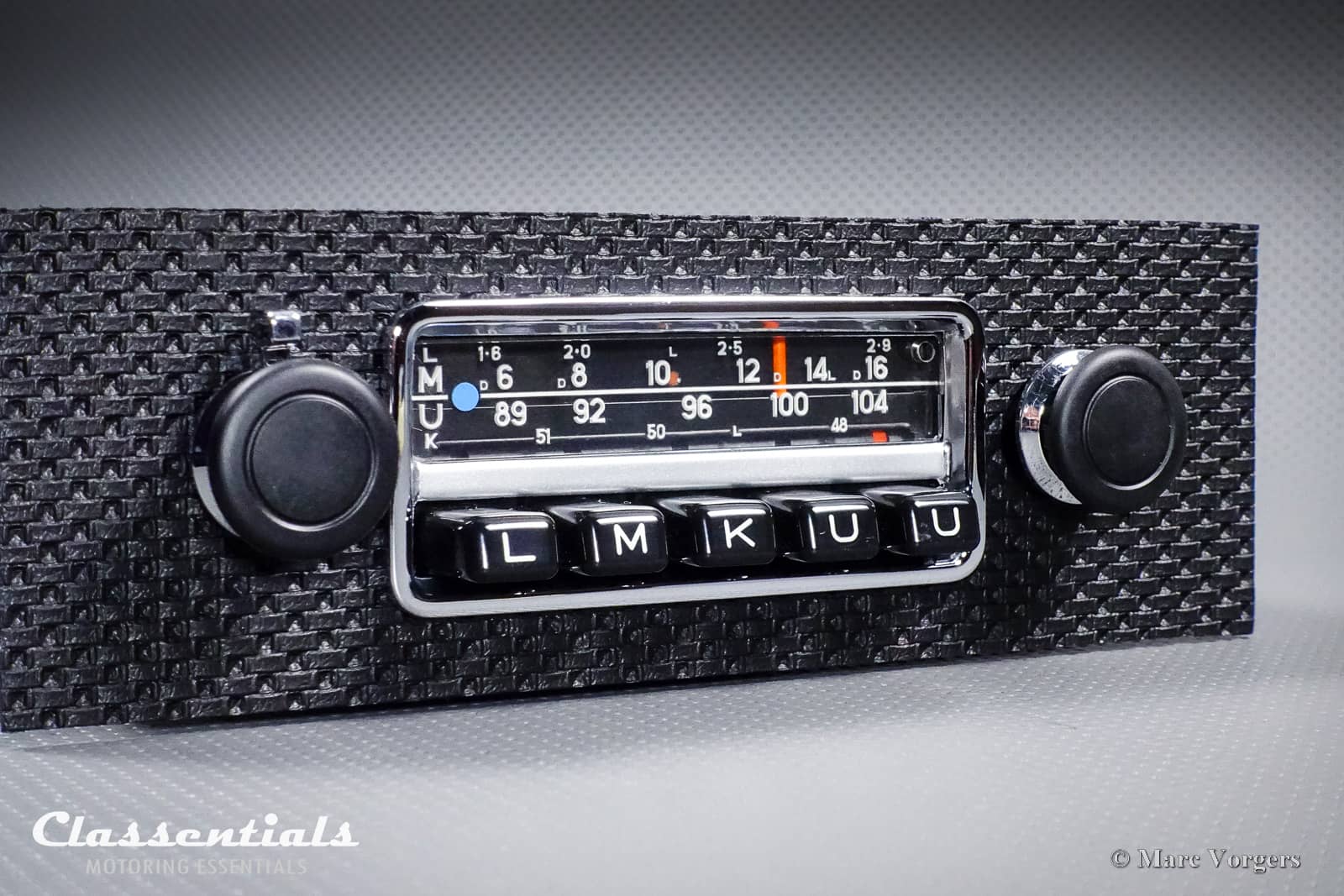

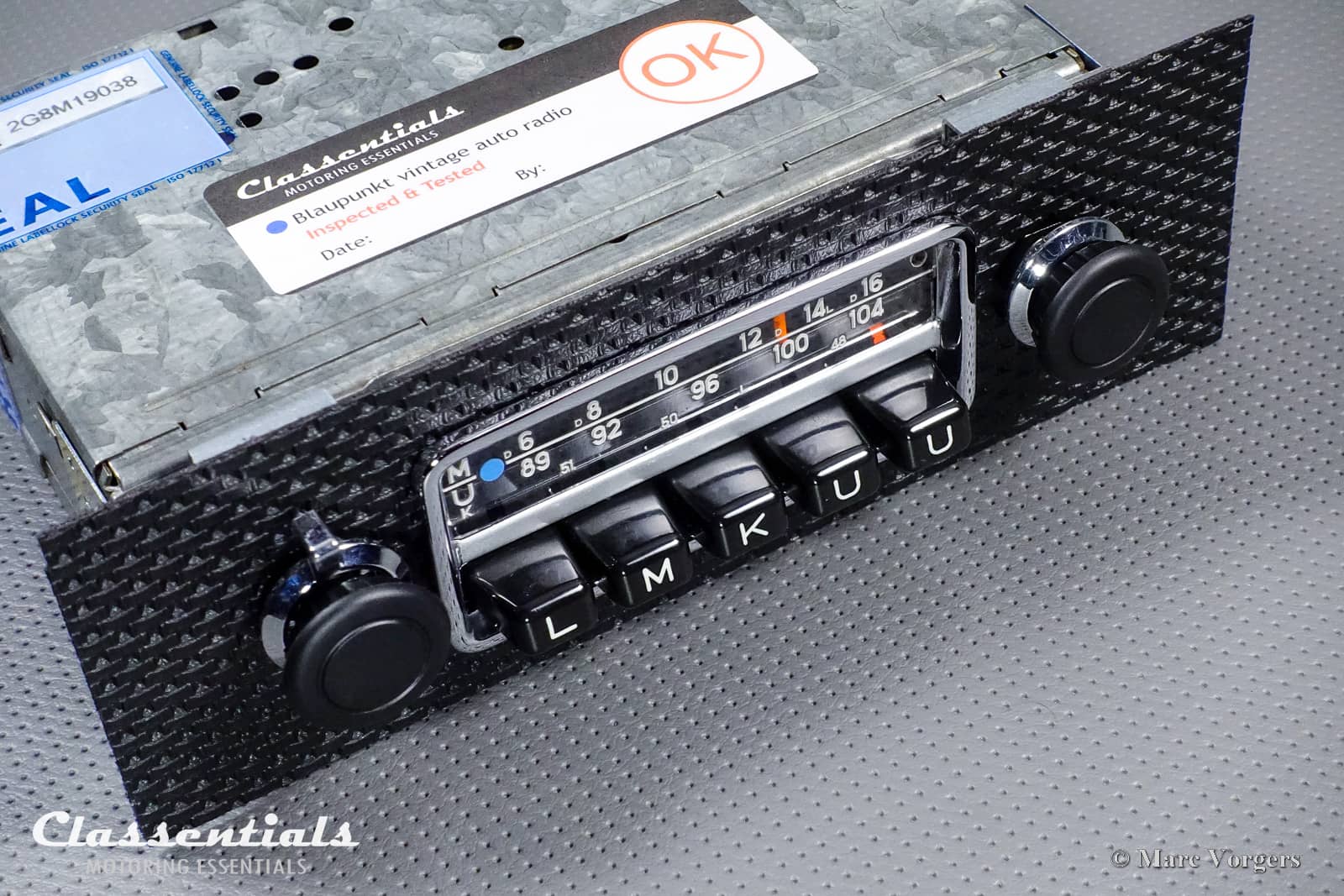

Face-plate: Dedicated for Porsche 911 & 912 F-Series models 1968 – 1973. Completely fitted-out with the correct ‘basket-weave’ face-plate, small chrome metal radio scale frame, the correct F-series knobs and all the other fittings!
On-board voltage: 12V, Negative earth / ground only
Output power: 5 / 7 Watt
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: long wave, medium wave, short wave, UKW (FM)
Frequency range UKW (FM): 88MHz-104MHz

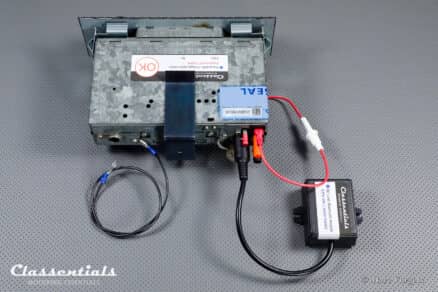

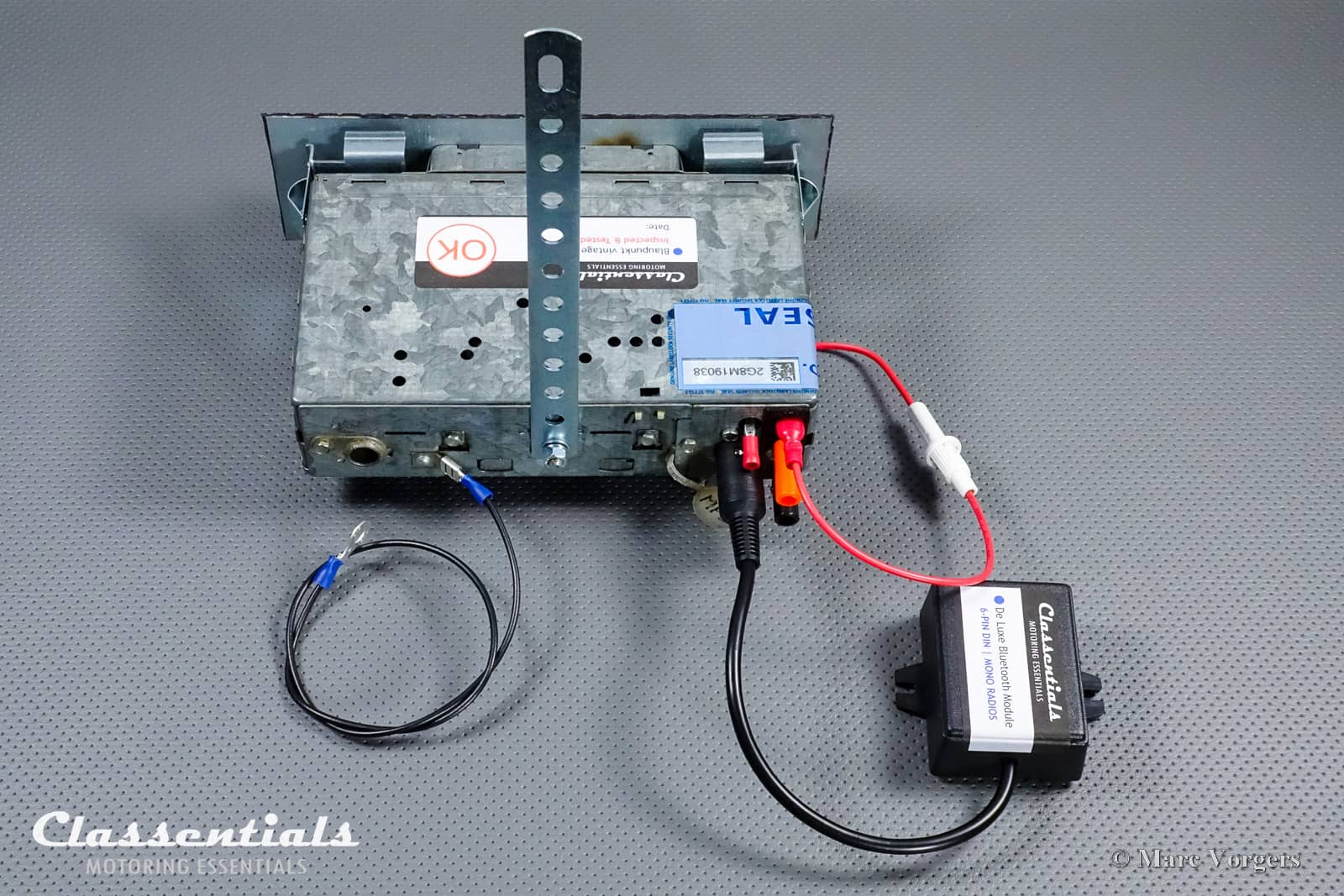

Equipment: Tone control, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio
Year of build: 1971/72
Dimensions unit (width x height x depth in mm): 177 x 50 x 125 (6,97 x 1,97 x 4,92 inch). Depth back to front of face-plate.
Dimensions face-plate (width x height in mm): 206 x 68 (8,1 x 2,7 inch)
Weight (kg): 1.4

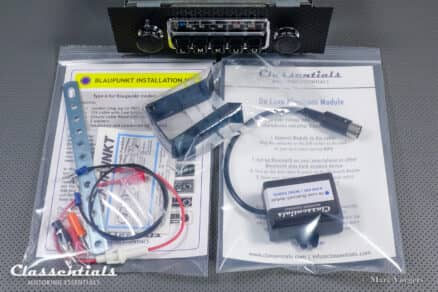

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, earth / ground cable, 12V wire and fuse, spare fuse, rear mounting clip.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

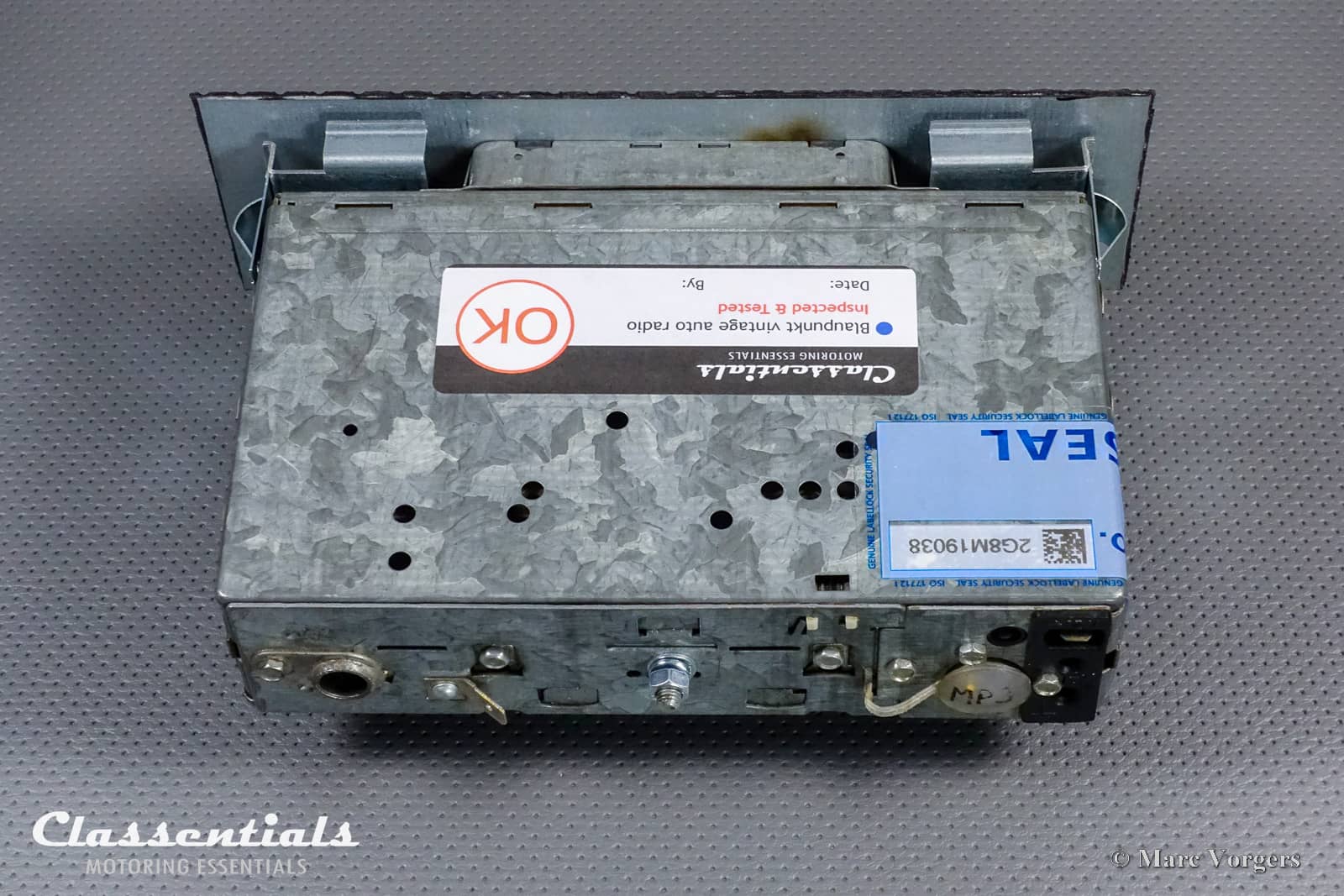

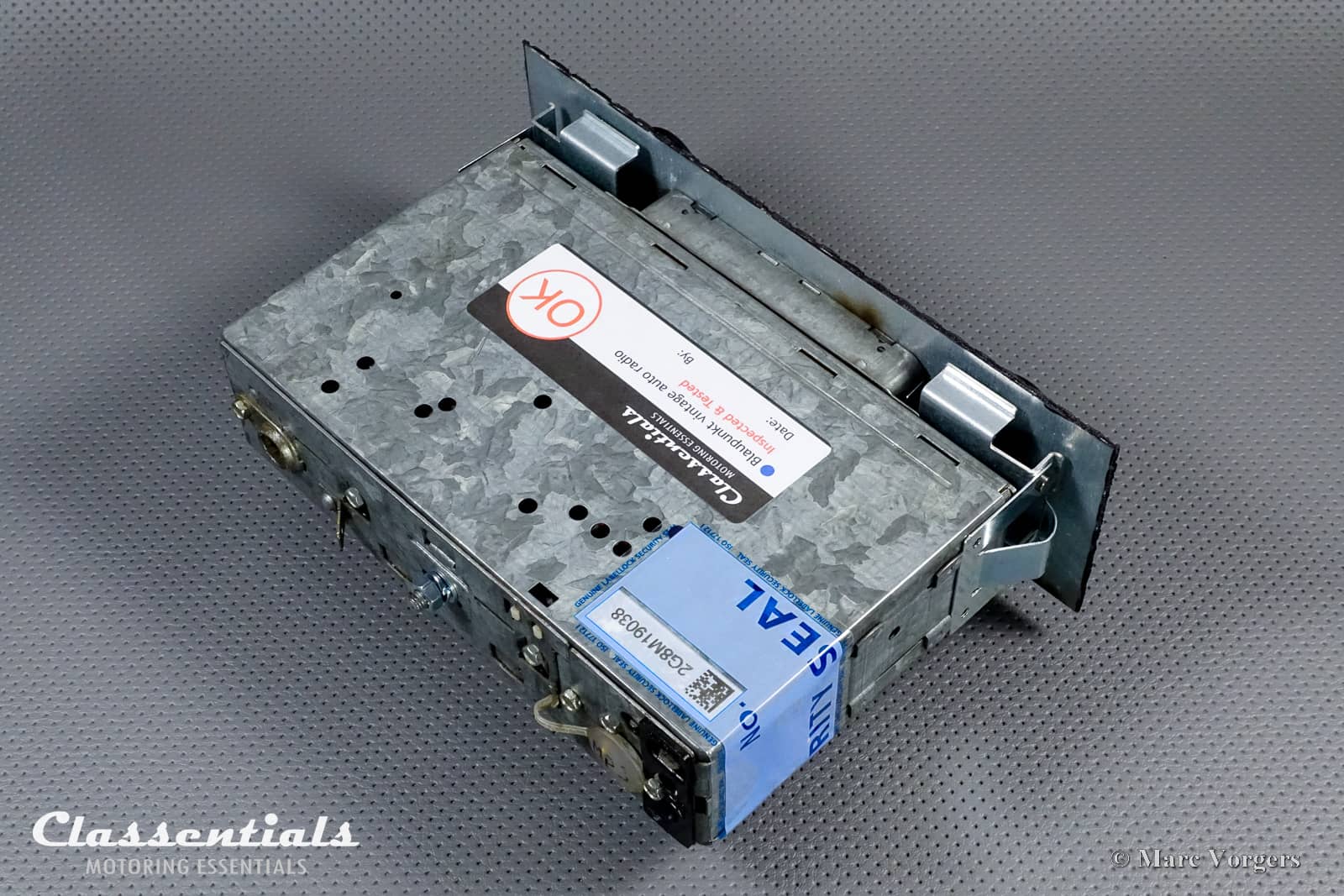

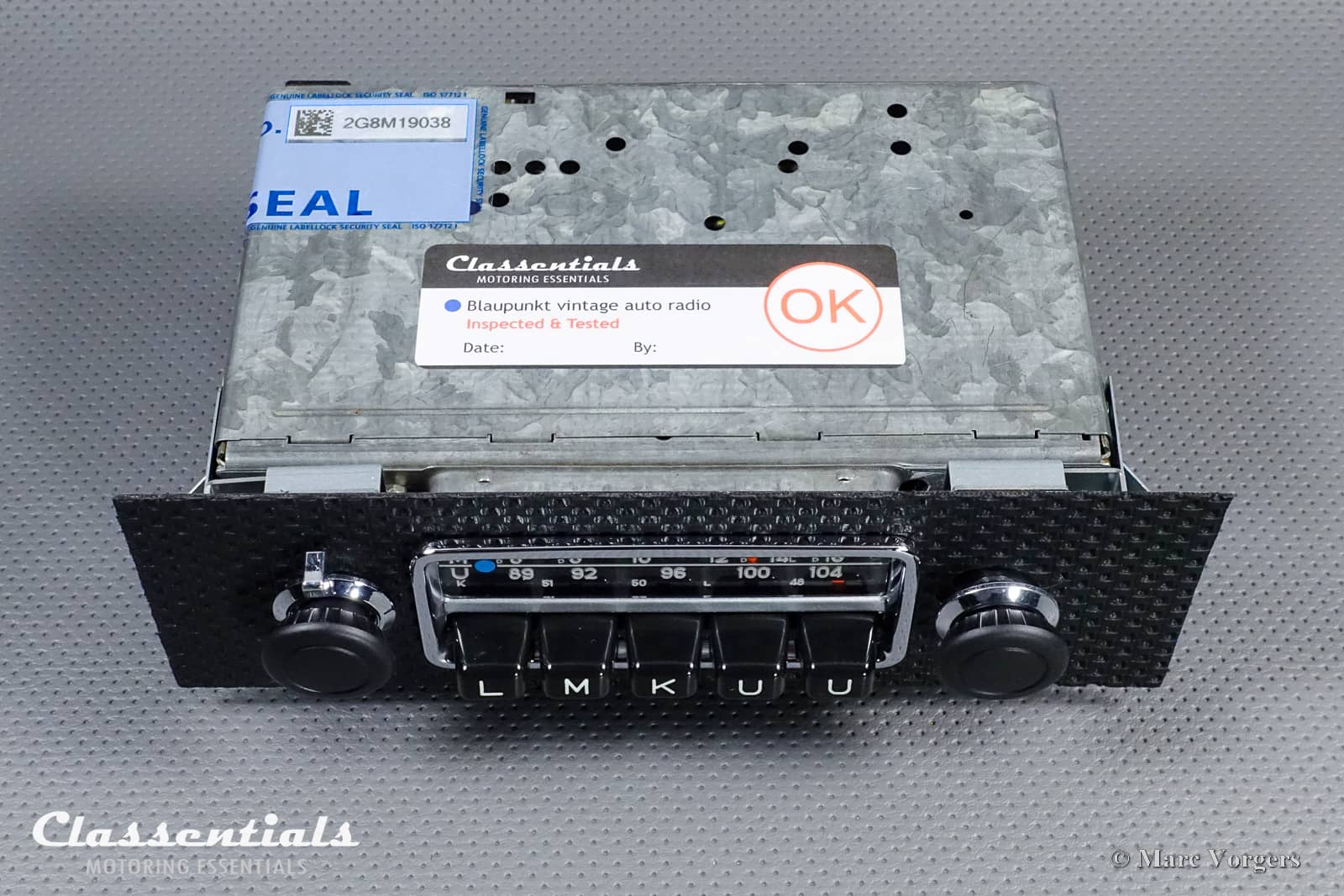

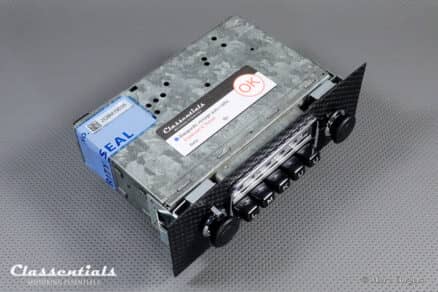

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
