Description

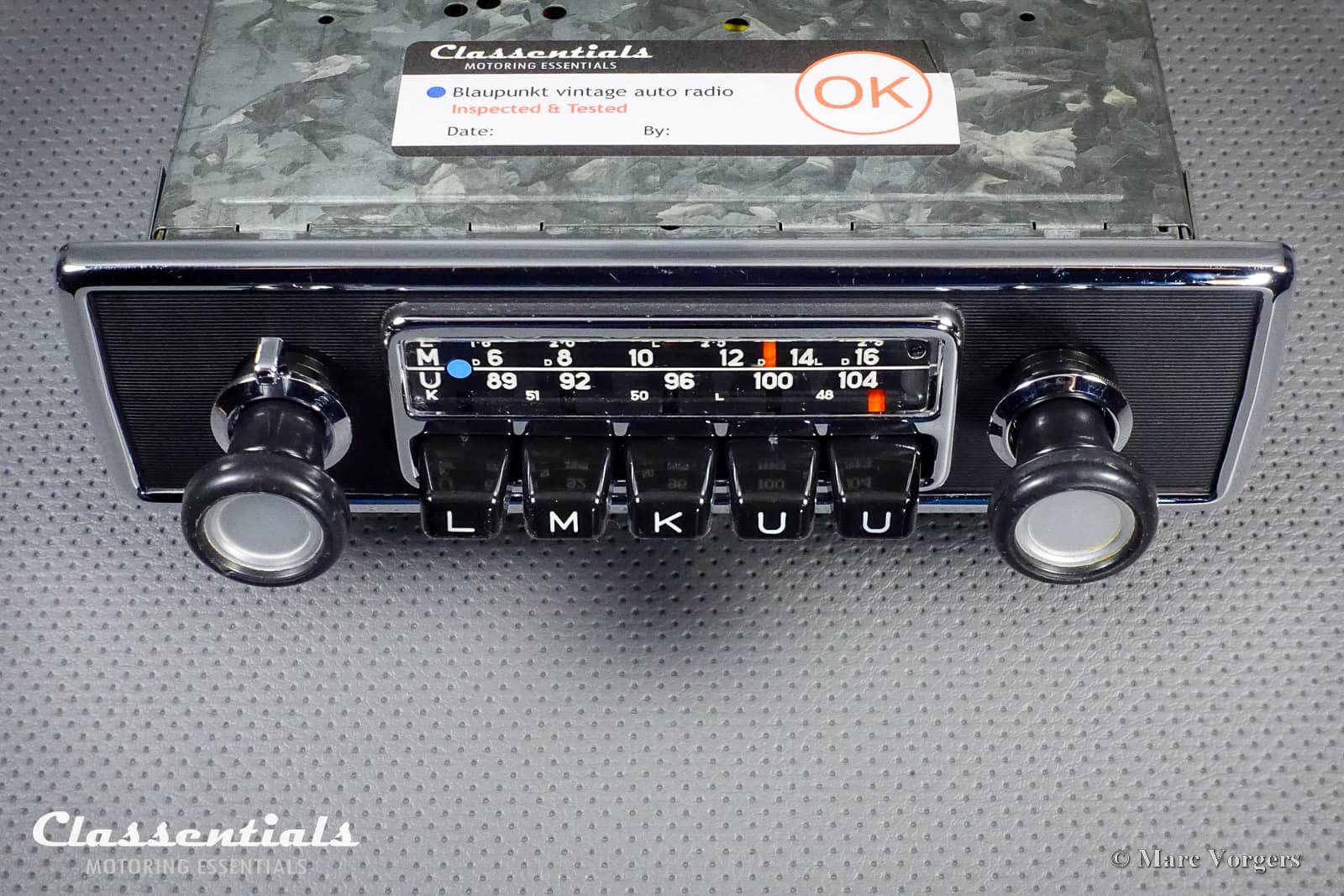

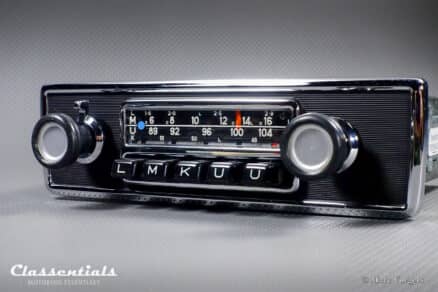

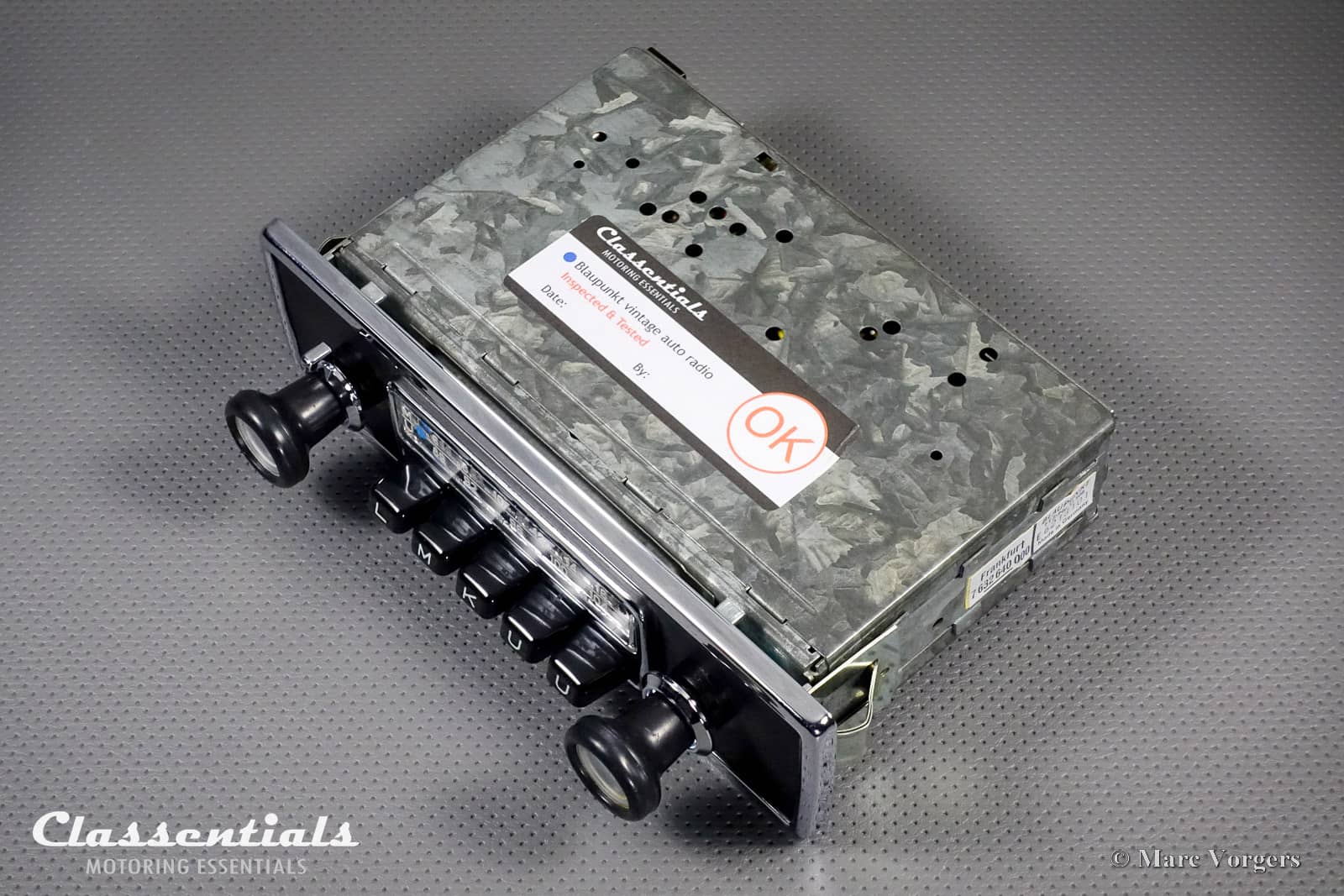

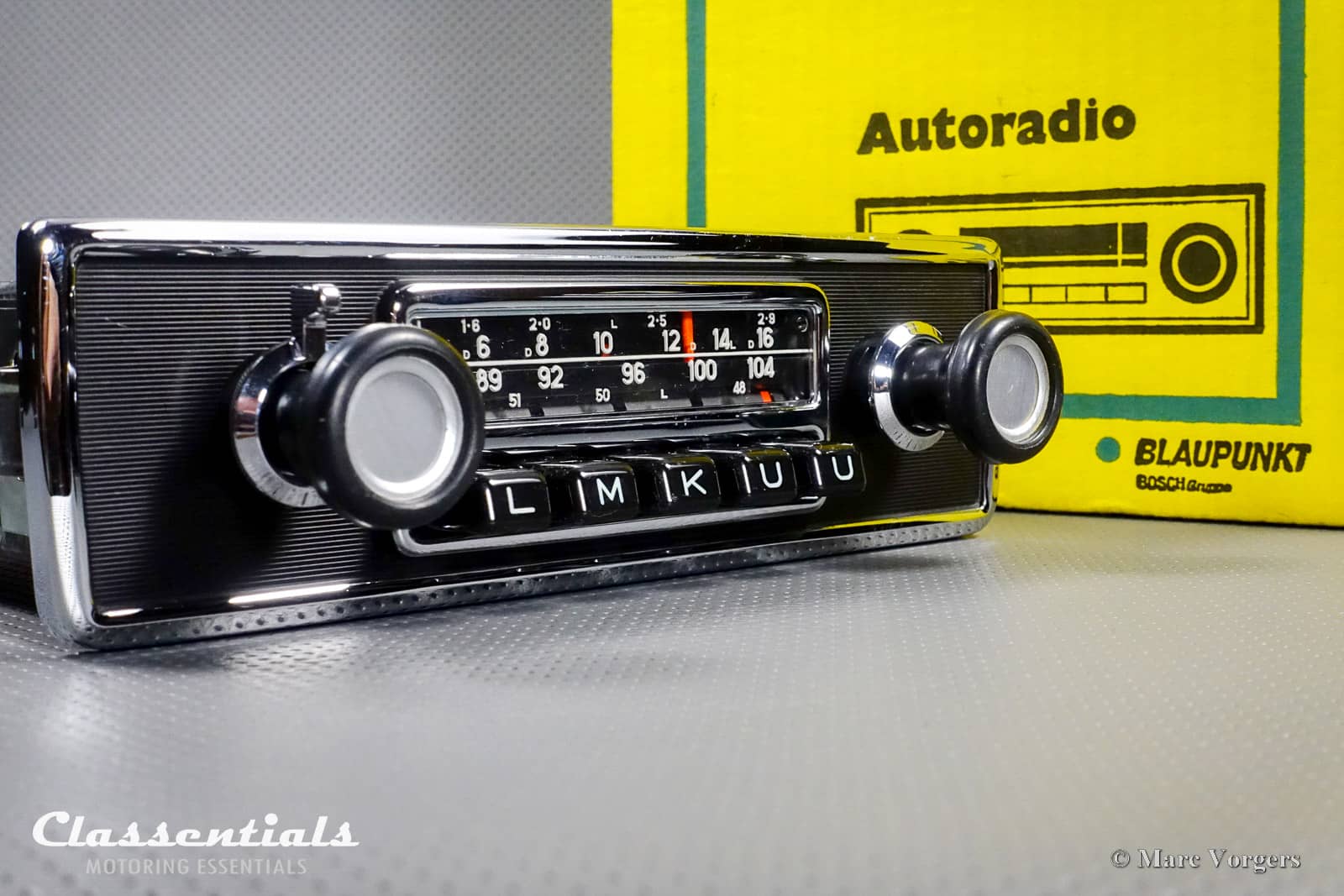

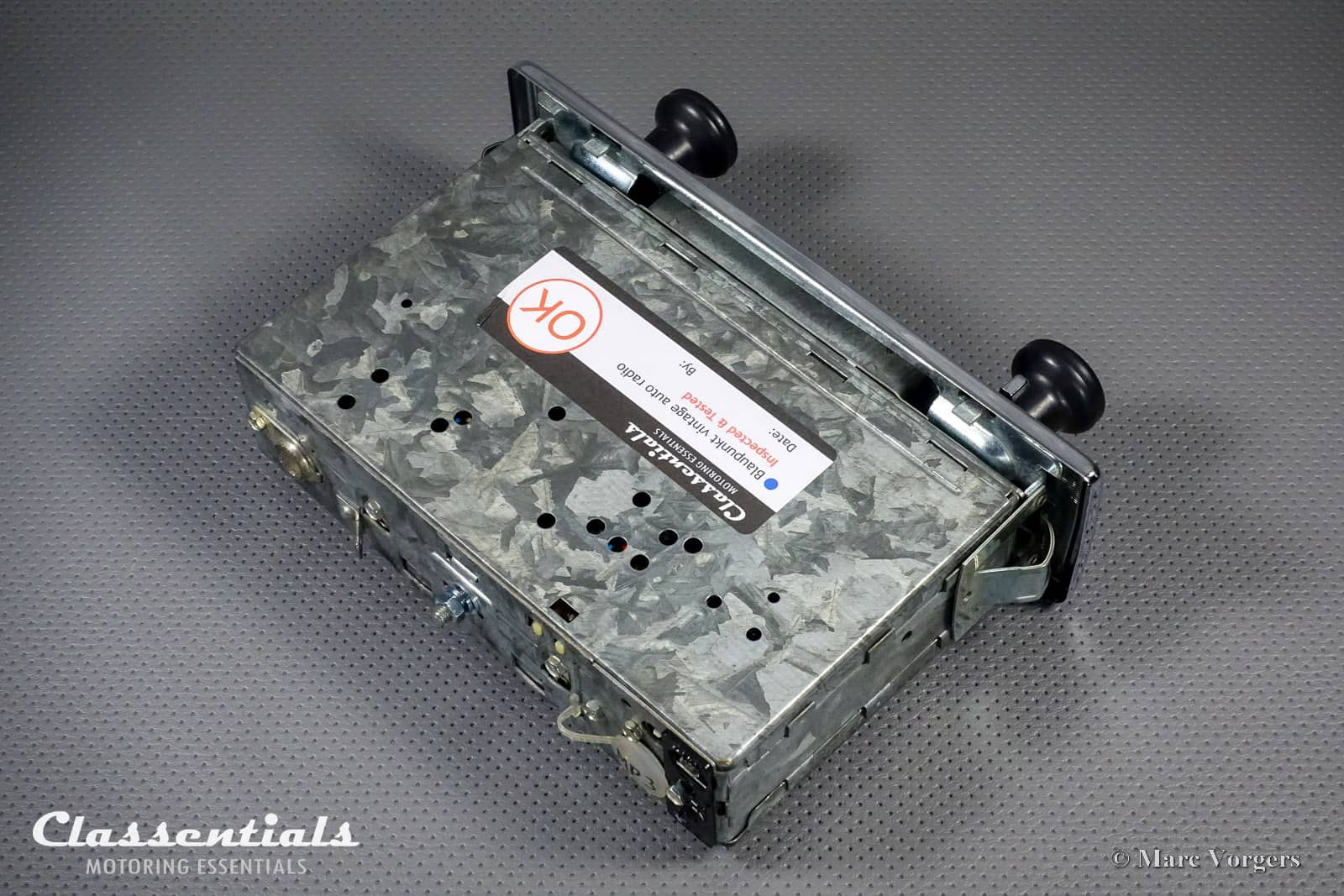

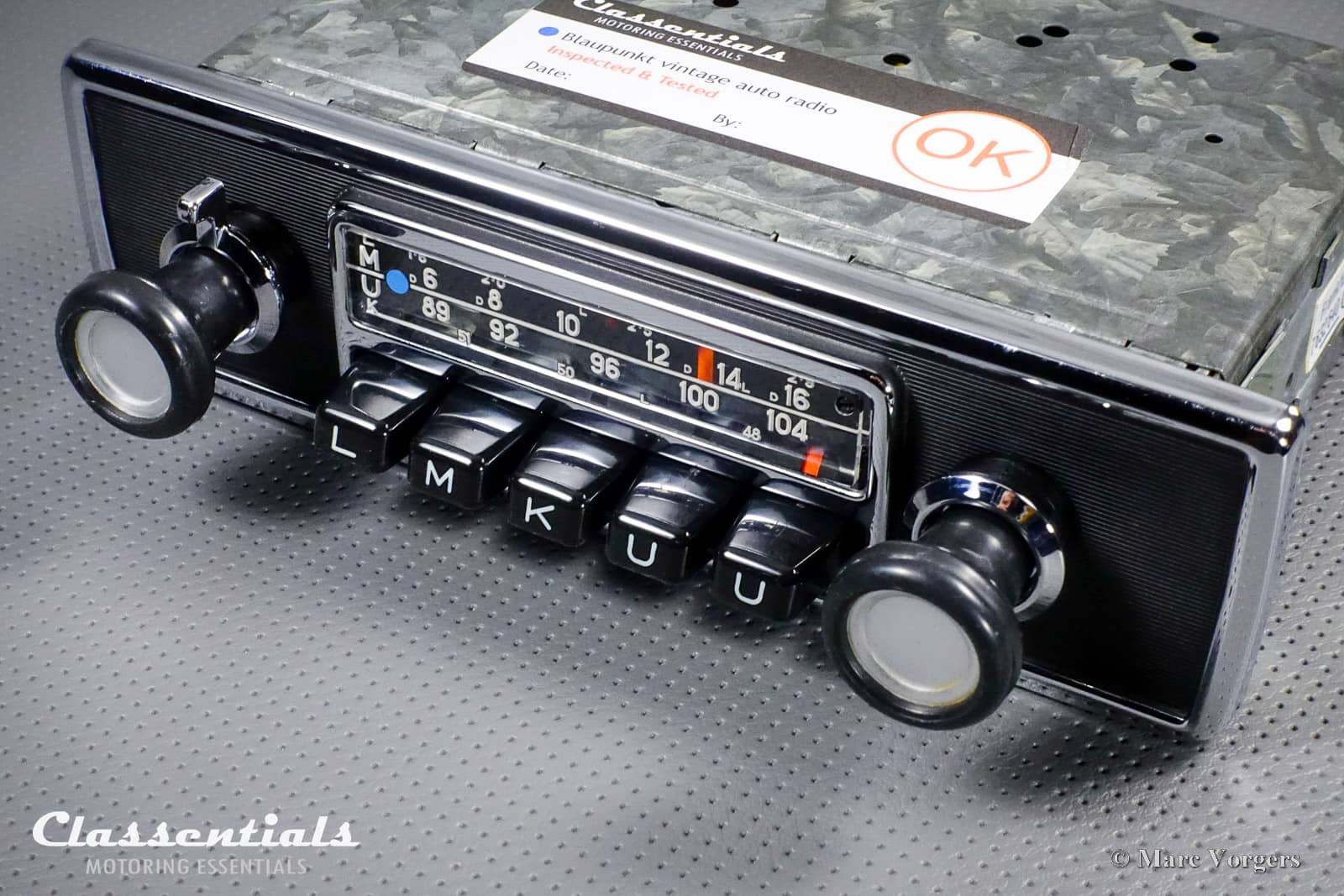

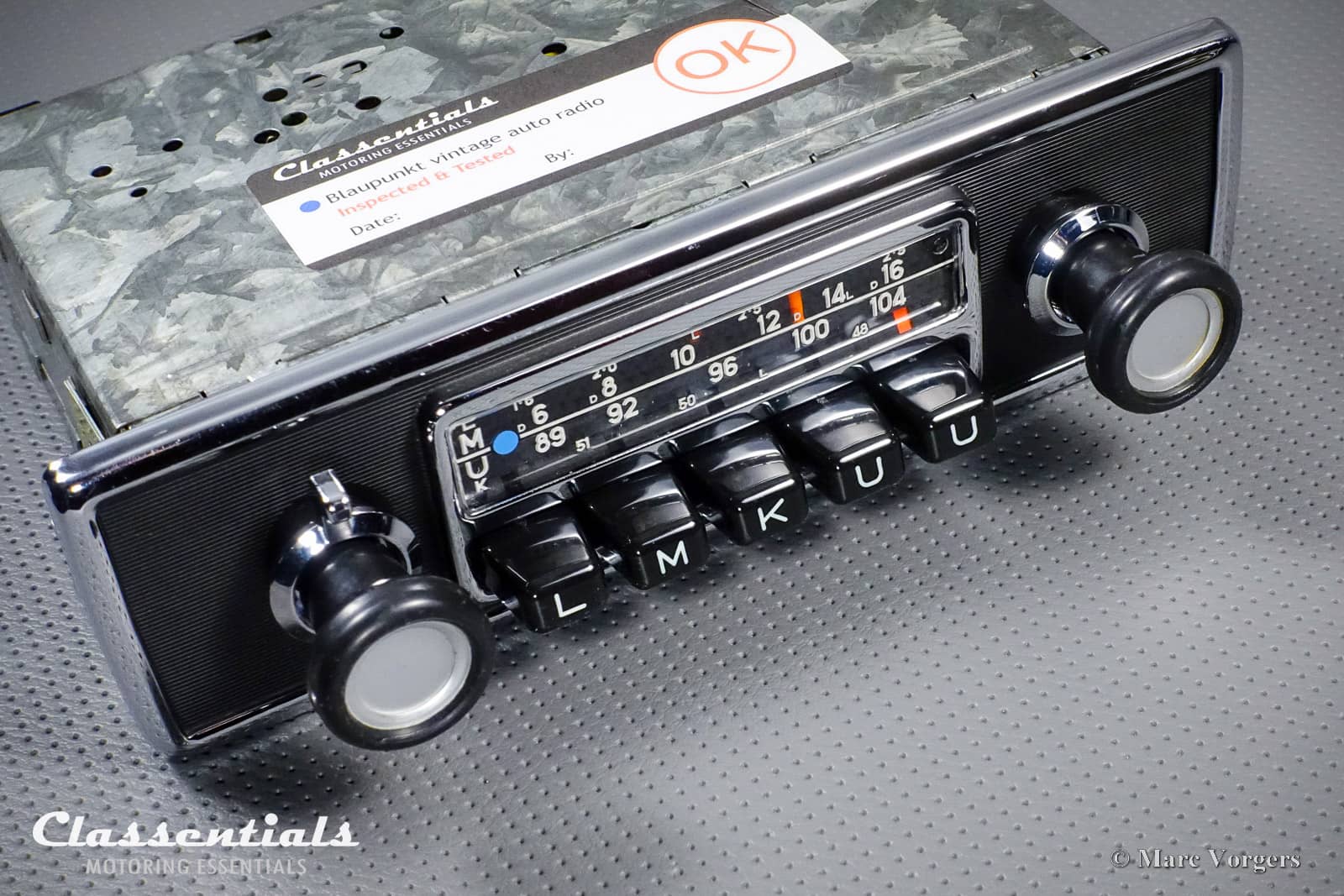

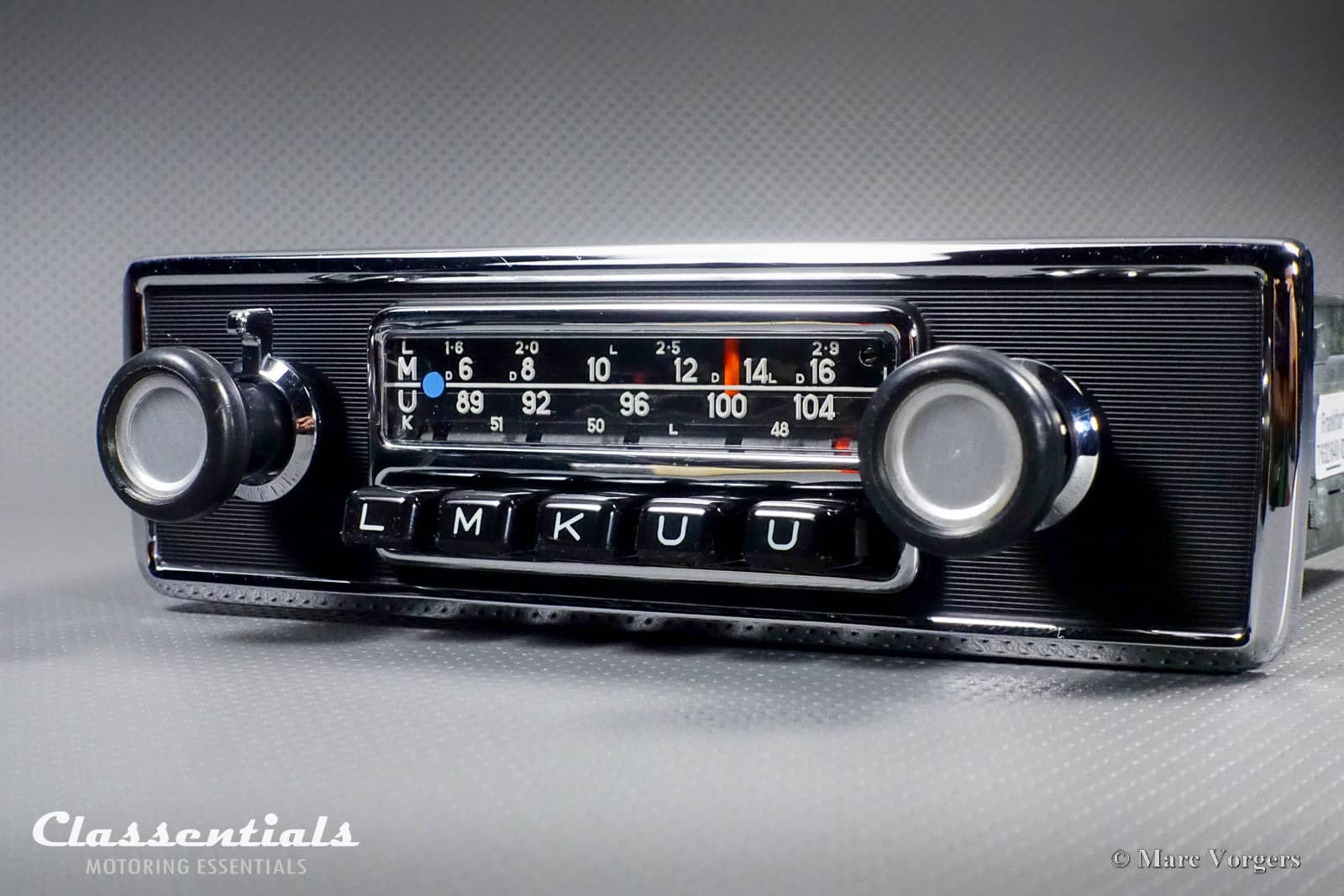

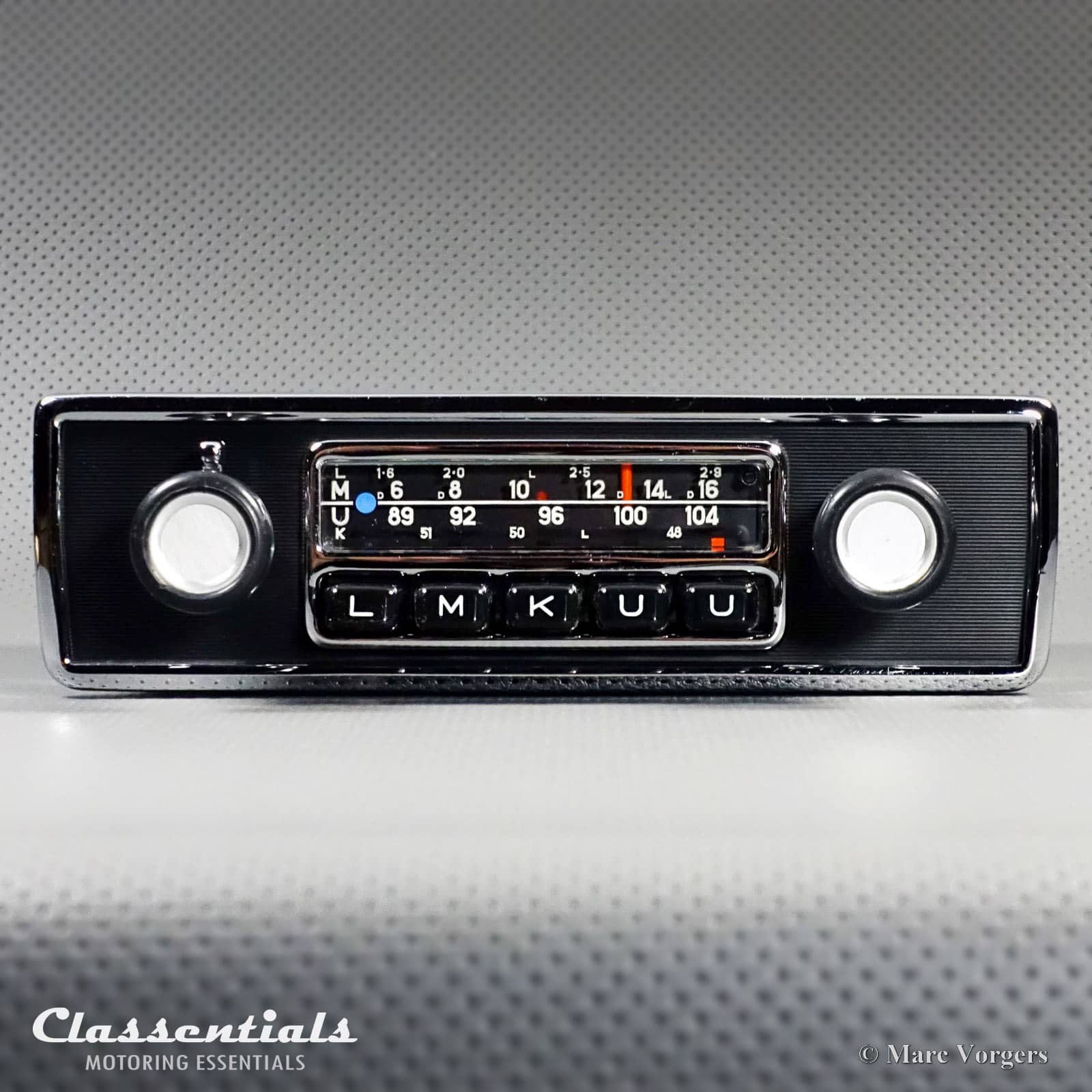

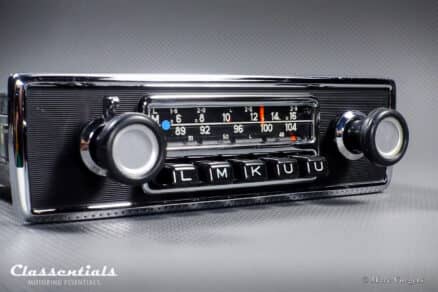

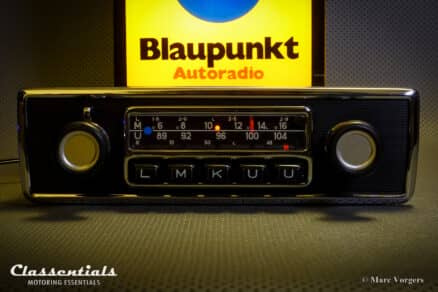

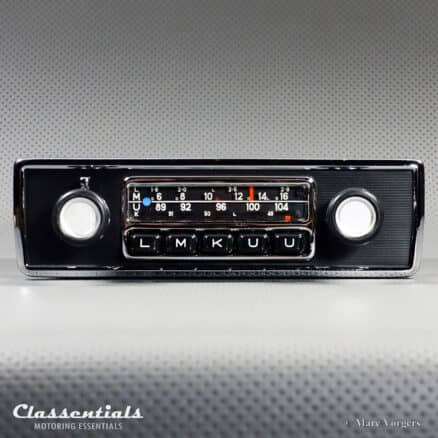

Make and Model: Blaupunkt Frankfurt (Type 7632)
Classic Car era: 1966 – 1974
Face-plate: Dedicated for BMW E9 CS and CSI models and 02 (E10) series. 1602, 1802, 2002, (Touring / Ti / Tii / Baur). Fitted with the correct original Blaupunkt BMW-type knobs. This radio comes with a bracket to fit it in enlarged 180 x 50 mm (7,1 x 2 Inch) 1-DIN radio apertures .
On-board voltage: 12V, Negative earth / ground only
Output power radio: 5 / 7 Watt
Speaker: 15 Watt (Music)
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: Medium wave (M) AM, and FM / UKW (U)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: Tone control, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio
Year of build: 1971/72
Dimensions radio unit (width x height x depth in mm): 177 x 44 x 127 / 7,1 x 1,65 x 5 inch (back to front of face-plate). Total depth with Bluetooth Module plug and cable is 180 mm (7 inch).
Dimensions face-plate (width x height): 205 x 60 mm / 8,1 x 2,35 Inch
Weight (kg): 1.4

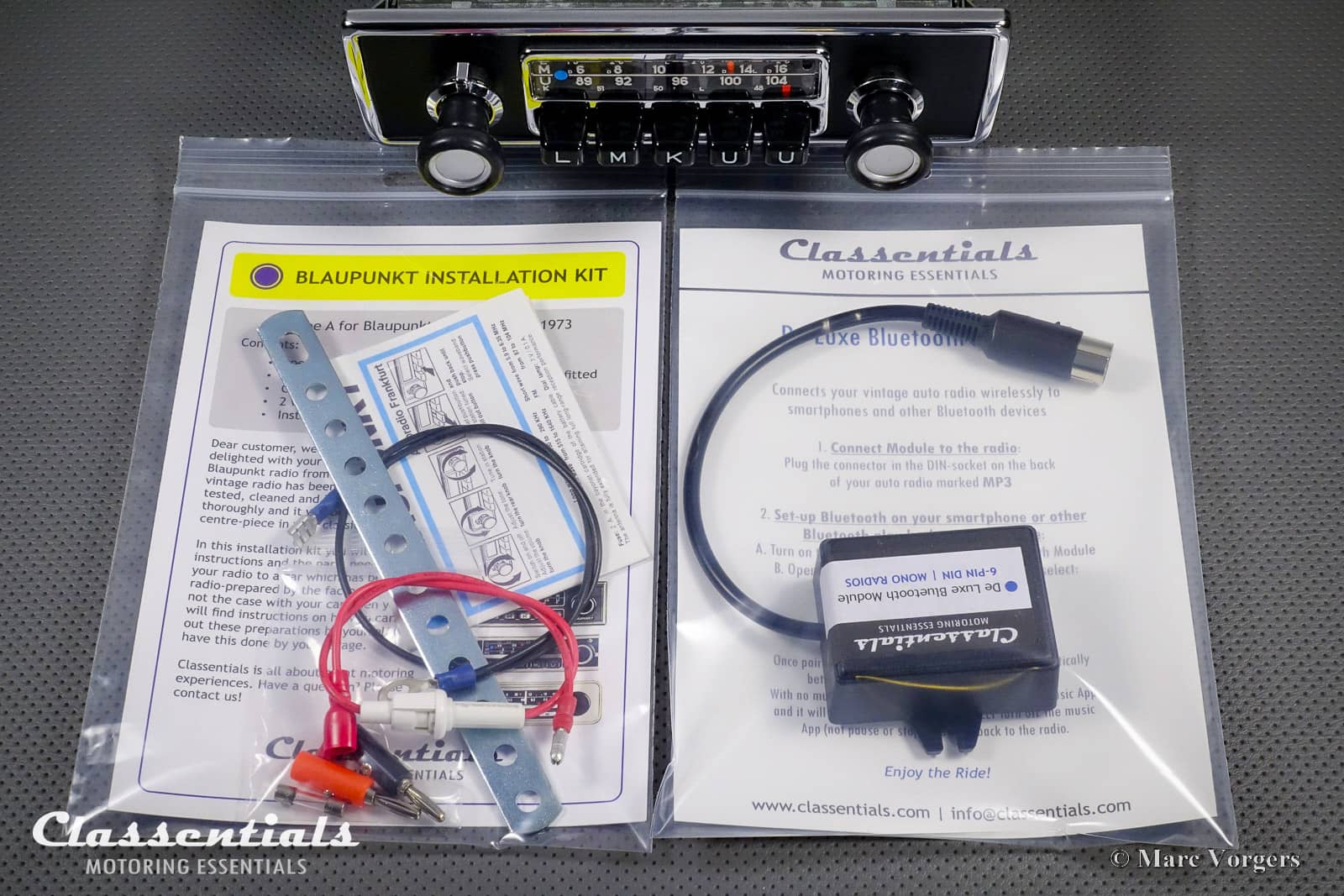

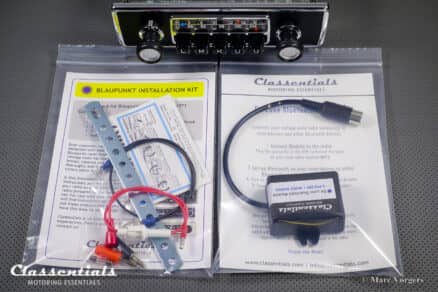

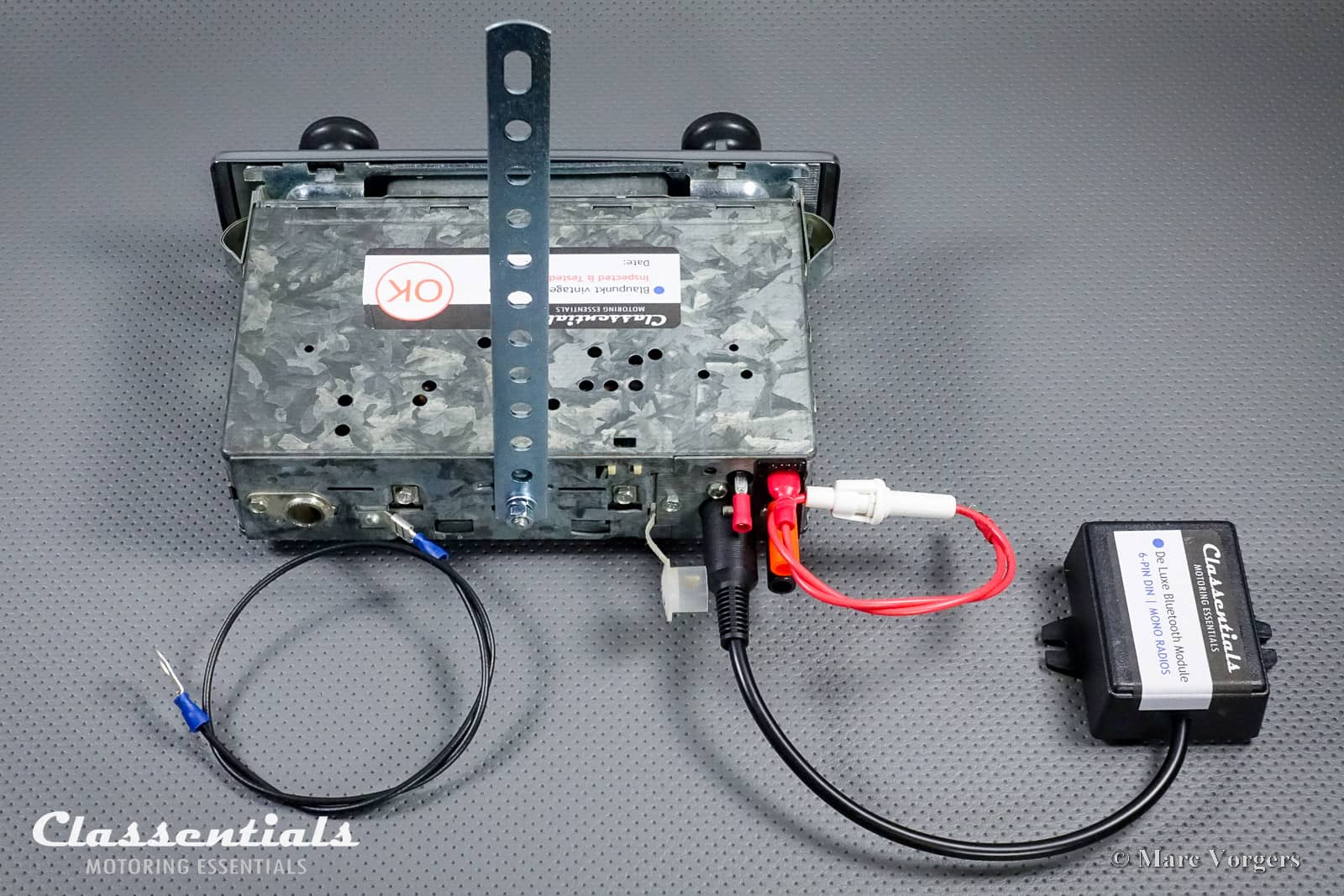

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, earth cable, 12V wire with fuse, cable shoes and a metal strip with 6 mm holes to form a rear radio support bracket if not present in your car.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

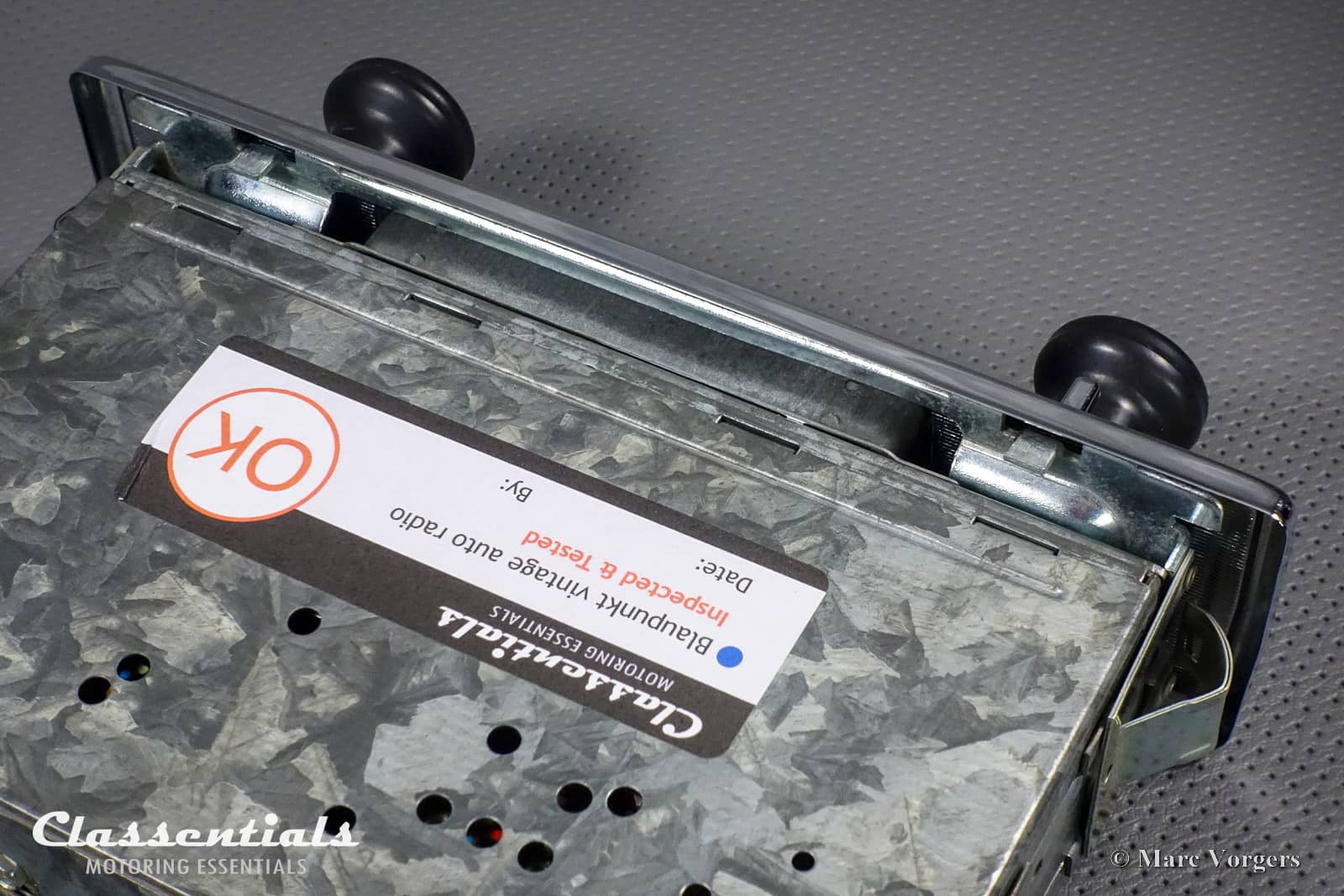

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
