Model: Blaupunkt Frankfurt (S) Z-Series
Classic Car era: 1965 – 1975

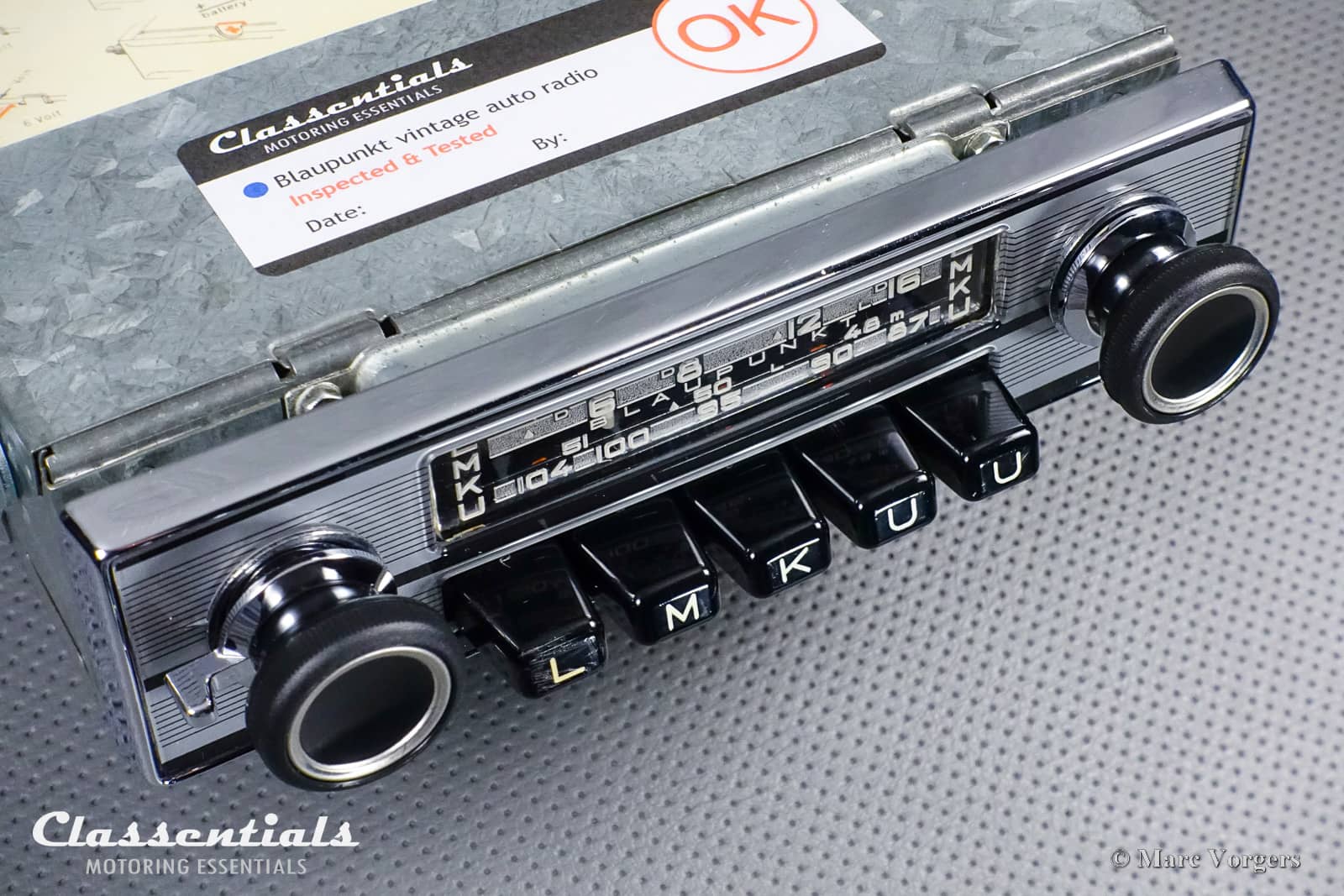

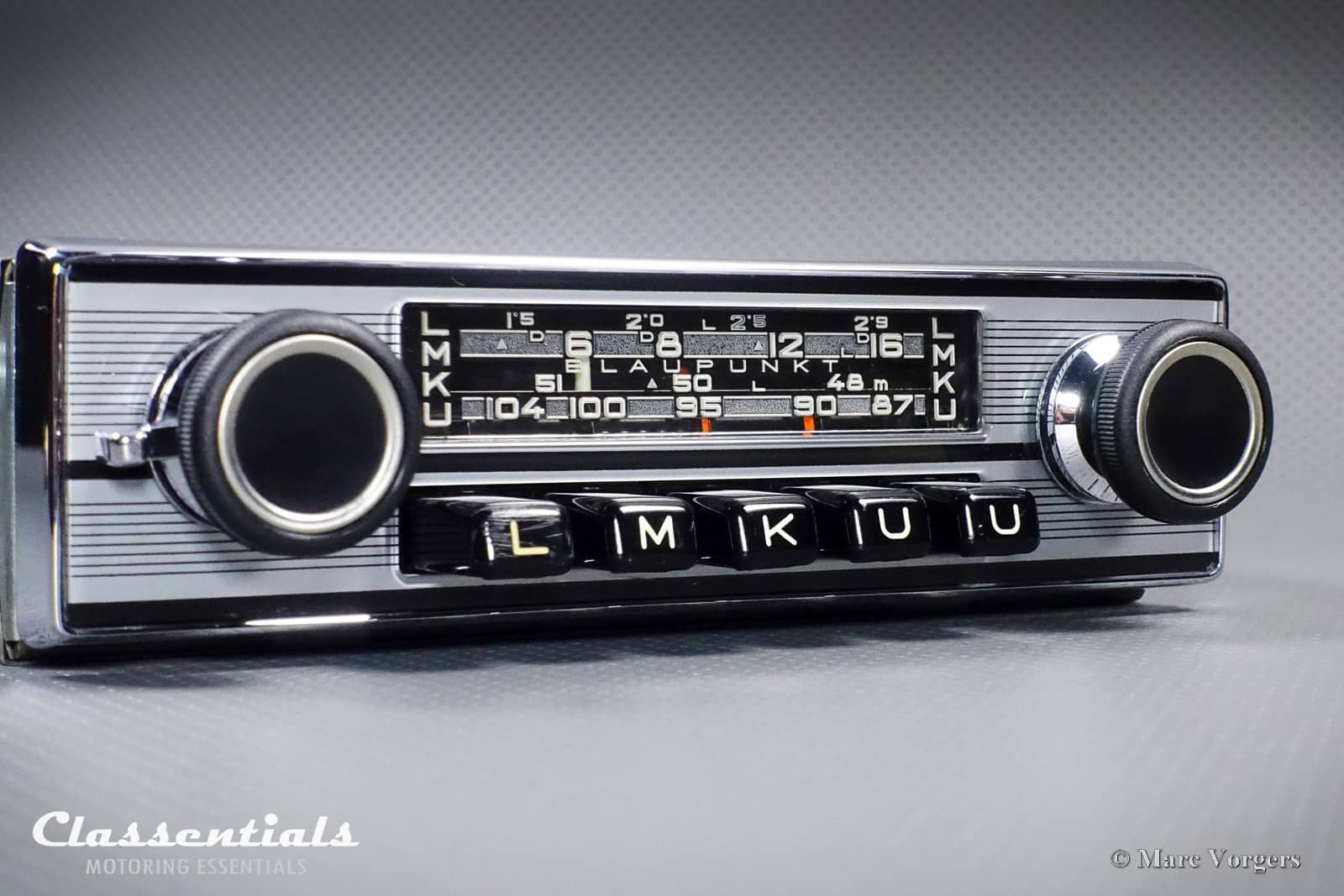

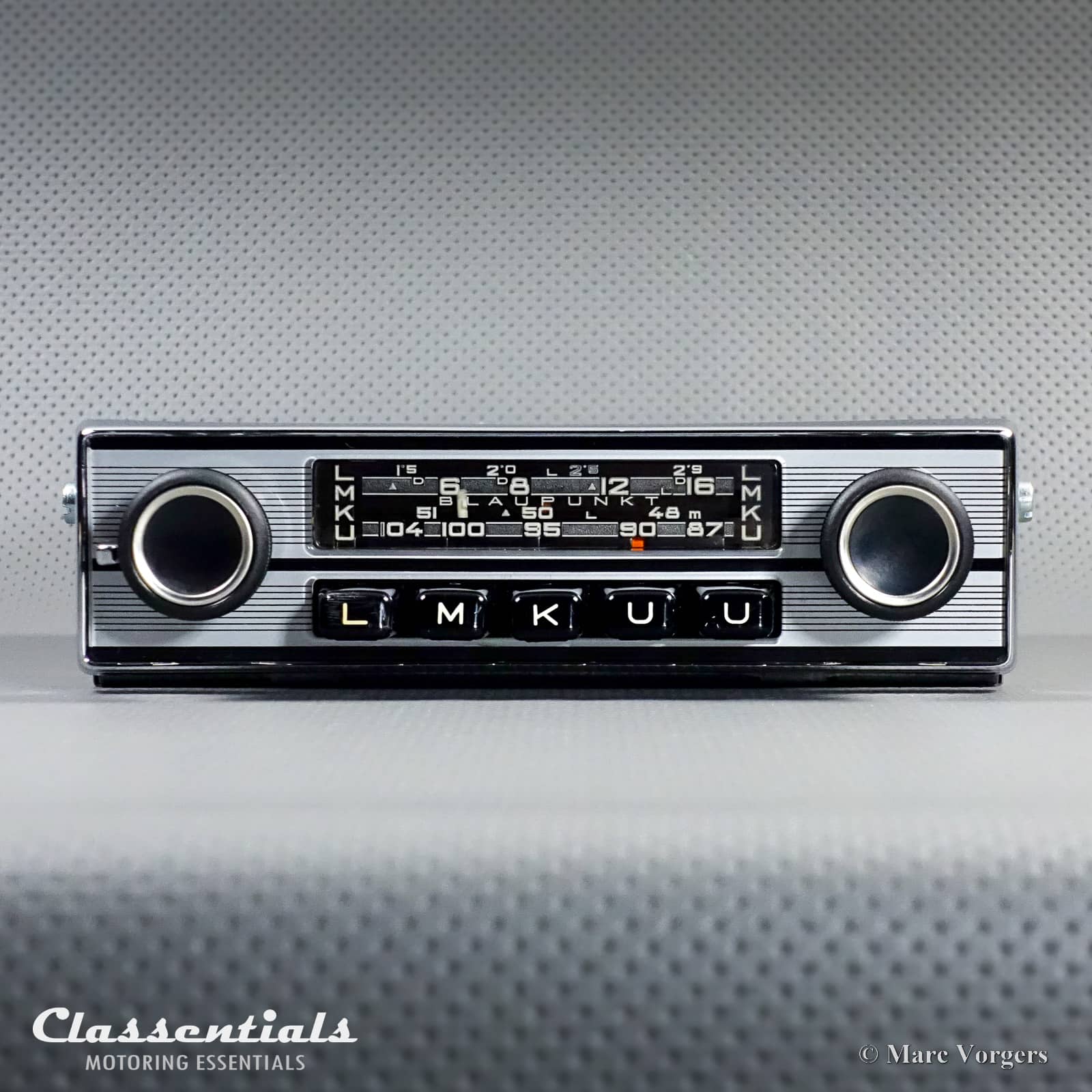

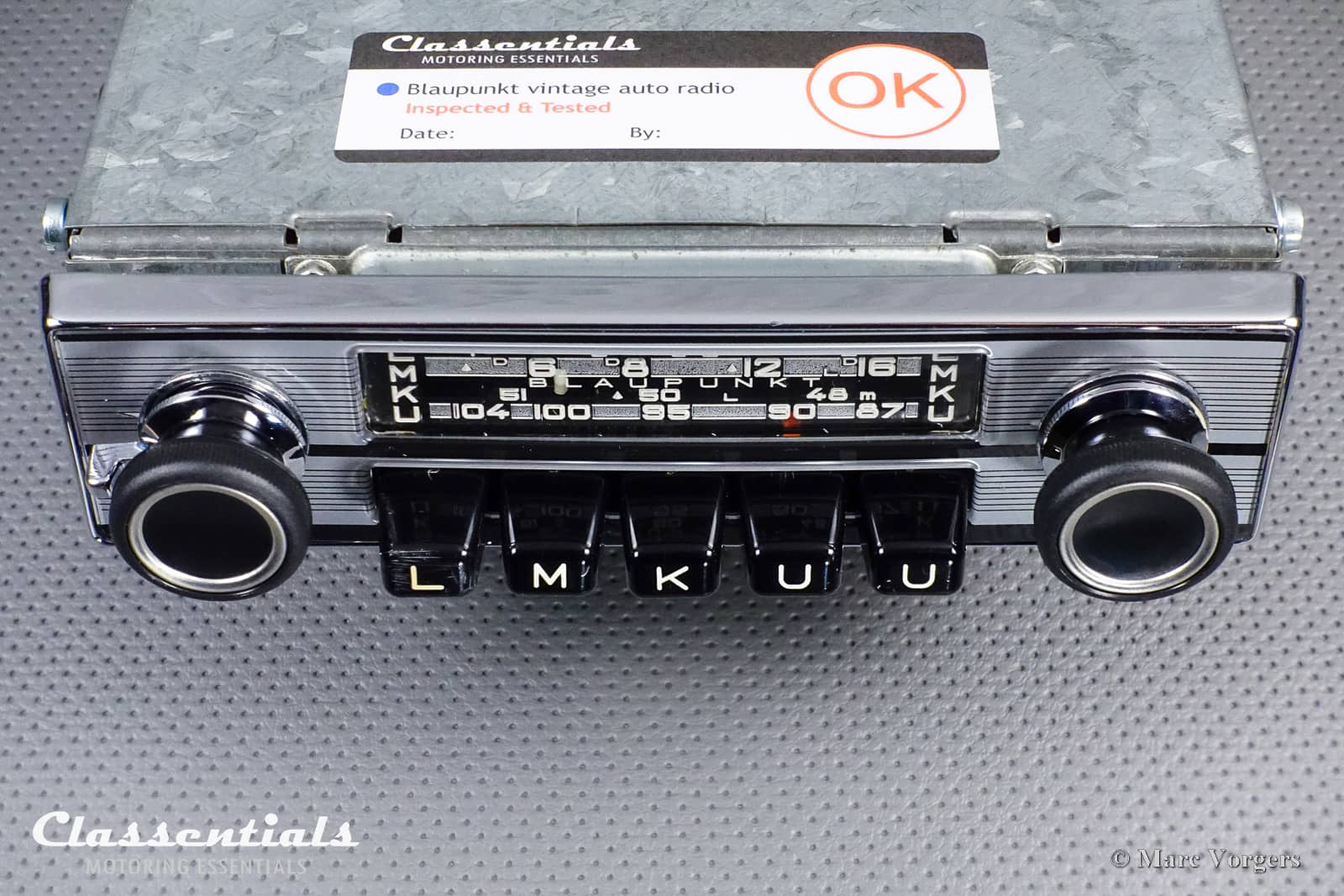

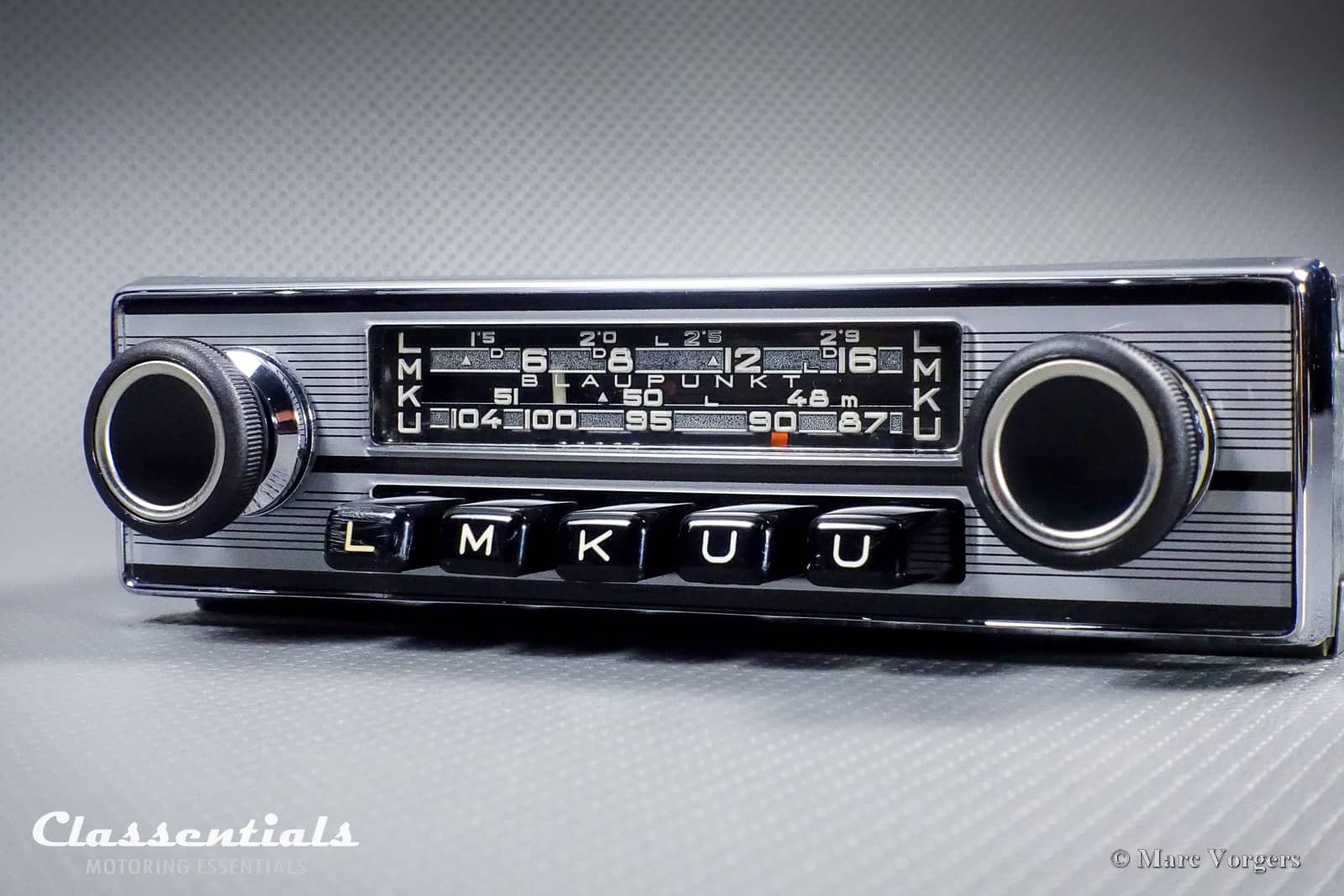

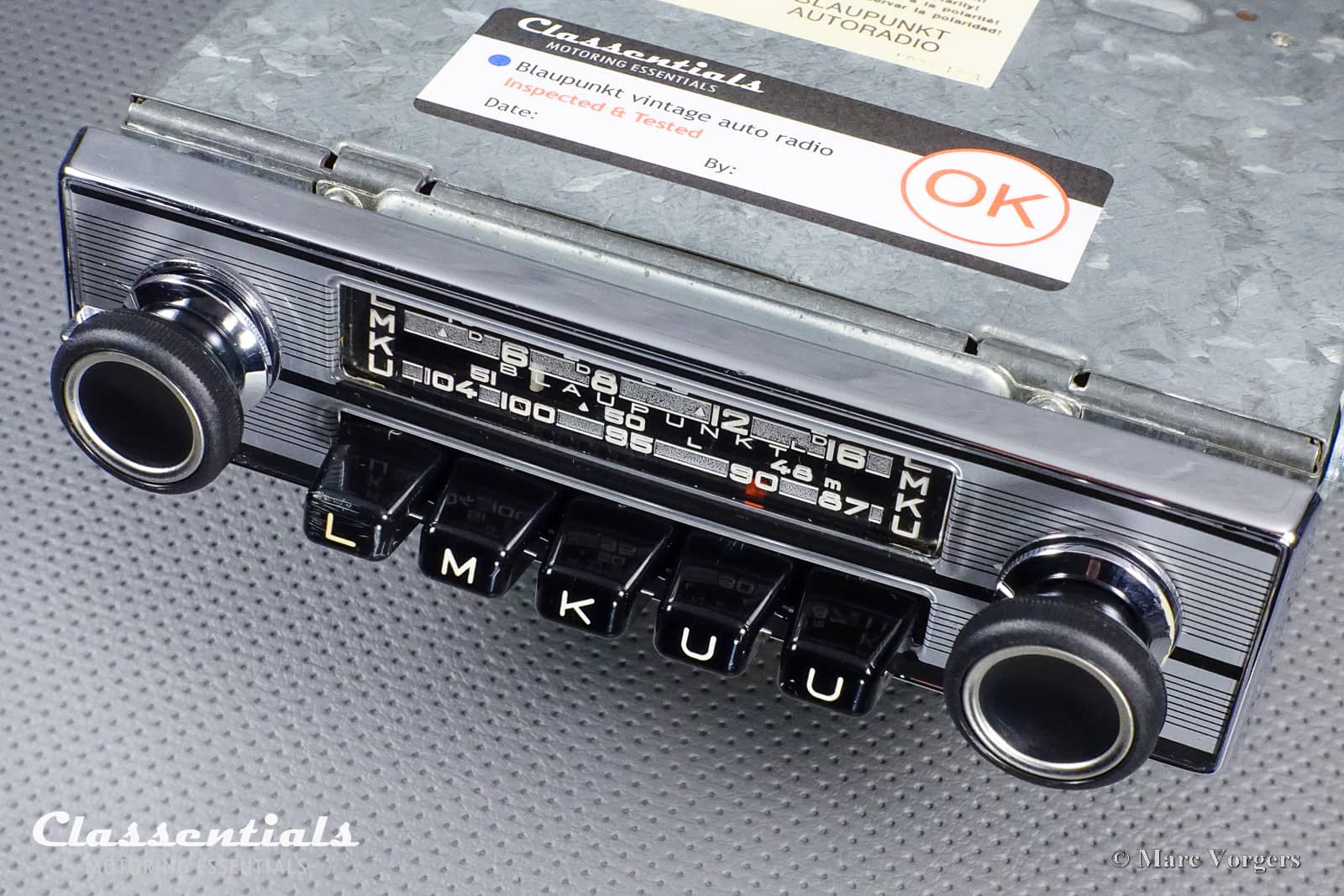

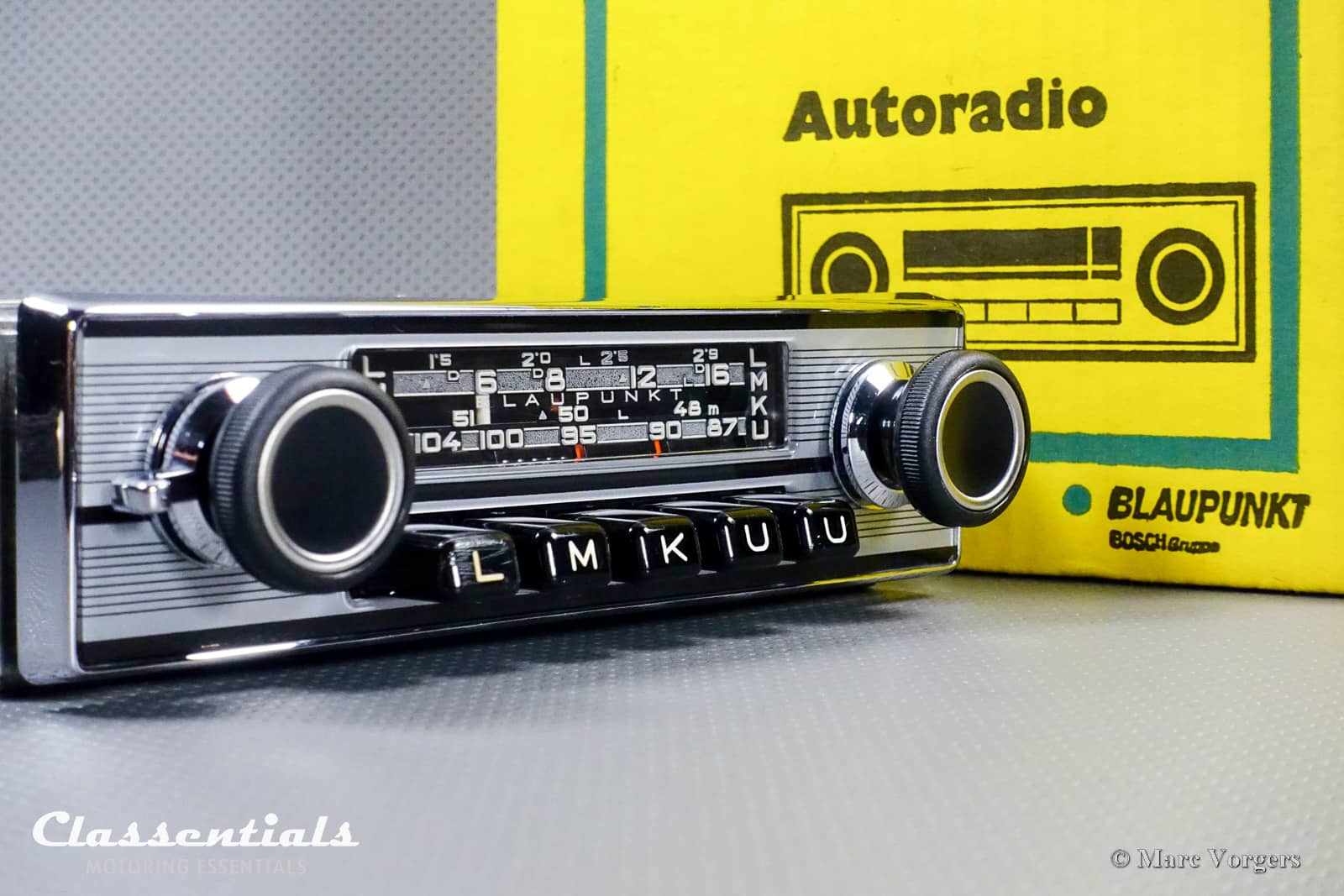

Face-plate: Metal chrome faceplate (size 180 x 49 mm / 7,1 x 1,9 inch) with plastic ‘pin-stripe’ front and luxury knobs for universal use in luxury cars of the 1960s like the Jaguar Mk II, Rover P5B, Jaguar E-type Series 2, Aston Martin DB 6 / DBS, Alfa Romeo Giulia, Lancia Flavia and many others. The radio fits the old style dashboard radio aperture of 95 x 42 mm (3,75 x 1,75 inch) with two 11 mm (0,55 inch) radio shaft holes at 130 mm (5,15 inch) horizontal distance.
On-board voltage: 6V or 12V (switch), Negative or Positive earth / ground. Please specifiy the settings for your car with your purchase. We will adjust the settings before sealing and shipping the radio.
Output power: 5 Watt
Impedance: 4 Ohm

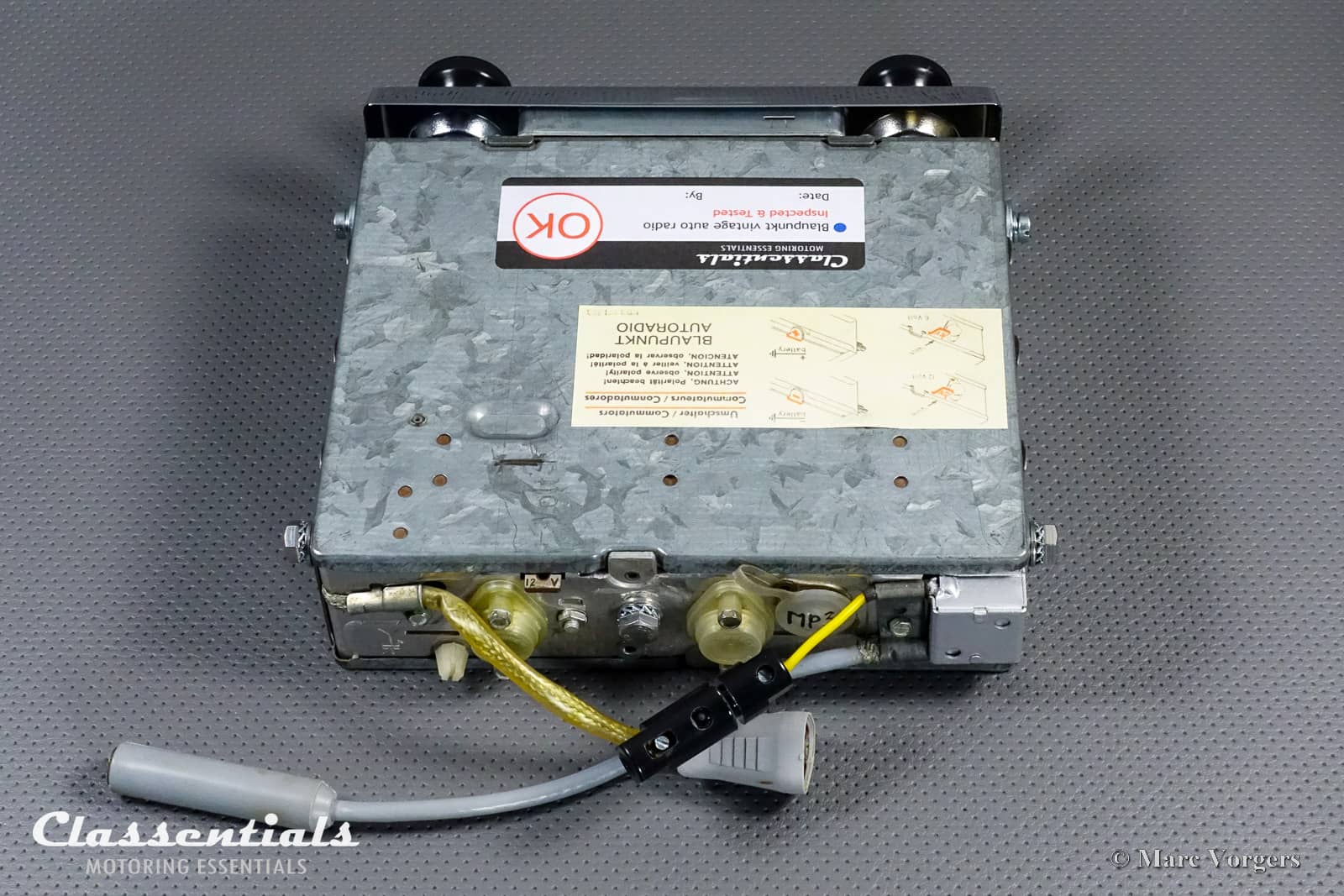

Rendition: Mono, one (4 Ohm) speaker via speaker socket “I”. Two 4 Ohm speakers connected parallel + to + and – to -, to make 2 Ohm for the speaker socket marked with “II”.
Wave Range: long wave, medium wave, short wave, UKW (FM)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: station pre-set buttons, tone control, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module (12 Volt negative ground only).
Design type: Transistor radio
Year of build: 1968

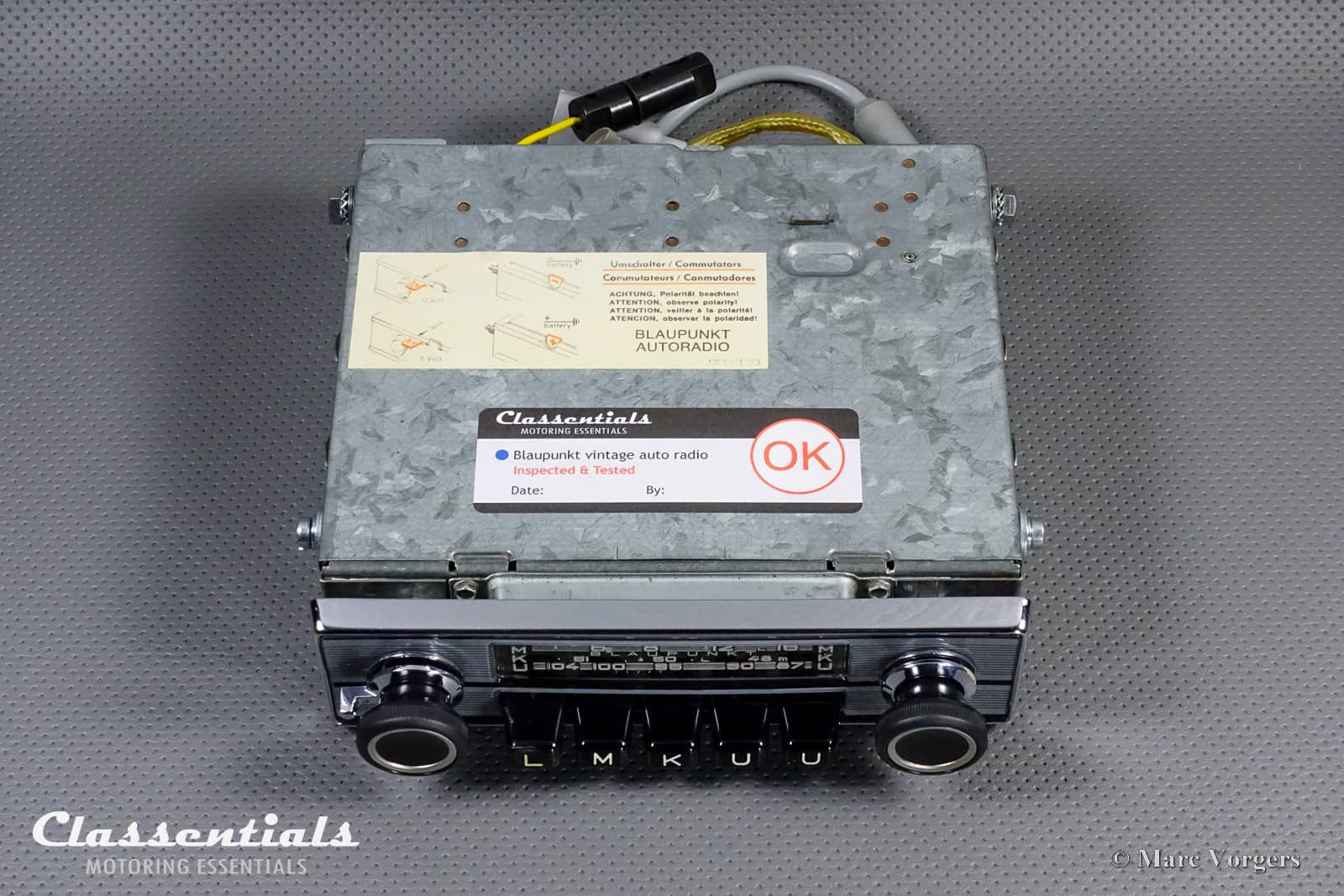

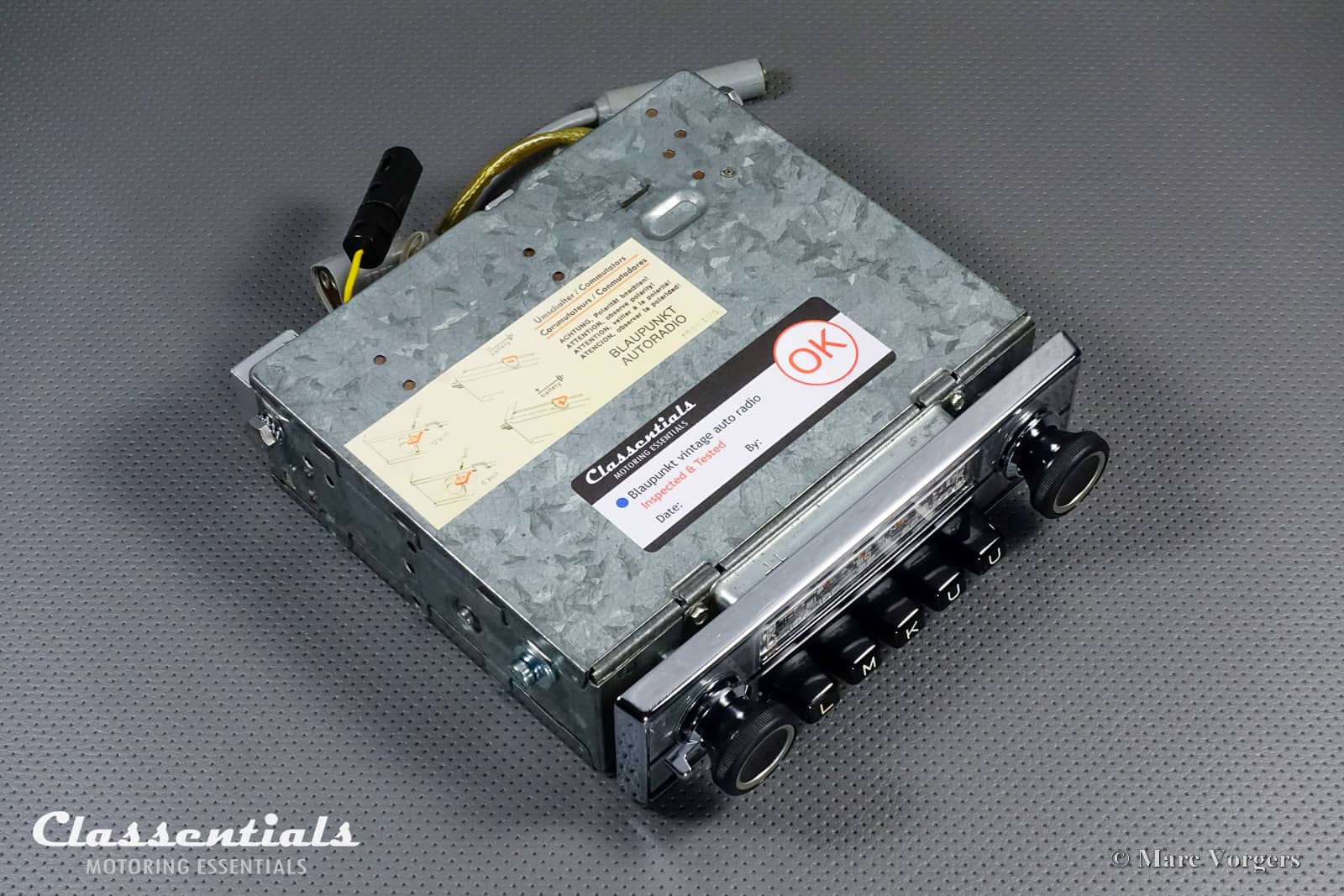

Dimensions unit (width x height x depth): 180 x 51 x 167 mm / 7,15 x 2 x 6,6 Inch
Dimensions face-plate (width x height): 180 x 49 mm (7,1 x 1,9 inch)
Weight (kg): 1.9

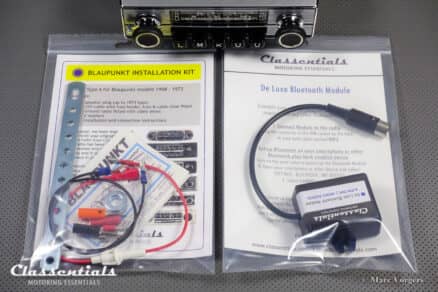

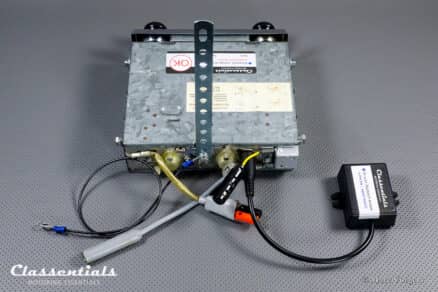

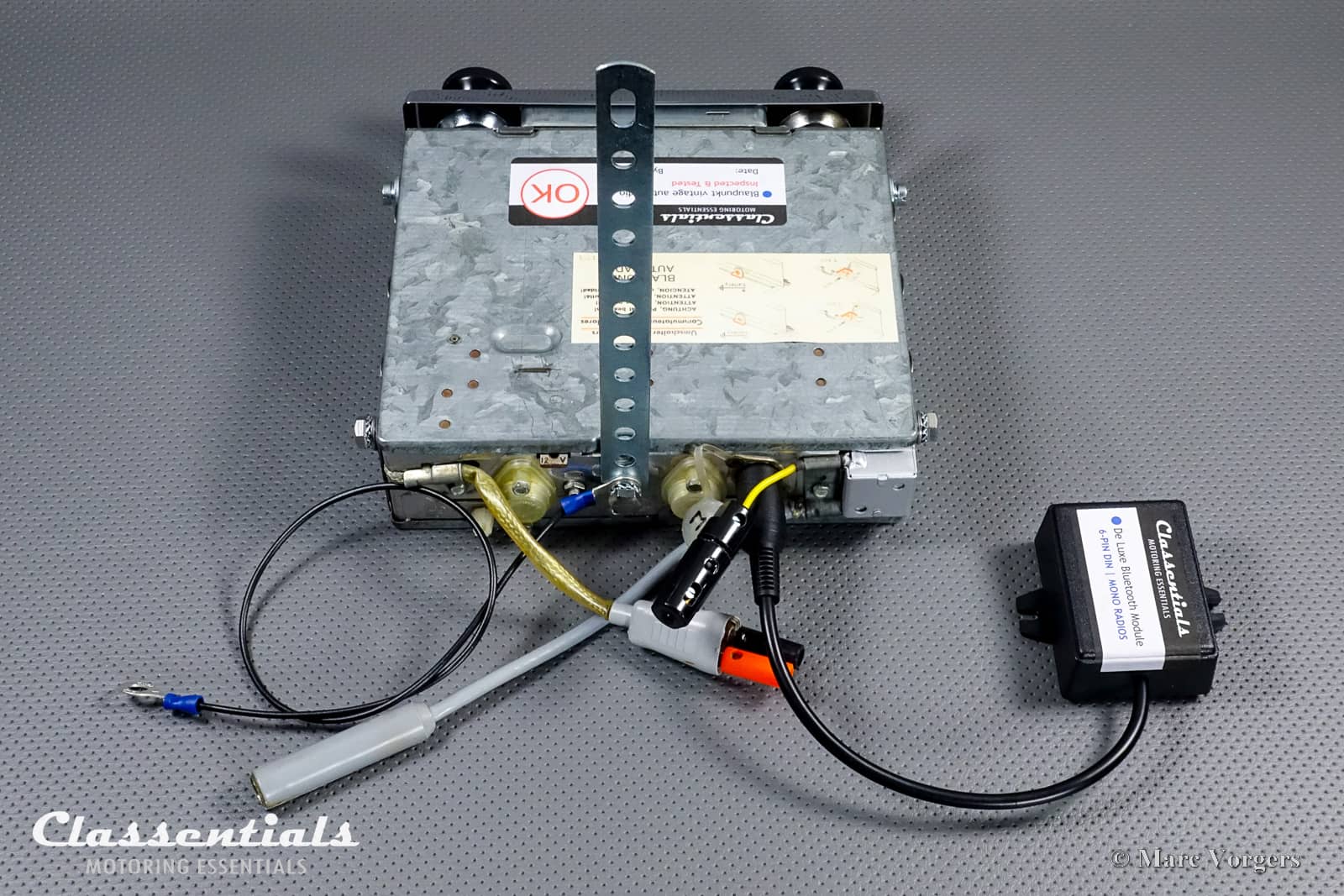

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, fuse, earth cable, extra M10 mounting rings and a metal strip with 6 mm holes to form a rear radio support bracket if not present in your car. For Mercedes-Benz cars we supply a special original bracket with rubber clamp.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 6V or 12V power lead (negative or positive ground – so it will fit all cars of the period) , analog telescopic antenna, standard (dashboard speaker) with wiring.
Tools needed: wrench number 14 and 8, cable shoe pliers. Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.
*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
