Description

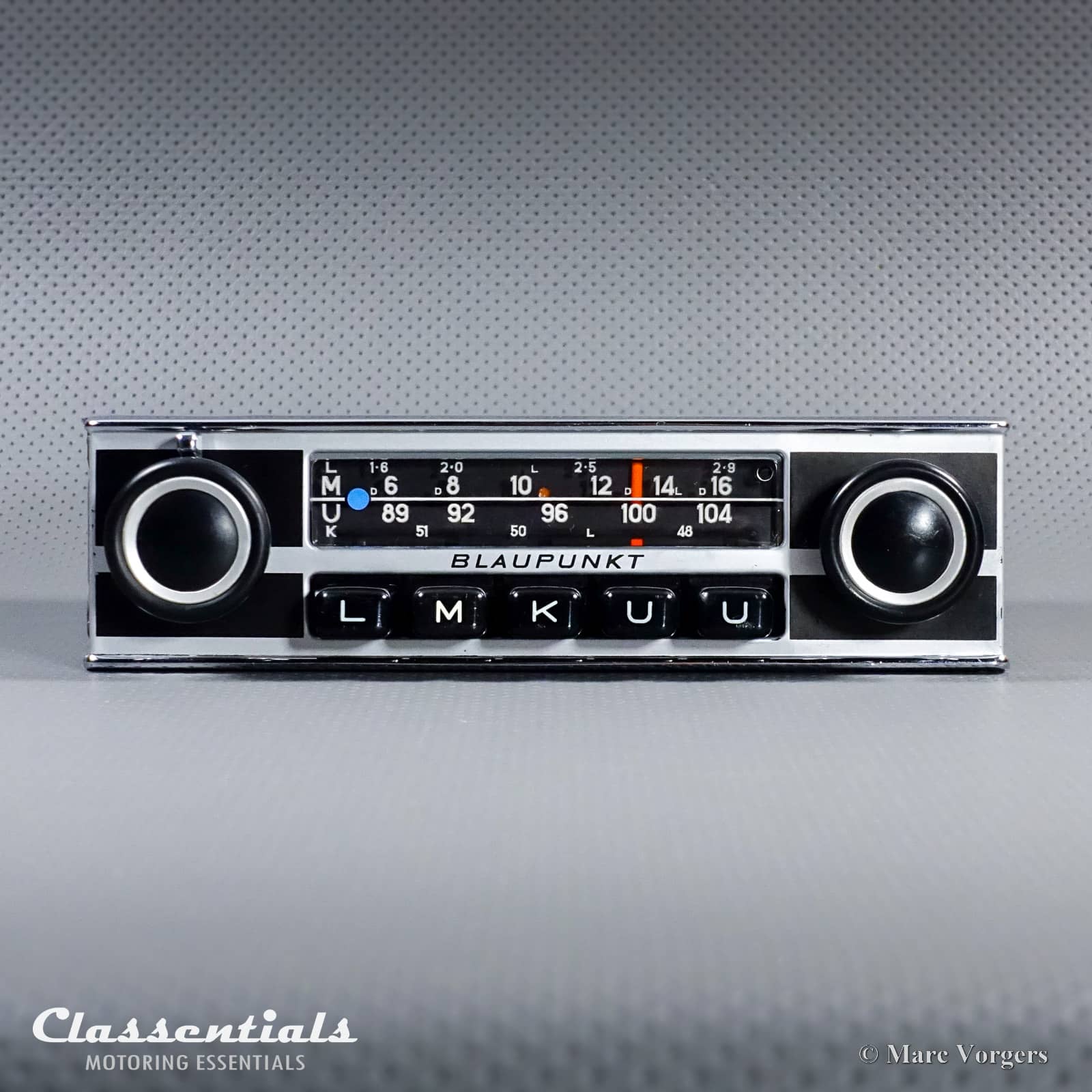

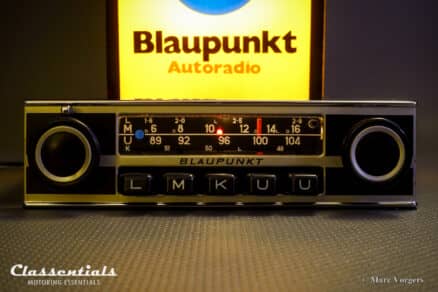

Make and Model: Blaupunkt Frankfurt (Type 7632)
Classic Car era: 1970 – 1976

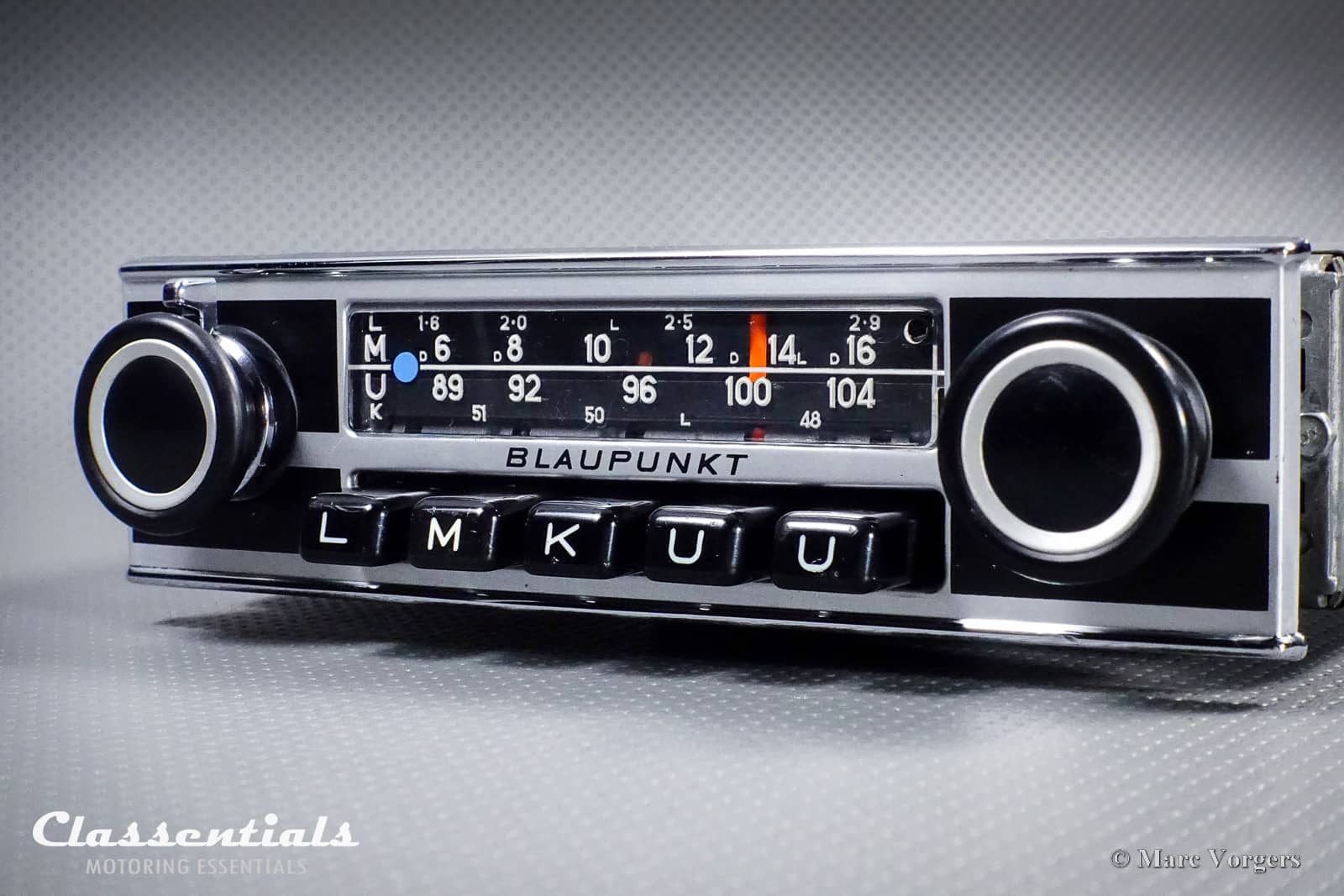

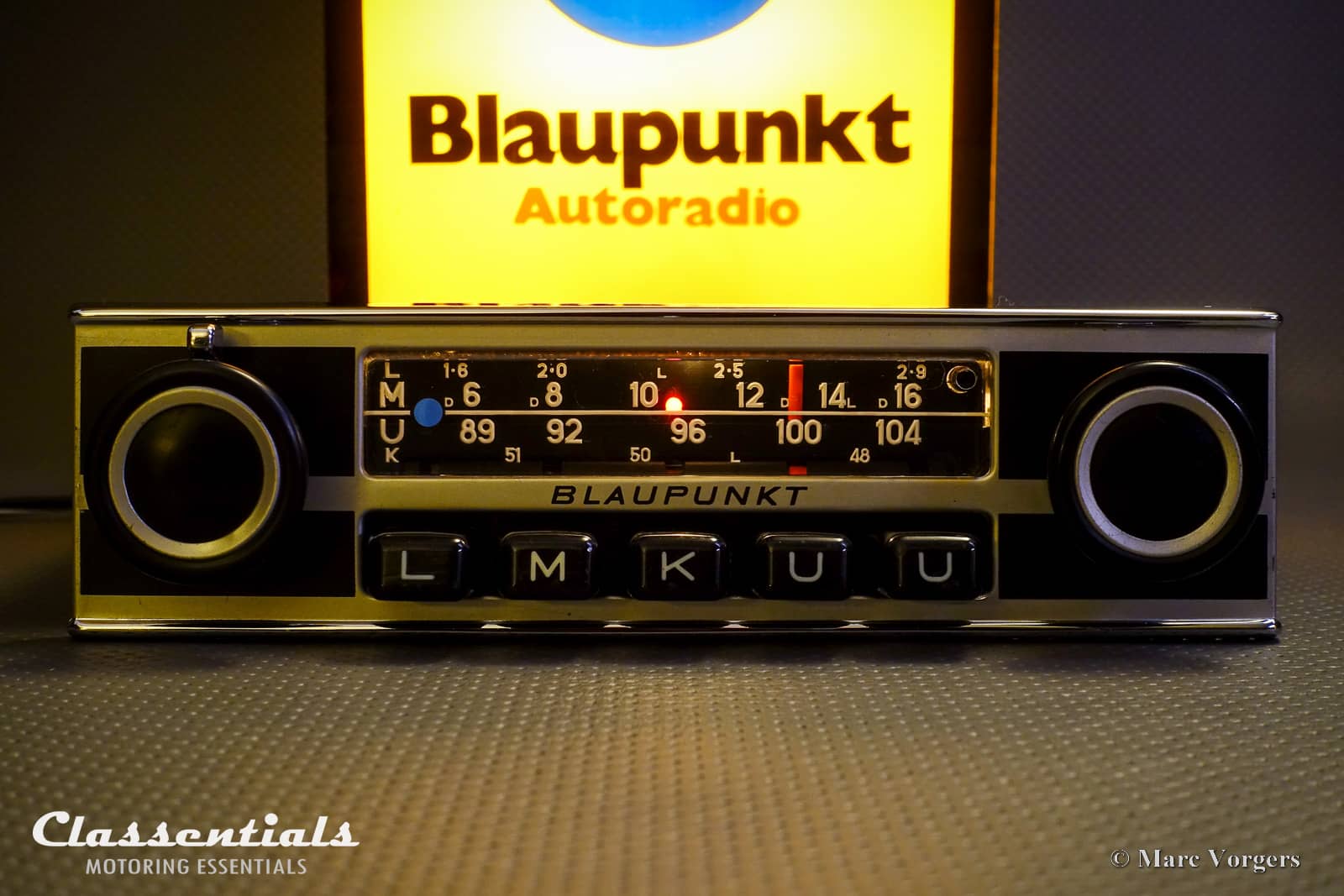

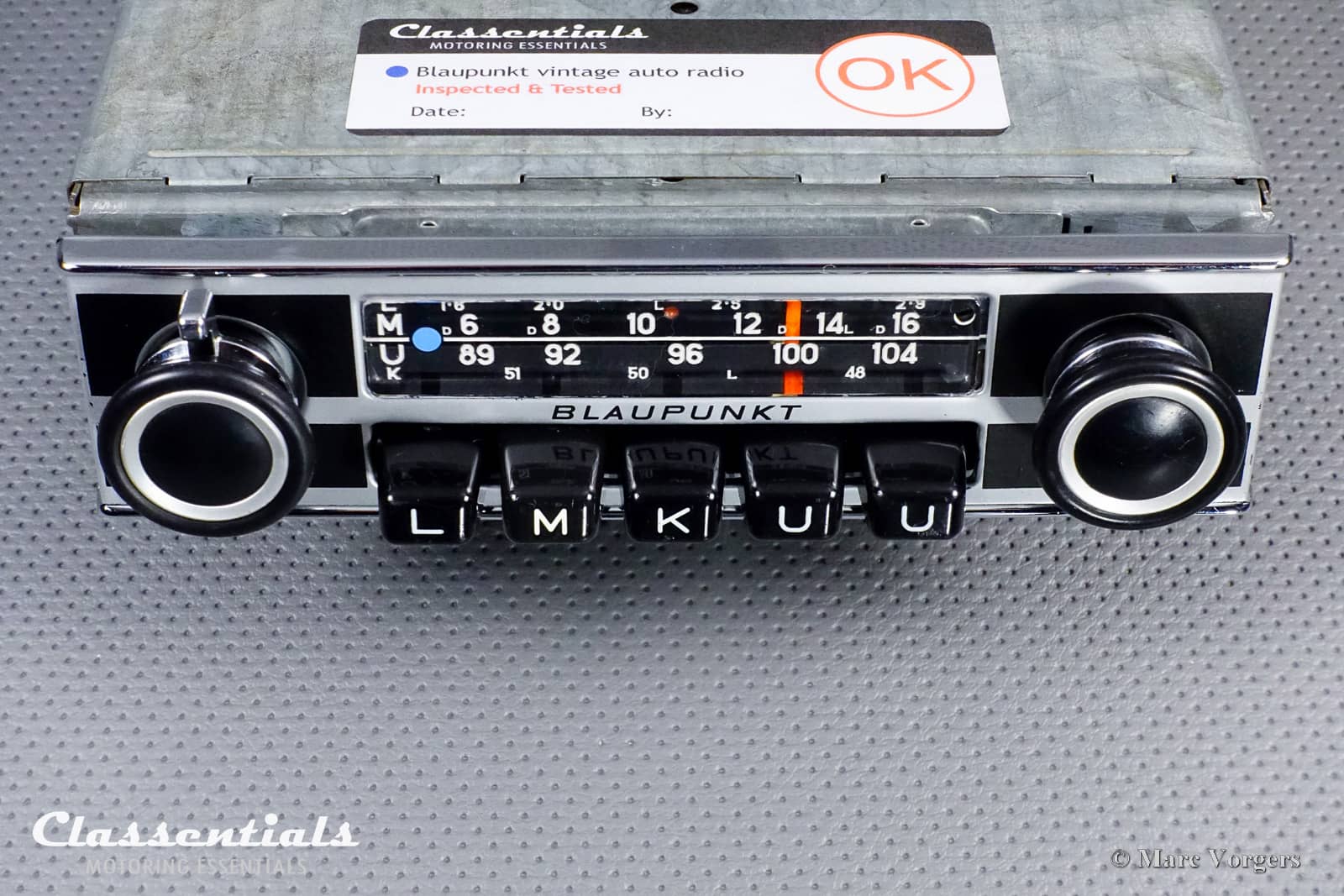

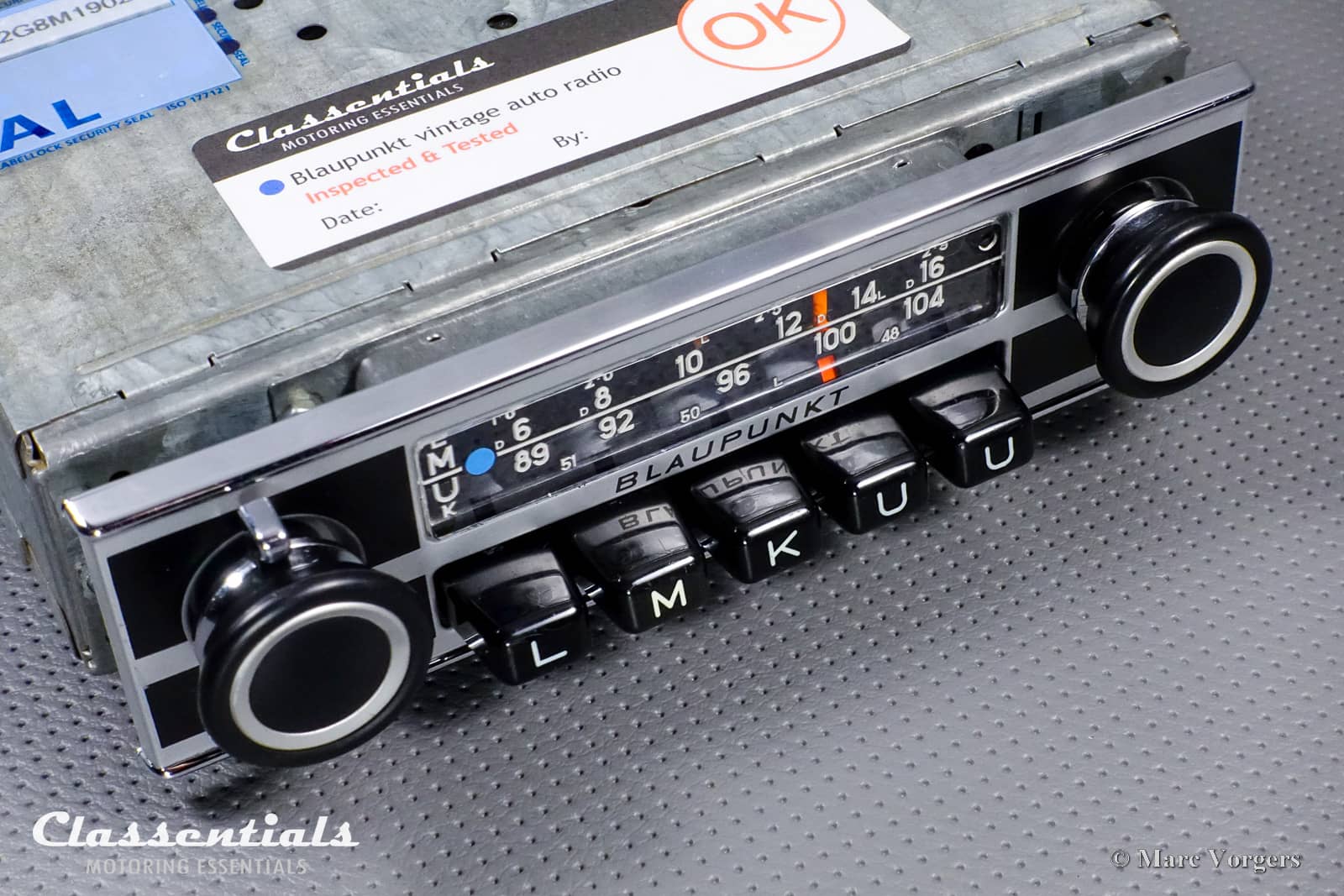

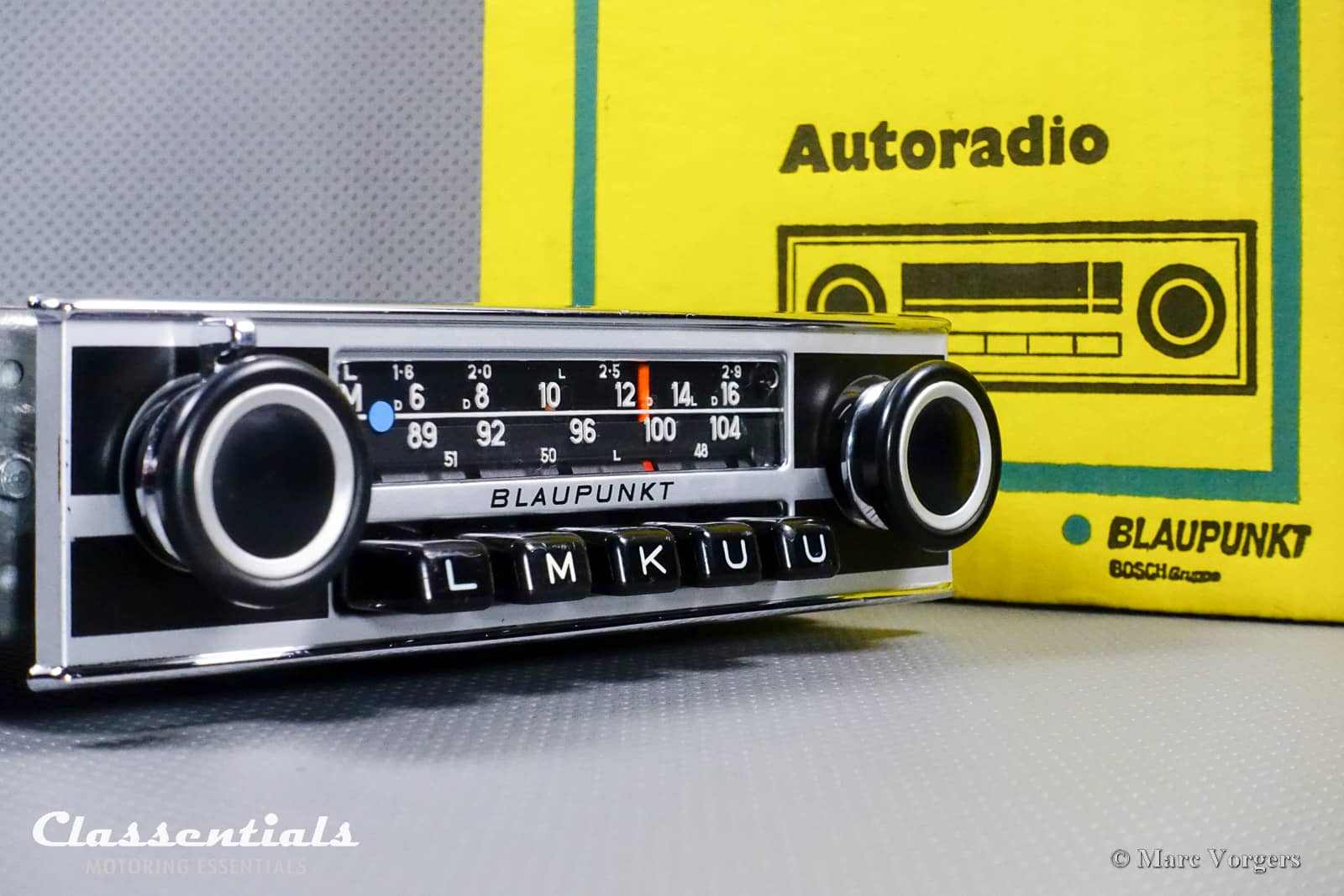

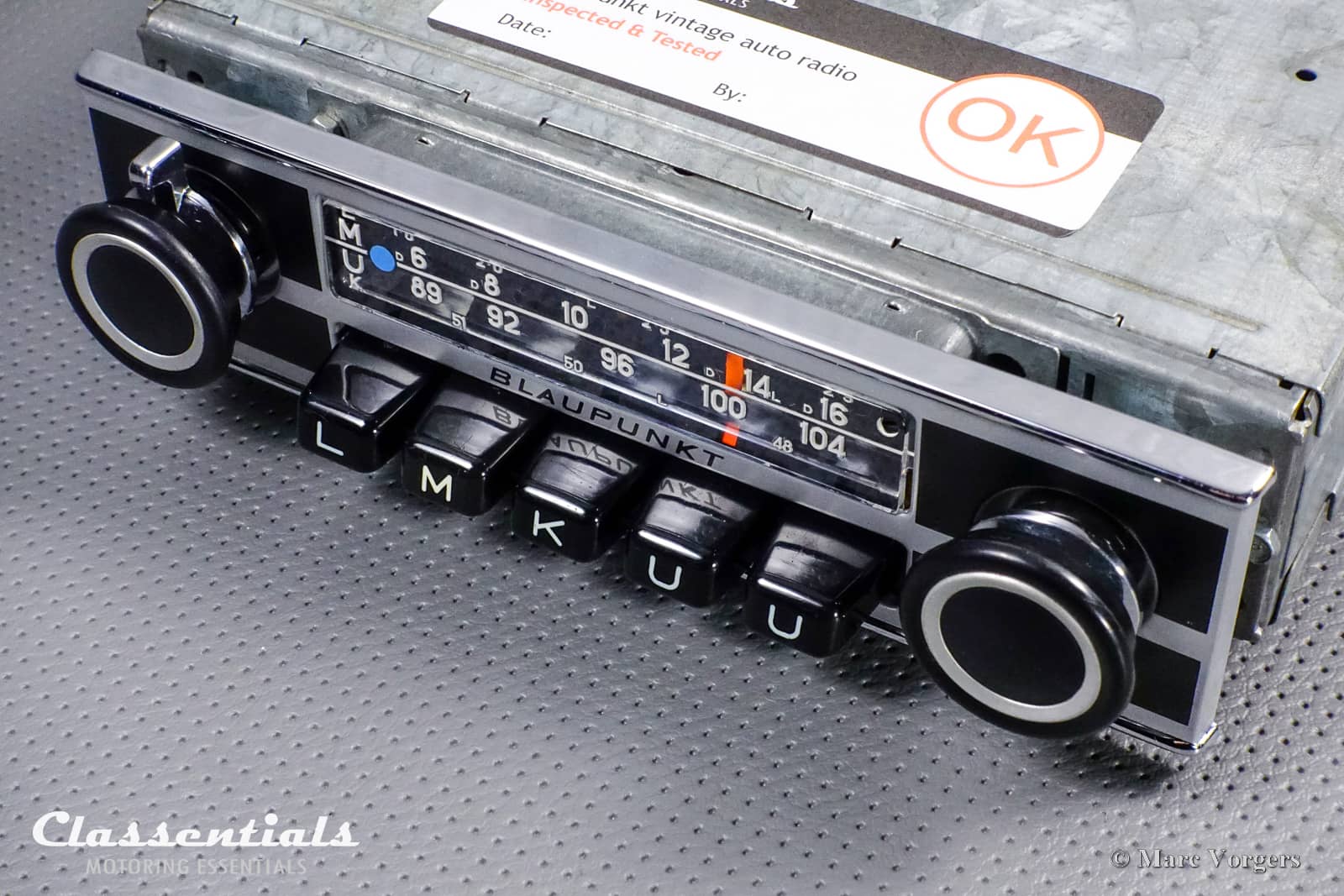

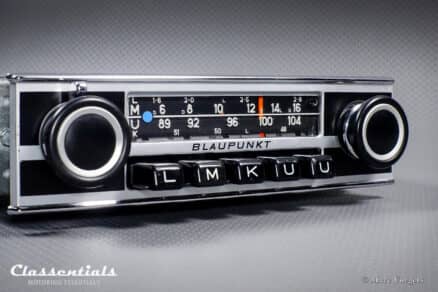

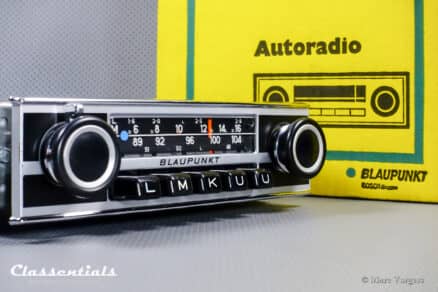

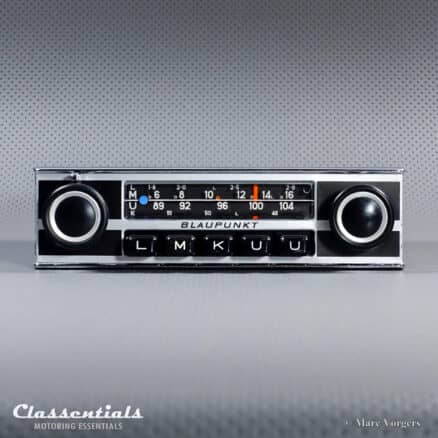

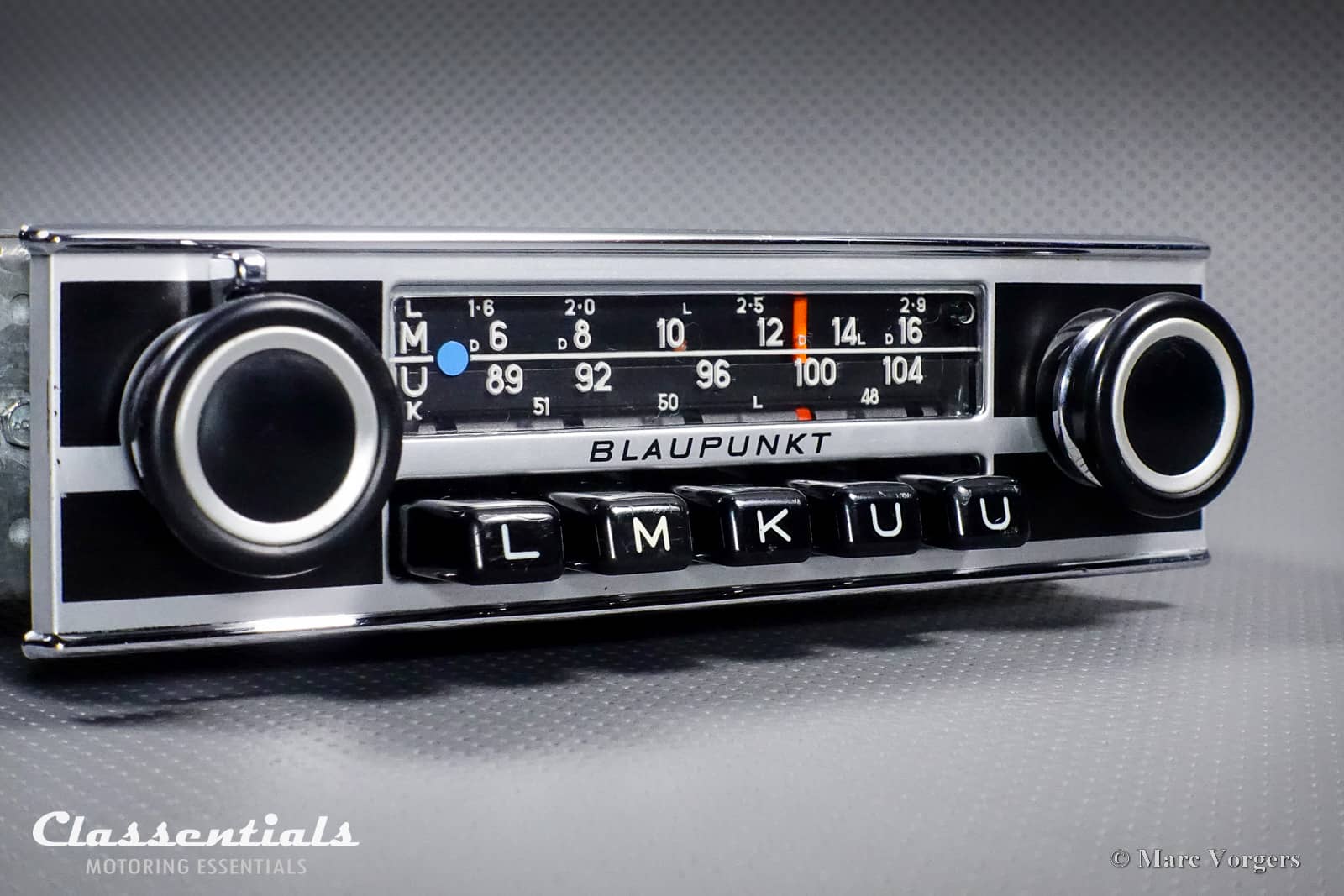

Face-plate: Universal Blaupunkt for European cars. Metal chrome faceplate with silver black finish. Chrome tone levers and Blaupunkt luxury knobs. In period fitted to Alfa Romeo Giulia TI, GT, Junior, 1750 GTV, Berlina, GTV 2000, Fiat 124, Lancia Fulvia and other cars.
On-board voltage: 12V, Negative earth / ground only
Output power: 5 Watt nominal / 7 Watt music
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: long wave, medium wave, short wave, UKW (FM)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: station pre-set buttons, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio
Year of build: 1972
Dimensions unit (width x height x depth in mm): 178 x 44 x 125 / 7 x 1,7 x 4,9 inch (depth = radio back to back of face-plate).
Dimensions face-plate (width x height in mm): 174 x 46 / 6,8 x 1,8 inch.
Weight (kg): 1.4

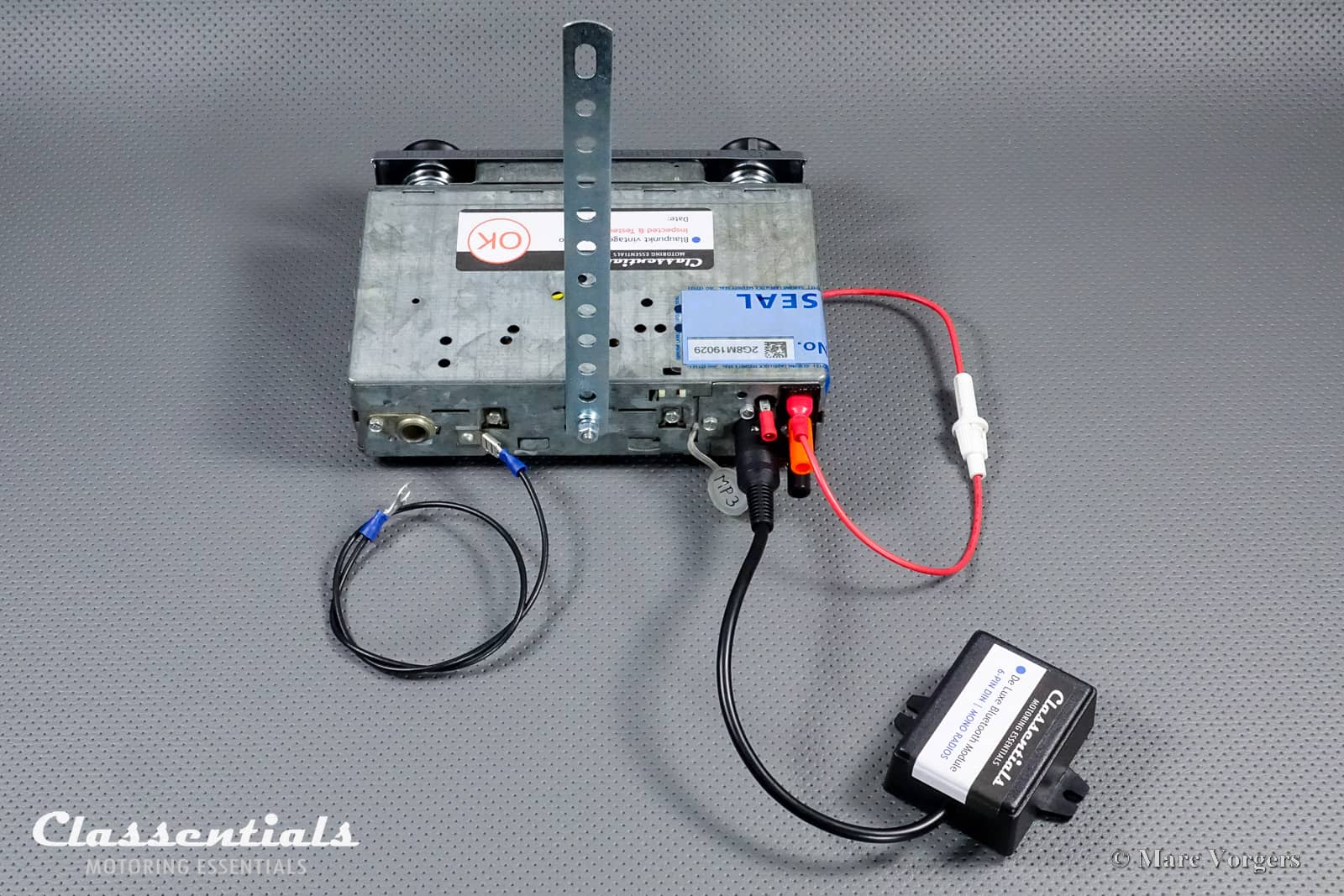

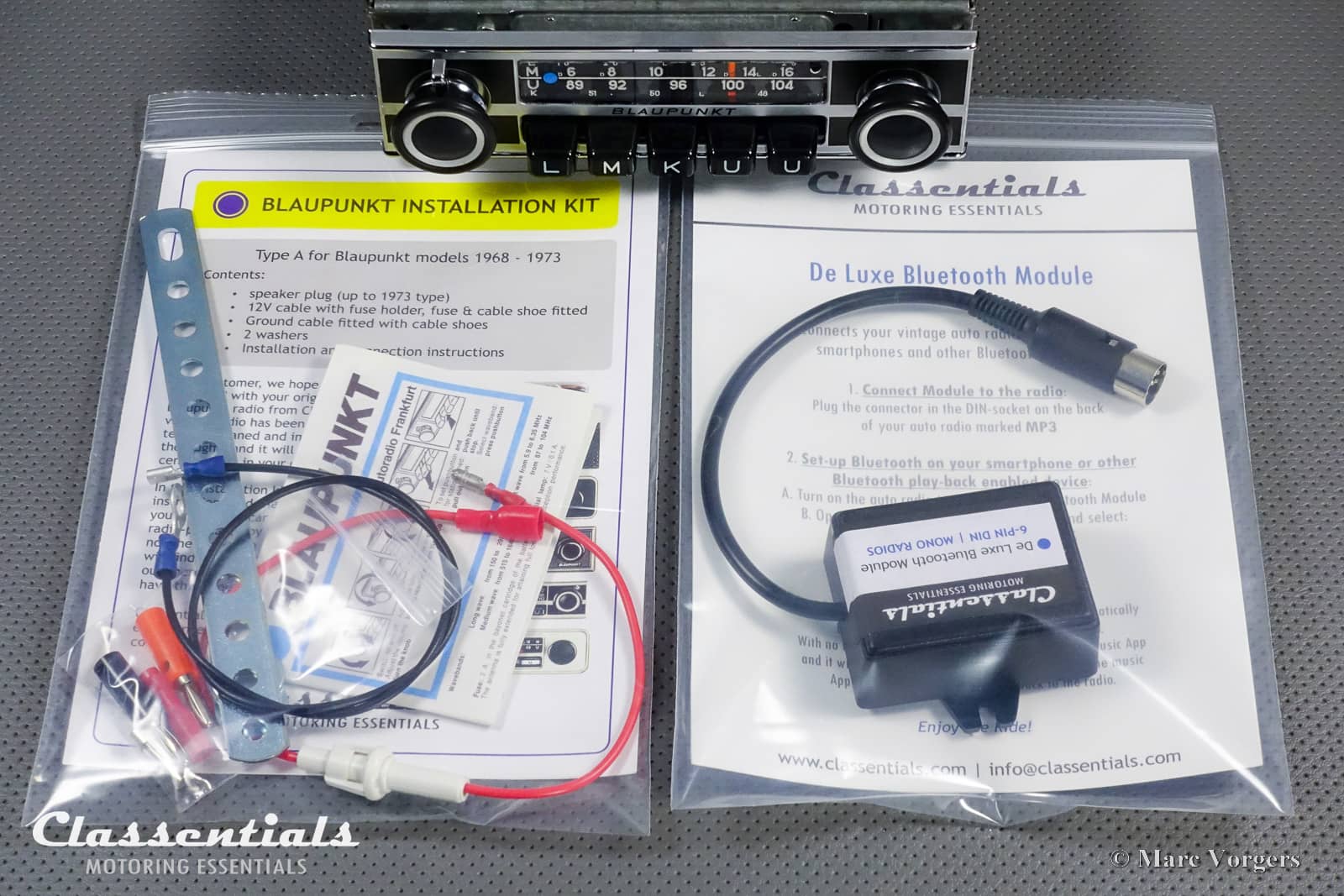

Extra in packaging: Classentials Installation Kit 1 with installation instructions, 12v lead with fuse, spare fuse, old style speaker plugs, earth / ground cable, extra M10 mounting rings and a rear mounting support (holed metal strip), see pictures.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

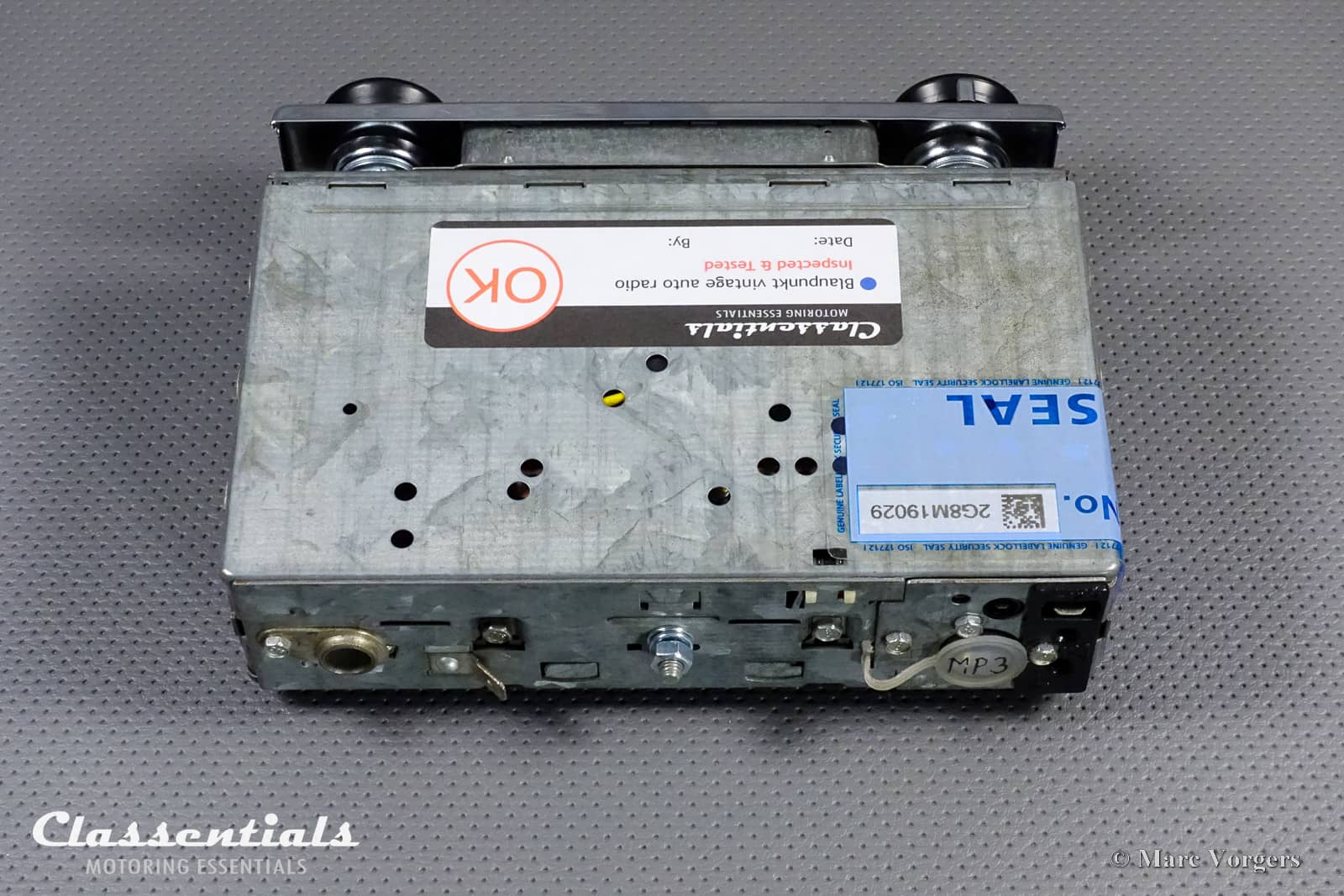

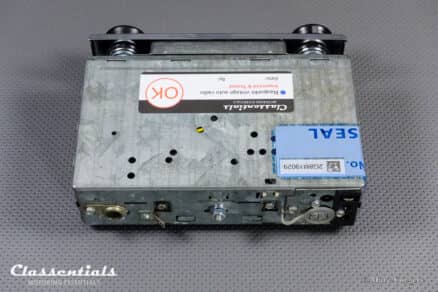

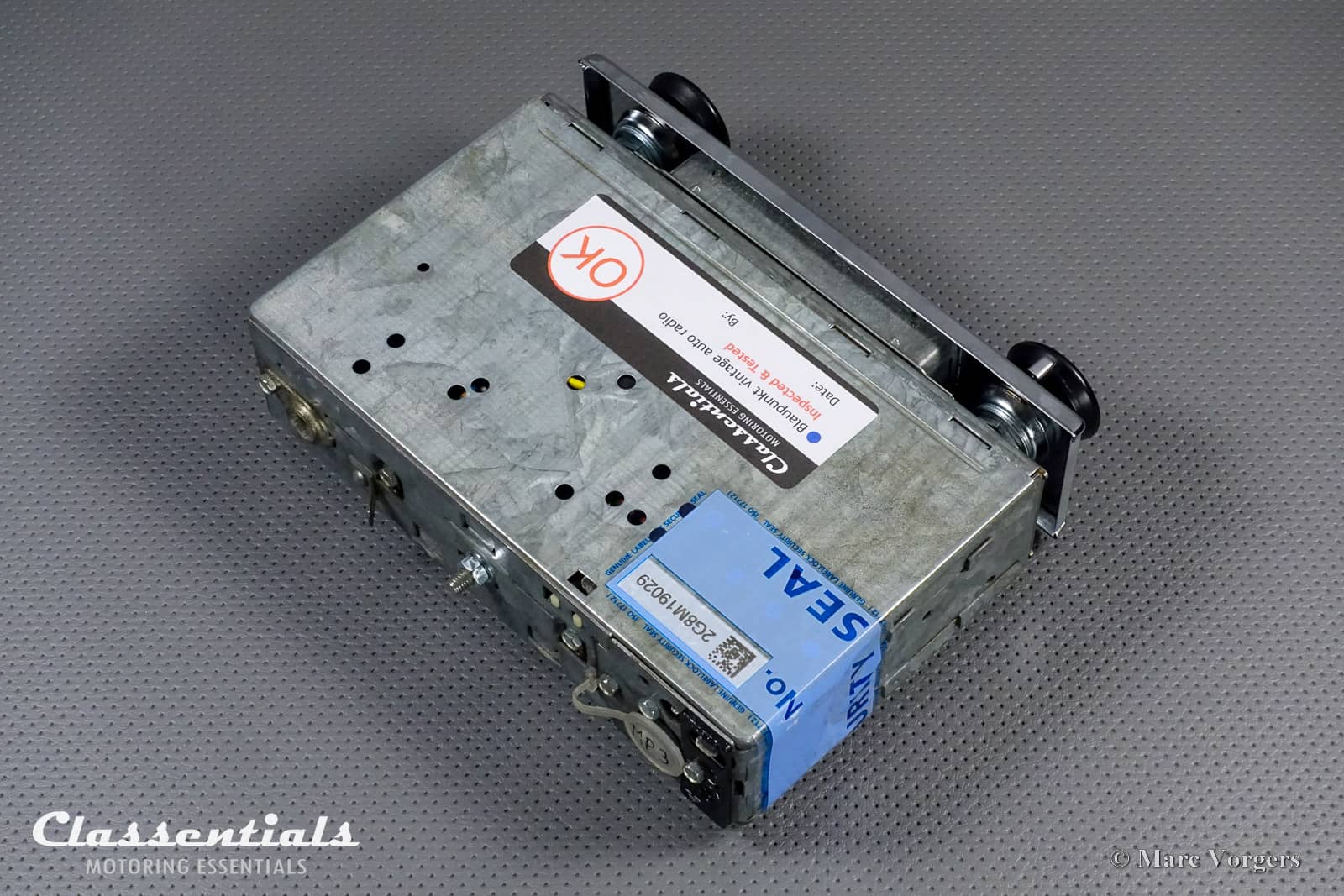

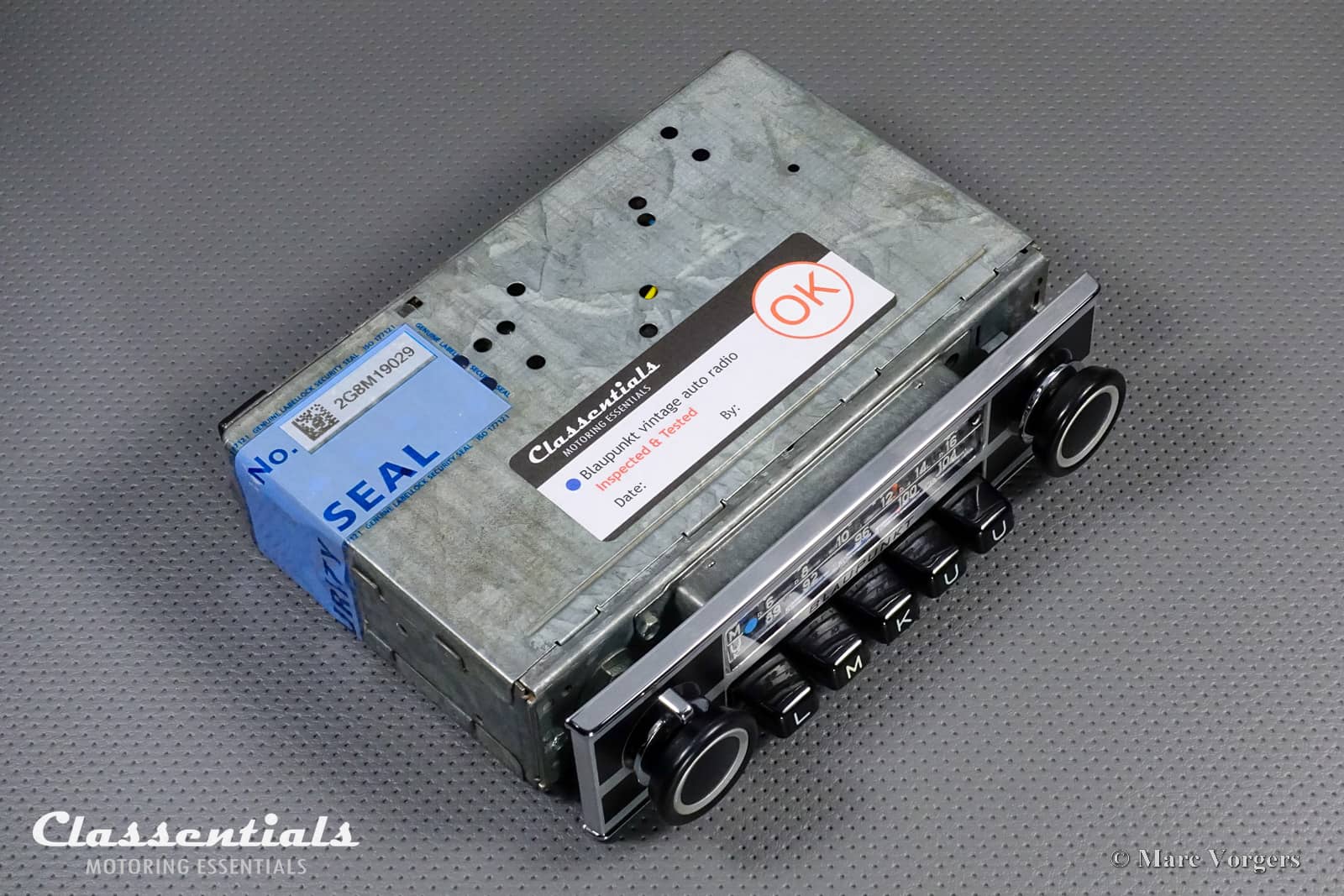

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
