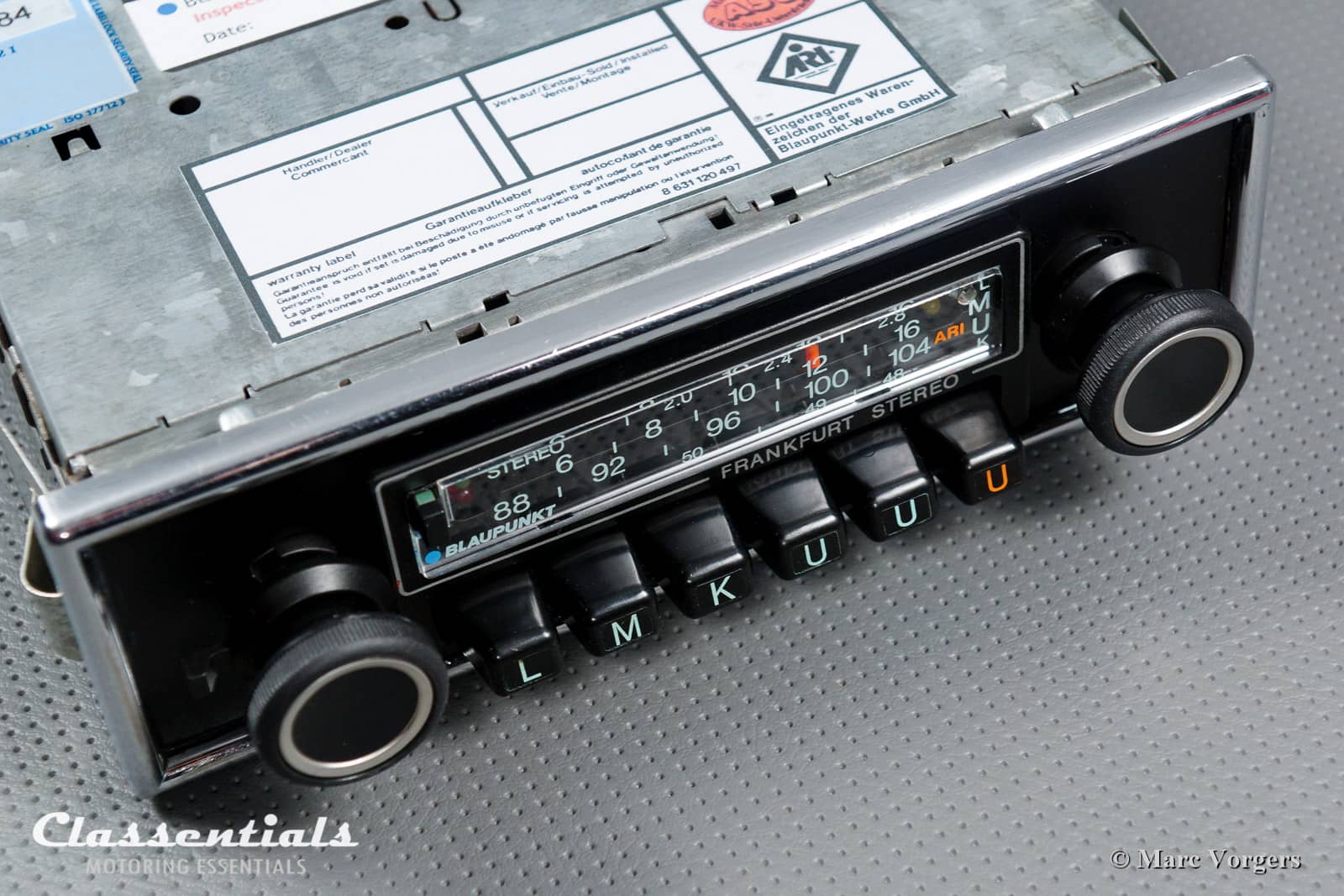

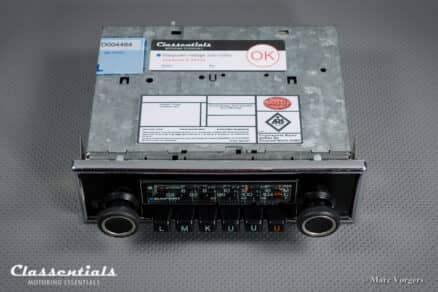

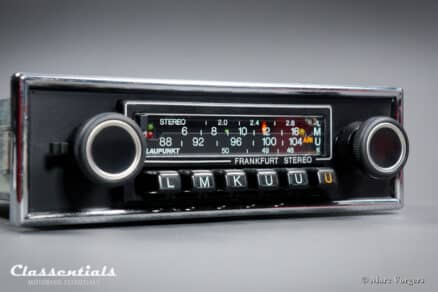

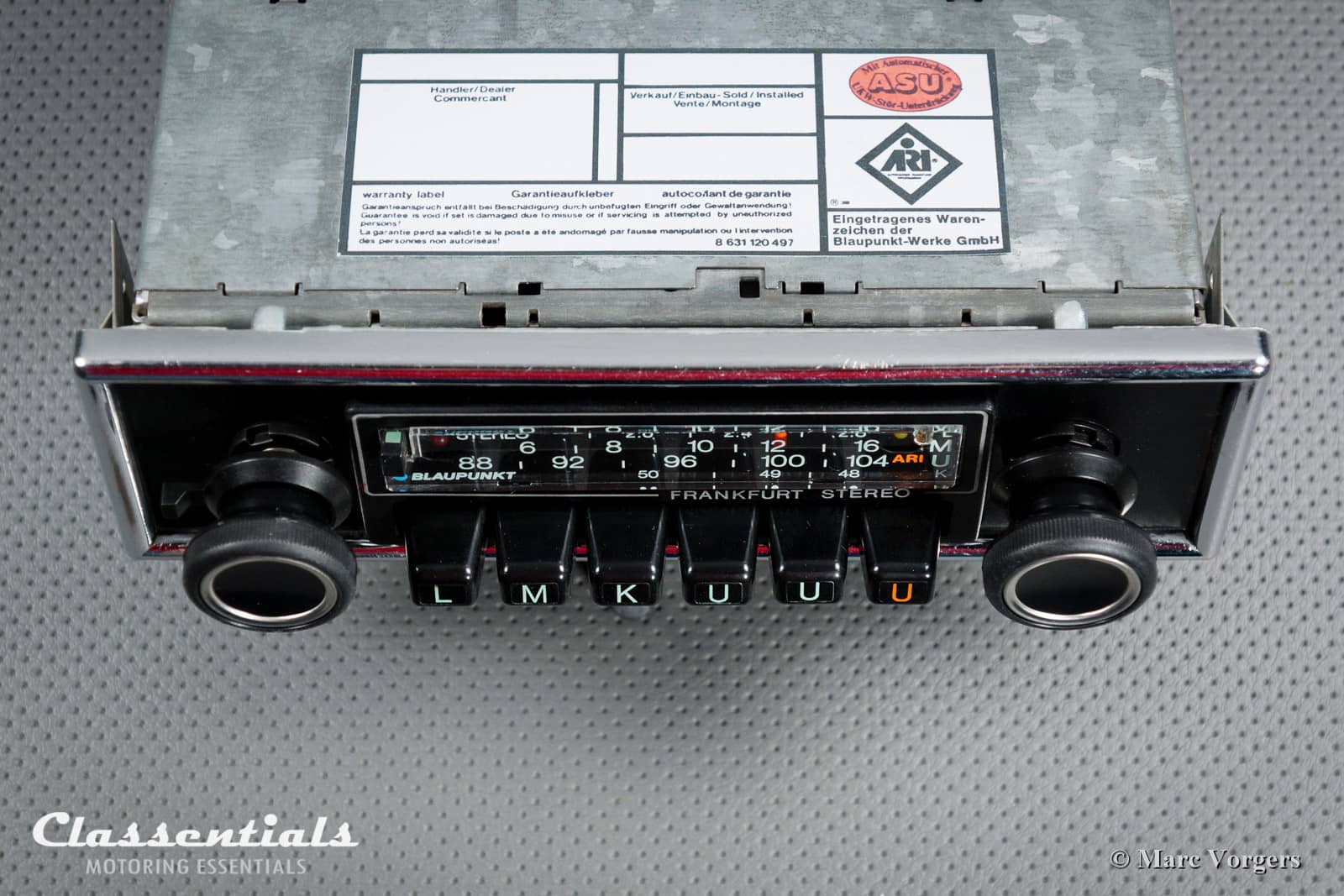

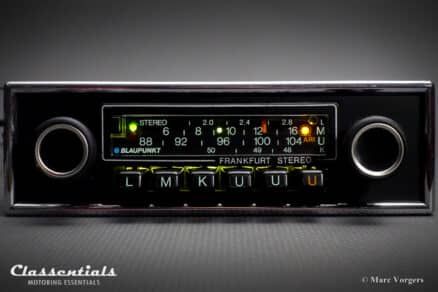

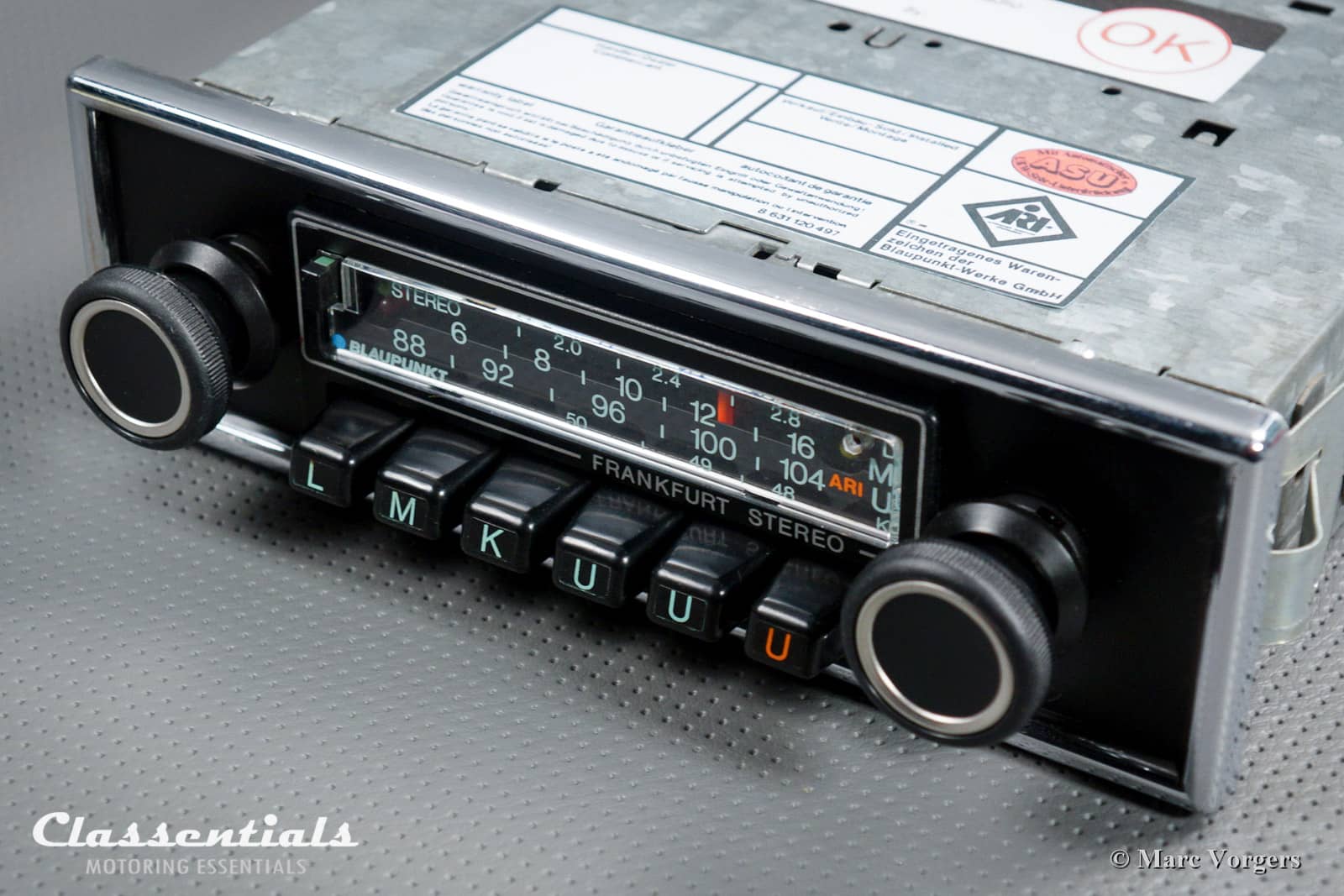

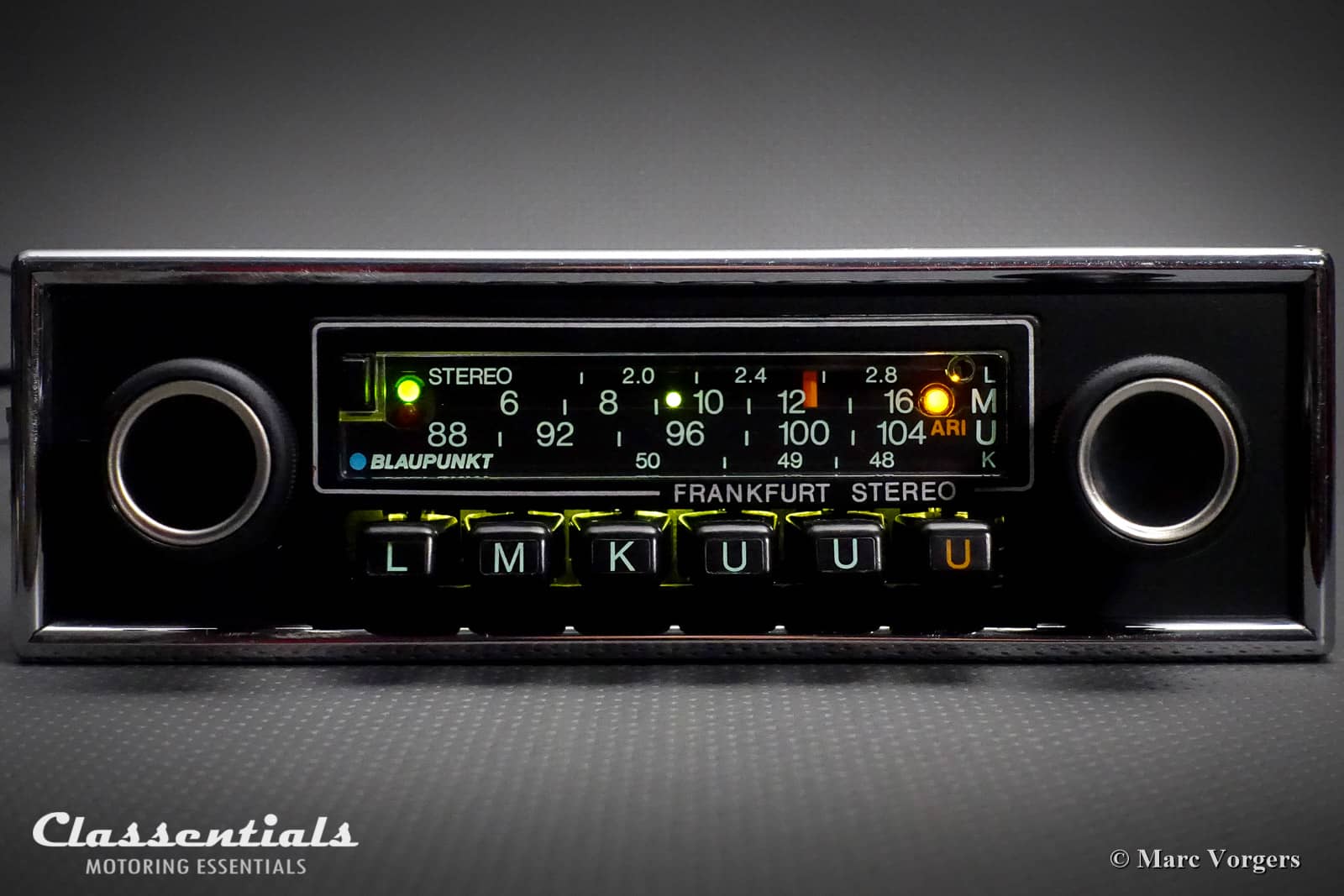

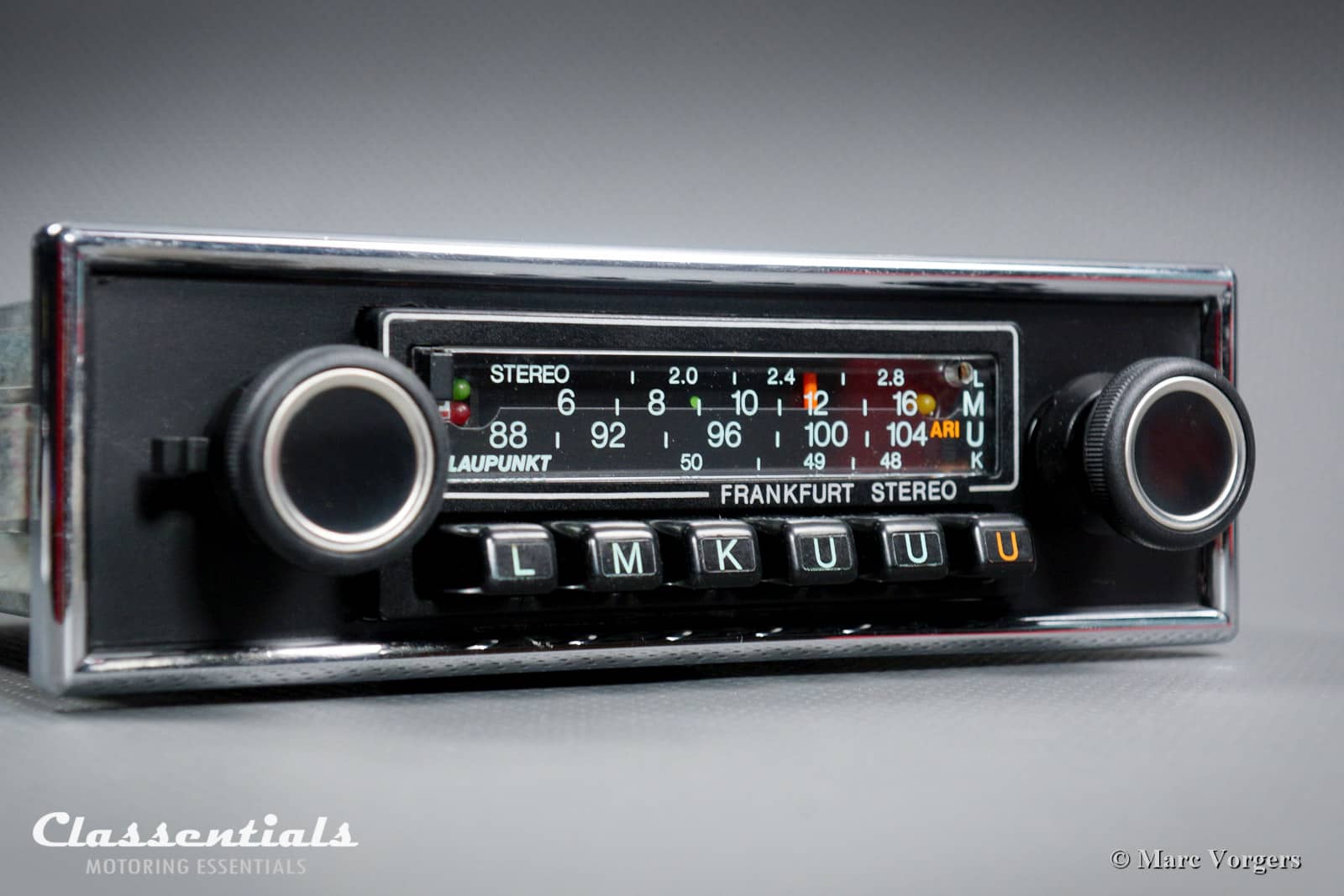

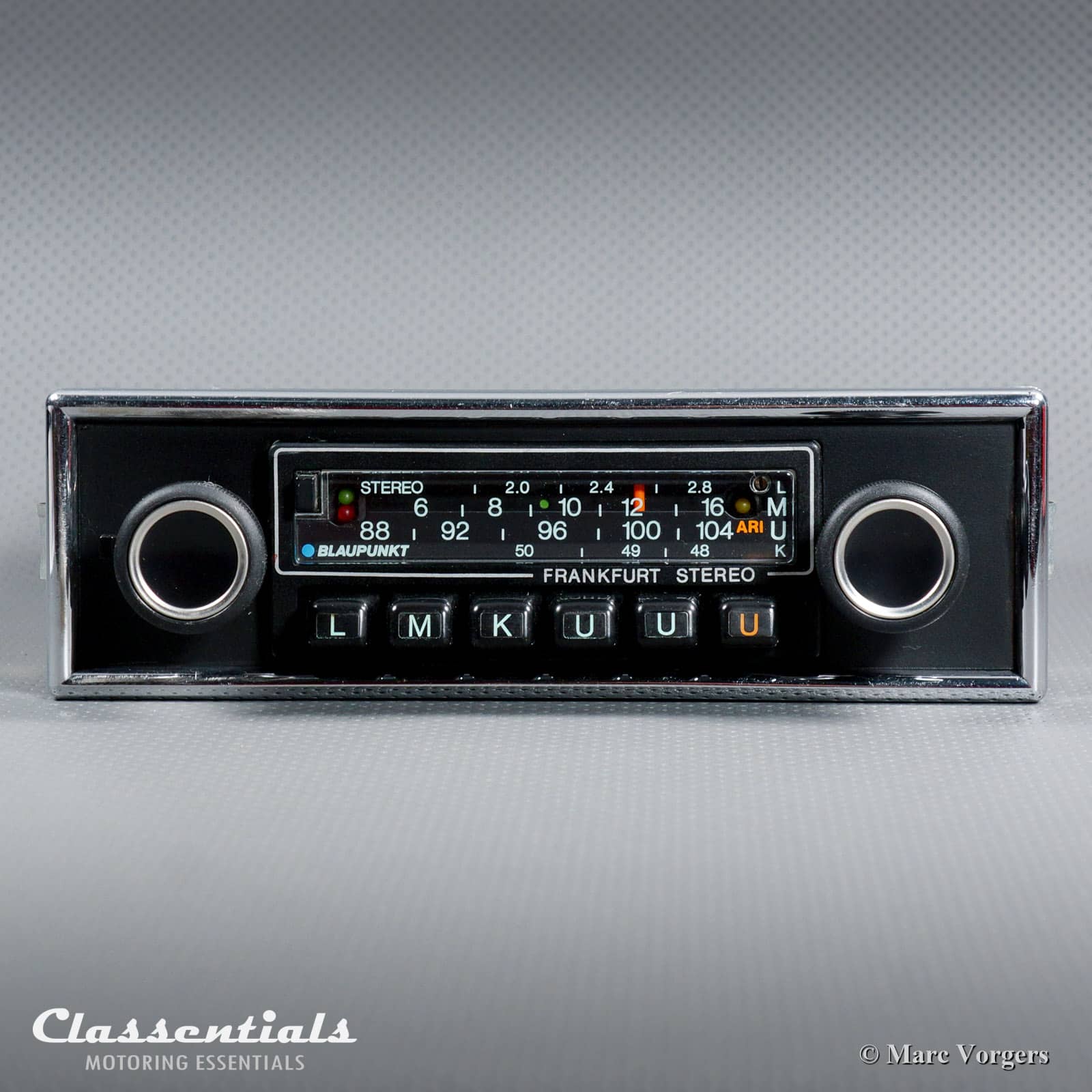

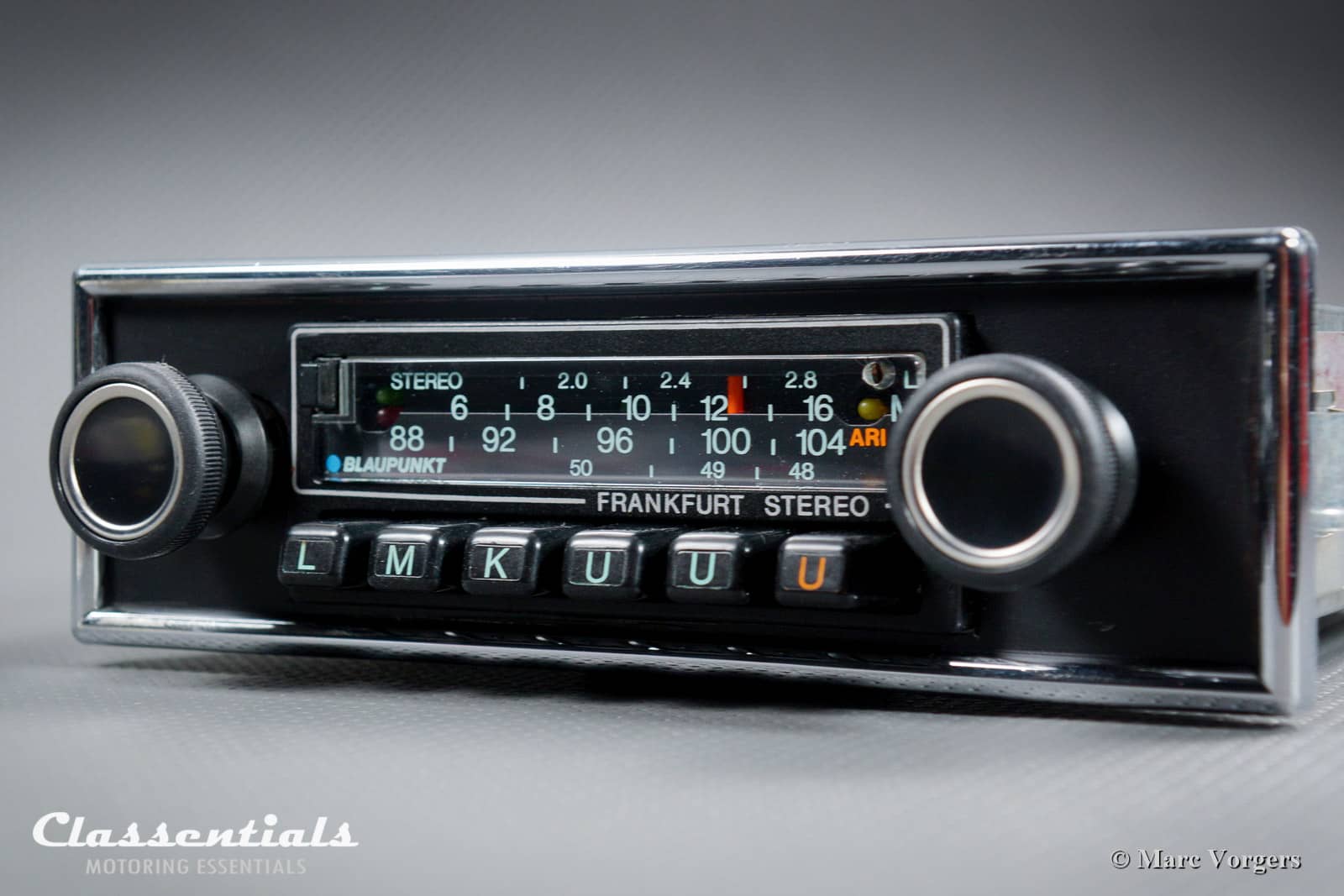

Make and Model: Blaupunkt Frankfurt STEREO Super Arimat 18 Watt (Type 7638)
Classic Car era: 1975 – 1985
Face-plate: Original blaupunkt black plastic with chrome bezel for universal use in all 1975 – 1985 cars with standard 1-DIN radio aperture (180 x 50 mm / 7,1 x 1,95 Inch) Fitted with the correct luxury Blaupunkt knobs with chrome rings. This luxury setup is very suitable for BMW, Mercedes, alfa Romeo, Jaguar, Rolls Royce, and other cars of the period.
On-board voltage: 12V, negative earth / ground only
Output power: 2 x 9 Watt music
Impedance: 4 Ohm
Rendition: STEREO, 2 (4 Ohm) speakers. NOTE: If you want to connect four speakers then you have to use two 8 Ohm speakers per channel. Connected parallel + to + and – to -, this makes 4 Ohm per channel. This is important otherwise you will damage the internal amplifier.
Wave Range: long wave, medium wave, short wave, UKW (FM)
Frequency range UKW (FM): 88MHz-104MHz

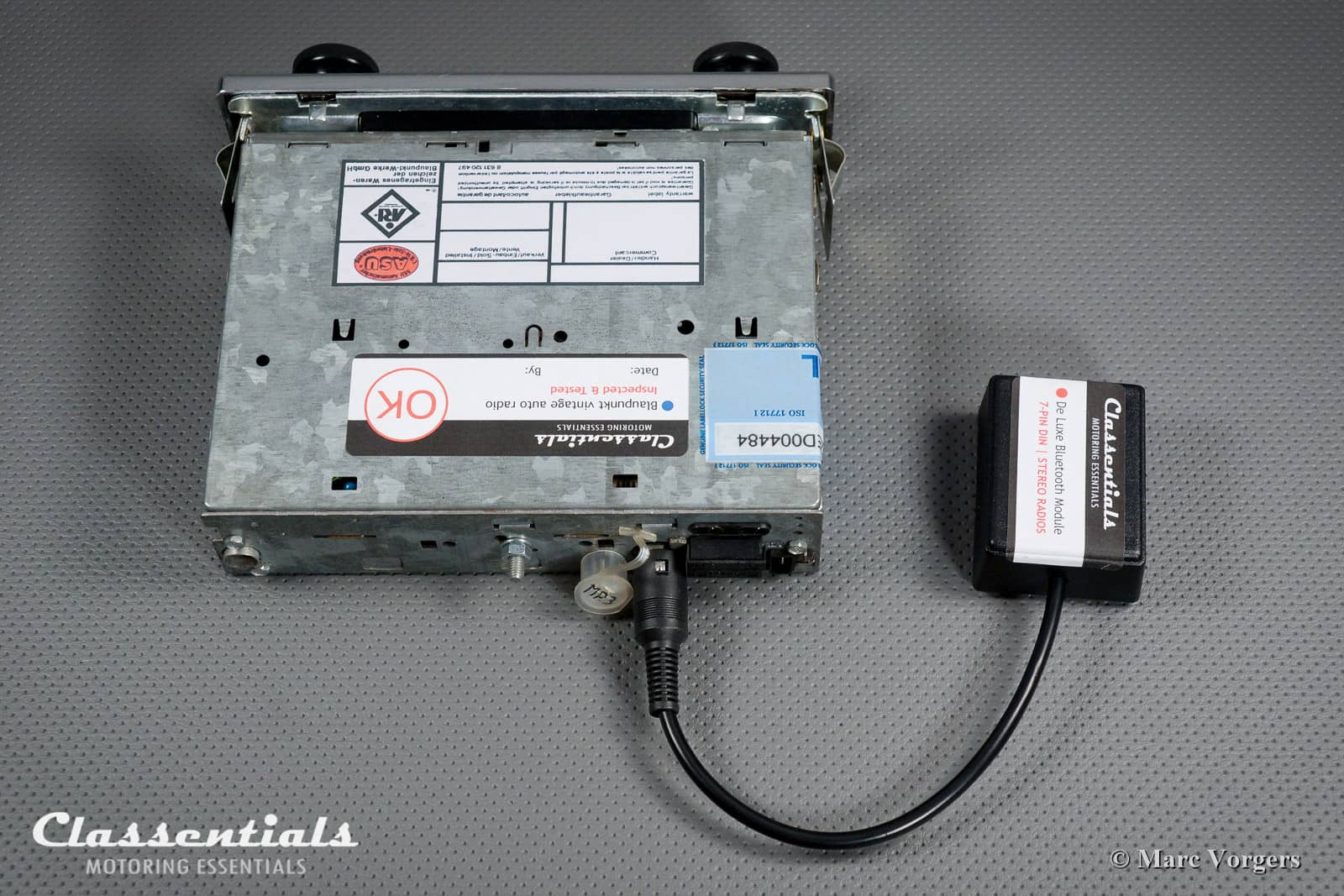

Equipment: Tone adjustment, six station pre-set buttons, mono-stereo selection and ARI (Traffic system, discontinued in 2005). 7-PIN DIN connection for optional external stereo devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio
Year of build: 1978
Dimensions unit (width x height x depth): 177 x 43 x 150 mm / 6,9 x 1,7 x 6 inch – back to front of face-plate
Dashboard aperture: 180 x 50 mm / 7,1 x 1,95 inch
Dimensions face-plate (width x heigh): 192 x 60 (7,5 x 2,4 inch)
Weight (kg): 1.3

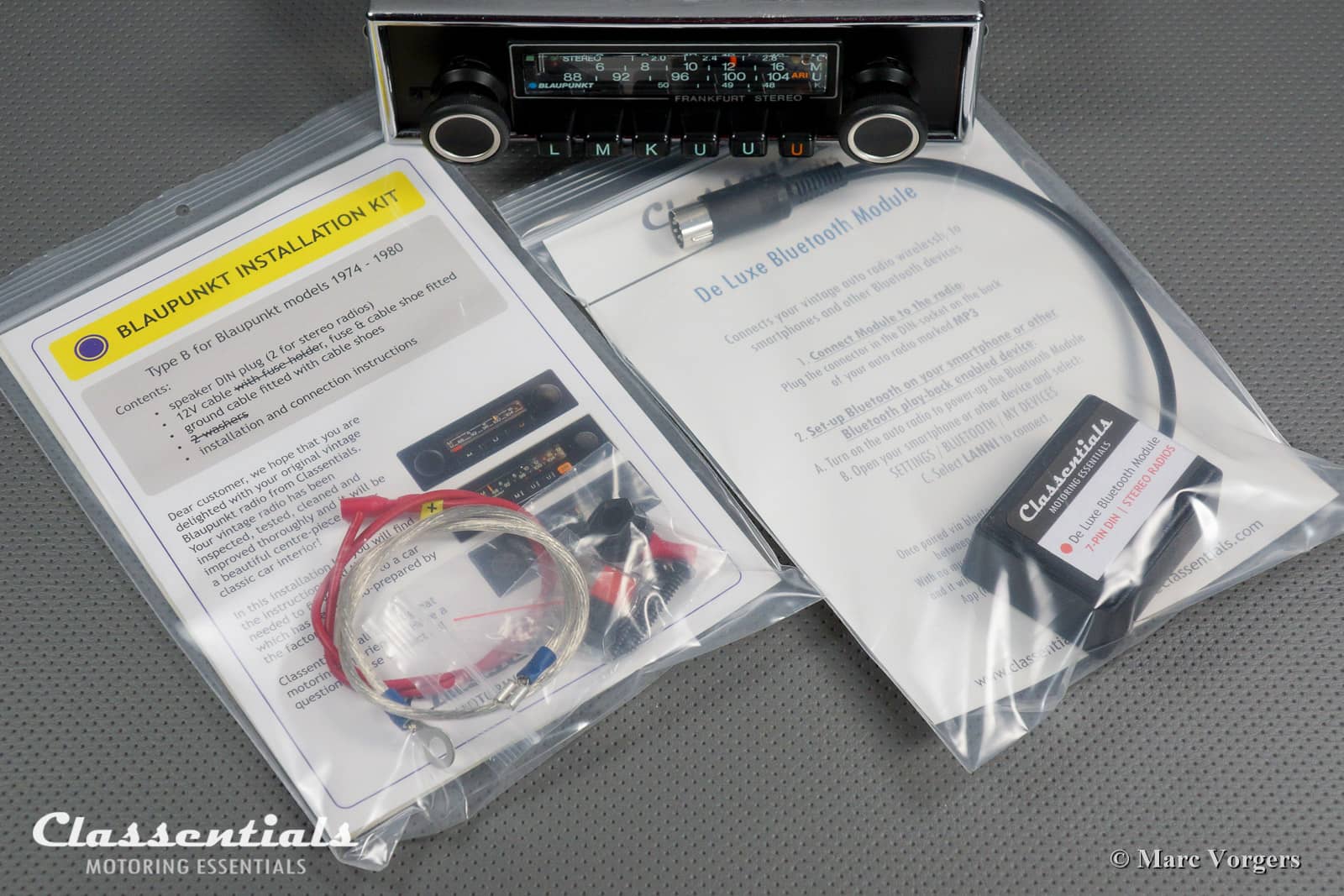

Extra in packaging: Classentials Installation Kit 2 with installation instructions, two 1970s style DIN speaker plugs, earth / ground cable, cable shoes, and a rear mounting strip / bracket.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.
*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
