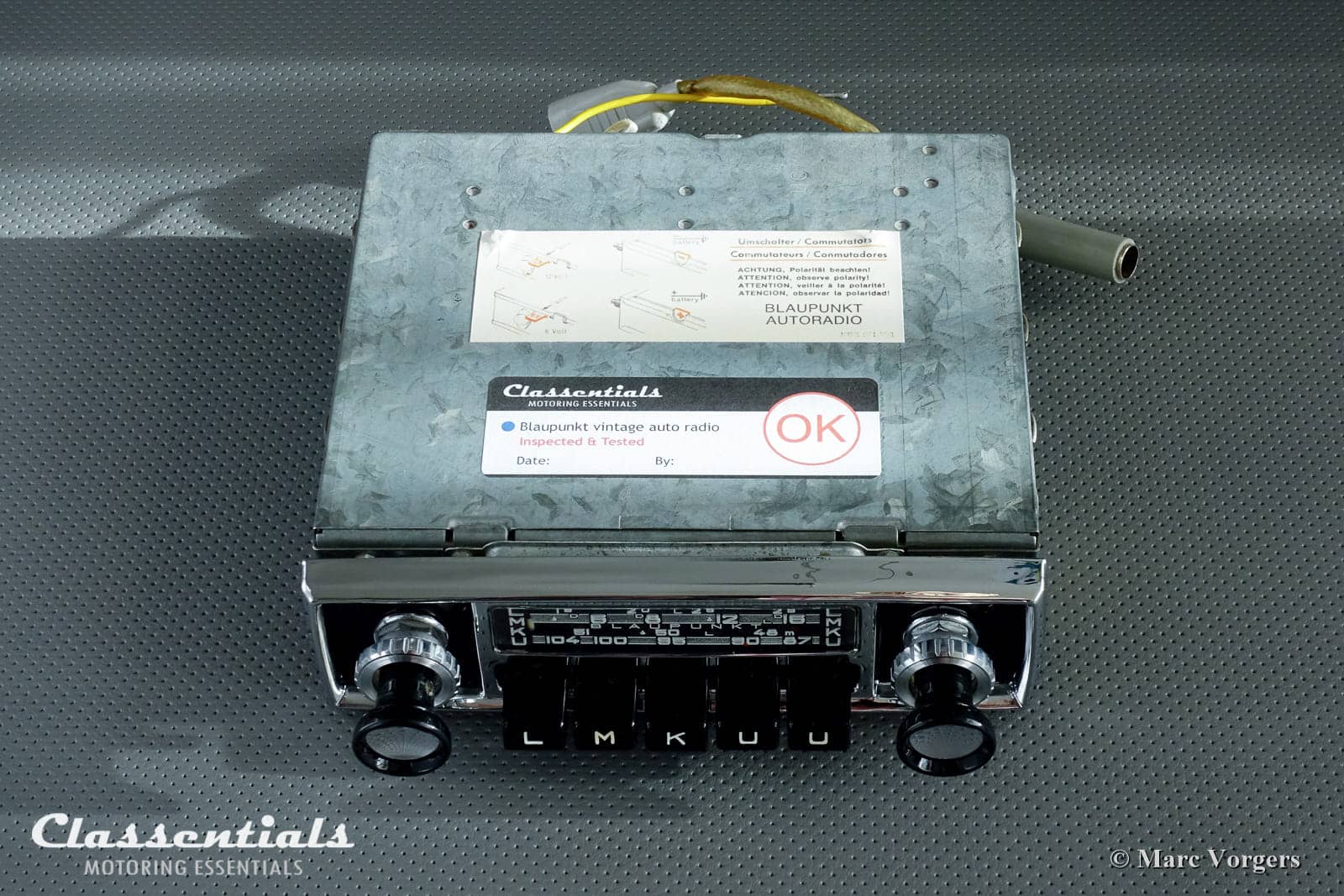

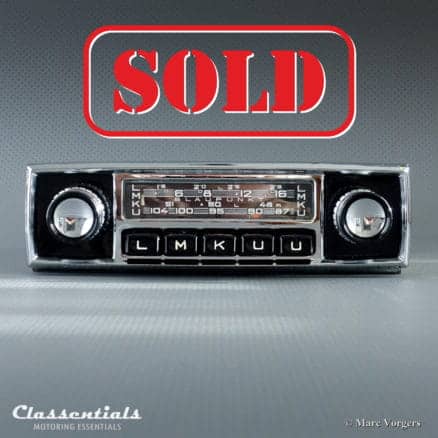

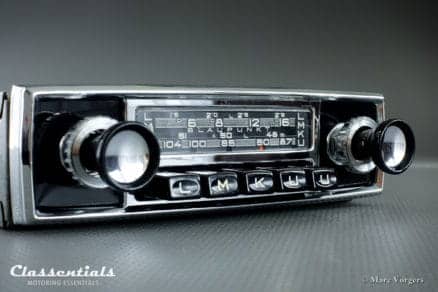

Make and Model: Blaupunkt Frankfurt Y (First high-end Blaupunkt radio with integrated amplifier)
Classic Car era: 1960 – 1969

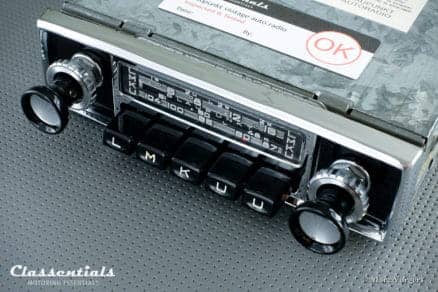

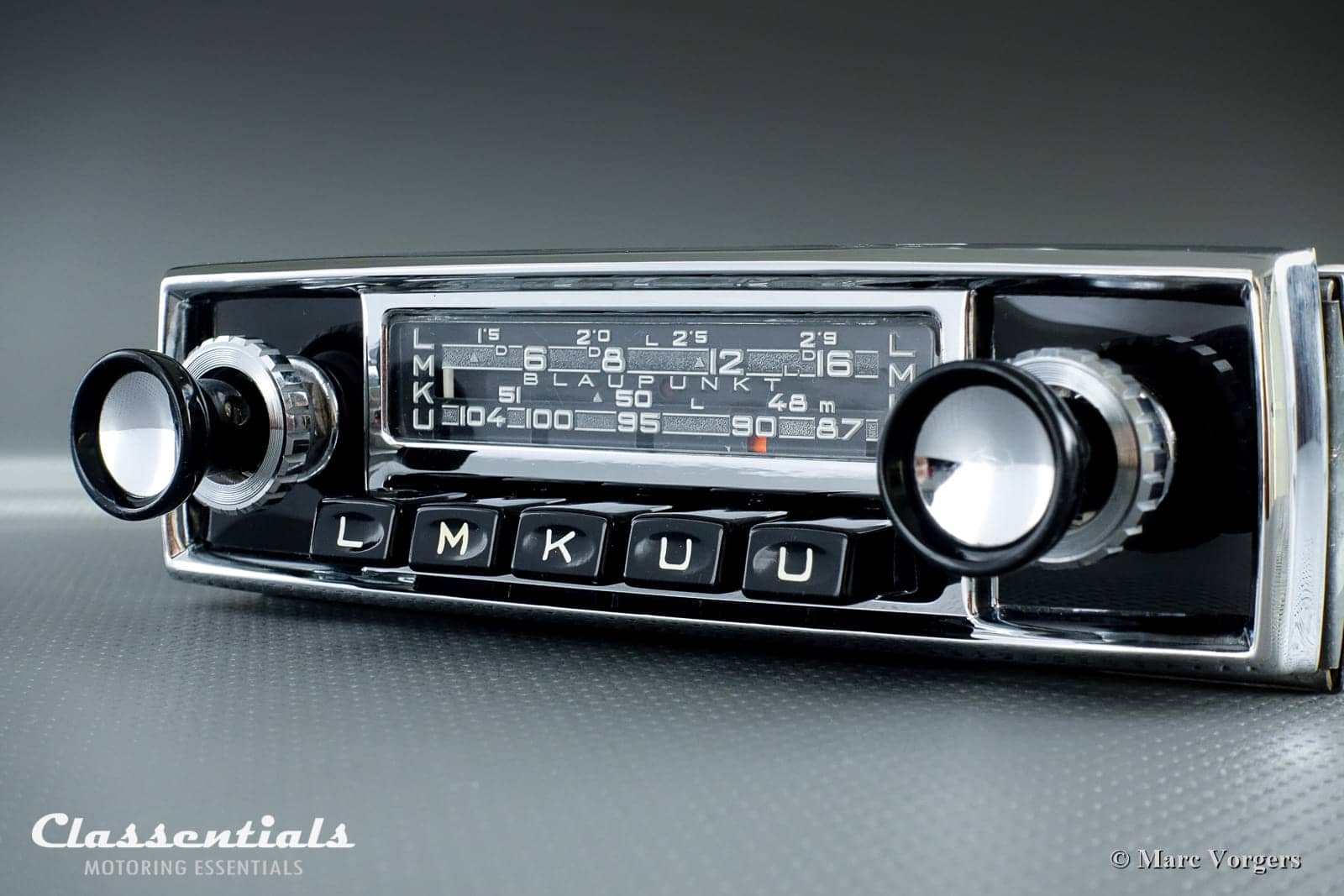

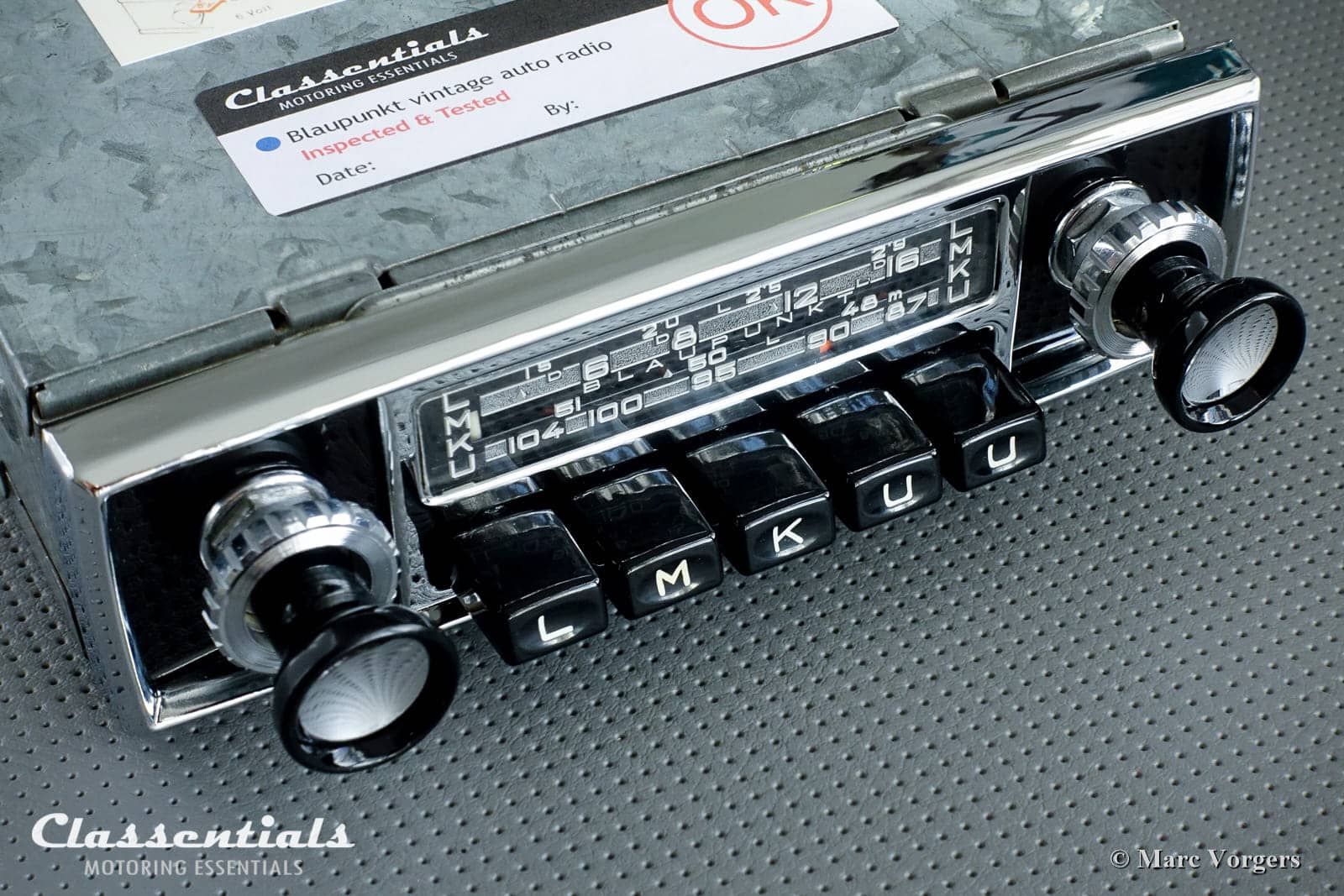

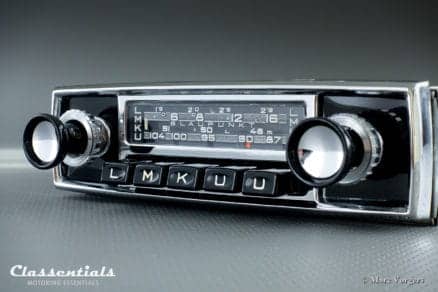

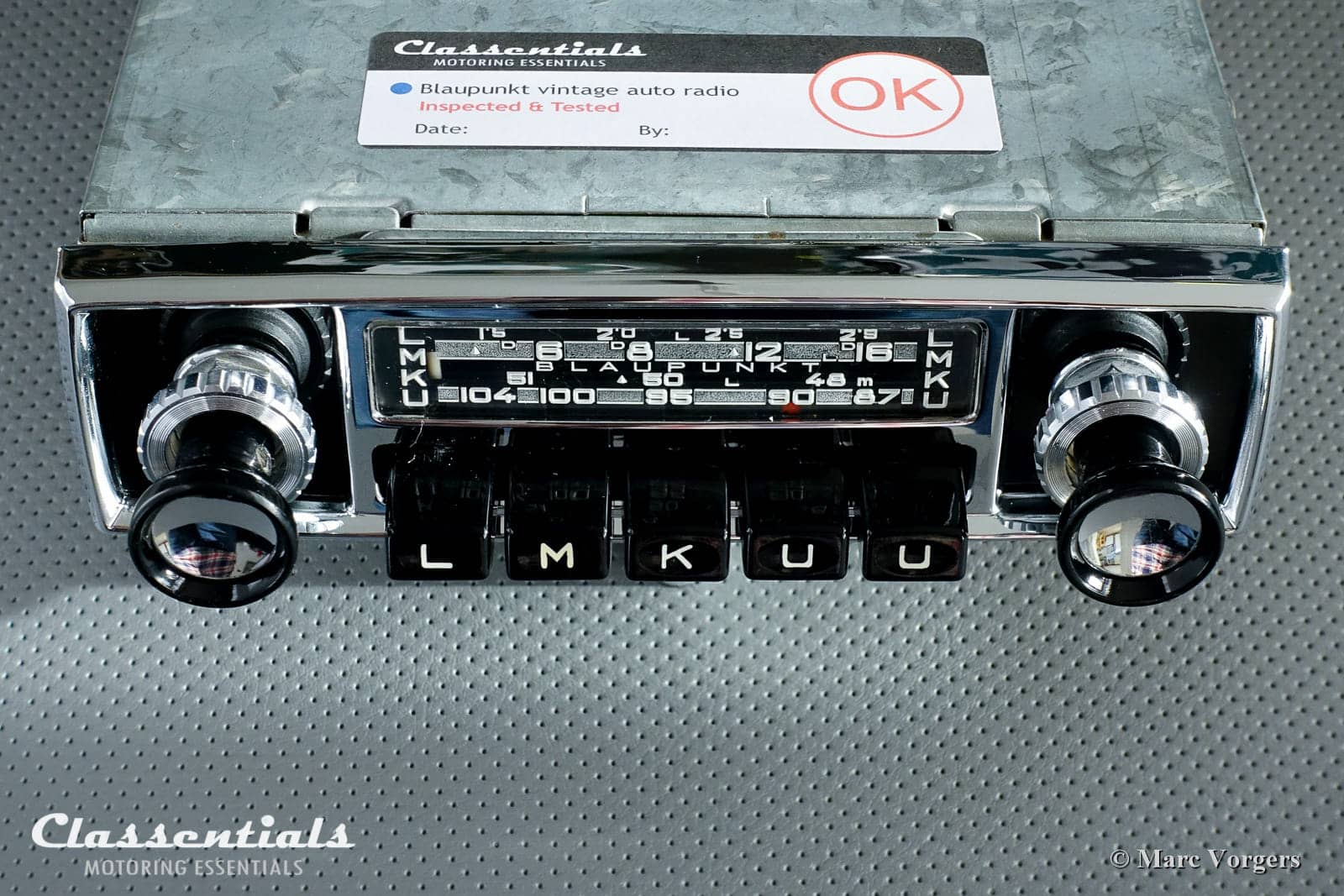

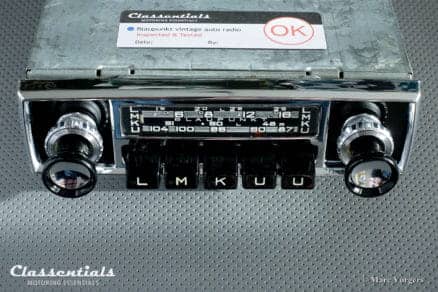

Face-plate: Blaupunkt metal chrome face-plate with black inserts behind the knobs. Black fluted knobs for British cars, Aston Martin DB4, DB5, Jaguar Mk II and other exclusive British cars. This face-plate was also used for Alfa Romeo Giulietta, Mercedes-Benz 180 / 190 and 190 SL combined with different knob styles; ask!
On-board voltage: 6V and 12V, Positive and Negative earth / ground
Output power: 5 / 7 Watt
Impedance: 4 Ohm
Rendition: Mono, 1 or 2 (4 Ohm) speakers in parallel (+to + and – to – fashion).
Wave Range: long wave, medium wave, short wave, UKW (FM)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: Tone control, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio
Year of build: 1967
Dimensions unit (width x height x depth in mm): 177 x 50 x 174 (back to front of face-plate)
Dimensions face-plate (width x height in mm): 180 x 52
Weight (kg): 1.95
Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, earth cable, 12V wire with fuse, cable shoes and a metal strip with 6 mm holes to form a rear radio support bracket if not present in your car.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.
*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
