Description

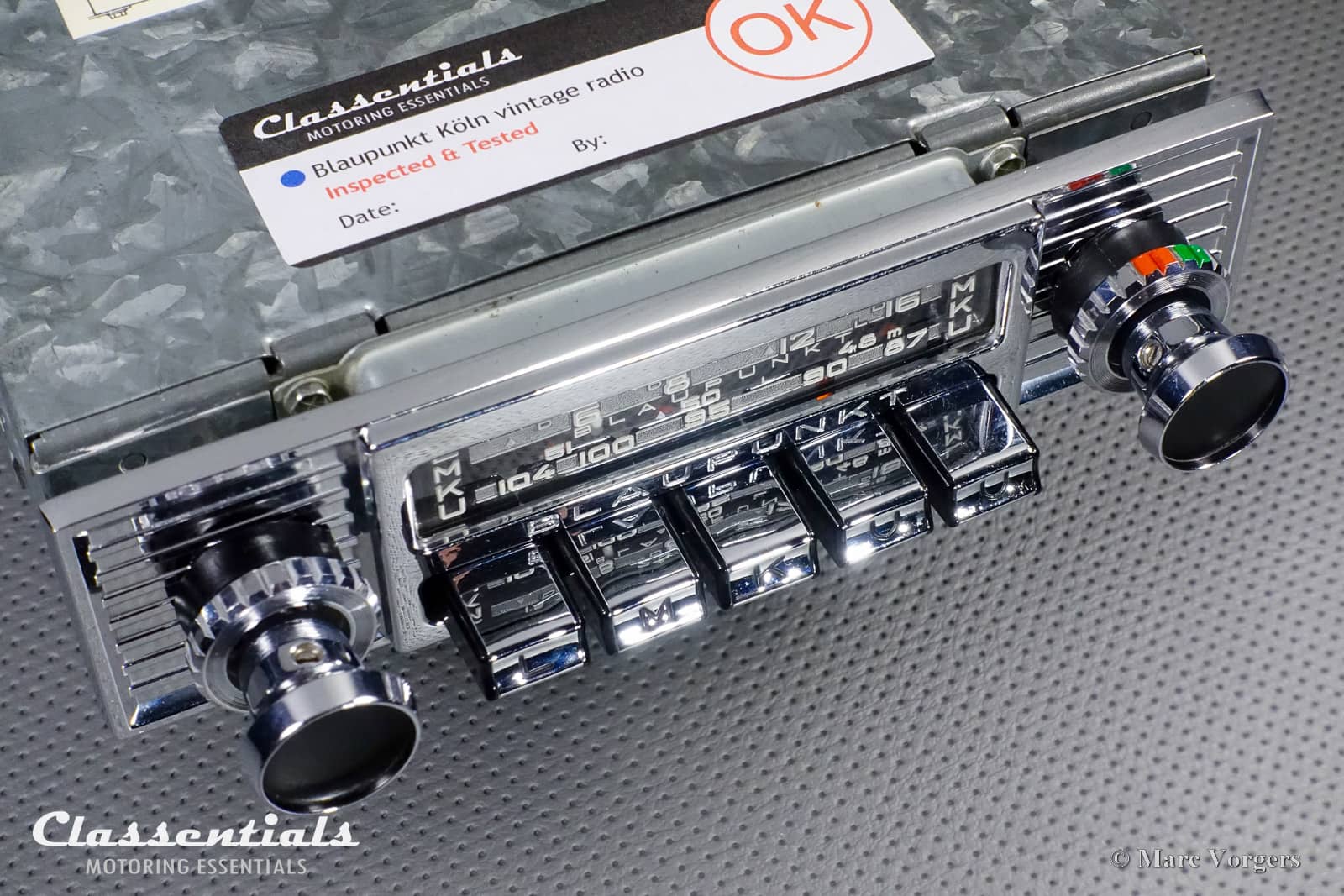

Make and Model: Blaupunkt Köln (Model Y)
Classic Car era: 1958 – 1968

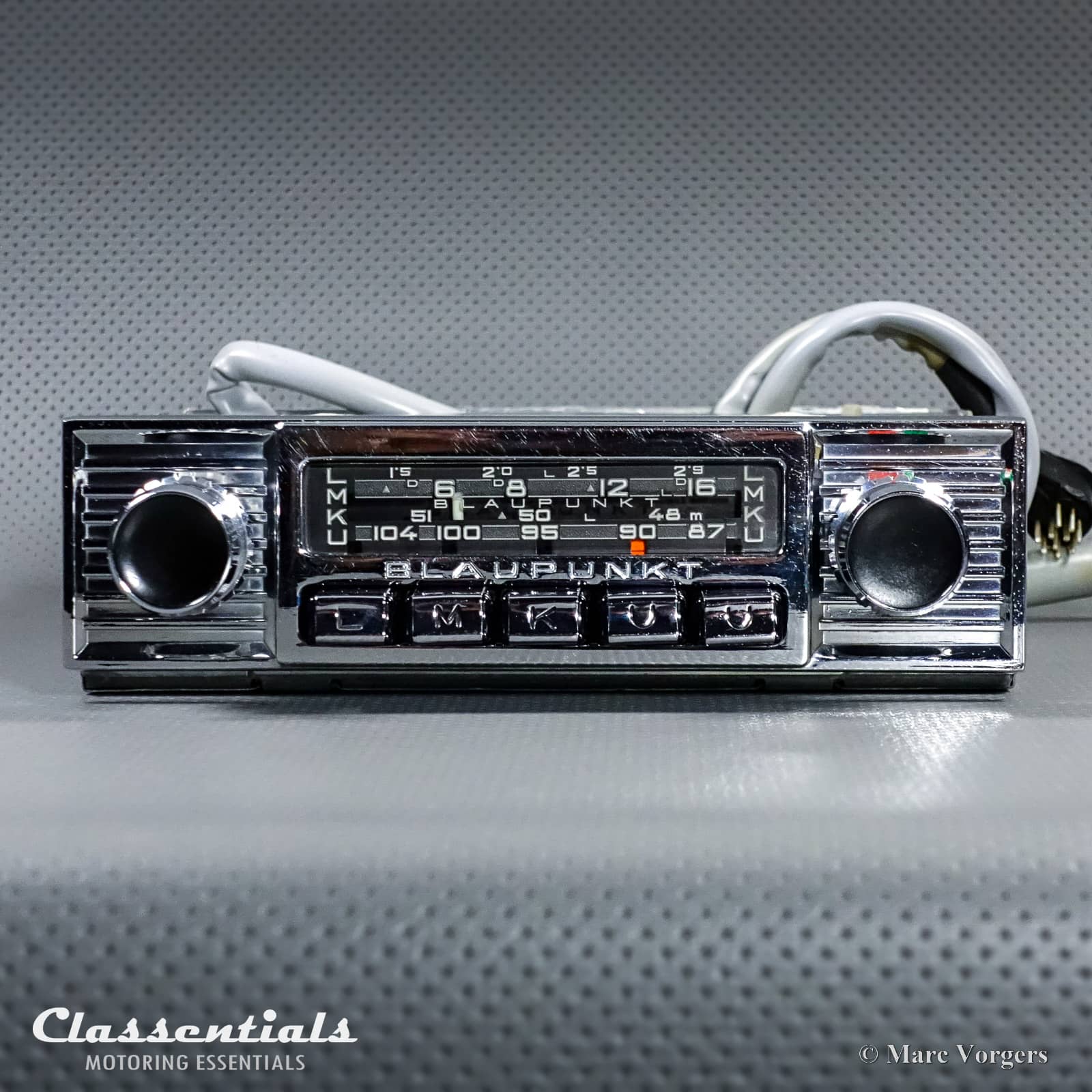

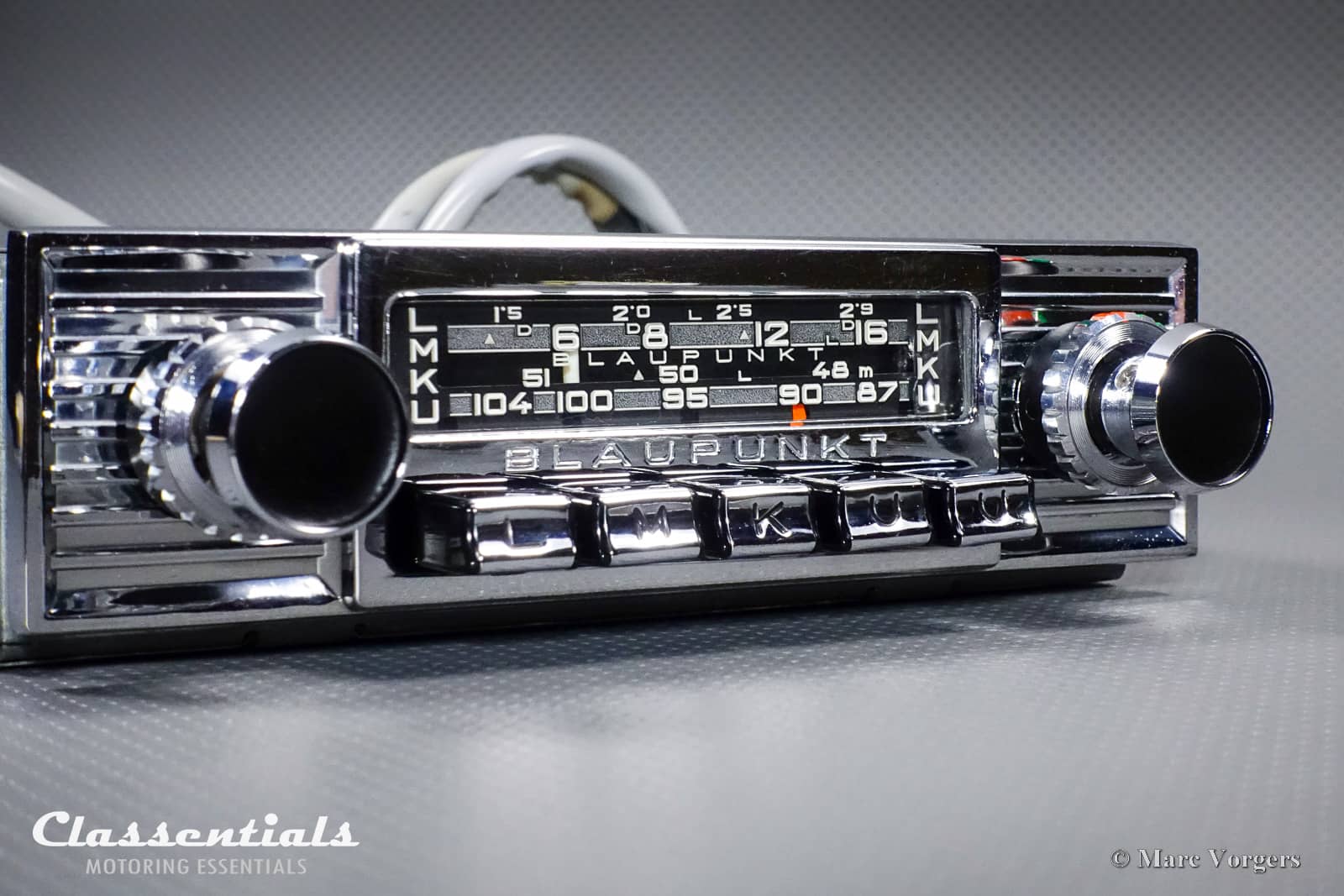

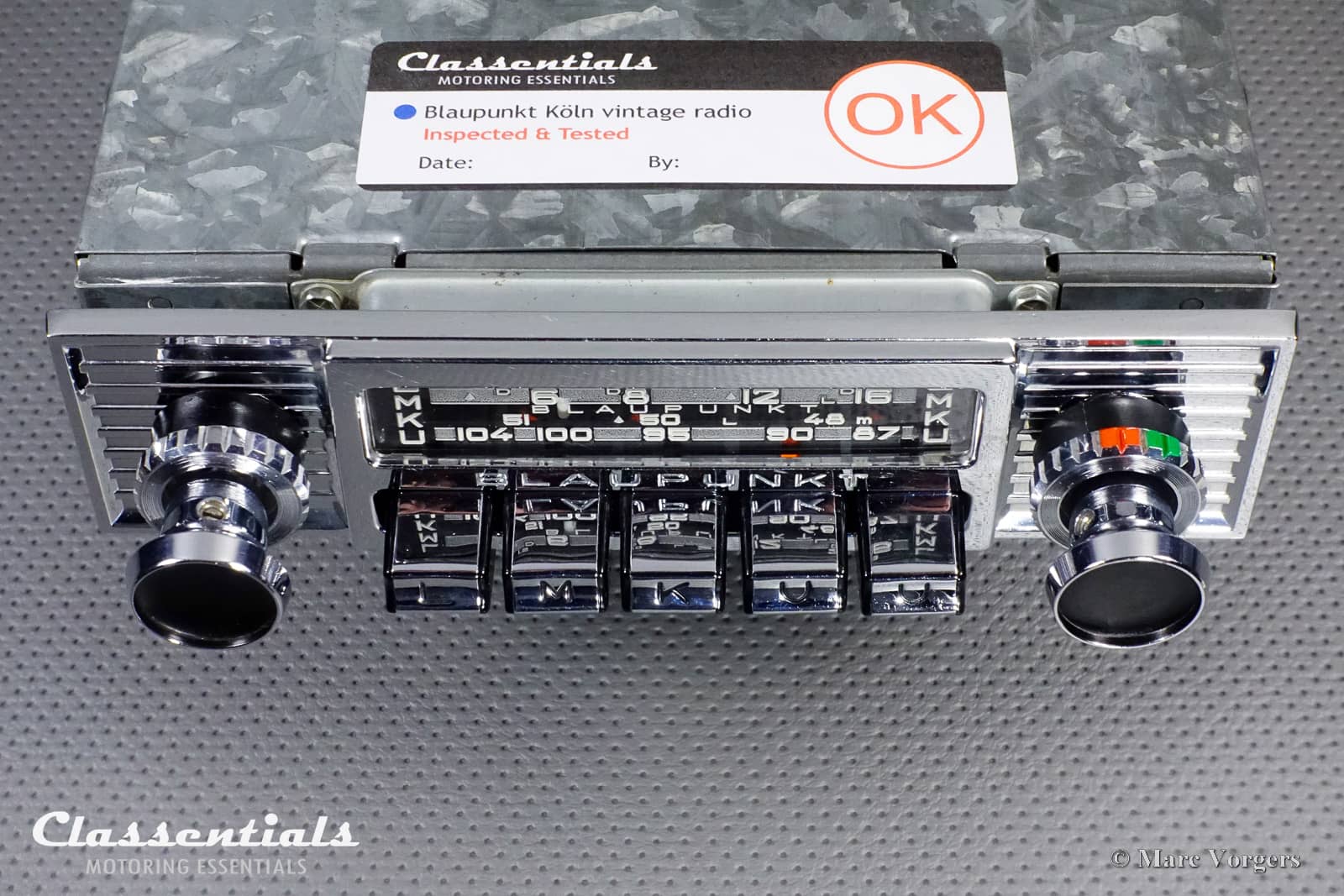

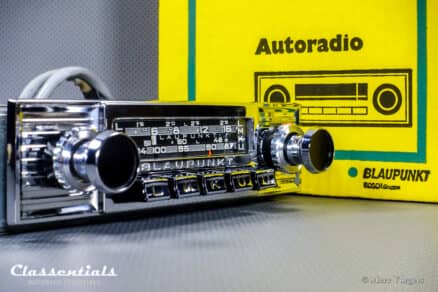

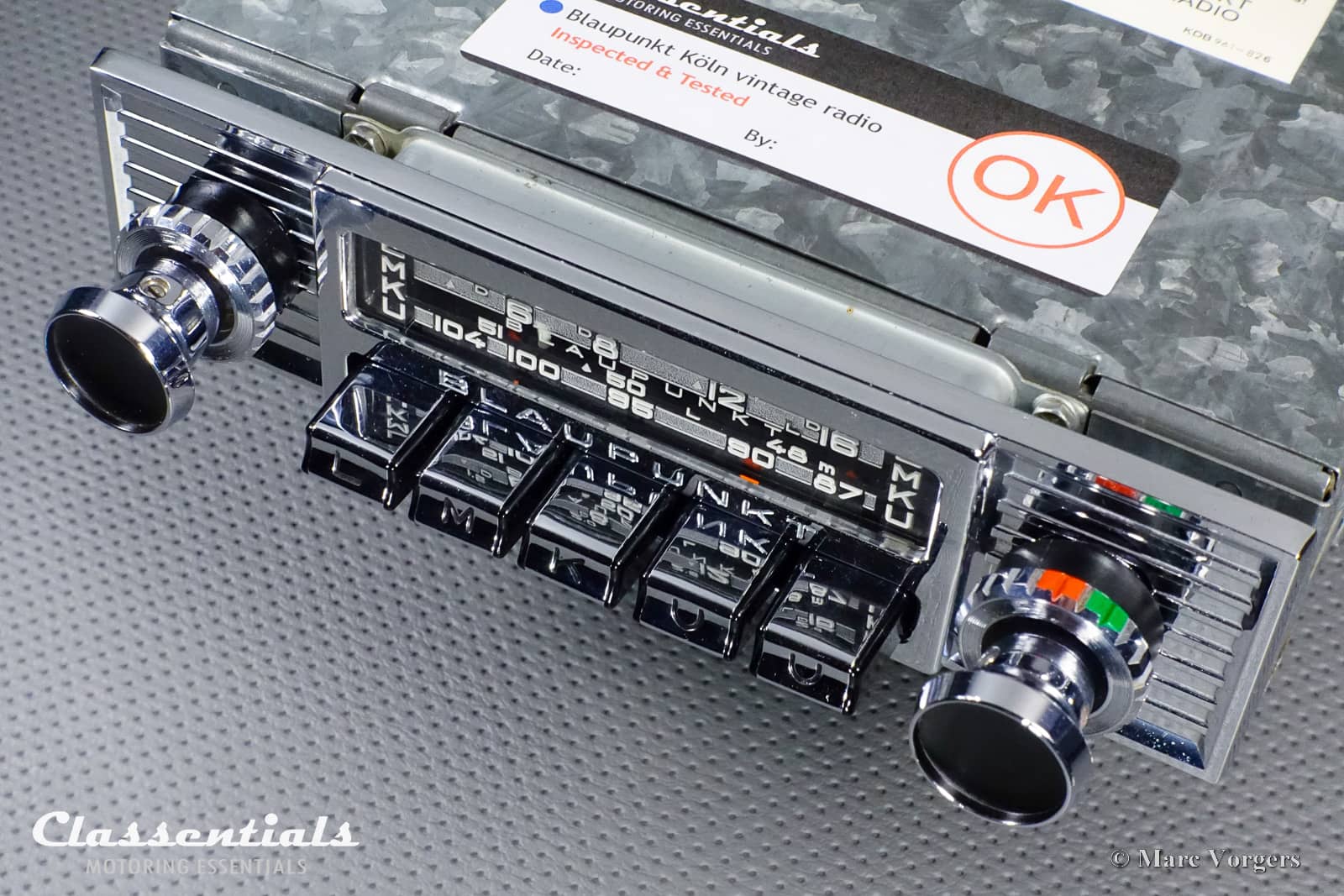

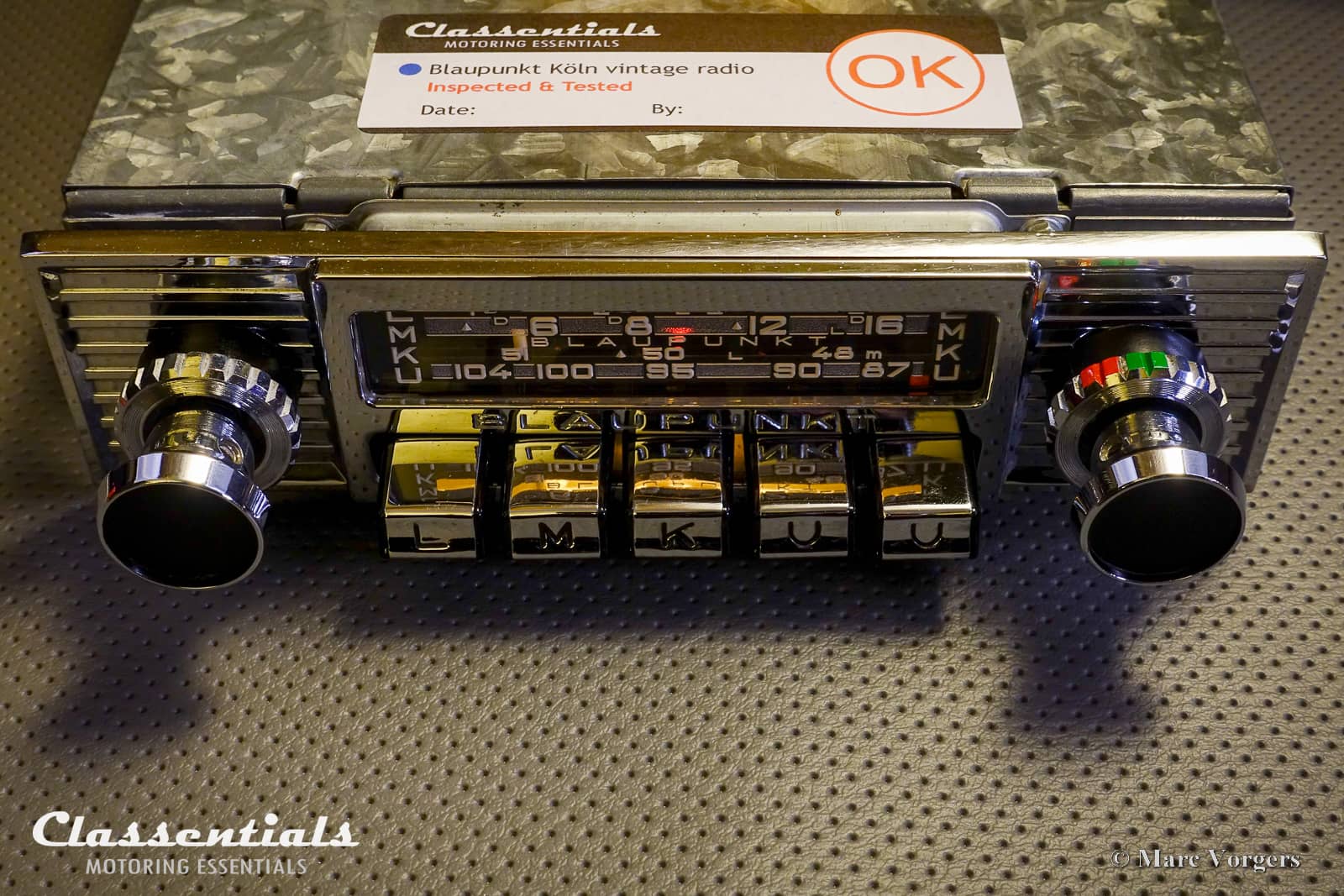

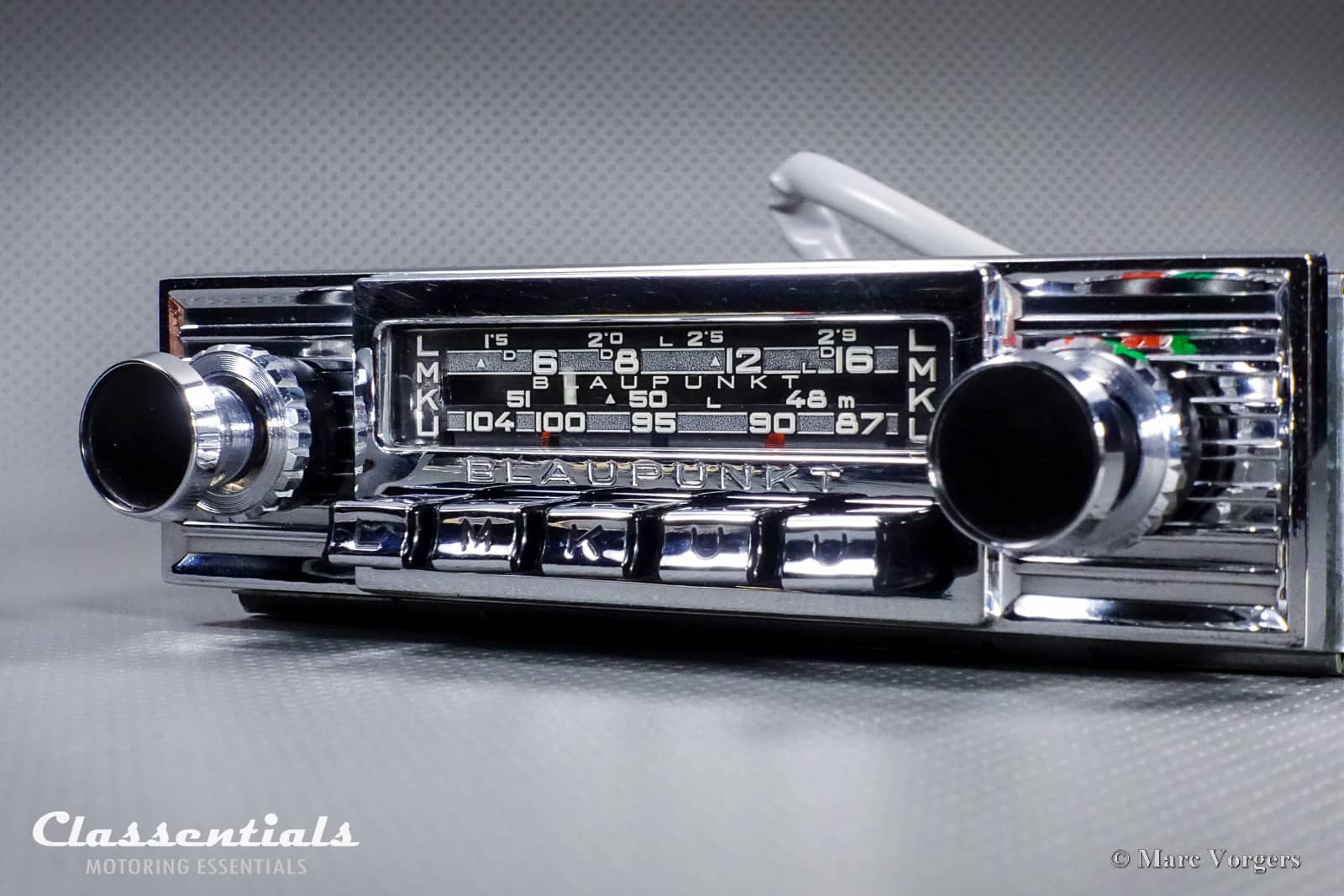

Face-plate: Metal cast and chromed original Blaupunkt faceplate for exclusive Italian cars of the 1960s. The radio fits the 1950s/1960s European style dashboard radio aperture measuring 95 x 42 mm (3,75 x 1,75 inch) with two 11 mm (0,55 inch) radio shaft holes at 130 mm (5,15 inch) horizontal distance. Knobs: Metal cast and chromed original blaupunkt knobs with gloss black tips. The large round knobs (tone lever and automatic search sensitivity switch) are also made of chromed cast metal. Al the parts used on this radio are excellent used or new old stock original items!
On-board voltage: 6V OR 12V, negative AND positive earth / ground
Output power: 5 Watt nominal, 7 Watt music
Impedance: 4 Ohm (1 speaker), 2 Ohm (2 speakers)
Rendition: Mono, one or two 4 Ohm speakers. Two speakers connected parallel + to + and – to -, this makes 2 Ohm per channel.
Wave Range: Long wave (L), Medium wave (M), Short wave (K) and FM / UKW (U)
Frequency range UKW (FM): 88MHz-104MHz

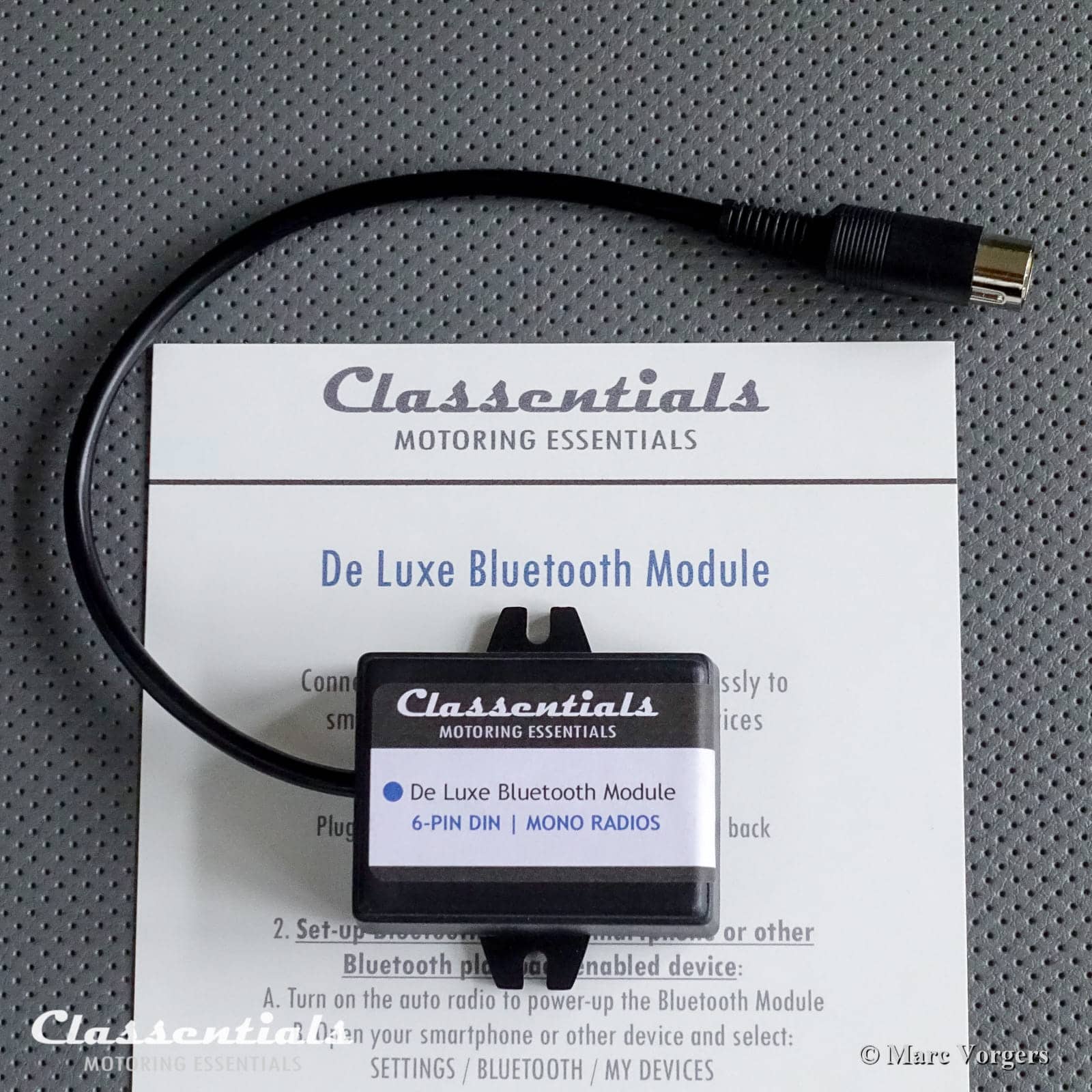

Equipment: Motorized channel search function, station pre-set buttons, tone control, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module.
Design type: Transistor radio
Year of build: 1965/66

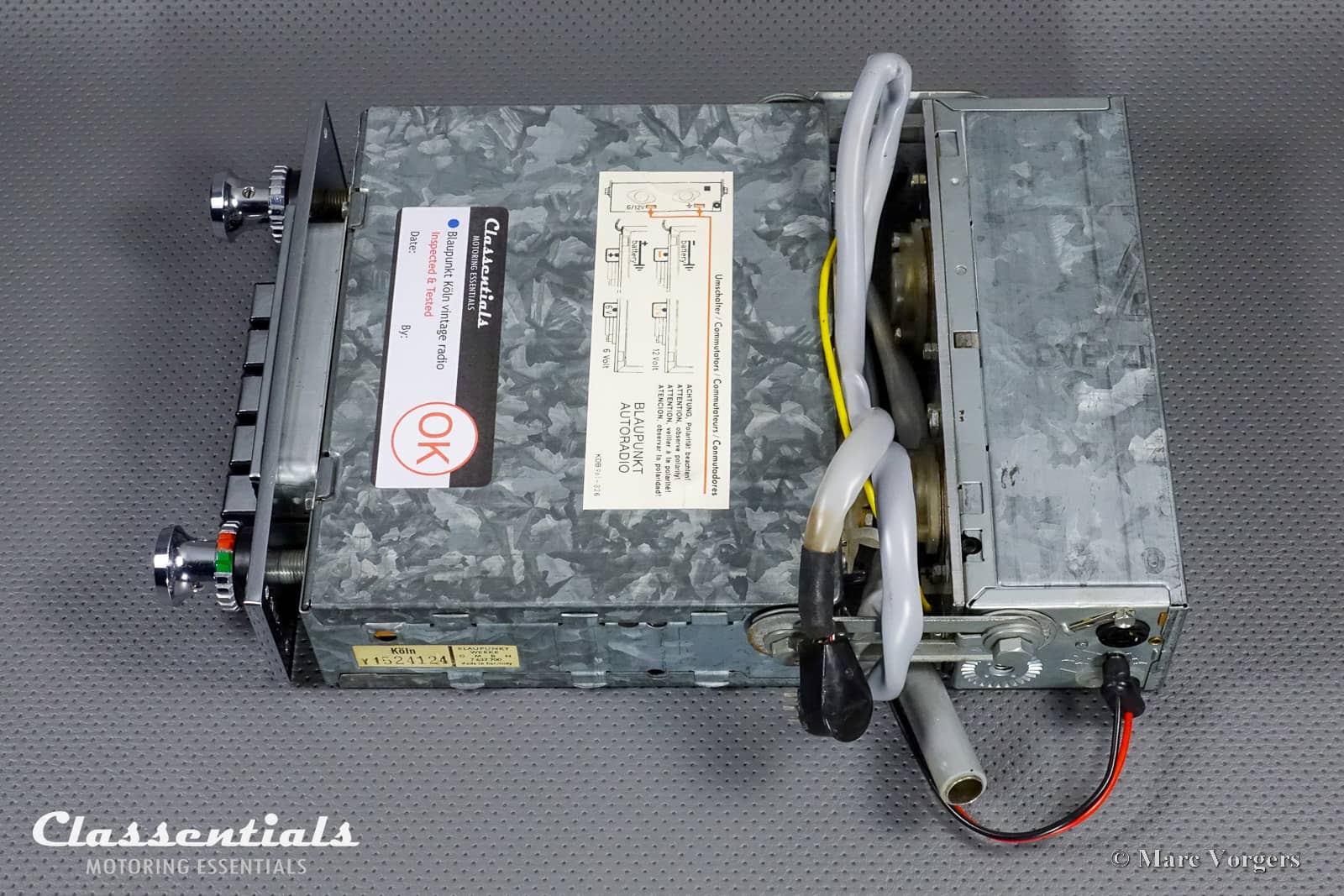

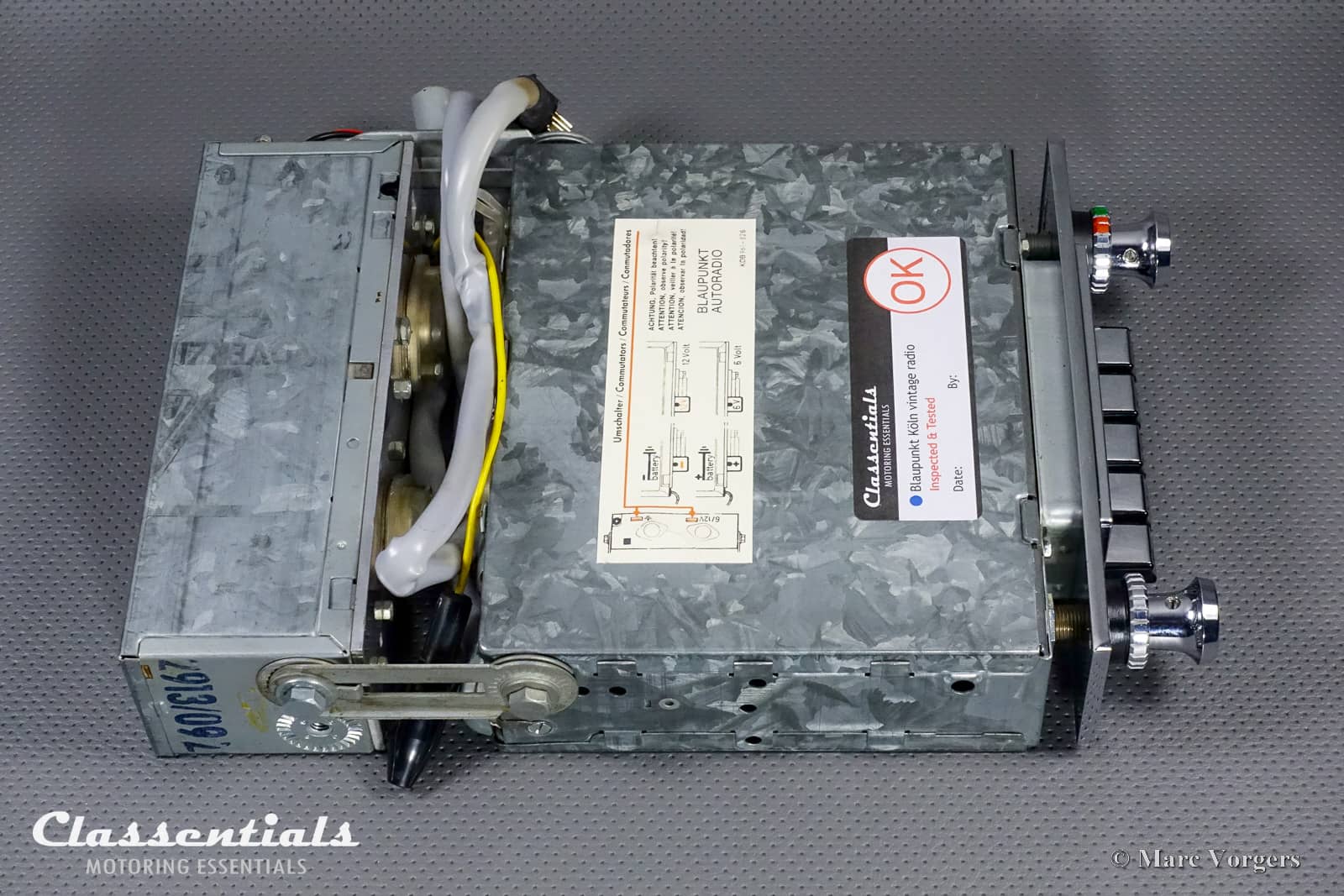

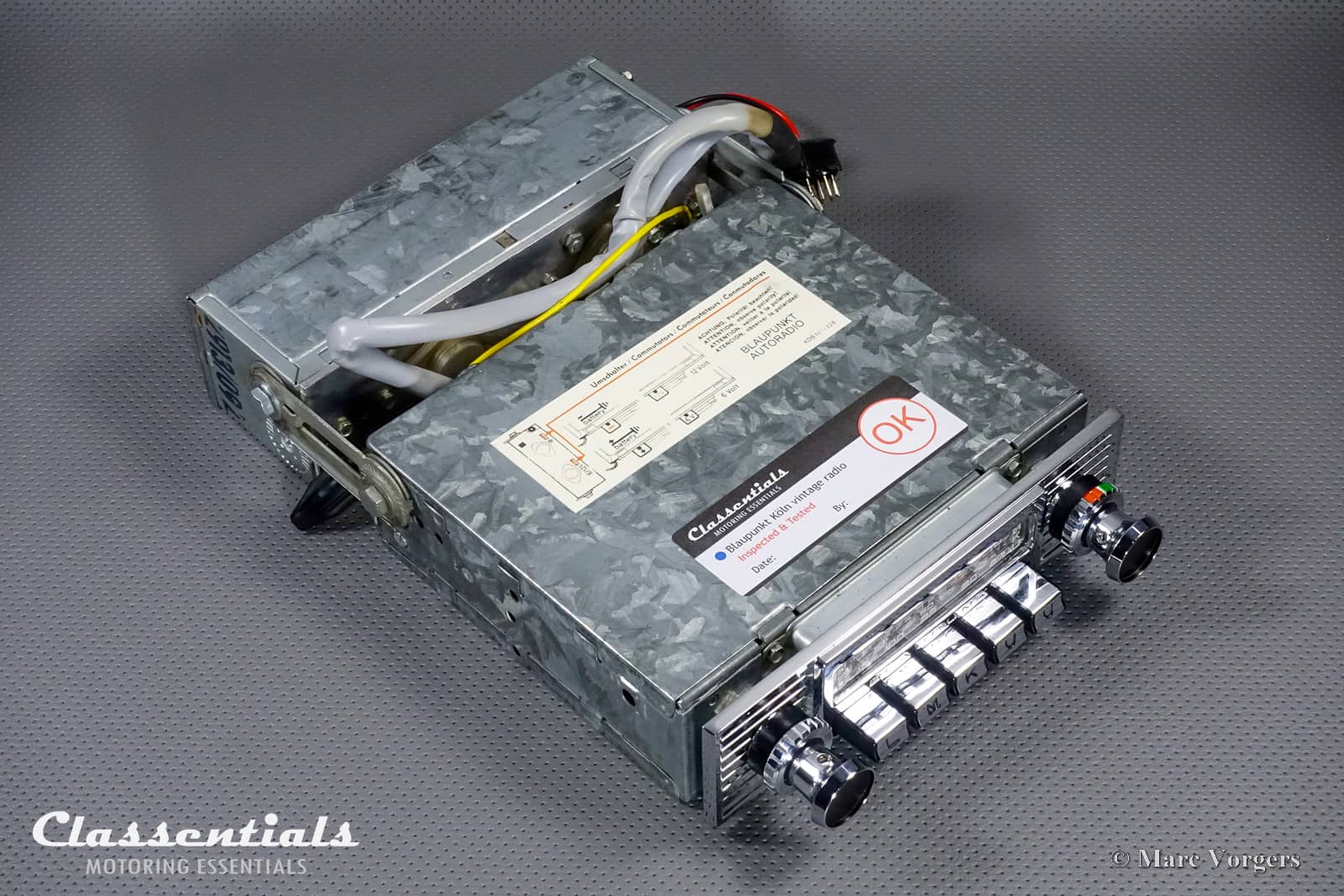

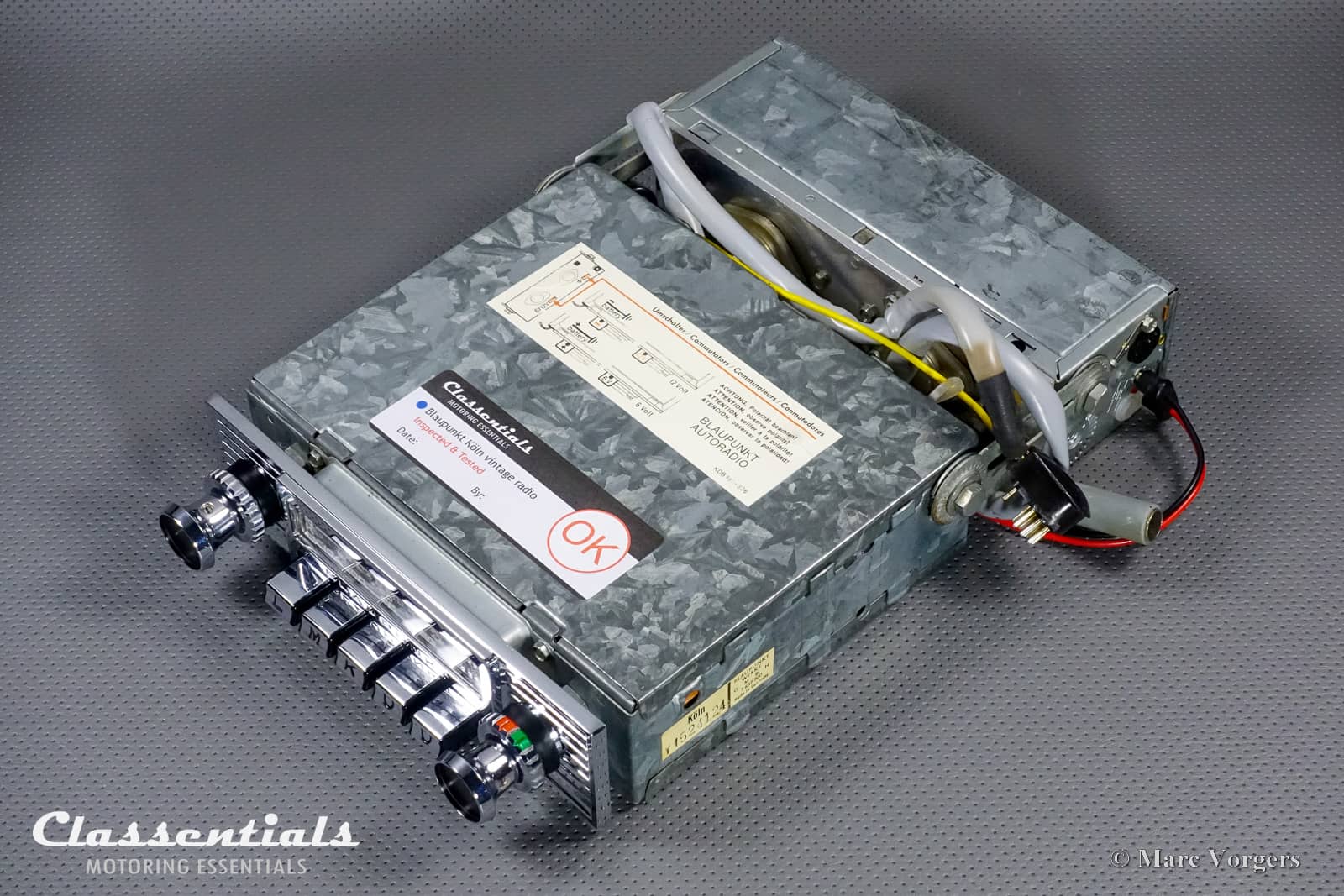

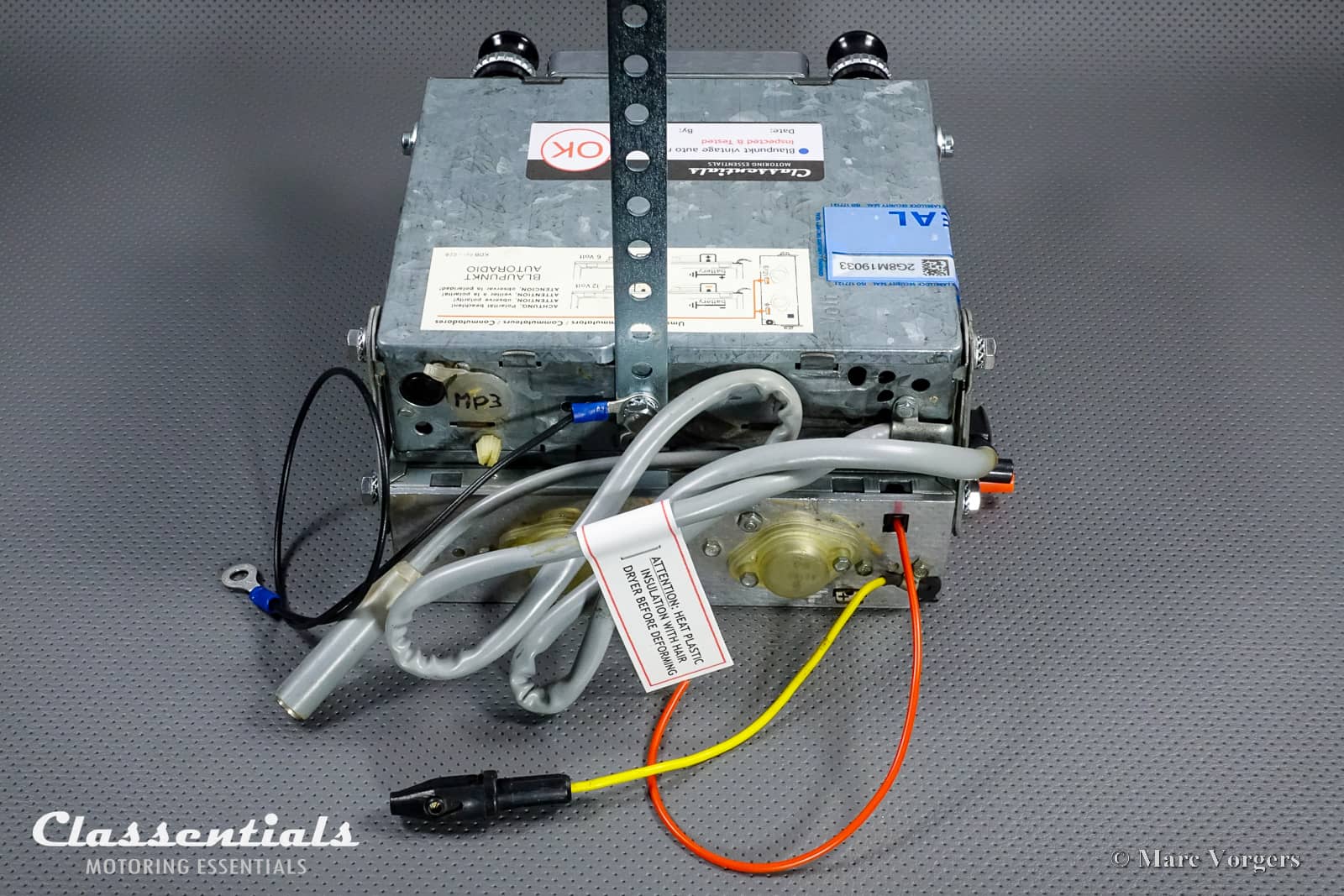

Dimensions radio unit (width x height x depth in mm): 250 x 50 x 177 (9,8 x 2 x 7 Inch) Radio and amplifier back to back as pictured, measured to back of the face-plate.
Dimensions fitted with the ampifier on top of below the head unit (width x height x depth in mm): 170 x 10 x 177 (6,7 x 4 x 7 Inch). Bluetooth Module Plug needs 50 mm (2 Inch) extra space behind the radio.
Dimensions face-plate (width x height in mm): 179 x 4,7 (7 x 1,8 inch).
Weight (kg): 3.1

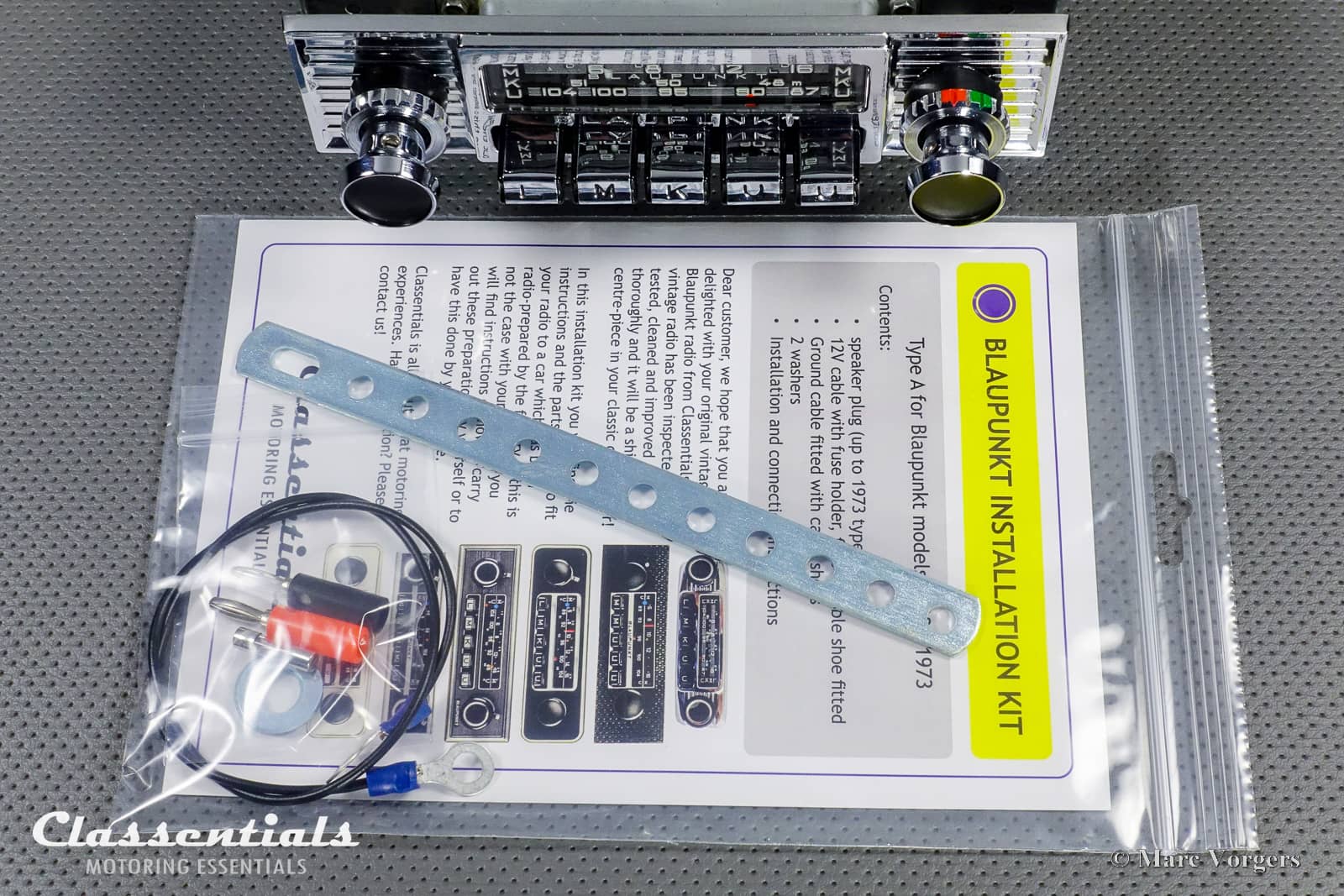

Extra in packaging: Classentials Installation Kit 1 with installation instructions, speaker plugs, 12V cable with fuse, earth / ground cable, cable shoes, and a universal rear mounting strip with holes. All metal fitting parts are made of Stainless Steel or galvanized steel.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

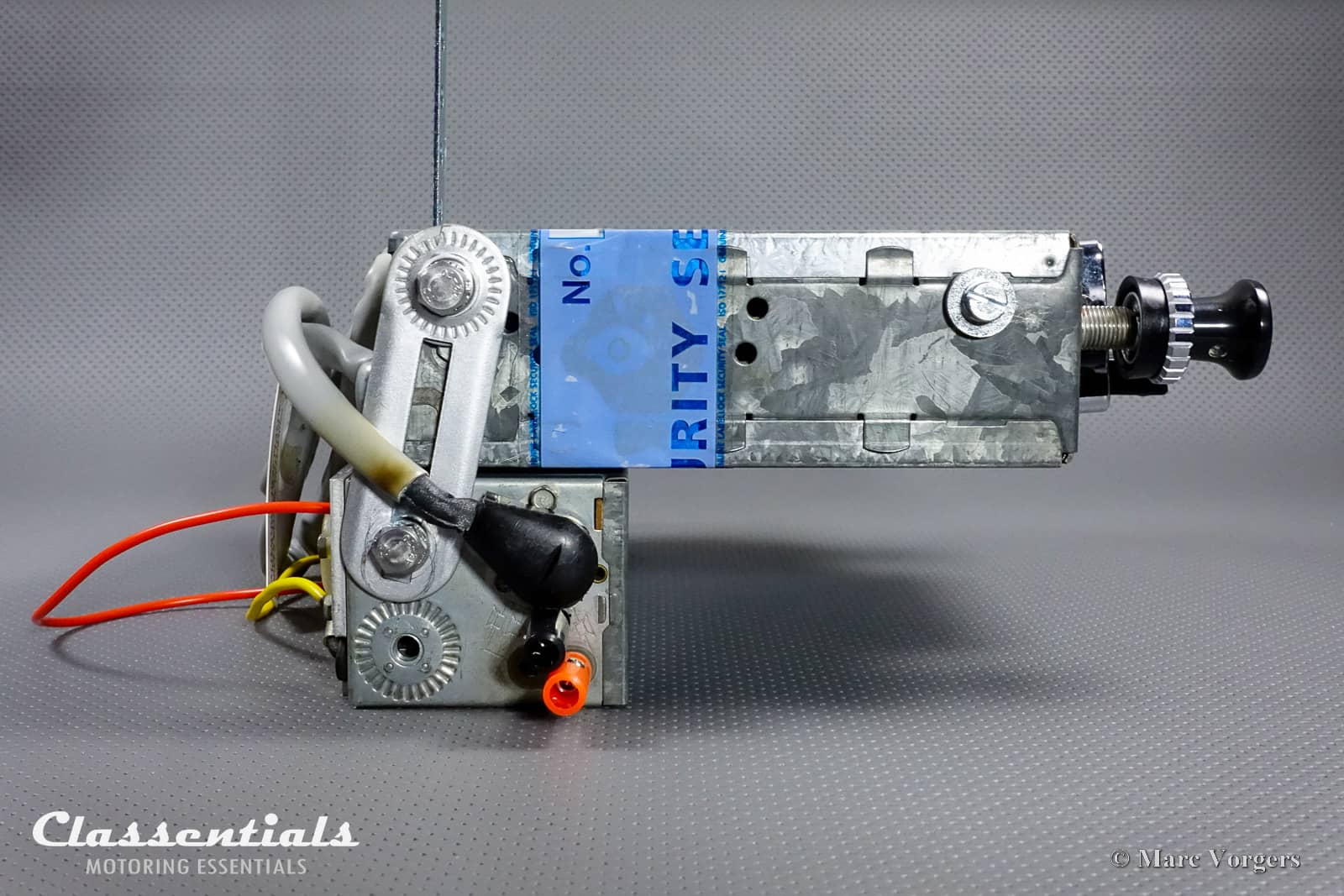

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
