Description
Make and Model: Blaupunkt Dortmund De Luxe
Classic Car era: 1957 – 1969

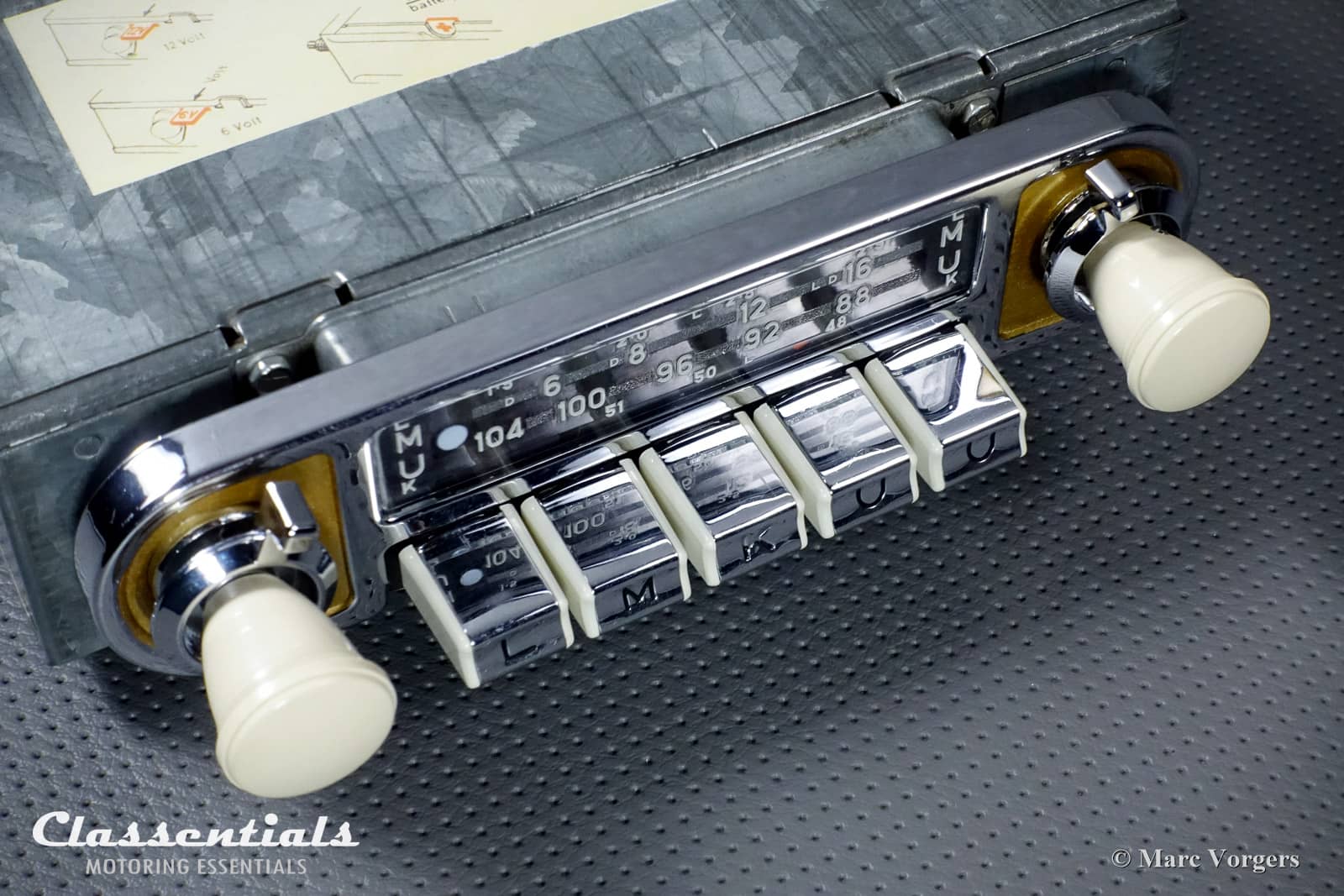

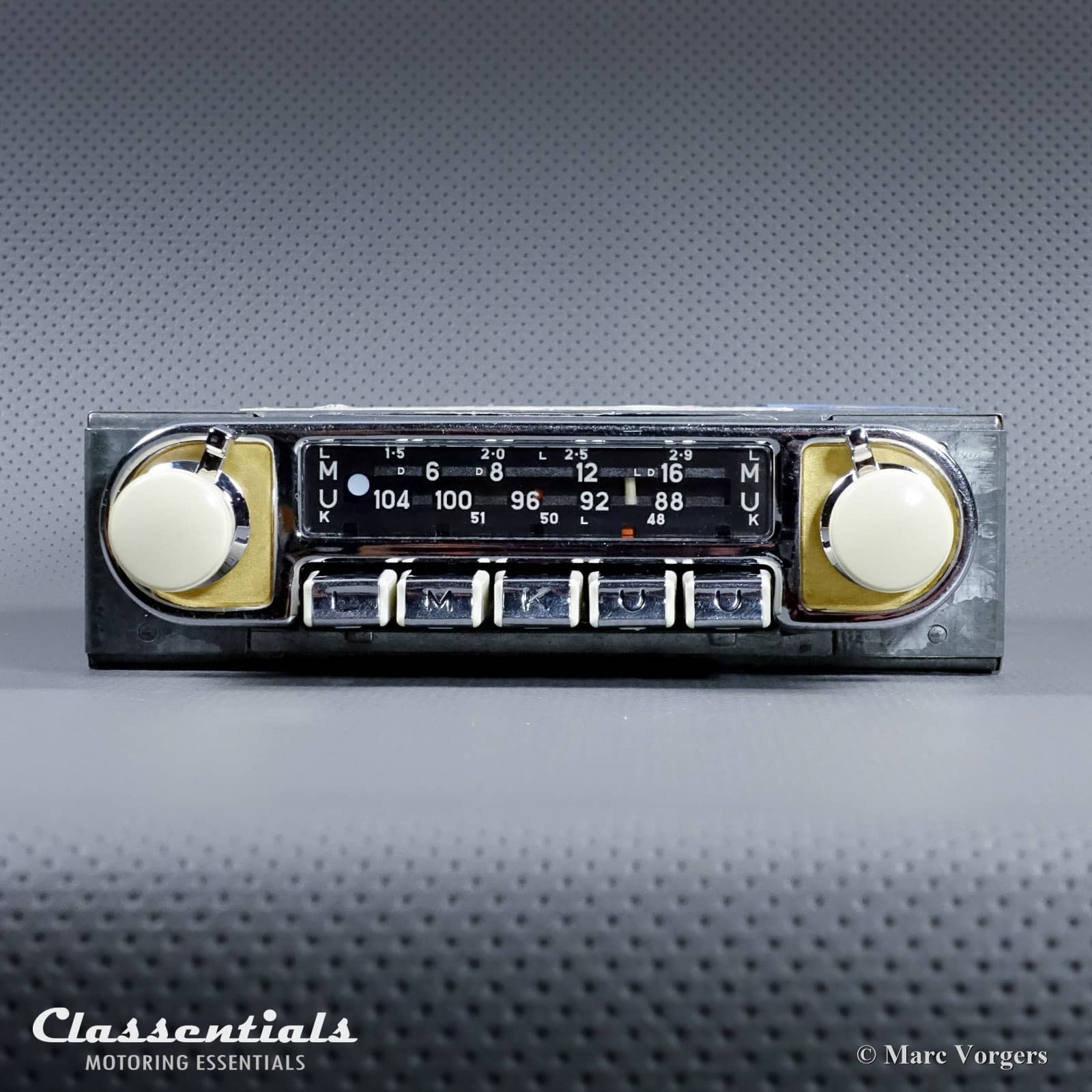

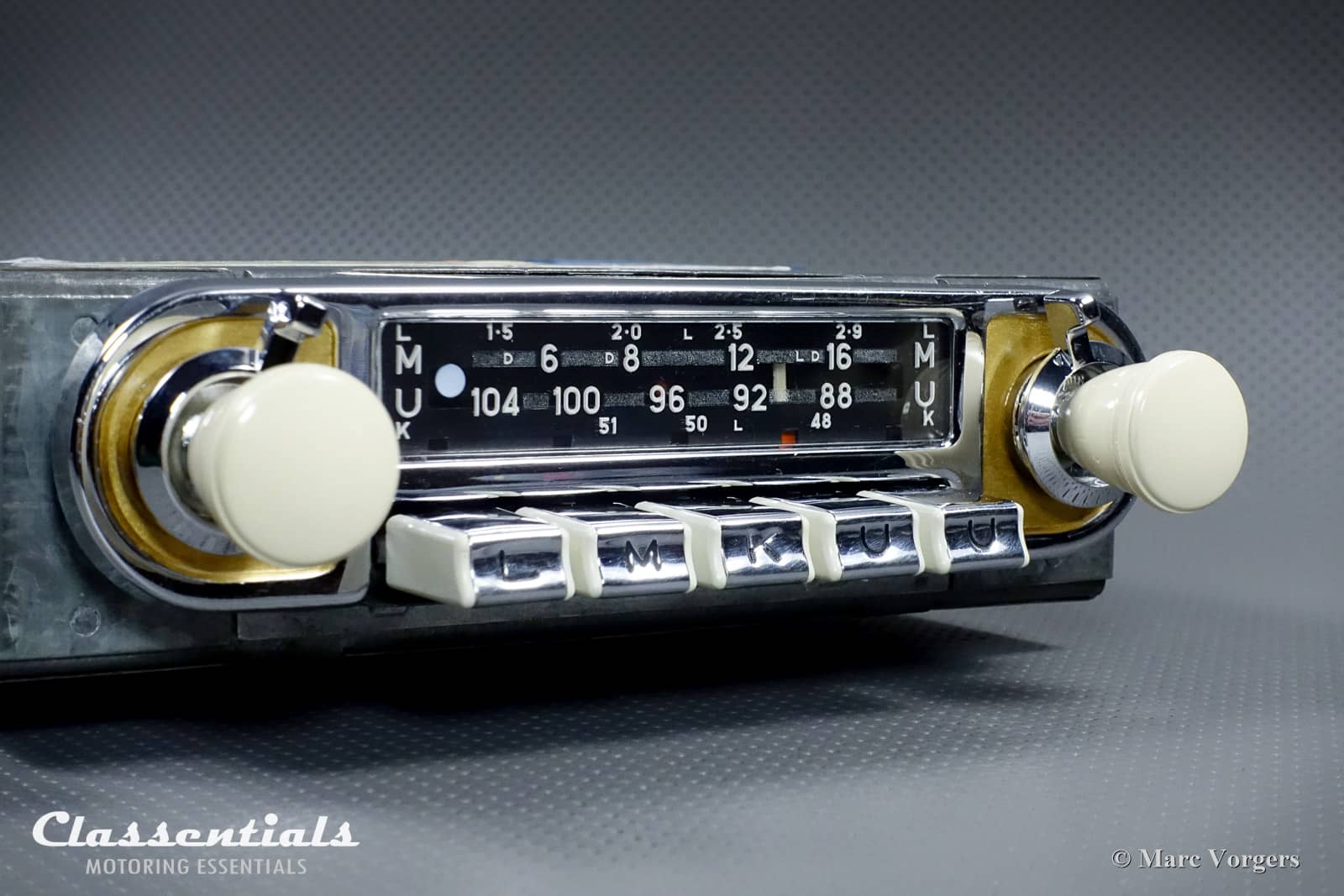

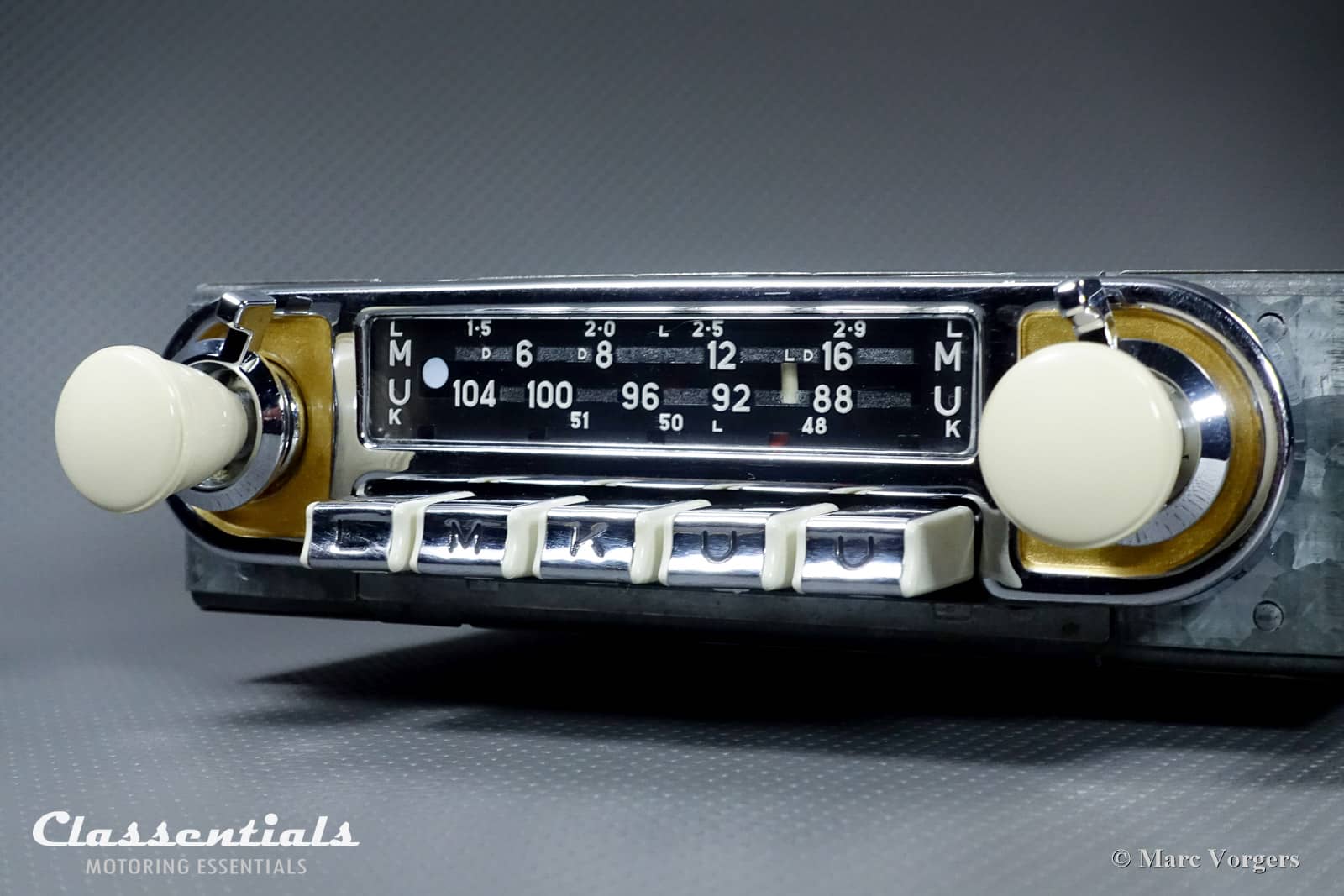

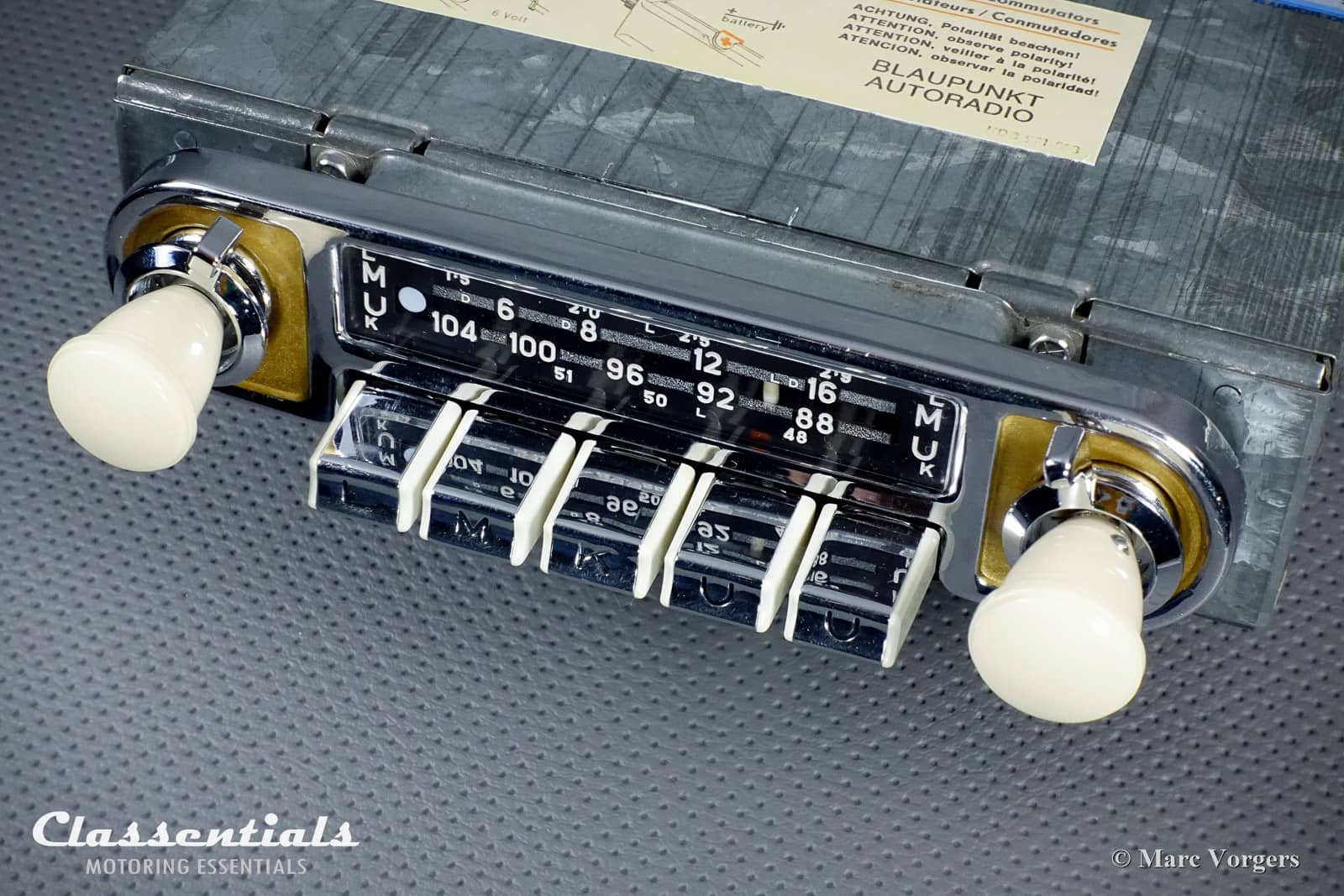

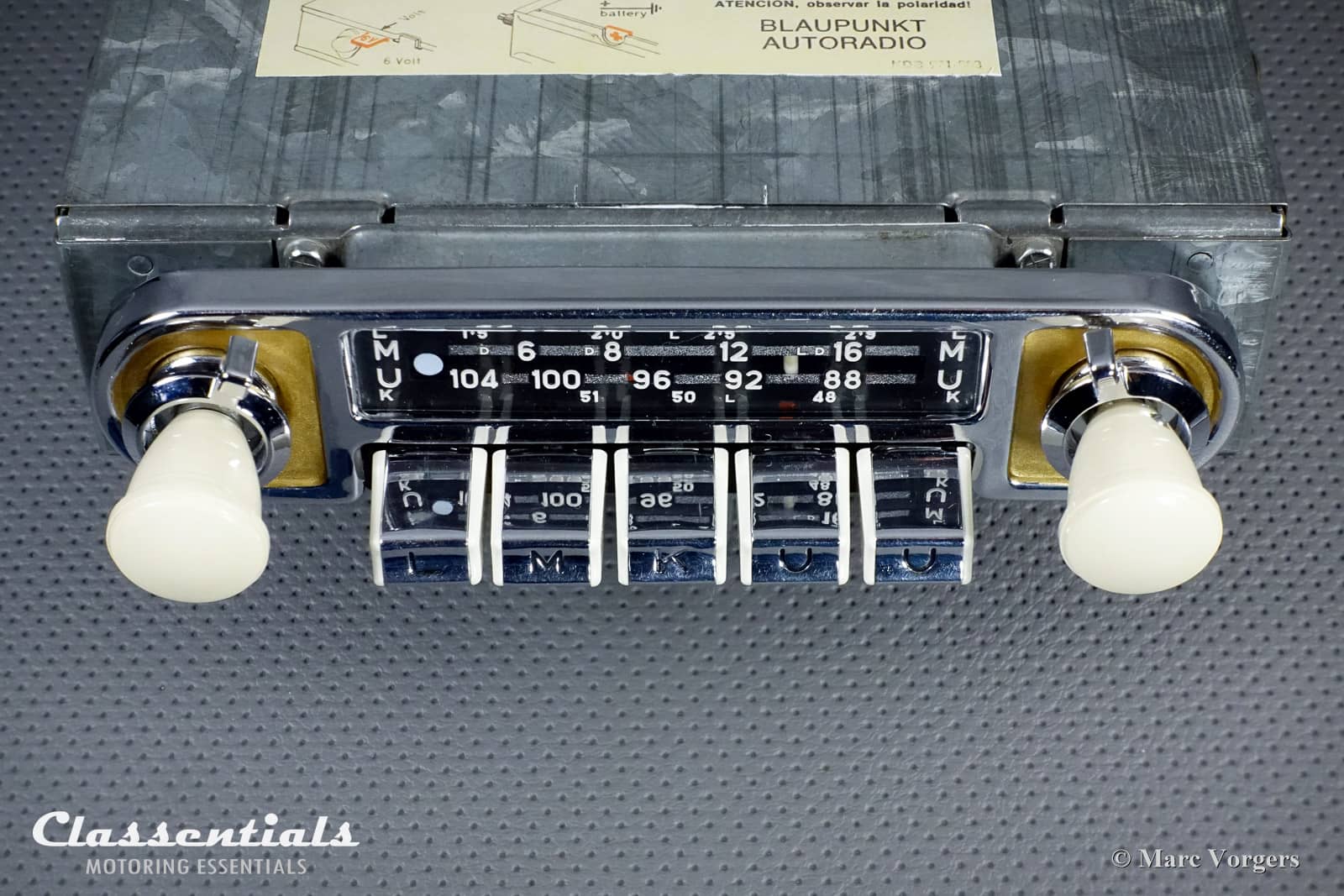

Face-plate: Blaupunkt metal CHROME face-plate for Borgward Isabella. Painted gold behind the knobs. Fitted with universal creme white knobs.
On-board voltage: 6V and 12V, Negative and Positive earth / ground
Output power: 5 Watt nominal, 7 Watt music
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker on speaker connection “I”. Two 4 Ohm speakers connected parallel + to + and – to -, to make 2 Ohm on speaker connection “II”.
Wave Range: Long wave (L), Medium wave (M), Short wave (K) and FM / UKW (U)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: Station presets, tone control, automatic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials MP3 kit and the Classentials Bluetooth module (12 Volt negative ground only).
Design type: Transistor radio
Year of build: 1969
Dimensions unit (width x height x depth): 177 x 50 x 165 mm / 7,0 x 1,9 x 6,5 inch (back to back of the face-plate)
Dimensions face-plate (width x height): 166 x 46 mm / 6,5 x 1,8 inch
Weight (kg): 1.9

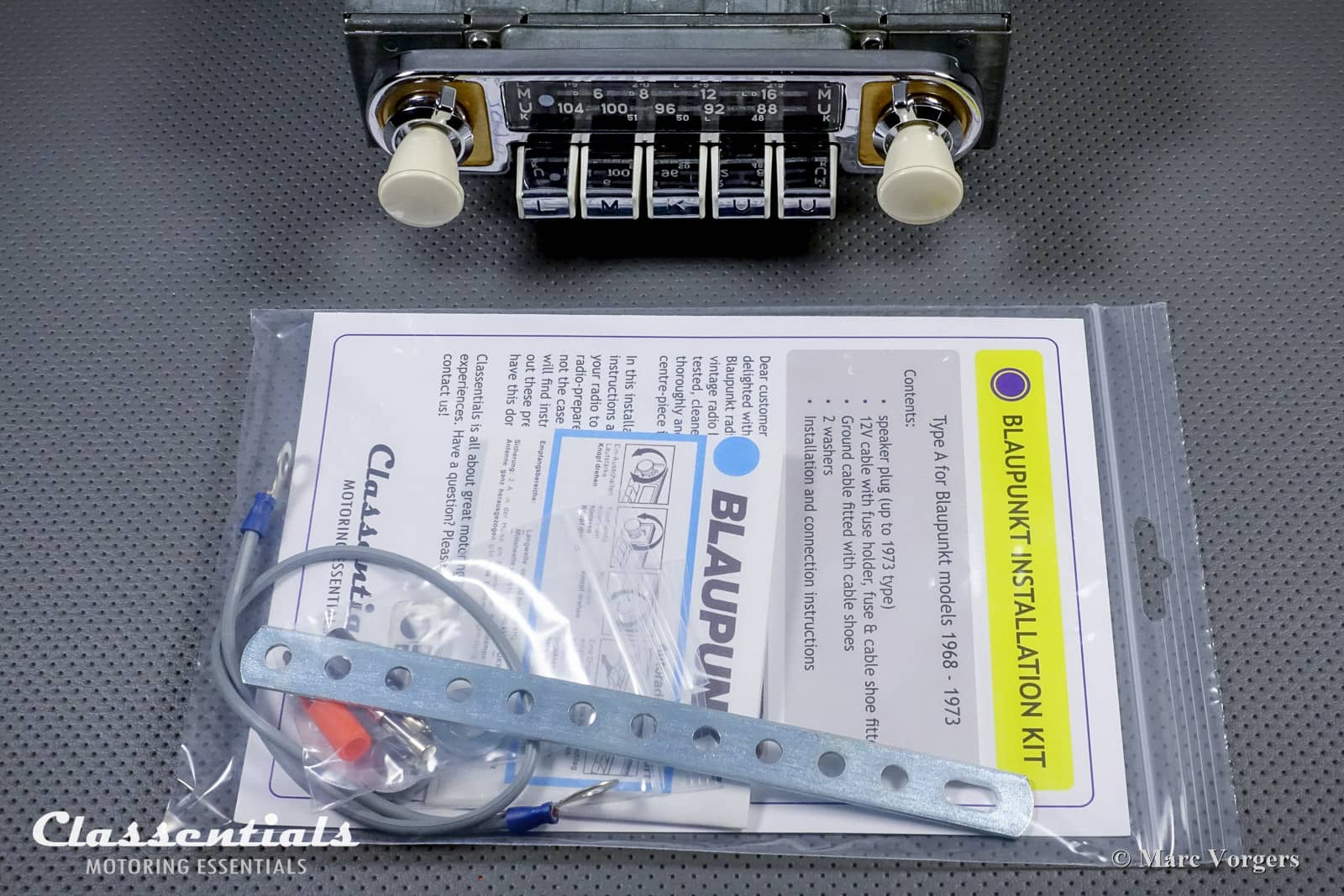

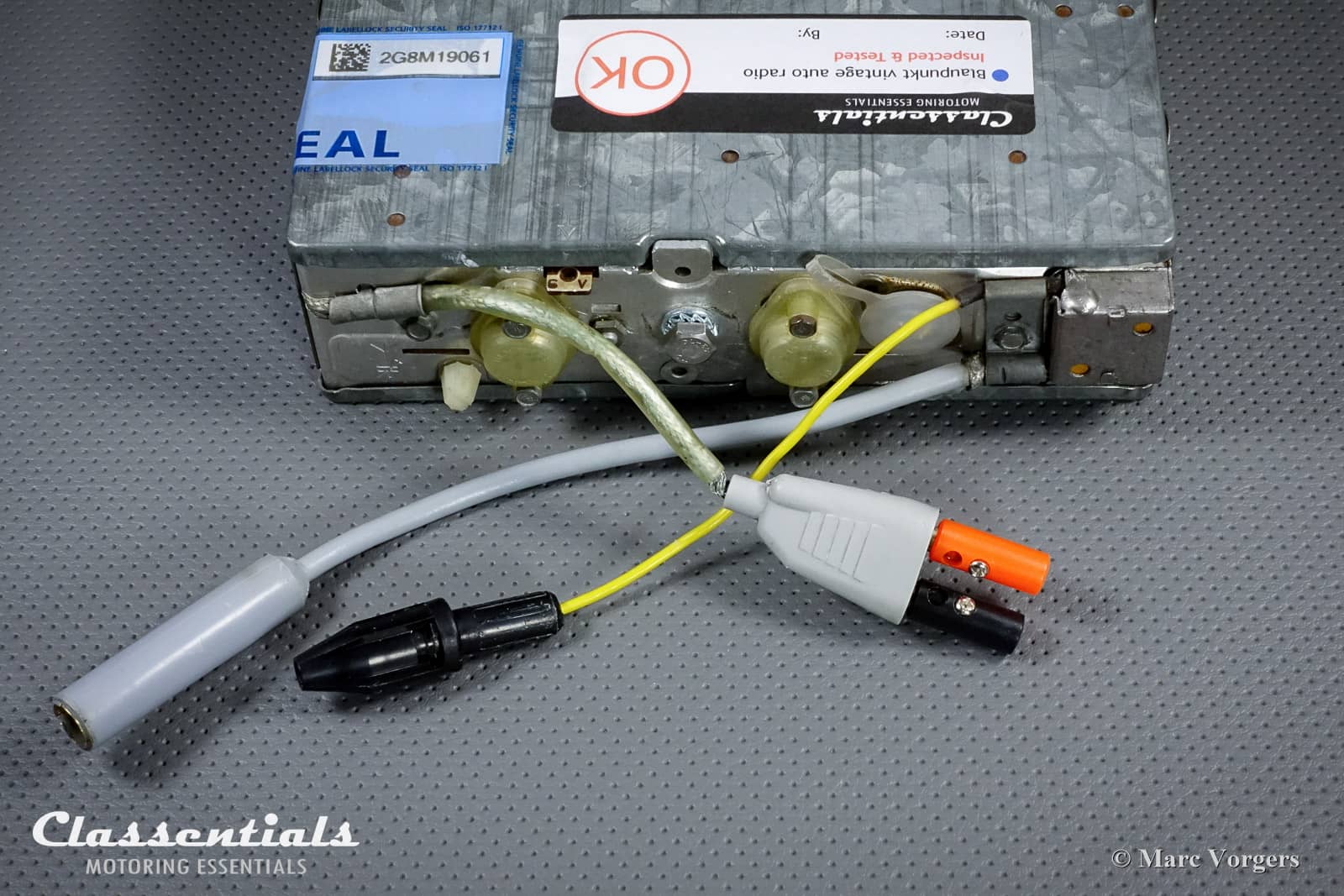

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, earth / ground cable, 6V/12V wire with fuse, cable shoes and a metal strip with 6 mm holes to form a rear radio support bracket if not present in your car.
Installing: Basic car conditions before installation: Radio prepared car with 1960s standard dashboard openings, 6V/12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

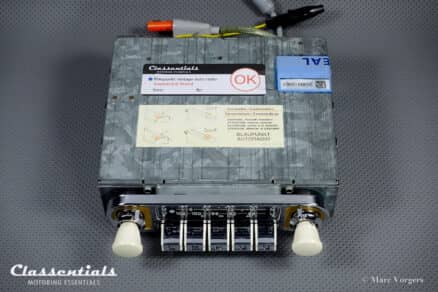

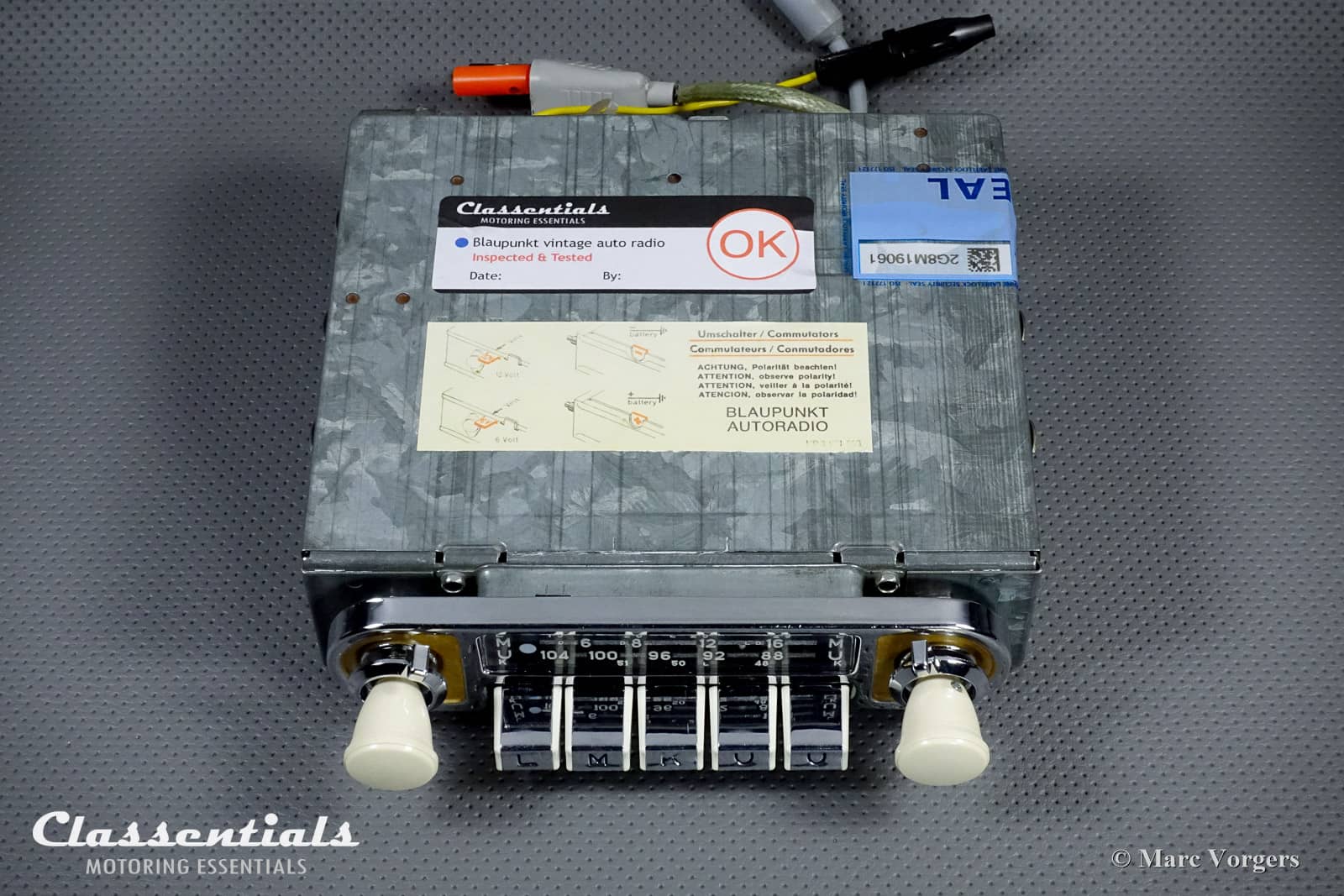

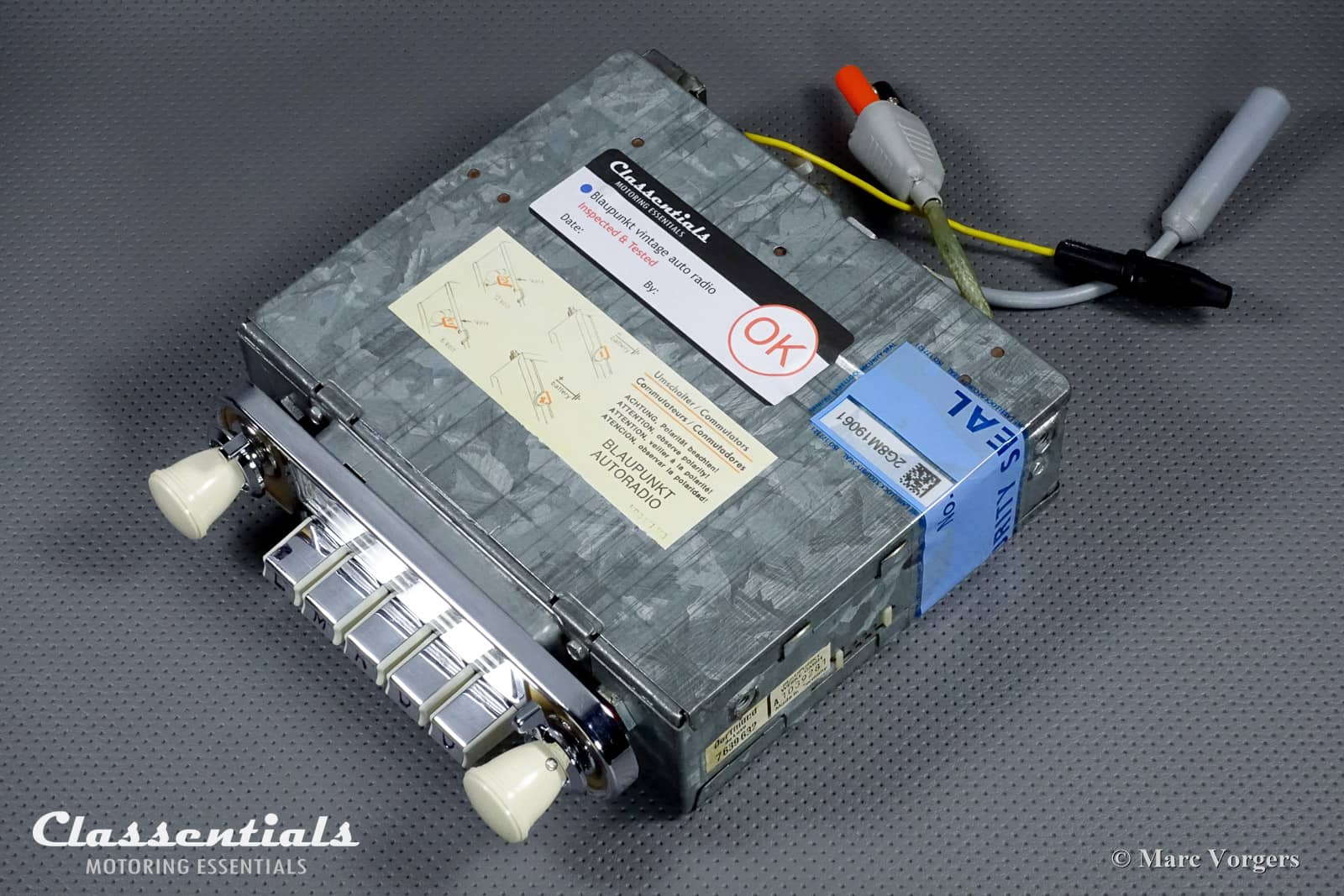

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
