Description

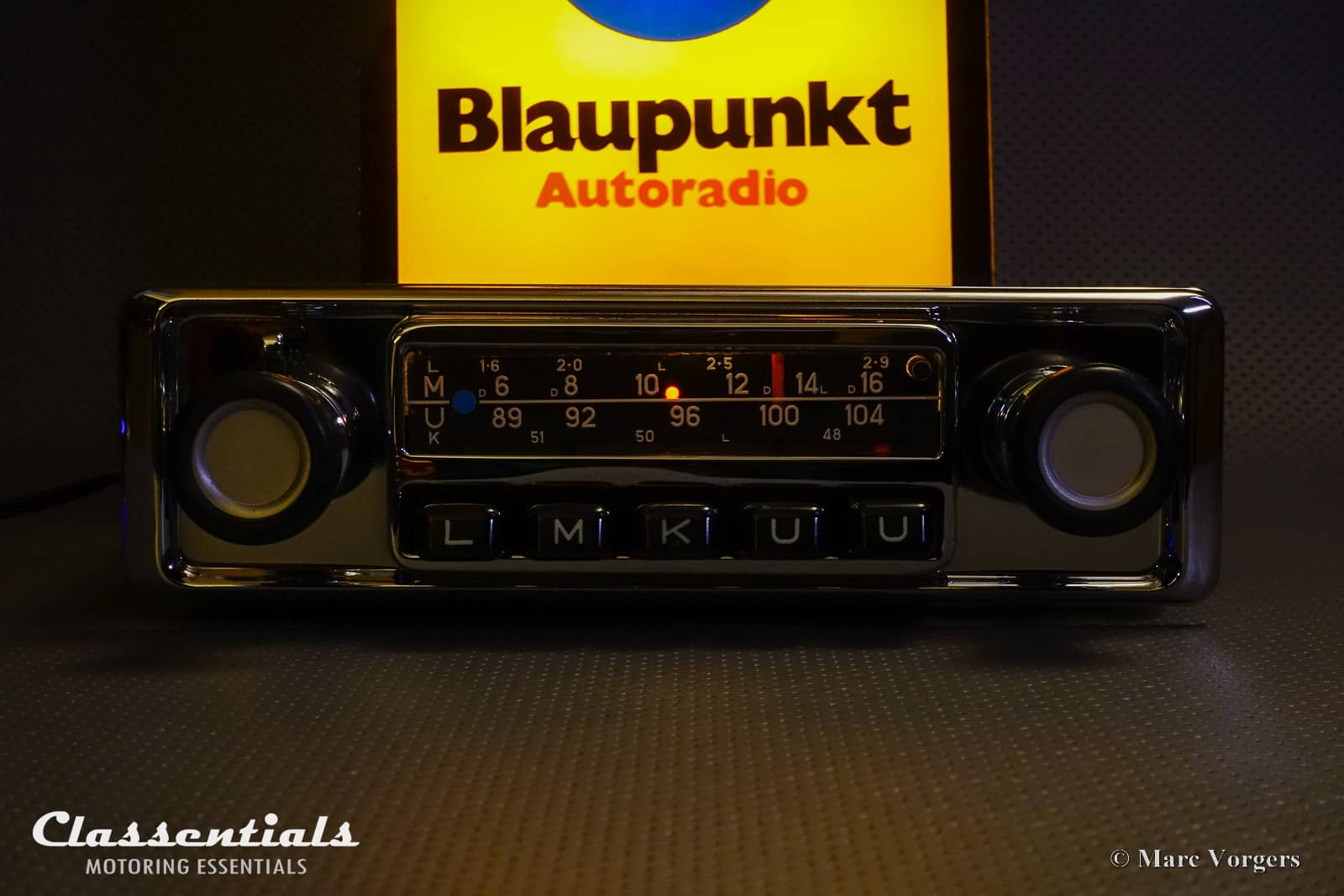

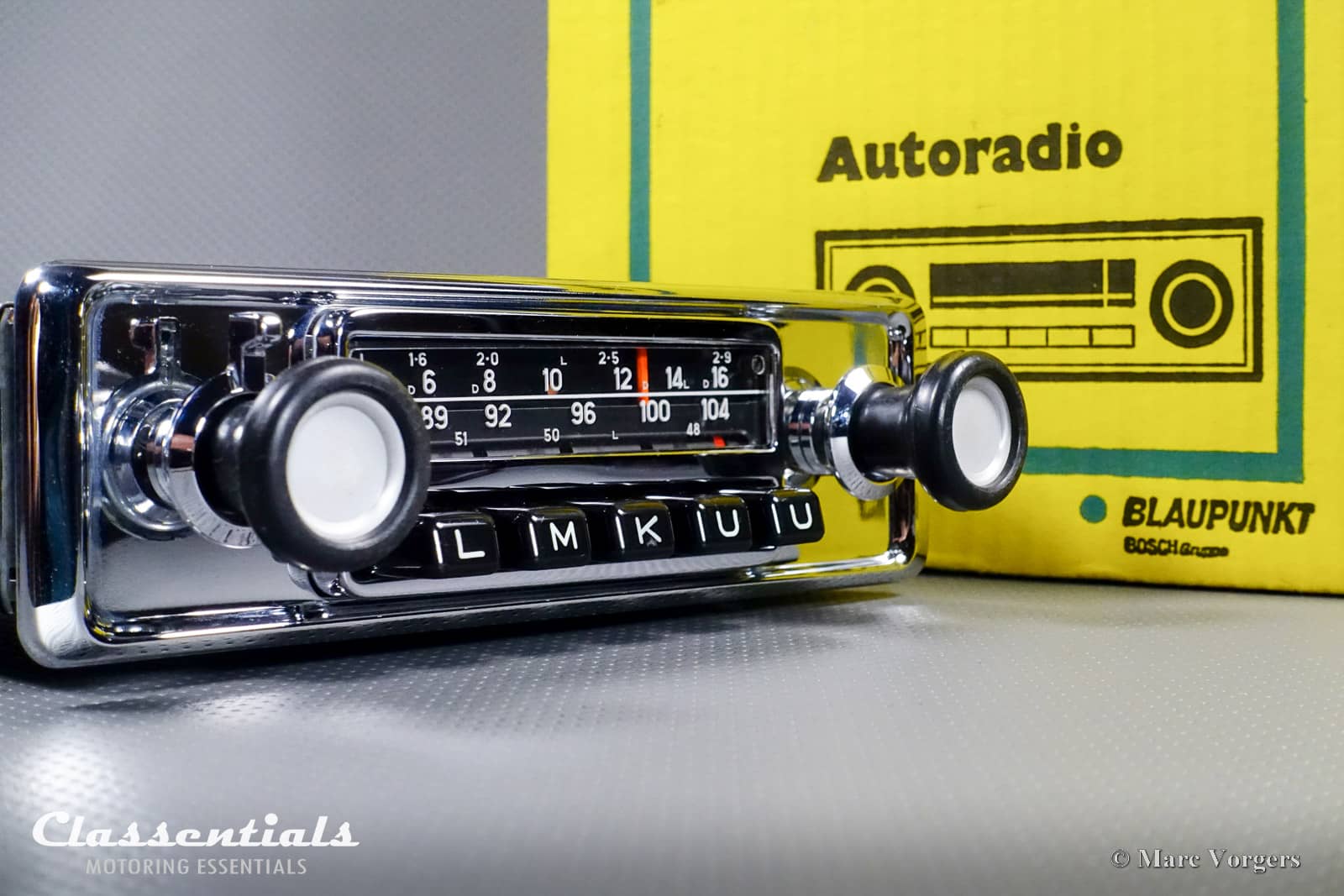

Make and Model: Blaupunkt Frankfurt (Type 7631 and 7632)
Classic Car era: 1968 – 1975

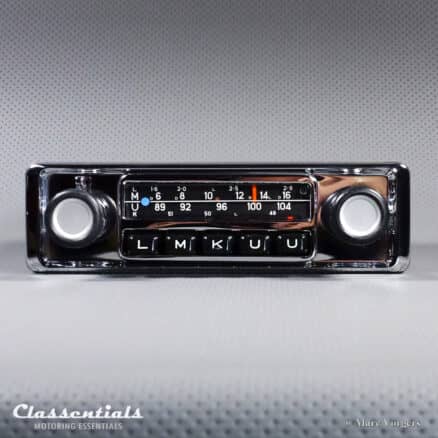

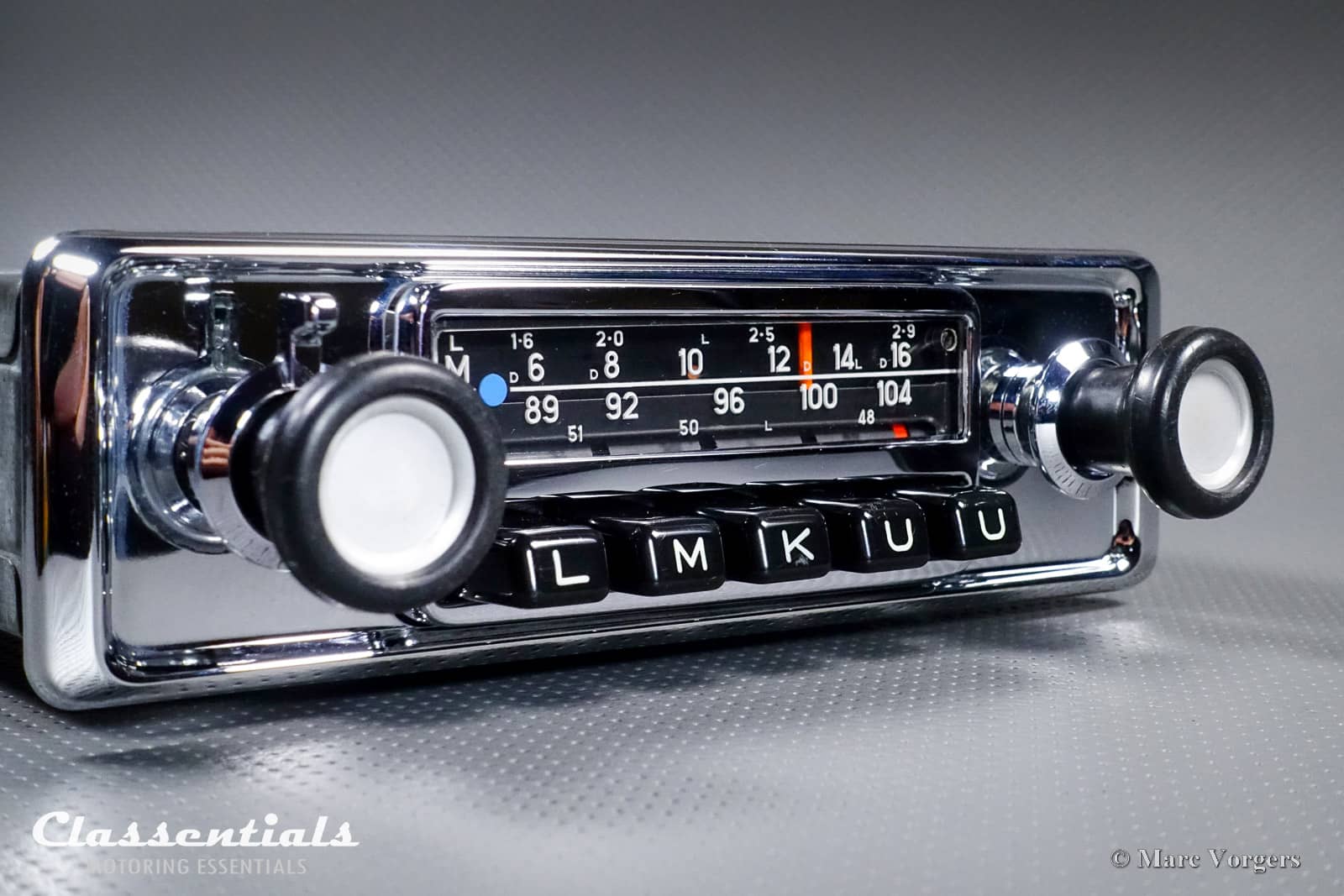

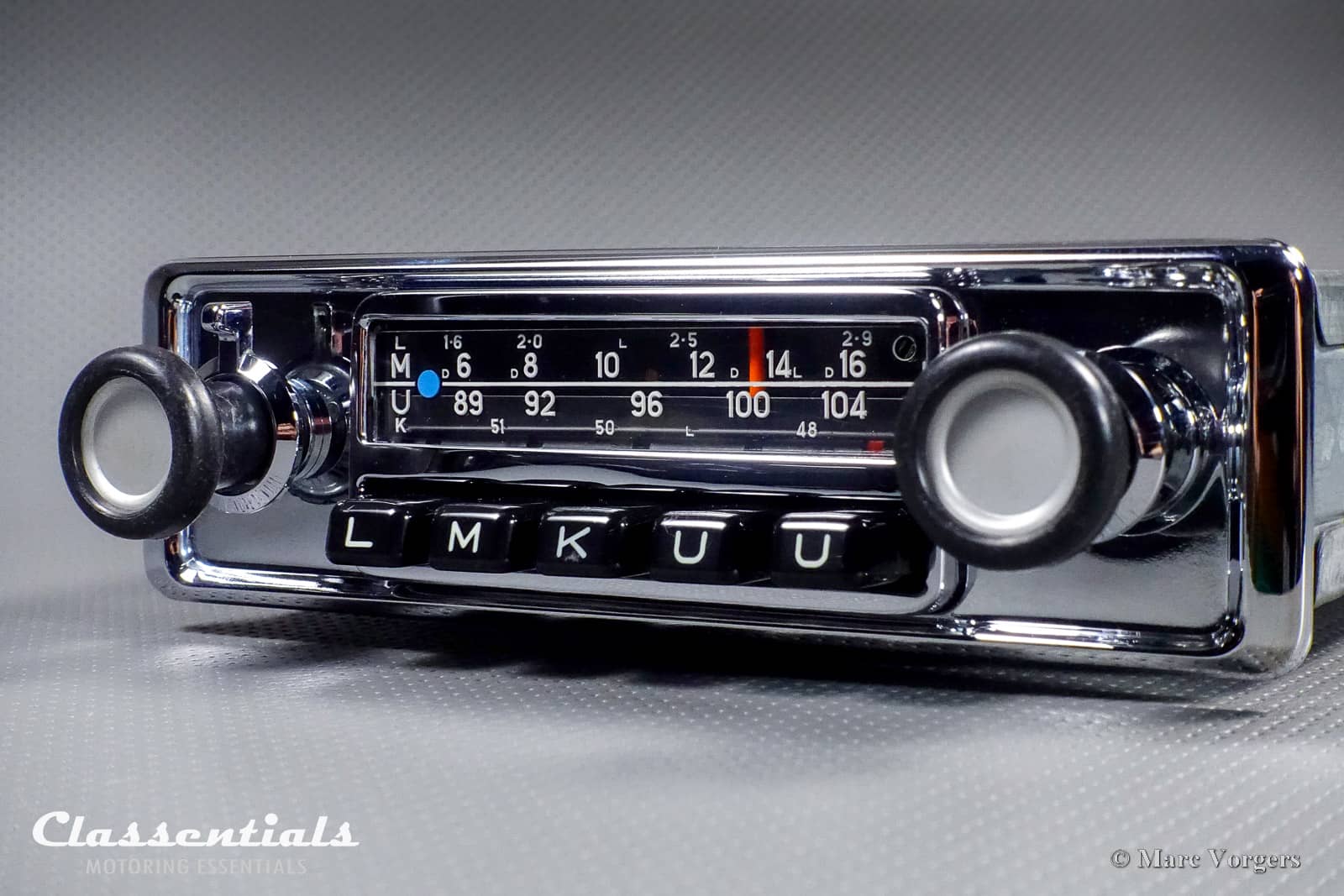

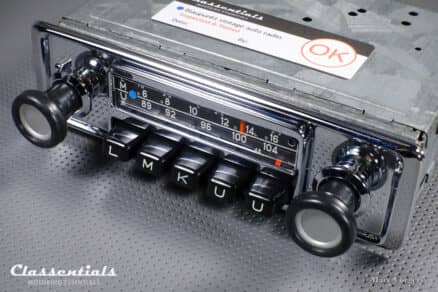

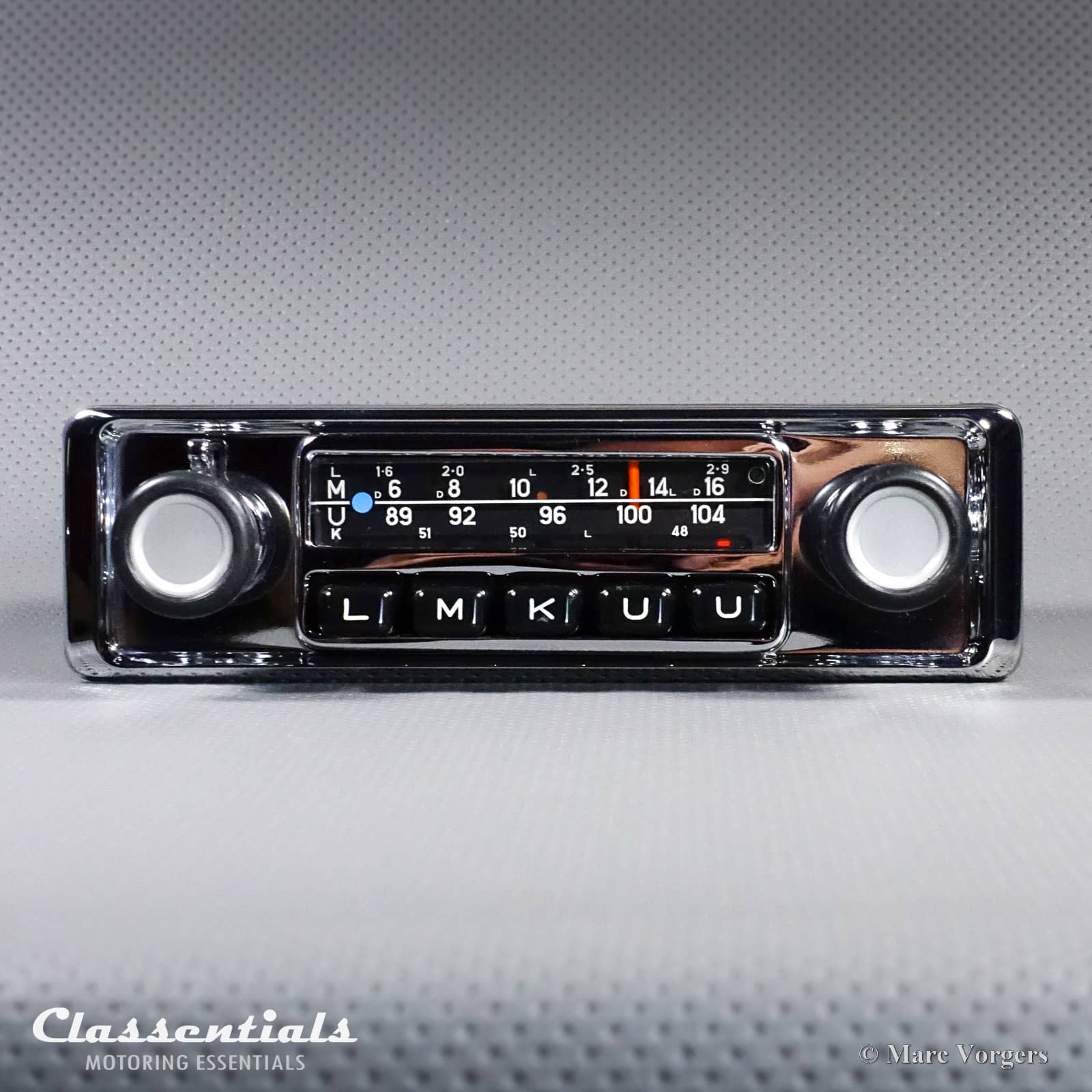

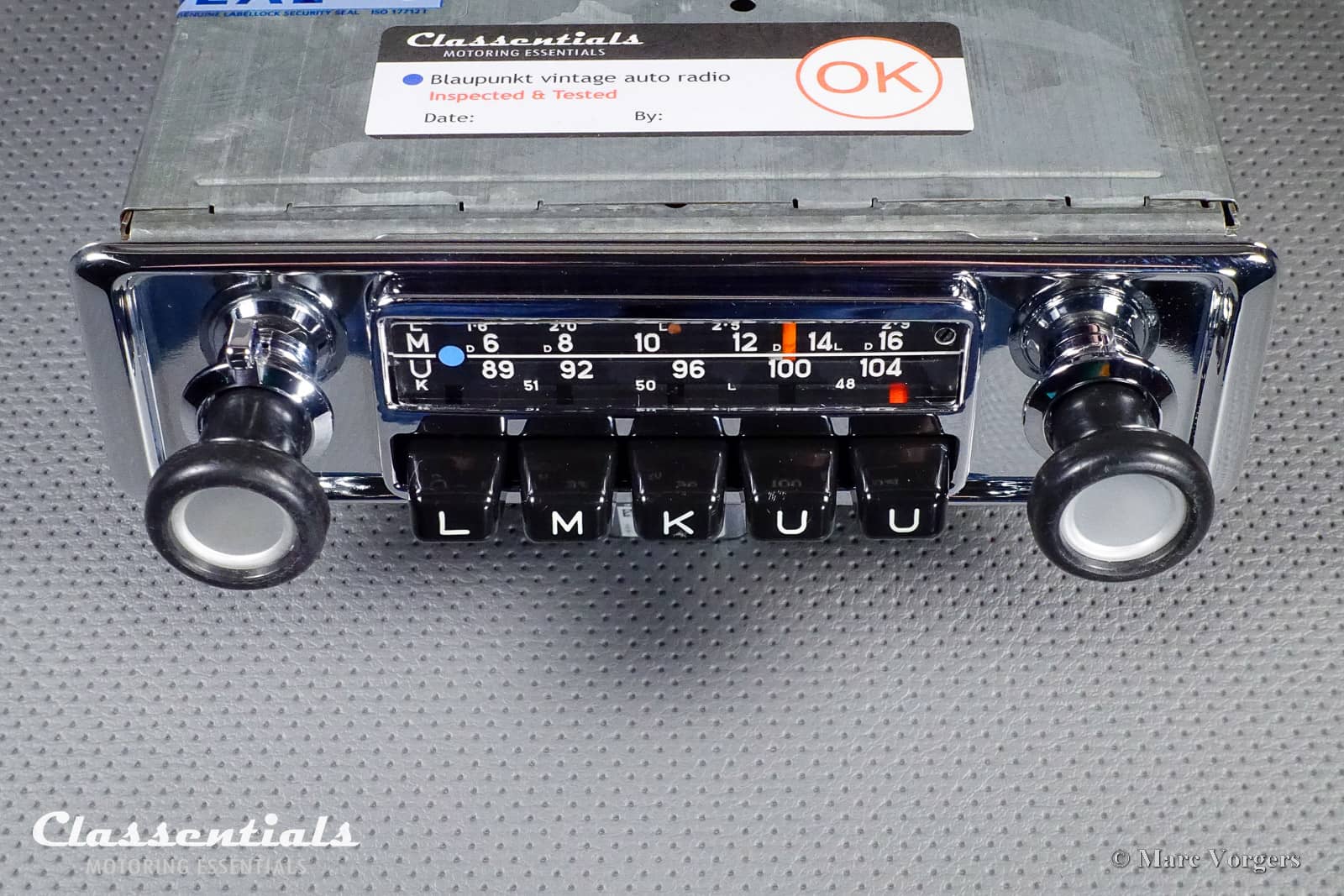

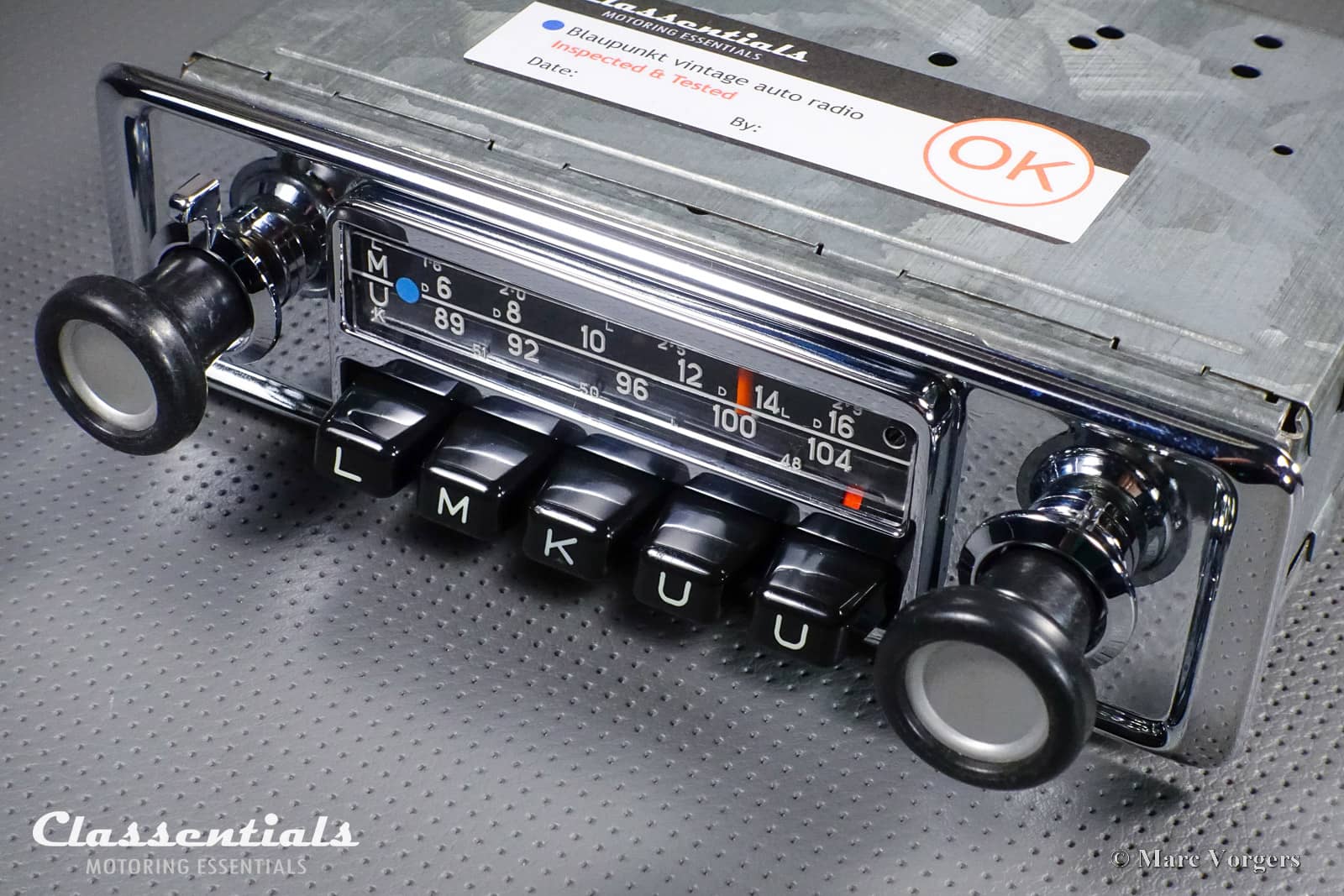

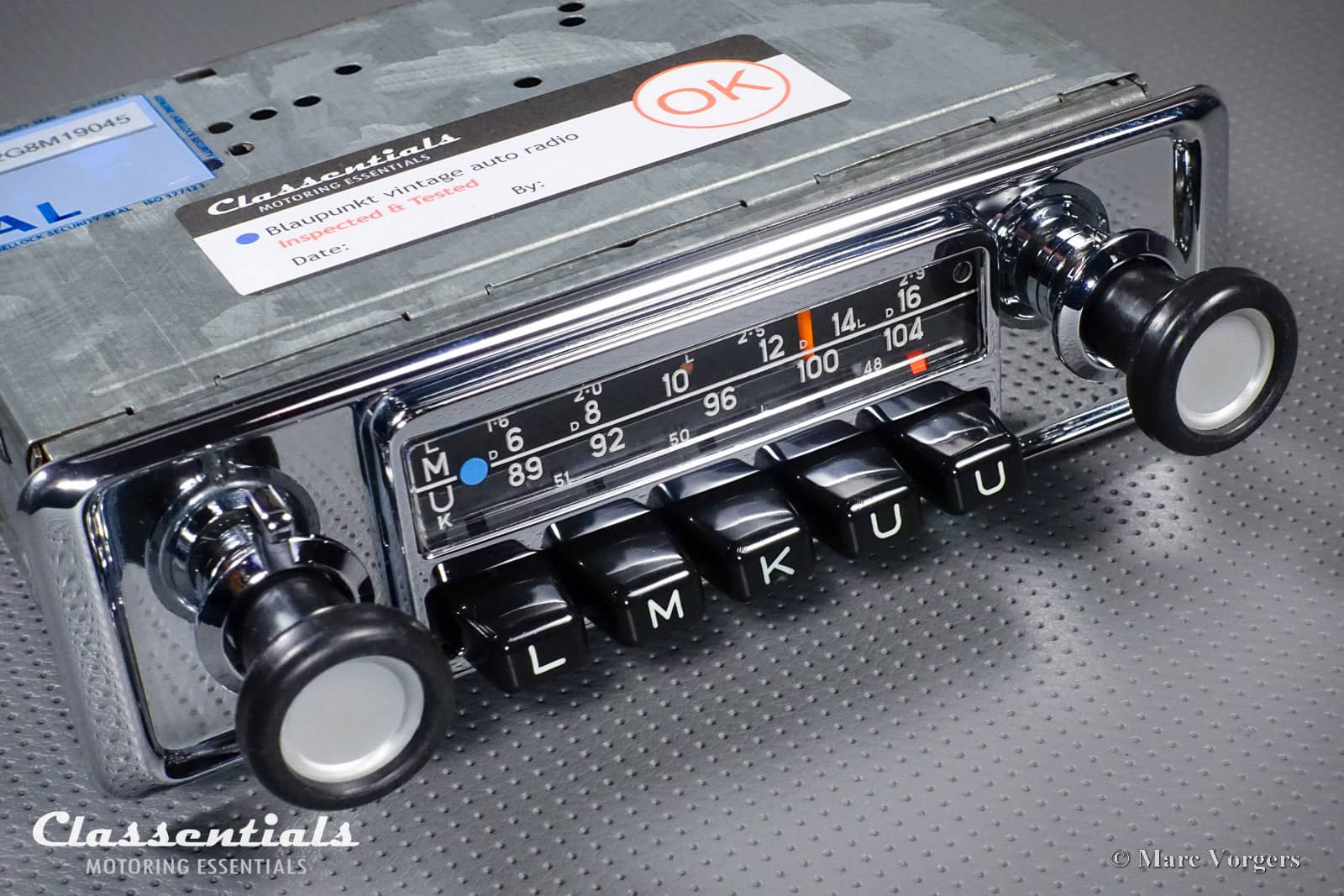

Face-plate: Face-plate: Metal chrome faceplate (size 186 x 54 mm / 7,3 x 2,1 inch) with late 1960s, early 1970s original BMW knobs. This fabulous radio will be a perfect fit in the old style dashboard radio aperture of 95 x 42 mm (3,75 x 1,75 inch) with two 11 mm (0,55 inch) radio shaft holes at 130 mm (5,15 inch) horizontal distance.
On-board voltage: 12V, Negative earth / ground only
Output power: 5 Watt nominal / 7 Watt music
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: long wave, medium wave, short wave, UKW (FM)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: station pre-set buttons (2 x FM), automatic aerial (antenna) connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials Deluxe Bluetooth module.
Design type: Transistor radio
Year of build: 1971 and 1972
Dimensions unit (width x height x depth in mm): 178 x 44 x 125 / 7 x 1,7 x 4,9 inch (depth = radio back to back of face-plate).
Dimensions face-plate (width x height): 186 x 54 mm (7,3 x 2,1 inch)
Weight (kg): 1.4

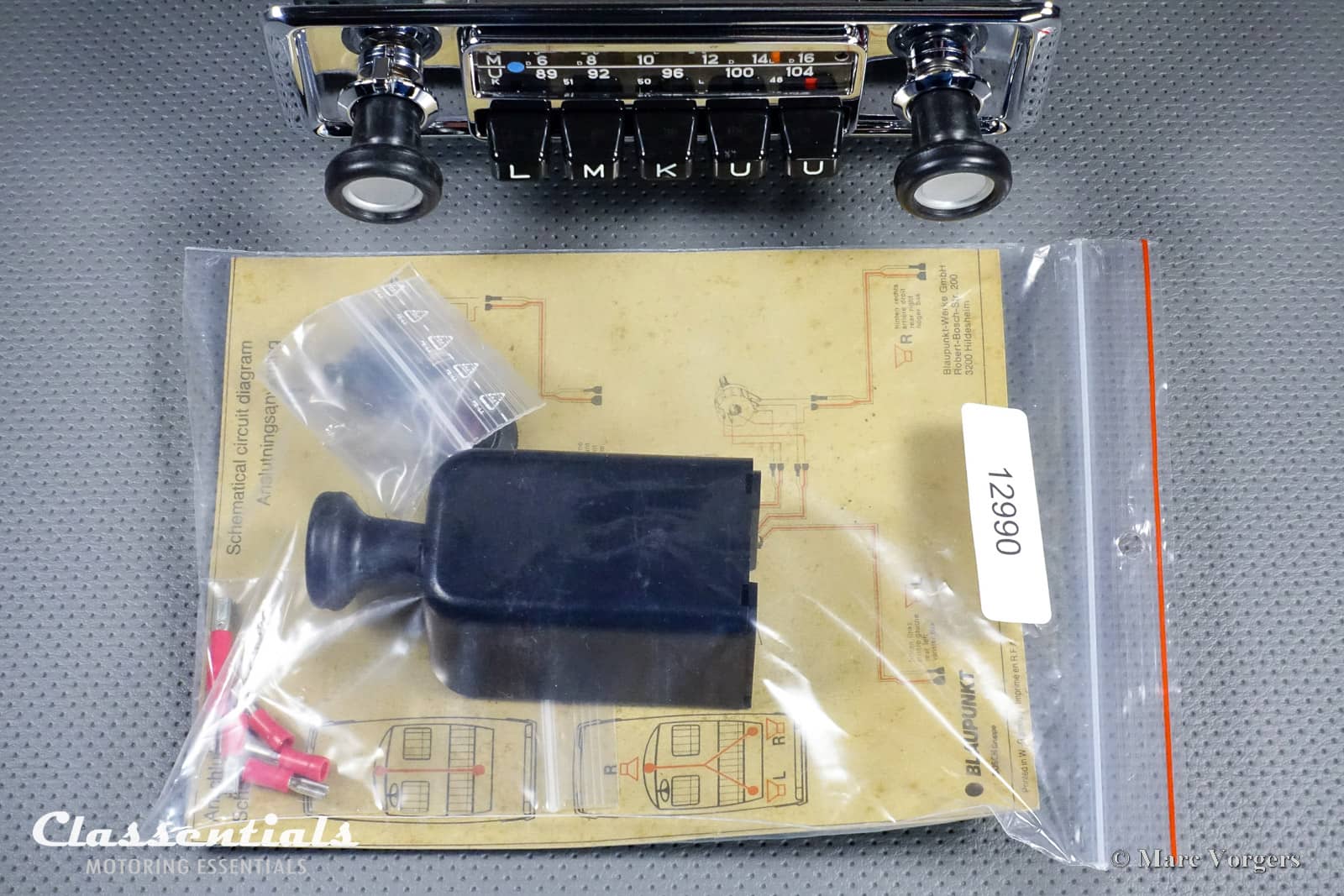

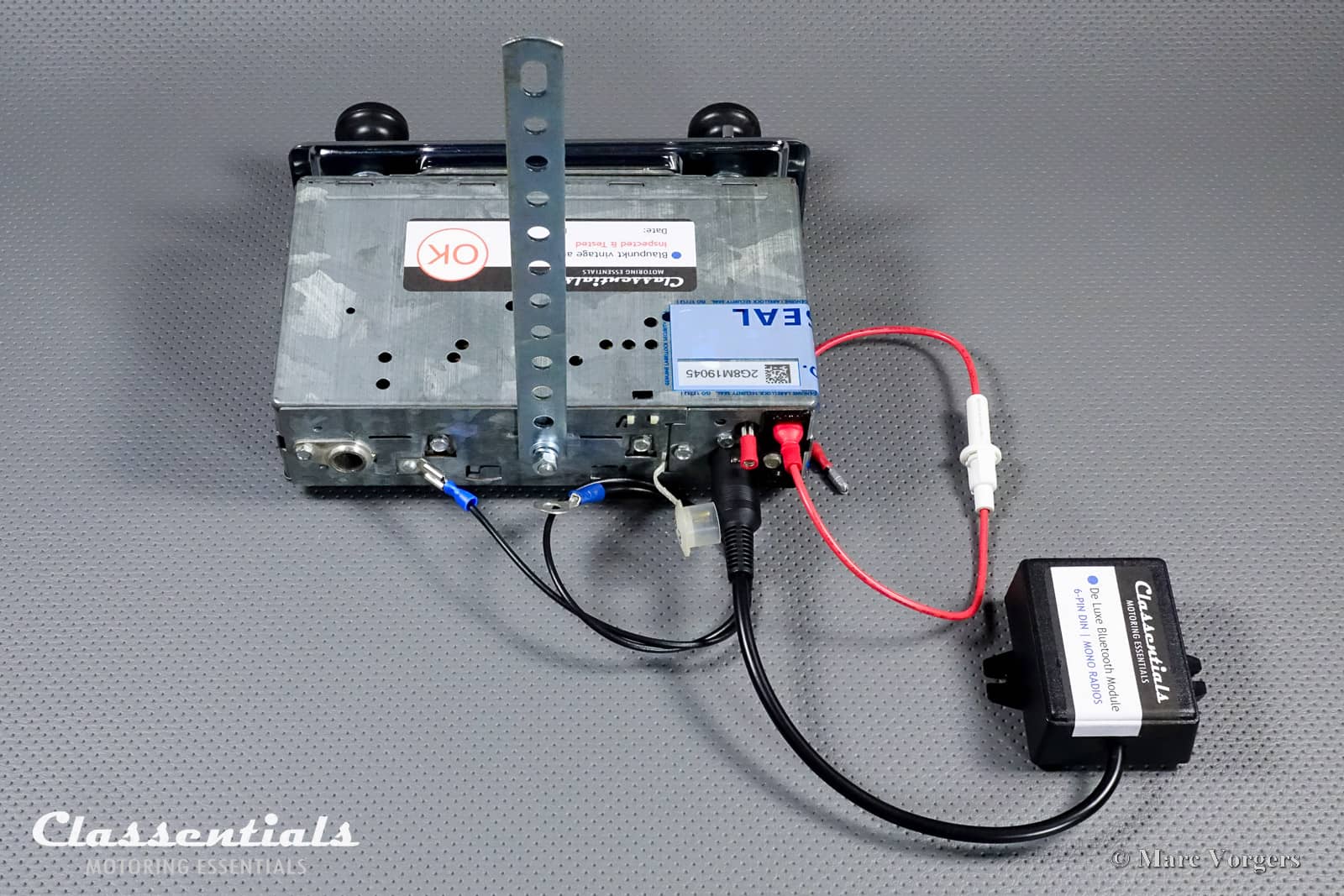

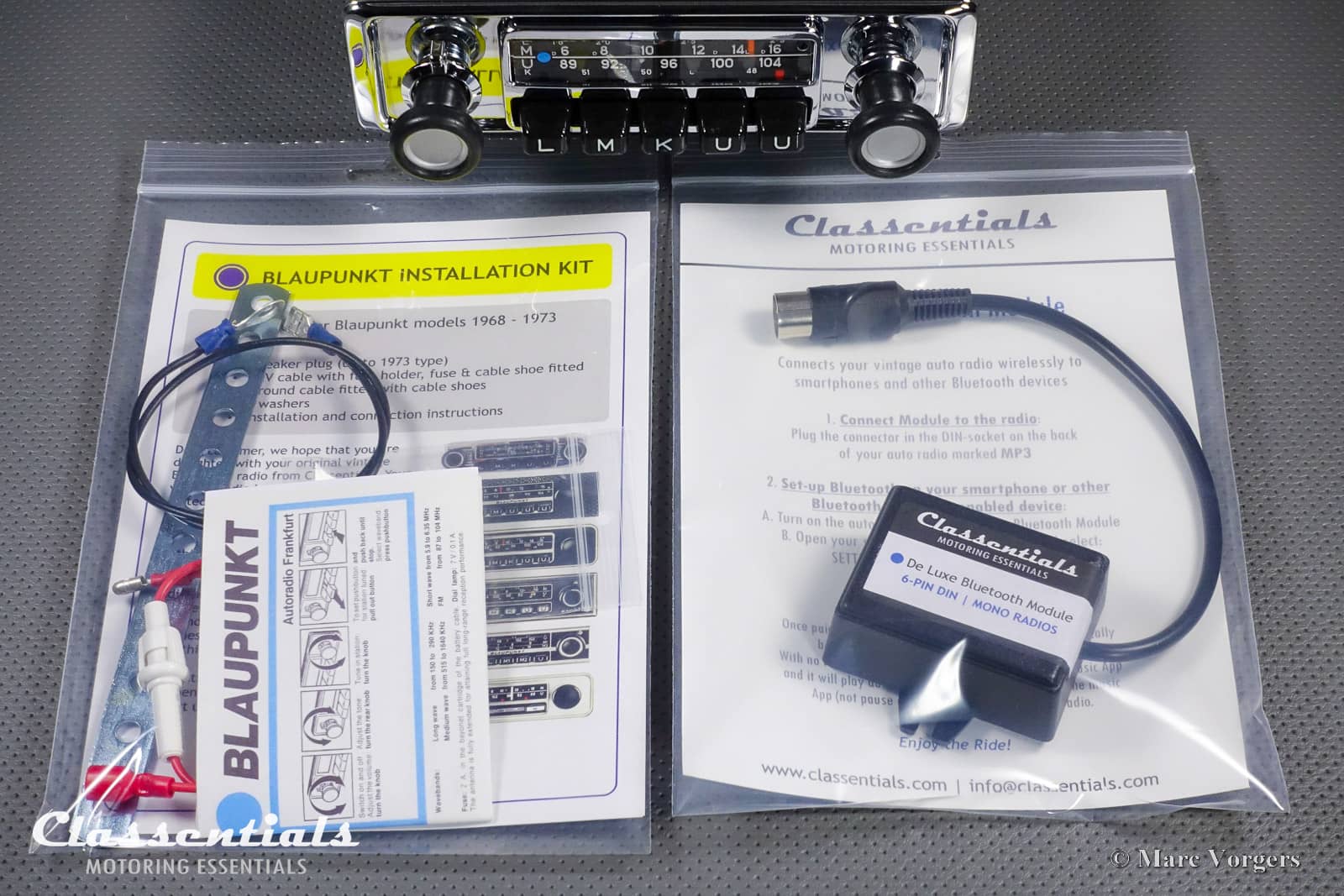

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, earth / ground cable and a rear mounting support (holed metal strip), see pictures.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

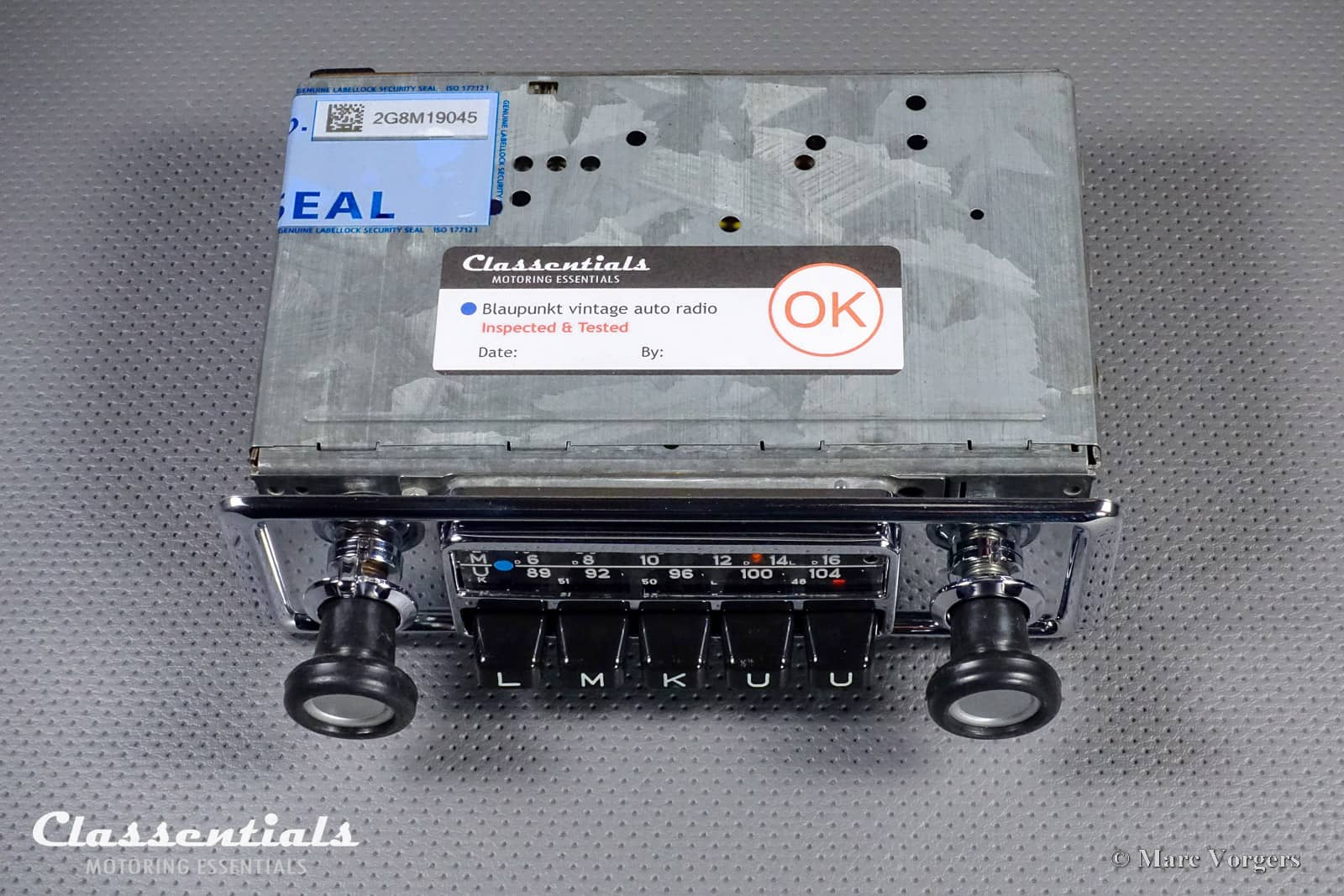

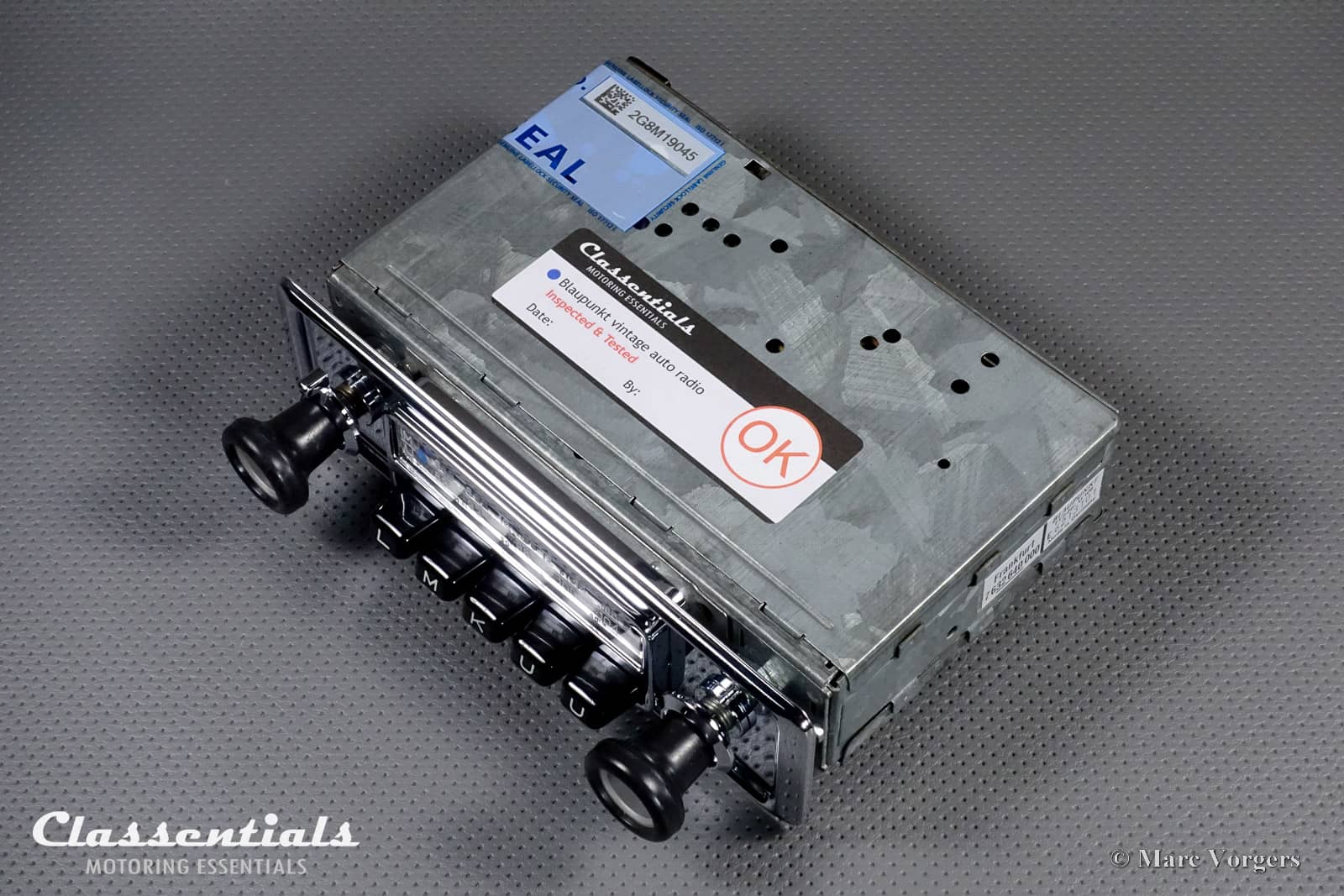

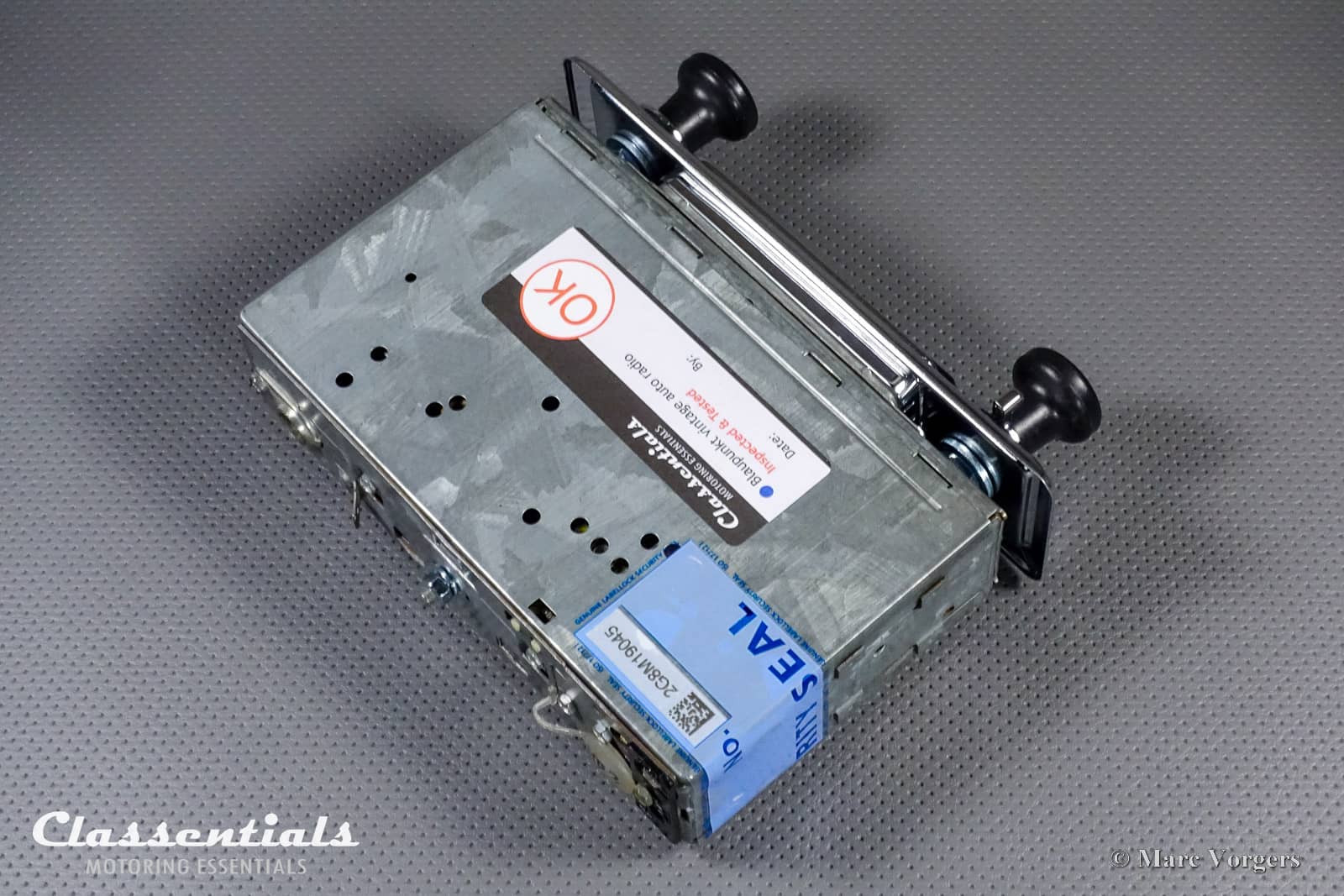

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
